This document defines events and related interfaces for handling hardware agnostic pointer input from devices like a mouse, pen, or touchscreen. For compatibility with existing mouse-based content, this specification also describes a mapping to fire [DOM-LEVEL-3-EVENTS] Mouse Events for pointer device types other than mouse.
This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.
This document was published by the Pointer Events Working Group as a First Public Working Draft. This document is intended to become a W3C Recommendation. If you wish to make comments regarding this document, please send them to public-pointer-events@w3.org (subscribe, archives). All feedback is welcome.
Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.
This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.
PointerEvent
Interfacepointerdown
eventpointerup
eventpointercancel
eventpointermove
eventpointerover
eventpointerout
eventpointerenter
eventpointerleave
eventgotpointercapture
eventlostpointercapture
eventElement
interfaceNavigator
interfaceThis section is non-normative.
Today, most [HTML5] content is used with and/or designed for mouse input. Those that handle input in a custom manner typically code to [DOM-LEVEL-3-EVENTS] Mouse Events. Newer computing devices today, however, incorporate other forms of input, like touchscreens or pen input. Event types have been proposed for handling each of these forms of input individually. However, that approach requires a step function in opportunity cost to authors when adding support for a new input type. This often creates a compatibility problem when content is written with only one device type in mind. Additionally, for compatibility with existing mouse-based content, most user agents fire Mouse Events for all input types. This makes it ambiguous whether a Mouse Event represents an actual mouse device or is being produced from another input type for compatibility, which makes it hard to code to both device types simultaneously.
To reduce the cost of coding to multiple input types and also to help with the above described ambiguity with Mouse Events, this specifications defines a more abstract form of input, called a pointer. A pointer can be any point of contact on the screen made by a mouse cursor, pen, touch (including multi-touch), or other pointing input device. This model makes it easy to write sites and applications that work well no matter what hardware the user has. For scenarios when device-specific handling is desired, this specification also defines properties for inspecting the device type which produced the event. The primary goal is to provide a single set of events and interfaces that allow for easy authoring for cross-device pointer input while still allowing for device-specific handling when necessary.
The events for handling generic pointer input look a lot like those for mouse: pointerdown, pointermove, pointerup, pointerover, pointerout, etc. This facilitates easy content migration from Mouse Events to Pointer Events. Pointer Events provide all the usual properties present in Mouse Events (client coordinates, target element, button states, etc.) in addition to new properties for other forms of input: pressure, contact geometry, tilt, etc. So authors can easily code to Pointer Events and their content just works no matter what input hardware is being used.
As well as sections marked as non-normative, all authoring guidelines, diagrams, examples, and notes in this specification are non-normative. Everything else in this specification is normative.
The key words must, must not, required, should, should not, recommended, may, and optional in this specification are to be interpreted as described in [RFC2119].
PointerEvent
Interface[Constructor]
interface PointerEvent : MouseEvent {
const unsigned short POINTER_TYPE_UNAVAILABLE = 0x00000001;
const unsigned short POINTER_TYPE_TOUCH = 0x00000002;
const unsigned short POINTER_TYPE_PEN = 0x00000003;
const unsigned short POINTER_TYPE_MOUSE = 0x00000004;
readonly attribute long pointerId;
readonly attribute long width;
readonly attribute long height;
readonly attribute float pressure;
readonly attribute long tiltX;
readonly attribute long tiltY;
readonly attribute long pointerType;
readonly attribute unsigned long long hwTimestamp;
readonly attribute boolean isPrimary;
};
pointerId
of type long, readonlyA unique identifier for the pointer causing the event. This identifier must be unique from all other active pointers at the time. A user agent may recycle previously retired values for pointerId
from previous active pointers, if necessary.
If the device producing the event is a mouse, then the pointerId
must be 1. Device types other than mouse must not have a pointerId
of 1.
width
of type long, readonlyheight
of type long, readonlypressure
of type float, readonlytiltX

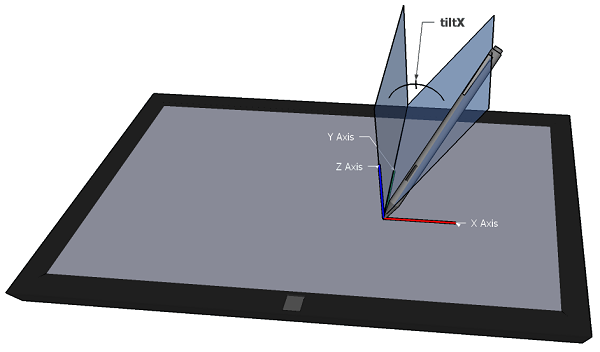

of type long, readonlyThe plane angle (in degrees, in the range of [-90,90]) between the Y-Z plane and the plane containing both the transducer (e.g. pen stylus) axis and the Y axis. A positive tiltX
is to the right. tiltX
can be used along with tiltY
to represent the tilt away from the normal of a transducer with the digitizer. For devices that do not report tilt, the value must be 0.

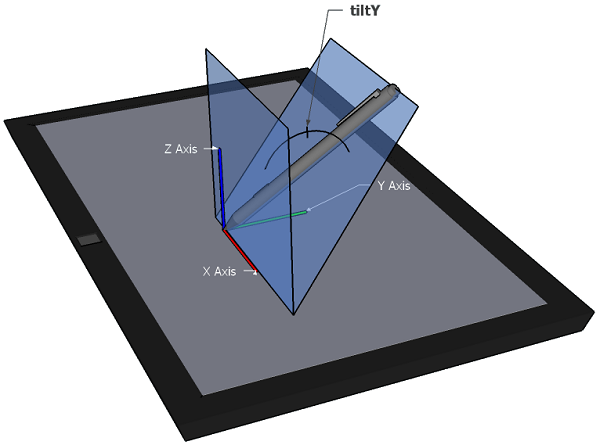

tiltY
of type long, readonlytiltY
is towards the user. tiltY
can be used along with tiltX
to represent the tilt away from the normal of a transducer with the digitzer. For devices that do not report tilt, the value must be 0.
pointerType
of type long, readonlyPointerEvent
interface.
hwTimestamp
of type unsigned long long, readonlyhwTimestamp
equals 0) is hardware and/or operating system dependent. If the hardware does not provide a high resolution timestamp, then the value must be 0.
isPrimary
of type boolean, readonlyPOINTER_TYPE_UNAVAILABLE
of type unsigned shortpointerType
when the device type being used cannot be detected by the user agent.
POINTER_TYPE_TOUCH
of type unsigned shortpointerType
when the device being used can be detected and is a touchscreen.
POINTER_TYPE_PEN
of type unsigned shortpointerType
when the device being used can be detected and is a pen stylus.
POINTER_TYPE_MOUSE
of type unsigned shortpointerType
when the device being used can be detected and is a mouse.
In a multi-pointer (e.g. multi-touch) scenario, the primary pointer is used to identify a master pointer amongst the set of active pointers. This pointer is the one that will produce compatibility mouse events. It is also useful when single-pointer interaction is desired by an author.
The primary pointer is indicated on events by a value of true
for the isPrimary
property.
pointerdown
event was dispatched when no other active pointers representing touch input existed.pointerdown
event was dispatched when no other active pointers representing pen input existed.false
for isPrimary
.This section is non-normative.
The following table provides a summary of the event types defined in this specification.
Event Type | Sync/Async | Bubbles | Cancellable | Trusted proximal event target types | Event object interface | Default Action |
---|---|---|---|---|---|---|
pointerdown |
Sync | Yes | Yes | Document , Element |
PointerEvent |
Varies: when the pointer is primary, all default actions of the mousedown event |
pointerup |
Sync | Yes | Yes | Document , Element |
PointerEvent |
Varies: when the pointer is primary, all default actions of mouseup |
pointercancel |
Sync | Yes | Yes | Document , Element |
PointerEvent |
None |
pointermove |
Sync | Yes | Yes | Document , Element |
PointerEvent |
Varies: when the pointer is primary, all default actions of mousemove |
pointerover |
Sync | Yes | Yes | Document , Element |
PointerEvent |
Varies: when the pointer is primary, all default actions of mouseover |
pointerout |
Sync | Yes | Yes | Document , Element |
PointerEvent |
Varies: when the pointer is primary, all default actions of mouseout |
pointerenter |
Sync | No | Yes | Document , Element |
PointerEvent |
Varies: when the pointer is primary, all default actions of mouseenter |
pointerleave |
Sync | No | Yes | Document , Element |
PointerEvent |
Varies: when the pointer is primary, all default actions of mouseleave |
gotpointercapture |
Async | Yes | No | Element |
PointerEvent |
None |
lostpointercapture |
Async | Yes | No | Element |
PointerEvent |
None |
pointerdown
eventA user agent must dispatch this event when a pointer enters the active buttons state. For mouse, this is when the the device transitions from no buttons depressed to at least one button depressed. For touch, this is when physical contact is made with the digitizer. For pen, this is when the stylus makes physical contact with the digitizer.
For input devices that do not support hover, a user agent must also fire a pointerover
event proceeding the pointerdown
event.
pointerdown
and pointerup
are dispatched differently than mousedown
and mouseup
. See chorded buttons for more information.pointerup
eventFor input devices that do not support hover, a user agent must also fire a pointerout
event after firing the pointerup
event.
pointerdown
and pointerup
are dispatched differently than mousedown
and mouseup
. See chorded buttons for more information.pointercancel
eventpointerdown
event, the pointer is subsequently used to manipulate the page viewport (e.g. panning or zooming).A user agent must also fire a pointerout
event after firing the pointercancel
event.
This section is non-normative.
Examples of scenarios in which a user agent might determine that a pointer is unlikely to continue to produce events include:
Methods for changing the device’s screen orientation, recognizing accidental input, or using a pointer to manipulate the viewport (e.g. panning or zooming) are out of scope for this specification.
pointermove
eventwidth
and height
).pointerover
eventpointerdown
event for devices that do not support hover.pointerout
eventpointerup
event for a device that does not support hoverpointercancel
eventpointerenter
eventpointerdown
event from a device that does not support hover. This event type is similar to pointerover
, but differs in that it does not bubble.mouseenter
event described in [DOM-LEVEL-3-EVENTS], and the CSS :hover
pseudo-class described in [CSS21]. See also the pointerleave
event.pointerleave
eventpointerup
event from a device that does not support hover. This event type is similar to pointerout
, but differs in that it does not bubble and that it must not be dispatched until the pointing device has left the boundaries of the element and the boundaries of all of its children.mouseleave
event described in [DOM-LEVEL-3-EVENTS], and the CSS :hover
pseudo-class described in [CSS21]. See also the pointerenter
event.gotpointercapture
eventsetPointerCapture()
.lostpointercapture
eventreleasePointerCapture()
.Element
interfacepartial interface Element {
void setPointerCapture (long pointerId);
void releasePointerCapture (long pointerId);
attribute EventHandler onpointerdown;
attribute EventHandler onpointermove;
attribute EventHandler onpointerup;
attribute EventHandler onpointercancel;
attribute EventHandler onpointerover;
attribute EventHandler onpointerout;
attribute EventHandler onpointerenter;
attribute EventHandler onpointerleave;
attribute EventHandler ongotpointercapture;
attribute EventHandler onlostpointercapture;
};
onpointerdown
of type EventHandlerpointerdown
event type.
onpointermove
of type EventHandlerpointermove
event type.
onpointerup
of type EventHandlerpointerup
event type.
onpointercancel
of type EventHandlerpointercancel
event type.
onpointerover
of type EventHandlerpointerover
event type.
onpointerout
of type EventHandlerpointerout
event type.
onpointerenter
of type EventHandlerpointerenter
event type.
onpointerleave
of type EventHandlerpointerleave
event type.
ongotpointercapture
of type EventHandlergotpointercapture
event type.
onlostpointercapture
of type EventHandlerlostpointercapture
event type.
setPointerCapture
Sets pointer capture for the pointer identified by the argument pointerId
to the element on which this method is invoked. Subsequent events for the pointer must always be targeted at this element.
Parameter | Type | Nullable | Optional | Description |
---|---|---|---|---|
pointerId | long | ✘ | ✘ |
void
releasePointerCapture
Releases pointer capture for the pointer identified by the argument pointerId
from the element on which this method is invoked. Subsequent events for the pointer follow normal hit testing mechanisms (out of scope for this specification) for determining the event target.
Parameter | Type | Nullable | Optional | Description |
---|---|---|---|---|
pointerId | long | ✘ | ✘ |
void
For touch input, the default action of any and all pointer events must not be a manipulation of the viewport (e.g. panning or zooming).
touch-action
CSS propertyName: | touch-action |
---|---|
Value: | auto | none | inherit |
Initial: | auto |
Applies to: | block-level elements, SVG elements |
Inherited: | no |
Percentages: | N/A |
Media: | visual |
Computed value: | Same as specified value. |
touch-action
CSS property determines whether touch input may trigger default behavior supplied by user agent. This includes, but is not limited to, behaviors such as panning or zooming.Values have the following meanings:
A user agent must dispatch a pointercancel
(and subsequently a pointerout
event) whenever all of the following are true:
pointerdown
event has been sent for the pointer, andpointerup
or pointercancel
event (following the above mentioned pointerdown
) has not yet been sent for the pointer.During the execution of the behavior (after sending the pointercancel
and pointerout
events), the user agent must not dispatch subsequent pointer events for the pointer.
Pointer capture allows the events for a particular pointer to be retargeted to a particular element other than the normal hit-test result of the pointer's location. This is useful in scenarios like a custom slider control (e.g. similar to the [HTML5] <input type="range">
control). Pointer capture can be set on the slider thumb element, allowing the user to slide the control back and forth even if the pointer slides off of the thumb.
element.setPointerCapture(pointerId)
method. When this method is called, a user agent must run the following steps:
pointerId
provided as the method's argument does not match any of the active pointers, then throw a DOMException
with the name InvalidPointerId
.target
property of all future pointer and compatibility mouse events for the specified pointerId
to the Element
on which this method was invoked.relatedTarget
property of all future pointer and compatibility mouse events for the specified pointerId
to null
.gotpointercapture
event at the Element
on which this method was invoked.element.releasePointerCapture(pointerId)
method. When this method is called, a user agent must run the following steps:
pointerId
provided as the method's argument does not match any of the active pointers, then throw a DOMException
with the name InvalidPointerId
.pointerId
, resume setting the target
property to the hit-test results (out of scope for this specification) for the pointer.lostpointercapture
event at the Element
on which this method was invoked.pointerup
event, a user agent must run the steps as if the releasePointerCapture()
method has been called with an argument equal to the pointerId
property of the pointerup
event just dispatched.
The vast majority of web content existing today codes only to Mouse Events. The following describes the algorithm for how a user agent may map generic pointer input to mouse events for compatibility with this content. Unless otherwise noted, the target of any mapped mouse event may be the same as the target for the pointer event from which it was mapped.
Authors can prevent the production of compatibility mouse events by cancelling the pointerdown
event.
The compatibility mapping with mouse events are an optional feature of this specification. User agents are encouraged to support the feature for best compatibility with existing legacy content. User agents that do not support compatibility mouse events are still encouraged to support the click
event (see the note below).
The click
event is defined in [DOM-LEVEL-3-EVENTS] and is not considered a compatibility mouse event as it is typically tied to user interface activation.
In user agents that support firing click
, calling preventDefault
during a pointer event typically does not have an effect on whether click
is fired or not. Because it is not a compatibility mouse event, user agents typically fire click
for all pointing devices, including pointers that are not primary pointers.
isPrimary
property for the pointer event to be dispatched is false
then dispatch the pointer event and terminate these steps.pointerdown
and the event was cancelled, then set the PREVENT MOUSE EVENT flag.pointerover
,
mouseover
event, andmouseenter
event.pointerout
mouseout
event, andmouseleave
event.pointerdown
, then dispatch a mousedown
event.pointermove
, then dispatch a mousemove
event.pointerup
, then dispatch a mouseup
event.pointercancel
, then dispatch a mouseup
event at the window
.pointerup
or pointercancel
, clear the PREVENT MOUSE EVENT flag.mouseover
and mouseout
events are never prevented (even if the pointer is down).mousemove
event on an element before clicking itisPrimary
property for the pointer event to be dispatched is false
then dispatch the pointer event and terminate these steps.pointerover
and the pointerdown
event has not yet been dispatched for this pointer, then dispatch a mousemove
event.pointerdown
and the event was cancelled, then set the PREVENT MOUSE EVENT flag.pointerover
,
mouseover
event, andmouseenter
event.pointerout
mouseout
event, andmouseleave
event.pointerdown
, then dispatch a mousedown
event.pointermove
, then dispatch a mousemove
event.pointerup
, then dispatch a mouseup
event.pointercancel
, then dispatch a mouseup
event at the window
.pointerup
or pointercancel
, clear the PREVENT MOUSE EVENT flag.mouseover
and mouseout
events are never prevented (even if the pointer is down).This section is non-normative.
The following are example author code that demonstrates how the APIs in this specification might be used.
<style> /* Disable intrinsic user agent touch behaviors (such as panning or zooming) so that all events are given to the application instead. */ html { touch-action: none; } </style> <canvas id="drawSurface" width="500px" height="500px" style="border:1px solid black;"></canvas> <script type='text/javascript'> window.addEventListener('load', function() { var canvas = document.getElementById("drawSurface"), context = canvas.getContext("2d"); if (window.navigator.pointerEnabled) { canvas.addEventListener("pointermove", paint, false); if(window.navigator.maxTouchPoints>1) alert("Your user agent and hardware support multi-touch!"); } else { //Provide fallback for user agents that do not support Pointer Events canvas.addEventListener("mousemove", paint, false); } function paint(event) { if(event.buttons>0) context.fillRect(event.clientX, event.clientY, 5, 5); } }); </script>
window.addEventListener("pointerdown", detectInputType, false); function detectInputType(event) { switch(event.pointerType) { case event.POINTER_TYPE_MOUSE: alert("You used a mouse!"); break; case event.POINTER_TYPE_PEN: alert("You used a pen stylus!"); break; case event.POINTER_TYPE_TOUCH: alert("You used touch!"); break; case event.POINTER_TYPE_UNAVAILABLE: alert("Not sure what device was used!"); break; } }
<div style="position:absolute; top:0px; left:0px; width:100px;height:100px;"></div> <script> window.addEventListener("pointerdown", checkPointerSize, false); function checkPointerSize(event) { event.target.style.width = event.width + "px"; event.target.style.height = event.height + "px"; } </script>
buttons
property. For mouse, this is when the device has at least one button depressed. For touch, this is when there is physical contact with the digitizer. For pen, this is when the pen has physical contact with the digitizer.pointerId
) to produce additional events, then that pointer is still considered active. Examples:
preventDefault()
, returning false
in an event handler, or other means as defined by [DOM-LEVEL-3-EVENTS] and [HTML5].Many thanks to lots of people for their proposals and recommendations, some of which are incorporated into this document.
Special thanks to those that helped pioneer the first edition of this model, including especially: Charu Chandiram, Peter Freiling, Nathan Furtwangler, Thomas Olsen, Matt Rakow, Ramu Ramanathan, Justin Rogers, Jacob Rossi, Reed Townsend, Steve Wright.
