The last couple of years have witnessed a fascinating evolution: while the Web was initially built predominantly for human consumption, web content is increasingly consumed by machines which expect some amount of structured data. Sites have started to identify a page’s title, content type, and preview image to provide appropriate information in a user’s newsfeed when she clicks the “Like” button. Search engines have started to provide richer search results by extracting fine-grained structured details from the Web pages they crawl. In turn, web publishers are producing increasing amounts of structured data within their Web content to improve their standing with search engines.
A key enabling technology behind these developments is the ability to add structured data to HTML pages directly. RDFa (Resource Description Framework in Attributes) is a technique that allows just that: it provides a set of markup attributes to augment the visual information on the Web with machine-readable hints. In this Primer, we show how to express data using RDFa in HTML, and in particular how to mark up existing human-readable Web page content to express machine-readable data.
This document provides only a Primer to RDFa. The complete specification of RDFa, with further examples, can be found in the RDFa 1.1 Core [RDFA-CORE], the XHTML+RDFa 1.1 [XHTML-RDFA], and the HTML5+RDFa 1.1 [HTML-RDFA] specifications.
This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.
This document was published by the RDF Web Applications Working Group as a Working Draft. This document is intended to become a W3C Recommendation. If you wish to make comments regarding this document, please send them to public-rdfa-wg@w3.org (subscribe, archives). All feedback is welcome.
Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.
This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.
The web is a rich, distributed repository of interconnected information. Until recently, it was organized primarily for human consumption. On a typical web page, an HTML author might specify a headline, then a smaller sub-headline, a block of italicized text, a few paragraphs of average-size text, and, finally, a few single-word links. Web browsers will follow these presentation instructions faithfully. However, only the human mind understands what the headline expresses—a blog post title. The sub-headline indicates the author, the italicized text is the article's publication date, and the single-word links are subject categories. Computers do not understand the nuances between the information; the gap between what programs and humans understand is large.

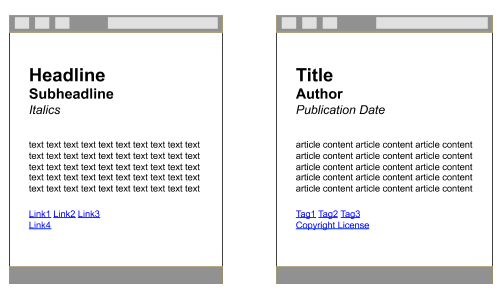

Figure 1: On the left, what browsers see. On the right, what humans see. Can we bridge the gap so that browsers see more of what we see?
What if the browser, or any machine consumer such as a Web crawler, received information on the meaning of a web page’s visual elements? A dinner party announced on a blog could be easily copied to the user’s calendar, an author’s complete contact information to the user’s address book. Users could automatically recall previously browsed articles according to categorization labels (i.e., tags). A photo copied and pasted from a web site to a school report would carry with it a link back to the photographer, giving him proper credit. A link shared by a user to his social network contacts would automatically carry additional data pulled from the original web page: a thumbnail, an author, and a specific title. When web data meant for humans is augmented with hints meant for computer programs, these programs become significantly more helpful, because they begin to understand the data’s structure.
RDFa allows HTML authors to do just that. Using a few simple HTML attributes, authors can mark up human-readable data with machine-readable indicators for browsers and other programs to interpret. A web page can include markup for items as simple as the title of an article, or as complex as a user's complete social network.
RDFa benefits from the power of RDF [RDF-PRIMER], the W3C’s standard for interoperable machine-readable data. However, readers of this document are not expected to understand RDF, only a basic level of HTML.
Historically, RDFa 1.0 [RDFA-SYNTAX] was specified only for XHTML. RDFa 1.1 [RDFA-CORE] is the newest version and the one used in this document. RDFa 1.1 is specified for both XHTML [XHTML-RDFA] and HTML5 [HTML-RDFA]. In fact, RDFa 1.1 also works for any XML-based languages like SVG [SVG12]. This document uses HTML in all of the examples; for simplicity, we use the term “HTML” throughout this document to refer to all of the HTML-family languages.
RDFa is based on attributes. While some of the HTML
attributes (e.g., href
, rel
) have
been re-used, other RDFa 1.1 attributes are new. This is
important because some of the (X)HTML validators may not
properly validate the HTML code until they are updated to
recognize the new RDFa 1.1 attributes. This is rarely a
problem in practice since browsers simply ignore attributes
that they do not recognize. None of the RDFa-specific
attributes have any effect on the visual display of the HTML
content. Authors do not have to worry about pages marked up
with RDFa looking any different to a human being from pages
not marked up with RDFa.
Consider Alice, a blogger who publishes a mix of professional
and personal articles at http://example.com/alice
.
We will construct markup examples to illustrate how Alice can
use RDFa. The complete markup of these examples are available on a dedicated page.
As Alice adds her Dublin Core metadata, she notices that the title of her page is already in the visible markup:
<div> <h2>The trouble with Bob</h2> <h3>Alice</h3> ... </div>
Alice can use the RDFa property
attribute on
the h2
HTML element to indicate that this
existing rendered text should also be machine-readable text
indicating the page’s title:
<div>
<h2 property="http://purl.org/dc/terms/title">The trouble with Bob</h2>
<h3>Alice</h3>
...
</div>
Note that in the example above, Alice did not need to use
the content
attribute, but could instead use the
text that already existed in the document. The property
attribute can be used on any element; by default, it
takes the text content of that element except if the content
attribute is present which then takes priority.
The previous example demonstrated how Alice can markup text to make it machine readable. She would also like to mark up the links in a machine-readable way, to express the type of link being described. RDFa lets the publisher add a “flavor” to an existing clickable link that machine processors can understand. This makes the same markup help both humans and machines.
In her blog’s footer, Alice already declares her content to be freely reusable, as long as she receives due credit when her articles are cited. The HTML includes a link to a Creative Commons [CC-ABOUT] license:
<p>All content on this site is licensed under <a href="http://creativecommons.org/licenses/by/3.0/"> a Creative Commons License</a>.</p>
A human clearly understands this sentence, in particular the meaning of the link with respect to the current document: it indicates the document’s license, the conditions under which the page’s contents are distributed. Unfortunately, when Bob visits Alice’s blog, his browser sees only a plain link that could just as well point to one of Alice’s friends or to her CV. For Bob’s browser to understand that this link actually points to the document’s licensing terms, Alice needs to add some flavor, some indication of what kind of link this is.
She can add this flavor using again the property
attribute. Indeed, when the element contains the href
attribute,
property
is automatically associated with the value of this attribute
rather than the textual content of the a
element. The value of the
attribute is the http://creativecommons.org/ns#license
,
defined by the Creative Commons:
<p>All content on this site is licensed under
<a property="http://creativecommons.org/ns#license" href="http://creativecommons.org/licenses/by/3.0/">
a Creative Commons License</a>.</p>
With this small update, Bob’s browser will now understand that this link has a flavor: it indicates the blog’s license:

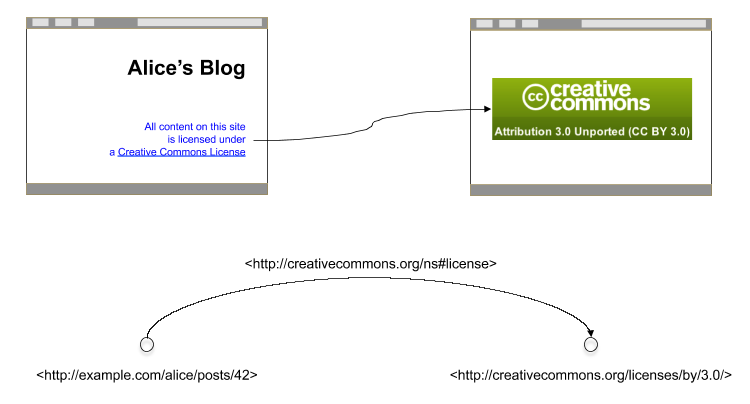

Figure 3: A link with flavor: the link indicates the web page’s license. We can represent web pages as nodes, the link as an arrow connecting those nodes, and the link’s flavor as the label on that arrow.
Alice is quite pleased that she was able to add only structured-data hints via RDFa, never having to repeat the content of her text or the URL of her clickable links.
In a number of simple use cases, such as our example with
Alice’s blog, HTML authors will predominantly use a single
vocabulary. On the other hand, while generating full URLs via
a CMS system is not a particular problem, typing these by hand
may be error prone and tedious for humans. To alleviate this
problem RDFa introduces the vocab
attribute to
let the author declare a single vocabulary for a chunk of
HTML. Thus, instead of:
<html> <head> <title>The Trouble with Bob</title> <meta property="http://purl.org/dc/terms/title" content="The Trouble with Bob" /> <meta property="http://purl.org/dc/terms/created" content="2011-09-10" /> <meta property="http://purl.org/dc/terms/subject" content="photography" /> ... </head> ...
Alice can write:
<html vocab="http://purl.org/dc/terms/"> <head> <title>The Trouble with Bob</title> <meta property="title" content="The Trouble with Bob" /> <meta property="created" content="2011-09-10" /> <meta property="subject" content="photography" /> ... </head> ...
Note how the property values are single “terms” now; these
are simply concatenated to the URL defined via the vocab
attribute. The attribute can be placed on any HTML element
(i.e., not only on the html
element like in the
example) and its effect is valid for all the elements below
that point.
Default vocabularies and full URIs can be mixed at any time. I.e., Alice could have written:
<html vocab="http://purl.org/dc/terms/"> <head> <title>The Trouble with Bob</title> <meta property="title" content="The Trouble with Bob" /> <meta property="created" content="2011-09-10" /> <meta property="http://purl.org/dc/terms/subject" content="photography" /> ... </head> ...
Perhaps a more interesting example is the combination of the header with the licensing segment of her web page:
<html vocab="http://purl.org/dc/terms/"> <head> <title>The Trouble with Bob</title> <meta property="title" content="The Trouble with Bob" /> <meta property="created" content="2011-09-10" /> <meta property="subject" content="photography" /> ... </head> <body> ... <p>All content on this site is licensed under <a property="http://creativecommons.org/ns#license" href="http://creativecommons.org/licenses/by/3.0/"> a Creative Commons License</a>.</p> </body> </html>
The full URL for the license term is necessary to avoid mixing vocabularies. Of course, Alice could have also written:
<html vocab="http://purl.org/dc/terms/"> <head> <title>The Trouble with Bob</title> <meta property="title" content="The Trouble with Bob" /> <meta property="created" content="2011-09-10" /> <meta property="subject" content="photography" /> ... </head> <body> ... <p vocab="http://creativecommons.org/ns#">All content on this site is licensed under <a property="license" href="http://creativecommons.org/licenses/by/3.0/"> a Creative Commons License</a>.</p> </body> </html>
because the vocab
in the license paragraph
overrides the definition inherited from the top of the
document.
Alice’s blog contains, of course, multiple entries.
Sometimes, Alice’s sister Eve guest blogs, too. The front page
of the blog lists the 10 most recent entries, each with its
own title, author, and introductory paragraph. How, then,
should Alice mark up the title of each of these entries
individually even though they all appear within the same web
page? RDFa provides about
, an attribute for
specifying the exact URL to which the contained RDFa markup
applies:
<div vocab="http://purl.org/dc/terms/"> <div about="/alice/posts/trouble_with_bob"> <h2 property="title">The trouble with Bob</h2> <h3 property="creator">Alice</h3> ... </div> <div about="/alice/posts/jos_barbecue"> <h2 property="title">Jo's Barbecue</h2> <h3 property="creator">Eve</h3> ... </div> ... </div>
(Note that we used relative URLs in the example; the value of
about
could have been any URLs,
relative or absolute.) We can represent this, once again, as a
diagram connecting URLs to properties:
Figure 4: Multiple Items per Page: each blog entry is represented by its own node, with properties attached to each.
Alice can use the same technique to give her friend Bob proper credit when she posts one of his photos:
<div about="/alice/posts/trouble_with_bob"> <h2 property="title">The trouble with Bob</h2> The trouble with Bob is that he takes much better photos than I do: <div about="http://example.com/bob/photos/sunset.jpg"> <img src="http://example.com/bob/photos/sunset.jpg" /> <span property="title">Beautiful Sunset</span> by <span property="creator">Bob</span>. </div> </div>
Notice how the innermost about
value, http://example.com/bob/photos/sunset.jpg
,
“overrides” the outer value /alice/posts/trouble_with_bob
for all markup inside the innermost div
. And,
once again, here is a diagram that abstractly represents the
underlying data of this new portion of markup:

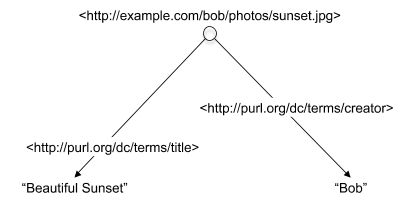

Figure 5: Describing a Photo
Alice would also like to make information about herself, such as her email address, phone number, and other details, easily available to her friends’ contact management software. This time, instead of describing the properties of a web page, she’s going to describe the properties of a person: herself. To do this, she adds deeper structure, so that she can connect multiple items that themselves have properties.
Alice already has contact information displayed on her blog.
<span> Alice Birpemswick, Email: <a href="mailto:alice@example.com">alice@example.com</a>, Phone: <a href="tel:+1-617-555-7332">+1 617.555.7332</a> </span>
The Dublin Core vocabulary does not provide property names
for describing contact information, but the Friend-of-a-Friend
[FOAF] vocabulary does. Alice decides to use the FOAF
vocabulary and declares a FOAF “Person”. For this purpose,
Alice uses typeof
, an RDFa attribute that is
specifically meant to declare a new data item with a certain
type:
<span typeof="http://xmlns.com/foaf/0.1/Person">
...
Alice realizes that she only intends to use the FOAF
vocabulary at this point, so she uses the vocab
attribute to further simplify her markup (and overriding the
effects of any vocab
attributes that may have
been used in, for example, the html
element at
the top).
<span vocab="http://xmlns.com/foaf/0.1/" typeof="Person">
...
Then, Alice indicates which content on the page represents her full name, email address, and phone number:
<span vocab="http://xmlns.com/foaf/0.1/" typeof="Person"> <span property="name">Alice Birpemswick</span>, Email: <a property="mbox" href="mailto:alice@example.com">alice@example.com</a>, Phone: <a property="phone" href="tel:+1-617-555-7332">+1 617.555.7332</a> </span>
Note how Alice did not specify about
like she
did when adding blog entry metadata. If she is not declaring
what she is talking about, how does the RDFa Processor know
what she’s identifying? In RDFa, in the absence of an about
attribute, the typeof
attribute on the enclosing div
implicitly sets
the subject of the properties marked up within that div
.
That is, the name, email address, and phone number are
associated with a new node of type Person
. This
node has no URL to identify it, so it is called a blank
node as shown on the figure:

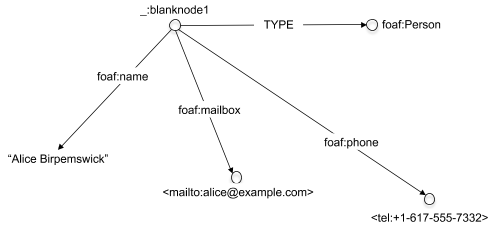

Figure 6: A Blank Node: blank
nodes are not identified by URL. Instead, many of them have
an RDFa typeof
attribute that identifies the
type of data they represent.
(We’ve used a short-hands to label the arrows, in order to
save space and clarify the diagram. The actual labels are
always the full URLs.)
Of course, Alice could also decide to use a real URI for
herself instead of a blank node. Adding an about
attribute would do just that:
<span vocab="http://xmlns.com/foaf/0.1/" about="#me" typeof="Person"> <span property="name">Alice Birpemswick</span>, Email: <a property="mbox" href="mailto:alice@example.com">alice@example.com</a>, Phone: <a property="phone" href="tel:+1-617-555-7332">+1 617.555.7332</a> </span>
It is considered as a good practice to use real URIs whenever possible, i.e., Alice’s second alternative should be preferred. If a real URI is used, then it becomes possible to unambigously refer to that particular node, whereas that becomes much more complicated with blank nodes.
The about="#me"
markup is a FOAF
convention: the URL that represents the person Alice
is http://example.com/alice#me
. It should not be
confused with Alice’s homepage, http://example.com/alice
.
Alice may want to add her personal data to her individual blog items, too. She decides to combine her FOAF data with the blog items, i.e.:
<div vocab="http://purl.org/dc/terms/"> <div about="/alice/posts/trouble_with_bob"> <h2 property="title">The trouble with Bob</h2> <h3 rel="creator"> <span vocab="http://xmlns.com/foaf/0.1/" about="#me" typeof="Person"> <span property="name">Alice Birpemswick</span>, Email: <a rel="mbox" href="mailto:alice@example.com">alice@example.com</a>, Phone: <a rel="phone" href="tel:+1-617-555-7332">+1 617.555.7332</a> </span> </h3> ... </div> ... </div>
Note the usage of the rel
attribute instead of
property
for the Dublin Core creator
term; this is because the data now involves more than just a
simple text. The structured data she generates looks like
this:

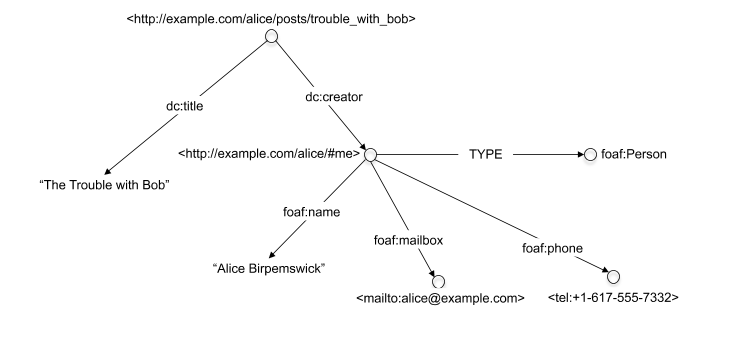

Figure 8: Alice’s blog item with data about herself.
Unfortunately, this solution is not optimal. Indeed, Alice would like to design her Web page so that her personal data would not appear on the page in each individual blog item but, rather, in one place like a footnote or a sidebar. What she would like to see is something like:

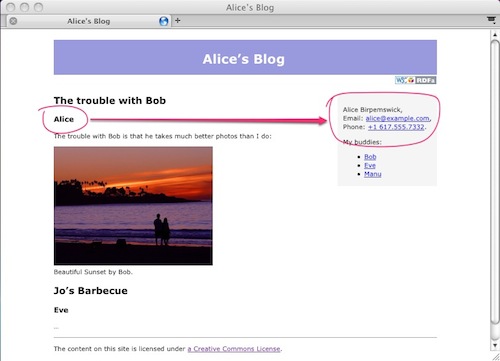

Figure 9: Structure of Alice’s Site: individual blog items on the left, personal data, linked from the blog using RDFa terms, in a sidebar.
If the FOAF data is included into each blog item, Alice would
have to create a complex set of CSS rules to achieve the
visual effect she wants. Instead, Alice decides to use another
RDFa attribute, namely resource
:
<div vocab="http://purl.org/dc/terms/"> <div about="/alice/posts/trouble_with_bob"> <h2 property="title">The trouble with Bob</h2> <h3 rel="creator" resource="#me">Alice</h3> ... </div> </div> ... <div class="sidebar"> ... <span vocab="http://xmlns.com/foaf/0.1/" about="#me" typeof="Person"> <span property="name">Alice Birpemswick</span>, Email: <a rel="mbox" href="mailto:alice@example.com">alice@example.com</a>, Phone: <a rel="phone" href="tel:+1-617-555-7332">+1 617.555.7332</a> </span> </div>
The resource
attribute plays exactly the same role as href
but does not provide a clickable link to the browser like href
does. Also, resource
can be used on any
HTML element, in contrast to href
. In this case,
usage of this attribute allows Alice to “distribute” the
various parts of the structured data on her page, although the
data itself is identical to the one on the previous example,
shown on Figure 8.
The previous examples show that, for more complex cases, multiple vocabularies have to be used to express the various aspects of structured data. We have seen Alice using the Dublin Core, as well as the FOAF and the Creative Commons vocabularies, but there may be more. For example:
Of course, Alice can use either full URLs for all the terms,
or can use the vocab
attribute to abbreviate the
terms for the predominant vocabulary. But, in some cases, the
vocabularies cannot be separated easily, which means that vocab
may not solve all the problems. Here is, for example, the type
of HTML she might end up with:
<html vocab="http://purl.org/dc/terms/"> <head> <title>The Trouble with Bob</title> <meta property="http://ogp.me/ns#title" content="The Trouble with Bob" /> <meta property="http://ogp.me/ns#type" content="text" /> <meta property="http://ogp.me/ns#image" content="http://example.com/alice/bob-ugly.jpg" /> <meta property="subject" content="photography" /> <meta property="created" content="2011-09-10" /> ... </head> <body> <div typeof="http://rdfs.org/sioc/ns#Post"> <h2 property="title">The trouble with Bob</h2> <h3 property="creator">Alice</h3> <p property="http://rdfs.org/sioc/ns#content">The trouble with Bob is that he takes much better photos than I do:</p> ... </div> ... </body> </html>
Note that the SIOC and the Dublin Core terms are intertwined
for a specific blog, and it becomes an arbitrary choice to use
vocab
for http://purl.org/dc/terms/
or for http://rdfs.org/sioc/ns#
. The same holds
for the header, which contains both Dublin Core and Open Graph
Protocol terms.
To alleviate this problem, RDFa offers the possibility of using prefixed
terms: a special prefix
attribute can assign
prefixes to represent URLs and, using those prefixes, the
vocabulary elements themselves can be abbreviated. The prefix:reference
syntax is used: the URL associated with prefix
is simply concatenated to reference
to create a
full URL. Here is how the HTML of the previous example looks
like when prefixes are used:
<html prefix="dc: http://purl.org/dc/terms/ sioc: http://rdfs.org/sioc/ns# og: http://ogp.me/ns#" > <head> <title>The Trouble with Bob</title> <meta property="og:title" content="The Trouble with Bob" /> <meta property="og:type" content="text" /> <meta property="og:image" content="http://example.com/alice/bob-ugly.jpg" /> <meta property="dc:subject" content="photography" /> <meta property="dc:created" content="2011-09-10" /> ... </head> <body> <div typeof="sioc:Post"> <h2 property="dc:title">The trouble with Bob</h2> <h3 property="dc:creator">Alice</h3> <p property="sioc:content">The trouble with Bob is that he takes much better photos than I do:</p> ... </div> </body> </html>
The usage of prefixes can greatly reduce possible errors by
concentrating the vocabulary choices to one place in the code.
Just like vocab
, the prefix
attribute can appear anywhere in the HTML file, only affecting
the elements below. prefix
and vocab
can also be mixed, for example:
<html vocab="http://purl.org/dc/terms/" prefix="sioc: http://rdfs.org/sioc/ns# og: http://ogp.me/ns#" > <head> <title>The Trouble with Bob</title> <meta property="og:title" content="The Trouble with Bob" /> <meta property="og:type" content="text" /> <meta property="og:image" content="http://example.com/alice/bob-ugly.jpg" /> <meta property="subject" content="photography" /> <meta property="created" content="2011-09-10" /> ... </head> <body> <div typeof="sioc:Post"> <h2 property="dc:title">The trouble with Bob</h2> <h3 property="creator">Alice</h3> <p property="sioc:content">The trouble with Bob is that he takes much better photos than I do:</p> ... </div> </body> </html>
html
element contains a large number of prefix declarations. The
character encoding (i.e., UTF-8, UTF-16, ascii, etc.) used for an HTML5 file is declared using a meta
element in the header. In HTML5 this meta declaration must
fall within the first 512 bytes of the page, or the HTML5
processor (browser, parser, etc.) will try to detect the
encoding some using heuristics. A very “long” html
tag may therefore lead to problems. One way of avoiding the
issue is to place most of the prefix declarations on the body
element.A number of vocabularies are very widely used by the Web community with well-known prefixes—the Dublin Core vocabulary is a good example. These common vocabularies tend to be defined over and over again, and sometimes Web page authors forget to declare them altogether.
To alleviate this issue, RDFa 1.1 has the concept of an initial context that defined a set of default prefixes. These prefixes, whose list is maintained and regularly updated (i.e., new prefixes added) by the W3C, provide a number of pre-defined prefixes that are known to the RDFa processor. Prefix declarations in a document always override declarations made through the defaults, but if a web page author forgets to declare a common vocabulary such as Dublin Core or FOAF, the RDFa Processor will fall back to those. The list of default prefixes are, of course, available on the Web for everyone to read.
For example, the following example does not
declare the dc:
prefix using a prefix
attribute:
<html> <head> <meta property="dc:title" content="The trouble with Bob" /> <meta property="dc:created" content="2011-09-10" /> ... </head ... </html>
However, an RDFa processor still recognizes the dc:title
and dc:creator
short-hands and expands the
values to the corresponding URLs. The RDFa processor is able
to do this because the dc
prefix is part of
the default prefixes in the initial
http://www.w3.org/2011/rdfa-context/rdfa-1.1
context.
Default prefixes are used as a mechanism to
correct RDFa documents where authors accidentally forgot to
declare common prefixes. While authors may rely on these
to be available for RDFa 1.1 documents, the
prefixes may change over the course of 5-10 years, although
the policy of W3C is that once a prefix is defined as part
of a default profile, that particular prefix will not
be changed or removed. Nevertheless, the best way to ensure
that the prefixes that document authors use always map to
the intent of the author is to use the prefix
attribute to declare these prefixes.
Since default prefixes are meant to be a last-resort mechanism to help novice document authors, the markup above is not recommended. The rest of this document will utilize authoring best practices by declaring all prefixes in order to make the document author’s intentions explicit.
There is a wide variety of tools that can be used to generate or process RDFa data. Good sources for these are the RDFa page of the W3C Semantic Web Wiki, or the RDFa Wiki’s implementation page. The RDFa Wiki also contains further examples and information on how to get involved.
This section contains a set of more advanced RDFa examples. They are provided to help the reader understand a few more RDFa usage patterns. Many of these examples describe not only how to encode data into RDF but also what an application might try to do with the data. Note that the implementation of those examples may require programmatic access to the RDFa content.
Amy has enriched her band’s web-site to include event information. Google Rich Snippets are used to mark up information for search engines to use when displaying enhanced search results. Amy also uses some JavaScript code that automatically extracts the event information from a page and adds an entry into a personal calendar.
Brian finds Amy’s web-site through Google and opens the band’s page. He decides that he wants to go to the next concert. Brian is able to add the details to his calendar by clicking on the link that is automatically generated by the JavaScript tool. The JavaScript extracts the RDFa from the web page using, and places the event into Brian's personal calendaring software—Google Calendar. Amy automatically extracts the event information from a page and adds an entry into her personal calendar using some JavaScript code.
<div vocab="http://rdf.data-vocabulary.org/#" typeof="Event"> <a rel="url" href="http://amyandtheredfoxies.example.com/events" property="summary">Tour Info: Amy And The Red Foxies</a> <span property="location" typeof="Organization"> <a property="url" href="http://www.kammgarn.de/"><span property="name">Kammgarn</span></a> </span> <div><img property="photo" src="foxies.jpg"/></div> <span property="summary">Hey K-Town, Amy And The Red Foxies will rock Kammgarn in October.</span> When: <span property="startDate" content="2009-10-15T19:00">15. Oct., 7:00 pm</span>- <span property="endDate" content="2009-10-15T21:00">9:00 pm</span> Category: <span property="eventType">concert</span> </div>
Note that this example also uses the src
attribute; just href
is recognized by RDFa, so
is src
. The example relates, via a link with
“flavor” to the image whose URL is foxies.jpg
. Note also that, when using rel
and property
on the same element, property
is used to generate a literal object, whereas the rel
is used to add
the “flavor” to the link. Finally, the example makes use of the fact that property
(or rel
),
when used with typeof
, creates a blank node that becomes the subject for the statements in the subtree.
Mary is responsible for keeping the projects section of her company’s home page up-to-date. She wants to display info-boxes that summarize details about the members associated with each project. The information should appear when hovering the mouse over the link to each member's homepage. Since each member’s homepage is annotated with RDFa, Mary writes a script that requests the page’s content and extracts necessary information via the RDFa API.
To use unique identification for the different interest
areas, Mary decides to use URLs rather than simple text. She
chooses to use the terms defined by DBpedia.
DBPedia is a dump of Wikipedia data that is expressed as a
vocabulary. It is widely used on the Semantic Web for
identifying concepts in the human world. The usage of the resource
allows her to add a reference to the human readable version of
the interest page on Wikipedia. Indeed, since both the resource
and the href
attributes may appear on the same
element, the former takes precedence in RDFa while the latter
can be used to re-direct the person viewing the page to a
human-readable form of the DBPedia entry. Finally Mary uses
an RDFa script to extract this kind of information
from the HTML source in order to populate the infoboxes.
<div prefix="dc: http://purl.org/dc/terms/ foaf: http://xmlns.com/foaf/0.1/" about="#me" typeof="foaf:Person"> <span property="foaf:name" content="Bob">My</span> interests are: <ol about="#me" typeof="foaf:Person" rel="foaf:interest"> <li><a resource="http://dbpedia.org/resource/Semantic_Web" href="http://en.wikipedia.org/wiki/Semantic_Web"> <span property="dc:title">Semantic Web</span> </a> </li> <li><a resource="http://dbpedia.org/resource/Facebook" href="http://en.wikipedia.org/wiki/Facebook"> <span property="dc:title">Facebook</span> </a> </li> <li><a resource="http://dbpedia.org/resource/Twitter" href="http://en.wikipedia.org/wiki/Twitter"> <span property="dc:title">Twitter</span> </a> </li> </ol> </div>
Mary also uses the chaining, via the rel
attribute, to avoid repeating that attribute on
all the entry on her interests and to set the right subject for the textual explanation of those.
Richard has created a site that lists his favorite restaurants and their locations. He doesn’t want to generate code specific to the various mapping services on the Web. Instead of creating specific markup for Yahoo Maps, Google Maps, MapQuest, and Google Earth, he instead adds address information via RDFa to each restaurant entry. This enables him to build a general tool that extracts the address information and access the mapping tool the user wishes.
<div vocab="http://www.w3.org/2006/vcard/ns#" typeof="VCard"> <span property="fn">Wong Kei</span> <span property="street-address">41-43 Wardour Street</span> <span property="locality">London</span>, <span property="country-name">United Kingdom</span> <span property="tel">020 74373071</span> </div>
Marie is a chemist, researching the effects of ethanol on the spatial orientation of animals. She writes about her research on her blog and often makes references to chemical compounds. She would like any reference to these compounds to automatically have a picture of the compound's structure shown as a tooltip, and a link to the compound’s entry on the National Center for Biotechnology Information [NCBI] Web site. Similarly, she would like visitors to be able to visualize the chemical compound in the page using a new HTML5 canvas widget she has found on the web that combines data from different chemistry websites.
<div vocab="http://rdf.freebase.com/rdf/"> My latest study about the effects of <span about="en.ethanol" typeof="http://dbpedia.org/ontology/ChemicalCompound" property="chemistry.chemical_compound.pubchem_id" content="702">ethanol</span> on mice's spatial orientation show that ... </div>
Dave is writing a browser plugin that filters product offers in a web page and displays an icon to buy the product or save it to a public wishlist. The plugin searches for any mention of product names, thumbnails, and offered prices. The information is listed in the URL bar as an icon, and upon clicking the icon, displayed in a sidebar in the browser. He can then add each item to a list that is managed by the browser plugin and published on a wishlist website.
Because many of his pages make use of the Good Relation
ontology [GR], which is widely used to markup products, Dave
decides to make use of the vocab
facility of
RDFa to simplify his code. He also forgets to declare the rdfs
prefix, but since it is defined by the RDFa default profile,
the data that he intended to express using the rdfs
prefix will still be extracted by all conforming RDFa
processors.
<div prefix="foaf: http://xmlns.com/foaf/0.1/"> <div vocab="http://purl.org/goodrelations/v1#" about="#offering" typeof="Offering"> <div property="foaf:page" resource="http://www.amazon.com/Harry-Potter-Deathly-Hallows-Book/dp/0545139708"></div> <div property="rdfs:label">Harry Potter and the Deathly Hallows</div> <div property="rdfs:comment">In this final, seventh installment of the Harry Potter series, J.K. Rowling unveils in spectactular fashion the answers to the many questions that have been so eagerly awaited. The spellbinding, richly woven narrative, which plunges, twists and turns at a breathtaking pace, confirms the author as a mistress of storytelling, whose books will be read, reread and read again.</div> <div> <img property="foaf:depiction" src="http://ecx.images-amazon.com/images/I/51ynI7I-qnL._SL500_AA300_.jpg" /> </div> <div property="hasBusinessFunction" resource=http://purl.org/goodrelations/v1#Sell"></div> <div property="hasPriceSpecification" typeof="UnitPriceSpecification">Buy for <span property="hasCurrency" content="USD">$</span> <span property="hasCurrencyValue">7.49</span> </div> Pay via: <span property="acceptedPaymentMethods" resource="http://purl.org/goodrelations/v1#PayPal">PayPal</span> <span property="acceptedPaymentMethods" resource="http://purl.org/goodrelations/v1#MasterCard">MasterCard</span> </div> </div> </div>
Mark wants to publish his publication list, which contains references to articles, books, book chapters, etc. He can use the Bibliographic Ontology [BIBO] for that purpose. However, the problem he has is that many of his publications have co-authors and, in the publication world, the order of the authors in a citation is important.
Mark can use the inlist
feature of RDFa. Using this feature guarantees that the order of the
resources, as they appear in the HTML text, is preserved in terms of structured data, too:
<p prefix="bibo: http://purl.org/ontology/bibo/ dc: http://purl.org/dc/terms/ typeof="bibo:Chapter"> “<span property="dc:title">Semantic Annotation and Retrieval</span>”, by <span inlist property="dc:creator">Ben Adida</span>, <span inlist property="dc:creator">Mark Birbeck</span>, and <span inlist property="dc:creator">Ivan Herman</span>. </p>
RDF, the Resource Description Framework, is the abstract data representation we have drawn out as graphs in the examples above. Each arrow in the graph is represented as a subject-property-object triple: the subject is the node at the start of the arrow, the property is the arrow itself, and the object is the node or literal at the end of the arrow. A set of such RDF triples is often called an “RDF graph”, and is typically stored in what is often called a “Triple Store” or a “Graph Store”.

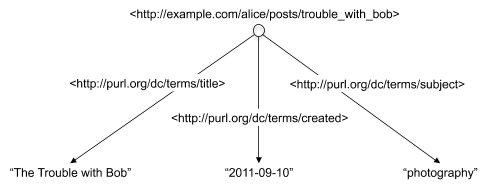

Consider the first example graph:
The three RDF triples for this graph are written, using the Turtle syntax [TURTLE], as follows:
<http://www.example.com/alice/posts/trouble_with_bob> <http://purl.org/dc/terms/title> "The Trouble with Bob" ; <http://purl.org/dc/terms/subject> "photography" ; <http://purl.org/dc/terms/created> "2011-09-10" .
Also, the TYPE arrows we drew are no
different from other arrows. The TYPE is just
another property that happens to be a core RDF property, namely
rdf:type
. The rdf
vocabulary is
located at http://www.w3.org/1999/02/22-rdf-syntax-ns
.
The contact information example from above should thus be
diagrammed as:
The point of RDF is to provide a universal language for expressing data. A unit of data can have any number of properties that are expressed as URLs. These URLs can be reused by any publisher, much like any web publisher can link to any web page, even ones they did not create themselves. Given data, in the form of RDF triples, collected from various locations, and using the RDF query language SPARQL [RDF-SPARQL-QUERY], one can search for “friends of Alice’s who created items whose title contains the word ‘Bob’,” whether those items are blog posts, videos, calendar events, or other data types.
RDF is an abstract data model meant to maximize the reuse of vocabularies. RDFa is a way to express RDF data within HTML, in a way that is machine-readable, and by reusing the existing human-readable data in the document.
As Alice marks up her page with RDFa, she may discover the need to express data, such as her favorite photos, that is not covered by existing vocabularies. If she needs to, Alice can create a custom vocabulary suited for her needs. Once a vocabulary is created, it can be used in RDFa markup like any other vocabulary.
The instructions on how to create a vocabulary, also known as an RDF Schema, are available in Section 5 of the RDF Primer [RDF-SCHEMA]. At a high level, the creation of a vocabulary for RDFa involves:
http://example.com/photos/vocab#
.Photo
and
Camera
, as well as the property takenWith
that relates a photo to the camera with which it was taken.vocab
attribute or with the prefix declaration mechanism. For
example: prefix="photo:
http://example.com/photos/vocab#"
and typeof="photo:Camera"
.It is worth noting that anyone who can publish a document on the Web can publish a vocabulary and thus define new data fields they may wish to express. RDF and RDFa allow fully distributed extensibility of vocabularies.
At the time of publication, the active members of the RDF Web Application Working Group were:
No normative references.
