Widgets 1.0: The Widget Landscape (Q1 2008)

W3C Working Draft 14 April 2008

This version:
http://www.w3.org/TR/2008/WD-widgets-land-20080414/
Latest version:
http://www.w3.org/TR/widgets-land/
Latest Editor's Draft:
http://dev.w3.org/2006/waf/widgets-land/
Previous version:
none.
Version history:
Twitter messages (non-editorial changes only): http://twitter.com/widgetspecs (RSS)
Editor:
Marcos Caceres, Invited Expert

Abstract

This document surveys a group of market-leading widget user agents with the aim to inform the requirements of the Widgets 1.0: Requirements document. The survey exposes commonalities and fragmentation across widget user agents, and discusses how fragmentation currently affects, amongst other things, authoring, security, distribution and deployment, internationalisation and the device-independence of widgets. The document concludes by making a set of recommendations on what aspects of widgets require standardization to reduce fragmentation to ultimately standardize a cross-platform widget solution.

Status of this Document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.

This is the W3C First Public Working Draft of the Widgets 1.0: Landscape. Once all the comments about this document will have been addressed, the Working Group intends to publish a final version of this document as a W3C Working Group Note.

The W3C Membership and other interested parties are invited to send comments to public-appformats@w3.org, the W3C's public email list for issues related to Web Application Formats. Archives of the list are available.

This document is produced by the Web Application Formats WG, part of the Rich Web Clients Activity in the W3C Interaction Domain. It is expected that this document will become a Working Group Note. Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.

Table of Contents

1. Introduction

This document surveys the widget landscape by examining how market-leading widget user agents address issues around:

The market-leading widget user agents that are included in the survey are listed below. The widget user agents were subjectively chosen because of their perceived prevalence in the market place. This survey was conducted independently of any vendor and no vendor explicitly requested they be included in the survey.

Market-Leading Widget User Agents
Widget User Agent Vendor Version Platform
Widget User Agent Vendor Version Platform
Konfabulator Yahoo! 4.5 Windows XP, Windows Vista, MacOS
Windows Sidebar Microsoft 1.0 Windows Vista
Google Desktop Gadgets Google 1.x Windows XP, Windows Vista
Opera Widgets Opera 9.5 Beta Mac OS 10.5, Windows XP, Windows Vista
Dashboard Apple 1.1 Mac OS 10.5
Web-Runtime Nokia 1.0 Beta S60 3rd Edition, Feature Pack 2 (emulator)
Joost Widgets Joost 1.0 Beta Mac OS 10.5, Windows XP, Windows Vista

The inclusion of the widget user agents in this survey does not indicate endorsement of the standardization process by any particular vendor (in other words, just because a widget user agent appears should not be taken to mean that they will implement any part of the Widgets 1.0 specifications).

1.1 Purpose

The purpose of this document is to provide a holistic overview of the widget space and provide information to aid in standardization process of widgets by the Web Application Formats Working Group. As such, this document provides:

2. Terms

This section defines some of the key terms related to widgets.

Widget:
For the purpose of this standardization process, a widget is an end-user's conceptualization of an interactive single purpose application for displaying and/or updating local data or data on the Web, packaged in a way to allow a single download and installation on a user's machine or mobile device. A widget may run as a stand alone application (meaning it can run outside of a Web browser), or may be embedded into a Web document. In this document, the runtime environment on which a widget is run is referred to as a widget user agent and a running widget is referred to as an instantiated widget. Prior to instantiation, a widget exists as a widget resource.
Widget user agent:
The user agent (software application) that hosts an instantiated widget. Generally speaking, widget user agents are either directly built on, or provide similar functionality to a Web browser. An increasing number are actually built directly on top of Web browsers so they are able to process/render HTML documents, while others incorporate Web browser components like ECMAScript interpreters. widget user agents are built for many different software platforms and devices, including Microsoft's Windows, Apple's MacOS, Symbian, Linux, and so on; and some widget user agents, such as the Konfabulator and Opera Widgets, run on multiple platforms.
Instantiated widget:
The runtime manifestation of a decompressed widget resource whose start file has been instantiated on a widget user agent. The instantiated widget may have been configured through a configuration document. The ability for an instantiated widget to be programmed and behave interactively is provided via a widgets API.
Icon:
An image or symbolic representation of an instantiated widget. Icons are usually used to represent the widget in non-running context, such as menus and docks. Some widget user agents, such as Konfabulator, allow authors to dynamically change the icon at runtime. For example, a weather widget might update its icon as the weather or time of day changes.
Widget resource:
A resource created from some packaging format that encapsulates the resources of a widget for the purposes of distribution and deployment. On the wire, a widget resource is identified by an arbitrary widget media type.
Media type:
An media type that formally associates a widget resource with some proprietary widget user agent. For example, Joost's widget engines requires that widgets be served over HTTP with a application/vnd.joost.joda-archive media type.
Packaging format:
The physical data format used to create a widget resource. For example, the flat-file format described in the Konfabulator Reference or the Zip file format supported by Opera Widgets and Microsoft's Vista Sidebar.
Resource:
Any file or directory used by an instantiated widget that resides either inside a widget resource or is accessible over HTTP. In a widget resource, resources may be organized in directories and may have versions of those directories tailored for localization purposes. Examples of resources include images, text, markup, style sheets, executable scripts, and sounds.
Start file:
A resource either inside the widget resource or on the Web that when instantiated represents the widget. If an instantiated widget contains a configuration document, the widget user agent may configure the start file through that configuration document.
Configuration document:
A distinguished resource where authors can declare metadata and/or configuration parameters for a widget. A widget user agent uses a configuration document to configure a widget upon instantiation. The configuration document may also define the relationship between resources in the widget resource. The configuration document usually takes the form of an XML file; for example, the config.xml resource bundled with an Opera widget.
Metadata:
Data declared in the configuration document about a widget that relates to authorship or classification, but does not affect the behavior of the widget at runtime (eg. the author's name and email).
Configuration parameter:
Any declaration in the configuration document that affords the widget with functionality beyond its default behavior (eg. declaring that the widget will require network access).

Bootstrap:
A mechanism that either declaratively or automatically finds the start file in an instantiated widget.
Widget API:
A set of programming interfaces that provide functionality specific to and instantiated widget. Current APIs range extensively in the level of functionality they provide an author; see for example Microsoft's API for accessing the operating system in the Sidebar Reference.

3. Widgets and Widget User Agents

Since around 2003, a relatively new kind of application has seen significant proliferation onto desktop computers and, more recently, web-enabled portable devices like mobile phones. This kind of application is generally referred to by developers as a widget engine: a piece of software that is able to run other smaller applications known as widgets or gadgets. On the user's desktop, widgets have gradually taken the place of some traditional single-purpose applications. Typical examples of widgets range from simple clocks, CPU gauges, post-it notes, games, battery-life indicators, to more sophisticated web-enabled widgets like weather forecasters, news readers, email checkers, photo albums and currency converters.

There are literally thousands of unique widgets available for download on the web, which users generally collect to create personal widget inventories. These widget inventories provide users with access to online services that they commonly use. This means that, in a lot of instances, users don't need to open up a web browser to get the information that they want (eg. to check the weather). This is an aspect of widgets that makes them particularly attractive on mobile devices, where the monetary cost of downloading web pages is currently an issue for many users.

For developers, some widgets differ from traditional binary applications in that they are created using the same open technologies used to create web pages. Widget engines mimic, in many ways, the behavior of web browsers: an increasing number are actually built directly on top of web browsers so they are able to render web pages, while others incorporate web browser components such as ECMAScript interpreters. To developers and vendors, this means that most widgets are significantly easier to create than applications developed with lower-level programming languages such as Java and C#.

Amidst the popular rise of widgets and widget engines lay a number of issues for users, developers, current vendors and new vendors wanting to enter the market. By surveying various aspects that pertain to widget user agents, this document discusses these issues so they may be resolved through the W3C standardization process.

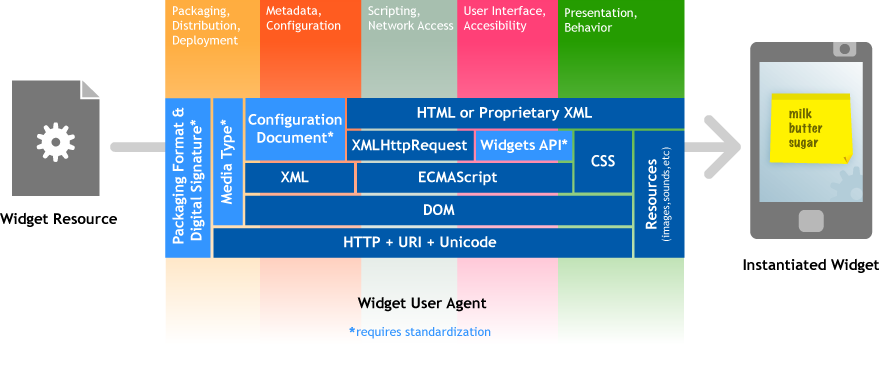

As shown in figure 1, a widget is instantiated on a widget user agent and can make use of a number of technologies that serve a different role (eg. distribution and deployment, etc). However, some of those technologies have not yet been formally standardized (items marked with an asterisk), which has contributed to fragmentation across the widget space.

Widget technology stack

Figure 1. A typical widget technology stack and aspects that have require standardization. Please note that this technology stack is intended as a guide, and does not represent the technology stack of any particular user agent.

3.1 Differences from Web Widgets

Web widgets (also known as modules or badges) are fragments of HTML, CSS, and ECMAScript (or possibly an Adobe Flash movie) that are either declaratively or dynamically included into a Web document. A common example of Web widgets is one that downloads a set of icon-sized images from a photo-sharing Web site and displays those images as a slide-show based on a set of user preferences (eg. the images tagged 'vacation Italy'); such Web widgets are commonly seen embedded into social networking Web sites and blogs. Popular providers of Web widgets include:

Unlike widgets, Web widgets a hosted on the server-side and are embedded into HTML documents prior to being served to the client. The creation of a Web widget usually involves having an author specify, in XML or some other format (eg. PHP), what the widget does and which APIs the Web widget depends on. This document is then uploaded to a server, where when it is served to a client, it is transformed into HTML, CSS, and ECMAScript. For example, the input column of the table below shows a typical iGoogle gadget specification:

iGoogle Gadget Transformation Example
Input Output
Input Output

<?xml version="1.0" encoding="UTF-8"?>
<Module>
<ModulePrefs title="hello world example" />
<Content type="html"><![CDATA[
<h1>Hello, world!</h1>
]]></Content>
</Module>

Hello World!

After being processed on the server-side, the code in the input column is transformed to HTML, CSS, and ECMAScript and inserted into the served document as either an iframe or as HTML elements (see the the Output column above). The actual code that Google generates from the example is too large to be included in this document.

Functional Differences

Because Web widgets and a widget have a reliance of Web technologies, their offer much of the same functionality. However, differences exist in:

In relation to the packaging format , Web widgets are generally not packaged or downloaded as a single file (except in the case of Adobe Flash movies). Instead, Web widgets are commonly dynamically instantiated through a mix of ECMAScript, HTML elements, and CSS. However, similar to a widget as described in this document, some Web widgets make use of a dynamically loaded RSS file or JSON as a configuration document format.

In relation to security models, unlike a widget, Web widgets are generally part of a HTML document's DOM and so are bound to all the security constraints imposed by Web browsers.This means that Web widgets cannot make cross-domain requests, cannot autonomously access resources on an end-user's device, access system-level properties like the make, model, or usage percentage of the CPU, or execute system level commands like creating or deleting files, while widgets that run on most market-leading widget user agents generally can. In other words, some widget user agents provide a more relaxed security model than the one afforded to Web widgets by Web browsers.

The ability for a widget to perform actions beyond the security scope of Web widgets is partially afforded by widget-specific APIs. For example, on Windows Vista's Sidebar, a widget can be scripted to create a new folder on the end-user's hard drive by calling 'System.Shell.Folder.newFolder(strNewFolderName)'. See Microsoft's Sidebar Reference or Konfabulator Reference for more examples of API functionality that is beyond the scope of Web widgets.

Another difference is how widget user agents handle internationalization when compared to Web widgets (Web Browsers). On the Web, internationalization is sometimes handled through HTTP's Accept-Language header: this works by allowing the Web Browser to send the end-user's preferred language to a server (eg. Accept-Language: en-us). If the server contains a version of the desired resource in the end-user's language of choice, then the localized resource may be returned to the end-user. A widget, on the other hand, may sometimes contained all localized resources inside the widget resource in folders named using the common language-region pattern (eg. /en-us/). When the widget is instantiated, the widget user agent attempts to match one of these specially named folders to user's language preferences. See the Internationalization and Localization section for more information.

3.2 Differences from Java Applets

Widgets and Java applets share many commonalities. For instance, both widgets and applets rely on a pre-installed runtime engine for execution: java applets rely on the presence of the Java Runtime Environment (JRE), while widgets rely on the presence of their target widget engine. Widget and Java applets also share many similar functional aspects, like being able to do asynchronous HTTP requests to download resources from the Web.

It is argued that the most notable difference between them is that widgets are easier for authors to create than Java applets. This argument is made because widgets are created using HTML, CSS, and ECMAScript, which have very forgiving error handling and a short learning curve compared to Java. Another difference is that Java Applets are intended to run inside Web pages, while widgets as described in this document generally serve the purpose of stand-alone applications that run outside of a Web browser.

4. Packaging for Distribution and Deployment

Packaging refers to encapsulating all the necessary resources and metadata required by the widget into a single file for the purpose of distribution and deployment. Distribution and deployment refers to getting a widget from the Web to run on an user's device as easily as possible.

4.1 Packaging Formats, file extensions and Media Types

The de facto standard for packaging widgets is the Zip file format, but with vendors requesting that their developers use a vendor specified file extension (ie. not .zip, but .widget, or .gadget, etc) when packaging their widgets.

Once a widget has been packaged for distribution, it is put onto a web server and served with an appropriate media type. The purpose of a media type is to allow a browser, for instance, to automatically associate a widget resource with the appropriate widget user agent. For example, widgets served for Operas widget engine are served with the application/x-opera-widgets media type and associated with the Opera browser. If a widget engine has correctly registered itself with the operatig system to be the program of choice to deal with a particular media type media type and/or file extension with, the web browser should automatically pass widgets to the widget engine without the end-user having to select the widget resource manually.

End-users generally acquire widget resources directly from vendors (eg. Apple, Yahoo!) who often host dedicated online galleries where users can search for widgets and where developers can submit or update widgets they have created. However, authors are free to distribute their widgets from their own web sites.

Packaging Format
The packaging format is supported widget user agent.
Compression
The compressions algorithm supported by the widget user agent.
File extension
The file extensions that associates a widget with a widget user agent.
Media type
As widgets are generally distributed via the Web, vendors usually assign them an arbitrary MIME type. The MIME type, which is usually used in conjunction with the file extension, helps a widget user agent associate the a widget with the appropriate widget user agent.
Packaging Formats, file extensions and Media Types
Widget User Agent Packaging Format Compression File Extension Media type
Widget User Agent Packaging Format Compression File Extension Media type
Konfabulator Proprietary flat-file, Zip Deflate (Zip) .widget (not enforced) application/vnd.yahoo.widget
Windows Sidebar Zip, Cab, directory Deflate .gadget application/x-windows-gadget
Google Desktop Zip Deflate .gg app/gg
Opera Browser Zip Deflate .zip application/x-opera-widgets
Apple Dashboard Zip Deflate .wdgt or .zip application/x-macbinary
Nokia Web-Runtime Zip Deflate .wgz application/x-nokia-widgets
Joost Widgets Zip Deflate .joda (not enforced) application/vnd.joost.joda-archive

*Although care has been take to ensure the accuracy of the information contained in this table, there is no guarantee that the information is complete, correct, or up-to-date. To obtain authoritative information about any particular widget user agent, please visit the vendor's web site.

Interoperable Aspects

Fragmentation Issues

5. Metadata and Configuration

A widget resource will typically include a configuration document, in which an author declares metadata and/or some configuration parameters that a widget user agent may use to configure a widget upon instantiation. All market leading widget engines use XML as the preferred format for storing metadata.

XML vocabulary
The proprietary specification that defines the semantics of the elements and attributes that authors should use when marking up a configuration document.
File name
The name of the file as
Required?
Is the configuration document required for the widget user agent to instantiate the widget. This was tested by attempting to instantiate a widget without a configuration document present inside the widget resource.
Uses XMLNS
Does the configuration document require authors to declare a namespace. Also tested using a bogus namespace on the root element xmlns=""
Conforming Parser?
Is the XML parser used by the widget user agent conformant to the XML specification and XMLNS aware?
Configuration documents
Widget User Agent XML vocabulary File Name Required? Uses XMLNS? Conforming Parser?
Widget User Agent XML vocabulary File Name Required? Uses XMLNS?
Konfabulator Konfabulator Reference widget.xml no no
Windows Sidebar Microsoft Gadgets gadget.xml yes no
Google Desktop Google Gadgets gadget.gmanifest   no
Opera Widgets Opera Spec config.xml yes yes, but not required. If a bogus namespace is given, the widget will not work.
Apple Dashboard Apple plist Info.plist Yes no
Nokia Web-Runtime Apple plist Info.plist Yes no
Joost Widgets Joost Joda config.xml yes yes, but not required (will work with any given namespace).

*Although care has been take to ensure the accuracy of the information contained in this table, there is no guarantee that the information is complete, correct, or up-to-date. To obtain authorities information about any particular widget user agent, please visit the vendor's web site.

Interoperable Aspects

Fragmentation Issues

5.1 Metadata

Metadata refers to how authors store information about their widget inside the widget, and how that data is made accessible to people or machines.

In practice, the inclusion of any metadata elements is generally considered optional but is nonetheless recommended by vendors. Widget user agents generally make use of metadata elements in different application contexts such as menus, lists, and about-boxes. The most common metadata elements captured in configuration documents include:

Root element:
The element found at the root of each configuration document, which contains all other elements in the document.
Name:
The human readable name of the widget as it appears in menus or other contexts.
Unique identifier:
An author assigned unique identifier for the widget.
Version identifier:
Some string that identifies the version of the widget.
Description:
A human readable description of the widget, generally describing what it does.
Copyright:
Copyright information.
Authorship:
information about the authorship of the widget, including the author's name, email, and the organization that they may be affiliated with

Metadata elements and their roles
Widget User Agent Root Element Name Unique Identifier Version Identifier
Widget User Agent Root Element Name Unique Identifier Version Identifier
Konfabulator

<metadata>

<name>text</name> <identifier>UUID or RD</identifier> <version>text</version>
Windows Vista Sidebar

<gadget>

<name>text</name> Uses <name> and <version>. <version>text(n.n.n.n)</version>
Google Desktop <gadget> <name>text</name> <id>UUID</id> <version>text(n.n.n.n)</version>
Opera Widgets <widget> <widgetname>text</widgetname> <id><host>URI</host> <name>text</name><id> <id><revised>W3CDTF</revised></id>
Apple Dashboard <plist version="1.0"> <key>CFBundleDisplayName</key> <string>text</string> <key>CFBundleIdentifier</key>
<string>RD</string>
<key>CFBundleVersion</key><string>string</string>
Nokia Web-Runtime <plist version="1.0"> <key>CFBundleDisplayName</key> <string>text</string> <key>Identifier</key>
<string>RD</string>
<key>Version</key><string>string</string>
Joost Widgets <widget-manifest> <name>text</name> <id>URI</id> none.

*Although care has been take to ensure the accuracy of the information contained in this table, there is no guarantee that the information is complete, correct, or up-to-date. To obtain authoritative information about any particular widget user agent, please visit the vendor's web site.

Metadata elements and their roles (continued)
Widget User Agent Description Authorship Copyright
Widget User Agent Description Authorship Copyright
Konfabulator <description>Text</description> <author name="" organization="" href=""/> <copyright>text</copyright>
Windows Vista Sidebar <description>Text</description> <author name=""> <info url="URL"/> <logo src="rel-path"/> </author> <copyright>text</copyright>
Google Desktop <description>Text</description> <author>text</author> <authorEmail>text</authorEmai> <authorWebsite>URL </authorWebsite> <copyright>text</copyright>
Opera Widgets <description>Text</description> <author> <name>text</name> <email>text</email> <link>text</link> <organization>text</organization> </author> none.
Apple Dashboard none. none. none.
Nokia Web-Runtime none. none. none.
Joost Widgets none. <web site.>URI</web site.> none. Often included as an xml comment inside the configuration document.

*Although care has been take to ensure the accuracy of the information contained in this table, there is no guarantee that the information is complete, correct, or up-to-date. To obtain authoritative information about any particular widget user agent, please visit the vendor's web site.

Interoperable Aspects

5.1.1 Fragmentation Issues

Configuration parameters

The most common configuration parameters include:

Bootstrap:
A way to identify the start file (or main content), including a way to identify the content type of the start file (eg. type="HTML").

Network:
The need for a widget to access the network.
Width and height:
The initial rendering dimensions (width, height).

Plugins:
The intention to use plugins (eg. Flash and Java).
Platform:
The minimum version of the widget user agent required to run the widget.

Please note that some configuration parameters have a close relationship to the security model of widgets.

Configuration documents
Widget User Agent Bootstrap Width and Height Network Plugins Platform
Widget User Agent Bootstrap Width and Height
Konfabulator Not declared. First *.kon file encountered is treated as the start file. none. <security>
<http name="someSite">exemple.com</http>
</security>
none. <platform minVersion="n.n" os="macintosh|windows"/>
Windows Sidebar <host> <base type="HTML" src="rel-path/file" /> </host> none. none. Allowed by default. none. Allowed by default. <host name="sidebar"> <platform minPlatformVersion ="n.n" /></host>
Google Desktop Not declared. Root of container must have a "main.xml" file which serves as the start file. none. none. Allowed by default. none. <gadget minimumGoogleDesktopVersion="n.n.n.n">
<platform>
<windows minimumGadgetHostVersion="n.n.n.n"/>
<mac minimumGadgetHostVersion="n.n.n.n"/>
</platform>
</gadget>
Opera Widgets None. The start file must be called "index.html" and must be at the root of the archive. <width>n</width> <height>n</height> <security> <access><protocol>http|ftp</protocol> <host>IP Address|domain name</host> <port>integer|integer-range(eg 1200-1500)</port></access> </security> <content><plugins>yes|no</plugins> <java>yes|no</java></content>
Apple Dashboard <key>MainHTML</key> <string>rel-path/any.html</string>

<key>Width</key> <integer>n</integer> <key>Height</key> <integer>n</integer>

When not present, the width and height of Default.png is used.

  <key>AllowFullAccess</key> <true|false/>
Nokia Web-Runtime <key>MainHTML</key> <string>rel-path/any.html</string>   <key>AllowNetworkAccess</key> <true|false/> <key>AllowFullAccess</key> <true|false/> none.
Joost Widgets <main-file>rel-path/a.[jwl,html,svg]</main-file>   <key>AllowNetworkAccess</key> <true|false/> <key>AllowInternetPlugins</key> <true|false/>

*Although care has been take to ensure the accuracy of the information contained in this table, there is no guarantee that the information is complete, correct, or up-to-date. To obtain authoritative information about any particular widget user agent, please visit the vendor's web site.

Interoperable Aspects

TBW

Fragmentation Issues

TBW

6. Authoring and Scripting

Authoring refers to how widgets are created, marked-up and scripted. In terms of authoring, there is a fairly congruent set of commonalities that most widget user agents share, and which authors exploit when authoring a widget: mainly their reliance on Web standards and protocols, and a strong focus on rapid development. Most widget user agents will typically support HTTP, IRIs, and Unicode, as well as ECMAScript, the DOM, and the ability to render markup languages, like HTML and CSS. Widget user agents also generally support multimedia resources, such as images, sounds, and some even video.

To make authoring of widgets possible, widget user agents provide authors with Application Programming Interfaces (APIs) that are mostly identical to those found in Web browsers, as well as APIs that provide functionality that is specific to widgets. Also, because of the rise in popularity of Ajax-style development, many widget user agents now implement the XMLHttpRequest object or some similar mechanism for making asynchronous data requests over HTTP.

Supported technologies
Widget User Agent png gif87 gif89 jpeg png svg mp3 wav swf css js html4 canvas XHR
Widget User Agent png gif87 gif89 jpeg png svg mp3 wav swf css js html4 canvas XHR
Konfabulator yes yes yes yes yes no yes yes yes yes yes yes yes yes
Windows Vista Sidebar yes yes yes yes yes no     yes yes yes yes no yes
Google Desktop yes yes yes yes yes no yes   no no yes no no yes
Opera Widgets yes yes yes yes yes yes     yes yes yes yes yes yes
Apple Dashboard yes yes yes yes yes yes     yes yes yes yes yes yes
Nokia Web Runtime yes yes yes yes yes no     no yes yes yes no yes
Joost Widgets yes yes yes yes yes yes     ? yes yes yes yes yes

*Although care has been take to ensure the accuracy of the information contained in this table, there is no guarantee that the information is complete, correct, or up-to-date. To obtain authoritative information about any particular widget user agent, please visit the vendor's web site.

explain functionality exclusively available to widgets (run programs, cross domain requests)

Interoperable Aspects

Fragmentation Issues

6.1 APIs

TBW

Open page in browser
Open a web document in the standard system browser
Preferences
Get, set and delete user preferences
Close widget
Destroy instance of currently running widget
Supported technologies
Widget User Agent Open page in browser Preferences Close widget
Widget User Agent
Konfabulator void openURL(url)




Windows Vista Sidebar no method, use <a href=""> element,
or using javascript within the document: window.open(url)
System.Gadget.Settings.write(String name, Object Value)
System.Gadget.Settings.writeString(String name, String Value)
System.Gadget.Settings.read(strName)
System.Gadget.Settings.readString(strName)
System.Gadget.close()
Google Desktop no method, use <a href=""> element
Opera Widgets openURL(String url) widget.setPreferenceForKey(preference, key)
widget.preferenceForKey(key)
setPreferenceForKey(String preference, null)

Apple Dashboard openURL(String url) widget.setPreferenceForKey(preference, key)
widget.preferenceForKey(key)
setPreferenceForKey(String preference, null)

Nokia Web Runtime openURL(String url)

widget.setPreferenceForKey(preference, key)
widget.preferenceForKey(key)
setPreferenceForKey(String preference, null)


Joost Widgets navigate(String url); widget.setString(String name, String vlaue);

*Although care has been take to ensure the accuracy of the information contained in this table, there is no guarantee that the information is complete, correct, or up-to-date. To obtain authoritative information about any particular widget user agent, please visit the vendor's web site.

Interoperable Aspects

TBW

Fragmentation Issues

TBW

6.2 Widget object: properties and events

6.2.1 Properties of the Widget object

Properties of the widget object
Property Konfabulator Windows Sidebar Google Desktop Opera Widgets Apple Dashboard Nokia Web-Runtime Joost Widgets
locale information locale     window.navigator.language     window.navigator.language
Engine version needed to run requiredEngineVersion System.Gadget.platformVersion
If the widget is visible visible System.Gadget.visible
The version of the widget as specified in the configuration document version System.Gadget.version
The name of the widget as specified in the configuration document name System.Gadget.name
The details of the author as specified in the configuration document

widget.author

widget.company


The copyright declaration as in the configuration document widget.copyright
Access the unique identifier for the widget

String widget.identifier

This read-only property contains a string value that is unique among all of the instances of a single widget. This value is assigned by Dashboard and persists between instantiations of each widget instance.

string widget.identifier;




  requiredPlatform Document, opacity, path, settingsUI, docked, background

*Although care has been take to ensure the accuracy of the information contained in this table, there is no guarantee that the information is complete, correct, or up-to-date. To obtain authoritative information about any particular widget user agent, please visit the vendor's web site.

6.2.2 Events

TBW

Events of the widget object
Event Konfabulator Windows Sidebar Google Desktop Opera Widgets Apple Dashboard Nokia Web-Runtime Joost Widgets
Widget has loaded widget.onLoad
WUA has focus         widget.onshow
WUA lost focus         widget.onhide
Widget focus widget.onGainFocus       window.onfocus
Widget lost focus widget.onLoseFocus       window.onblur
Widget drag start widget.onMouseDrag       widget.ondragstart
Widget is being dragged
Widget drag end         widget.ondragend
Widget is removed from WUA widget.onUnload       widget.onremove
Cross widget communication widget.onTellWidget = function(){ }



Other dockOpen onDockClosed onDockOpened onPreferencesChanged onRunCommandInBgComplete onScreenChanged onTellWidget onWakeFromSleep onWillChangePreferences

*Although care has been take to ensure the accuracy of the information contained in this table, there is no guarantee that the information is complete, correct, or up-to-date. To obtain authoritative information about any particular widget user agent, please visit the vendor's web site.

Accessing the file system

TBW

Execute system level commands or open applications.

//If no callbackHandler is present, the command is executed synchronously.
//If callbackHandler is present, command is executed asynchronously. callbackHandler needs to except an argument.
CommandObject widget.system(String command, [Function callbackHandler])

interface CommandObject{
        String property outputString; //the standard out
        String errorString; //any error that was thrown
        String status. //the command's exit status

        // allows handler to receive incremental output (eg ping.)
        EventListener onreadoutput(function handler);
        function cancel(); // cancel the command
        function write(String value); //write a string to standard in
        function close(); //send (EOF) to standard in
}


void widget.openApplication(HexNum Uid, String param)

opens an S60 application in stand-alone mode. Values cannot passed back from the opened application to the widget. A widget cannot open another widget using this method.

Interoperable Aspects

TBW

Fragmentation Issues

TBW

7. User interface and Accessibility

Accessibility refers to how end-users, and those with special needs, can access the content and use the interactive elements of an instantiated widget. Most market-leading widget user agents allow widgets to be authored using HTML, CSS, and ECMAScript. HTML, when authored with care, is generally regarded to be an accessible technology whose structure and semantics are generally well understood and correctly implemented by most market-leading widget user agents. To extend It is also therefore theoretically possible for authors to make their widgets fairly accessible by applying, for example, the relevant sections of the Web Content Accessibility Guidelines (WCAG).

Language used to declare the user interface of a widget
Widget User Agent UI Markup HTML Renderer
Widget User Agent UI Markup
Konfabulator HTML + CSS (through Webkit), Proprietary XML webkit
Windows Vista Sidebar HTML + CSS + Proprietary XML Internet Explorer
Google Desktop Proprietary XML none
Opera Widgets (X)HTML + CSS + SVG Opera
Apple Dashboard HTML + CSS + SVG Webkit/safari
Nokia Web Runtime HTML + CSS Webkit
Joost Widgets XHTML + CSS + SVG + Proprietary XML Gecko

*Although care has been take to ensure the accuracy of the information contained in this table, there is no guarantee that the information is complete, correct, or up-to-date. To obtain authoritative information about any particular widget user agent, please visit the vendor's web site.

Interoperable Aspects

TBW

Fragmentation Issues

TBW

8. Instantiation

What addressing mechanism does the widget user agent support at runtime to get to resources inside the package? (ie. how does a developer address and include things like images or sounds in their widget?)

The details of configuration document
Widget User Agent Other expected files
Widget User Agent Other expected files
Konfabulator at least one *.kon somewhere in the archive
Windows Sidebar at least one html file somewhere in the archive
Google Desktop
Opera Widgets (any folder)* index.html. The folder is selected in alphabetical order, not by the order in which it appears physically in the archive.
Apple Dashboard some [name].html file identified as the start file by the MainHTML key in the Info.plist file. Icon.png and Default.png. Icon.png is used in the Dashboard bar. Default.png is shown while the widget loads and used to set the render context of the widget if width and height keys were not set in Info.plist.
Nokia Web-Runtime some [name].html file identified as the start file by the MainHTML key in the Info.plist file. Icon.png is optional.
Joost Widgets

*Although care has been take to ensure the accuracy of the information contained in this table, there is no guarantee that the information is complete, correct, or up-to-date. To obtain authoritative information about any particular widget user agent, please visit the vendor's web site.

TBW: discusses different ways that the start file of widget is located: 1. having a preset name (eg. index.html ala Opera Widgets). Having it declared in the configuration document (ala Joost), Having it match a search pattern (ala Konfabulator)

Interoperable Aspects

TBW

Fragmentation Issues

TBW

9. Internationalization and Localization

internationalization refers to the technical aspects that allow a widget to work in multilingual contexts without requiring an author to make significant engineering changes to a widget. Localization is the processes where by a widget is adapted to use the local conventions of particular end-users (eg. using a particular dialect). To allow authors to distribute a widget to multiple locales, the majority of vendors provide guidelines explain to authors how to make effective use of internationalization mechanisms built into widget user agents. When authors follow localization guidelines, a widget user agent can use automated mechanisms to select the appropriate localized resources for a widget based on a system's locale information; thus making it easier for authors to create localized widgets.

In the widget space, internationalization is commonly achieved in one of two ways:

"greeting" = "g'day mate!";
"greeting_gfx" = "/en-au/images/greet.png";

Note that this method only localizes textual content, but can be used to also identify the path or URI to localized resources. At runtime, the widget user agent makes those localized strings available via a scripting interface:


//would set the button's label to "g'day mate!"
myButton.label = widget.getLocalizedString("greeting");

myButton.style.background = widget.getLocalizedString("greeting_gfx");

When automated internationalization is not provided by a widget user agent, authors usually result to using arbitrary solutions to achieve localization. Such is the case for Opera widgets.

Localization strategies
Widget User Agent Localization Strategy Automatic Convention followed Example Comments
Konfabulator Directory-based + JS yes   /en-au/Localizable.strings
Windows Sidebar Directory-based + JS yes
Google Desktop Directory-based + JS yes
Opera Widgets none no none   Does not support any automated localization strategies.
Apple Dashboard Directory-based + JS yes   /en-au/
Widget User Agent Localization Strategy Automatic Convention followed Example Comments

*Although care has been take to ensure the accuracy of the information contained in this table, there is no guarantee that the information is complete, correct, or up-to-date. To obtain authoritative information about any particular widget user agent, please visit the vendor's web site.

Interoperable Aspects

TBW

Fragmentation Issues

TBW

10. Digital Signatures

A digital signature is the product of applying a secret numeric key (known as a private key) and an encryption algorithm over some data to produce a unique hash value. The only way to validate a digital signature is to use a corresponding public key in a process known as asymmetric cryptography.

Although not widely supported by market-leading widget user agents, some widget user agents allow an author to digitally sign a widget resource. Digitally signing a widget resource involves calculating the hash values of all the resources inside the widget resource and encrypting those values using a unique private key that is known only to the author. The resulting data is bundled inside the widget resource with a digital certificate, which an author can obtain from a certification authority (such as VeriSign) for a charge.

A digital certificate is therefore a trust mechanism intended to verify to a user that an author really did sign the widget resource. A widget user agent can use the digital certificate to verify the authenticity and data integrity of the widget resource. In the rare case where a widget damages the end-user's device, the digital certificate provides a user with a legal means to prove that a widget resource was signed by a particular author or publisher.

Because digital certificates can come from untrusted sources, widget user agents will include root certificates from sources that it trusts. Root certificates are explicitly trusted and are considered impossible to forge. For example, the Konfabulator is bundled with the Yahoo! root certificate which it uses to verify widgets signed by Yahoo! Inc. are in fact signed by Yahoo! Inc.

Digital Signatures
Widget User Agent Signature Certificate Format
Konfabulator yes x509
Windows Sidebar yes x509
Google Desktop no -
Opera Widgets no -
Apple Dashboard no -
Nokia Web Runtime Planned -
Joost Planned -
Widget User Agent Signature Certificate Format

*Although care has been take to ensure the accuracy of the information contained in this table, there is no guarantee that the information is complete, correct, or up-to-date. To obtain authoritative information about any particular widget user agent, please visit the vendor's web site.

Interoperable Aspects

Fragmentation Issues

11. Automatic Updates

Automatic updates refers to a service that allows a widget user agent to automatically check if a new or different version of an installed widget resource has become available, and somehow acquire the new version and install it. Automatic updates models work by allowing authors to assign a unique identifier and version identifier to a widget resource (eg. id="http://example.com/my.wdgt" version="1.2").

To keep a widget resource up to date, the widget user agent periodically checks if a different version of a widget resource has become available on a remote server. In the case of the Konfabulator, it does this by sending an XML document that identifies the widget via an unique identifier, and what version the end-user currently has installed. If a new version of the widget resource is available on the server, the server sends back an XML file that contains a URL from where the widget user agent can acquire the latest version. The widget user agent then informs the end-user that an update to a widget has become available and if they want to perform the update. If the end-user agrees, then the widget user agent downloads the latest version of the widget resource, archives the old version, installs the new one in its place. The updated widget is re-instantiated with its preexisting preferences (eg. an updated weather forecaster widget will generally not require the end-user to re-input their preferred city after an update).

Interoperable Aspects

TBW

Fragmentation Issues

12. Device Independence

Need to read up on how Nokia Web Runtime recommends authors deal with migration of Dashboard widgets, etc.

Interoperable Aspects

TBW

Fragmentation Issues

TBW

13. Security Models

Security model refers to the security policies under which a widget user agent operates that either prevents or allows an instantiated widget from performing particular actions (eg. accessing the network or reading/writing files). When compared to Web browsers, some market-leading widget user agents have a comparatively relaxed security model that allows an instantiated widget to read, write, modify, and/or delete files, automatically upload files, automatically download files, execute local applications, and even perform cross-domain request to "mash-up" data from multiple different sources. All without the end-user having any indication that their privacy and security might be at risk.

The ability to perform most of the aforementioned actions is strictly forbidden in documents running in Web Browsers. Such a relaxed security model has been generally positive in the widget space with very useful and powerful widgets being developed. However, this has created an environment where users are left extremely vulnerable to malicious attacks, and serious security risks have been demonstrated. Some market-leading widget user agents, such as Opera Widgets, have a much tighter security model that adheres more closely to the security model of a Web Browser; as such, they may be less prone to serious security issues.

Need to discuss how security declarations are made using pInfo list or Opera's security element.

Interoperable Aspects

TBW

Fragmentation Issues

TBW

14. Icons

Icons
Widget User Agent Element in configuration file Supported Types Preferred Comments
Widget User Agent Element Supported Types   Comments
Konfabulator <image usage="dock|security" src="images/some.png"/> GIF, PNG.

Two images may be declared, depending on the usage attribute. The usage attribute allows either values dock|security to indicate where the image should be used. Security image is shown as part of the widget security warning when the widget is instantiated.

Windows Vista Sidebar

<icons> <icon src="rel-path" [width="" height=""]> </icons>

<hosts> <host> <defaultImage src=""/> </host>

any GDI+ 1.0 supported format.

Having multiple icon elements allows the engine to select the icon most appropriate for communication based on size. Preferred size is 64px*64px, but any size is ok.

The documentation contradicts itself in regards to icon and defaultImage. Need to verify which one is actually used!

Google Desktop

<small-icon>rel-path/some.png<small-icon>

<icon>rel-path/some.png<small-icon>

PNG PNG

Need to test other formats

Opera Widgets

<icon>relative-path/some.png</icon>



GIF, PNG.
Apple Dashboard none. PNG

Not declared. An optional icon must appear in the root of the archive and must be called icon.png. If the icon is missing, then the runtime will use a default icon.

Nokia Web-Runtime none. PNG PNG include an "icon.png" file at the root of the widget.
Joost Widgets

<icon>relative-path/some.svg</icon>



SVG, PNG, JPEG, GIF   SVG or PNG are preferred.

*Although care has been take to ensure the accuracy of the information contained in this table, there is no guarantee that the information is complete, correct, or up-to-date. To obtain authoritative information about any particular widget user agent, please visit the vendor's web site.

This section will describe how icons are used by different widget engines. It will discuss static icons (images, pngs), and dynamic icons, such as Yahoo!'s icons. Might also talk briefly about iPod/Phone icons here too, as they are dynamic.

Interoperable Aspects

PNG, GIF87/89

TBW

Fragmentation Issues

TBW

15. Standardizable Aspects of Widgets

The following list represents the aspects of a widget that members of the working group have identified as requiring standardization to reduce fragmentation in the widget space. Aspects that are currently outside the scope of the working group charter are proceeded by the text "out of scope". To address aspects beyond the scope of the working group, the working group will require liaison with other working groups at the W3C and possibly other related consortia such as the OMA and the OAA.

Standardizable aspects of widgets include:

Standardizable aspects of widget engines include:

Acknowledgments

The editor would particularly like to thank Corin Edwards for his help on improving the design on of figure 1.

The editor would like to thank to the following people who have contributed to this document (ordered by first name):

References

Ajax
Ajax: A New Approach to Web Applications. J. J. Garrett. February 18, 2005. Adaptive Path. Available at http://www.adaptivepath.com/publications/essays/archives/000385.php
Apple pList
Introduction to Property List Programming Topics for Core Foundation, Apple Computer Inc, 7 February 2006. Available at http://developer.apple.com/documentation/CoreFoundation/Conceptual/CFPropertyLists/index.html
CSS
Cascading Style Sheets, level 2, revision 1, B. Bos, T. Çelik, I. Hickson, and H. Wium Lie. W3C Candidate Recommendation 19 July 2007. Available at http://www.w3.org/TR/CSS21
DOM
Document Object Model (DOM) Level 1 Specification, L. Wood et al., 1 October 1998. Available at http://www.w3.org/TR/REC-DOM-Level-1
Dashboard Reference
Dashboard Reference, Apple Computer, Inc, May 2006. Available at http://developer.apple.com/documentation/AppleApplications/Reference/Dashboard_Ref/index.html
Google Gadgets
Google Desktop Sidebar Scripting API, Google Inc., 2006. Available at http://desktop.google.com/script.html
JSON
The application/json media type for ECMAScript Object Notation. D. Crockford. July 2006. Available at http://www.ietf.org/rfc/rfc4627.txt

Opera Spec
Opera Widgets Specification 1.0, A. Bersvendsen (Editor), Opera Software, 30 Apr, 2007. Available at http://oxine.opera.com/widgets/documentation/widget-configuration.html
Sidebar Reference
Windows Sidebar Reference, Microsoft Corporation, 2006. Available at http://msdn2.microsoft.com/en-us/library/aa965853.aspx
XML Internationalization and Localization
XML Internationalization and Localization. Savourel, Y. Sams Publishing, Indiana. June 2001.
Konfabulator Reference
Konfabulator Reference 4.5 Reference Manual Yahoo! Inc., April 14, 2006. Available at http://Widgets.yahoo.com/gallery/dl_item.php?item=WidgetEngineReference_3.1.1.pdf
WCAG
Web Content Accessibility Guidelines 1.0. W. Chisholm, G. Vanderheiden, and I. Jacobs. W3C Recommendation, 5 May 1999. Available at http://www.w3.org/TR/WAI-WEBCONTENT/
ECMAScript
ECMAScript Language Specification, Third Edition. ECMA, December 1999. Available at http://www.ecma-international.org/publications/standards/Ecma-262.htm
HTML
HTML 4.01 Specification, D. Raggett, A. Le Hors, I. Jacobs, 24 December 1999. Available at http://www.w3.org/TR/html401/
HTTP
Hypertext Transfer Protocol -- HTTP/1.1, R. Fielding, J. Gettys, J. Mogul, H. Frystyk Nielsen, L. Masinter, P. Leach and T. Berners-Lee, June 1999. Available at http://www.ietf.org/rfc/rfc2616.txt
MIME Type
Multipurpose Internet Mail Extensions (MIME) Part Two: media types, N. Freed and N. Borenstein, November 1996. Available at http://www.ietf.org/rfc/rfc2046.txt.
Unicode
The Unicode Standard, The Unicode Consortium, Version 5.
XML
Extensible Markup Language (XML) 1.0 Specification (Second Edition), T. Bray, J. Paoli, C. M. Sperberg-McQueen, E. Maler, 6 October 2000. Available at http://www.w3.org/TR/REC-xml/
XMLHttpRequest
The XMLHttpRequest object. A. van Kesteren. 2006. W3C Working Draft, Available at http://www.w3.org/TR/XMLHttpRequest/
X.509
CCITT, Recommendation X.509: The Directory Authentication Framework, 1988.
IRI
Internationalized resource Identifiers (IRIs), M. Duerst, M. Suignard. IETF, January 2005. RFC3987 is Available at http://www.ietf.org/rfc/rfc3987
Zip
.ZIP File Format Specification. PKWare Inc., September 2007. Available at http://www.pkware.com/documents/casestudies/APPNOTE.TXT

Light Web Applications
Setting the scope for light-weight Web-based applications. B. Bos. Work in Progress. 26 Feb 2004. Available at http://www.w3.org/People/Bos/Webapps.html
XML Packaging
XML Packaging Working Group Charter, J. Nava. W3C. Available at http://www.w3.org/XML/2000/07/xml-packaging-charter.html
Semantic Webapps
Semantic Webapps? Lightweight RDF interfaces for SVG. Sept 7, SVGOpen 2004, Japan. Available from: http://www.w3.org/2001/sw/Europe/talks/200409-svgopen/slide1-0.html
