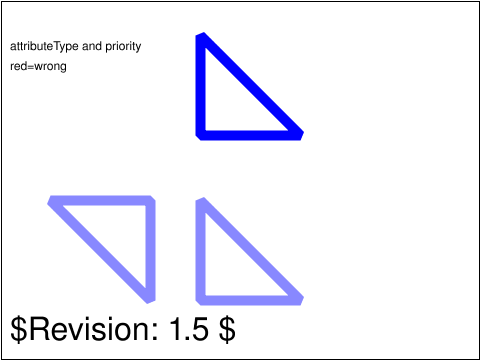

raster image of animate-elem-219-t

Identify the attributeType and the priority of an animation.

The main indication for a failed test is the appearance of red.

With the top triangle is tested, that the points attribute of a polygon is animated using attributeType auto or XML and is not animated if CSS is used, because there is no CSS property points applicable for the polygon element.

The bottom triangles test the priority for an animation with attributeType CSS or auto over an XML animation, all for the stroke attribute. Even if the attributeType is completely ignored, the priority should still work for the bottom right triangle, because the priority is set here with a later begin.

In all cases the coloring or positioning of elements is choosen in such a way, that normally not visible lower priority or not applicable animations are indicated with a red stroke, higher priority or applicable animations with a blue stroke or an animation in the blue range.
