State of the Semantic Web

Bangalore, 23 February, 2007

Ivan Herman, W3C

What will I talk about?

The history of the Semantic Web goes back to several years now
It is worth looking at what has been achieved, where we are, and where we might be going…

Let us look at some results first!

The basics: RDF(S)

We have a solid specification since 2004: well defined (formal) semantics, clear RDF/XML syntax
Lots of tools are available. Are listed on W3C’s wiki:
- RDF programming environment for 14+ languages, including C, C++, Python, Java, Javascript, Ruby, PHP,… (no Cobol or Ada yet !)
- 13+ Triple Stores, ie, database systems to store (sometimes huge!) datasets
- converters to and from RDF
- etc
Some of the tools are Open Source, some are not; some are very mature, some are not : it is the usual picture of software tools, nothing special any more!
Anybody can start developing RDF-based applications today

The basics: RDF(S) (cont.)

There are lots of tutorials, overviews, and books around
- again, some of them good, some of them bad, just as with any other areas…
Active developers’ communities
Large datasets are accumulating. E.g.:
- IngentaConnect bibliographic metadata storage: over 200 million triplets
- RDF access to Wikipedia: more than 27 million triplets
- tracking the US Congress: data stored in RDF (around 25 million triplets)
- RDFS/OWL Representation of Wordnet: also downloadable as 150MB of RDF/XML
- “Département/canton/commune” structure of France published by the French Statistical Institute
- Geonames Ontology and associated RDF data: 6 million (and growing) geographical features
- RDF Book Mashup, integrating book data from Amazon, Google, and Yahoo
Some mesaures claim that there are over 10⁷ Semantic Web documents… (ready to be integrated…)

Ontologies: OWL

This is also a stable specification since 2004
Separate layers have beed defined, balancing expressibility vs. implementability (OWL-Lite, OWL-DL, OWL-Full)
Looking at the tool list on W3C’s wiki again:
- a number programming environments (in Java, Prolog, …) include OWL reasoners
- there are also stand-alone reasoners (downloadable or on the Web)
- ontology editors come to the fore
OWL-DL and OWL-Lite relies on Description Logic, ie, can use a large body of accumulated research knowledge

Ontologies

Large ontologies are being developed (converted from other formats or defined in OWL)
- eClassOwl: eBusiness ontology for products and services, 75,000 classes and 5,500 properties
- the Gene Ontology: to describe gene and gene product attributes in any organism
- BioPAX, for biological pathway data
- UniProt: protein sequence and annotation terminology and data

Vocabularies

There are also a number “core vocabularies” (not necessarily OWL based)
- Dublin Core: about information resources, digital libraries, with extensions for rights, permissions, digital right management
- FOAF: about people and their organizations
- DOAP: on the descriptions of software projects
- MusicBrainz: on the description of CDs, music tracks, …
- SIOC: Semantically-Interlinked Online Communities
- vCard in RDF
- …
One should never forget: ontologies/vocabularies must be shared and reused!

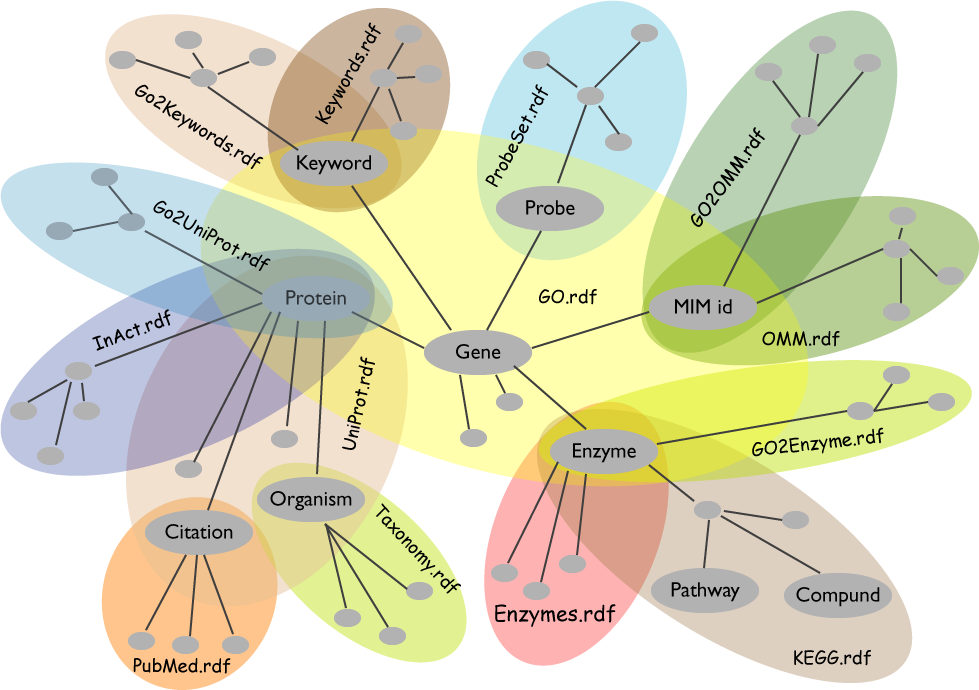

A mix of vocabularies/ontologies (from life sciences)…

Ontologies, Vocabularies

Ontology and vocabulary development is still a complex task
The W3C SW Best Practices and Deployment Working Group has developed some documents:
the work is continuing in the (new) SW Deployment Working Group

Querying RDF: SPARQL

Querying RDF graphs becomes essential
SPARQL is almost here
- query language based on graph patterns
- there is also a protocol layer to use SPARQL over, eg, HTTP
- hopefully a Recommendation end 2007
There are a number of implementations already
There are also SPARQL “endpoints” on the Web:
- send a query and a reference to data over HTTP GET, receive the result in XML or JSON
- applications may not need any direct RDF programming any more, just a SPARQL endpoint

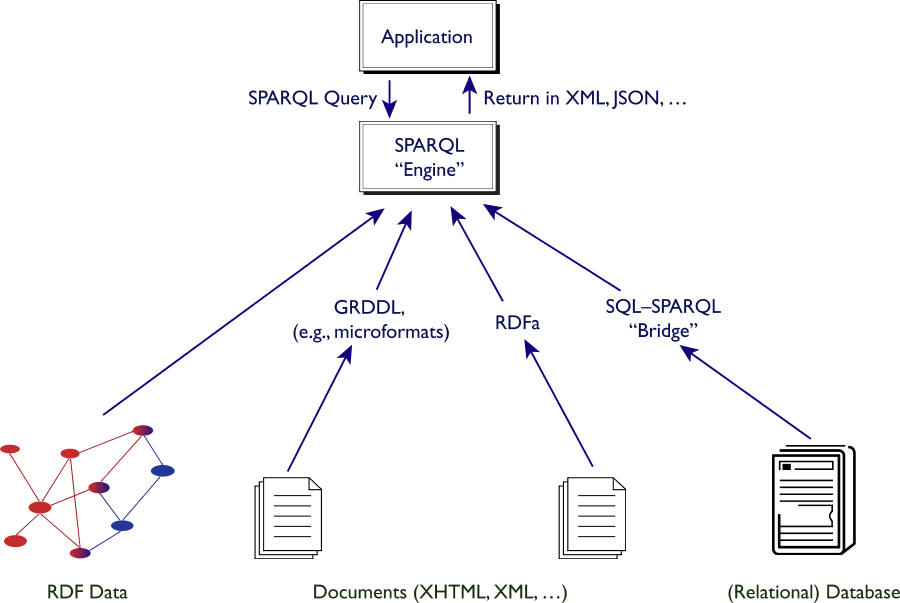

SPARQL as the only interface to RDF data?

http://www.sparql.org/sparql?query=…
with the query:

SELECT ?translator ?translationTitle ?originalTitle ?originalDate
FROM <http://…/Translations.rdf>
FROM <http://…/tr.rdf>
…
WHERE {
   ?trans rdf:type trans:Translation;
		  trans:translationFrom ?orig;
		  trans:translator      [ contact:fullName ?translator ];
		  dc:language           "fr";
		  dc:title              ?translationTitle.
   ?orig  rdf:type rec:REC;
		  dc:date               ?originalDate;
		  dc:title              ?originalTitle.
}
ORDER BY ?translator ?originalDate

yields…

A word of warning on SPARQL…

It is not a Recommendation yet
New issues may pop up at the last moment via reviews
- a query language needs very precise semantics and that is not that easy
Some features are missing
- control and/or description on the entailment regimes of the triple store (RDFS? OWL-DL? OWL-Lite?…)
- modify the triple store
- …
postponed to a next version…

Of course, not everything is so rosy…

There are a number of open issues, problems to solve
- how to bind to different communities (e.g., the “digital library world”)
- how to get RDF data

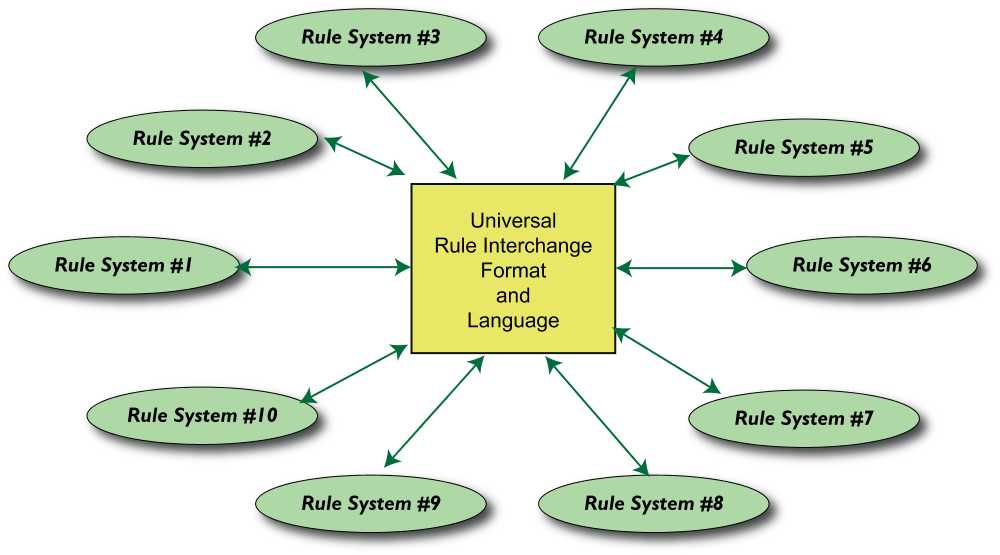

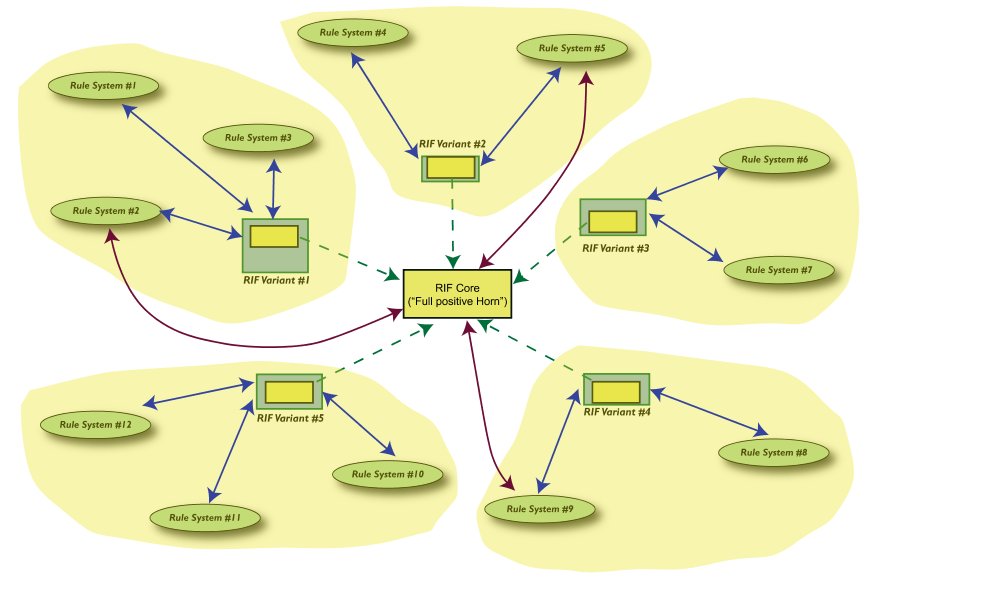

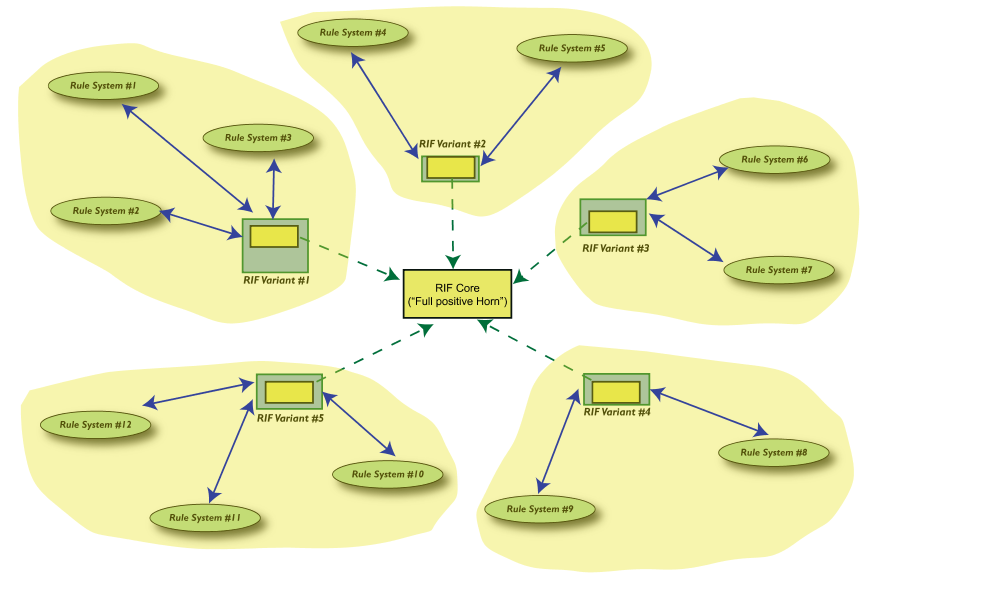

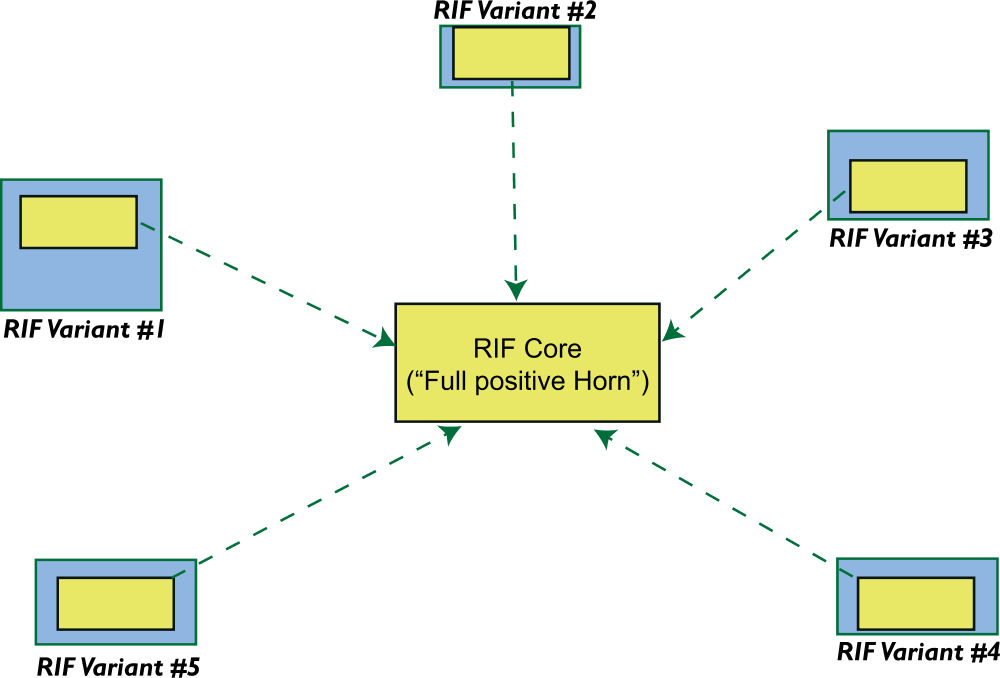

- missing functionalities: rules, “light” ontologies, fuzzy reasoning, necessity to review RDF and OWL,…
- misconceptions, messaging problems
- need for more applications, deployment, acceptance
- etc

Simple Knowledge Organization System (SKOS)

Goal: porting (“Webifying”) thesauri: representing and sharing classifications, glossaries, thesauri, etc, as developed in the “Print World”. For example:
- Dewey Decimal Classification, Art and Architecture Thesaurus, ACM classification of keywords and terms…
- DMOZ categories (a.k.a. Open Directory Project)
The system must be simple to allow for a quick port of traditional data
This is where SKOS comes in

Example: Entries in a Glossary (1)

“Assertion”: “(i) Any expression which is claimed to be true. (ii) The act of claiming something to be true.”
“Class”: “A general concept, category or classification. Something used primarily to classify or categorize other things.”
“Resource”: “(i) An entity; anything in the universe. (ii) As a class name: the class of everything; the most inclusive category possible.”

(from the RDF Semantics Glossary)

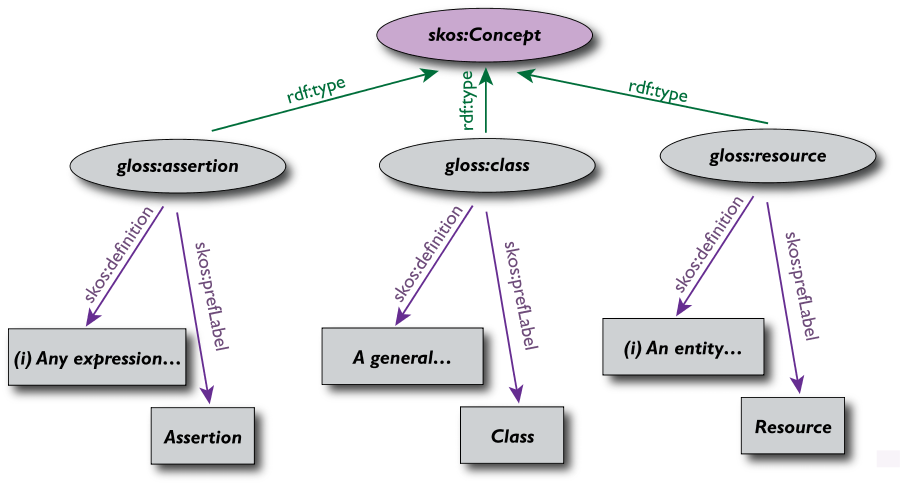

Example: Entries in a Glossary (2)

Example: Taxonomy (1)

Illustrates “broader” and “narrower”

General

Travelling
Politics

SemWeb

RDF
- OWL

(From MortenF’s weblog categories. Note that the categorization is arbitrary!)

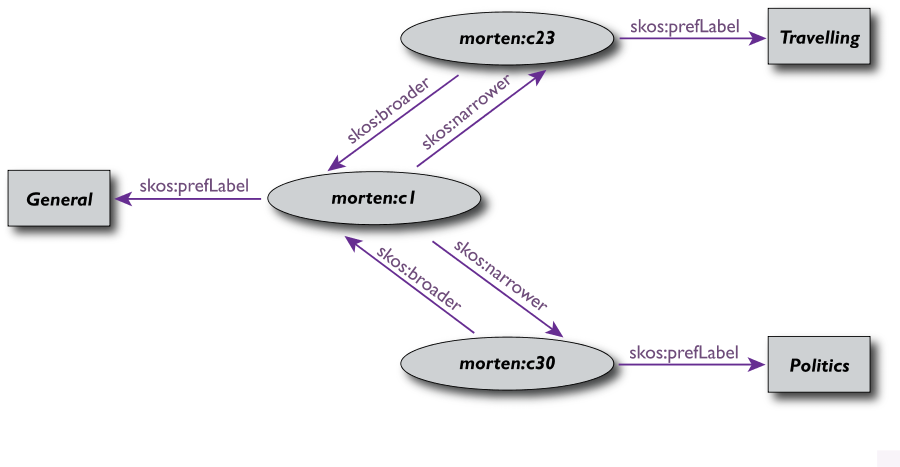

Example: Taxonomy (2)

Example: Thesaurus (1)

Term: Economic cooperation
Used For: Economic co-operation
Broader terms: Economic policy
Narrower terms: Economic integration, European economic cooperation, …
Related terms: Interdependence
Scope Note: Includes cooperative measures in banking, trade, …

(from UK Archival Thesaurus)

Example: Thesaurus (2)

SKOS Core Overview

Classes and Predicates:
- Basic description (Concept, ConceptScheme, …)
- Labelling (prefLabel, altLabel, prefSymbol, altSymbol …)
- Documentation (definition, scopeNote, changeNote, …)


        Some simple inference rules (a bit like the RDFS inference rules) to define some semantics



      Why Having SKOSand
         OWL?

        OWL’s precision not always necessary or even appropriate
					“OWL a sledge hammer/SKOS a nutcracker”, or “OWL a Harley/SKOS a bike”
            complement each other, can be used in combination to optimize cost/benefit


        Role of SKOS is
					to bring the worlds of library classification and Web technology together
            to be simple and undemanding enough in terms of cost and required expertise


        A typical example: the Glossary of project of W3C stores all terms in SKOS (and extracted from W3C documents)
        But we have heard about other usage at this conference already!



      How to get RDF data?

        Of course, one could create RDF data manually…
        … but that is unrealistic on a large scale
        Goal is to generate RDF data automatically when possible and “fill in” by hand only when necessary



      Data may be around already…

        Part of the (meta)data information is present in tools … but thrown away at output
					e.g., a business chart can be generated by a tool: it “knows” the structure, the
							classification, etc. of the chart, but, usually, this information is lost


        storing it in web data would be easy!
        “SW-aware” tools are around (even if you do not know it…), though more would be good:
					Photoshop CS stores metadata in RDF in, say, jpg files (using
					 XMP)


              RSS1.0 feeds are
							generated by (almost) all blogging systems (a huge amount of RDF data!)
            …


   			There are a number of projects “harvesting” and linking data to RDF (e.g., “Linking Open Data on the Semantic Web” community project)



      Data may be extracted (a.k.a. “scraped”)

        Different tools, services, etc, come around every day:
					get RDF data associated with images, for example:
						   service to get RDF from flickr images
							(see example)
                service to get RDF from XMP
							(see example)


            XSLT scripts to retrieve microformat data from XHTML files
            scripts to convert spreadsheets to RDF
            etc


        Most of these tools are still individual “hacks”, but show a general tendency
        Hopefully more tools will emerge



      Getting structured data to RDF: GRDDL

        GRDDL is a way to access structured data in XML/XHTML and turn it into RDF:
			defines XML attributes to bind a suitable script to transform (part of) the data into RDF
					script is usually XSLT but not necessarily
                has a variant for XHTML


            a “GRDDL Processor” runs the script and produces RDF on–the–fly


        A way to access existing structured data and “bring” it to RDF
				a possible link to microformats





      Getting structured data to RDF: RDFa

        RDFa (formerly RDF/A) extends XHTML with a set of attributes to include structured data into XHTML
			an XHTML1 module is being defined


        Makes it easy to “bring” existing RDF vocabularies into XHTML
        Uses namespaces for an easy mix of terminologies
        It can be used with GRDDL but RDFa aware systems can manage it directly, too
			no need to implement a separate transformation per vocabulary

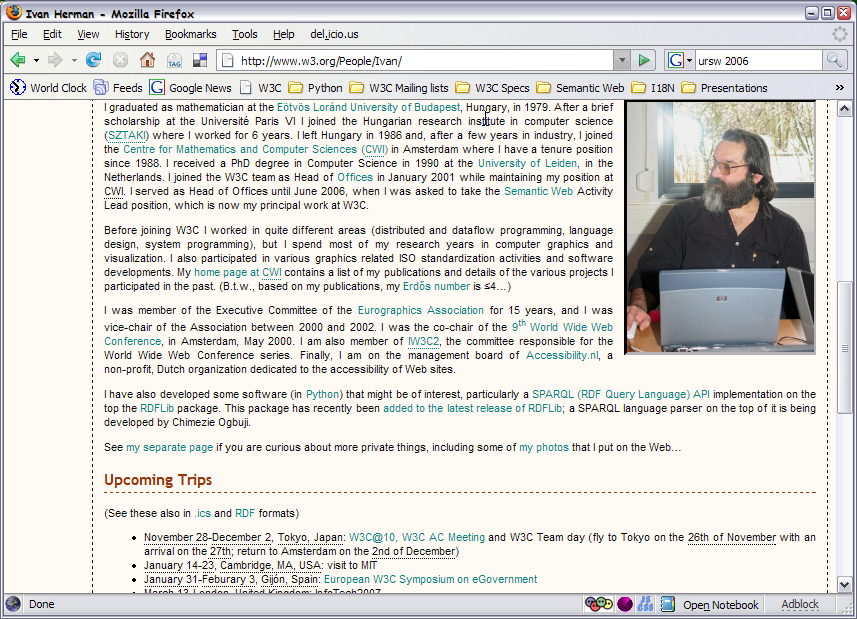

      GRDDL & RDFa example: Ivan’ home page…

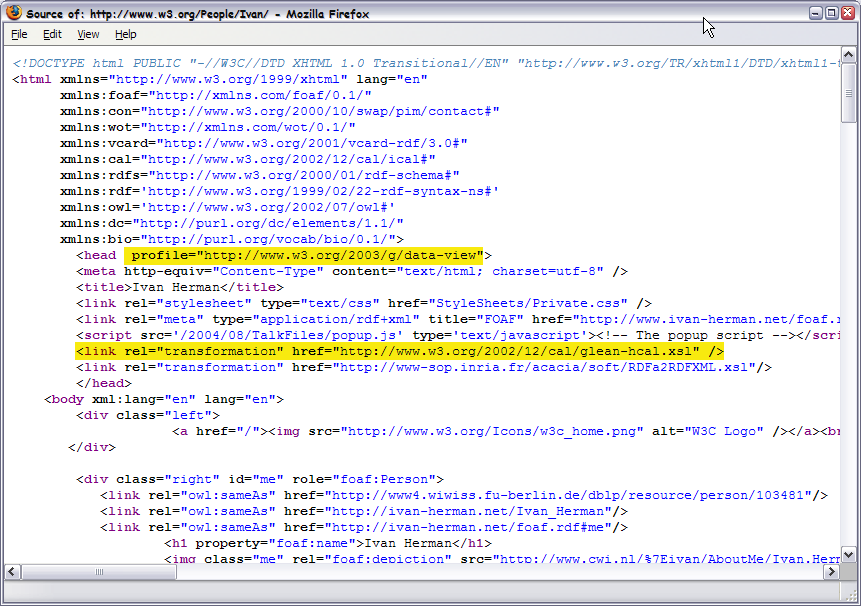

      …marked up with GRDDL headers…

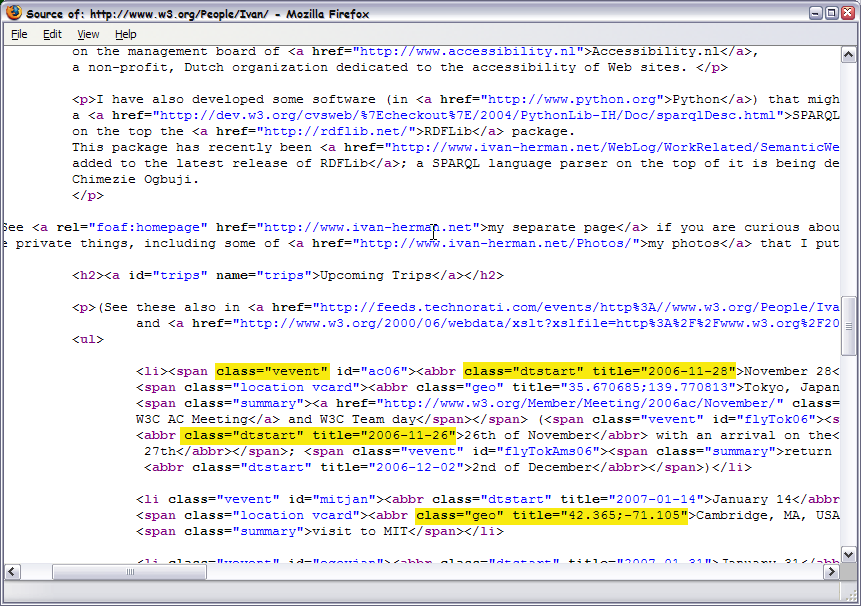

      …and hCard microformat tags…





      …yielding; …

        <rdf:RDF xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
         xmlns:dataview="http://www.w3.org/2003/g/data-view#"
         xml:base="http://www.w3.org/People/Ivan/">
   <c:Vcalendar xmlns:r="http://www.w3.org/1999/02/22-rdf-syntax-ns#"
                xmlns:c="http://www.w3.org/2002/12/cal/icaltzd#"
                xmlns:h="http://www.w3.org/1999/xhtml">
      <c:prodid>-//connolly.w3.org//palmagent 0.6 (BETA)//EN</c:prodid>
      <c:version>2.0</c:version>
      <c:component>
         <c:Vevent r:about="#ac06">
            <summary xmlns="http://www.w3.org/2002/12/cal/icaltzd#" xml:lang="en">W3C@10,
				W3C AC Meeting and W3C Team day</summary>
            <dtstart xmlns="http://www.w3.org/2002/12/cal/icaltzd#"
                     r:datatype="http://www.w3.org/2001/XMLSchema#date">2006-11-28</dtstart>
            <dtend xmlns="http://www.w3.org/2002/12/cal/icaltzd#"
                   r:datatype="http://www.w3.org/2001/XMLSchema#date">2006-12-03</dtend>
            <url xmlns="http://www.w3.org/2002/12/cal/icaltzd#"
                 r:resource="http://www.w3.org/Member/Meeting/2006ac/November/"/>
            <location xmlns="http://www.w3.org/2002/12/cal/icaltzd#" xml:lang="en">Tokyo, Japan</location>
            <geo xmlns="http://www.w3.org/2002/12/cal/icaltzd#" r:parseType="Resource">
               <r:first r:datatype="http://www.w3.org/2001/XMLSchema#double">35.670685</r:first>
               <r:rest r:parseType="Resource">
                  <r:first r:datatype="http://www.w3.org/2001/XMLSchema#double">139.770813</r:first>
                  <r:rest r:resource="http://www.w3.org/1999/02/22-rdf-syntax-ns#nil"/>
               </r:rest>
            </geo>
        </c:Vevent>
      </c:component>
      …

      (see the full file if interested…)


      …marked up with RDFa tags…





      …yielding; …

        <rdf:RDF xmlns:foaf="http://xmlns.com/foaf/0.1/"
         xmlns:rdfs="http://www.w3.org/2000/01/rdf-schema#"
         xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#" >
  <foaf:Person rdf:about="http://www.w3.org/People/Ivan/#me">
    <foaf:mbox rdf:resource="mailto:ivan@w3.org"/>
    <foaf:workInfoHomepage rdf:resource="http://www.w3.org/Consortium/Offices"/>
    <foaf:workInfoHomepage rdf:resource="http://www.iw3c2.org"/>
    <foaf:workInfoHomepage rdf:resource="http://www.w3.org/2001/sw"/>
    <foaf:name>Ivan Herman</foaf:name>
    <foaf:workplaceHomepage rdf:resource="http://www.w3.org"/>
    <foaf:schoolHomepage rdf:resource="http://www.elte.hu/"/>
      …

      (see the full file if interested…)


      Linking to SQL

        A huge amount of data in Relational Databases
        Although tools exist, it is not feasible to convert that data into RDF

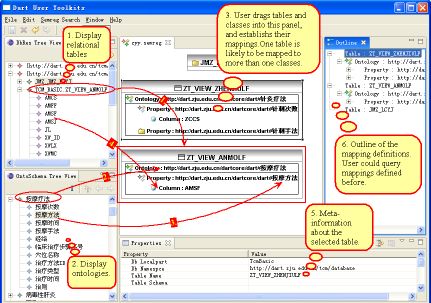

        Instead: SQL ⇋ RDF “bridges” are being developed:
					a query to RDF data is transformed into SQL on-the-fly
            the modalities are governed by small, local ontologies or rules


        An active area of development, on the radar screen of W3C!
    	 (remind you again of “Linking Open Data on the Semantic Web” community project)



      SPARQL as a unifying point?





      Missing features, functionalities…

        Everybody has a favorite item, ie, the list tends to infinite…
        W3C is a standardization body, and has to look at where a consensus can be found



      Rules

        OWL-DL and OWL-Lite are based on Description Logic; there are things that DL cannot express
					a well known examples is Horn rules (eg, the “uncle” relationship):
							(P₁ ∧ P₂ ∧ …) → C

                e.g.: for any «X», «Y» and «Z»: “if «Y» is a
								parent of «X», and «Z» is a brother of «Y» then «Z» is the
								uncle of «X»”


            there are a number of attempts to combined these: RuleML,
						SWRL,
						cwm, …


        There is also an increasing number of rule-based system that want to interchange rules
					a new type of data (potentially) on the Web to be interchanged…





      Some typical use cases

        Negotiate eBusiness contracts across platforms: supply vendor-neutral representation of your business rules so that others may find you
        Describe privacy requirements and policies, and let clients “merge” those (e.g., when paying with a credit card)
        Medical decision support, combining rules on diagnoses, drug prescription conditions, etc,
        Extend RDFS (or OWL) with rule-based statements (e.g., the uncle example)



      In an ideal World…





      In the real World…

        Rule based systems can be very different
					different rule semantics (based on various type of model theories, on proof systems, etc)
            production rule systems, with procedural references, state transitions, etc

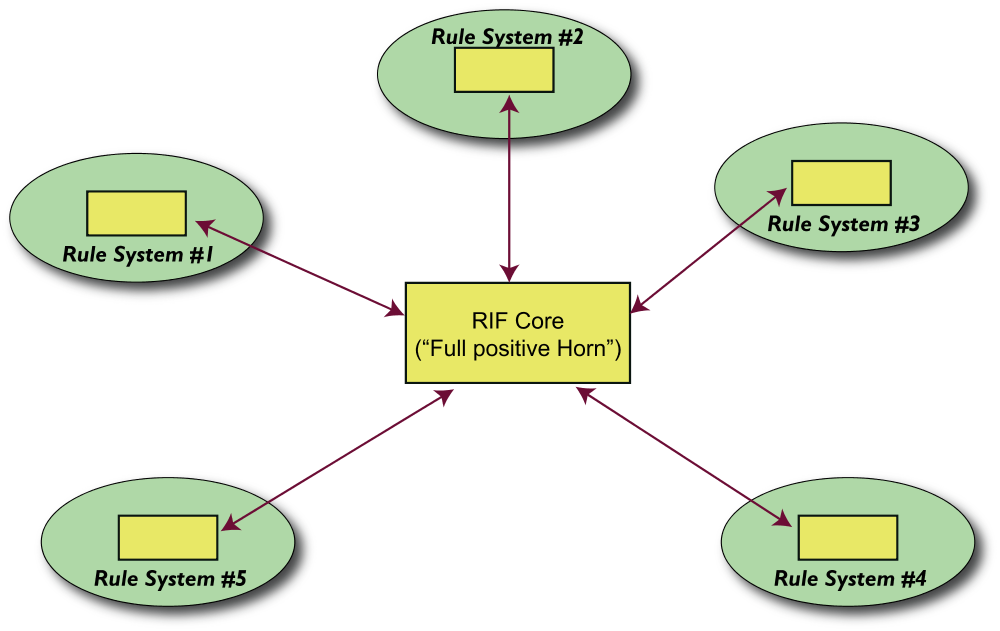

      RIF “core”: only partial interchange




        Specification of the “core” is the first step
        It also forms a logic language to be used, eg, with OWL, RDF, XML data, …

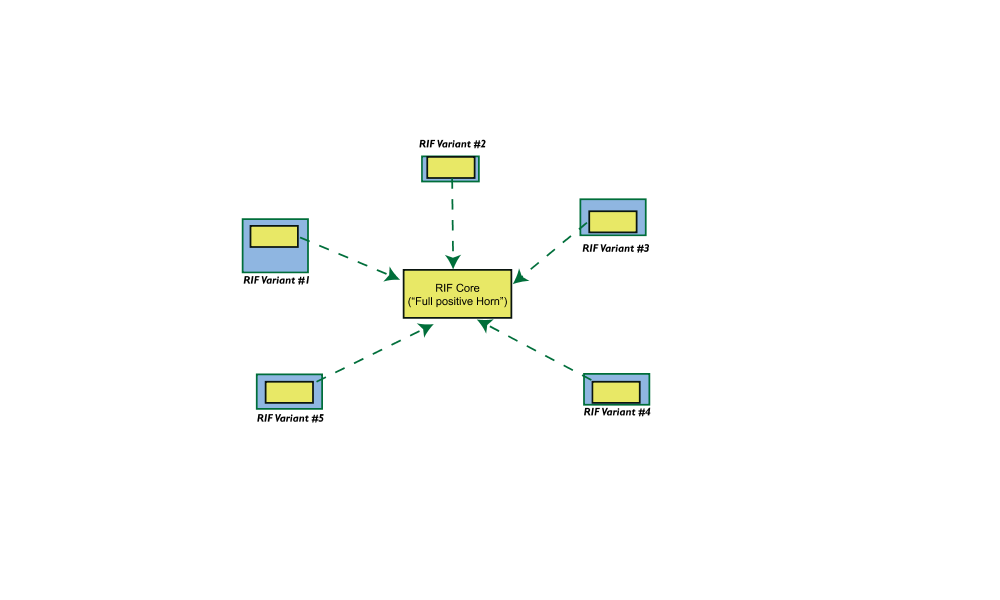

      RIF “variants”



      Possible variants: F-logic, production rules, fuzzy logic systems, …; none of these have been finalized yet

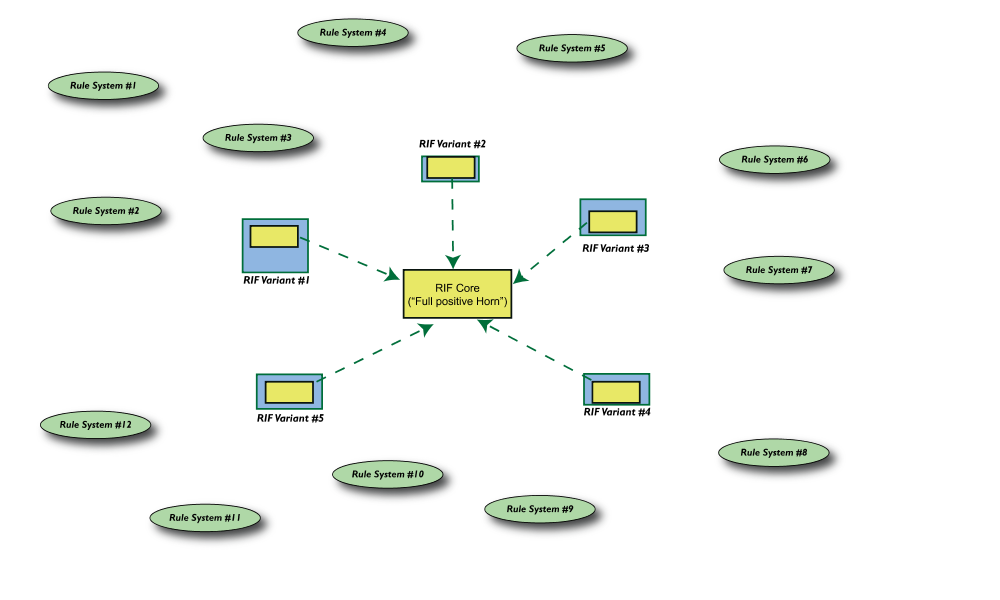

      Role of variants










      “Light” ontologies

        For a number of applications RDFS is not enough, but even OWL Lite is too much

        There may be a need for a “light” version of OWL, just a few extra possibilities v.a.v. RDFS
        There are a number of proposals, papers, prototypes around:  RDFS++, OWL Feather, pD*,…
					pD*, for example, has property characterization (symmetric, transitive, inverse),
					class and property equivalence, and property restrictions with some or all values


        This might consolidate in the coming years



      Other items…

        Fuzzy logic
					look at alternatives of Description Logic based on fuzzy logic
            alternatively, extend RDF(S) with fuzzy notions


        Probabilistic statements
					have an OWL class membership with a specific probability

            combine reasoners with Bayesian networks


        Security, trust, provenance
					combining cryptographic techniques with the RDF model, sign a portion of the graph, etc


        Ontology merging, alignment, term equivalences, versioning, development, …
        etc

      (Need a new PhD topic?)


      A major problem: messaging

        Some of the messaging on Semantic Web has
				gone terribly wrong . See these statements:
					“the Semantic Web is a reincarnation of Artificial Intelligence on the Web”
            “it relies on giant, centrally controlled ontologies for "meaning" (as opposed to
						a democratic, bottom–up control of terms)”
            “one has to add metadata to all Web pages, convert all relational databases, and XML data to
						use the Semantic Web”
            “it is just an ugly application of XML”
            “one has to learn formal logic, knowledge representation techniques, description logic, etc,
						to use it”
            “it is, essentially, an academic project, of no interest for industry”
            …


        Some simple messages should come to the fore!



      RDF ≠ RDF/XML!


          RDF is a model, and RDF/XML is only one possible serialization thereof
					lots of people prefer, for example, Turtle
            a good percentage of the tools have Turtle parsers, too!


        The model is, after all, simple: interchange format for Web resources.
				That is it !



      RDF ≠ RDF/XML! (cont.)

        RDF/XML is indeed a very complex serialization format
        Certainly not the nicest possible XML application
					good to know that it was created when XML was not yet final…


        Again: it is only syntactic sugar!
        One has to emphasize: RDF is not an XML application!



      RDF is not that complex…

        Of course, the formal semantics of RDF is complex
        But the average user should not care, it is all “under the hood”
					how many users of SQL have ever read its formal semantics?
            it is not much simpler than RDF…



          People should “think” in terms of graphs, the rest is syntactic sugar!



      Semantic Web ≠ Ontologies on the Web!

        Formal ontologies (like OWL) are important, but use them only when necessary

            you can be a perfectly decent citizen of the Semantic Web if you do not use Ontologies, not even RDFS…
            remember the “light ontologies” issue?





      SW Ontologies ≠ some central, big ontology!

        The “ethos” of the Semantic Web is on sharing, ie, sharing ontologies (small or large)
        A huge, central ontology would be unmanageable
        OWL includes statements for versioning, for equivalence and disjointness of terms
					a revision of those may be necessary, but the goal is clear


        The practice:
					SW applications using ontologies always mix large number of ontologies and vocabularies (FOAF, DC, and others)
            the real advantage comes from this mix: that is also how new relationships may be discovered





      Remember?





      Semantic Web ≠ an academic research only!

        SW has indeed a strong foundation in research results
        But remember:
					(1) the Web was born at CERN…
            (2) …was first picked up by high energy physicists…
            (3) …then by academia at large…
            (4) …then by small businesses and start-ups…
            (5) “big business” came only later!


        network effect kicked in early…
        Semantic Web is now at #4, and moving to #5!



      Some RDF deployment areas

        Some communities that are coming to the fore: defense sector, health care, bioinformatics, eGovernment, energy sector (oil industry), financial services, digital libraries…
        Health care and life science sector is now very active
					also at W3C, in the form of an Interest Group





      The “corporate” landscape is moving

        Major companies offer (or will offer) Semantic Web tools or systems using Semantic
				Web: Adobe, Oracle, IBM, HP, Software AG, webMethods, Northrop Gruman, Altova,…
        Some of the names of active participants in W3C SW related groups: ILOG, HP, Agfa, SRI International, Fair Isaac Corp., Oracle, Boeing, IBM, Chevron, Siemens, Nokia, Merck, Pfizer, AstraZeneca, Sun, Citigroup,…
        “Corporate Semantic Web” listed as major technology by
                Gartner in 2006
        The Semantic Technology Conference series also attract lots of participants
					speakers in 2006: from IBM, Cisco, BellSouth, GE, Walt Disney, Nokia, Oracle, …
            not all referring to Semantic Web (eg, RDF, OWL,…) but semantics in general
            but they might come around!





      Data integration

        Data integration comes to the fore as one of the SW Application areas
        Very important for large application areas (life sciences, energy sector, eGovernment, financial institutions),
				as well as everyday applications (eg, reconciliation of calendar data)
        Life sciences example:
					data in different labs…
            data aimed at scientists, managers, clinical trial participants…
            large scale public ontologies (genes, proteins, antibodies, …)
            different formats (databases, spreadsheets, XML data, XHTML pages)
            etc


        We already heard yesterday: “libraries realize they are not alone…”: similar issues arise in that area

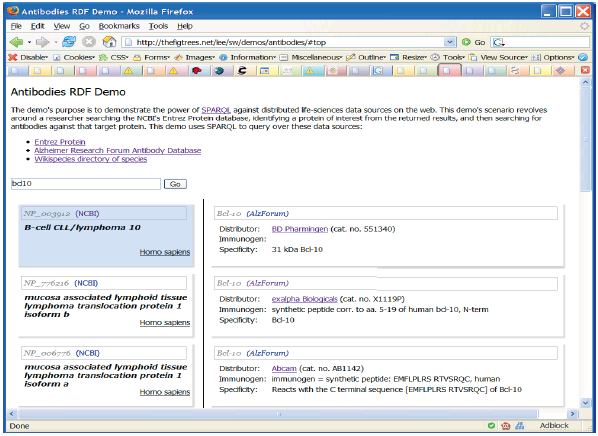

      Example: antibodies demo

        Scenario: find the known antibodies for a protein in a specific species
        Combine (“scrape”…) three different data sources
					“Entrez protein sequence” from National Center for Biotechnology Information; conversion to RDF
            “Antibody Directory” from Alzheimer Research Forum;
						scraping RDF from HTML
            “Taxonomy information” from Wikispecies; use XSLT to extract RDF from XHTML


        Use SPARQL as an integration tool (see also demo online)






      There has been lots of R&D


          Boeing,
					MITRE Corp., Elsevier, EU Projects like Sculpteur and
					Artiste, national projects like

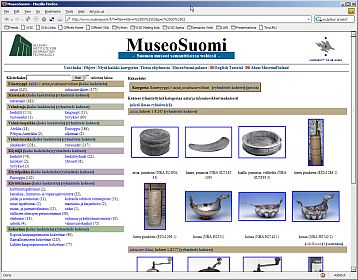

					MuseoSuomi, DartGrid, …

        Developments are under way at various places in the area
        A general question: can I access your (RDF) data directly?







      Portals

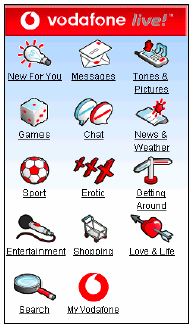

        Vodafone's Live Mobile Portal
			search application (e.g. ringtone, game, picture) using RDF
				page views per download decreased 50%
                ringtone up 20% in 2 months




        A number of other portal examples: Sun’s  White Paper Collections
			and System Handbook
			collections; Nokia’s S60 support portal;
			Harper’s Online magazine linking items via an internal ontology; Oracle’s virtual press room; Opera’s community site,
			Yahoo! Food…
        A general question again: can I access your (RDF) data directly?

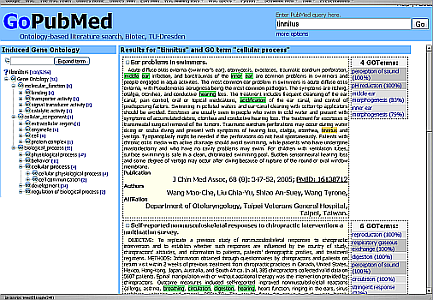

      Improved Search via Ontology: GoPubMed


          Improved search on top of pubmed.org

            search results are ranked using the specialized ontologies
            extra search terms are generated and terms are highlighted


        Importance of domain specific ontologies for search improvement






      Other Application Areas Come to the Fore

        Knowledge management
        Business intelligence
        Linking virtual communities
        Management of multimedia data (e.g., video and image depositories)
        Content adaptation and labeling (e.g., for mobile usage)
        etc



	One last word…

		The Semantic Web is not done by W3C…
		… it is a community project developed by everybody, including you, we only coordinate
		Think about joining the various fora, possibly join W3C and then various W3C groups

				remember this address: http://www.w3cindia.in/, the W3C India Office!


		It is important to have your voice heard!




      Thank you for your attention!
      These slides will be publicly available on:
      http://www.w3.org/2007/Talks/0223-Bangalore_IH/
      in XHTML and PDF formats; the XHTML version has active links that you can follow
