This note outlines the benefits of applying knowledge representation languages
common to the Semantic Web, such as RDF and OWL, in Systems and Software Engineering
This note is aimed at industrial professionals, tool vendors and academics with an interest in applying Semantic Web technologies in Systems and Software Engineering (SSE) contexts. These may include:
Status of this document
This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.
This is a public (WORKING DRAFT) Working Group Note produced by the W3C Semantic Web Best Practices & Deployment Working Group, which is part of the W3C Semantic Web activity.
Discussion of this document is invited on the public mailing list firstname.lastname@example.org (public archives).
Public comments should
include "comments: [SE]" at the start of the Subject header.
Publication as a Working Group Note does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress. Other documents may supersede this document.
Until recently work on accepted practices in Systems and Software Engineering (SSE) has appeared somewhat disjointed from that breaking ground in the area of formal information representation on the World Wide Web (commonly referred to as the Semantic Web initiative). Yet obvious overlaps between both fields are apparent and many now acknowledge merit in a hybrid approach to IT systems development and deployment, combining Semantic Web technologies and techniques with more established development formalisms and languages like the Unified Modeling Language (UML). This is not only for the betterment of IT systems in general, but also for the future good of the Web, as systems and Web Services containing rich Semantic Web content start to come online.
This note attempts to outline how Semantic Web technologies can be applied in Systems and Software Engineering, as well as the benefits such applications could bring. Firstly, we will review the rise of ontology driven architecture (ODA) in Section 2. We then, in Section 3, propose some ideas based on ODA and, more generally, on how Semantic Web technologies can be applied in Systems and Software Engineering. Some of these ideas are illustrated by the examples presented in Section 4. Finally, Section 5 outlines possible next steps in the near future.
Those who are familiar with the heritage of software development might correctly suggest that the application of formal logic and declarative knowledge representation in Systems and Software Engineering is not new, holding up much good work in the areas of Automated Software Engineering, Formal Methods, Domain Theory, Relational Algebra and real-time and embedded systems engineering. Indeed, related approaches have seen much research for many decades now. The following list therefore aims to provide a brief overview of established academic work and industrial practice on which further discussions in this note are based.
Following on from such works, modelling a common understanding of domains through formal and semi-formal methods has proven itself essential to advancing the practice. Modelling as a discipline for architecting, developing, communicating, and verifying abstract designs is now an integral best practice in Software Engineering, as in other engineering communities. Computer Aided Software Engineering (CASE), the Zachman framework for enterprise architecture, and, more recently, Model Driven Architecture® (MDA®) are prominent examples of this approach. We will highlight the latter in the subsequent section.
In the Object Management Group (OMG)'s MDA initiative, models are used not only for design and maintenance purposes, but as a basis for generating executable artifacts for downstream use. The MDA approach grew out of much of the standards work conducted in the 1990s in the Unified Modeling Language (UML). It encourages model-based Software Engineering through
Critical to the success of such an approach are firstly the notion of separation of architectural concerns at every step in the design process, and secondly well-designed models, models that can be used to orchestrate understanding of a design in all phases of the development lifecycle. MDA provides a methodology and the basic requirements for tools that prescribe the kinds of models that may be used at each design phase, how they should be developed to maximize reuse, portability, and interoperability, and the relationships among them to support such code generation. It insulates business applications from technology evolution through increased platform independence, portability and cross-platform interoperability, encouraging developers to focus their efforts on domain specificity.
The OMG's Meta Object Facility (MOF) standard defines the metadata architecture that is central to MDA-based computing. MOF tools use metamodels to generate code that manages metadata -- as XML documents, CORBA objects, Java objects, WSDL services, and so forth. This generated code includes access mechanisms, or application programming interfaces, to read and manipulate, serialize and transform, and abstract the details of various interfaces based on access patterns. From a knowledge representation perspective, however, MDA only gets part of the job done. The suite of standards supporting the MDA initiative streamline the mechanics of managing and integrating models of various aspects of a system's design, but say little about the underlying semantics of the domain being modeled.
Formal representation can help to limit ambiguity and improve quality not only in automation of business semantics but in overall engineering of complex systems. Yet, with increasing formality, tool support can be increasingly abstract, which makes methods more difficult to implement and may limit the freedom of expression available to the engineer. On the other hand, less formal approaches can be notoriously ambiguous: an isolated model, no matter how well specified, can be open to misinterpretation by those who are not familiar with the problem space. Supporting documentation can help alleviate such issues, but in practice, outside of the MDA community, development of documentation is frequently independent from actual model development. Further, MDA does not currently support automated consistency checking or validation, although much has been accomplished in related disciplines including Automated Software Engineering. While MDA provides a powerful and proven framework for Systems and Software Engineering, Semantic Web technologies can naturally extend it to enable representation of unambiguous domain vocabularies, model consistency checking, validation, and new capabilities that leverage increased expressivity in constraint representation. Semantic models, or ontologies, will augment the OMG standards and methodology stack, hence giving rise to Ontology Driven Architecture (ODA).
Over the past two years there has been significant work to bring together Software Engineering languages and methodologies such as the UML with Semantic Web technologies such as RDF and OWL, exemplified by the OMG's Ontology Definition Metamodel (ODM). While this work has been largely motivated by an interest to exploit the popularity and features of UML tools for the creation of vocabularies and ontologies, some have also advocated the potential benefits of applying Semantic Web concepts to model validation and automation, as well as to enable new Software Engineering capabilities.
The relatively recent introduction of Web Service concepts and technologies also adds compelling reason for the drive to use web-friendly ontologies in Systems and Software Engineering. Such concepts allow declarative functionality to be deployed, discovered and reused over the web to obvious advantage. Given the old computing adage that "all the software functionality needed in the world has already been written somewhere," it theoretically follows that if all this functionality were made openly available via Web Service interfaces, software construction would become a radically different and simplified activity. That is so long as Web Service metadata is accurate, complete and easy enough to use - and that's where formal ontologies and Semantic Web languages come into play. Indeed one could now consider that, given the vastness of the Web and the communal culture it promotes, the future of software development may well not actually lie in the construction of new functionality, but rather the discovery and gluing together of existing functionality to achieve all the desired aims of the solution in mind.
It may be fair to argue that the Semantic Web brings little that is new to Software Engineering. Formal methods, rigorous domain definition and knowledge based approaches have been explored with limited success outside the real-time, embedded software community to date. So what is it about the amalgamation of OWL, UML and the Model Driven Architecture (MDA) that will make a difference, and why now? Given that the rate of increase in scalability, performance, distribution, and interoperability requirements demonstrated over the last decade remains relatively constant, the mandate for new capabilities that further abstract and automate Software Engineering processes is clear. Even small-scale, incremental improvements in low level capabilities have historically led to enormous gains at higher levels. Advances internal to the Systems and Software Engineering community have not been sufficient to tip the scales thus far, but multidisciplinary approaches, such as bridging Semantic Web and MDA technologies in novel ways, may enable such significant improvements.
As simple as it may sound, the Semantic Web brings one huge advantage - the Web itself - which has previously proved critical to the acceptance of at least one, somewhat less than original, idea in IT. Java has gained widespread adoption in global software development in recent years, yet its main features are far from different to those of dozens of earlier programming languages. What is unique, however, is that it is specifically targeted at Web-based systems and is standards-based - both properties also common to the Semantic Web. For this reason alone it is compelling to think that a combination of OWL, UML and MDA might indeed make a real difference.
Additionally, as mentioned above, MDA mandates separation of concerns at many levels; some MDA proponents advocate not only abstracting implementation characteristics from business logic but taking significant care in defining the agreements that software components expose via their interfaces. A critical component of this practice is to carefully represent the preconditions, post-conditions, and what are called invariant rules (similar to necessary and sufficient conditions in description logics), to specify the behaviors of these components under various circumstances. The aim here is to make such rules unambiguous, enabling increasing automation based on the models, composition of components, and limiting misunderstanding of the design. Primary limitations to widespread adoption of this practice, known as Design-By-Contract, include scalability as the number of rules increases, particularly in large-scale, complex designs, the ability to do more than cursory consistency checking, and unambiguous separation of the domain terminology from the rules themselves. Semantic Web technologies can dramatically improve this discipline by (1) enabling unambiguous representation of domain terminology, distinct from the rules, (2) enabling automated consistency checking and validation of invariant rules, preconditions, and post-conditions, and (3) supporting knowledge-based terminology mediation and transformation for increased scalability and composition of components. While collaboration between the Semantic Web Services and MDA communities is just beginning to occur, we see this as a tremendous opportunity for significant productivity and software quality improvement.
Regardless of the benefits that Semantic Web technologies can bring to Systems and Software Engineering, it is still worth noting that metadata ontologies can be difficult to construct, maintain and use. As such a number of tools have been produced to facilitate the engineering and maintenance of RDF and OWL ontologies. These range from text-based editors/validators through to experimental graphical environments. Further tools have also been created to enable inferencing over such ontologies. References to relevant tooling can be found at sites like semanticweb.org.
Related research is listed in Appendix.
Having raised the idea of using of the Semantic Web in Software Engineering, a commonly asked question arises; namely, how does one broadly characterise the Semantic Web in terms of Systems or Software Engineering use? In attempting to answer this question, two loose definitions are apparent:
Primarily such tools and techniques should be viewed as being formally descriptive in character, but there appears little reason to restrict this definition other than standards alignment. Therefore, it may also be relevant, at some appropriate point in the Semantic Web's future, to include prescriptive, invasive and/or other types of approaches under this heading.
In such circumstances the Semantic Web can be viewed as a set of formalised corpora of interrelated, reusable contents, which can further be classified as being either:
The presence of both of these types is highly important, as is the fact that they can be indistinctly described using ontological techniques and technologies. Yet their distinction is paramount in the Systems and Software Engineering space. On their own they are of limited from an automated systems engineering standpoint (requiring intelligent agents like humans to cater for the missing type), but combine then together using technologies that can treat them equally and all the ingredients needed to automatically compose fully fledged systems are present. In such situations, the Semantic Web can be likened to a catalyst; It may not be the most powerful element in a particular system, but without it the power of any of the other elements may never be fully realised.
Two examples on the proposed idea of 'The Semantic Web in Systems and Software Engineering' are presented in Section 4.1.
Despite its importance, software development still lacks adequate technology in many areas. The development of software systems has been recognised as an important and complex activity that requires the participation and collaboration of physically distributed teams of people during systems development. Therefore, a large amount of skilled manpower, time and effort is necessary when creating, designing, writing, testing, evaluating, and maintaining software systems. The multiplicity of stakeholders and development participants, the addition of new features to existing services, and the heterogeneity and complexity of products being developed require software development to be a very knowledge and communication intensive process. Existing software development tools offer very good support for document management and modelling, but lack of support for communication and knowledge management. Therefore, a driving force to enhance existing tools with communication and knowledge management is necessary.
In many respects ontologies can be simply considered as rigorous descriptive models in their own right, being akin to existing conceptual modeling techniques like UML class diagrams or Entity Relationship Models (ERM). As such, their purpose is to facilitate mutual understanding between agents, be they human or computerised, and they achieve this through explicit semantic representations using logic-based formalisms. Typically, these formalisms come with executable calculi that allow querying and reasoning support at runtime. This adds a number of advantages, specifically in the areas of:
Hence, given the semantically rich, unambiguous qualities of information embodiment on the Semantic Web, the amenable syntax of Semantic Web languages, and the universality of the Semantic Web's XML ancestory, there appears a compelling argument to combine the semi-formal, model driven techniques of Software Engineering with approaches common to Information Engineering on the Semantic Web. This may involve the implanting of descriptive ontologies directly into systems' design models themselves, the referencing of separate semantic metadata artifacts by such models or a mixture of both.
What is important is that mechanisms are made available to enable cross-referencing and checking between design descriptions and related ontologies in a manner that can be easily engineered and maintained for the betterment of systems' quality and cost.
Some activities in the software development life cycle like requirements elicitation, analysis, design, and testing require intense stakeholders interactions. The use of ontologies, name spaces, and metadata can assist with these interactions by providing standardisation of terminology, relationships, and rules for a specific domain. This standardisation can
Given that The Semantic Web technologies uses triple-based data representation and that this is merely a minimization of the representation employed in relational database technologies, the attraction of considering the Semantic Web as a specialised relational framework has been understood for some time. Even so, by recognising such potential it is important to be pragmatic and consider the term 'Semantic Web' as a generalisation, having at least two specific interpretations from a relational data standpoint. These being:
At current levels of Web maturity it appears reasonably plausible that strong reliable inference could be achieved using ontologies that fall under the former of the two above definitions. Nevertheless for ontologies associated with the latter definition, less reliable approaches to knowledge extraction, such as data exploration, heuristics, and 'mining', appear more realistic. This is not to say that the concept of a global Semantic Web is not useful from a relational data perspective, it is just that data provenance and quality issues will undoubtedly lead to lesser degrees of information credibility across its entirety. Even so, regardless of the fact that a singular Semantic Web might be difficult to achieve in the short term, from a SE point of view the first viewpoint is already highly attractive.
When debating the potential for relational data schemes under any such definition of the Semantic Web, a significant benefit for SSE is often overlooked: If you can describe something sufficiently well (as is the ultimate aim on the Semantic Web), and that thing exists on the Semantic Web with a similar level of descriptive clarity, the chances of you finding precisely that thing are greatly increased. So, setting out to describe things better is indirectly rewarded by the increased ability to be [semi-automatically] discovered and to find content that is clearly equivalent or related. To be direct, rich descriptions empower discoverability.
By suggesting use of the Semantic Web as a system for runtime information and artefact sharing there is also an implicit need to provide means for clearly identifying participating objects based on composites of characterising semantic properties (metadata in the form of name-pair/predicate-object values), and this differs from current Semantic Web schemes for unique identification, such as FOAF sha1 (i.e. unique identification based on a single Inverse Functional Property (IFP)). By using composite identification the Semantic Web can be seen as a truly global relational assembly of content and, as with every relational model, issues dealing with composite forms of unique identification have to be addressed (i.e. identification via composite IFP schemes)
Such unique identification schemes should be capable of supporting both the interlinking of broadly related ontologies into grander information corpora (thereby implying formal similarities and relationships between discreet ontologies and/or systems through their classifying metadata), and the transformation of design time component associations into useful runtime bindings. This will, therefore, provide greater potential for metadata use across a broader spectrum of the Software Lifecycle. In so doing, this approach carries a number of obvious implications for systems employing such techniques:
In System Software Engineering it is also important to support systematic validation methods such as symbolic execution, term simplification, theorem proving, and model checking. In such settings, ontologies could be used to support declaration of automated reasoning knowledge in addition to type and signature information. Moreover, ontologies can also be employed to standardise the terminology used in different models and ultimately support the sharing and interoperation of models between different stakeholders, help model developers to choose appropriate level of abstractions to express models of various components of a system, and allow validations to be executed in terms of the domains of the systems represented by those ontologies. Examples of the use of ontologies to support the above tasks can be found in [HZ 2004a, HZ 2004b].
Semantic Web technologies can also be used to address the challenge of interoperability in distributed systems and heterogeneous data sources such as data warehouses [HNVV 2003]. In previous work [ZK 1999], we have seen the use of hierarchical terminology structures (i.e. metadata) to assist with the discovery of relevant data when dealing with heterogeneous database systems. More recently, the work in [ZCDKS 2002] has proposed the use of an 'information bus' that handles metadata in a generic way and enables metadata to be used as exchanged models and ontologies, in order to support interoperability between heterogeneous data sources. The use of metadata and ontologies preserves the autonomy of the existing systems, facilitate data search represented in heterogeneous data sources, provide classification and relationships between data, and allows evolution of the system by adding and removing data sources.
In this section we present examples for the proposed ideas presented in Section 3. The examples are grouped in subsections corresponding to the subsections of Section 3.
This section discusses two examples for the proposed idea of 'The Semantic Web in Systems and Software Engineering'. In both cases, the applied characterization of the Semantic Web is that of 'classification', i.e., Semantic Web technologies and tools are used to facilitate the management of application servers and Web services middleware, respectively.
Application servers provide many functionalities commonly needed in the development of a complex distributed application. So far, the functionalities have mostly been developed and managed with the help of administration tools and corresponding configuration files, recently in XML. Though this constitutes a very flexible way of developing and administrating a distributed application, the disadvantage is that the conceptual model underlying the different configurations is only implicit. Hence, its bits and pieces are difficult to retrieve, survey, check for validity and maintain.
To remedy such problems, the ontology driven architecture (ODA) approach can support the development and administration of software components in an application server. The ODA approach is supplementary to MDA, where models abstract from low-level and often platform-specific implementation details. While MDA allows to separate conceptual concerns from implementation-specific concerns, currently MDA has not been applied for run-time relevant characteristics of component management, such as which version of an application interface requires which versions of libraries. MDA requires a compilation step preventing changes at runtime which are characteristic for component management. Besides, an MDA itself cannot be queried or reasoned about. Hence, there is no way to ask the system whether some configuration is valid or whether further elements are needed. This is explained by the lack of formal semantics of the notoriously ambiguous UML. In ODA, however, an ontology captures properties of, relationships between, and behaviors of the components that are required for development and administration purposes. As the ontology is an explicit conceptual model with formal logic-based semantics, its descriptions of components may be queried, may foresight required actions, e.g., preloading of indirectly required components, or may be checked to avoid inconsistent system configurations - during development as well as during run-time. Thus, the ODA approach retains the original flexibility in configuring and running the application server, but it adds new capabilities for the developer and user of the system.

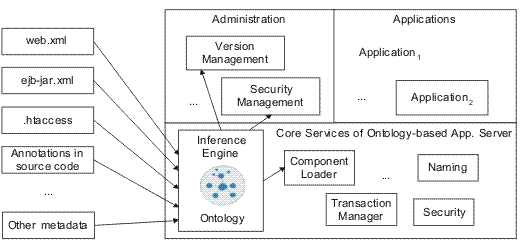

Figure 1 shows how an ontology-based application server could be designed. The left side outlines potential sources, which provide input for the framework. This includes Web and application server configuration files, deployment descriptors or metadata files. With a standardized annotation syntax, Java 5.0 facilitates obtaining of sourcecode annotations as well. There are also first attempts to learn ontological descriptions out of Javadoc comments [SCGM 2005]. This information is parsed and converted into semantic metadata, i.e. metadata in terms of an according ontology. Thus, this data is now available conforming to a harmonizing conceptual model, weaving together so far separated aspects like security, component dependencies, version or deployment information. The semantic metadata and the ontology are fed into the inference engine which is embedded in the application server itself. The reasoning capability is used by an array of tools at development and at run time. The tools either expose a graphical user interface (e.g., security management) or provide core functionality (e.g., the dynamic component loader) [OESV 2004]. Concrete examples along a multimedia demonstration of reasoning with software components can be found at [OSE 2005].
Different Web Service standards, WS*, factorize Web Service aspects into interface (WSDL), workflow (BPEL) or security (WS-Security, WS-Policy) descriptions. The advantages of WS* are multiple and have already benefited many industrial cases. WS* descriptions are exchangeable and developers may use different implementations for the same Web Service description. The disadvantages of WS*, however, are also visible, yet: Even though the different standards are complementary, they must overlap and one may produce models composed of different WS* descriptions, which are inconsistent, but do not easily reveal their inconsistencies. The reason is that there is no coherent formal model of WS* and, thus, it is impossible to ask for conclusions that come from integrating several WS* descriptions. Hence, discovering such Web Service management problems or asking for other kinds of conclusions that derive from the integration of WS* descriptions remains a purely manual task of the software developers accompanied by little to no formal machinery.
As an example for a conclusion derived from both a BPEL and WS-Policy description, consider the following case. Let's assume a Web shop realized with internal and external Web Services composed and managed by a BPEL engine. After the submission of an order, we have to check the customer's credit card for validity depending on the credit card type (VISA, MasterCard etc.). We assume that credit card providers offer this functionality via Web Services. The corresponding BPEL process checkAccount thus invokes one of the provider's Web Services depending on the customer's credit card. The example below shows a snippet of the BPEL process definition.
... <process name="checkAccount"> <switch ...> <case condition="getVariableData('creditcard')='VISA'"> <invoke partnerLink="toVISA" portType="visa:CCPortType" operation="checkCard"...> </invoke> </case> <case condition="getVariableData('creditcard')='MasterCard'"> <invoke partnerLink="toMastercard" portType="mastercard:CCPortType" operation="validateCardData"...> </invoke> </case> ... </switch> </process> ...
Suppose now that the Web Service of one credit card provider, say MasterCard, only accepts authenticated invocations conforming to Kerberos or X509. It states such policies in a corresponding WS-Policy document like the one sketched below. The invocation will fail unless the developer ensures that the policies are met. That means the developer has to check the policies manually at development time or has to implement this functionality to react to policies at runtime.
... <wsp:Policy> <wsp:ExactlyOne> <wsse:SecurityToken> <wsse:TokenType> wsse:Kerberosv5TGT </wsse:TokenType> </wsse:SecurityToken> <wsse:SecurityToken> <wsse:TokenType> wsse:X509v3 </wsse:TokenType> </wsse:SecurityToken> </wsp:ExactlyOne> </wsp:Policy> ...
As we may recognize from this small example, it would desirable to automate - or at least facilitate - such manual management tasks. Therefore, we postulate semantic management of Web Services to support developers and administrators who must cope with the complexity of Web Service integration and WS* descriptions. These two groups of users have the need to predict or observe how Web Services interact, (might) get into conflict, (might) behave, etc. It will be very useful for them to query a system for semantic management of Web Services that integrates aspects from multiple WS* descriptions. Ontologies are the obvious choice for the conceptual information integration because of their formal semantics. In addition, corresponding inference engines allow for reasoning and querying with semantic descriptions. [OLES 2005]
Coming back to our example, we could harvest available information for each of the services and construct two semantic service descriptions. For our internal service, we parse and integrate the workflow graph of the BPEL file. Existing OWL-DL ontologies (e.g. the Ontology of Plans cf. [GBCL 2004]) can be reused for that purpose. The ontology allows to associate invocations of external services with their respective semantic description. In the example, validateCardData is associated to the Mastercard service description via externallyInvokes. It suffices to state that there exists a policy for the Mastercard service in its respective description. That enables us to pose a simply query and infer that there is one externally invoked service that cannot be used without conforming to a policy. Thus, the developer is alerted to this fact and required to react (at development or deployment time). Two OWL-DL snippets of the service descriptions are depicted below:
<rdf:RDF xmlns:ns="http://internalService#"> <owl:Ontology rdf:about=""/> <rdf:Description rdf:about="http://internalService#InternalServiceDescription" rdf:type="ServiceDescription"> <component rdf:resource="http://internalService#InternalPlanDescription"/> </rdf:Description> <rdf:Description rdf:about="http://internalService#InternalPlanDescription" rdf:type="PlanDescription"> <component rdf:resource="http://internalService#SwitchTask"/> </rdf:Description> <rdf:Description rdf:about="http://internalService#SwitchTask" rdf:type="Task"> <successor rdf:resource="http://internalService#validateCardData"/> </rdf:Description> <rdf:Description rdf:about="http://internalService#validateCardData" rdf:type="Task"> <externallyInvokes rdf:resource="http://externalService#MasterCardServiceDescription"/> </rdf:Description> </rdf:RDF>
<rdf:RDF xmlns:ns="http://externalService#"> <owl:Ontology rdf:about=""/> <rdf:Description rdf:about="http://externalService#MasterCardServiceDescription" rdf:type="ServiceDescription"> <component rdf:resource="http://externalService#MasterCardPolicy"/> </rdf:Description> <rdf:Description rdf:about="http://externalService#MasterCardPolicy" rdf:type="PolicyDescription"> </rdf:Description> </rdf:RDF>
It is possible to consider further advantages and more complex examples: checking for cycles in workflow, situations where large invocation sequences occur, or consideration of further aspects like the WSDL interface description. In further improvements it may be possible to consider formalization of the policy itself to support conformity checking. A target platform for integrating could be an application server, a workflow engine or a software IDE. In principle, ontology infrastructure has to be added and relevant information obtained from WS* descriptions.
The approach of semantic web service management is supplementary to the OASIS Web Services Distributed Management (WSDM) recommendation which defines how to manage Web services as resources and how to describe and access that manageability.
According to [Brown 2004], a formal underpinning for describing models facilitates meaningful integration and transformation among models, and is the basis for automation through tools. However, in existing MDA practice, semi-formal metamodels instead of formal specification languages are used as such formal underpinnings for describing models. An obvious reason is that, unlike UML, the industrial effort for standardising diagramatic notations, a single dominating formal specification language does not exist. Furthermore, different specifaction languages are designed for different purposes; e.g., B/VDM/Z* are designed for modelling data and states, while CSP/CCS/π-calculus** are designed for modelling behaviors and interactions.
To solve the problem, we can use ontologies as formal metamodels to describe various formal specification languages; moreover, the standard Semantic Web ontology language OWL can provide unified syntax. Semantic links among different models are explicitly specified by ontologies and form the basis of automation through tools in a Semantic Web-base enviroment. Based on these semantic links, various existing proposals of integrating formal specification languages can be supported in such enviroments.
[Wang 2004] briefly describes such an Semantic Web-based enviroment for semantic link among models, using DAML+OIL (instead of OWL). Examples of semantic links include assertions that Object-Z classes are (treated as) equivalent to CSP processes and that Object-Z operations are equivalent to CSP events.
It is apparent that the descriptive advantages of an ontological view of the world, as outlined by the Semantic Web, are appealing to the field of Systems and Software Engineering. The challenge now is to move from research towards adoption, both in tooling and practice. This will undoubtedly be an arduous journey and may mean some significant concessions from both sides to produce what will almost certainly be a composite approach, combining elements from both existing Software Engineering practice and emerging Semantic Web fields.
Stronger semantics should, quite correctly, act as a catalyst in Software Engineering's advance. For real progress to be made, however, those involved must recognise tools like the UML to be evolving entities if their ultimate survival is to be assured. New ideas and significant challenges to current thinking are therefore right and proper and should be seriously debated in the appropriate manner. Such new ideas include Design by Contract and new variants of the UML in which its Object Constraint Language (OCL) is strengthened, or even replaced, by Semantic Web compliant languages or Simple Common Logic. Even more radical ideas exist relating to the role of abstraction or ‘meta-levels’ in the practice of modelling complex multidimensional systems. Furthermore, there are those of freely talk about the concept of meta-systems; huge semantically rich composites of systems in their own right, rigorously defined and interconnected, that will autonomically form and self-regulate for a recognised purpose(s). Much more work is needed in such areas, but their potential has already been recognised and the volume of related publication is most certainly on the rise. What remains now is to flesh out the detail behind such ideas through strong academic, standards and industrial liasons.
* VDM is an
abbreviation for "Vienna Development Method" specification
**CSP is abbreviated for "Communication Sequential Processes", CCS is abbreviated for "Calculus for Communicating Systems".
