From Voice Browsers to Multimodal Systems

The W3C Speech Interface Framework

Dave Raggett <dsr@w3.org>, W3C Lead for Voice/Multimodal. Hong Kong, 1st May 2001

Voice – The Natural Interface available from over a billion phones

Personal assistant functions:

• Name dialing and Search
• Personal Information Management
• Unified Messaging (mail, Fax & IM)
• Call screening & call routing

Voice Portals

• Access to news, information, entertainment, customer service and V-commerce(e.g. Find a friend, Wine Tips, Flight info, Find a hotel room , Buy ringing tones, Track a shipment)

Front-ends for Call Centers

• 90% cost savings over human agents
• Reduced call abandonment rates (IVR)
• Increased customer satisfaction

W3C Voice Browser Working Group

• Home page: http://www.w3.org/Voice/Group

• Founded: May 1999 following workshop in October 1998

Mission

• Prepare and review markup languages to enable Internet-based speech applications
• Has published requirements and specifications for languages in the W3C Speech Interface Framework
• Is now due to be re-chartered with clarified IP policy

Voice Browser working group members

W3C Speech Interface Framework

The Voice Browser working group is developing a suite of specifications. The following diagram shows how each of the specifications fits into the general framework for voice browsers:

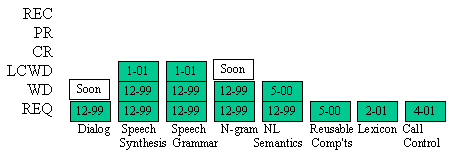

Published Documents

Voice User Interfaces and VoiceXML

Why use voice as a user interface?

• Far more phones than PCs
• More wireless phones than PCs
• Hands and eyes free operation

Why do we need a language for specifying voice dialogs?

• High-level language simplifies application development
• Separates Voice interface from Application server
• Leverage existing Web application development tools

What does VoiceXML describe?

• Conversational dialogs: System and user turns to speak
• Dialogs based on form-filling metaphor plus events and links

W3C aims to standardize VoiceXML based upon the VoiceXML 1.0 submission by AT&T, IBM, Lucent and Motorola

VoiceXML Architecture

Brings the power of the Web to Voice

Reaching Out to Multiple Channels

VoiceXML Features

VoiceXML includes the following:

• Menus, Forms and Sub-dialogs
• Hooks for speech grammars, DTMF input and audio recording
• Variables and scripting
• Throwing and catching of various events
• Following links and submitting data
• Simple Telephony control
• Access to proprietary features via <object>

Example of a simple voice menu

<menu>
  <prompt>
   <speak>
     Welcome to Ajax Travel.
     Do you want to fly to
     <emphasis>
       New York
     </emphasis>
     or
     <emphasis>
       Washington
     </emphasis>
   </speak>
  </prompt>

 <choice next="http://www.NY...".>
    <grammar>
     <choice>
       <item> New York </item>
       <item> Big Apple </item>
     </choice>
    </grammar>
 </choice>

 <choice next="http://www.Wash...">
   <grammar>
      <choice>
       <item> Washington </item>
        <item> The Capital </item>
      </choice>
   </grammar>
 </choice>
</menu>

Example of a simple form with two fields

<form id="weather_info">
  <block>Welcome to the international weather service.</block>
  <field name=“country">
    <prompt>What country?</prompt>
    <grammar src=“country.gram" type="application/x-jsgf"/>
    <catch event="help">
      Please say the country for which you want the weather.
    </catch>
  </field>
  <field name="city">
    <prompt>What city?</prompt>
    <grammar src="city.gram" type="application/x-jsgf"/>
    <catch event="help">
      Please say the city for which you want the weather.
    </catch>
  </field>
  <block>
    <submit next="/servlet/weather" namelist="city country"/>
  </block>
</form>

VoiceXML Implementations

• BeVocal
• General Magic
• HeyAnita
• IBM
• Lucent
• Motorola
• Nuance
• PipeBeach
• SpeechWorks
• Telera
• Tellme
• VoiceGenie

If your company has an implementation and would like to be listed, contact Dave Raggett

Reusable Components

Principles:

• Express application at task level rather than interaction level
• Save development time by reusing tried and effective modules
• Increase consistency among applications

Possible examples include:

• Credit card number
• Date
• Name
• Address
• Telephone number
• Yes/No question
• Shopping cart
• Order status
• Weather
• Stock quotes
• Sport scores
• Word games

Speech Grammars

• Specifies the words and patterns of words for which a speaker independent recognizer can listen
• May be specified
  • Inline as part of a VoiceXML page
  • Referenced and stored separately on Web servers
• Context free grammars
  • XML and ABNF formats (interchangeable)
• Action Tags for “binding data”
• N-Gram statistical language models

An example in both XML syntax

<rule id="state" scope="public">
   <one-of>
       <item> Oregon </item>
       <item>Maine </item>
    </one-of>
</rule>

When rewritten in ABNF this becomes:

public $state = Oregon | Maine

Speech Synthesis

Synthesis engines have detailed knowledge about language. Consider the following text:

Dr. Jones lives at 175 Park Dr. He weighs 175 lb. He plays bass in a blues band. He also likes to fish; last week he caught a 20 lb. bass.

The first instance of "Dr" is spoken as "Doctor" but the second is spoken as "Drive". Numbers in street addresses are (in the USA) spoken specially. Some words like "bass" have context dependent pronunciations. The previous text is spoken as it it were written as:

Doctor Jones lives at one seventy-five Park Drive. He weighs one hundred and seventy-five pounds. He plays base in a blues band. He likes to fish; last week he caught a twenty-pound bass.

Processing is done in stages:

1. Structure analysis
2. Text normalization
3. Text to Phoneme conversion
4. Prosody analysis
5. Waveform production.

The W3C speech synthesis markup language gives authors control over each of these steps.

Lexicon Markup Language

Why?

• Accurate pronunciations are essential in EVERY speech application
• Platform default lexicons do not give 100% coverage of user speech

The lexicon is used in this example to get the synthesis engine to say "either" as /ay th r/ and for the the recognition engine to accept this pronunciation and also the alternate pronuciation: /iy th r/.

LexiconML - Key Requirements

• Meets both synthesis and recognition requirements
• Pronunciations for any language (including tonal)
  • reuse standard alphabets, support for suprasegmentals
• Multiple pronunciations per word
• Alternate orthographies
  • Spelling variations — “colour” and “color”
  • Alternative writing systems —Japanese Kanji and Kana
  • Abbreviations and Acronyms - e.g. Dr., BT
• Homophones e.g “read” and “reed” (same sound)
• Homographs e.g. “read” and “read” (same spelling)

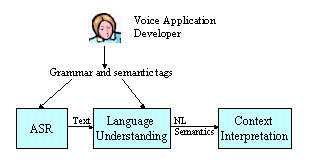

Natural Language Semantics ML

A standard for representing the output from language understanding. This markup will be generated and consumed by software rather than by people. It builds upon XForms for representing the values and types of data extracted from spoken utterances.

Interaction Style

• Voice user interfaces needn't be dull
• Choose prompts to reflect an explicit choice of personality
• Introduce variety in prompts rather than always repeating the same thing
• Politeness, helpfulness and sense of humor
• Target different groups of users e.g. Gen Y
• Allow users to select personality (skin)

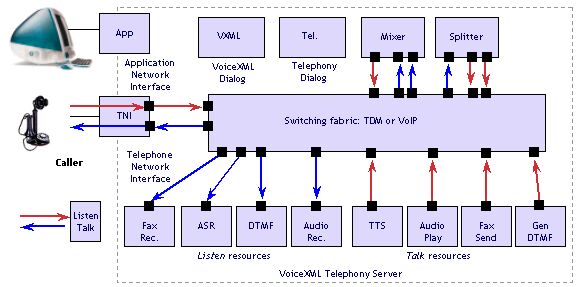

Call Control

Give developers control over speech and telephony resources at the network edge.

• Examples
  • Call management—Place outbound call, conditionally answer inbound call, outbound fax
  • Call leg management—Create, redirect, interact while on hold
  • Conference management—Create, join, exit
• Intersession communication—Asynchronous events
• Interpreter context—Invoke, terminate

Multimodal Interaction = Voice + Displays

W3C work on multimodal

• Multimodal applications
  • Voice + Display + Key pad + Stylus etc.
  • User is free to switch between voice interaction and use of display/key pad/clicking/handwriting
• July 2000 Published Multimodal Requirements Draft
• Demonstrations of Multimodal prototypes at Paris face to face meeting of Voice Browser WG
• Joint W3C/WAP Forum workshop on Multimodal – Hong Kong September 2000
• February 2001 – W3C publishes Multimodal Request for Proposals
• Plan to set up Multimodal Working Group later this year assuming we get appropriate submission(s)

Requirements

• Primary market is mobile wireless
  • cell phones, personal digital assistants and cars
• Timescale is driven by deployment of 3G networks
• Input modes:
  • speech, keypads, pointing devices, and electronic ink
• Output modes:
  • speech, audio, and bitmapped or character cell displays
• Architecture should allow for both local and remote speech processing

VoiceXML IP Issues

• Technical work on VoiceXML 2.0 is proceeding well
• Related specifications for grammar, speech synthesis, natural language synthesis, lexicon, and call control have or shortly will be published.
• But, publication of VoiceXML 2.0 working draft is held up over IP issues (although internal version is accessible to all W3C Members)
• W3C and VoiceXML Forum Management are in process of developing a formal Memorandum of Understanding
• W3C Patent Policy allows for both Royalty-free and RAND working groups
• W3C is convening a Patent Advisory Group to recommend detailed IP Policy for re-chartering the Voice Browser Activity
