Test name:painting-stroke-04-t

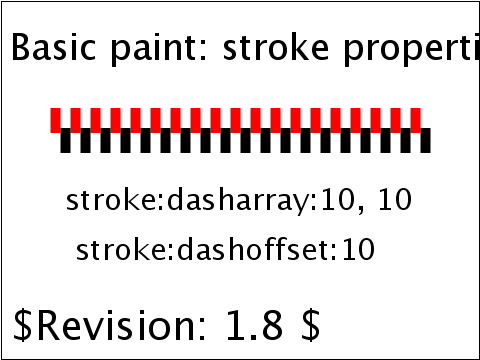

raster of painting-stroke-04-t

Verify the dasharray and dashoffset properties. Two lines are drawn, one red and one black. Both have a dasharray of 10,10 giving a dashed appearance where the size of the gaps and the size of the dash is equal. The help show this, the black line has a stroke-dashoffset so that the dashes in the black line match up with the gaps in the red line.

The rendered picture should match the reference image, except for possible variations in the labelling text (per CSS2 rules).

The test uses the 'path' element, stroke, stroke-width, stroke-dasharray and stroke-dashoffset, font-family (Arial) and font-size properties.
