Test name:painting-fill-04-t

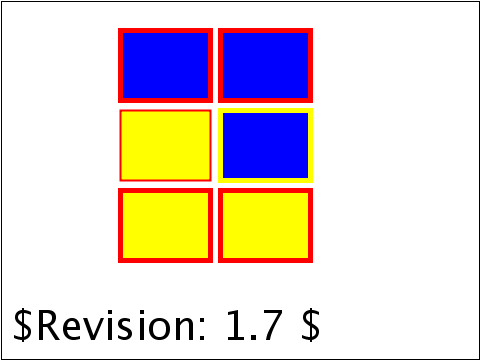

raster of painting-fill-04-t

This tests inheritance of 3 properties. Fill, stroke and stroke-width. There is a g element (id=G1) which sets fill=blue, stroke=red, and stroke-width=5. The first two rectangles on top should inherit all those properties. The middle left rectangle has fill=yellow and stroke-width=2, it should inherit the stroke=red from the parent container. The middle rectangle on the right has stroke=yellow, it should inherit fill and stroke-width from the parent g. The bottom 2 rectangles are in another g element (id=G2) which is a child of G1. G2 sets fill=yellow. It should inherit the stroke and stroke width from the parent G1. The two bottom rectangles set no fill or stroke properties, they should inherit through the parents, stroke=red and stroke-width=5.

The rendered picture should match the reference image, except for possible variations in the labelling text (per CSS2 rules).

The test uses the 'rect' element, as well as basic fill (solid primary colors), stroke (black 1-pixel lines), font-family (Arial) and font-size properties.
