This is a public document. First draft by Daniel Dardailler, to share for W3C geek week 2012 in July.
Editor: Daniel Dardailler, July 21th 2012, Finalized the runtime ontology using OWL2 Manchester syntax.

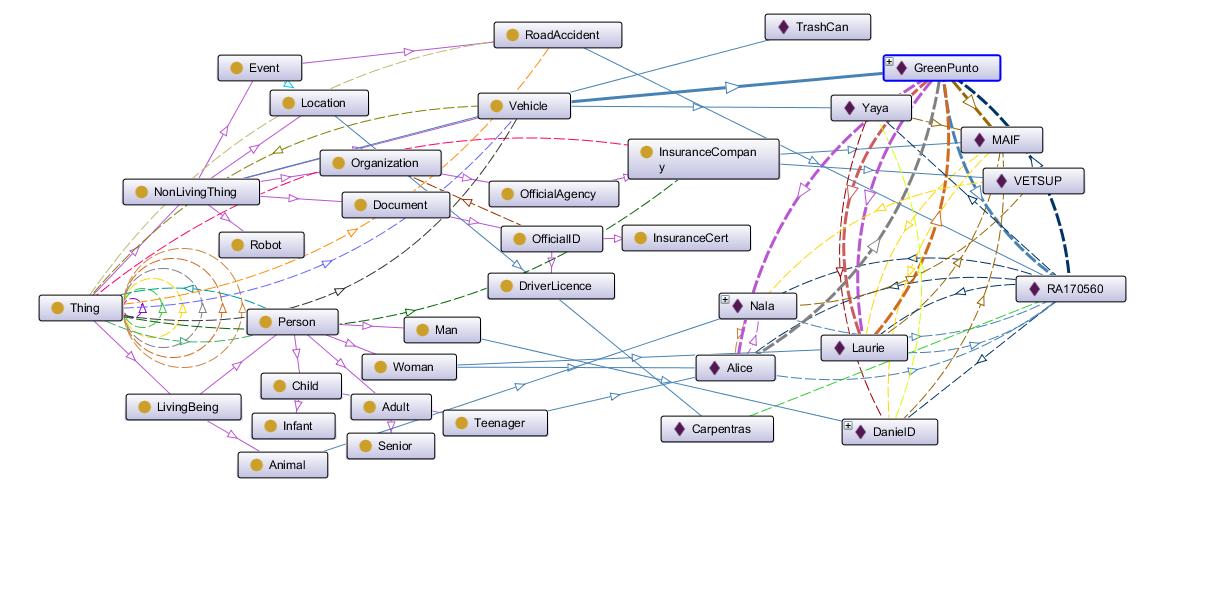

See OWL content and graph below.
Next steps: finalize the datamodel, enter some individuals and create some queries
I'm interested in designing some structured data logic to represent Road Accident, their parties, location, causes, effects, etc, so that we see more of the UK googlemap layer webapp showing accident-prone crossings, with more semantics available (aka: query for "car brand with the smaller number of serious casualty for rear passenger seats on motorways").
The aim is to create a useful/coherent Road Accident ontology and accompanying resources/tools to describe traffic or road accidents, involving people, vehicle, animal, having cause, effects, etc. with RDF/OWL.
Another goal is first to have fun designing/tuning an ontology, one made of easy-to-grasp concepts, and eventually to facilitate the growth of this particular segment of the web of open data, by providing some ready-to-use tools for people tracking these events (it could be in a crowd sourced db, or a gov maintained one, so we need to work at the lowest common denominator: an interoperable schema and some tools).
I think we are all concerned by road accidents and I don't see a single organization that is going to do this job to accelerate progress in avoiding them (I contacted a couple of them, see below in ref).
Notes: need to look better for existing work, and reuse if possible, but I couldn't find anything really relevant for what I want to achieve, at the higher level that is - what you see being used in googlemap is usually pretty linear data (address, hour, type:car/bike, etc) , and what you found in international organizations is usually detailed leaf ontology (i.e. on type of injuries, vehicles, road, etc, but nothing structuring the whole domain together) and I also think it's better to start designing ontology on a white board, to better understand all the information you want to handle, and be willing to drop it all if you find an pre-existing design or pieces that matches those requirements.
# this content loads fine in webprotege and protege, giving this layout Prefix: xsd: <http://www.w3.org/2001/XMLSchema#> Prefix: owl: <http://www.w3.org/2002/07/owl#> Prefix: xml: <http://www.w3.org/XML/1998/namespace> Prefix: rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> Prefix: dc: <http://purl.org/dc/elements/1.1/> Prefix: rdfs: <http://www.w3.org/2000/01/rdf-schema#> Prefix: : <http://www.w3.org/ontologies/2012/6/ra.owl#> Prefix: ra: <ra:http://www.w3.org/2012/7/ra3.owl#> Ontology: <http://www.w3.org/2012/7/ra3.owl> AnnotationProperty: rdfs:comment Datatype: xsd:positiveInteger Datatype: xsd:anyURI Datatype: xsd:date Datatype: rdf:PlainLiteral Datatype: xsd:boolean Datatype: xsd:string Datatype: xsd:integer ObjectProperty: ra:drives SubPropertyOf: ra:isIn Domain: owl:Thing Range: ra:Vehicle ObjectProperty: isPassengerOf SubPropertyOf: ra:isIn Range: ra:Vehicle ObjectProperty: ra:involves Annotations: rdfs:comment "involves Person, Vehicle, Animal, NonLivingThing like a stone on the road, another RoadAccident, etc" Domain: ra:RoadAccident Range: owl:Thing ObjectProperty: ra:carries Domain: owl:Thing Range: owl:Thing ObjectProperty: ra:insures Domain: ra:InsuranceCompany Range: owl:Thing InverseOf: ra:insuredBy ObjectProperty: ra:isIn Annotations: rdfs:comment "anything can be in anything"@en EquivalentTo: ra:isOn Domain: owl:Thing Range: owl:Thing ObjectProperty: ra:location Domain: ra:Event Range: ra:Location ObjectProperty: ra:isOn EquivalentTo: ra:isIn Domain: owl:Thing Range: owl:Thing ObjectProperty: ra:drivenBy Domain: ra:Vehicle ObjectProperty: ra:isOwnedBy Annotations: rdfs:comment "a person cannot be owned" Domain: owl:Thing Range: ra:Person ObjectProperty: ra:deliveredBy Domain: ra:OfficialID Range: ra:Organization ObjectProperty: ra:insuredBy Domain: owl:Thing Range: ra:InsuranceCompany InverseOf: ra:insures ObjectProperty: ra:isPartOf Domain: owl:Thing Range: owl:Thing ObjectProperty: ra:includes Domain: owl:Thing Range: owl:Thing ObjectProperty: ra:delivers Domain: owl:Thing Range: owl:Thing ObjectProperty: ra:owns Annotations: rdfs:comment "only Person and org owns things, several possible" Domain: ra:Person Range: owl:Thing ObjectProperty: ra:involvedIn Domain: owl:Thing Range: ra:RoadAccident DataProperty: ra:insuranceType Annotations: rdfs:comment "name of coverage package in the given insurance" Domain: owl:Thing Range: xsd:string DataProperty: ra:ageInyears Annotations: rdfs:comment "age at event time" Range: xsd:positiveInteger DataProperty: ra:lastName Domain: ra:LivingBeing Range: xsd:string EquivalentTo: ra:Name DataProperty: ra:vehicleCategory Domain: ra:Vehicle Range: {"bicycle" , "bus" , "car" , "motocycle" , "truck"} DataProperty: ra:driverLicenceCategory Domain: ra:DriverLicence Range: {"lightvehicle" , "motorcycle" , "truck"} DataProperty: ra:positionInVehicle Range: {"backseat" , "front passenger" , "truck platform"} DataProperty: ra:accidentDetails Domain: ra:RoadAccident Range: xsd:anyURI DataProperty: ra:vehicleColor Domain: ra:Vehicle Range: {"darkgrey" , "green" , "lightgrey"} DataProperty: ra:orgAddress Domain: ra:Organization Range: xsd:string DataProperty: ra:vehicleProblem Domain: ra:Vehicle Range: {"brake" , "deadengine" , "flattire"} DataProperty: ra:relatedDamage Annotations: rdfs:comment "apply to non living thing, cars, robot, same as injury for person/animal" Domain: ra:NonLivingThing Range: xsd:string DataProperty: ra:parked Domain: ra:Vehicle Range: xsd:boolean DataProperty: ra:birthDate Domain: ra:LivingBeing EquivalentTo: ra:makeDate DataProperty: ra:animalRace Annotations: rdfs:comment "Person are not Animal in my universe" Range: {"boar" , "cat" , "deer" , "dog" , "donkey" , "horse"} DataProperty: ra:relatedInjuryDesc Annotations: rdfs:comment "sms size description of injury" Domain: ra:LivingBeing Range: xsd:string DataProperty: ra:insuranceID Domain: owl:Thing Range: xsd:string DataProperty: ra:Name Annotations: rdfs:comment "same as lastName if not present" Domain: ra:LivingBeing Range: xsd:string EquivalentTo: ra:lastName DataProperty: ra:isWitness Annotations: rdfs:comment "robot and animal cannot be witness or declares something in my universe" Domain: ra:Person Range: xsd:boolean DataProperty: ra:speedUnit Domain: owl:Thing Range: {"kmh" , "mph"} DataProperty: ra:vehicleBrand Domain: ra:Vehicle Range: xsd:string DataProperty: ra:email Domain: ra:LivingBeing Range: xsd:string DataProperty: ra:orgShortName Domain: ra:Organization Range: xsd:string DataProperty: ra:trafficViolation Annotations: rdfs:comment "robot, animal, pedestrian included" Domain: owl:Thing Range: {"crossingfordidden" , "priority" , "redlight" , "speed" , "stop"} DataProperty: ra:driverLicenceNumber Domain: ra:DriverLicence Range: xsd:string DataProperty: ra:gps Annotations: rdfs:comment "e.g. lat:45.0 long:-6.5" Domain: ra:Location Range: xsd:string DataProperty: ra:weatherCondition Domain: ra:RoadAccident Range: {"earthquake" , "flood" , "ice" , "mud" , "normal" , "rain" , "smoke" , "snow" , "wind"} DataProperty: ra:isRemote Domain: owl:Thing Range: xsd:boolean DataProperty: ra:passengerProtection Annotations: rdfs:comment "use None to say that the passenger didn't have one" Range: {"airbag" , "arceau" , "helmet" , "seatbelt"} DataProperty: ra:deliveredDate Domain: ra:OfficialID Range: xsd:date DataProperty: ra:vehicleID Domain: ra:Vehicle Range: xsd:string DataProperty: ra:makeDate Annotations: rdfs:comment "creation or delivered date" Domain: ra:NonLivingThing Range: xsd:date EquivalentTo: ra:birthDate DataProperty: ra:speed Annotations: rdfs:comment "speed in speedunit, default kmh"@en Domain: owl:Thing Range: xsd:integer DataProperty: ra:isSerious Domain: ra:RoadAccident Range: xsd:boolean DataProperty: ra:relatedInjury Annotations: rdfs:comment "use some kind of existing classification" Domain: ra:LivingBeing Range: {"fatal" , "light" , "none" , "severe"} DataProperty: ra:declares Domain: ra:Person Range: xsd:string DataProperty: ra:driverProblem Range: {"asleep" , "heartattack" , "lostcontrol" , "mistake" , "notlooking" , "onthephone"} DataProperty: ra:orgFullName Domain: ra:Organization Range: xsd:string DataProperty: ra:isOnRoadType Annotations: rdfs:comment "roadType of Road the accident happens on" Domain: ra:RoadAccident Range: {"freeway" , "motorway" , "street"} DataProperty: ra:SSN Annotations: rdfs:comment "every living being can have a social security number, a person HAS one" Domain: ra:LivingBeing Range: xsd:string DataProperty: ra:address Domain: ra:Location Range: xsd:string DataProperty: ra:firstName Domain: ra:LivingBeing Range: xsd:string DataProperty: ra:lightCondition Domain: ra:RoadAccident Range: {"darkness" , "daylight" , "inbetween" , "unknown"} DataProperty: ra:date Domain: ra:Event Range: xsd:date DataProperty: ra:validityDate Domain: ra:OfficialID Range: xsd:date DataProperty: ra:isInService Annotations: rdfs:comment "someone working at the time of the even. dog can work by themselves" Domain: ra:LivingBeing Range: xsd:boolean Class: owl:Thing Class: ra:Infant SubClassOf: ra:Child Class: ra:LivingBeing DisjointWith: ra:NonLivingThing Class: ra:Teenager SubClassOf: ra:Child Class: ra:Event SubClassOf: ra:NonLivingThing Class: ra:Child SubClassOf: ra:Person Class: ra:RoadAccident SubClassOf: ra:Event Class: ra:DriverLicence SubClassOf: ra:OfficialID HasKey: ra:driverLicenceNumber Class: ra:Location SubClassOf: ra:NonLivingThing Class: ra:Senior SubClassOf: ra:Adult Class: ra:InsuranceCert SubClassOf: ra:OfficialID Class: ra:Woman SubClassOf: ra:Person DisjointWith: ra:Man Class: ra:OfficialAgency SubClassOf: ra:Organization Class: ra:Robot SubClassOf: ra:NonLivingThing Class: ra:Organization SubClassOf: ra:NonLivingThing Class: ra:Document SubClassOf: ra:NonLivingThing Class: ra:Person SubClassOf: ra:LivingBeing DisjointWith: ra:Animal Class: ra:InsuranceCompany SubClassOf: ra:OfficialAgency HasKey: ra:orgShortName Class: ra:Man SubClassOf: ra:Person DisjointWith: ra:Woman Class: ra:Animal SubClassOf: ra:LivingBeing DisjointWith: ra:Person Class: ra:Vehicle SubClassOf: ra:NonLivingThing HasKey: ra:vehicleID Class: ra:NonLivingThing Annotations: rdfs:comment "Top class for non living thing like vehicle, robot, etc" DisjointWith: ra:LivingBeing Class: ra:OfficialID SubClassOf: ra:Document Class: ra:Adult SubClassOf: ra:Person Individual: TrashCan Types: ra:NonLivingThing Individual: VETSUP Types: ra:InsuranceCompany Facts: ra:insures Nala Individual: Carpentras Types: ra:Location Individual: Nala Types: ra:Animal Facts: ra:involvedIn RA170560, ra:isOn Alice, ra:insuredBy VETSUP, ra:isOwnedBy DanielD, ra:passengerProtection "none", ra:relatedInjuryDesc "broken nail and vomit on fur", ra:insuranceID "mieaou007", ra:ageInyears "17", ra:relatedInjury "light", ra:positionInVehicle "backseat", ra:animalRace "maine coon female cat", ra:Name "Nala" Individual: RA170560 Types: ra:RoadAccident Facts: ra:location Carpentras, ra:involves Laurie, ra:involves Yaya, ra:involves GreenPunto, ra:involves Nala, ra:involves Alice, ra:involves DanielD, ra:date "17/05/1960", ra:isOnRoadType "motorway", ra:address "11 rue du temple", ra:weatherCondition "rain", ra:gps "lat 43 long 6", ra:accidentDetails "http://dardailler.net", ra:lightCondition "night", ra:isSerious "false" Individual: Yaya Types: ra:Vehicle Facts: ra:insuredBy MAIF, ra:isOwnedBy DanielD, ra:parked "yes", ra:vehicleColor "lightgrey", ra:speed "0", ra:relatedDamage "back door left side bumped", ra:vehicleBrand "Toyota", ra:vehicleCategory "car", ra:vehicleID "765 DD 12" Individual: GreenPunto Types: ra:Vehicle Facts: ra:involvedIn RA170560, ra:insuredBy MAIF, ra:carries Alice, ra:carries Laurie, ra:isOwnedBy DanielD, ra:drivenBy Laurie, ra:speedUnit "kmh", ra:speed "-20", ra:vehicleColor "green metal", ra:isOnRoadType "street one way", ra:parked "false", ra:relatedDamage "back paint gone on right side", ra:vehicleBrand "Fiat", ra:vehicleProblem "rear mirro broken", ra:vehicleID "876 GH 71", ra:vehicleCategory "car" Individual: DanielD Types: ra:Man Facts: ra:insuredBy MAIF, ra:owns Nala, ra:owns GreenPunto, ra:owns Yaya, ra:insuranceID "2326779P"@fr, ra:email "danield@w3.org"@fr, ra:declares "Laurie can't see a thing"@fr, ra:isWitness "true"@fr, ra:insuranceType "full full full"@en, ra:firstName "Daniel", ra:SSN "160031294"@fr, ra:isRemote "yes"@fr Individual: Alice Types: ra:Teenager, ra:Woman Facts: isPassengerOf GreenPunto, ra:involvedIn RA170560, ra:carries Nala, ra:relatedInjury "none", ra:isWitness "yes", ra:firstName "Alice", ra:positionInVehicle "backseat", ra:declares "Laurie! stop !! Ya la voiture de Papa derrière !"@fr, ra:passengerProtection "none" Individual: MAIF Types: ra:InsuranceCompany Facts: ra:insures Laurie, ra:insures DanielD, ra:orgAddress "Le Cannet" Individual: Laurie Types: ra:Woman Facts: ra:insuredBy MAIF, ra:involvedIn RA170560, ra:drives GreenPunto, ra:declares "the read mirror was broken !", ra:insuranceID "2326779P", ra:trafficViolation "wrongway", ra:driverProblem "not looking back", ra:SSN "28806031", ra:passengerProtection "seatbelt", ra:firstName "Laurie"
OBSOLETE: written by hand, doesn't parse
## Manchester syntax for OWL2 # issues: - is there a general line comment character, like #, for this sort of files/syntax ? # - should the file extention be .owl or .omn (used by something else) # - I need to understand better the literal/class/range/equiv stuff to declare enum vs subclass # - also how to model stable instance value vs. current value Prefix: : <http://example.org/owl/roadaccident#> Prefix: geo: <http://example.org/otherOntologies/Geographic#> Prefix: ext: <http://example.org/otherOntologies/External#> Ontology: <http://example.org/owl/roadaccident> Annotations: creator DanielD Annotations: creationDate "18 July 2012" Annotations: mainClass RoadAccident import: UsefulThings # isOn, isMoving, speed, etc import: NonLivingThing # event, org, document, insurance, etc import: LivingBeing # person, woman, declares, animal, etc import: DrugCondition, healthcondition import: Road, lane, roadtype import: Vehicle # driver, passenger, licence, etc Class: RoadAccident SubClassOf: Event Annotations: rdfs:comment "come as an Event with date/location/shortdesc" ObjectProperty: accidentDetails Domain: RoadAccident Range: ext:Container Annotations: rdfs:comment "for img, video, recording, scan of police report" DataProperty: lightCondition Domain: RoadAccident Range: { daylight, darkness, inbetween, unknown } DataProperty: weatherCondition Domain: RoadAccident Range: { wind,rain,snow,ice,mud,flood,earthquake,smoke,normal } DataProperty: isOnRoadType Domain: RoadAccident Range: roadType Annotations: rdfs:comment "roadType of Road the accident happens on" DataProperty: isSerious Domain: RoadAccident Range: xsd:bool and involves some Person some injury ("fatal" or "severe") ObjectProperty: involves Domain: RoadAccident Range: Thing Annotations: rdfs:comment "involves Person, Vehicle, Animal, NonLivingThing like a stone on the road, another RoadAccident, etc" # not on roadaccident but depends on it DataProperty: involvedIn Domain: Thing Range: RoadAccident DataProperty: relatedDamage Domain: NonLivingThing x and RoadAccident involves x Range: xsd:string Annotations: rdfs:comment "apply to non living thing, cars, robot, same as injury for person/animal" DataProperty: relatedInjury Domain: LivingBeing and involvedIn some RoadAccident Range: { fatal, severe, light, none } Annotations: rdfs:comment "use some kind of existing classification" DataProperty: relatedInjuryDesc Domain: LivingBeing Range: xsd:string Annotations: rdfs:comment "sms size description of injury"
# Health, DrugCondition stuff # independent of road accident # import basic living/nonliving thing Class: HealthCondition SubclassOf: NonLivingThing Annotations: rdfs:comment "could be a subclass of finer grain class such as condition, state, etc" Annotations: rdfs:comment "use None for no health issue" DataProperty: healthIssue Domain: LivingBeing Range: { heartattack, fainted, seasick, trembling, nohand, noleg, veryold } Class: DrugCondition SubclassOf: HealthCondition DataProperty: drugType Domain: DrugCondition Range: { alcool, med, coke, cannabis, hero, lsd, etc } DataProperty: drugLevel Domain: DrugCondition Range: xsd:integer DataProperty: drugLevelUnit Domain: DrugCondition Range: { mgPerBloodLiter, percentUnit, etc } # not on Drugcondition but depends on it ObjectProperty: hasDrugCondition Domain: LivingBeing Range: DrugCondition Annotations: rdfs:comment "use None for checked sober, or create an individual DrugCondition"
# definitions for road system related classes # import basic living/nonliving, could live with just Thing Class: Road SubclassOf: NonLivingThing DisjointUnionOf: PavedRoad and UnpavedRoad Class: Sidewalk SubclassOf: NonLivingThing Class: PavedRoad SubclassOf: Road Class: UnpavedRoad SubclassOf: Road Class: RoadNetwork EquivalentTo: all Road Class: RoadSystem EquivalentTo: RoadNetwork and all Sidewalk DisjointClasses: PavedRoad, UnpavedRoad, Sidewalk Class: Lane SubclassOf: NonLivingThing Range: isPartOf Road DataProperty: laneNumber Domain: Lane Range: xsd:strictlyPositiveInteger Annotations: rdfs:comment "starting with 1, numbered right to left by default" DataProperty: laneType Domain: Lane Range: { buslane, cyclelane, tramlane, parkinglane, etc } DataProperty: roadType Domain: Road and geo:Location # not sure this work: a road type per road by default but several road type per location for a given road ? Range: { motorway, highway, dirtroad, street, etc } Annotations: rdfs:comment "vocab from http://www.internationaltransportforum.org/Pub/pdf/09GloStat.pdf"
# the vehicle class and its properties should be external, and be reusable by the car retail industry for instance, the car maker, etc. # import UsefulThings, NonLivingThing, Road # define vehicle, driver, passenger, etc Class: Vehicle SubClassOf: NonLivingThing HasKey: vehicleID DataProperty: vehicleCategory Range: { car, bus, truck, bicycle, motocycle, moped, trailer, unknown, policeunit, firetruck, ambulance, etc } Domain: Vehicle # more Vehicle DataProperty: vehicleColor vehicleBrand vehicleKind, vehicleEnergy, vehiclePlateId, vehicleId, vehiclePassengerCapacity, vehicleLoad, etc. DataProperty: vehicleProblem Domain: Vehicle Range: { tire, deadengine, brake, shock, windshield, engine, etc } # traffic/road/vehicle oriented role Class: Driver SubclassOf: Thing EquivalentTo: drives Vehicle Annotations: rdfs:comment "have to include robot, animal.. and remote control" Class: IllegalDriver SubclassOf: Driver and hasDriverLicence is None Class: CommercialDriver SubclassOf: Driver Equivalent: drives and isInService ObjectProperty: drivenBy Domain: Vehicle Range: Driver Annotations: rdfs:comment "use None for no driver situation" ObjectProperty: drives Domain: Thing isIn some Vehicle or isRemote Range: Vehicle DataProperty: driverProblem: Domain: Driver Range: { lostcontrol, notlooking, mistake, phone, sleep, heartattack, etc} DataProperty: parked Domain: Vehicle EquivalentTo: not isMoving and isOn some Lane.laneType "parkinglane" # not sure this work Class: Pedestrian SubclassOf: Thing EquivalentTo: not isIn Thing and (isOn Road or isOn Sidewalk) Annotations: rdfs:comment "robot can be pedestrian, that is, walk on the sidewalk" Class: Passenger SubclassOf: Thing EquivalentTo: isIn some Vehicle and not isInService Annotations: rdfs:comment "a regular driver, unpaid, is a passenger; bus staff isn't for instance -- see PDF irtad" DataProperty: positionInVehicle Domain: Passenger Range: { backseat, front passenger, truck platform, etc } DataProperty: passengerProtection Domain: Passenger Range: { seatbelt, helmet, arceau, airbag, etc } Annotations: rdfs:comment "use None to say that the passenger didn't have one" # should also be external, in some gov ont # needs person, organization/document, nonliving Class: DriverLicence SubclassOf: OfficialDocument HasKey: number DataProperty: number Domain: DriverLicence Range: xsd:string DataProperty: deliveredDate Domain: DriverLicence EquivalentTo: makeDate DataProperty: validityDate Domain: DriverLicence Range: xsd:date DataProperty: category Domain: DriverLicence Range: "LightVehicle" or "Truck" or "MotorCycle" DataProperty: deliveredBy Domain: DriverLicence Range: OfficialAgengy # depende on DriverLicence ObjectProperty: hasDriverLicence Domain: Person and not Infant Range: DriverLicence Annotations: rdfs:comment "use None to note that a person doesn't have a driver licence whereas they should" DataProperty: hasDriverLicenceNumber Domain: Person Range: number Annotations: rdfs:comment "shortcut to save creating a driverlicence if only the number is needed as key" # which number type is that ? # not specific to accident but to driving DataProperty: trafficViolation Domain: Thing isIn RoadSystem Range: { redlight, stop, speed, priority, crossingfordidden, etc } Annotations: rdfs:comment "robot, animal, pedestrian included"
# generic stuff below, not involving RoadAccident or Vehicle, etc # defines nonLivingThing, event, org, etc Class NonLivingThing SubclassOf: Thing DataProperty: makeDate Domain: NonLivingThing Range: xsd:date Class: Robot SubclassOf: NonLivingThing # event Class: Event SubclassOf: NonLivingThing DataProperty: date Domain: Event Range: xsd:date Annotations: rdfs:comment "includes time and day" ObjectProperty: location Domain: Event Range: geo:Location Annotations: rdfs:comment "an external geo object with several attributes: lat/long, address, nearby, etc" DataProperty: shortDescription Domain: Event Range: xsd:string Annotations: rdfs:comment "sms size limit: what happen there and then" # org /insurance info Class: Organization SubclassOf: NonLivingThing DataProperty: orgShortName Domain: Organization Range: xsd:string DataProperty: orgFullName Domain: Organization Range: xsd:string DataProperty: orgAddress Domain: Organization Range: xsd:string Class: InsuranceCompany SubclassOf: OfficialAgency EquivalentTo: delivers InsuranceCert HasKey: orgShortName ObjectProperty: insuredBy Domain: Thing Range: InsuranceCompany InverseOf: insures ObjectProperty: insures Domain: InsuranceCompany Range: Thing InverseOf: insuredBy DataProperty: insuranceID Domain: Thing Range: xsd:string DataProperty: insuranceType Domain: Thing Range: xsd:string Annotations: rdfs:comment "name of coverage package in the given insurance" Class: Document SubclassOf: NonLivingThing Class: OfficalDocument SubclassOf: Document Class: OfficialAgency SubclassOf: Organization EquivalentTo: delivers OfficialDocument Class: InsuranceCert SubclassOf: OfficialDocument EquivalentTo: includes InsuranceID DataProperty: delivers Domain: Organization Range: Document
# Person, animal, man, etc # defines LivingBeing Class LivingBeing SubclassOf: Thing DataProperty: SSN Domain: LivingBeing Range: xsd:string Annotations: rdfs:comment "every living being can have a social security number, a person HAS one" DataProperty: firstName Domain: LivingBeing Range: xsd:string DataProperty: lastName Domain: LivingBeing Range: xsd:string DataProperty: Name Domain: LivingBeing Range: xsd:string EquivalentTo: lastName Annotations: rdfs:comment "same as lastName if not present" DataProperty: birthDate Domain: LivingBeing EquivalentTo: makeDate DataProperty: email Domain: LivingBeing Range: xsd:email Class: Person Annotations: rdfs:comment "Represents the set of all people/human with a SSN." SubclassOf : LivingBeing HasKey: SSN DataProperty: declares Domain: Person Range: xsd:string DataProperty: isWitness Domain: Person Range: xsd:bool Annotations: rdfs:comment "robot and animal cannot be witness or declares something in my universe" DataProperty: isInService Domain: LivingBeing Range: xsd:bool Annotations: rdfs:comment "someone working at the time of the even. dog can work by themselves" Class: Woman SubClassOf: Person Class: Man SubClassOf: Person Class: Child SubclassOf: Person SubClassOf: ageInYears some integer[<= 19] Class: Infant SubclassOf: Child and ageInYears some integer[<= 2] Class: Teenager SubclassOf: Child SubClassOf: ageInYears some integer[>12] Class: Adult SubclassOf: Person SubClassOf: ageInYears some integer[>= 20] Class: Senior SubclassOf: Adult SubClassOf: ageInYears some integer[>= 60] Class: Animal SubclassOf : LivingBeing DataProperty: animalRace Range: { dog, cat, horse, donkey, deer, boar, etc } Annotations: rdfs:comment "Person are not Animal in my universe" ObjectProperty: isOwnedBy Domain: Thing and not Person Range: Person or Organization Annotations: rdfs:comment "a person cannot be owned" ObjectProperty: owns Domain: Person or Organization Range: Thing and not Person Annotations: rdfs:comment "only Person and org owns things, several possible" DisjointClasses: LivingBeing, NonLivingThing DisjointClasses: Person, Animal DisjointClasses: Woman, Man DisjointClasses: Infant, Child, Teenager, Adult
# UsefulThings: ontology of generic verbs on pure things ObjectProperty: isIn, isOn, isPartOf Domain: Thing Range: Thing ObjectProperty: ageInYears Domain: Thing Range: xsd:positiviteInteger Annotations: rdfs:comment "age at the date of an event" DataProperty: speed Domain: Thing Range: xsd:integer Annotations: rdfs:comment "use negative for backward direction -- default to kmh" Annotations: rdfs:comment "speed at the time of an event" DataProperty: speedUnit Domain: Thing Ranget: { mph, kmh, ms, etc} DataProperty: isMovingBackward SubclassOf: speed some integer[< 0] Annotations: rdfs:comment "given a normal/forward direction for move is present" DataProperty: isMoving SubclassOf: xsd:bool Range: speed some integer[!= 0] Annotations: rdfs:comment "speed = 0 means isMoving is false" ObjectProperty: riddenBy Domain: Thing Range: Thing ObjectProperty: rides Domain: isIn or isOn some Thing Range: Thing ObjectProperty: carriedBy EquivalentTo: riddenBy ObjectProperty: carries EquivalentTo: rides ObjectProperty: includes Domain: Thing Range: Thing DataProperty: isRemote Domaine: Thing Range: xsd:bool Annotations: rdfs:comment "something is qualified of remote only if it's involved without being local"
# examples of instances Individual RA170560 Types: RoadAccident Facts: shortDescription "Laurie hit the yaris on the left side while she was going backward the punto with Alice and Nala in it; destroyed her trashcan while backing" Facts: involves Danield Facts: involves YayaDiesel Facts: involves Laurie Facts: involves GreenPunto Facts: involves Alice Facts: involves Nala Facts: involves TrashCan Facts: date "Tue, 17 Jul 2012 15:51:33 +0000" Facts: lightCondition "daylight" Facts: weatherCondition "normal" Facts: isOn some PavedRoad Facts: isOnRoadType "street" Facts: location LOC_InFrontOfAppartLaurie Facts: accidentDetails RA_170570Details Facts: isSerious False Individual LOC_InFrontOfLaurieAppart Types: geo:Location Facts: geo:address "11 Rue Grimaldi, 06130, Grasse, France" Facts: geo:lat="51.47026" and geo:long="-2.59466" Individual RA_170570Details Types: ext:Container Facts: ext:ContainerURL "http://.." Individual DanielD Types: Man Types: Owner Facts: firstName Daniel Facts: lastName Dardailler Facts: owns YayaDiesel Facts: owns GreenPunto Facts: owns Nala Facts: ssn "1600584" Facts: email "danield@w3.org" Facts: insuranceID "2326779P" Facts: isInsuredBy MAIF Types: Pedestrian Facts: isRemote and isOn Sidewalk Facts: ageInYears "52" Facts: involvedIn RA170560 Facts: declares "You'll hear your Mom!" Individual MAIF Types: InsuranceCompany Facts: orgShortName "MAIF" Facts: orgAddress "17 Avene Jean Jaurès, 06299 Cagnes-sur-Mer" Facts: insures YayaDiesel Facts: insures GreenPunto Facts: insures DanielD Facts: insures Laurie # insures all ? in this context only insures all in RA17.. Individual VETSUP Types: InsuranceCompany Facts: orgShortName "VetSup" Facts: orgAddress "13333 Salon de Provence" Facts: insures Nala Individual Laurie Types: Woman Facts: insuredBy MAIF Facts: insuranceID "2326779P" Facts: SSN "2880000" Facts: firstName "Laurie" Facts: lastName "Dardailler" Facts: hasDriverLicenceNumber "ab098098" Types: Driver Facts: Drives GreenPunto Facts: trafficViolation "wrongway" Facts: driverProblem "notlooking" Facts: hasDrugCondition None Facts: passengerProtection "seatbelt" Facts: involvedIn RA170560 Individual Alice Types: Teenager Types: Woman Facts: SSN "2910000" Facts: firstName "Alice" Facts: lastName "Dardailler" Types: Passenger Facts: isIn GreenPunto Facts: relatedInjury "none" Facts: positionInVehicle "backseat" Facts: passengerProtection None Facts: involvedIn RA170560 Individual YayaDiesel Types: Vehicle Facts: vehiclePlateID "170 DD 52" Facts: vehicleCategory "car" Facts: vehicleBrand "Toyota" Facts: vehicleKind "Yaris" Facts: isOwnedBy DanielD Facts: vehicleColor "lightgrey" Facts: insuredBy MAIF Facts: insuranceID "2326779P" # should the following be in a separate object, since it relates to one accident and not to the car itself ? Facts: parked true Facts: carries None Facts: drivenBy None Facts: speed 0 Facts: relatedDamage "left back door bumped and crushed" Facts: involvedIn RA170560 Individual GreenPunto Types: Vehicle Facts: vehicleCarID "fiat666777" Facts: vehicleCategory "car" Facts: vehicleBrand "Fiat" Facts: vehicleKind "Punto" Facts: vehicleColor "applegreen" Facts: insuredBy MAIF Facts: insuranceID "2326779P" Facts: isOwnedBy DanielD Facts: vehicleProblem "rearmirrorbroken" # should the following be in a separate object, since it relates to one accident and not to the car itself ? Facts: isMovingBackward True Facts: carries Laurie and Alice and Nala Facts: drivenBy Laurie // so Laurie isInVehicle too Facts: speed -20 Facts: speedUnit "kmh" Facts: relatedDamage "right bumper scratched" Facts: involvedIn RA170560 Individual Nala Types: Animal Facts: animalRace "cat" Facts: Name "Nala" Facts: birthDate "17 June 1995" Facts: insuredBy VETSUP Facts: isOwnedBy DanielD # specific to the accident Types: Passenger Facts: isIn GreenPunto Facts: relatedInjury "light" Facts: relatedInjuryDesc "Nala broke a nail and vomitted on her fur" Facts: ageInYears "17" Facts: healthCondition "veryold" Facts: isOn Alice Facts: involvedIn RA170560 Individual TrashCan Types: NonLivingThing Facts: isOwnedBy Laurie Facts: isMoving False Facts: isOn Road and isAt LO_InFrontofLaurieAppart Facts: relatedDamage "destroyed" Facts: makeDate "1/1/2000"
RoadAccident // main Class being created, a traffic or road accident, involving people, vehicle, animal, having causes, effects, etc // there is a precise definition for each country, see the PDF below from international transport form= "has" GeoLocation // external ontology: gps, address, nearby, etc "has" Date/time // external type) "has" ShortDescription // string "has" LongDescription // external : container for text + mediafile (img, video, etc) "has" CauseContext (1-N) + % // used to record all sort of context, not just the primary cause, use 0% to denote informational context // I'd like a kind of switch type: causecontext is any of the following things, and there can be many context/cause, each associated with a % weight TrafficViolation + Person // enum: redlight, stop, priority, speed, etc. VehicleDamage + Vehicle // enum: tire, deadengine, brake, shock, windshield, engine, etc DriverPb: + Person // enum: lostcontrol, testing, mistake, phone, sleep, heartattack, etc ThingPb // e.g. a big rock on the road RoadAccident // another accident as cause of this one TypeofRoad // See below for an international classification LightCondition // enum: daylight/darkness/inbetween/unknown WeatherCondition // enum: wind,rain/snow/ice/mud/flood/earthquake/smoke/etc // Note that timing + location could in theory give light and condition but it seems better to record data at the source, so adding some redundance is good "involves" Person(0-N) // external Person: lastname, firstname, gender, age, address, nationalid, haircolor, height, weight, etc. Person "has" ext:Insurance (name, address, id) Person "has" ext:DriverLicence (number, date, validity, bywhom, category) Person "has" ext:TrafficRole: pedestrian, jogger, wheelchair, sitting // note that driver and passenger roles are covered by "drives" and "isIn" Person "drives" Vehicle, Thing (e.g. plane), Animal (horse) Person "declares" LongDescription // witness Person "owns": Vehicle(0-N), Animal(0-N), Thing(0-N) Person "isAtFault" Percent% // this could be reified by another person with a different opinion. can anything be ? Person "has" ext:BodyInjury (death, severe, light, desc, etc) Person "has" seatBelt, helmet, etc Person "hasPosition" e.g. backseat, front passenger, truck platform, etc Person "hasCondition" enum: sober, alcohol, etc. with %level RESTRICTED: lastname, address, nationalid, insuranceInfo (id), owns(out) // for privacy reasons, we need to restrict public access to some values, which should only be accessible to parties involved, how does one describe that while still reusing an existing external ontology ? // it's also important to restrict access to what the Person owns in this road accident, and not give access to other properties not involved here (but available in the external person dataset being accessed) // there is also the case of restricting access for privacy to data which would lead to identification of the person through "joint" queries: e.g. "there is only one male 60yo leaving on this st and the accident happened "on the way home", etc. "involves" Vehicle(0-N) // external Vehicle: type:car, bus, truck, bicycle, motocycle, unknown, etc., color, brand, age, plateid, carid, etc.) // plateid can give color/brand/age, but I find it better to also include them here, if available at the source, since color may have changed and the plateid dataset is not public Vehicle "has" ext:VehicleDamage (see description in international accident classification) Vehicle "hasMileage" unit + distance (e.g. 120000 km) Vehicle "had" ext:VehicleDamage // a damage can be the cause of an accident (brake dead) or the result (shock impact) or an information that the vehicle was already damaged ("had") "involves" Animal(s) // external Animal: race, size, name, gender, age, id, color, size, etc. // I feel a need for a specific Animal class here, vs using a more general LivingThing, driven by the application field (accidents typically involves people, vehicle, animal, and other things on the road that shouldnt be there) Animal "has" ext:BodyInjury (death, severe, light, desc, ambulance, etc) "involves" Thing(s) // e.g. falling rock, tree, bridge, pole, river, plane, boat, train, washing machine, windsurf, etc Ambulance, PoliceUnit, could be folded here // things moving or not, cause or effect of the accident // is there an external ontology for such a generic family of physical things ? it's basically anything you can imagine that can be involved in a road accident (from the eiffel tower falling on Paris to a mobile phone that you want to avoid) // a cause should link the accident to the thing, maybe best is to use fr ee text as fallback ? Thing "has" Damage (string ? thing is anything, so damage..) Additional Properties on "any" thing (Person, Vehicle, Thing, Animal) // these statement may be reified by several Person who disagree Any "isIn" Vehicle, Thing Any "has" ext:Location // at impact, can be different from accident location, a few meters away Any "has" ext:Direction (other Location) // need initial and final Any "has" ext:Speed (value:int + unit: kmh, mph, ms) // need more than one speed, eg. initial speed, speed at impact Any "isDoing" ext:TrafficAction (uturn, turning right, left, passing, parking, reverse, etc) Any "hasAim" enum:(wayhome, work, shopping, kid, fun, afterparty, etc)
