Document vs. Subgraph

Document-level access control:

AuthType Basic
AuthName "Patient Data Area"
AuthGroupFile /usr/local/apache/passwd/groups
Require group Doctors

Subgraph access control:

• e.g. patient medication or medical history
• Parts of multiple documents
• Analogous to e.g. Oracle Label Security row-level access controls.

Abstract access control:

• Describe polices in broad strokes.
• PEP (external code) maps policies to decisions.

Existing Abstract Policy Langs/Tools

• XACML, XML language for communicating principles and privileges
• Ponder2
• X-RBAC, XML Role Based Access Control
• KAoS, Agent Oriented Systems
• Rei, OWL Based Security Policy Specification

XACML

• wide deployment
• covers use cases like who has access to what patient data
• commercial (Parthenon, AX2E) and open source (Sun, XACML Enterprise, Herasaf) implementations
• implements laws
• requires domain bindings
  (health care profile leans on HL7 permissions)

Expressivity

Specific endowment language
Read or write a particular field.

Roles for describing endowments in large strokes PrimaryCarePhysician implies access to medical history.
SalesManager implies access to projections.

Rules extending endowments
Radiologist at accredited clinic implies access to X-ray corpus.
SalesManager in Boston implies access to regional Massachusetts projections.

Obligations
Doctor must not deliver medical history to third parties.
SalesManager must not deliver projections to competitor for drugs or favors.

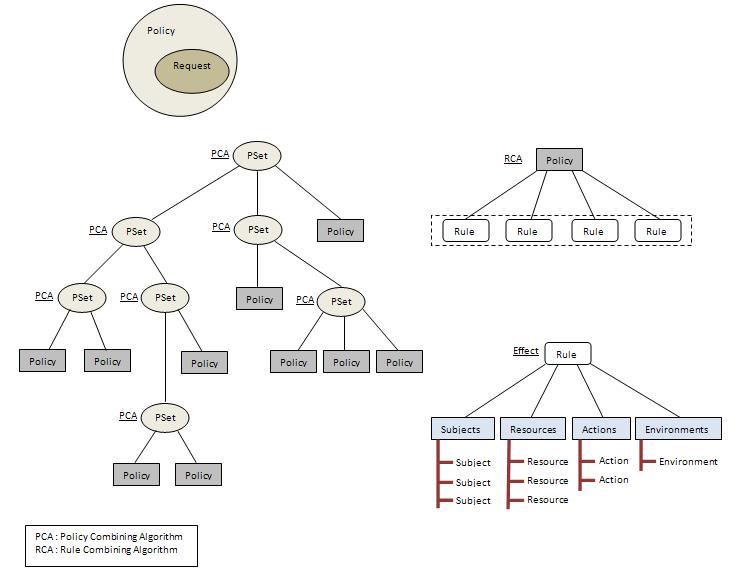

XACML Rule Conjunctions

Request in RDF

@prefix xacml: <urn:oasis:names:tc:xacml:2.0:context:schema:os> .
@prefix subject1: <urn:oasis:names:tc:xacml:1.0:subject:> .
@prefix subject2: <urn:oasis:names:tc:xacml:2.0:subject:> .
@prefix hl7-subject: <urn:oasis:names:tc:xspa:1.0:subject:hl7:> .
@prefix hl7-resource: <urn:oasis:names:tc:xspa:1.0:resource:hl7:> .
@prefix hl7-xspa: <urn:oasis:names:tc:xspa:1.0:hl7:> .
@prefix resource: <urn:oasis:names:tc:xacml:1.0:resource:> .
@prefix env: <urn:oasis:names:tc:xspa:1.0:environment:> .

<> doc:schemaLocation
"urn:oasis:names:tc:xacml:2.0:context:schema:os
     http://docs.oasis-open.org/xacml/
		access_control-xacml-2.0-context-schema-os.xsd" .


[ a xacml:Request ;
 xacml:Subject [
   subject1:subject-id "Dr. Bob" ;
   subject1:locality "Facility A" ;
   subject2:role "physician" ;
   hl7-subject:permission
               hl7-xspa:prd-006 ,
               hl7-xspa:prd-010 ;
   subject2:purpose "Healthcare Treatment" .
 ] ;
 xacml:Resource [
   resource:resource-id "Bambi Smith" ;
   hl7-resource:type hl7-resource:medical-record .
 ] ;
 env:locality "Facility A" .
] .

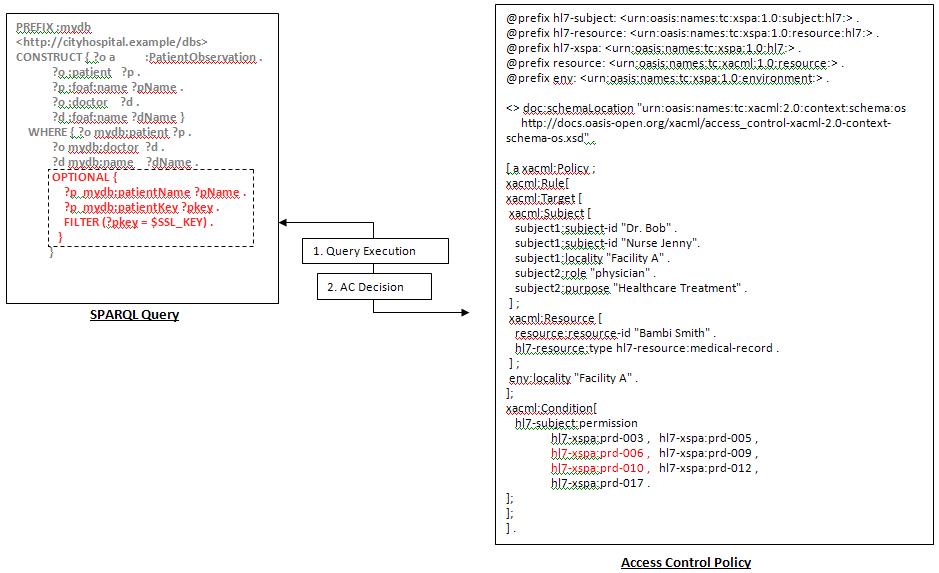

Enforcement by SPARQL extension functions

FILTER( x:UBA_notExcludes_subject($p, "Bob") &&   # protocol
        x:UBA_notExcludes_role($p, <physician>) &&
        (/* MA? */) &&
        x:data_includes(?p, <P_006>) &&     # CONSTRUCT rule
        x:data_includes(?p, <P_010>) &&     # CONSTRUCT rule
        x:locality_includes(?p, "192.168.1.1") && # protocol
        x:role_includes(?p, <physician>) )

Scenario

Virtual View Hammer

   PREFIX :mydb <http://cityhospital.example/dbs>
CONSTRUCT { ?o a          :PatientObservation .
            ?o :patient   ?p .
            ?p foaf:name  ?pName .
            ?p :takes     ?takes .
            ?o :doctor    ?d .
            ?d foaf:name  ?dName }

    WHERE { ?o mydb:patient ?p .
            ?o mydb:doctor  ?d .
            ?d mydb:name    ?dName .
            ?p  mydb:patientName ?pName .
           }

Tailored View Example

CONSTRUCT { ?o a          :PatientObservation .
            ?o :patient   ?p .
            ?p foaf:name  ?pName .
            ?p :takes     ?takes .
            ?o :doctor    ?d .
            ?d foaf:name  ?dName }

    WHERE {
        GRAPH <ACCESS> {
	    ?_requestor
		acls:username $USER ;
		acls:ip       $IP ;
        }
        ?o obs:patient ?p .
        ?o obs:doctor  ?d .
        ?d ppl:name    ?dName .
        OPTIONAL {
            ?p   ppl:familyName ?pName .
            GRAPH <ACCESS> {
                ?acl acls:entitles  ?_requester ;
	             acls:toSee  acls:identity .
            }
        }
        OPTIONAL {
            ?p   obs:medication ?takes .
            GRAPH <ACCESS> {
	        ?acl acls:entitles  ?_requester .
	            acls:toSee  acls:medication
            }
        }
    }

Tailored View Query

Queries:

SELECT    { ?o :patient   ?p .
            ?p :takes     ?takes .
            ?o :doctor    ?d .
            ?d :foaf:name "Dr. Bob"
          }

are executed against a virtual graph:

CONSTRUCT { ?o a          :PatientObservation .
            ?o :patient   ?p .
            ?p foaf:name  ?pName .
            ?p :takes     ?takes .
            ?o :doctor    ?d .
            ?d foaf:name  ?dName }


which is populated according to your privileges.

Features:

• ACLs are visibly next to sensitive information.
• Query rewriting incorporates policy.
• Arbitrary SPARQL expressivity.

flexibility

    WHERE {
      … OPTIONAL {
            ?prescription pres:medication ?takes ;
                          pres:start ?start ;
                          pres:end ?end .
            GRAPH <ACCESS> {
	        ?userrole roles:user $USER ;
	                  roles:role ?role
	        FILTER (?role = "researcher" || ?role = "care-giver")
                FILTER (?IPADDR = "10.2.3.4" || ?IPADDR = "192.172.5.6")
            }
	    ?takes meds:application "ADHD" .

	    # OPTIONAL { …?inst… } !BOUND(?inst) is an idiom for negation as failure in SPARQL 1.
            OPTIONAL { ?prescription obs:institution ?inst .
                       ?inst addr:city "NY" .
                       ?takes meds:application "antidepressant" }
            FILTER (!bound(?inst))
        } …
    }

pay-per-view

        OPTIONAL {
            ?x foo:valuableStuff ?stuff .
            GRAPH <ACCESS> {
                ?acl acls:entitles  ?_requester ;
	             acls:paid      ?paid .
                FILTER (?paid > .05)
            }
        }


Data Obligation

This data will self-destruct in 30 seconds.

Data Obligation Example

CONSTRUCT {
    ?x spy:mission ?mission .
       policy:obligation [
           policy:delete spy:yourMission ;
           policy:when   "00:00:05"
       ]
}

policy injection from XACML

<foo> a xacml:Policy ;
    xacml:pair [
      xacml:pattern
        "{
           ?a  ppl:familyName ?b .
         }" ;
      xacml:covers hl7:identity ] ;
    xacml:pair [
      xacml:pattern
        "{
           ?a  obs:medication ?b .
         }" ;
      xacml:covers hl7:medication ] .


Oracle Object Level Security

   exec  SA_SYSDBA.CREATE_POLICY (
         policy_name => DEFENSE',
         column_name => 'CTXT1');

Create security levels and labels:
  exec SA_COMPONENTS.CREATE_LEVEL(‘DEFENSE', 1000, 'UN',  'UNCLASSIFIED');
  exec SA_COMPONENTS.CREATE_LEVEL(‘DEFENSE', 2000, 'SE', 'SECRET');
  exec SA_LABEL_ADMIN.CREATE_LABEL(‘DEFENSE', 1004, 'UN');
  exec SA_LABEL_ADMIN.CREATE_LABEL(‘DEFENSE', 1005, ‘SE');

EXEC SA_USER_ADMIN.SET_USER_LABELS(‘DEFENSE', ‘JOHN',‘SE’);

Policy Options

• document-level
• graph-level
• abstract-level
