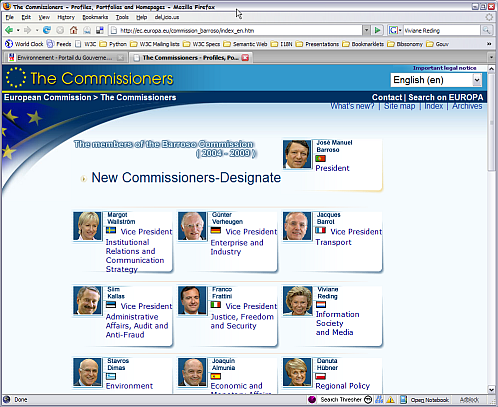

“Who is Viviane Redding?”

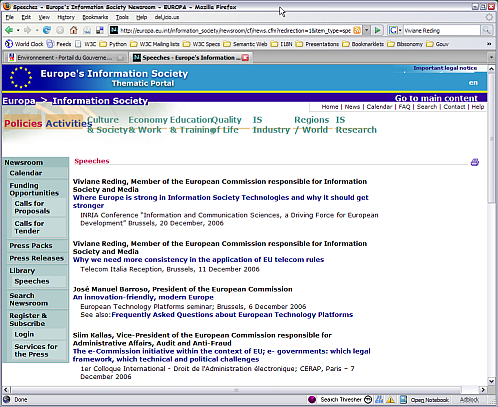

• You can query the EU’s Information Society portal database for speeches held by commisioners
  •
• Go (manually!) to another page (generated from another database)
  •

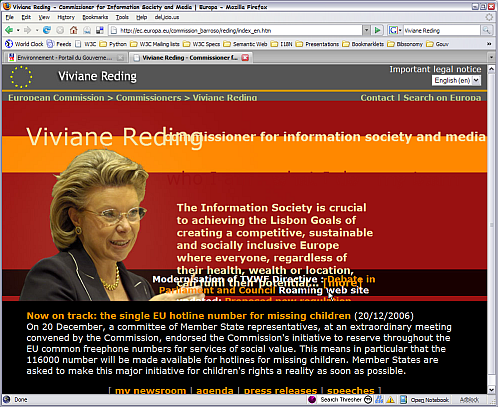

• Click to get to Redding’s page
  •
• All these steps must be made manually, although the information is available in different databases for automatic processing…
• … but the databases are not integrated

Data(base) Integration

• Data sources (eg, HTML pages, databases, …) are very different in structure, in content
• Lots of applications require managing several data sources
  • after company mergers
  • combination of administrative data for e-Government
  • biochemical, genetic, pharmaceutical research
  • etc.
• Most of these data are accessible from the Web (though not necessarily public yet)

What Is Needed?

• (Some) data should be available for machines for further processing
• Data should be possibly combined, merged on a Web scale
• Sometimes, data may describe other data (like the library example, using metadata)…
• … but sometimes the data is to be exchanged by itself, like my calendar or my travel preferences
• Machines may also need to reason about that data

A rough structure of data integration

1. Map the various data onto an abstract data representation
   • make the data independent of its internal representation…
2. Merge the resulting representations
3. Start making queries on the whole!
   • queries that could not have been done on the individual data sets

A simplifed bookstore data (dataset “A”)

1^st step: export your data as a set of relations

Some notes on the exporting the data

• Relations form a graph
  • the nodes refer to the “real” data or contain some literal
  • how the graph is represented in machine is immaterial for now
• Data export does not necessarily mean physical conversion of the data
  • relations can be generated on-the-fly at query time
    • via SQL “bridges”
    • scraping (X)HTML pages
    • extracting data from Excel sheets
    • etc.
• One can export part of the data

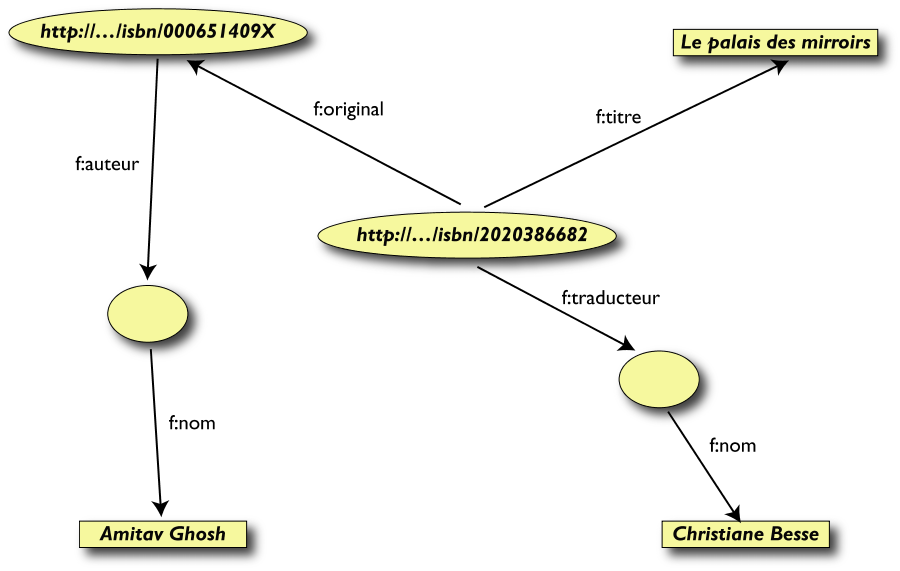

Another bookstore data (dataset “F”)

2^nd step: export your second set of data

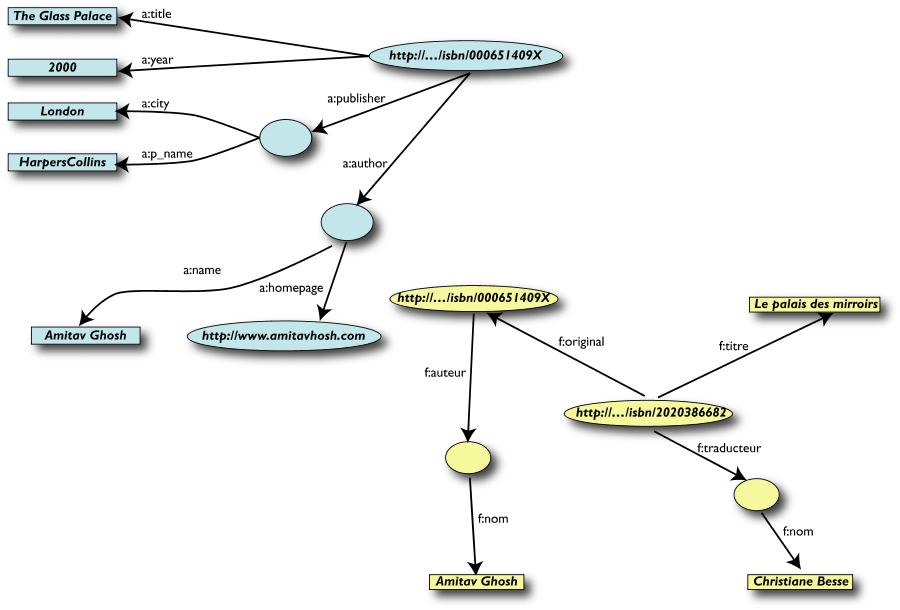

3^rd step: start merging your data

3^rd step: start merging your data (cont.)

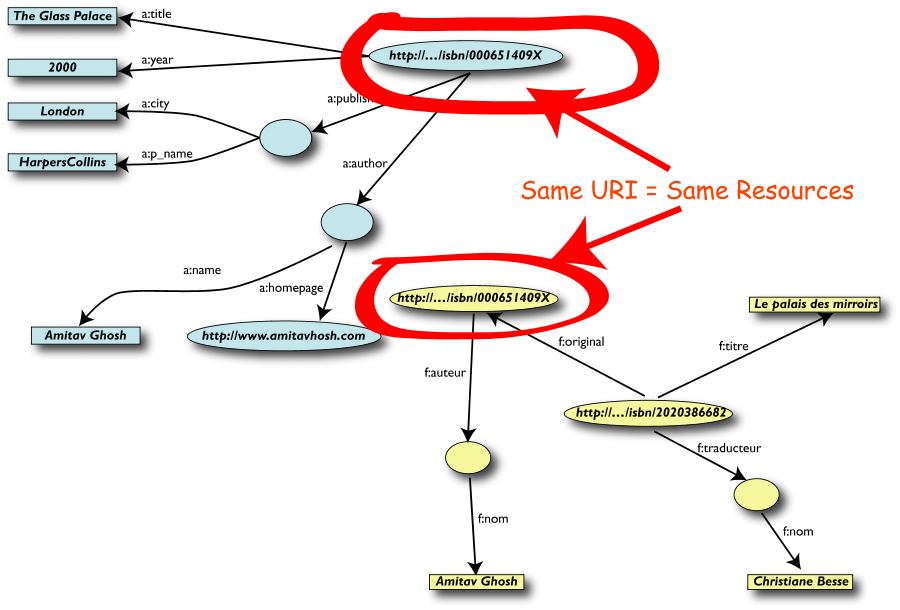

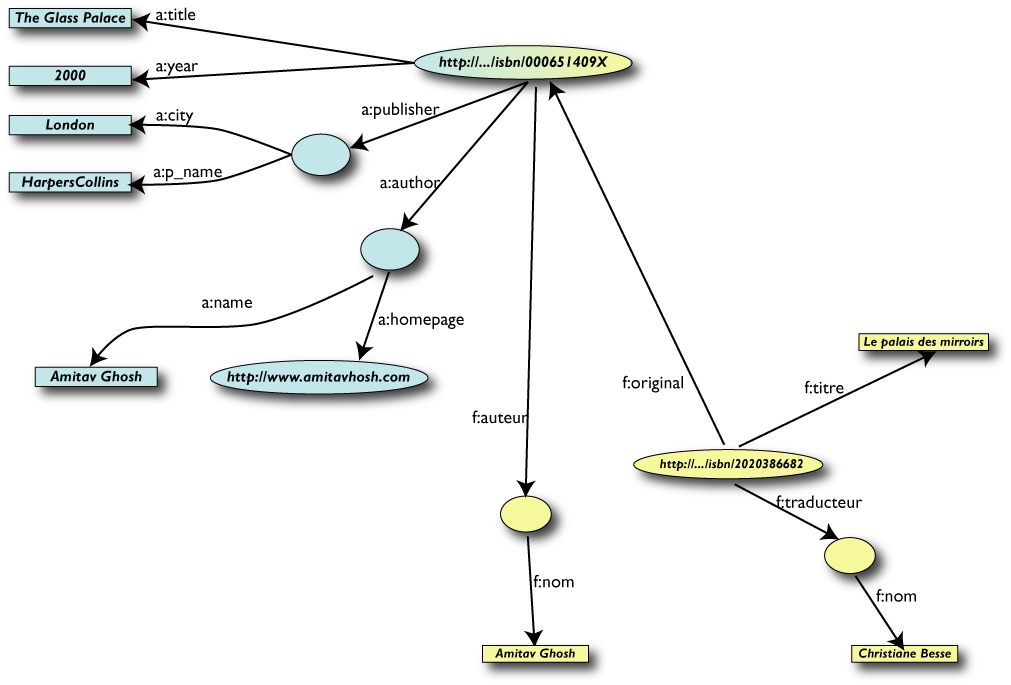

3^rd step: merge identical resources

Start making queries…

• User of data “F” can now ask queries like:
  • « donnes-moi le titre de l’original »
  • (ie: “give me the title of the original”)
• This information is not in the dataset “F”…
• …but can be automatically retrieved by merging with dataset “A”!

However, more can be achieved…

• We “feel” that a:author and f:auteur should be the same
• But an automatic merge doest not know that!
• Let us add some extra information to the merged data:
  • a:author same as f:auteur
  • both identify a “Person”:
    • a term that a community may have already defined:
      • a “Person” is uniquely identified by his/her name and, say, homepage
      • it can be used as a “category” for certain type of resources

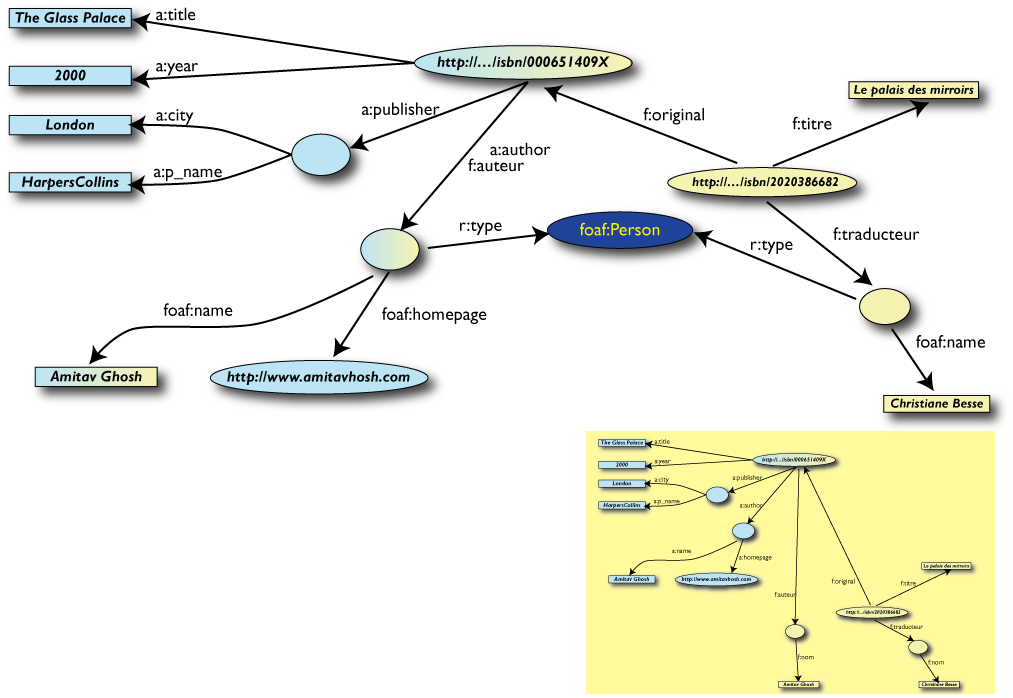

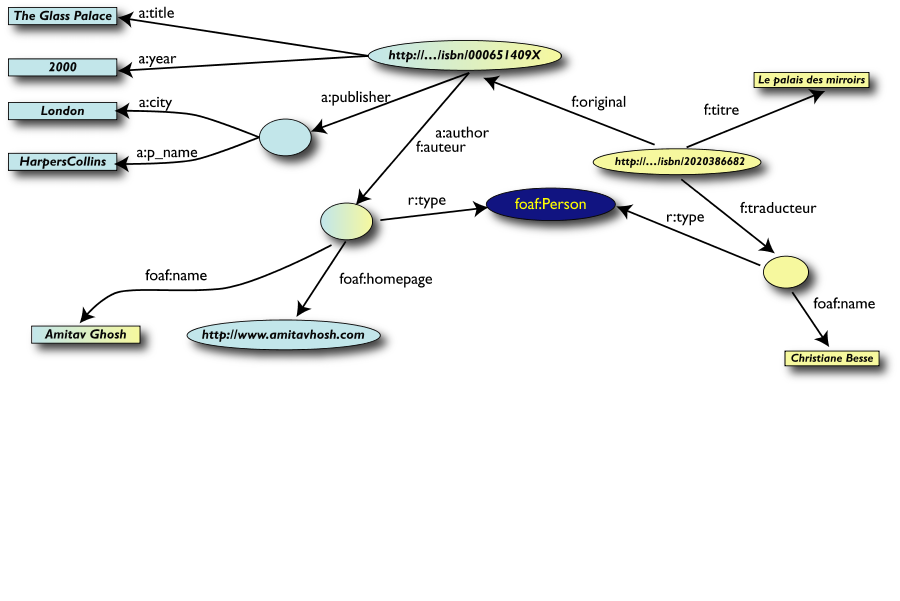

3^rd step revisited: use the extra knowledge

Start making richer queries!

• User of dataset “F” can now query:
  • « donnes-moi la page d’accueil de l’auteur de l’original »
  • (ie, “give me the home page of the original’s author”)
• The data is not in dataset “F”…
• …but was made available by:
  • merging datasets “A” and datasets “F”
  • adding three simple extra statements as an extra “glue”
  • using existing terminologies as part of the “glue”

Combine with different datasets

• Using, e.g., the “Person”, the dataset can be combined with other sources
• For example, data in Wikipedia can be extracted using simple (e.g., XSLT) tools
  • there is an active development to add some simple semantic “tag” to wikipedia entries
  • we tacitly presuppose their existence in our example…

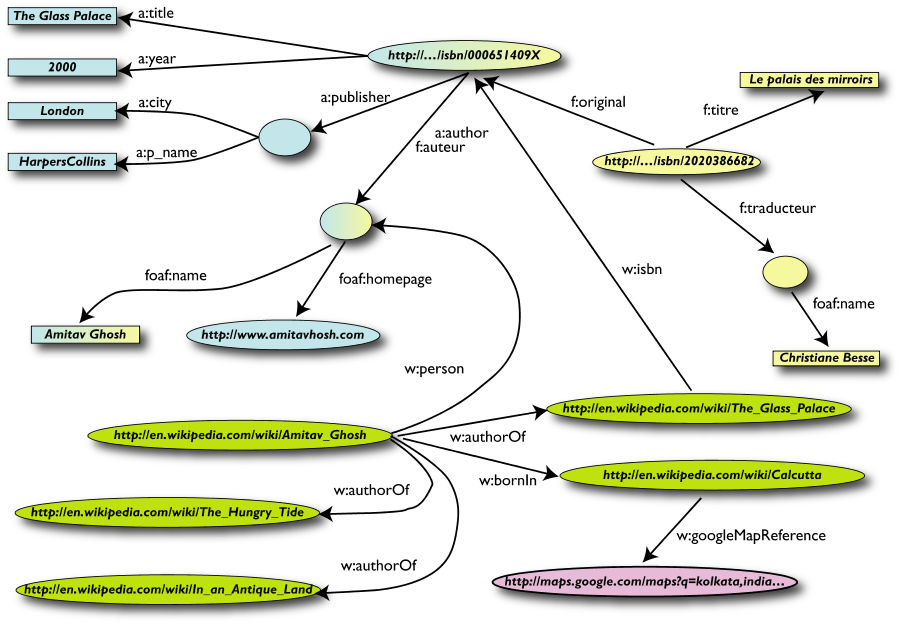

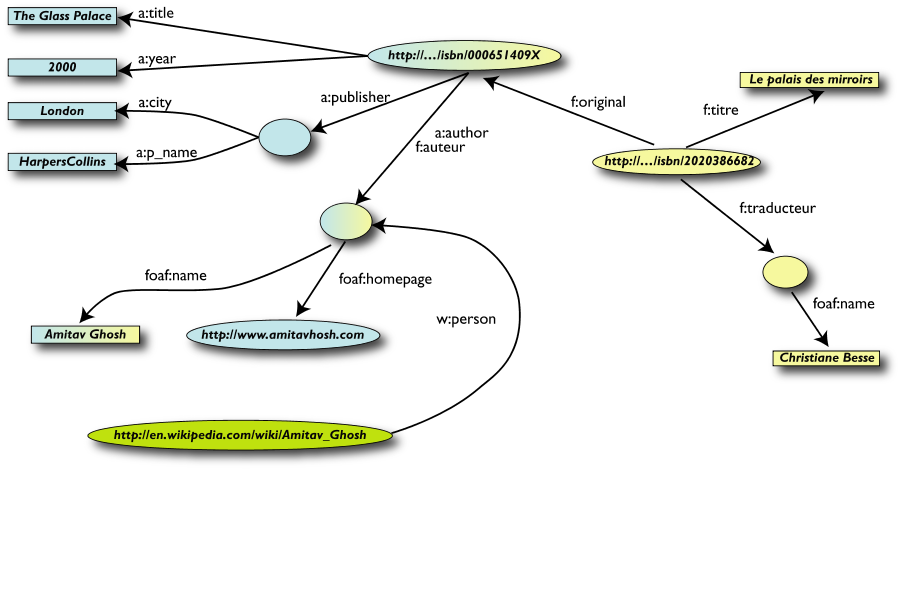

Merge with Wikipedia data

Merge with Wikipedia data

Merge with Wikipedia data

Is that surprising?

• Maybe but, in fact, no…
• What happened via automatic means is done all the time, every day by the users of the Web!
• The difference: a bit of extra rigor (e.g., naming the relationships) is necessary so that machines could do this, too

What did we do?

• We combined different datasets
  • all may be of different origin somewhere on the web
  • all may have different formats (mysql, excel sheet, XHTML, etc)
  • all may have different names for relations (e.g., multilingual)
• We could combine the data because some URI-s were identical (the ISBN-s in this case)
• We could add some simple additional information (the “glue”), also using common terminologies that a community has produced
• As a result, new relations could be found and retrieved

It could become even more powerful

• We could add extra knowledge to the merged datasets
  • e.g., a full classification of various type of library data
  • geographical information
  • etc.
• This is where ontologies, extra rules, etc, may come in
• Even more powerful queries can be asked as a result

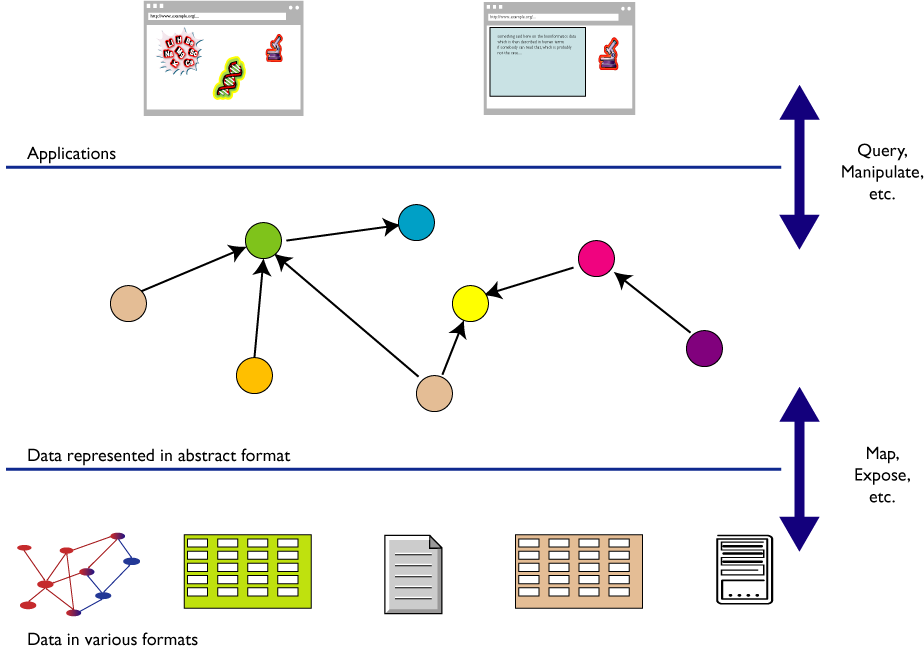

What did we do? (cont)

The abstraction pays off because…

• … the graph representation is independent on the exact structures in, say, a relational database
• … a change in local database schemas, XHTML structures, etc, do not affect the whole, only the “export” step
  • “schema independence”
• … new data, new connections can be added seamlessly, regardless of the structure of other datasources

So where is the Semantic Web?

• The Semantic Web provides technologies to make such integration possible! For example:
  • an abstract model for the relational graphs: RDF
  • means to extract RDF information from XML (eg, XHTML) pages: GRDDL
  • means to add structured information to XHTML pages: RDFa
  • a query language adapted for the relational graphs: SPARQL
  • various technologies to characterize the relationships, categorize resources: RDFS (RDF Schemas), OWL (Web Ontology Language), SKOS, Rule Interchange Format
    • depending on the complexity required, applications may choose among the different technologies
    • some of them may be relatively simple with simple tools (RDFS), whereas some require sophisticated systems (OWL, Rules)
  • reuse of existing “ontologies” that others have produced (FOAF in our case)
• Some of these technologies are stable, others are being developed

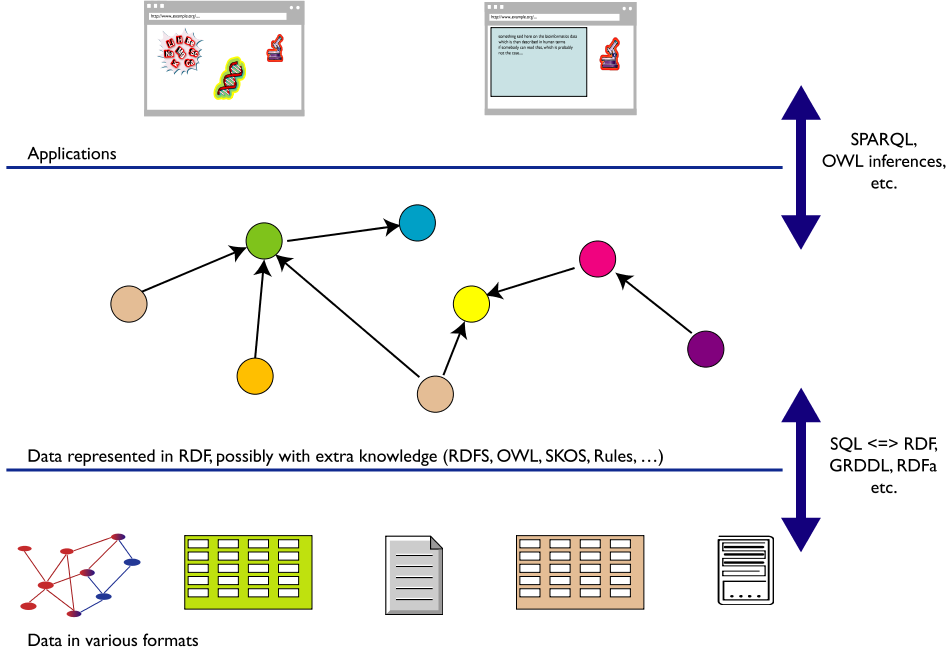

So where is the Semantic Web? (cont)

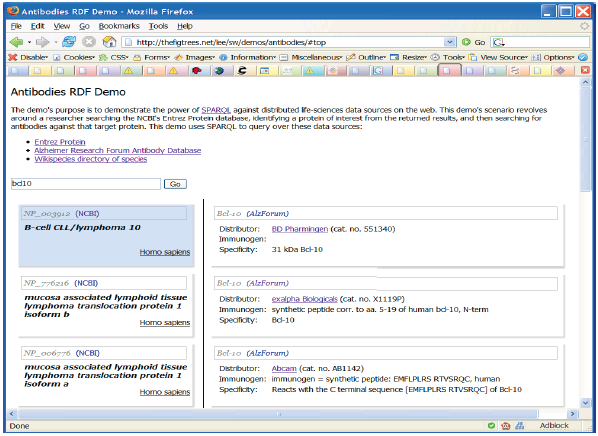

A real life data integration: Antibodies Demo

• Scenario: find the known antibodies for a protein in a specific species
• Combine four different data sources
  • “Entrez protein sequence” from National Center for Biotechnology Information; conversion to RDF
  • “Antibody Directory” from Alzheimer Research Forum; scraping RDF from HTML
  • Mapping data between genes and antibodies; convert spreadsheet to RDF
  • “Taxonomy information” from Wikispecies; use XSLT to extract RDF from XHTML

Semantic Web data begins to accumulate on the Web

• Large datasets are accumulating. E.g.:
  • IngentaConnect bibliographic metadata storage: over 200 million statements
  • RDF version of Wikipedia: more than 47 million triplets, based also on SKOS, soon with a SPARQL interface
  • tracking the US Congress: data stored in RDF (around 25 million triplets) with a SPARQL interface
  • “Département/canton/commune” structure of France published by the French Statistical Institute
• Some mesaures claim that there are over 10⁷ Semantic Web documents… (ready to be integrated…)

Semantic Web Applications

Evolution of (Semantic) Web

• SW has indeed a strong foundation in research results
• But remember:
  • (1) the Web was born at CERN…
  • (2) …was first picked up by high energy physicists…
  • (3) …then by academia at large…
  • (4) …then by small businesses and start-ups…
  • (5) “big business” came only later!
• network effect kicked in early…
• Semantic Web is now at #4, and moving to #5!

May start with small communities

• The needs of a deployment application area:
  • have serious problem or opportunity
  • have the intellectual interest to pick up new things
  • have motivation to fix the problem
  • its data connects to other application areas
  • have an influence as a showcase for others
• The high energy physics community played this role for the Web in the 90’s

Some RDF deployment areas

Some RDF deployment areas (cont)

• These are just examples
• Others are coming to the fore: eGovernment, energy sector (oil industry), financial services, …

Applications are not always very complex…

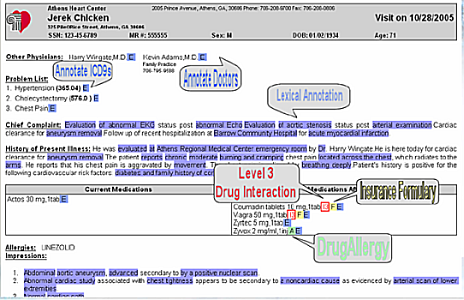

• Eg: simple semantic annotations of patients’ data greatly enhances communications among doctors
• What is needed: some simple ontologies, an RDFa/microformat type editing environment
• Simple but powerful!

Data Integration R&D

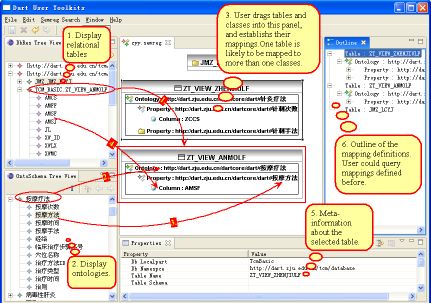

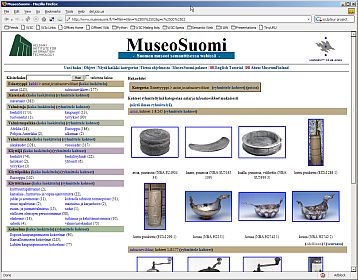

• Boeing, MITRE Corp., Elsevier, EU Projects like Sculpteur and Artiste, national projects like MuseoSuomi, DartGrid from Zhe Jiang University, …

Portals

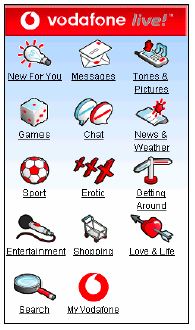

• Vodafone's Live Mobile Portal
  • search application (e.g. ringtone, game, picture) using RDF
    • page views per download decreased 50%
    • ringtone up 20% in 2 months
• A number of other portal examples: Sun’s White Paper Collections and System Handbook collections; Nokia’s S60 support portal; Harper’s Online magazine linking items via an internal ontology; Oracle’s virtual press room; Opera’s community site, Yahoo! Food,…

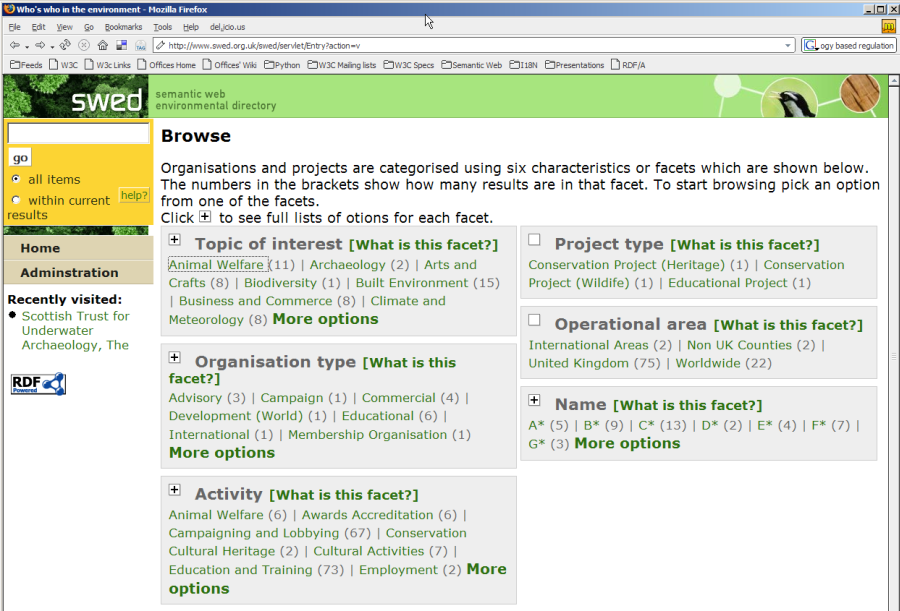

• Another example: semantic “harvester” of environmental agencies and information

Creative Commons

• To express rights of digital content on the Web
  • legal constraints referred to in RDF, added to pages
• There are specialized browsers, browser plugins
• More than 1,000,000 users worldwide (!)
  • without knowing that they use RDF…

Other Application Areas Come to the Fore

• Knowledge management
• Business intelligence
• Linking virtual communities
• Management of multimedia data (e.g., video and image depositories)
• Content adaptation and labeling (e.g., for mobile usage)
• etc

Conclusions

• The Semantic Web is there to integrate data on the Web
• The goal is the creation of a Web of Data

Thank you for your attention!

These slides are available on the Web: http://www.w3.org/2007/Talks/0202-Gijon-IH/

(slides are available in XHTML and PDF)
