Abstract

This document is a strawman proposal for an abstract model for XML Protocol.

The challenge of crafting a protocol specification is to create a description of behaviour that is not tied to any particular approach to implementation. There is a need to abstract away from some of the messy implementation details of buffer management, data representation and specific APIs. However, in order to describe the behaviour of a protocol one has to establish a set of (useful) concepts that can be used in that description. An abstract model is one way to establish a consistent set of concepts. An abstract model is a tool for the description of complex behaviour – it is not a template for an implementation... although it should not stray so far away from reality that it is impossible to recognise how the required behaviours would be implemented.

Status of this Document

This document is the work of the Abstract Model Subgroup of the XML Protocol Working Group listed above. The work has benefited numerous discussions on the xml-dist-app@w3.org mailing list and from discussions with other members of the XML Protocol Working Group.

This document is not a W3C Technical Report. It is to be considered a work in progress and does not imply endorsement by the W3C membership nor by the XML Protocol WG.

As a work in progress this document represents the current state of the discussion within the Abstract Model Subgroup and should not be regarded as representing a position of  full consensus amongst the membership of the subgroup. It is currently under review and discussion by the XML Protocol WG.

Discussion of this document will take place on the public <xml-dist-app@w3.org> mailing list (Archives) as indicated by the email communiation rules provided in the WG charter.

Table of Contents

Issues

1. Many of the terms defined in section 1.1 clone and/or overlap with terms also defined within the glossary of the requirements document. The intention is that the definitions and meanings of these terms will converge and that the definitions will be kept and maintained in a single document in a way that has yet to be decided upon by the WG. Duplicated terms have been highlighted by a grey background.

2. Henrik is concerned that section 3 appears to him like the definition of an API rather than as an abstract description of a wire protocol. The concern is not to as whether an abstract description should be produced or not - it certainly does bring value.

   The concern is that rather than taking a "wire-protocol" approach for defining the abstract model, section 3 seems to take an approach that is more targeted a particular implementation model. An alternative description of the abstract model could be cast in terms of XML Protocol concepts such as "XML Protocol Blocks", "XML Protocol Handlers", and "XML Protocol Modules" rather than in terms of events.

   In addition, Henrik has concerns that the current model seems to call out specific message exchange patterns like request/response special cases of interactions instead of providing an abstraction of how multiple message exchange patterns can be supported within the XML Protocol.

3. Fault Handling: Section 3 includes ideas on fault handling. These are really seeds for discussion and subject to change as the discussion matures.

4. The concept of a UNICODE normalisation intermediary suggest that we might indeed want to allow intermediaries to modify message content.

5. The Subgroup feels that the Abstract Model should be mapped against the various scenario's presented in the requirements document. This work will not be started before the February F2F.

6. Fig 2.1 suggest a one-one correspondence between handlers and blocks. Are handlers allowed to process multiple blocks? (yes) Is a given block allowed to be processed by multiple handlers? (Yes).

7. The generation of UnitData.confirm (now UnitData.status) might need further explanation.

8. The use of intermediaries in a response path is not illustrated.

9. A direct single hop interaction is not shown. This may give the impression that all operations pass through intermediaries, which is not the case.

10. Figure 2.1: would like the handlers to be given some concrete purposes: eg. Signature generator, Signature checker, Path handler...

11. The relation between the terms XMLP Module, XMLP Block and XMLP Handler may need more work.

ToDo's

1. Incorporate more terminology from the intermediaries discussion the section on message paths.
2. Probably want to condense the use of the prefix "XML protocol xxxx" throughout.
3. Paths and Targetting probably need more work. I've left things such that we could define paths (OrigPath, ActualPath) or so that XMLP applications can specify ImmediateDestinations which is kind-of single hop with appilcation based routing.

Changes from Draft of  16th February 2001

1. Added Mark Jones to list of contributors
2. Removed Section 7 (Security)
3. Renumbered Sections 5 and 6 as 4 and 5 respectively
4. Section 1.1: Removed definitions covered by requirements document glossary and added reference to same.
5. Updated Fig 2.1 with derivative of diagram in [XMLPReqs] (added service primitive annotations back in).
6. Editorial on text section 2 to bring in line with revised Fig 2.1
7. Updated Figure 3.2 in response to Janek's comment at F2F on how to indicate indeterminate ordering.
8. Updated Figure 4.2 (was 5.2) to reflect changes in Figure 2.1 (addition of handler h).
9. Added Marc Hadley Binding Model as section 5.1 (and subsections) minor edits ("this document"->"this section")
10. Added Mark Jones Module Processing Model as  section 4.1.1.
11. Forced case consistency on "XML protocol" application, processor and layer throughout (ish).

@@@

1.    Introduction

An abstract model is a useful means to develop a description of a system. It abstracts away from practical details such as specific API definitions, data representation, and buffer management. It provides a way to give a precise description of the externally visible behaviour without being prescriptive of implementation architecture.

The intended audience for this document initially is the XML Protocol WG itself. In the longer term it is hoped that the material in this document will serve as a useful overview and introduction to the XML Protocol and its framework.

1.1    Definition of Terms

This document makes use of terms defined in the [XMLPReqs]. Additional terms introduced in this document are defined locally in this section, however, in the long term we anticipate that they will be incorporated into a single glossary for all documents produced by the WG.

2.    XMLP Abstract Model Overview.

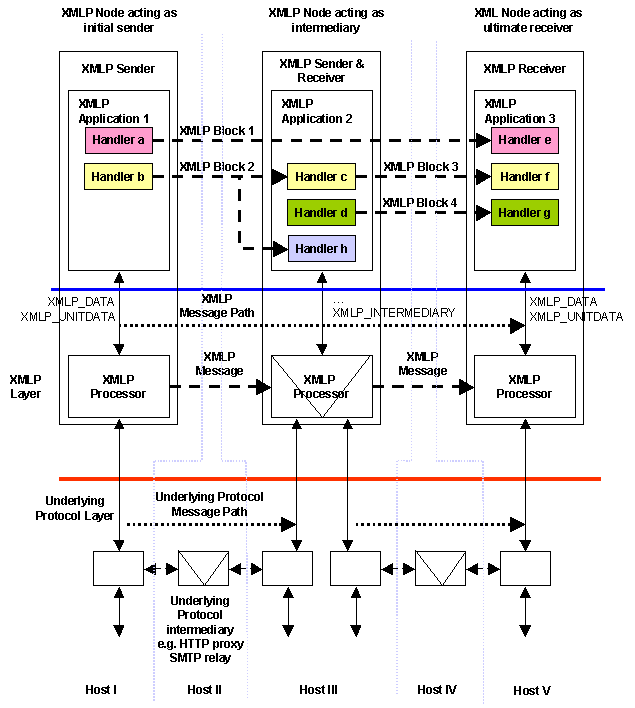

Figure 2.1 below presents an overview of the XML Protocol abstract model.

Figure 2.1 XML Protocol Model Overview

Figure 2.1 shows 5 nodes. Host I, III and V each contain XML protocol application components, which use the services of the XML protocol layer, and  XML protocol layer components which provide the services of the XML protocol layer. The services of the XML protocol layer are abstracted at the upper layer boundary and consist of three operations which will be described in detail in Section 3.

Two of these operations, XMLP_DATA and XMLP_UNITDATA correspond to the exchange of messages using two-way  request/response and one-way only message patterns respectively. These two operations are available to sending and receiving XML protocol applications, such as at Hosts I and V in figure 2.1. The third operation, XMLP_INTERMEDIARY, provides explicit support for intermediary XML protocol nodes such as Host III in figure 2.1.

Hosts II and IV are intermediaries that operate within underlying protocol layers such as HTTP proxies, SMTP message routers and arguably even IP routers and 802.1 MAC layer bridges.

Figure 2.1 can be used to discuss a number of message exchange scenarios. For example, the XML protocol Processor at Host III is bound to two, possibly different, underlying protocols. It could serve merely as a 'helper' to transition an XML protocol message from one underlying protocol to another in circumstances where the initiating processor is bound to a different underlying protocol infrastructure than the receiving or responding node, say Host V in figure 2.1. A similar scenario arises if Host III is part of an XML Protocol Firewall that controls the ingress and egress of messages from a given organisation. In both these circumstances the XML Protocol Handler(s) within the XML protocol application at Host III need not be present.

If we turn our attention to the operation of the XML protocol applications above the XML protocol layer boundary. We have a scenario in which the application at Host I has some XML protocol blocks to deliver to Host V. In addition the application at Host I needs to trigger Intermediary functionality at Host III by the inclusion of several XML Protocol Blocks. "XML Protocol Block 1" is targeted at "XML protocol handler (e) " within the application on Host V. Block 2 is targeted at handler (h) and  handler (c)  which replaces Block 2 with Block 3. Also, the XML protocol application at Host III inserts Block 4 into the message forwarded from Host III to Host V.  Blocks 3 and 4 are targeted at  handlers (f) and (g).

3    XML Protocol Layer Service Definition

Henrik is concerned that section 3 appears to him like the definition of an API rather than as an abstract description of a wire protocol. The concern is not to as whether an abstract description should be produced or not - it certainly does bring value.

The concern is that rather than taking a "wire-protocol" approach for defining the abstract model, section 3 seems to take an approach that is more targeted a particular implementation model. An alternative description of the abstract model could be cast in terms of XML Protocol concepts such as "XML Protocol Blocks", "XML Protocol Handlers", and "XML Protocol Modules" rather than in terms of events.

In addition, Henrik has concerns that the current model seems to call out specific message exchange patterns like request/response special cases of interactions instead of providing an abstraction of how multiple message exchange patterns can be supported within the XML Protocol.

This section focuses on the definition of an abstract interface between the XML protocol applications and the XML protocol layer. In needs to be remembered that the layer interface described in this section is abstract - its purpose is to enable description, not to constrain implementation.

The services provided by the XML protocol layer are modelled as three operations. Two operations, XMLP_DATA and XMLP_UNITDATA provide services to the XML Protocol nodes that originate and terminate the exchange of XML Protocol messages. XMLP_DATA and XMLP_UNITDATA support two-way request/response and one-way message exchanges respectively.

The third operation, XMLP_INTERMEDIARY provides explicit support for intermediary XML protocol applications to provide value added services to messages in transit.

3.1.    XMLP_Data Operation

XMLP_Data is a best effort  two-way request/response operation which is modelled by four primitives (events). Each primitive models a transmission, reception or status event at interface between an  XML protocol application and an XML protocol Processor:

XMLP_Data.request( To, [ImmediateDestination], [OrigPath], [{Headers}], [{Bodies}], [{Attachments}], [BindingContext]);

XMLP_Data.indication( To, From, [OrigPath], [ActualPath], [{Faults}], [{Headers}], [{Bodies}], [{Attachments}], [BindingContext]]);

XMLP_Data.response( [ImmediateDestination], [OrigPath], [{Faults}], [{Headers}], [{Bodies}], [{Attachments}], [BindingContext]]);

XMLP_Data.confirm( From, Status, [ActualPath], [{Faults}], [{Headers}], [{Bodies}], [{Attachments}], [BindingContext]);

All parameters are detailed in Section 3.4

Figure 3.1 below illustrates the normal use of these primitive at initiating and responding XML protocol applications.

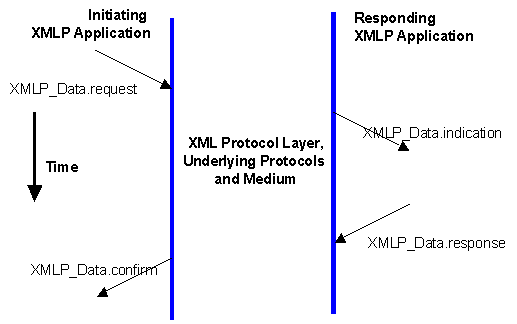

Figure 3.1 XMLP_DATA Operation

The operation is best effort which means that it can fail silently with the loss of the message in transit. A lost message may have been partially processed at one or more intermediary XML protocol applications. It may even have reached the responding XML protocol application and the response may have been lost on its return path. Both the success or failure of the operation is reported via the XMLP_Data.confirm primitive. However, there can be circumstances in which the failure is silent and the XMLP_Data.confirm primitive fails to be invoked to complete the operation.

XMLP_Data.request: Invoked by the initiating XML protocol application and directed at the local initiating XML protocol Processor to start a two-way request/response operation.

Upon receipt of this primitive by the initiating XML protocol Processor  an XML protocol message is transferred from the initiating XML protocol Processor toward the responding XML protocol processor (possibly via intermediary XML protocol processors).

XMLP_Data.indication: Invoked by the responding XML protocol  processor and directed at a local responding XML protocol application to deliver the outbound XML protocol message.

This primitive is invoked as a result of the arrival of an XML protocol message from the initiating XML protocol processor (via the underlying protocol layers).

XMLP_Data.response: Invoked by the responding XML protocol application and directed at the local responding XML protocol processor  to return a response message to the initating XML protocol application.  From the point-of-view of the responding XML application the operation has completed once this primitive has been invoked.

Upon receipt of this primitive by the responding XML protocol processor an XML protocol message is the transferred from the responding XML protocol processor toward the initiating XML protocol processor (possibly via intermediary XML protocol processors).

XMLP_Data.confirm: Invoked by the initiating XML protocol  processor and directed at the initiating XML protocol application.

This primitive is normally invoked to deliver the response message to the initiating XML protocol application as a result of the arrival of an XML protocol message from the responding XML protocol processor (via the underlying protocol layers) .

This primitive may also be used to inform of the failure of the operation in those circumstances when a failure can be reported - some failures may be silent. From the point-of-view of the initiating XML application the operation has completed once this primitive has been invoked.

An XML protocol application may engage in multiple concurrent operations with the same or different intermediary and responding XML protocol applications. These concurrent operations are independent and the order in which they are processed by the responding and intermediary applications may be different from the order in which they are invoked or complete at the initiator.

Failures that arise during message processing at intermediary and responding XML protocol applications result in the inclusion of Faults in both .indication and .confirm.

Assumes that non-fatal failures at intermediaries are fed forward so that they can also be fed back as part of the response to initiating applications. Fault handling remains a open topic of discussion.

This operation may be implemented over HTTP, HTTPS, SSL/TCP, TCP and SMTP.

3.2.    XMLP_UnitData Operation

XMLP_UnitData is a best effort one-way message transfer operation which is modelled by three primitives (events). Each primitive models a transmission, reception or status event at interface between an  XML protocol application and an XML protocol processor:

XMLP_UnitData.send( To, [ImmediateDestination], [OrigPath], [{Headers}], [{Bodies}], [{Attachments}], [BindingContext]);

XMLP_UnitData.receive( To, From, [OrigPath], [ActualPath], [{Faults}], [{Headers}], [{Bodies}], [{Attachments}], [BindingContext]]);

XMLP_UnitData.status( Status, [{Faults}], [BindingContext]);

All parameters are detailed in Section 3.4

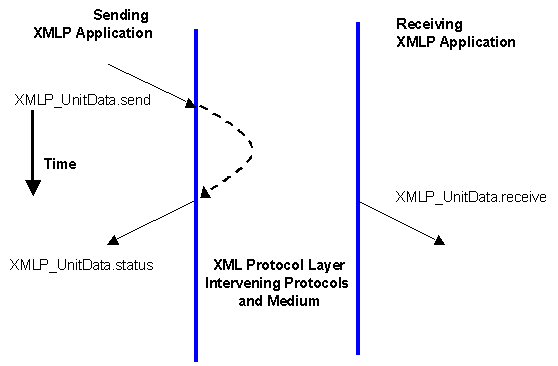

Figure 3.2 below illustrates the normal use of these primitive at the sending and receiving XML protocol applications.

Figure 3.2 XMLP_DATA Operation

The operation is best effort which means that it can fail silently with the loss of the message in transit. A lost  message may have been partially processed at one or more intermediary XML protocol applications. Both the success or failure of the operation is reported via the XMLP_UnitData.status primitive. However, there can be circumstances in which the failure is silent and the XMLP_UnitData.status primitive fails to be invoked to complete the operation. In these circumstances it may not be possible to determine whether the message has been delivered to the receiving XML protocol application.

XMLP_UnitData.send: Invoked by the sending XML protocol application and directed at the local sending XML protocol processor to start a one-way transfer operation.

Upon receipt of this primitive by the sending XML protocol processor an XML protocol message is transferred from the sending XML protocol processor toward the receiving XML protocol processor (possibly via intermediary XML protocol processors).

XMLP_UnitData.receive: Invoked by the receiving XML protocol processor and directed at  a local receiving  XML protocol application to deliver a received XML protocol message.

This primitive is invoked as a result of the arrival of an XML protocol message from the sending XML protocol processor (via the underlying protocol layers).

XMLP_UnitData.status: Used to report on the delivery status of the operation to the sending XML protocol application. This primitive may be used to report to the sending XML protocol application on the success or failure to deliver a message to the receiving XML protocol application. In general, it is not possible to assert that a message has been delivered to the intended recipient without engaging in further interactions. With care it is possible to assert definite failure to deliver provided that there is no chance of subsequent delivery. From the point-of-view of the initiating XML application the operation has completed once this primitive has been invoked.

An XML protocol application may engage in multiple concurrent operations with the same or different intermediary and receiving XML protocol applications. These concurrent operations are independent and the order in which they are processed by the receiving and intermediary applications may be different from the order in which they are invoked or complete at the sending XML protocol application.

Failures that arise during message processing at intermediary XML protocol applications may result in the inclusion of Faults in .indication and .status primitives.

Assumes that non-fatal failures at intermediaries are fed forward. Fault handling remains a open topic of discussion.

This operation may be implemented over HTTP, HTTPS, SSL/TCP, TCP and SMTP.

3.3   XMLP_Intermediary Operation

It may be the case that this operation would be better described by integrating it with the XMLP_Data and XMLP_UnitData operations as say, XMLP_Data.int_indication, XMLP_Data.int_resend, XMLP_UnitData.int_indication and XMLP_UnitData.resend. However this would lead to 4 or even 6 events rather than 2 albeit with the operationType parameter.

The XMLP_Intermediary operation is used at intermediary XML protocol applications to invoke local intermediary processing of the message and to xxxx

XMLP_Intermediary.indication( To, From, OperationType, [OrigPath], [ActualPath], [{Faults}], [{Headers}], [{Bodies}], [{Attachments}], [BindingContext]]);

XMLP_Intermediary.resend( [ImmediateDestination], Status, [{Faults}], [{Headers}], [{Bodies}], [{Attachments}], [BindingContext]]);

All parameters are detailed in Section 3.4

The path related parameters are not in the resend primitive, because... if we do have path as a 1st class notion then they will be updated en-route by the XML protocol processor and not by the intermediary application. Likewise, we could prevent the application from updating the Payloads by not allowing it to return them in the .resend. They are all present in the .indication so that the intermediary can inspect them. DO WE WANT TO DEFINE INTERMEDIARIES SO THAT THEY ARE NOT ALLOWED TO MODIFY PAYLOADS?

  Figure 3.3 below illustrates the normal use of these primitives at an intermediary XML protocol application.

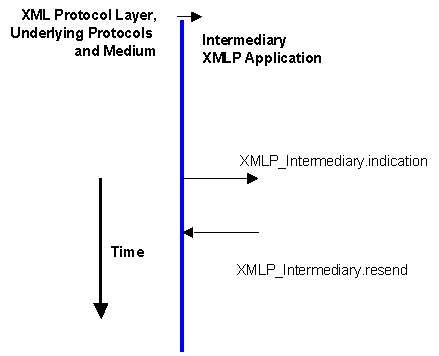

Figure 3.3 XMLP_Intermediary Operation

This operation effectively interposes the intermediary XML protocol application in the path between sending/initiating and receiving/responding XML protocol applications.

XMLP_Intermediary.indication: Invoked by an intermediary  XML protocol processor and directed at a local intermediary XML protocol application to provide the intermediary XML protocol application the opportunity to perform intermediary processing on a message in transit.

This primitive is invoked as a result of the arrival of an XML protocol message at an intermediary XML protocol processor from the underlying protocol layers.

XMLP_Intermediary.resend: Invoked by an intermediary XML protocol application once it has completed intermediary processing of a message in transit and directed at the local intermediary XML protocol processor. The intermediary XML protocol application may report  fatal or non-fatal failure via the Status parameter.

A fatal error in the request leg of an XMLP_Data operation (two-way/request response) results the premature termination of the operation and the return of any accumulated (non-fatal errors) and partially processed XML protocol message toward the initiating XML protocol application.

A fatal error in the response leg of an XMLP_Data operation results in the silent failure of the operation and the loss of the response message.

Non-fatal errors during intermediary processing result in the accumulation of faults into the XML Protocol message prior to onward transmission. In an XML_Data operation, non-fatal faults are delivered to the responding XML protocol application and may be propagate along the response path back to the initiating XML protocol application.

The  fatal/non-fatal fault handling does not represent any consensus from the sub-group. It is present merely to start some discussion of how fault processing might happen in the presence of intermediaries.

Figure 3.4 Normal XML_Data operation through an intermediary

Figure 3.4 shows the normal behaviour of an XML_Data operation through an intermediary in the absence of fatal failures. The three vertical lines at represent the local XML protocol layer boundaries and the small arrows above denote the up/down orientation of the boundary.  Figure 3.5 below shows and alternate representation of the same scenario.

Figure 3.5 Normal XML_Data operation through an Intermediary (alternate treatment)

The scenario depicted in figures 3.4.and 3.5 show just a single intermediary interposed in the operation. Also note that the path taken by a response does not pass through an intermediary, although it could.

In a request/response operation it may be necessary to constrain the intermediaries visited by a response to some subset of those visited by the request - because the request constructed the channel through which the response is expected to flow.

Figure 3.6 and 3.7 below offer a similar treatment of the XMLP_UnitData operation conducted through intermediaries.

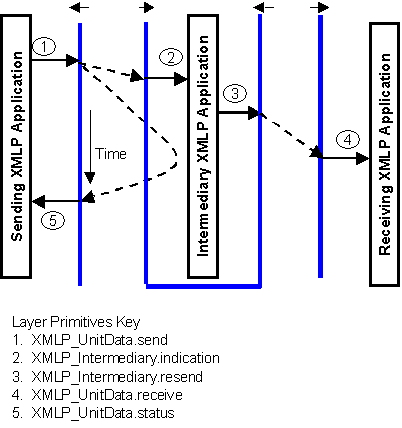

Figure 3.6 Normal XMLP_UnitData operation through an Intermediary

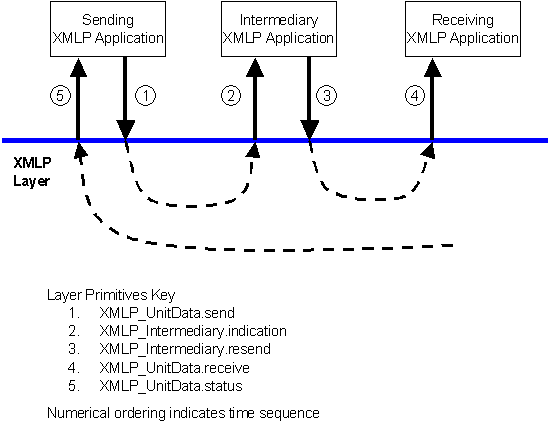

Figure 3.7 Normal XMLP_UnitData operation through and Intermediary (alternate treatment)

It is worth noting that the XMLP_UnitData.status is generated from within the XML protocol layer. It may indicate anything from the mere fact that the initial message has been sent by the sending node, that its has been received and/or sent from the intermediary node or that it has indeed been delivered to the receiving node. What it means in a given circumstance will depend upon the capabilities of the underlying communications protocols used to construct the message path.

Section 3.4 Operation Parameters

This section describes the operation parameters used in the operation primitives described above.

ImmediateDestination, OrigPath and ActualPath are all concerned with message routing through Intermediaries. ImmediateDestination is the means by which Sending/Initiating and intermediary XML protocol applications can denote the destination of the next hop of a message path - enabling XML Modules to be defined in the future that can implement path semantics. OrigPath and ActualPath accomodate the alternate view that path support must be explicit and visible.

4.    XML Protocol Applications

An XML protocol application is an entity that makes use of the core messaging services of the XML protocol. XML protocol applications may initiate, respond or act as intermediaries in XML protocol operations. Logically, an XML protocol application contains a number of XML protocol handlers that are responsible for the applying the processing rules associated with one or more XML protocol modules. The unit of exchange between XML protocol handlers are XML protocol blocks.

XML protocol blocks are aggregated into XML protocol messages and may be targetted at particular XML protocol handlers (see Section 4.2). Targetted XML protocol blocks are delivered together with the rest of the XML protocol message which encapsulates them  (and its attachments if any) first to the XML protocol application that contains the targeted handler. The XML protocol application is then responsible for identifying and dispatching the targeted XML protocol handlers.

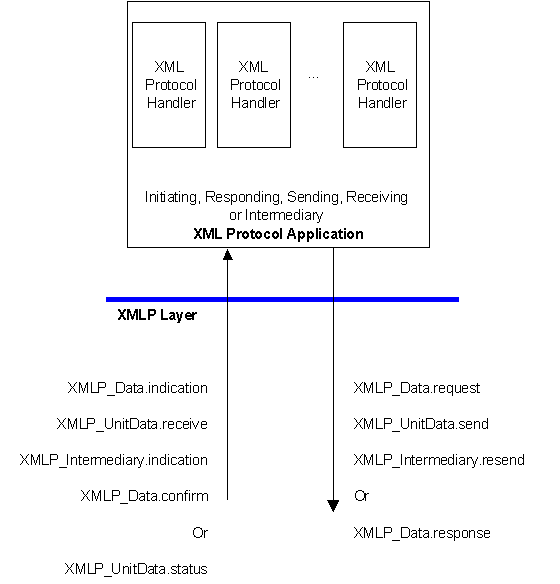

Figure 4.1 XML Protocol Application

Each handler may succeed, fail non-fatally or fail fatally. It is the responsibility of the XML protocol application to determine the overall result of the actions of any XML protocol handlers it invokes and to augment any Faults structure carried in the ongoing message. In cases where there are multiple influences on the ImmediateDestination, it is also the responsibility of the XML protocol application resolve any conflicts.

4.1    XML Protocol Modules

XML protocol modules are the unit of extension within the XML protocol. Within this abstract model XML protocol modules reside as components of an XML protocol application. An XML protocol module encapsulates the syntactic constructs if an extension, known as XML protocol blocks, and the behavioural rules associated with the generation and  processing of an XML protocol block, which are realised in XML protocol application components known as XML protocol handlers.

Thus the definition of an XML protocol module requires the definition of the syntactic structure and semantics of one or more XML protocol blocks and the definition of the behavioural rules (if any) that apply to the generation and handling of those XML protocol blocks. An XML protocol handler may provided support for multiple XML protocol modules.

4.1.1  Abstract Model for Module Processing

Concepts [and comparison with SOAP 1.1]

The XML protocol abstract model for module processing borrows heavily from the SOAP model.  If we go with the current XML protocol terminology, I would recommend substituting the term "module" for the SOAP term "actor" in the prose below.  I stuck with "actor" here to maintain familiarity with SOAP.

1. An XML protocol message consists of zero or more header blocks and one body block.  The main distinction between the header blocks and body block is that the module that processes the body block has the responsibility of generating responses if necessary for the message.

   SOAP:  Same.

2. Each header has an optional associated id (identifier), an optional actor and an optional mustUnderstand flag.  The body has an optional associated id (identifier) and an optional actor.  The body must be understood.  The id is an ID that identifies the block for the purposes of reference by other blocks.  The actor is a URI used by the XML Protocol Processor for determining which module to apply to the block.  The mustUnderstand flag has value "1" if  the matching module must carry out the intended semantics of the block or fault and "0" (the default) if it can silently fail.

   SOAP:  SOAP is ambiguous as to whether actor URI's are to be interpreted extensionally as destinations/nodes/places or intensionally as applications/modules/capabilities.

3. There are reserved actor URI's with special significance:
     http://.../none        // matches no module (i.e., an untargeted header)
     http://.../next        // matches a default module at the next processor
     http://.../final       // matches a default module at the final processor
     http://.../body        // matches the module selected at the final processor (can be used as a target for headers)

   An empty actor defaults to http://.../body.

   SOAP:   An empty SOAP actor in a header "indicates that the recipient is the ultimate destination of the SOAP message," and a "body entry is semantically equivalent to a header entry intended for the default actor."  This is SOAP talking rather extensionally, as though there were only one reasonable default module at the destination.  This is what http://.../final designates. There is no correspondent in SOAP for none or body.  next is the same as for SOAP. It appears that the actor for a SOAP body always defaults in the receiver.  This is not as flexible as permitting the message to specify an actor (a module) for processing the body.  Since headers can be targeted to http://.../body, it might be wise syntactically to ensure that the body actor is known earlier than the body header, perhaps as an envelope attribute.

4. When a header is selected for processing by a module at an intermediary, the header is removed from the envelope.  The process API enables a module to add zero or more headers that will replace the processed header in the same relative position in the message.

   SOAP: Similar, but SOAP doesn't specify where the new headers are to be inserted.

5. The XML protocol message blocks are ordered.  By using that same ordering for processing the locally targeted blocks, a limited facility for specifying sequential constraints is provided.  An extensibility mechanism is available for more complex orderings and constraints.   Headers can function as manifests to direct further processing.  The "manifest module" associated with such a header can refer to other blocks by their id's.  The processor API allows a such a "manifest module" to access other headers by id and to process a header with a specified module.   Blocks can be shared among several modules by having these modules reference them by id.  [An open question is whether referenced blocks must be untargeted (have actor http://.../none) or whether they could also be targeted.  If a targeted block is processed by its actor and removed at an intermediary, it would create a dangling reference for any unprocessed header that linked to it.  Untargeted headers would not be subject to automatic removal.  It is another open question as to whether the processor API should permit a module to remove an untargeted header.]

   SOAP:  The SOAP spec doesn't make it clear, but apparently headers with no actor can be referenced via links from other headers and they are not removed at intermediaries which reference them.  Using that mechanism, headers can be effectively shared among modules, even at different nodes.  The body can only be processed by the ultimate recipient.

6. The processing of a header may result in a fault or a successful evaluation.  A fault terminates processing and causes a return message containing the fault to be generated if a return path is available.  It is possible for a module that processes a header to have status information, non-fatal errors, or other results incorporated into the return value generated by the ultimate recipient.  It can accomplish this by inserting headers which are targeted to http://.../body.

   SOAP:  Similar.

7. The composition of modules is an important property.  For example, independent modules might do decompression,  decryption, and some application-specific computation.  Let M1(M2(H)) represent the application of module M1 to the result of applying M2 to header H.  The sender wants to specify the composition of applyX(decryption(decompression(H))).

   One mechanism for accomplishing M1(M2(H)) is to have M2(H) replace H with a header H' targeted at actor M1.  This fails, however, if M1 and M2 are both implemented at the same node.  One solution is to immediately process any headers targeted at modules of the current node before continuing to process the remaining blocks.

   SOAP:  SOAP does not permit module composition at the same node.

8. The above approach to composition suffers from requiring the cooperation of M2 for targeting M1 at its result.  M2 might not always be followed by M1.  It would be preferable to allow the original sender who knows how the header data was constructed to specify the composition.  One way to do this is via a manifest that describes the composition.


4.2    XML Protocol Message Routing and Targetting
        aka Naming and Addressing :-)

Within the XML protocol there are two entities that need to be addressed or targeted. XML protocol applications and XML Protocol Handlers. It will be apparent from the preceding discussion that within this abstract model XML protocol handlers are deemed to reside within or operate as part of an XML protocol application. This implies that the targeting of a particular XML protocol block at a particular XML protocol handler, implicitly targets the XML protocol message at the XML protocol application that contains the targeted handler.

There are several ways in which an XML protocol block may be targeted at an XML protocol handler:

Needs to use some terms here that arise from the intermediaries thread Martin started

A XML protocol mesage path can be viewed as the sequence of handlers that an XML protocol message passes through between initiating/sending XML protocol application and receiving responding XML protocol application. With reference to figure 2.1, the diagram in  figure 5.2 depicts the message path of the corresponding XML protocol message under the XML_UnitData operation.

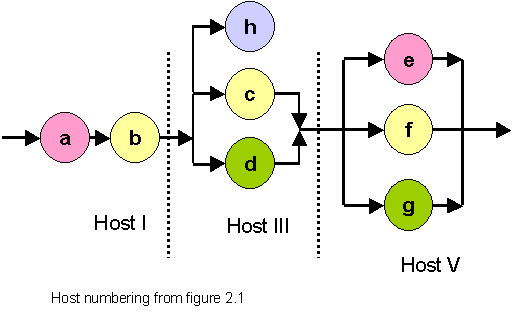

Figure 4.2 XML Message Path

The path in figure 4.2 shows sequential handler processing at the sending node, Node I, while the handler processing at Nodes III and V is concurrent (at least logically). Combinations of handlers that can be invoked concurrently from within an XML protocol application are said to be mutually orthogonal.

5.    Underlying Protocol Bindings

It is the intent that the XML protocol be capable of being bound to a variety of underlying communication protocols. The XML protocol working group will define a binding to HTTP. It is anticipated that others will create bindings to SMTP, TCP, SSL, BEEP and others.

5.1    Binding Service Model

This entire subsection is new and has not be subject of significant debate. It should be regarded as a work in progress.

5.1.1. Introduction

This section presents an abstract service model that XML protocol bindings will supply to the upper XML protocol layer. The intent is to describe the interactions between the XML protocol processor and underlying protocol bindings and to demonstrate how these interactions are correographed to enable multiple message exchange patterns. This model is intended to provide a framework in which the development of concrete binding specifications can be discussed. This is not intended as an API specification.

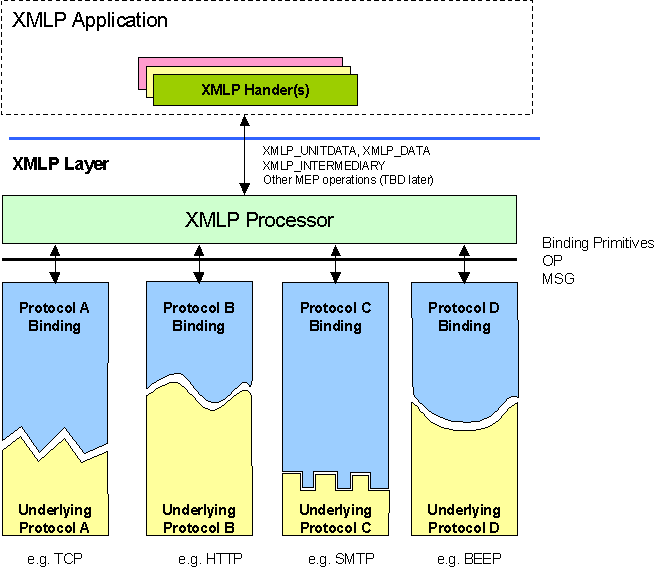

The diagram below shows a logical layered view of the binding model with the XML protocol processor being bound to four underlying transports.

Figure 5.1 Binding Model

This document concerns itself with the interactions at the solid black line between the XML protocol processor and a given binding.

5.1.2. Service Primitives

5.1.2.1 Message Exchange

There are two primitives associated with message exchange: MSG.req and MSG.ind. A MSG.req primitive is sent from the XML protocol processor to the binding in order to cause the binding to send a message. A MSG.ind primitive is sent from the binding to the XML protocol processor to indicate arrival of a message.

[Question: do we also need a MSG.confirm to primitive sent from the binding to the XML protocol processor to indicate successful transmission or is ERR.ind sufficient for informing of failure]

5.1.2.2 Message Correlation

In order to support message exchange patterns that are more complex than the simplest one-way exchange, some form of message correlation is required. For example, in a request-response message exchange there must be some means of correlating the request with the response. In this document a single instance of a message exchange pattern is referred to as an XML protocol processor operation or just operation for short.

There are four pairs of primitives associated with operation delineation and hence message correlation:

1. OP.start-req and OP.start-conf

   A OP.start-req primitive is sent from the XML protocol processor to the binding to request initialisation of a new correlated message exchange. The binding responds with a OP.start-conf primitive.

2. OP.start-ind and OP.start-resp

   A OP.start-ind primitive is sent from the binding to the XMPL layer to indicate that a new correlated message exchange is being requested. The XML protocol processor responds with a OP.start-resp primitive.

3. OP.end-req and OP.end-conf

   An OP.end-req primitive is sent from the XML protocol processor to the binding to terminate a correlated message exchange. The binding responds with an OP.end-confprimitive. Whilst the OP.end-conf is outstanding, the XML protocol processor must be prepared to continue to receive MSG.inds

4. OP.end-ind and OP.end-resp

   An OP.end-ind primitive is sent from the binding to the XML protocol processor to indicate that a correlated message exchange is to be terminated. No further MSG.ind will be delivered as part of the corresponding operation, however the XML protocol processor receiving the OP.end-ind primitive may continue to issue MSG.req primitives to complete operation in progress. Once all MSG.req primitives associate with the operation have been issued the XML protocol processor concludes the operation by with the invocation of an OP.end-resp primitive."

The actual correlation mechanism is underlying protocol and implementation specific. e.g. A OP.start-confmay carry some unique identifier that must be provided with any subsequent MSG.req(s) and is included with any subsequent MSG.ind(s).

There is no retained state within the binding between operations although there may be during operations.

5.1.2.3 Errors

The final primitve ERR.ind is sent from the binding to the XML protocol processor when an error occurs. E.g. if a MSG.req cannot be honoured then an ERR.ind is generated. Errors are correlated to a particular message exchange using the mechnanism described above.

5.1.3. Message Exchange Patterns

The following sections illustrate the correography of XML protocol binding primitives for a number of different message exchange patterns.

5.1.3.1 One Way Message

Sender

OP.start-req, OP.start-conf, MSG.req, OP.end-req, OP.end-conf.

Receiver

OP.start-ind, OP.start-resp, MSG.ind, OP.end-ind, OP.end-resp.

Comments

Note that depending on the underlying protocol the primitives at sender and receiver may not operate in lock-step. In particular, the OP.start-ind may not be delivered to the receiving XML protocol processor until the sending XML protocol processor has issued the MSG.req or even the OP.end-req. An alternative way of saying this is that a binding may choose to delay making an underlying protocol connection until a message needs to be sent.

5.1.3.2 Request Response

Sender

OP.start-req, OP.start-conf, MSG.req, MSG.ind, OP.end-req, OP.end-conf.

Receiver

OP.start-ind, OP.start-resp, MSG.ind, MSG.req, OP.end-ind, OP.end-resp.

5.1.3.3 Request and n Responses

Sender

OP.start-req, OP.start-conf, MSG.req, MSG.ind, MSG.ind, ..., OP.end-ind, OP.end-resp.

Receiver

OP.start-ind, OP.start-resp, MSG.ind, MSG.req, MSG.req, ..., OP.end-req, OP.end-conf.

5.1.4. Sample Mappings

5.1.4.1 HTTP

The following tables show how the binding primitives might map onto the HTTP protocol actions on the initiator and responder for a request-response message exchange, time increases moving down the tables.

[These would probably be better as diagrams]

The above assumes use of the HTTP Connection: keep-alive header

5.1.4.2 SMTP

The following tables show how the binding primitives might map onto the SMTP protocol actions on the initiator and receiver for a simple one-way message exchange, time increases moving down the tables.

[Again, these would probably be better as diagrams]

5.1.5. Binding Considerations

Underlying protocols may provide various levels of functionality to the binding. It is the responsibility of the binding to implement a mapping between XML protocol service primitives and underlying protocol primitives. The mapping should make the best use of the facilities of the underlying protocol and maximise efficiency where possible. E.g. connection setup is generally an expensive operation - bindings for connection oriented protocols should attempt to minimise the number of connections made for a given message exchange pattern. In particular, when defining a mapping the following need to be specified:

Protocol

The binding should identify the exact protocol to which XML protocol is being bound including a version. Examples might be HTTP/1.1 or SMTP[RFC821].

Addressing

The binding needs to show how to specify an XML protocol processor's address with an URL. 3) Message Passing The binding needs to specify unambiguously how to use the underlying protocol to pass a whole XML Protocol message (or a MIME envelope) to a node specified by a given address. Depending on the underlying protocol capabilities, the specification may need to detail the following:

1. Use of underlying protocol primitives for sending and receiving messages.
2. Use of underlying protocol headings and/or MIME headings.
3. Underlying protocol connection management including roles of initiator and responder, how to handle abnormal terminations, can responder terminate connection, etc.

Message Exchange Pattern(s)

The binding needs to specify how underlying protocol sessions are used in common message exchange patterns including one-way and request-response. [Question: what other message exchange pattern should we specify here ?]

Here, protocol session means a unit of communication in the underlying protocol, in HTTP this maps to a single request/response, in SMTP a session only covers a single act of sending a message or a single act of receiving a message. In BEEP the session would possibly map to a channel that would be capable of many different message exchange patterns.

Message Ordering Characteristics

The binding needs to specify what message ordering characteristics the underlying protocol supports. e.g. If two messages are sent in the same direction in the same session is their order or arrival guaranteed to be the same as the order in which they were sent.

Error Handling

The binding needs to specify how errors in the underlying protocol will be handled. A non-exhaustive list of things to consider here is: connection errors, addressing errors, message transmission errors, abnormal termination. [Question: what other types of error do we need to consider ?]

5.2    BindingContext

Each of these underlying protocols supports different features and capabilities and it is not plausible or desirable to provide a detailed abstraction that captures the full range of diversity. The core of XML protocol in respect of the exchange of XML protocol messages takes a lowest common denominator approach by regarding the underlying channel as potential lossy and capable of mis-ordering and duplication. Underlying protocols may offer better assurances of delivery probability, delivery ordering and at-most once delivery behaviour.

In the service abstraction provided above, an abstract parameter known as BindingContext is introduced. The primary purpose of BindingContext is to act as a collecting 'bucket' for parameters that control the functionality of the particular set of underlying protocols available at any given node.

It is expected that the authors of XML Protocol binding specifications will add structure beneath BindingContext to cover the features and capabilities of the underlying protocol being bound. This may also include a descriptor of the ordering, loss and duplication properties of the underlying protocol, although this should be treated with caution in multi-hop scenarios.

Some BindingContext extensions may be of more general applicability than just a single binding. For example, the references to user ids, private keys and public certificates necessary for SSL and HTTPS could be shared between both bindings (were they to exist).

One would therefore expect the structure under BindingContext to grow along the lines of:

BindingContext.Shared    //A substructure for information shared by several bindings
BindingContext.HTTP      //A substructure for information related to HTTP
BindingContext.SMTP      //....

....and so on.

The manipulation of fields within the BindingContext may be driven from within, for example, an intermediary XML protocol application on the basis of constructs carried as XML protocol message blocks within the message being carried.

Hopefully this captures the general idea behind BindingContext... the details will evolve over time... indeed they will evolve as bindings get described.

5.3    Attachment of Arbitrary Content

This topic is subject to active discussion and the view presented here is *very* preliminary. There is likely be considerable diversity of viewpoints that are not captured let alone resolved here.

Another role of an XML protocol binding is to invoke the services of underlying protocols and to introduce any mechanism required to map between the semantics of the underlying protocol and those of the XML protocol core message delivery operations XMLP_Data and XMLP_UnitData. The attachment of arbitrary content to an XML protocol message is one facet of this mapping.

The core XML protocol messaging services intrinsically handle arbitrary attachments through the use of the Attachments parameter. The expectation is that the design of XML protocol WILL specify a means for encoding arbitrary content and carrying it within an XML protocol envelope. This mechanism will leverage any pre-existing work within XML Schema, and will also provide mechanisms for embedding complete, arbitrary, XML documents within the outer XML protocol message envelope (itself an XML construct).

Some underlying protocols will support more efficient ways of carrying arbitrary content and or multiple XML documents. The normative bindings to an underlying protocol MUST define the mechanism used by that binding to carry attachments containing arbitrary content. In the absence of any statement to the contrary in the definition of a particular protocol binding, the default XML based encoding for arbitrary content attachments will be taken as having been specified. Any other scheme specified for a particular binding must have functional capabilities at least as capable as the default XML based encoding scheme, in particular it must be possible to reference the individual attachments from within the XML protocol message envelope.

There is an issue as to whether something like SOAP1.1 over HTTP and SOAP 1.1 with attachments over HTTP constitute two distinct bindings or whether they should be amalgamated as a single binding over HTTP. XML protocol will likely have to face the same question. A distinction would be, in the case of a combined binding, the inbound side of the binding at least would have to support both forms, although the outbound side could make a fixed (implementation dependent) choice one way or the other. If we choose the two distinct bindings route we have two no-interoperable bindings - ie. there would need to be an interworking  (helper) unit of some description in the message path translate the underlying protocol envelope between bindings. By analogy, an XMLP 1.0 over HTTP would not be capable of directly ingesting an XMLP 1.0 with Attachments envelope without help.

5.    References

[XMLPReqs]   "XML Protocol (XMLP) Requirements" http://www.w3.org/TR/2001/WD-xmlp-reqs-20010319/#N2082
