Abstract

The ruby markup model currently described in the HTML specification is limited in its support for a number of features, notably jukugo and double-sided ruby, as well as inline ruby. This specification addresses these issues by introducing new elements and changing the ruby processing model. Specific care has been taken to ensure that authoring remains as simple as possible.

This document was largely developed to address the shortcomings listed in Use Cases & Exploratory Approaches for Ruby Markup. [ruby-use-cases]

Status of This Document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.

This specification is an extension specification to HTML.

This document was published by the HTML Working Group as a Working Group Note. If you wish to make comments regarding this document, please send them to public-html@w3.org (subscribe, archives). All comments are welcome.

Publication as a Working Group Note does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.

Table of Contents

1. Changes compared to the current ruby model

The following changes are made to HTML by this document:

Some further changes will be required to HTML if this document is merged in. Of those, some are for paraphernalia (element index and the such) while others are more involved (changes to parsing to auto-close some elements) and in some cases optional.

Changes to [WEBVTT] will be required in order to match this model. Also, rb needs to be removed from the obsolete elements.

1.1 Parsing changes

Add rb and rtc to the list of elements in generate implied end tags.

Add rb and rtc to the step A start tag whose tag name is one of: "rp", "rt" in The "in body" insertion mode. Within that step, if the start tag is "rt" then generate implied end tags excepting "rtc", otherwise just generate implied end tags.

Add rb and rtc to the elements that preclude a parse error in both An end tag whose tag name is "body" and An end tag whose tag name is "html" in The "in body" insertion mode.

2. Terminology

The term inter-element whitespace is defined in the HTML specification. [HTML5]

The interfaces Text and Element are defined in the DOM specification. [DOM]

3. The ruby element

Categories:
Flow content.
Phrasing content.
Palpable content.
Contexts in which this element can be used:
Where phrasing content is expected.
Content model:
See prose.
Content attributes:
Global attributes
DOM interface:
Uses HTMLElement.

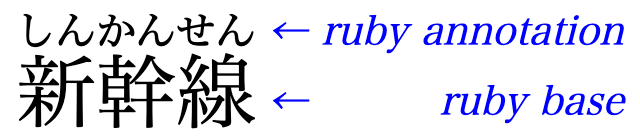

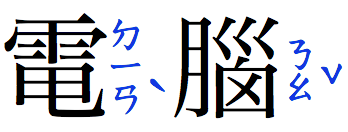

The ruby element allows one or more spans of phrasing content to be marked with ruby annotations. Ruby annotations are short runs of text presented alongside base text, primarily used in East Asian typography as a guide for pronunciation or to include other annotations. In Japanese, this form of typography is also known as furigana. A more complete introduction to ruby can be found in the Use Cases & Exploratory Approaches for Ruby Markup document as well as in CSS Ruby Module Level 1. [ruby-use-cases] [css3-ruby]

The content model of ruby elements consists of one or more of the following sequences:

  1. One or more phrasing content nodes or rb elements.
  2. One or more rt or rtc elements, each of which either immediately preceded or followed by an rp elements.

The ruby, rb, rtc, and rt elements can be used for a variety of kinds of annotations, including in particular (though by no means limited to) those described below. For more details on Japanese Ruby in particular, and how to render Ruby for Japanese, see Requirements for Japanese Text Layout. [JLREQ] The rp element can be used as fallback content when ruby rendering is not supported.

Mono-ruby for individual base characters

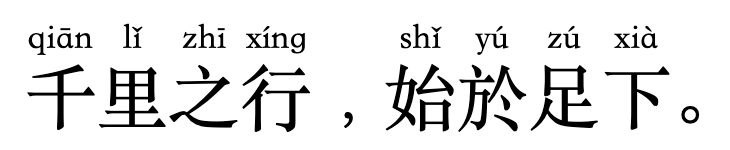

Annotations (the ruby text) are associated individually with each ideographic character (the base text). In Japanese this is typically hiragana or katakana characters used to provide readings of kanji characters.

Example 1
<ruby>base<rt>annotation</ruby>

When no rb element is used, the base is implied, as above. But you can also make it explicit. This can be useful notably for styling, or when consecutive bases are to be treated as a group, as in the jukugo ruby example further down.

Example 2
<ruby><rb>base<rt>annotation</ruby>

In the following example, notice how each annotation corresponds to a single base character.

Example 3
<ruby><rt></rt></ruby><ruby><rt>ほん</rt></ruby>
<ruby><rt></rt></ruby><ruby><rt></rt></ruby>
いた<ruby><rt>さく</rt></ruby><ruby><rt>ぶん</rt></ruby>です。

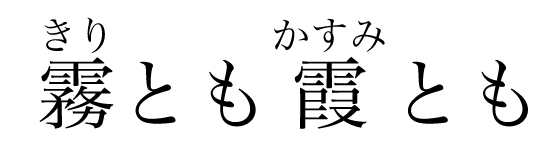

Ruby text interspersed in regular text provides structure akin to the following image:

An example of ruby text mixed up with regular text.

This example can also be written as follows, using one ruby element with two segments of base text and two annotations (one for each) rather than two back-to-back ruby elements each with one base text segment and annotation (as in the markup above):

Example 4
<ruby><rt></rt><rt>ほん</rt><rt></rt></ruby><ruby><rt></rt></ruby>
いた<ruby><rt>さく</rt><rt>ぶん</rt></ruby>です。
Group ruby

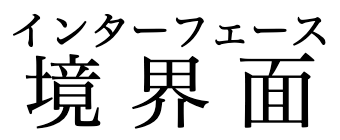

Group ruby is often used where phonetic annotations don't map to discreet base characters, or for semantic glosses that span the whole base text. For example, the word "today" is written with the characters 今日, literally "this day". But it's pronounced きょう (kyou), which can't be broken down into a "this" part and a "day" part. In typical rendering, you can't split text that is annotated with group ruby; it has to wrap as a single unit onto the next line. When a ruby text annotation maps to a base that is comprised of more than one character, then that base is grouped.

The following group ruby:

Group ruby example with きょう annotating 今日

Can be marked up as follows:

Example 5
<ruby>今日<rt>きょう</ruby>
Jukugo ruby

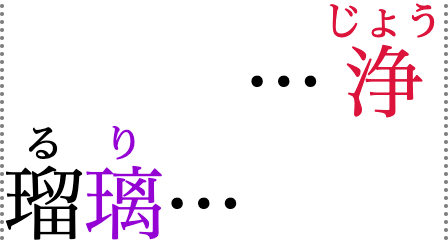

Jukugo refers to a Japanese compound noun, i.e. a word made up of more than one kanji character. Jukugo ruby is a term that is used not to describe ruby annotations over jukugo text, but rather to describe ruby with a behaviour slightly different from mono or group ruby. Jukugo ruby is similar to mono ruby, in that there is a strong association between ruby text and individual base characters, but the ruby text is typically rendered as grouped together over multiple ideographs when they are on the same line.

The distinction is captured in this example:

Example of jukugo ruby

Which can be marked up as follows:

Example 6
<ruby><rb><rb><rt><rt><rt>きょう</ruby>

In this example, each rt element is paired with its respective rb element, the difference with an interleaved rb/rt approach being that the sequences of both base text and ruby annotations are implicitly placed in common containers so that the grouping information is captured.

Note

For more details on Jukugo Ruby rendering, see Appendix F in the Requirements for Japanese Text Layout and Use Case C: Jukugo ruby in the Use Cases & Exploratory Approaches for Ruby Markup. [JLREQ] [ruby-use-cases]

Inline ruby

In some contexts, for instance when the font size or line height are too small for ruby to be readable, it is desirable to inline the ruby annotation such that it appears in parentheses after the text it annotates. This also provides a convenient fallback strategy for user agents that do not support rendering ruby annotations.

Inlining takes grouping into account. For example, Tokyo is written with two kanji characters, 東, which is pronounced とう, and 京, which is pronounced きょう. Each base character should be annotated individually, but the fallback should be 東京(とうきょう) not 東(とう)京(きょう). This can be marked up as follows:

Example 7
<ruby><rb><rt>とう<rt>きょう</ruby>

Note that the above markup will enable the usage of parentheses when inlining for browsers that support ruby layout, but for those that don't it will fail to provide parenthetical fallback. This is where the rp element is useful. It can be inserted into the above example to provide the appropriate fallback when ruby layout is not supported:

Example 8
<ruby><rb><rp>(<rt>とう<rt>きょう<rp>)</ruby>
Text with both phonetic and semantic annotations (double-sided ruby)

Sometimes, ruby can be used to annotate a base twice.

In the following example, the Chinese word for San Francisco (旧金山, i.e. “old gold mountain”) is annotated both using pinyin to give the pronunciation, and with the original English.

San Francisco in Chinese, with both pinyin and the original English as annotations.

Which is marked up as follows:

Example 9
<ruby><rb><rb><rb><rt>jiù<rt>jīn<rt>shān<rtc>San Francisco</ruby>

In this example, a single base run of three base characters is annotated with three pinyin ruby text segments in a first (implicit) container, and an rtc element is introduced in order to provide a second single ruby text annotation being the city's English name.

We can also revisit our jukugo example above with 上手 ("skill") to show how it can be annotation in both kana and romaji phonetics while at the same time maintaining the pairing to bases and annotation grouping information.

上手 ("skill") annotated in both kana and romaji, shown in both jukugo and mono styles.

Which is marked up as follows:

Example 10
<ruby><rb><rb><rt>じよう<rt><rtc><rt>jou<rt>zu</ruby>

Text that is a direct child of the rtc element implicitly produces a ruby text segment as if it were contained in an rt element. In this contrived example, this is shown with some symbols that are given names in English and French with annotations intended to appear on either side of the base symbol.

Example 11
<ruby><rt>Heart<rtc lang=fr>Cœur</rtc><rt>Shamrock<rtc lang=fr>Trèfle</rtc><rt>Star<rtc lang=fr>Étoile
</ruby>

Similarly, text directly inside a ruby element implicitly produces a ruby base as if it were contained in an rb element, and rt children of ruby are implicitly contained in an rtc container. In effect, the above example is equivalent (in meaning, though not in the DOM it produces) to the following:

Example 12
<ruby>
  <rb></rb><rtc><rt>Heart</rt></rtc><rtc lang=fr><rt>Cœur</rt></rtc>
  <rb></rb><rtc><rt>Shamrock</rt></rtc><rtc lang=fr><rt>Trèfle</rt></rtc>
  <rb></rb><rtc><rt>Star</rt></rtc><rtc lang=fr><rt>Étoile</rt></rtc>
</ruby>

Within a ruby element, content is parcelled into a series of ruby segments. Each ruby segment is described by:

Each ruby text container is described by zero or more ruby text annotations each of which is a DOM range that may contain phrasing content or an rt element, and an annotations range that is a range including all the annotations for that container. A ruby text container is also known (primarily in a CSS context) as a ruby annotation container.

Furthermore, a ruby element contains ignored ruby content. Ignored ruby content does not form part of the document's semantics. It consists of some inter-element whitespace and rp elements, the latter of which are used for legacy user agents that do not support ruby at all.

The process of annotation pairing associates ruby annotations with ruby bases. Within each ruby segment, each ruby base in the ruby base container is paired with one ruby text annotation from the ruby text container, in order. If there are not enough ruby text annotations in a ruby annotation container, the last one is associated with any excess ruby bases. (If there are not any in the ruby annotation container, an anonymous empty one is assumed to exist.) If there are not enough ruby bases, any remaining ruby text annotations are assumed to be associated with empty, anonymous bases inserted at the end of the ruby base container.

Note that the terms ruby segment, ruby base, ruby text annotation, ruby text container, ruby base container, and ruby annotation container have their equivalents in CSS Ruby Module Level 1. [css3-ruby]

Informally, the segmentation and categorisation algorithm below performs a simple set of tasks. First it processes adjacent rb elements, text nodes, and non-ruby elements into a list of bases. Then it processes any number of rtc elements or sequences of rt elements that are considered to automatically map to an anonymous ruby text container. Put together these data items form a ruby segment as detailed in the data model above. It will continue to produce such segments until it reaches the end of the content of a given ruby element. The complexity of the algorithm below compared to this informal description stems from the need to support an author-friendly syntax and being mindful of inter-element white space.

At any particular time, the segmentation and categorisation of content of a ruby element is the result that would be obtained from running the following algorithm:

  1. Let root be the ruby element for which the algorithm is being run.
  2. Let index be 0.
  3. Let ruby segments be an empty list.
  4. Let current bases be an empty list of DOM ranges.
  5. Let current bases range be null.
  6. Let current bases range start be null.
  7. Let current annotations be an empty list of DOM ranges.
  8. Let current annotations range be null.
  9. Let current annotations range start be null.
  10. Let current annotation containers be an empty list.
  11. Let current automatic base nodes be an empty list of DOM Nodes.
  12. Let current automatic base range start be null.
  13. If root has a ruby element ancestor, then abort these steps.
  14. Process a ruby child: If index is equal to or greater than the number of child nodes in root, then run the steps to commit a ruby segment, return ruby segments, and abort these steps.
  15. Let current child be the indexth node in root.
  16. If current child is not a Text node and is not an Element node, then increment index by one and jump to the step labelled process a ruby child.
  17. If current child is an rp element, then increment index by one and jump to the step labelled process a ruby child. (Note that this has the effect of including this element in any range that we are currently processing. This is done intentionally so that misplaced rp can be processed correctly; semantically they are ignored all the same.)
  18. If current child is an rt element, then run these substeps:
    1. Run the steps to commit an automatic base.
    2. Run the steps to commit the base range.
    3. If current annotations is empty, set current annotations range start to the value of index.
    4. Create a new DOM range whose start is the boundary point (root, index) and whose end is the boundary point (root, index plus one), and append it at the end of current annotations.
    5. Increment index by one and jump to the step labelled process a ruby child.
  19. If current child is an rtc element, then run these substeps:
    1. Run the steps to commit an automatic base.
    2. Run the steps to commit the base range.
    3. Run the steps to commit current annotations.
    4. Create a new ruby annotation container. It is described by the list of annotations returned by running the steps to process an rtc element and a DOM range whose start is the boundary point (root, index) and whose end is the boundary point (root, index plus one). Append this new ruby annotation container at the end of current annotation containers.
    5. Increment index by one and jump to the step labelled process a ruby child.
  20. If current child is a Text node and is inter-element whitespace, then run these substeps:
    1. If current annotations is not empty, increment index by one and jump to the step labelled process a ruby child.
    2. Run the following substeps:
      1. Let lookahead index be set to the value of index.
      2. Peek ahead: Increment lookahead index by one.
      3. If lookahead index is equal to or greater than the number of child nodes in root, then abort these substeps.
      4. Let peek child be the lookahead indexth node in root.
      5. If peek child is a Text node and is inter-element whitespace, then jump to the step labelled peek ahead.
      6. If peek child is an rt element, an rtc element, or an rp element, then set index to the value of lookahead index and jump to the step labelled process a ruby child.
  21. If current annotations is not empty or if current annotation containers is not empty, then run the steps to commit a ruby segment.
  22. If current child is an rb element, then run these substeps:
    1. Run the steps to commit an automatic base.
    2. If current bases is empty, then set current bases range start to the value of index.
    3. Create a new DOM range whose start is the boundary point (root, index) and whose end is the boundary point (root, index plus one), and append it at the end of current bases.
    4. Increment index by one and jump to the step labelled process a ruby child.
  23. If current automatic base nodes is empty, set current automatic base range start to the value of index.
  24. Append current child at the end of current automatic base nodes.
  25. Increment index by one and jump to the step labelled process a ruby child.

When the steps above say to commit a ruby segment, it means to run the following steps at that point in the algorithm:

  1. Run the steps to commit an automatic base.
  2. If current bases, current annotations, and current annotation containers are all empty, abort these steps.
  3. Run the steps to commit the base range.
  4. Run the steps to commit current annotations.
  5. Create a new ruby segment. It is described by a list of bases set to current bases, a base DOM range set to current bases range, and a first and second ruby annotation containers that are respectively the first and second items of the current annotation containers list. Append this new ruby segment at the end of ruby segments.
  6. Let current bases be an empty list.
  7. Let current bases range be null.
  8. Let current bases range start be null.
  9. Let current annotation containers be an empty list.

When the steps above say to commit the base range, it means to run the following steps at that point in the algorithm:

  1. If current bases is empty, abort these steps.
  2. If current bases range is not null, abort these steps.
  3. Let current bases range be a DOM range whose start is the boundary point (root, current bases range start) and whose end is the boundary point (root, index).

When the steps above say to commit current annotations, it means to run the following steps at that point in the algorithm:

  1. If current annotations is not empty and current annotations range is null let current annotations range be a DOM range whose start is the boundary point (root, current annotations range start) and whose end is the boundary point (root, index).
  2. If current annotations is not empty, create a new ruby annotation container. It is described by an annotations list set to current annotations and a range set to current annotations range. Append this new ruby annotation container at the end of current annotation containers.
  3. Let current annotations be an empty list of DOM ranges.
  4. Let current annotations range be null.
  5. Let current annotations range start be null.

When the steps above say to commit an automatic base, it means to run the following steps at that point in the algorithm:

  1. If current automatic base nodes is empty, abort these steps.
  2. If current automatic base nodes contains nodes that are not Text nodes, or Text nodes that are not inter-element whitespace, then run these substeps:
    1. It current bases is empty, set current bases range start to the value of current automatic base range start.
    2. Create a new DOM range whose start is the boundary point (root, current automatic base range start) and whose end is the boundary point (root, index), and append it at the end of current bases.
  3. Let current automatic base nodes be an empty list of DOM Nodes.
  4. Let current automatic base range start be null.

4. The rb element

Categories:
None.
Contexts in which this element can be used:
As a child of a ruby element.
Content model:
Phrasing content.
Content attributes:
Global attributes
DOM interface:
Uses HTMLElement.

The rb element marks the base text component of a ruby annotation. When it is the child of a ruby element, it doesn't represent anything itself, but its parent ruby element uses it as part of determining what it represents.

An rb element that is not a child of a ruby element represents the same thing as its children.

5. The rt element

Categories:
None.
Contexts in which this element can be used:
As a child of a ruby or of an rtc element.
Content model:
Phrasing content.
Content attributes:
Global attributes
DOM interface:
Uses HTMLElement.

The rt element marks the ruby text component of a ruby annotation. When it is the child of a ruby element or of an rtc element that is itself the child of a ruby element, it doesn't represent anything itself, but its ancestor ruby element uses it as part of determining what it represents.

An rt element that is not a child of a ruby element or of an rtc element that is itself the child of a ruby element represents the same thing as its children.

6. The rtc element

Categories:
None.
Contexts in which this element can be used:
As a child of a ruby element.
Content model:
Phrasing content.
Content attributes:
Global attributes
DOM interface:
Uses HTMLElement.

The rtc element marks a ruby text container for ruby text components in a ruby annotation. When it is the child of a ruby element it doesn't represent anything itself, but its parent ruby element uses it as part of determining what it represents.

An rtc element that is not a child of a ruby element represents the same thing as its children.

When an rtc element is processed as part of the segmentation and categorisation of content for a ruby element, the following algorithm defines how to process an rtc element:

  1. Let root be the rtc element for which the algorithm is being run.
  2. Let index be 0.
  3. Let annotations be an empty list of DOM ranges.
  4. Let current automatic annotation nodes be an empty list of DOM nodes.
  5. Let current automatic annotation range start be null.
  6. Process an rtc child: If index is equal to or greater than the number of child nodes in root, then run the steps to commit an automatic annotation, return annotations, and abort these steps.
  7. Let current child be the indexth node in root.
  8. If current child is an rt element, then run these substeps:
    1. Run the steps to commit an automatic annotation.
    2. Create a new DOM range whose start is the boundary point (root, index) and whose end is the boundary point (root, index plus one), and append it at the end of annotations.
    3. Increment index by one and jump to the step labelled process an rtc child.
  9. If current automatic annotation nodes is empty, set current automatic annotation range start to the value of index.
  10. Append current child at the end of current automatic annotation nodes.
  11. Increment index by one and jump to the step labelled process an rtc child.

When the steps above say to commit an automatic annotation, it means to run the following steps at that point in the algorithm:

  1. If current automatic annotation nodes is empty, abort these steps.
  2. If current automatic annotation nodes contains nodes that are not Text nodes, or Text nodes that are not inter-element whitespace, then create a new DOM range whose start is the boundary point (root, current automatic annotation range start) and whose end is the boundary point (root, index), and append it at the end of annotations.
  3. Let current automatic annotation nodes be an empty list of DOM nodes.
  4. Let current automatic annotation range start be null.

7. The rp element

Categories:
None.
Contexts in which this element can be used:
As a child of a ruby element, either immediately before or immediately after an rt or rtc element.
Content model:
Phrasing content.
Content attributes:
Global attributes
DOM interface:
Uses HTMLElement.

The rp element is used to provide fallback text to be shown by user agents that don't support ruby annotations. One widespread convention is to provide parentheses around the ruby text component of a ruby annotation.

The contents of the rp elements are typically not displayed by user agents which do support ruby annotations

An rp element that is a child of a ruby element represents nothing. An rp element whose parent element is not a ruby element represents its children.

The example shown previously, in which each ideograph in the text 漢字 is annotated with its phonetic reading, could be expanded to use rp so that in legacy user agents the readings are in parentheses (please note that white space has been introduced into this example in order to make it more readable):

Example 13
...
<ruby>

  <rb>字</rb>
  <rp> (</rp>
  <rt>かん</rt>
  <rt>じ</rt>
  <rp>) </rp>
</ruby>
...

In conforming user agents the rendering would be as above, but in user agents that do not support ruby, the rendering would be:

Example 14
... 漢字 (かんじ) ...

When there are multiple annotations for a segment, rp elements can also be placed between the annotations. Here is another copy of an earlier contrived example showing some symbols with names given in English and French using double-sided annotations, but this time with rp elements as well:

Example 15
<ruby><rp>: </rp><rt>Heart</rt><rp>, </rp><rtc><rt lang=fr>Cœur</rt></rtc><rp>.</rp><rp>: </rp><rt>Shamrock</rt><rp>, </rp><rtc><rt lang=fr>Trèfle</rt></rtc><rp>.</rp><rp>: </rp><rt>Star</rt><rp>, </rp><rtc><rt lang=fr>Étoile</rt></rtc><rp>.</rp>
</ruby>

This would make the example render as follows in non-ruby-capable user agents:

Example 16
♥: Heart, Cœur.
☘: Shamrock, Trèfle.
✶: Star, Étoile.

8. Rendering

Additions to the default style sheet are made by CSS Ruby Module Level 1. [css3-ruby]

9. Acknowledgements

Much of this document is deeply indebted to Fantasai and Richard Ishida.

A. References

A.1 Normative references

[DOM]
Anne van Kesteren; Aryeh Gregor; Ms2ger. DOM Standard. Living Standard. URL: http://dom.spec.whatwg.org
[HTML5]
Robin Berjon; Steve Faulkner; Travis Leithead; Erika Doyle Navara; Edward O'Connor; Silvia Pfeiffer. HTML5. 6 August 2013. W3C Candidate Recommendation. URL: http://www.w3.org/TR/html5/

A.2 Informative references

[JLREQ]
Yasuhiro Anan; Hiroyuki Chiba; Junzaburo Edamoto; Richard Ishida; Tatsuo KOBAYASHI; Toshi Kobayashi; Kenzou Onozawa; Felix Sasaki; Seiichi Kato; Hajime Shiozawa et al. Requirements for Japanese Text Layout. 3 April 2012. W3C Note. URL: http://www.w3.org/TR/jlreq/
[WEBVTT]
Ian Hickson. WebVTT. 21 August 2012. W3C Working Draft. URL: http://dev.w3.org/html5/webvtt/
[css3-ruby]
Elika Etemad; Koji Ishii; Richard Ishida. CSS Ruby Module Level 1. 19 September 2013. W3C Working Draft. URL: http://www.w3.org/TR/css3-ruby/
[ruby-use-cases]
Richard Ishida. Use Cases & Exploratory Approaches for Ruby Markup. 8 October 2013. W3C Note. URL: http://www.w3.org/TR/ruby-use-cases/
