8 Paths


Contents




8.1 Introduction

Paths represent the outline of a shape which can be filled, stroked, used as a clipping path, or any combination of the three. (See Filling, Stroking and Paint Servers and Clipping, Masking and Compositing.)

A path is described using the concept of a current point. In an analogy with drawing on paper, the current point can be thought of as the location of the pen. The position of the pen can be changed, and the outline of a shape (open or closed) can be traced by dragging the pen in either straight lines or curves.

Paths represent the geometry of the outline of an object, defined in terms of moveto (set a new current point), lineto (draw a straight line), curveto (draw a curve using a cubic Bézier), arc (elliptical or circular arc) and closepath (close the current shape by drawing a line to the last moveto) elements. Compound paths (i.e., a path with multiple subpaths) are possible to allow effects such as "donut holes" in objects.

This chapter describes the syntax, behavior and DOM interfaces for SVG paths. Various implementation notes for SVG paths can be found in 'path' element implementation notes and Elliptical arc implementation notes.

A path is defined in SVG using the 'path' element.

8.2 The 'path' element



<!ENTITY % pathExt "" >
<!ELEMENT path (%descTitleMetadata;,(animate|set|animateMotion|animateColor|animateTransform
                %geExt;%pathExt;)*) >
<!ATTLIST path
  %stdAttrs;
  %testAttrs;
  %langSpaceAttrs;
  externalResourcesRequired %Boolean; #IMPLIED
  class %ClassList; #IMPLIED
  style %StyleSheet; #IMPLIED
  %PresentationAttributes-Color;
  %PresentationAttributes-FillStroke;
  %PresentationAttributes-Graphics;
  %PresentationAttributes-Markers;
  transform %TransformList; #IMPLIED
  %graphicsElementEvents;
  d %PathData; #REQUIRED
  pathLength %Number; #IMPLIED >

Attribute definitions:

d = "path data"
The definition of the outline of a shape. See Path data.
Animatable: yes. Path data animation is only possible when each path data specification within an animation specification has exactly the same list of path data commands as the d attribute. If an animation is specified and the list of path data commands is not the same, then the animation specification is in error (see Error Processing). The animation engine interpolates each parameter to each path data command separately based on the attributes to the given animation element. Flags and booleans are interpolated as fractions between zero and one, with any non-zero value considered to be a value of one/true.
pathLength = "<number>"
The author's computation of the total length of the path, in user units. This value is used to calibrate the user agent's own distance-along-a-path calculations with that of the author. The user agent will scale all distance-along-a-path computations by the ratio of pathLength to the user agent's own computed value for total path length. pathLength potentially affects calculations for text on a path, motion animation and various stroke operations.
A negative value is an error (see Error processing).
Animatable: yes.

Attributes defined elsewhere:
%stdAttrs;, %langSpaceAttrs;, class, transform, %graphicsElementEvents;, %testAttrs;, externalResourcesRequired, style, %PresentationAttributes-Color; %PresentationAttributes-FillStroke; %PresentationAttributes-Graphics; %PresentationAttributes-Markers;.

8.3 Path data

8.3.1 General information about path data

A path is defined by including a 'path' element which contains a d="(path data)" attribute, where the d attribute contains the moveto, line, curve (both cubic and quadratic Béziers), arc and closepath instructions.

Example triangle01 specifies a path in the shape of a triangle. (The M indicates a moveto, the L's indicate lineto's, and the z indicates a closepath).

<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 20010904//EN"
  "http://www.w3.org/TR/2001/REC-SVG-20010904/DTD/svg10.dtd">
<svg width="4cm" height="4cm" viewBox="0 0 400 400"
     xmlns="http://www.w3.org/2000/svg">
  <title>Example triangle01- simple example of a 'path'</title>
  <desc>A path that draws a triangle</desc>
  <rect x="1" y="1" width="398" height="398"
        fill="none" stroke="blue" />
  <path d="M 100 100 L 300 100 L 200 300 z"
        fill="red" stroke="blue" stroke-width="3" />
</svg>
Example triangle01
Example triangle01- simple example of a 'path'

View this example as SVG (SVG-enabled browsers only)


Path data can contain newline characters and thus can be broken up into multiple lines to improve readability. Because of line length limitations with certain related tools, it is recommended that SVG generators split long path data strings across multiple lines, with each line not exceeding 255 characters. Also note that newline characters are only allowed at certain places within path data.

The syntax of path data is concise in order to allow for minimal file size and efficient downloads, since many SVG files will be dominated by their path data. Some of the ways that SVG attempts to minimize the size of path data are as follows:

The path data syntax is a prefix notation (i.e., commands followed by parameters). The only allowable decimal point is a Unicode [UNICODE] FULL STOP (".") character (also referred to in Unicode as PERIOD, dot and decimal point) and no other delimiter characters are allowed. (For example, the following is an invalid numeric value in a path data stream: "13,000.56". Instead, say: "13000.56".)

For the relative versions of the commands, all coordinate values are relative to the current point at the start of the command.

In the tables below, the following notation is used:

The following sections list the commands.

8.3.2 The "moveto" commands

The "moveto" commands (M or m) establish a new current point. The effect is as if the "pen" were lifted and moved to a new location. A path data segment must begin with a "moveto" command. Subsequent "moveto" commands (i.e., when the "moveto" is not the first command) represent the start of a new subpath:

Command Name Parameters Description
M (absolute)
m (relative)
moveto (x y)+ Start a new sub-path at the given (x,y) coordinate. M (uppercase) indicates that absolute coordinates will follow; m (lowercase) indicates that relative coordinates will follow. If a relative moveto (m) appears as the first element of the path, then it is treated as a pair of absolute coordinates. If a moveto is followed by multiple pairs of coordinates, the subsequent pairs are treated as implicit lineto commands.

8.3.3 The "closepath" command

The "closepath" (Z or z) ends the current subpath and causes an automatic straight line to be drawn from the current point to the initial point of the current subpath. If a "closepath" is followed immediately by a "moveto", then the "moveto" identifies the start point of the next subpath. If a "closepath" is followed immediately by any other command, then the next subpath starts at the same initial point as the current subpath.

When a subpath ends in a "closepath," it differs in behavior from what happens when "manually" closing a subpath via a "lineto" command in how 'stroke-linejoin' and 'stroke-linecap' are implemented. With "closepath", the end of the final segment of the subpath is "joined" with the start of the initial segment of the subpath using the current value of 'stroke-linejoin'. If you instead "manually" close the subpath via a "lineto" command, the start of the first segment and the end of the last segment are not joined but instead are each capped using the current value of 'stroke-linecap'. At the end of the command, the new current point is set to the initial point of the current subpath.

Command Name Parameters Description
Z or
z
closepath (none) Close the current subpath by drawing a straight line from the current point to current subpath's initial point.

8.3.4 The "lineto" commands

The various "lineto" commands draw straight lines from the current point to a new point:

Command Name Parameters Description
L (absolute)
l (relative)
lineto (x y)+ Draw a line from the current point to the given (x,y) coordinate which becomes the new current point. L (uppercase) indicates that absolute coordinates will follow; l (lowercase) indicates that relative coordinates will follow. A number of coordinates pairs may be specified to draw a polyline. At the end of the command, the new current point is set to the final set of coordinates provided.
H (absolute)
h (relative)
horizontal lineto x+ Draws a horizontal line from the current point (cpx, cpy) to (x, cpy). H (uppercase) indicates that absolute coordinates will follow; h (lowercase) indicates that relative coordinates will follow. Multiple x values can be provided (although usually this doesn't make sense). At the end of the command, the new current point becomes (x, cpy) for the final value of x.
V (absolute)
v (relative)
vertical lineto y+ Draws a vertical line from the current point (cpx, cpy) to (cpx, y). V (uppercase) indicates that absolute coordinates will follow; v (lowercase) indicates that relative coordinates will follow. Multiple y values can be provided (although usually this doesn't make sense). At the end of the command, the new current point becomes (cpx, y) for the final value of y.

8.3.5 The curve commands

These three groups of commands draw curves:


8.3.6 The cubic Bézier curve commands

The cubic Bézier commands are as follows:

Command Name Parameters Description
C (absolute)
c (relative)
curveto (x1 y1 x2 y2 x y)+ Draws a cubic Bézier curve from the current point to (x,y) using (x1,y1) as the control point at the beginning of the curve and (x2,y2) as the control point at the end of the curve. C (uppercase) indicates that absolute coordinates will follow; c (lowercase) indicates that relative coordinates will follow. Multiple sets of coordinates may be specified to draw a polybézier. At the end of the command, the new current point becomes the final (x,y) coordinate pair used in the polybézier.
S (absolute)
s (relative)
shorthand/smooth curveto (x2 y2 x y)+ Draws a cubic Bézier curve from the current point to (x,y). The first control point is assumed to be the reflection of the second control point on the previous command relative to the current point. (If there is no previous command or if the previous command was not an C, c, S or s, assume the first control point is coincident with the current point.) (x2,y2) is the second control point (i.e., the control point at the end of the curve). S (uppercase) indicates that absolute coordinates will follow; s (lowercase) indicates that relative coordinates will follow. Multiple sets of coordinates may be specified to draw a polybézier. At the end of the command, the new current point becomes the final (x,y) coordinate pair used in the polybézier.

Example cubic01 shows some simple uses of cubic Bézier commands within a path. The example uses an internal CSS style sheet to assign styling properties. Note that the control point for the "S" command is computed automatically as the reflection of the control point for the previous "C" command relative to the start point of the "S" command.

<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 20010904//EN"
  "http://www.w3.org/TR/2001/REC-SVG-20010904/DTD/svg10.dtd">
<svg width="5cm" height="4cm" viewBox="0 0 500 400"
     xmlns="http://www.w3.org/2000/svg">
  <title>Example cubic01- cubic Bézier commands in path data</title>
  <desc>Picture showing a simple example of path data
        using both a "C" and an "S" command,
        along with annotations showing the control points
        and end points</desc>
  <style type="text/css"><![CDATA[
    .Border { fill:none; stroke:blue; stroke-width:1 }
    .Connect { fill:none; stroke:#888888; stroke-width:2 }
    .SamplePath { fill:none; stroke:red; stroke-width:5 }
    .EndPoint { fill:none; stroke:#888888; stroke-width:2 }
    .CtlPoint { fill:#888888; stroke:none }
    .AutoCtlPoint { fill:none; stroke:blue; stroke-width:4 }
    .Label { font-size:22; font-family:Verdana }
  ]]></style>

  <rect class="Border" x="1" y="1" width="498" height="398" />

  <polyline class="Connect" points="100,200 100,100" />
  <polyline class="Connect" points="250,100 250,200" />
  <polyline class="Connect" points="250,200 250,300" />
  <polyline class="Connect" points="400,300 400,200" />
  <path class="SamplePath" d="M100,200 C100,100 250,100 250,200
                                       S400,300 400,200" />
  <circle class="EndPoint" cx="100" cy="200" r="10" />
  <circle class="EndPoint" cx="250" cy="200" r="10" />
  <circle class="EndPoint" cx="400" cy="200" r="10" />
  <circle class="CtlPoint" cx="100" cy="100" r="10" />
  <circle class="CtlPoint" cx="250" cy="100" r="10" />
  <circle class="CtlPoint" cx="400" cy="300" r="10" />
  <circle class="AutoCtlPoint" cx="250" cy="300" r="9" />
  <text class="Label" x="25" y="70">M100,200 C100,100 250,100 250,200</text>
  <text class="Label" x="325" y="350"
        style="text-anchor:middle">S400,300 400,200</text>
</svg>
Example cubic01
Example cubic01 - cubic Bézier commands in path data

View this example as SVG (SVG- and CSS-enabled browsers only)

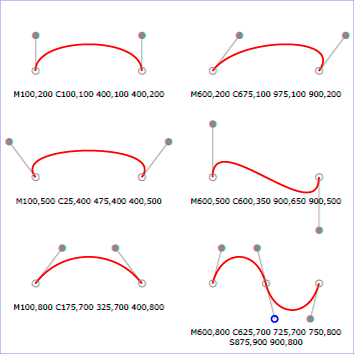

The following picture shows some how cubic Bézier curves change their shape depending on the position of the control points. The first five examples illustrate a single cubic Bézier path segment. The example at the lower right shows a "C" command followed by an "S" command.

Example cubic02 - cubic Bézier commands in path data

View this example as SVG (SVG-enabled browsers only)



8.3.7 The quadratic Bézier curve commands

The quadratic Bézier commands are as follows:

Command Name Parameters Description
Q (absolute)
q (relative)
quadratic Bézier curveto (x1 y1 x y)+ Draws a quadratic Bézier curve from the current point to (x,y) using (x1,y1) as the control point. Q (uppercase) indicates that absolute coordinates will follow; q (lowercase) indicates that relative coordinates will follow. Multiple sets of coordinates may be specified to draw a polybézier. At the end of the command, the new current point becomes the final (x,y) coordinate pair used in the polybézier.
T (absolute)
t (relative)
Shorthand/smooth quadratic Bézier curveto (x y)+ Draws a quadratic Bézier curve from the current point to (x,y). The control point is assumed to be the reflection of the control point on the previous command relative to the current point. (If there is no previous command or if the previous command was not a Q, q, T or t, assume the control point is coincident with the current point.) T (uppercase) indicates that absolute coordinates will follow; t (lowercase) indicates that relative coordinates will follow. At the end of the command, the new current point becomes the final (x,y) coordinate pair used in the polybézier.

Example quad01 shows some simple uses of quadratic Bézier commands within a path. Note that the control point for the "T" command is computed automatically as the reflection of the control point for the previous "Q" command relative to the start point of the "T" command.

<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 20010904//EN"
  "http://www.w3.org/TR/2001/REC-SVG-20010904/DTD/svg10.dtd">
<svg width="12cm" height="6cm" viewBox="0 0 1200 600"
     xmlns="http://www.w3.org/2000/svg">
  <title>Example quad01 - quadratic Bezier commands in path data</title>
  <desc>Picture showing a "Q" a "T" command,
        along with annotations showing the control points
        and end points</desc>
  <rect x="1" y="1" width="1198" height="598"
        fill="none" stroke="blue" stroke-width="1" />

  <path d="M200,300 Q400,50 600,300 T1000,300"
        fill="none" stroke="red" stroke-width="5"  />
  <!-- End points -->
  <g fill="black" >
    <circle cx="200" cy="300" r="10"/>
    <circle cx="600" cy="300" r="10"/>
    <circle cx="1000" cy="300" r="10"/>
  </g>
  <!-- Control points and lines from end points to control points -->
  <g fill="#888888" >
    <circle cx="400" cy="50" r="10"/>
    <circle cx="800" cy="550" r="10"/>
  </g>
  <path d="M200,300 L400,50 L600,300
           L800,550 L1000,300"
        fill="none" stroke="#888888" stroke-width="2" />
</svg>

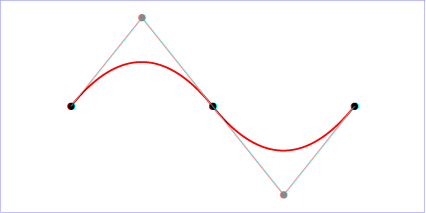

Example quad01
Example quad01 - quadratic Bézier commands in path data

View this example as SVG (SVG-enabled browsers only)



8.3.8 The elliptical arc curve commands

The elliptical arc commands are as follows:

Command Name Parameters Description
A (absolute)
a (relative)
elliptical arc (rx ry x-axis-rotation large-arc-flag sweep-flag x y)+ Draws an elliptical arc from the current point to (x, y). The size and orientation of the ellipse are defined by two radii (rx, ry) and an x-axis-rotation, which indicates how the ellipse as a whole is rotated relative to the current coordinate system. The center (cx, cy) of the ellipse is calculated automatically to satisfy the constraints imposed by the other parameters. large-arc-flag and sweep-flag contribute to the automatic calculations and help determine how the arc is drawn.

Example arcs01 shows some simple uses of arc commands within a path.

<?xml version="1.0" standalone="no"?>
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 20010904//EN"
  "http://www.w3.org/TR/2001/REC-SVG-20010904/DTD/svg10.dtd">
<svg width="12cm" height="5.25cm" viewBox="0 0 1200 400"
     xmlns="http://www.w3.org/2000/svg">
  <title>Example arcs01 - arc commands in path data</title>
  <desc>Picture of a pie chart with two pie wedges and
        a picture of a line with arc blips</desc>
  <rect x="1" y="1" width="1198" height="398"
        fill="none" stroke="blue" stroke-width="1" />

  <path d="M300,200 h-150 a150,150 0 1,0 150,-150 z"
        fill="red" stroke="blue" stroke-width="5" />
  <path d="M275,175 v-150 a150,150 0 0,0 -150,150 z"
        fill="yellow" stroke="blue" stroke-width="5" />

  <path d="M600,350 l 50,-25
           a25,25 -30 0,1 50,-25 l 50,-25
           a25,50 -30 0,1 50,-25 l 50,-25
           a25,75 -30 0,1 50,-25 l 50,-25
           a25,100 -30 0,1 50,-25 l 50,-25"
        fill="none" stroke="red" stroke-width="5"  />
</svg>

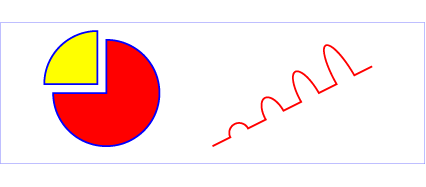

Example arcs01
Example arcs01 - arc commands in path data

View this example as SVG (SVG-enabled browsers only)


The elliptical arc command draws a section of an ellipse which meets the following constraints:

For most situations, there are actually four different arcs (two different ellipses, each with two different arc sweeps) that satisfy these constraints. large-arc-flag and sweep-flag indicate which one of the four arcs are drawn, as follows:

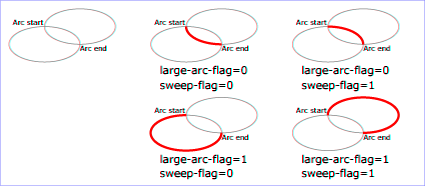

The following illustrates the four combinations of large-arc-flag and sweep-flag and the four different arcs that will be drawn based on the values of these flags. For each case, the following path data command was used:

<path d="M 125,75 a100,50 0 ?,? 100,50"
      style="fill:none; stroke:red; stroke-width:6"/>

where "?,?" is replaced by "0,0" "0,1" "1,0" and "1,1" to generate the four possible cases.

Illustration of flags in arc commands

View this example as SVG (SVG-enabled browsers only)


Refer to Elliptical arc implementation notes for detailed implementation notes for the path data elliptical arc commands.

8.3.9 The grammar for path data

The following notation is used in the Backus-Naur Form (BNF) description of the grammar for path data:

The following is the BNF for SVG paths.

svg-path:
    wsp* moveto-drawto-command-groups? wsp*

moveto-drawto-command-groups:
    moveto-drawto-command-group
    | moveto-drawto-command-group wsp* moveto-drawto-command-groups

moveto-drawto-command-group:
    moveto wsp* drawto-commands?

drawto-commands:
    drawto-command
    | drawto-command wsp* drawto-commands

drawto-command:
    closepath
    | lineto
    | horizontal-lineto
    | vertical-lineto
    | curveto
    | smooth-curveto
    | quadratic-bezier-curveto
    | smooth-quadratic-bezier-curveto
    | elliptical-arc

moveto:
    ( "M" | "m" ) wsp* moveto-argument-sequence

moveto-argument-sequence:
    coordinate-pair
    | coordinate-pair comma-wsp? lineto-argument-sequence

closepath:
    ("Z" | "z")

lineto:
    ( "L" | "l" ) wsp* lineto-argument-sequence

lineto-argument-sequence:
    coordinate-pair
    | coordinate-pair comma-wsp? lineto-argument-sequence

horizontal-lineto:
    ( "H" | "h" ) wsp* horizontal-lineto-argument-sequence

horizontal-lineto-argument-sequence:
    coordinate
    | coordinate comma-wsp? horizontal-lineto-argument-sequence

vertical-lineto:
    ( "V" | "v" ) wsp* vertical-lineto-argument-sequence

vertical-lineto-argument-sequence:
    coordinate
    | coordinate comma-wsp? vertical-lineto-argument-sequence

curveto:
    ( "C" | "c" ) wsp* curveto-argument-sequence

curveto-argument-sequence:
    curveto-argument
    | curveto-argument comma-wsp? curveto-argument-sequence

curveto-argument:
    coordinate-pair comma-wsp? coordinate-pair comma-wsp? coordinate-pair

smooth-curveto:
    ( "S" | "s" ) wsp* smooth-curveto-argument-sequence

smooth-curveto-argument-sequence:
    smooth-curveto-argument
    | smooth-curveto-argument comma-wsp? smooth-curveto-argument-sequence

smooth-curveto-argument:
    coordinate-pair comma-wsp? coordinate-pair

quadratic-bezier-curveto:
    ( "Q" | "q" ) wsp* quadratic-bezier-curveto-argument-sequence

quadratic-bezier-curveto-argument-sequence:
    quadratic-bezier-curveto-argument
    | quadratic-bezier-curveto-argument comma-wsp?
        quadratic-bezier-curveto-argument-sequence

quadratic-bezier-curveto-argument:
    coordinate-pair comma-wsp? coordinate-pair

smooth-quadratic-bezier-curveto:
    ( "T" | "t" ) wsp* smooth-quadratic-bezier-curveto-argument-sequence

smooth-quadratic-bezier-curveto-argument-sequence:
    coordinate-pair
    | coordinate-pair comma-wsp? smooth-quadratic-bezier-curveto-argument-sequence

elliptical-arc:
    ( "A" | "a" ) wsp* elliptical-arc-argument-sequence

elliptical-arc-argument-sequence:
    elliptical-arc-argument
    | elliptical-arc-argument comma-wsp? elliptical-arc-argument-sequence

elliptical-arc-argument:
    nonnegative-number comma-wsp? nonnegative-number comma-wsp?
        number comma-wsp flag comma-wsp flag comma-wsp coordinate-pair

coordinate-pair:
    coordinate comma-wsp? coordinate

coordinate:
    number

nonnegative-number:
    integer-constant
    | floating-point-constant

number:
    sign? integer-constant
    | sign? floating-point-constant

flag:
    "0" | "1"

comma-wsp:
    (wsp+ comma? wsp*) | (comma wsp*)

comma:
    ","

integer-constant:
    digit-sequence

floating-point-constant:
    fractional-constant exponent?
    | digit-sequence exponent

fractional-constant:
    digit-sequence? "." digit-sequence
    | digit-sequence "."

exponent:
    ( "e" | "E" ) sign? digit-sequence

sign:
    "+" | "-"

digit-sequence:
    digit
    | digit digit-sequence

digit:
    "0" | "1" | "2" | "3" | "4" | "5" | "6" | "7" | "8" | "9"

wsp:
    (#x20 | #x9 | #xD | #xA)

The processing of the BNF must consume as much of a given BNF production as possible, stopping at the point when a character is encountered which no longer satisfies the production. Thus, in the string "M 100-200", the first coordinate for the "moveto" consumes the characters "100" and stops upon encountering the minus sign because the minus sign cannot follow a digit in the production of a "coordinate". The result is that the first coordinate will be "100" and the second coordinate will be "-200".

Similarly, for the string "M 0.6.5", the first coordinate of the "moveto" consumes the characters "0.6" and stops upon encountering the second decimal point because the production of a "coordinate" only allows one decimal point. The result is that the first coordinate will be "0.6" and the second coordinate will be ".5".

8.4 Distance along a path

Various operations, including text on a path and motion animation and various stroke operations, require that the user agent compute the distance along the geometry of a graphics element, such as a 'path'.

Exact mathematics exist for computing distance along a path, but the formulas are highly complex and require substantial computation. It is recommended that authoring products and user agents employ algorithms that produce as precise results as possible; however, to accommodate implementation differences and to help distance calculations produce results that approximate author intent, the pathLength attribute can be used to provide the author's computation of the total length of the path so that the user agent can scale distance-along-a-path computations by the ratio of pathLength to the user agent's own computed value for total path length.

A "moveto" operation within a 'path' element is defined to have zero length. Only the various "lineto", "curveto" and "arcto" commands contribute to path length calculations.

8.5 DOM interfaces

The following interfaces are defined below: SVGPathSeg, SVGPathSegClosePath, SVGPathSegMovetoAbs, SVGPathSegMovetoRel, SVGPathSegLinetoAbs, SVGPathSegLinetoRel, SVGPathSegCurvetoCubicAbs, SVGPathSegCurvetoCubicRel, SVGPathSegCurvetoQuadraticAbs, SVGPathSegCurvetoQuadraticRel, SVGPathSegArcAbs, SVGPathSegArcRel, SVGPathSegLinetoHorizontalAbs, SVGPathSegLinetoHorizontalRel, SVGPathSegLinetoVerticalAbs, SVGPathSegLinetoVerticalRel, SVGPathSegCurvetoCubicSmoothAbs, SVGPathSegCurvetoCubicSmoothRel, SVGPathSegCurvetoQuadraticSmoothAbs, SVGPathSegCurvetoQuadraticSmoothRel, SVGPathSegList, SVGAnimatedPathData, SVGPathElement.


Interface SVGPathSeg

The SVGPathSeg interface is a base interface that corresponds to a single command within a path data specification.


IDL Definition
interface SVGPathSeg {

  // Path Segment Types
  const unsigned short PATHSEG_UNKNOWN                      = 0;
  const unsigned short PATHSEG_CLOSEPATH                    = 1;
  const unsigned short PATHSEG_MOVETO_ABS                   = 2;
  const unsigned short PATHSEG_MOVETO_REL                   = 3;
  const unsigned short PATHSEG_LINETO_ABS                   = 4;
  const unsigned short PATHSEG_LINETO_REL                   = 5;
  const unsigned short PATHSEG_CURVETO_CUBIC_ABS            = 6;
  const unsigned short PATHSEG_CURVETO_CUBIC_REL            = 7;
  const unsigned short PATHSEG_CURVETO_QUADRATIC_ABS        = 8;
  const unsigned short PATHSEG_CURVETO_QUADRATIC_REL        = 9;
  const unsigned short PATHSEG_ARC_ABS                      = 10;
  const unsigned short PATHSEG_ARC_REL                      = 11;
  const unsigned short PATHSEG_LINETO_HORIZONTAL_ABS        = 12;
  const unsigned short PATHSEG_LINETO_HORIZONTAL_REL        = 13;
  const unsigned short PATHSEG_LINETO_VERTICAL_ABS          = 14;
  const unsigned short PATHSEG_LINETO_VERTICAL_REL          = 15;
  const unsigned short PATHSEG_CURVETO_CUBIC_SMOOTH_ABS     = 16;
  const unsigned short PATHSEG_CURVETO_CUBIC_SMOOTH_REL     = 17;
  const unsigned short PATHSEG_CURVETO_QUADRATIC_SMOOTH_ABS = 18;
  const unsigned short PATHSEG_CURVETO_QUADRATIC_SMOOTH_REL = 19;

  readonly attribute unsigned short pathSegType;
  readonly attribute DOMString      pathSegTypeAsLetter;
};

Definition group Path Segment Types
Defined constants
PATHSEG_UNKNOWN The unit type is not one of predefined types. It is invalid to attempt to define a new value of this type or to attempt to switch an existing value to this type.
PATHSEG_CLOSEPATH Corresponds to a "closepath" (z) path data command.
PATHSEG_MOVETO_ABS Corresponds to an "absolute moveto" (M) path data command.
PATHSEG_MOVETO_REL Corresponds to a "relative moveto" (m) path data command.
PATHSEG_LINETO_ABS Corresponds to an "absolute lineto" (L) path data command.
PATHSEG_LINETO_REL Corresponds to a "relative lineto" (l) path data command.
PATHSEG_CURVETO_CUBIC_ABS Corresponds to an "absolute cubic Bézier curveto" (C) path data command.
PATHSEG_CURVETO_CUBIC_REL Corresponds to a "relative cubic Bézier curveto" (c) path data command.
PATHSEG_CURVETO_QUADRATIC_ABS Corresponds to an "absolute quadratic Bézier curveto" (Q) path data command.
PATHSEG_CURVETO_QUADRATIC_REL Corresponds to a "relative quadratic Bézier curveto" (q) path data command.
PATHSEG_ARC_ABS Corresponds to an "absolute arcto" (A) path data command.
PATHSEG_ARC_REL Corresponds to a "relative arcto" (a) path data command.
PATHSEG_LINETO_HORIZONTAL_ABS Corresponds to an "absolute horizontal lineto" (H) path data command.
PATHSEG_LINETO_HORIZONTAL_REL Corresponds to a "relative horizontal lineto" (h) path data command.
PATHSEG_LINETO_VERTICAL_ABS Corresponds to an "absolute vertical lineto" (V) path data command.
PATHSEG_LINETO_VERTICAL_REL Corresponds to a "relative vertical lineto" (v) path data command.
PATHSEG_CURVETO_CUBIC_SMOOTH_ABS Corresponds to an "absolute smooth cubic curveto" (S) path data command.
PATHSEG_CURVETO_CUBIC_SMOOTH_REL Corresponds to a "relative smooth cubic curveto" (s) path data command.
PATHSEG_CURVETO_QUADRATIC_SMOOTH_ABS Corresponds to an "absolute smooth quadratic curveto" (T) path data command.
PATHSEG_CURVETO_QUADRATIC_SMOOTH_REL Corresponds to a "relative smooth quadratic curveto" (t) path data command.
Attributes
readonly unsigned short pathSegType
The type of the path segment as specified by one of the constants specified above.
readonly DOMString pathSegTypeAsLetter
The type of the path segment, specified by the corresponding one character command name.

Interface SVGPathSegClosePath

The SVGPathSegClosePath interface corresponds to a "closepath" (z) path data command.


IDL Definition
interface SVGPathSegClosePath : SVGPathSeg {};


Interface SVGPathSegMovetoAbs

The SVGPathSegMovetoAbs interface corresponds to an "absolute moveto" (M) path data command.


IDL Definition
interface SVGPathSegMovetoAbs : SVGPathSeg {
           attribute float   x;
                       // raises DOMException on setting
           attribute float   y;
                       // raises DOMException on setting
};

Attributes
float x
The absolute X coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y
The absolute Y coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.

Interface SVGPathSegMovetoRel

The SVGPathSegMovetoRel interface corresponds to an "relative moveto" (m) path data command.


IDL Definition
interface SVGPathSegMovetoRel : SVGPathSeg {
           attribute float   x;
                       // raises DOMException on setting
           attribute float   y;
                       // raises DOMException on setting
};

Attributes
float x
The relative X coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y
The relative Y coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.

Interface SVGPathSegLinetoAbs

The SVGPathSegLinetoAbs interface corresponds to an "absolute lineto" (L) path data command.


IDL Definition
interface SVGPathSegLinetoAbs : SVGPathSeg {
           attribute float   x;
                       // raises DOMException on setting
           attribute float   y;
                       // raises DOMException on setting
};

Attributes
float x
The absolute X coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y
The absolute Y coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.

Interface SVGPathSegLinetoRel

The SVGPathSegLinetoRel interface corresponds to an "relative lineto" (l) path data command.


IDL Definition
interface SVGPathSegLinetoRel : SVGPathSeg {
           attribute float   x;
                       // raises DOMException on setting
           attribute float   y;
                       // raises DOMException on setting
};

Attributes
float x
The relative X coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y
The relative Y coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.

Interface SVGPathSegCurvetoCubicAbs

The SVGPathSegCurvetoCubicAbs interface corresponds to an "absolute cubic Bézier curveto" (C) path data command.


IDL Definition
interface SVGPathSegCurvetoCubicAbs : SVGPathSeg {
           attribute float   x;
                       // raises DOMException on setting
           attribute float   y;
                       // raises DOMException on setting
           attribute float   x1;
                       // raises DOMException on setting
           attribute float   y1;
                       // raises DOMException on setting
           attribute float   x2;
                       // raises DOMException on setting
           attribute float   y2;
                       // raises DOMException on setting
};

Attributes
float x
The absolute X coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y
The absolute Y coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float x1
The absolute X coordinate for the first control point.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y1
The absolute Y coordinate for the first control point.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float x2
The absolute X coordinate for the second control point.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y2
The absolute Y coordinate for the second control point.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.

Interface SVGPathSegCurvetoCubicRel

The SVGPathSegCurvetoCubicRel interface corresponds to a "relative cubic Bézier curveto" (c) path data command.


IDL Definition
interface SVGPathSegCurvetoCubicRel : SVGPathSeg {
           attribute float   x;
                       // raises DOMException on setting
           attribute float   y;
                       // raises DOMException on setting
           attribute float   x1;
                       // raises DOMException on setting
           attribute float   y1;
                       // raises DOMException on setting
           attribute float   x2;
                       // raises DOMException on setting
           attribute float   y2;
                       // raises DOMException on setting
};

Attributes
float x
The relative X coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y
The relative Y coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float x1
The relative X coordinate for the first control point.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y1
The relative Y coordinate for the first control point.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float x2
The relative X coordinate for the second control point.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y2
The relative Y coordinate for the second control point.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.

Interface SVGPathSegCurvetoQuadraticAbs

The SVGPathSegCurvetoQuadraticAbs interface corresponds to an "absolute quadratic Bézier curveto" (Q) path data command.


IDL Definition
interface SVGPathSegCurvetoQuadraticAbs : SVGPathSeg {
           attribute float   x;
                       // raises DOMException on setting
           attribute float   y;
                       // raises DOMException on setting
           attribute float   x1;
                       // raises DOMException on setting
           attribute float   y1;
                       // raises DOMException on setting
};

Attributes
float x
The absolute X coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y
The absolute Y coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float x1
The absolute X coordinate for the control point.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y1
The absolute Y coordinate for the control point.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.

Interface SVGPathSegCurvetoQuadraticRel

The SVGPathSegCurvetoQuadraticRel interface corresponds to a "relative quadratic Bézier curveto" (q) path data command.


IDL Definition
interface SVGPathSegCurvetoQuadraticRel : SVGPathSeg {
           attribute float   x;
                       // raises DOMException on setting
           attribute float   y;
                       // raises DOMException on setting
           attribute float   x1;
                       // raises DOMException on setting
           attribute float   y1;
                       // raises DOMException on setting
};

Attributes
float x
The relative X coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y
The relative Y coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float x1
The relative X coordinate for the control point.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y1
The relative Y coordinate for the control point.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.

Interface SVGPathSegArcAbs

The SVGPathSegArcAbs interface corresponds to an "absolute arcto" (A) path data command.


IDL Definition
interface SVGPathSegArcAbs : SVGPathSeg {
           attribute float   x;
                       // raises DOMException on setting
           attribute float   y;
                       // raises DOMException on setting
           attribute float   r1;
                       // raises DOMException on setting
           attribute float   r2;
                       // raises DOMException on setting
           attribute float   angle;
                       // raises DOMException on setting
           attribute boolean largeArcFlag;
                       // raises DOMException on setting
           attribute boolean sweepFlag;
                       // raises DOMException on setting
};

Attributes
float x
The absolute X coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y
The absolute Y coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float r1
The x-axis radius for the ellipse (i.e., r1).
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float r2
The y-axis radius for the ellipse (i.e., r2).
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float angle
The rotation angle in degrees for the ellipse's x-axis relative to the x-axis of the user coordinate system.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
boolean largeArcFlag
The value of the large-arc-flag parameter.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
boolean sweepFlag
The value of the sweep-flag parameter.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.

Interface SVGPathSegArcRel

The SVGPathSegArcRel interface corresponds to a "relative arcto" (a) path data command.


IDL Definition
interface SVGPathSegArcRel : SVGPathSeg {
           attribute float   x;
                       // raises DOMException on setting
           attribute float   y;
                       // raises DOMException on setting
           attribute float   r1;
                       // raises DOMException on setting
           attribute float   r2;
                       // raises DOMException on setting
           attribute float   angle;
                       // raises DOMException on setting
           attribute boolean largeArcFlag;
                       // raises DOMException on setting
           attribute boolean sweepFlag;
                       // raises DOMException on setting
};

Attributes
float x
The relative X coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y
The relative Y coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float r1
The x-axis radius for the ellipse (i.e., r1).
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float r2
The y-axis radius for the ellipse (i.e., r2).
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float angle
The rotation angle in degrees for the ellipse's x-axis relative to the x-axis of the user coordinate system.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
boolean largeArcFlag
The value of the large-arc-flag parameter.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
boolean sweepFlag
The value of the sweep-flag parameter.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.

Interface SVGPathSegLinetoHorizontalAbs

The SVGPathSegLinetoHorizontalAbs interface corresponds to an "absolute horizontal lineto" (H) path data command.


IDL Definition
interface SVGPathSegLinetoHorizontalAbs : SVGPathSeg {
           attribute float   x;
                       // raises DOMException on setting
};

Attributes
float x
The absolute X coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.

Interface SVGPathSegLinetoHorizontalRel

The SVGPathSegLinetoHorizontalRel interface corresponds to a "relative horizontal lineto" (h) path data command.


IDL Definition
interface SVGPathSegLinetoHorizontalRel : SVGPathSeg {
           attribute float   x;
                       // raises DOMException on setting
};

Attributes
float x
The relative X coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.

Interface SVGPathSegLinetoVerticalAbs

The SVGPathSegLinetoVerticalAbs interface corresponds to an "absolute vertical lineto" (V) path data command.


IDL Definition
interface SVGPathSegLinetoVerticalAbs : SVGPathSeg {
           attribute float   y;
                       // raises DOMException on setting
};

Attributes
float y
The absolute Y coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.

Interface SVGPathSegLinetoVerticalRel

The SVGPathSegLinetoVerticalRel interface corresponds to a "relative vertical lineto" (v) path data command.


IDL Definition
interface SVGPathSegLinetoVerticalRel : SVGPathSeg {
           attribute float   y;
                       // raises DOMException on setting
};

Attributes
float y
The relative Y coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.

Interface SVGPathSegCurvetoCubicSmoothAbs

The SVGPathSegCurvetoCubicSmoothAbs interface corresponds to an "absolute smooth cubic curveto" (S) path data command.


IDL Definition
interface SVGPathSegCurvetoCubicSmoothAbs : SVGPathSeg {
           attribute float   x;
                       // raises DOMException on setting
           attribute float   y;
                       // raises DOMException on setting
           attribute float   x2;
                       // raises DOMException on setting
           attribute float   y2;
                       // raises DOMException on setting
};

Attributes
float x
The absolute X coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y
The absolute Y coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float x2
The absolute X coordinate for the second control point.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y2
The absolute Y coordinate for the second control point.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.

Interface SVGPathSegCurvetoCubicSmoothRel

The SVGPathSegCurvetoCubicSmoothRel interface corresponds to a "relative smooth cubic curveto" (s) path data command.


IDL Definition
interface SVGPathSegCurvetoCubicSmoothRel : SVGPathSeg {
           attribute float   x;
                       // raises DOMException on setting
           attribute float   y;
                       // raises DOMException on setting
           attribute float   x2;
                       // raises DOMException on setting
           attribute float   y2;
                       // raises DOMException on setting
};

Attributes
float x
The relative X coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y
The relative Y coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float x2
The relative X coordinate for the second control point.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y2
The relative Y coordinate for the second control point.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.

Interface SVGPathSegCurvetoQuadraticSmoothAbs

The SVGPathSegCurvetoQuadraticSmoothAbs interface corresponds to an "absolute smooth quadratic curveto" (T) path data command.


IDL Definition
interface SVGPathSegCurvetoQuadraticSmoothAbs : SVGPathSeg {
           attribute float   x;
                       // raises DOMException on setting
           attribute float   y;
                       // raises DOMException on setting
};

Attributes
float x
The absolute X coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y
The absolute Y coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.

Interface SVGPathSegCurvetoQuadraticSmoothRel

The SVGPathSegCurvetoQuadraticSmoothRel interface corresponds to a "relative smooth quadratic curveto" (t) path data command.


IDL Definition
interface SVGPathSegCurvetoQuadraticSmoothRel : SVGPathSeg {
           attribute float   x;
                       // raises DOMException on setting
           attribute float   y;
                       // raises DOMException on setting
};

Attributes
float x
The relative X coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.
float y
The relative Y coordinate for the end point of this path segment.
Exceptions on setting
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised on an attempt to change the value of a readonly attribute.

Interface SVGPathSegList

This interface defines a list of SVGPathSeg objects.

SVGPathSegList has the same attributes and methods as other SVGxxxList interfaces. Implementers may consider using a single base class to implement the various SVGxxxList interfaces.


IDL Definition
interface SVGPathSegList {

  readonly attribute unsigned long numberOfItems;

  void   clear (  )
                  raises( DOMException );
  SVGPathSeg initialize ( in SVGPathSeg newItem )
                  raises( DOMException, SVGException );
  SVGPathSeg getItem ( in unsigned long index )
                  raises( DOMException );
  SVGPathSeg insertItemBefore ( in SVGPathSeg newItem, in unsigned long index )
                  raises( DOMException, SVGException );
  SVGPathSeg replaceItem ( in SVGPathSeg newItem, in unsigned long index )
                  raises( DOMException, SVGException );
  SVGPathSeg removeItem ( in unsigned long index )
                  raises( DOMException );
  SVGPathSeg appendItem ( in SVGPathSeg newItem )
                  raises( DOMException, SVGException );
};

Attributes
readonly unsigned long numberOfItems
The number of items in the list.
Methods
clear
Clears all existing current items from the list, with the result being an empty list.
No Parameters
No Return Value
Exceptions
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised when the list cannot be modified.
initialize
Clears all existing current items from the list and re-initializes the list to hold the single item specified by the parameter.
Parameters
in SVGPathSeg newItem The item which should become the only member of the list.
Return value
SVGPathSeg The item being inserted into the list.
Exceptions
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised when the list cannot be modified.
SVGException
SVG_WRONG_TYPE_ERR: Raised if parameter newItem is the wrong type of object for the given list.
getItem
Returns the specified item from the list.
Parameters
in unsigned long index The index of the item from the list which is to be returned. The first item is number 0.
Return value
SVGPathSeg The selected item.
Exceptions
DOMException
INDEX_SIZE_ERR: Raised if the index number is negative or greater than or equal to numberOfItems.
insertItemBefore
Inserts a new item into the list at the specified position. The first item is number 0. If newItem is already in a list, it is removed from its previous list before it is inserted into this list.
Parameters
in SVGPathSeg newItem The item which is to be inserted into the list.
in unsigned long index The index of the item before which the new item is to be inserted. The first item is number 0.
If the index is equal to 0, then the new item is inserted at the front of the list. If the index is greater than or equal to numberOfItems, then the new item is appended to the end of the list.
Return value
SVGPathSeg The inserted item.
Exceptions
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised when the list cannot be modified.
SVGException
SVG_WRONG_TYPE_ERR: Raised if parameter newItem is the wrong type of object for the given list.
replaceItem
Replaces an existing item in the list with a new item. If newItem is already in a list, it is removed from its previous list before it is inserted into this list.
Parameters
in SVGPathSeg newItem The item which is to be inserted into the list.
in unsigned long index The index of the item which is to be replaced. The first item is number 0.
Return value
SVGPathSeg The inserted item.
Exceptions
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised when the list cannot be modified.
INDEX_SIZE_ERR: Raised if the index number is negative or greater than or equal to numberOfItems.
SVGException
SVG_WRONG_TYPE_ERR: Raised if parameter newItem is the wrong type of object for the given list.
removeItem
Removes an existing item from the list.
Parameters
in unsigned long index The index of the item which is to be removed. The first item is number 0.
Return value
SVGPathSeg The removed item.
Exceptions
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised when the list cannot be modified.
INDEX_SIZE_ERR: Raised if the index number is negative or greater than or equal to numberOfItems.
appendItem
Inserts a new item at the end of the list. If newItem is already in a list, it is removed from its previous list before it is inserted into this list.
Parameters
in SVGPathSeg newItem The item which is to be inserted into the list. The first item is number 0.
Return value
SVGPathSeg The inserted item.
Exceptions
DOMException
NO_MODIFICATION_ALLOWED_ERR: Raised when the list cannot be modified.
SVGException
SVG_WRONG_TYPE_ERR: Raised if parameter newItem is the wrong type of object for the given list.

Interface SVGAnimatedPathData

The SVGAnimatedPathData interface supports elements which have a 'd' attribute which holds SVG path data, and supports the ability to animate that attribute.

The SVGAnimatedPathData interface provides two lists to access and modify the base (i.e., static) contents of the d attribute:

and two lists to access the current animated values of the d attribute:

Each of the two lists are always kept synchronized. Modifications to one list will immediately cause the corresponding list to be modified. Modifications to normalizedPathSegList might cause entries in pathSegList to be broken into a set of normalized path segments.

Additionally, the 'd' attribute on the 'path' element accessed via the XML DOM (e.g., using the getAttribute() method call) will reflect any changes made to pathSegList or normalizedPathSegList.


IDL Definition
interface SVGAnimatedPathData {

  readonly attribute SVGPathSegList   pathSegList;
  readonly attribute SVGPathSegList   normalizedPathSegList;
  readonly attribute SVGPathSegList   animatedPathSegList;
  readonly attribute SVGPathSegList   animatedNormalizedPathSegList;
};

Attributes
readonly SVGPathSegList pathSegList

Provides access to the base (i.e., static) contents of the d attribute in a form which matches one-for-one with SVG's syntax. Thus, if the d attribute has an "absolute moveto (M)" and an "absolute arcto (A)" command, then pathSegList will have two entries: a SVG_PATHSEG_MOVETO_ABS and a SVG_PATHSEG_ARC_ABS.

readonly SVGPathSegList normalizedPathSegList

Provides access to the base (i.e., static) contents of the d attribute in a form where all path data commands are expressed in terms of the following subset of SVGPathSeg types: SVG_PATHSEG_MOVETO_ABS (M), SVG_PATHSEG_LINETO_ABS (L), SVG_PATHSEG_CURVETO_CUBIC_ABS (C) and SVG_PATHSEG_CLOSEPATH (z). Thus, if the d attribute has an "absolute moveto (M)" and an "absolute arcto (A)" command, then pathSegList will have one SVG_PATHSEG_MOVETO_ABS entry followed by a series of SVG_PATHSEG_ARC_ABS entries which approximate the arc. This alternate representation is available to provide a simpler interface to developers who would benefit from a more limited set of commands.

The only valid SVGPathSeg types are SVG_PATHSEG_MOVETO_ABS (M), SVG_PATHSEG_LINETO_ABS (L), SVG_PATHSEG_CURVETO_CUBIC_ABS (C) and SVG_PATHSEG_CLOSEPATH (z).

readonly SVGPathSegList animatedPathSegList

Provides access to the current animated contents of the d attribute in a form which matches one-for-one with SVG's syntax. If the given attribute or property is being animated, contains the current animated value of the attribute or property, and both the object itself and its contents are readonly. If the given attribute or property is not currently being animated, contains the same value as 'pathSegList'.

readonly SVGPathSegList animatedNormalizedPathSegList

Provides access to the current animated contents of the d attribute in a form where all path data commands are expressed in terms of the following subset of SVGPathSeg types: SVG_PATHSEG_MOVETO_ABS (M), SVG_PATHSEG_LINETO_ABS (L), SVG_PATHSEG_CURVETO_CUBIC_ABS (C) and SVG_PATHSEG_CLOSEPATH (z). If the given attribute or property is being animated, contains the current animated value of the attribute or property, and both the object itself and its contents are readonly. If the given attribute or property is not currently being animated, contains the same value as 'normalizedPathSegList'.


Interface SVGPathElement

The SVGPathElement interface corresponds to the 'path' element.


IDL Definition
interface SVGPathElement :
                SVGElement,
                SVGTests,
                SVGLangSpace,
                SVGExternalResourcesRequired,
                SVGStylable,
                SVGTransformable,
                events::EventTarget,
                SVGAnimatedPathData {

  readonly attribute SVGAnimatedNumber pathLength;

  float         getTotalLength (  );
  SVGPoint      getPointAtLength ( in float distance );
  unsigned long getPathSegAtLength ( in float distance );
  SVGPathSegClosePath    createSVGPathSegClosePath (  );
  SVGPathSegMovetoAbs    createSVGPathSegMovetoAbs ( in float x, in float y );
  SVGPathSegMovetoRel    createSVGPathSegMovetoRel ( in float x, in float y );
  SVGPathSegLinetoAbs    createSVGPathSegLinetoAbs ( in float x, in float y );
  SVGPathSegLinetoRel    createSVGPathSegLinetoRel ( in float x, in float y );
  SVGPathSegCurvetoCubicAbs    createSVGPathSegCurvetoCubicAbs ( in float x, in float y, in float x1, in float y1, in float x2, in float y2 );
  SVGPathSegCurvetoCubicRel    createSVGPathSegCurvetoCubicRel ( in float x, in float y, in float x1, in float y1, in float x2, in float y2 );
  SVGPathSegCurvetoQuadraticAbs    createSVGPathSegCurvetoQuadraticAbs ( in float x, in float y, in float x1, in float y1 );
  SVGPathSegCurvetoQuadraticRel    createSVGPathSegCurvetoQuadraticRel ( in float x, in float y, in float x1, in float y1 );
  SVGPathSegArcAbs    createSVGPathSegArcAbs ( in float x, in float y, in float r1, in float r2, in float angle, in boolean largeArcFlag, in boolean sweepFlag );
  SVGPathSegArcRel    createSVGPathSegArcRel ( in float x, in float y, in float r1, in float r2, in float angle, in boolean largeArcFlag, in boolean sweepFlag );
  SVGPathSegLinetoHorizontalAbs    createSVGPathSegLinetoHorizontalAbs ( in float x );
  SVGPathSegLinetoHorizontalRel    createSVGPathSegLinetoHorizontalRel ( in float x );
  SVGPathSegLinetoVerticalAbs    createSVGPathSegLinetoVerticalAbs ( in float y );
  SVGPathSegLinetoVerticalRel    createSVGPathSegLinetoVerticalRel ( in float y );
  SVGPathSegCurvetoCubicSmoothAbs    createSVGPathSegCurvetoCubicSmoothAbs ( in float x, in float y, in float x2, in float y2 );
  SVGPathSegCurvetoCubicSmoothRel    createSVGPathSegCurvetoCubicSmoothRel ( in float x, in float y, in float x2, in float y2 );
  SVGPathSegCurvetoQuadraticSmoothAbs    createSVGPathSegCurvetoQuadraticSmoothAbs ( in float x, in float y );
  SVGPathSegCurvetoQuadraticSmoothRel    createSVGPathSegCurvetoQuadraticSmoothRel ( in float x, in float y );
};

Attributes
readonly SVGAnimatedNumber pathLength
Corresponds to attribute pathLength on the given 'path' element.
Methods
getTotalLength
Returns the user agent's computed value for the total length of the path using the user agent's distance-along-a-path algorithm, as a distance in the current user coordinate system.
No Parameters
Return value
float The total length of the path.
No Exceptions
getPointAtLength
Returns the (x,y) coordinate in user space which is distance units along the path, utilizing the user agent's distance-along-a-path algorithm.
Parameters
in float distance The distance along the path, relative to the start of the path, as a distance in the current user coordinate system.
Return value
SVGPoint The returned point in user space.
No Exceptions
getPathSegAtLength
Returns the index into pathSegList which is distance units along the path, utilizing the user agent's distance-along-a-path algorithm.
Parameters
in float distance The distance along the path, relative to the start of the path, as a distance in the current user coordinate system.
Return value
unsigned long The index of the path segment, where the first path segment is number 0.
No Exceptions
createSVGPathSegClosePath
Returns a stand-alone, parentless SVGPathSegClosePath object.
No Parameters
Return value
SVGPathSegClosePath A stand-alone, parentless SVGPathSegClosePath object.
No Exceptions
createSVGPathSegMovetoAbs
Returns a stand-alone, parentless SVGPathSegMovetoAbs object.
Parameters
in float x The absolute X coordinate for the end point of this path segment.
in float y The absolute Y coordinate for the end point of this path segment.
Return value
SVGPathSegMovetoAbs A stand-alone, parentless SVGPathSegMovetoAbs object.
No Exceptions
createSVGPathSegMovetoRel
Returns a stand-alone, parentless SVGPathSegMovetoRel object.
Parameters
in float x The relative X coordinate for the end point of this path segment.
in float y The relative Y coordinate for the end point of this path segment.
Return value
SVGPathSegMovetoRel A stand-alone, parentless SVGPathSegMovetoRel object.
No Exceptions
createSVGPathSegLinetoAbs
Returns a stand-alone, parentless SVGPathSegLinetoAbs object.
Parameters
in float x The absolute X coordinate for the end point of this path segment.
in float y The absolute Y coordinate for the end point of this path segment.
Return value
SVGPathSegLinetoAbs A stand-alone, parentless SVGPathSegLinetoAbs object.
No Exceptions
createSVGPathSegLinetoRel
Returns a stand-alone, parentless SVGPathSegLinetoRel object.
Parameters
in float x The relative X coordinate for the end point of this path segment.
in float y The relative Y coordinate for the end point of this path segment.
Return value
SVGPathSegLinetoRel A stand-alone, parentless SVGPathSegLinetoRel object.
No Exceptions
createSVGPathSegCurvetoCubicAbs
Returns a stand-alone, parentless SVGPathSegCurvetoCubicAbs object.
Parameters
in float x The absolute X coordinate for the end point of this path segment.
in float y The absolute Y coordinate for the end point of this path segment.
in float x1 The absolute X coordinate for the first control point.
in float y1 The absolute Y coordinate for the first control point.
in float x2 The absolute X coordinate for the second control point.
in float y2 The absolute Y coordinate for the second control point.
Return value
SVGPathSegCurvetoCubicAbs A stand-alone, parentless SVGPathSegCurvetoCubicAbs object.
No Exceptions
createSVGPathSegCurvetoCubicRel
Returns a stand-alone, parentless SVGPathSegCurvetoCubicRel object.
Parameters
in float x The relative X coordinate for the end point of this path segment.
in float y The relative Y coordinate for the end point of this path segment.
in float x1 The relative X coordinate for the first control point.
in float y1 The relative Y coordinate for the first control point.
in float x2 The relative X coordinate for the second control point.
in float y2 The relative Y coordinate for the second control point.
Return value
SVGPathSegCurvetoCubicRel A stand-alone, parentless SVGPathSegCurvetoCubicRel object.
No Exceptions
createSVGPathSegCurvetoQuadraticAbs
Returns a stand-alone, parentless SVGPathSegCurvetoQuadraticAbs object.
Parameters
in float x The absolute X coordinate for the end point of this path segment.
in float y The absolute Y coordinate for the end point of this path segment.
in float x1 The absolute X coordinate for the control point.
in float y1 The absolute Y coordinate for the control point.
Return value
SVGPathSegCurvetoQuadraticAbs A stand-alone, parentless SVGPathSegCurvetoQuadraticAbs object.
No Exceptions
createSVGPathSegCurvetoQuadraticRel
Returns a stand-alone, parentless SVGPathSegCurvetoQuadraticRel object.
Parameters
in float x The relative X coordinate for the end point of this path segment.
in float y The relative Y coordinate for the end point of this path segment.
in float x1 The relative X coordinate for the control point.
in float y1 The relative Y coordinate for the control point.
Return value
SVGPathSegCurvetoQuadraticRel A stand-alone, parentless SVGPathSegCurvetoQuadraticRel object.
No Exceptions
createSVGPathSegArcAbs
Returns a stand-alone, parentless SVGPathSegArcAbs object.
Parameters
in float x The absolute X coordinate for the end point of this path segment.
in float y The absolute Y coordinate for the end point of this path segment.
in float r1 The x-axis radius for the ellipse (i.e., r1).
in float r2 The y-axis radius for the ellipse (i.e., r2).
in float angle The rotation angle in degrees for the ellipse's x-axis relative to the x-axis of the user coordinate system.
in boolean largeArcFlag The value for the large-arc-flag parameter.
in boolean sweepFlag The value for the sweep-flag parameter.
Return value
SVGPathSegArcAbs A stand-alone, parentless SVGPathSegArcAbs object.
No Exceptions
createSVGPathSegArcRel
Returns a stand-alone, parentless SVGPathSegArcRel object.
Parameters
in float x The relative X coordinate for the end point of this path segment.
in float y The relative Y coordinate for the end point of this path segment.
in float r1 The x-axis radius for the ellipse (i.e., r1).
in float r2 The y-axis radius for the ellipse (i.e., r2).
in float angle The rotation angle in degrees for the ellipse's x-axis relative to the x-axis of the user coordinate system.
in boolean largeArcFlag The value for the large-arc-flag parameter.
in boolean sweepFlag The value for the sweep-flag parameter.
Return value
SVGPathSegArcRel A stand-alone, parentless SVGPathSegArcRel object.
No Exceptions
createSVGPathSegLinetoHorizontalAbs
Returns a stand-alone, parentless SVGPathSegLinetoHorizontalAbs object.
Parameters
in float x The absolute X coordinate for the end point of this path segment.
Return value
SVGPathSegLinetoHorizontalAbs A stand-alone, parentless SVGPathSegLinetoHorizontalAbs object.
No Exceptions
createSVGPathSegLinetoHorizontalRel
Returns a stand-alone, parentless SVGPathSegLinetoHorizontalRel object.
Parameters
in float x The relative X coordinate for the end point of this path segment.
Return value
SVGPathSegLinetoHorizontalRel A stand-alone, parentless SVGPathSegLinetoHorizontalRel object.
No Exceptions
createSVGPathSegLinetoVerticalAbs
Returns a stand-alone, parentless SVGPathSegLinetoVerticalAbs object.
Parameters
in float y The absolute Y coordinate for the end point of this path segment.
Return value
SVGPathSegLinetoVerticalAbs A stand-alone, parentless SVGPathSegLinetoVerticalAbs object.
No Exceptions
createSVGPathSegLinetoVerticalRel
Returns a stand-alone, parentless SVGPathSegLinetoVerticalRel object.
Parameters
in float y The relative Y coordinate for the end point of this path segment.
Return value
SVGPathSegLinetoVerticalRel A stand-alone, parentless SVGPathSegLinetoVerticalRel object.
No Exceptions
createSVGPathSegCurvetoCubicSmoothAbs
Returns a stand-alone, parentless SVGPathSegCurvetoCubicSmoothAbs object.
Parameters
in float x The absolute X coordinate for the end point of this path segment.
in float y The absolute Y coordinate for the end point of this path segment.
in float x2 The absolute X coordinate for the second control point.
in float y2 The absolute Y coordinate for the second control point.
Return value
SVGPathSegCurvetoCubicSmoothAbs A stand-alone, parentless SVGPathSegCurvetoCubicSmoothAbs object.
No Exceptions
createSVGPathSegCurvetoCubicSmoothRel
Returns a stand-alone, parentless SVGPathSegCurvetoCubicSmoothRel object.
Parameters
in float x The relative X coordinate for the end point of this path segment.
in float y The relative Y coordinate for the end point of this path segment.
in float x2 The relative X coordinate for the second control point.
in float y2 The relative Y coordinate for the second control point.
Return value
SVGPathSegCurvetoCubicSmoothRel A stand-alone, parentless SVGPathSegCurvetoCubicSmoothRel object.
No Exceptions
createSVGPathSegCurvetoQuadraticSmoothAbs
Returns a stand-alone, parentless SVGPathSegCurvetoQuadraticSmoothAbs object.
Parameters
in float x The absolute X coordinate for the end point of this path segment.
in float y The absolute Y coordinate for the end point of this path segment.
Return value
SVGPathSegCurvetoQuadraticSmoothAbs A stand-alone, parentless SVGPathSegCurvetoQuadraticSmoothAbs object.
No Exceptions
createSVGPathSegCurvetoQuadraticSmoothRel
Returns a stand-alone, parentless SVGPathSegCurvetoQuadraticSmoothRel object.
Parameters
in float x The relative X coordinate for the end point of this path segment.
in float y The relative Y coordinate for the end point of this path segment.
Return value
SVGPathSegCurvetoQuadraticSmoothRel A stand-alone, parentless SVGPathSegCurvetoQuadraticSmoothRel object.
No Exceptions
