CSS Scroll Snap Points Module Level 1

This spec is currently undergoing major changes in line with the resolutions in https://lists.w3.org/Archives/Public/www-style/2015Dec/0048.html. During this process it is not safe to assume that the current form will be representative of what it will look like in the future. After the work in process is completed, it will closely resemble this proposal.

1. Introduction

This section is not normative.

Popular UX paradigms for scrollable content frequently employ paging through content, or sectioning into logical divisions. This is especially true for touch interactions where it is quicker and easier for users to quickly pan through a flatly-arranged breadth of content rather than delving into a heirarchical structure through tap navigation. For example, it is easier for a user to view many photos in a photo album by panning through a photo slideshow view rather than tapping on individual photos in an album.

However, given the imprecise nature of scrolling inputs like touch panning and mousewheel scrolling, it is difficult for web developers to guarantee a well-controlled scrolling experience, in particular creating the effect of paging through content. For instance, it is easy for a user to land at an awkward scroll offset which leaves a page partially on-screen when panning.

To this end, we introduce scroll snap positions which enforce the scroll offsets that a scroll container’s visual viewport may end at after a scrolling operation has completed.

1.1. Module interactions

This module extends the scrolling user interface features defined in [CSS21] section 11.1.

None of the properties in this module apply to the ::first-line and ::first-letter pseudo-elements.

1.2. Values

This specification follows the CSS property definition conventions from [CSS21]. Value types not defined in this specification are defined in CSS Level 2 Revision 1 [CSS21]. Other CSS modules may expand the definitions of these value types: for example [CSS3VAL], when combined with this module, expands the definition of the <length> value type as used in this specification.

2. Motivating Examples

In this example, a series of images arranged in a scroll container are used to build a photo gallery. In this example the scroll container is larger than the photos contained within (such that multiple images may be seen simultaneously), and the image sizes vary. Using mandatory element-based snap positions, scrolling will always complete with an image centered in the scroll container’s visual viewport.

img {
    /* Specifies that the center of each photo
       should align with the center of the scroll
       container in the X axis when snapping */
    scroll-snap-align: center none;
}
.photoGallery {
    width: 500px;
    overflow-x: auto;
    overflow-y: hidden;
    white-space: nowrap;
    /* Requires that the scroll offset always be
       at a valid snap position when the scrolling
       operation completes. */
    scroll-snap-type: mandatory;
}

<div class="photoGallery">
    <img src="img1.jpg">
    <img src="img2.jpg">
    <img src="img3.jpg">
    <img src="img4.jpg">
    <img src="img5.jpg">
</div>

The layout of the scroll container’s contents in the example. The snap alignment container is represented by the red rectangle, and the snap margin is represented by the yellow rectangle. Since the scroll-snap-align is "center" in the X axis, a snap position is established at each scroll offset which aligns the X-center of the snap alignment container (represented by a red dotted line) with the X-center of a snap margin (represented by a yellow dotted line).

This example builds a paginated document that aligns each page near to (but not exactly on) the edge of the scroll container. This allows the previous page to "peek" in from above in order to make the user aware that they are not yet at the top of the document. Using proximity snap positions instead of mandatory snap positions allows the user to stop halfway through a page (rather than forcing them to snap one page at a time). However, if a scrolling operation would finish near a snap position, then the scroll will be adjusted to align the page as specified.

.page {
    /* Defines the top of each page as the
       edge that should be used for snapping */
    scroll-snap-align: none start;
}
.docScroller {
    width: 500px;
    overflow-x: hidden;
    overflow-y: auto;
    /* Specifies that each element’s snap margin should
       align with a 100px offset from the top edge. */
    scroll-snap-padding: 100px 0 0;
    /* Encourages scrolling to end at a snap position when the
        operation completes, if it is near a valid snap position */
    scroll-snap-type: proximity;
}

<div class="docScroller">
    <div class="page">Page 1</div>
    <div class="page">Page 2</div>
    <div class="page">Page 3</div>
    <div class="page">Page 4</div>
</div>

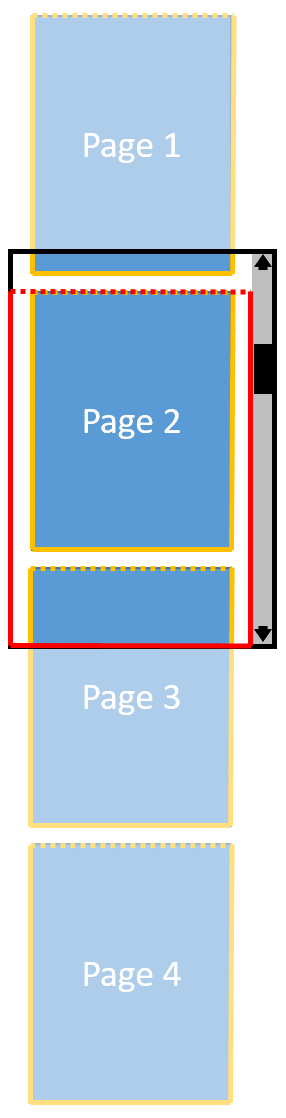

The layout of the scroll container’s contents in the example. The snap alignment container is represented by the red rectangle (inset from the top by 100px due to the scroll-snap-padding), and the snap margin is represented by the yellow rectangle. Since the scroll-snap-align is "start" in the Y axis, a snap position is established at each scroll offset which aligns the Y-start of the snap alignment container (represented by a red dotted line) with the Y-start of a snap margin (represented by a yellow dotted line).

3. Overview

This module introduces control over scroll snap positions, which are scroll positions that produce particular alignments of content within a scrollable viewport. Using the scroll-snap-type property on the relevant scroll container, the author can request a particular bias for the viewport to land on a valid snap position after scrolling operations.

Valid snap positions can be specified as a particular alignment (scroll-snap-align) of an element’s scroll snap margin (scroll-snap-margin, defaulting to its margin box) within the scroll container’s snap alignment container (the rectangle obtained by reducing its visual viewport by its scroll-snap-padding). This is conceptually equivalent to specifying the alignment of an alignment subject within an alignment container. A scroll position that satisfies the specified alignment is a valid snap position.

Snap positions must only affect the nearest ancestor (on the element’s containing block chain) scroll container.

4. Definitions

scroll container#scroll-containerReferenced in:1. Introduction2. Motivating Examples (2) (3) (4)3. Overview (2) (3)5.1. Scroll Snap Types: the scroll-snap-type property (2) (3) (4)5.2. Scroll Snap Padding: the scroll-snap-padding property6.1. Scroll Snap Margin: the scroll-snap-margin property (2) (3): An element which provides a scrolling user interface as described in [CSS21], particularly in the section on overflow.
snap alignment container#snap-alignment-containerReferenced in:3. Overview5.2. Scroll Snap Padding: the scroll-snap-padding property: A scroll container’s snap alignment container is the rectangle obtained by reducing its visual viewport by its scroll-snap-padding.
Better name for this concept?
snap margin#scroll-snap-marginReferenced in:3. Overview6.1. Scroll Snap Margin: the scroll-snap-margin property (2): An element’s snap margin is the rectangle obtained by expanding its border box by its scroll-snap-margin.
snap position#scroll-snap-positionReferenced in:3. Overview (2) (3) (4) (5)5.1. Scroll Snap Types: the scroll-snap-type property5.2. Scroll Snap Padding: the scroll-snap-padding property (2)6.1. Scroll Snap Margin: the scroll-snap-margin property6.2. Scroll Snap Alignment: the scroll-snap-align property (2) (3) (4): For a scroll container, a particular value for its scroll offset is a snap position if when scrolled to that offset the visual viewport of the scroll container would align with a descendent element in the manner specified by the scroll snap properties.

5. Properties on the scroll container

5.1. Scroll Snap Types: the scroll-snap-type property

The scroll-snap-type property defines how strictly a scroll container’s visual viewport should rest on snap positions. It intentionally does not specify nor mandate any precise animations or physics used to enforce those snap positions; this is left up to the user agent.

Open issue on whether to enhance the scroll-snap-type property for specifying the axis or adding a second property. We have resolved that this functionality be added once the issue is resolved.

Currently considering renaming the values

Name:	scroll-snap-type#propdef-scroll-snap-typeReferenced in:3. Overview5.1. Scroll Snap Types: the scroll-snap-type property (2)
Value:	none \| mandatory \| proximity
Initial:	none
Applies to:	all elements
Inherited:	no
Percentages:	n/a
Media:	interactive
Computed value:	as specified
Animatable:	no

none: The visual viewport of this scroll container must ignore snap positions.
mandatory: The visual viewport of this scroll container is guaranteed to rest on a snap position when there are no active scrolling operations. That is, it must come to rest on a snap position at the termination of a scroll, if a valid, reachable snap position exists. If no valid, reachable snap position exists then no snapping occurs.
If the content changes such that the visual viewport would no longer rest on a snap position (e.g. content is added, moved, deleted, resized), the scroll offset must be modified to maintain alignment of the visual viewport with a snap position. If the visual viewport was already aligned with a snap position prior to the content change and that snap position still exists (e.g. its associated element was not deleted), that same snap position must be satisfied after the content change.
proximity: The visual viewport of this scroll container may come to rest on a snap position at the termination of a scroll at the discretion of the UA given the parameters of the scroll.
When the visual viewport currently rests on a snap position, if the content changes such that the visual viewport would no longer rest on that snap position (e.g. content is added, moved, deleted, resized), the scroll offset must be modified to maintain alignment of the visual viewport with a snap position. If the visual viewport was already aligned with a snap position prior to the content change and that snap position still exists (e.g. its associated element was not deleted) and if the user agent elects to modify the scroll offset to maintain snap position alignment, that same snap position must be satisfied after the content change.

5.2. Scroll Snap Padding: the scroll-snap-padding property

The scroll-snap-padding property defines the snap alignment container, a region inset from the visual viewport of a scroll container used in calculating its snap positions. The snap alignment container is used as the alignment container when calculating valid snap positions.

Name:	scroll-snap-padding#propdef-scroll-snap-paddingReferenced in:3. Overview4. Definitions5.2. Scroll Snap Padding: the scroll-snap-padding property (2)6.2. Scroll Snap Alignment: the scroll-snap-align property (2) (3)
Value:	[ <length> \| <percentage> ]{1,4}
Initial:	0
Applies to:	scroll containers
Inherited:	no
Percentages:	relative to the scroll container’s visual viewport
Media:	interactive
Computed value:	as specified, with lengths made absolute
Animatable:	yes

[ <length> | <percentage> ]{1,4}: Specifies the region inset from the visual viewport. Values are interpreted as for padding, and specify inward offsets from each edge of the visual viewport.

This property is a shorthand property that sets all of the scroll-snap-padding-* longhands in one declaration.

6. Properties on the elements

6.1. Scroll Snap Margin: the scroll-snap-margin property

The scroll-snap-margin property defines the scroll snap margin on elements within a scroll container, used in calculating snap positions for that scroll container.

Name:	scroll-snap-margin#propdef-scroll-snap-marginReferenced in:3. Overview4. Definitions6.1. Scroll Snap Margin: the scroll-snap-margin property (2)
Value:	<length>{1,4}
Initial:	0
Applies to:	all elements
Inherited:	no
Percentages:	n/a
Media:	interactive
Computed value:	as specified, with lengths made absolute
Animatable:	yes

<length>{1,4}: Specifies the outset of the element’s snap margin from the axis-aligned bounding box of the transformed border box, in the scroll container’s coordinate space. Outsets are applied to this bounding box, not the border box.
Note: This ensures that the scroll snap margin is always rectangular and axis-aligned to the scroll container’s coordinate space.

This property is a shorthand property that sets all of the scroll-snap-margin-* longhands in one declaration.

6.2. Scroll Snap Alignment: the scroll-snap-align property

The scroll-snap-align property specifies how an element’s scroll snap margin should align with its ancestor scroll container’s snap alignment container. The two values specify the snapping behavior in the x and y axes, respectively. If only one value is specified, the second value defaults to the same value.

Should this be x/y axes, or inline/block? Starting with x/y axes for consistency with padding/area, otherwise a writing mode change would result in a axis mismatch (since padding is physical by default).

Name:	scroll-snap-align#propdef-scroll-snap-alignReferenced in:3. Overview6.2. Scroll Snap Alignment: the scroll-snap-align property (2)
Value:	[ none \| start \| end \| center ]{1,2}
Initial:	none
Applies to:	all elements
Inherited:	no
Percentages:	n/a
Media:	interactive
Computed value:	two keywords
Animatable:	no

none: This box does not define a snap position in the specified axis.
start: The scroll offset which aligns the start edge of this box’s scroll snap margin with the start edge of its ancestor scroll container’s region defined by scroll-snap-padding in the specified axis is a snap position in that axis.
end: The scroll offset which aligns the end edge of this box’s scroll snap margin with the end edge of its ancestor scroll container’s region defined by scroll-snap-padding in the specified axis is a snap position in that axis.
center: The scroll offset which aligns the center of this box’s scroll snap margin with the center of its ancestor scroll container’s region defined by scroll-snap-padding in the specified axis is a snap position in that axis.

7. Acknowledgements

Many thanks to lots of people for their proposals and recommendations, some of which are incorporated into this document.

Conformance

Document conventions

Conformance requirements are expressed with a combination of descriptive assertions and RFC 2119 terminology. The key words “MUST”, “MUST NOT”, “REQUIRED”, “SHALL”, “SHALL NOT”, “SHOULD”, “SHOULD NOT”, “RECOMMENDED”, “MAY”, and “OPTIONAL” in the normative parts of this document are to be interpreted as described in RFC 2119. However, for readability, these words do not appear in all uppercase letters in this specification.

All of the text of this specification is normative except sections explicitly marked as non-normative, examples, and notes. [RFC2119]

Examples in this specification are introduced with the words “for example” or are set apart from the normative text with class="example", like this:

Informative notes begin with the word “Note” and are set apart from the normative text with class="note", like this:

Advisements are normative sections styled to evoke special attention and are set apart from other normative text with <strong class="advisement">, like this: UAs MUST provide an accessible alternative.

Conformance classes

A style sheet is conformant to this specification if all of its statements that use syntax defined in this module are valid according to the generic CSS grammar and the individual grammars of each feature defined in this module.

A renderer is conformant to this specification if, in addition to interpreting the style sheet as defined by the appropriate specifications, it supports all the features defined by this specification by parsing them correctly and rendering the document accordingly. However, the inability of a UA to correctly render a document due to limitations of the device does not make the UA non-conformant. (For example, a UA is not required to render color on a monochrome monitor.)

An authoring tool is conformant to this specification if it writes style sheets that are syntactically correct according to the generic CSS grammar and the individual grammars of each feature in this module, and meet all other conformance requirements of style sheets as described in this module.

Requirements for Responsible Implementation of CSS

The following sections define several conformance requirements for implementing CSS responsibly, in a way that promotes interoperability in the present and future.

Partial Implementations

So that authors can exploit the forward-compatible parsing rules to assign fallback values, CSS renderers must treat as invalid (and ignore as appropriate) any at-rules, properties, property values, keywords, and other syntactic constructs for which they have no usable level of support. In particular, user agents must not selectively ignore unsupported property values and honor supported values in a single multi-value property declaration: if any value is considered invalid (as unsupported values must be), CSS requires that the entire declaration be ignored.

Implementations of Unstable and Proprietary Features

Implementations of CR-level Features

Once a specification reaches the Candidate Recommendation stage, implementers should release an unprefixed implementation of any CR-level feature they can demonstrate to be correctly implemented according to spec, and should avoid exposing a prefixed variant of that feature.

To establish and maintain the interoperability of CSS across implementations, the CSS Working Group requests that non-experimental CSS renderers submit an implementation report (and, if necessary, the testcases used for that implementation report) to the W3C before releasing an unprefixed implementation of any CSS features. Testcases submitted to W3C are subject to review and correction by the CSS Working Group.

Further information on submitting testcases and implementation reports can be found from on the CSS Working Group’s website at http://www.w3.org/Style/CSS/Test/. Questions should be directed to the public-css-testsuite@w3.org mailing list.
