Abstract

This document provides an intuitive introduction and guide to the PROV specification for provenance on the Web. PROV is a core data model for provenance for building representations of the entities, people and processes involved in producing a piece of data or thing in the world. This primer explains the fundamental PROV concepts and provides examples of its use. The primer is intended as a starting point for those wishing to create or use PROV data.

The PROV Document Overview describes the overall state of PROV, and should be read before other PROV documents.

Status of This Document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.

PROV Family of Documents

This document is part of the PROV family of documents, a set of documents defining various aspects that are necessary to achieve the vision of inter-operable interchange of provenance information in heterogeneous environments such as the Web. These documents are listed below. Please consult the [PROV-OVERVIEW] for a guide to reading these documents.

This document was published by the Provenance Working Group as a Working Draft. If you wish to make comments regarding this document, please send them to public-prov-comments@w3.org (subscribe, archives). All comments are welcome.

Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. The group does not expect this document to become a W3C Recommendation. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.

Table of Contents

1. Introduction

This primer document provides an accessible introduction to the PROV specification for provenance on the Web. The provenance of digital objects represents their origins. PROV is a proposed specification to express provenance records, which contain descriptions of the entities and activities involved in producing and delivering or otherwise influencing a given object. For the remainder of this document, we use the term 'provenance' to refer also to records of provenance, except where the distinction is important for clarity. By knowing the provenance of an object, we can perceive how to use it. Provenance can be used for many purposes, such as understanding how data was collected so it can be meaningfully used, determining ownership and rights over an object, making judgments about information to determine whether to trust it, verifying that the process and steps used to obtain a result complies with given requirements, and reproducing how something was generated.

As a specification for provenance, PROV accommodates all those different uses of provenance. Different people may have different perspectives on provenance, and as a result different types of information might be captured in provenance records.

Provenance records are metadata. There are other kinds of metadata that is not provenance. For example, the size of an image is metadata of that image but it is not provenance. For general background on provenance, a comprehensive overview of requirements, use cases, prior research, and proposed vocabularies for provenance are available from the Final Report of the W3C Provenance Incubator Group [PROVENANCE-XG]. That document contains three general scenarios that may help identify the provenance aspects of planned applications and help plan the design of a provenance system.

This primer document aims to ease the adoption of the PROV specifications by providing:

There are additional reference documents for PROV that are not covered in this primer, including the PROV Access and Query aspects of the specification [PROV-AQ], the constraints on the PROV data model [PROV-CONSTRAINTS], a formal semantics of the PROV data model [PROV-SEM], and the PROV XML notation [PROV-XML].

2. Intuitive overview of PROV

This section provides an intuitive explanation of the main concepts in PROV. As with the rest of this document, it should be treated as a starting point for understanding the model. The PROV data model document [PROV-DM] provides precise definitions and constraints [PROV-CONSTRAINTS] to be used.

The following diagram provides a high level overview of the structure of PROV records, limited to some key PROV concepts discussed in this document. Note that because PROV is meant to describe how things were created or delivered, PROV relations are named so they can be used in assertions about the past.

PROV key concepts overview

2.1 Entities

In PROV, physical, digital, conceptual, or other kinds of thing are called entities. Examples of such entities are a web page, a chart, and a spellchecker. Provenance records can describe the provenance of entities, and an entity’s provenance may refer to many other entities. For example, a document D is an entity whose provenance refers to other entities such as a chart inserted into D, and the dataset that was used to create that chart. Entities may be described as having different attributes and be described from different perspectives. For example, document D as stored in my file system, the second version of document D, and D as an evolving document, are three distinct entities for which we may describe provenance.

2.2 Activities

Activities are how entities come into existence and how their attributes change to become new entities, often making use of previously existing entities to achieve this. They are dynamic aspects of the world, such as actions, processes, etc. For example, if the second version of document D was generated by a translation from the first version of the document in another language, then this translation is an activity.

2.3 Usage and Generation

Activities generate new entities. For example, writing a document brings the document into existence, while revising the document brings a new version into existence. Activities also make use of entities. For example, revising a document to fix spelling mistakes uses the original version of the document as well as a list of corrections. Generation does not always occur at the end of an activity, and an activity may generate entities part-way through. Likewise, usage does not always occur at the beginning of an activity.

2.4 Agents and Responsibility

An agent takes a role in an activity such that the agent can be assigned some degree of responsibility for the activity taking place. An agent can be a person, a piece of software, an inanimate object, an organization, or other entities that may be ascribed responsibility. When an agent has some responsibility for an activity, PROV says the agent was associated with the activity, where several agents may be associated with an activity and vice-versa. Consider a chart displaying some statistics regarding crime rates over time in a linear regression. To represent the provenance of that chart, we could state that the person who created the chart was an agent involved in its creation, and that the software used to create the chart was also an agent involved in that activity. An agent may be acting on behalf of others, e.g. an employee on behalf of their organization, and we can express such chains of responsibility in the provenance.

We can also describe that an entity is attributed to an agent to express the agent's responsibility for that entity, possibly along with other agents. This description can be understood as a shorthand for saying that the agent was responsible for the activity which generated the entity.

One may want to describe the provenance of an agent. For example, an organization responsible for the creation of a report may evolve over time as the report is written as some members leave and others join. To make provenance assertions about an agent in PROV, the agent must be declared explicitly both as an agent and as an entity.

2.5 Roles

A role is a description of the function or the part that an entity played in an activity. Roles specify the relationship between an entity and an activity, i.e. how the activity used or generated the entity. Roles also specify how agents are involved in an activity, qualifying their participation in the activity or specifying for what aspect of it each agent was responsible. For example, an agent may play the role of "editor" in an activity that uses one entity in the role of "document to be edited" and another in the role of "addition to be made to the document", to generate a further entity in the role of "edited document". Roles are application specific, so PROV does not define any particular roles.

2.6 Derivation and Revision

When one entity's existence, content, characteristics and so on are at least partly due to another entity, then we say that the former was derived from the latter. For example, one document may contain material copied from another, and a chart was derived from the data that it illustrates.

PROV allows some common, specialized kinds of derivation to be described. For example, a given entity, such as a document, may go through multiple revisions over time. Between revisions, one or more attributes of the entity may change. In PROV, the result of each revision is a new entity. PROV allows one to relate those entities by making a description that one was a revision of another. Another kind of derivation is to say that one entity, a quotation, was quoted from another entity, commonly a document.

2.7 Plans

Activities may follow pre-defined procedures, such as recipes, tutorials, instructions, or workflows. PROV refers to these, in general, as plans, and allows the description that a plan was followed, by agents, in executing an activity.

2.8 Time

Time is often a critical aspect of provenance. PROV allows the timing of significant events to be described, including when an entity was generated or used, or when an activity started and finished. For example, the model can be used to describe facts such as when a new version of a document was created (generation time), or when a document was edited (start and end of the editing activity).

2.9 Alternate Entities and Specialization

There is often more than one way to describe something in a record of provenance. Each perspective will be referred to by a separately identified entity, and PROV provides a mechanism for linking the different descriptions of the same thing together through the mechanism of specialization. One entity is a specialization of another entity if it shares the same fixed attributes, with the possible addition of further fixed attributes. This concept is best illustrated through a few use cases, as below.

Entities can be mutable things. For example, a webpage is a single entity, W, despite being edited over time. Each version of the webpage is also an entity, W1, W2... To connect an individual version to the webpage in general, we say that the former is a specialization of the latter: W1 is a specialization of W, W2 is a specialization of W, and so on.

Two individuals may create provenance referring to the same thing from different perspectives. For example, the author of an article may attribute that article to themselves using PROV while, independently, a reader might quote a fact from that article elsewhere and document this in PROV. If the author later changes the fact, then from the reader's perspective there are now two versions of the article, and they had quoted from the version before the change. From the author's perspective, there is a single article, attributed to themselves. If either of them, or a third party, were to connect the two PROV records, they would say that the article as referred to by the reader is a specialization of the same article as referred to by the author.

The above illustrates where we may want to connect entities by saying that they refer to the same thing, but at different levels of specialization. PROV also allows us to more generally draw a connection between two descriptions of the same thing, even if not at different levels of specialization, describing the entities as alternates of each other. For example, two versions of the webpage above, W1 and W2, are alternates of each other because they describe the same webpage.

As another example, if a file is copied from one directory to another to create a backup, we may say that the copies are alternate versions of the same, location-independent, file. Specifically, we may say that the file in the first directory, entity F1, is an alternate of the file in the second directory, entity F2. Note that it is the context (location) rather than content of the file that differs between the entities in this case.

3. Examples of Key Concepts in PROV

In the following sections, we show how PROV can be used to model provenance in a specific example scenario. Samples of PROV data are given. These samples use the namespace prefixes prov, denoting terms from the PROV ontology, and ex, denoting terms specific to the example. We illustrate in these examples how PROV can be used in combination with other languages, such as FOAF and Dublin Core (with namespace prefix foaf and dcterms respectively).

The samples can be displayed in one or more of the following formats.

Select the formats to display using the buttons below. Note that if all formats are hidden, the worked examples may not make sense!

3.1 Entities

An online newspaper publishes an article with a chart about crime statistics making using of data (GovData) provided through a government portal. The article includes a chart based on the data, with data values composed (aggregated) by geographical regions.

A blogger, Betty, looking at the article, spots what she thinks to be an error in the chart. Betty retrieves a record of the provenance of the article, describing how it was created.

Betty finds the following descriptions of entities in the provenance.

Turtle Example (hide all)
  ex:article     a prov:Entity ;
                 dcterms:title "Crime rises in cities" .
  ex:dataset1    a prov:Entity .
  ex:regionList  a prov:Entity .
  ex:composition a prov:Entity .
  ex:chart1      a prov:Entity .

PROV-N Example (hide all)
  entity(ex:article, [dcterms:title="Crime rises in cities"])
  entity(ex:dataSet1)
  entity(ex:regionList)
  entity(ex:composition)
  entity(ex:chart1)

XML Example (hide all)
  <prov:document>
    ...
    <prov:entity prov:id="ex:article">
      <dct:title>Crime rises in cities</dct:title>
    </prov:entity>
    <prov:entity prov:id="ex:dataSet1"/>
    <prov:entity prov:id="ex:regionList"/>
    <prov:entity prov:id="ex:composition"/>
    <prov:entity prov:id="ex:chart1"/>
  </prov:document>


These statements, in order, refer to the article (ex:article), an original data set (ex:dataSet1), a list of regions (ex:regionList), data aggregated by region (ex:composition), and a chart (ex:chart1), and state that each is an entity. Any entity may have attributes, such as the title of the article, expressed using dcterms:title above.

PROV data is commonly visualized for human consumption using particular conventions, which we will introduce over the following sections. To start with, entities are denoted using ovals, as shown below.

Visualization of the example entities

3.2 Activities

Further, the provenance describes that there was an activity (ex:compile) denoting the compilation of the chart from the data set.

Turtle Example (hide all)
  ex:compile a prov:Activity .

PROV-N Example (hide all)
  activity(ex:compile)

XML Example (hide all)
  <prov:document>
    ...
    <prov:activity prov:id="ex:compile"/>
  </prov:document>


The provenance also includes reference to the more specific steps involved in this compilation, which are first composing the data by region (ex:compose) and then generating the chart graphic (ex:illustrate).

Turtle Example (hide all)
  ex:compose    a prov:Activity .
  ex:illustrate a prov:Activity .

PROV-N Example (hide all)
  activity(ex:compose)
  activity(ex:illustrate)

XML Example (hide all)
  <prov:document>
    ...
    <prov:activity prov:id="ex:compose"/>
    <prov:activity prov:id="ex:illustrate"/>
  </prov:document>


In visualizations of the PROV data, activities are depicted as rectangles, as below.

Visualization of the example activities

3.3 Usage and Generation

Concluding the basic description of what occurred, the provenance describes the key relations among the above entities and activities, i.e. the usage of an entity by an activity, or the generation of an entity by an activity.

For example, the descriptions below state that the composition activity (ex:compose) used the original data set, that it used the list of regions, and that the composed data was generated by this activity.

Turtle Example (hide all)
  ex:compose      prov:used           ex:dataSet1 ;
                  prov:used           ex:regionList .
  ex:composition  prov:wasGeneratedBy ex:compose .

PROV-N Example (hide all)
  used(ex:compose, ex:dataSet1, -)
  used(ex:compose, ex:regionList, -)
  wasGeneratedBy(ex:composition, ex:compose, -)


Note that the - argument in the examples above denote unspecified optional information. See the [PROV-N] specification for the details of what arguments may be expressed in each PROV-N statement.

XML Example (hide all)
  <prov:document>
    ...
    <prov:used>
      <prov:activity prov:ref="ex:compose"/>
      <prov:entity prov:ref="ex:dataset1"/>
    </prov:used>
    <prov:used>
      <prov:activity prov:ref="ex:compose"/>
      <prov:entity prov:ref="ex:regionList"/>
    </prov:used>
    <prov:wasGeneratedBy>
      <prov:entity prov:ref="ex:composition"/>
      <prov:activity prov:ref="ex:compose"/>
    </prov:wasGeneratedBy>
  </prov:document>


Similarly, the chart graphic creation activity (ex:illustrate) used the composed data, and the chart was generated by this activity.

Turtle Example (hide all)
  ex:illustrate prov:used           ex:composition .
  ex:chart1     prov:wasGeneratedBy ex:illustrate .

PROV-N Example (hide all)
  used(ex:illustrate, ex:composition, -)
  wasGeneratedBy(ex:chart1, ex:illustrate, -)

XML Example (hide all)
  <prov:document>
    ...
    <prov:used>
      <prov:activity prov:ref="ex:illustrate"/>
      <prov:entity prov:ref="ex:composition"/>
    </prov:used>
    <prov:wasGeneratedBy>
      <prov:entity prov:ref="ex:chart1"/>
      <prov:activity prov:ref="ex:illustrate"/>
    </prov:wasGeneratedBy>
  </prov:document>


In visualizing the PROV data, usage and generation are connections between entities and activities. The arrows point from the future to the past.

Connection of the entities and activities by use and generation links

3.4 Agents and Responsibility

Digging deeper, Betty wants to know who compiled the chart. Betty sees that Derek was involved in both the composition and chart creation activities:

Turtle Example (hide all)
  ex:compose    prov:wasAssociatedWith ex:derek .
  ex:illustrate prov:wasAssociatedWith ex:derek .

PROV-N Example (hide all)
  wasAssociatedWith(ex:compose, ex:derek, -)
  wasAssociatedWith(ex:illustrate, ex:derek, -)

XML Example (hide all)
  <prov:document>
    ...
    <prov:wasAssociatedWith>
      <prov:activity prov:ref="ex:compose"/>
      <prov:agent prov:ref="ex:derek"/>
    </prov:wasAssociatedWith>
    <prov:wasAssociatedWith>
      <prov:activity prov:ref="ex:illustrate"/>
      <prov:agent prov:ref="ex:derek"/>
    </prov:wasAssociatedWith>
  </prov:document>


The record for Derek provides the following description that Derek is an agent, specifically a person, followed by non-PROV information giving attributes of Derek.

Turtle Example (hide all)
  ex:derek a prov:Agent ;
           a prov:Person ;
           foaf:givenName "Derek"^^xsd:string ;
           foaf:mbox      <mailto:derek@example.org> .

PROV-N Example (hide all)
  agent(ex:derek,
        [prov:type='prov:Person', foaf:givenName="Derek",
         foaf:mbox="<mailto:derek@example.org>"])

XML Example (hide all)
  <prov:document>
    ...
    <prov:agent prov:id="ex:derek">
      <prov:type>prov:Person</prov:type>
      <foaf:givenName>Derek</foaf:givenName>
      <foaf:mbox>mailto:derek@example.org</foaf:mbox>
    </prov:agent>
  </prov:document>


Derek works as part of an organization, Chart Generators Inc, and so the provenance declares that he acts on their behalf. Note that the organization is itself an agent.

Turtle Example (hide all)
  ex:derek prov:actedOnBehalfOf ex:chartgen .
  ex:chartgen a prov:Agent ;
              a prov:Organization ;
              foaf:name "Chart Generators Inc" .

PROV-N Example (hide all)
  agent(ex:chartgen,
        [prov:type='prov:Organization',
         foaf:name="Chart Generators Inc"])
  actedOnBehalfOf(ex:derek, ex:chartgen)

XML Example (hide all)
  <prov:document>
    ...
    <prov:agent prov:id="ex:chartgen">
      <prov:type>prov:Organization</prov:type>
      <foaf:name>Chart Generators Inc</foaf:name>
    </prov:agent>
    <prov:actedOnBehalfOf>
      <prov:delegate prov:ref="ex:derek"/>
      <prov:responsible prov:ref="ex:chartgen"/>
    </prov:actedOnBehalfOf>
  </prov:document>


It would also be possible to express the more specific statement that Derek worked on the organization's behalf for a particular activity, rather than in general, and so may have acted on behalf of other organizations for other activities. See the PROV specifications for details on how to express activity-specific delegation.

Finally, there is an explicit statement in the provenance that the chart was attributed to Derek.

Turtle Example (hide all)
  ex:chart1 prov:wasAttributedTo ex:derek .

PROV-N Example (hide all)
  wasAttributedTo(ex:chart1, ex:derek)

XML Example (hide all)
  <prov:document>
    ...
    <prov:wasAttributedTo>
      <prov:entity prov:ref="ex:chart1"/>
      <prov:agent prov:ref="ex:derek"/>
    </prov:wasAttributedTo>
  </prov:document>

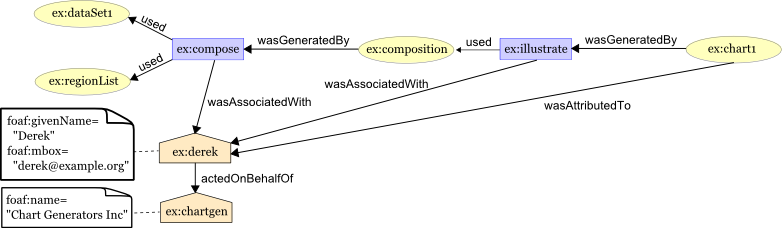

We can extend our graphical depiction to show the agents, association and attribution links.

Agents added to provenance graph and linked to entities and activities

3.5 Roles

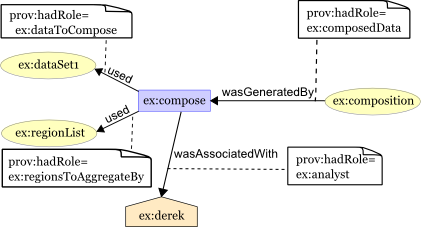

For Betty to understand where the error lies, she needs to have more detailed information on how entities have been used in and generated by activities. Betty has determined that ex:compose used entities ex:regionList and ex:dataSet1, but she does not know what function these entities played in the processing. Betty also knows that ex:derek was associated with the activities, but she does not know if Derek was the analyst responsible for determining how the data should be composed.

The above information is described as roles in the provenance. The composition activity involved entities in four roles: the data to be composed (ex:dataToCompose), the regions to aggregate by (ex:regionsToAggregateBy), the resulting composed data (ex:composedData), and the analyst doing the composition (ex:analyst).

Turtle Example (hide all)
  ex:dataToCompose        a prov:Role .
  ex:regionsToAggregateBy a prov:Role .
  ex:composedData         a prov:Role .
  ex:analyst              a prov:Role .


Examples in the sections above show descriptions of the simple facts that the composition activity used, generated and was enacted by entities/agents. For example, the usage of the data set by the compose activity is expressed as follows.

Turtle Example (hide all)
  ex:compose prov:used ex:dataSet1 .


The provenance can contain more details of exactly how these entities and agents were involved in the activity. To express this, PROV-O refers to qualified usage, qualified generation, etc., which are descriptions consisting of several statements about how usage, generation, etc. took place. For example, we may describe the plan followed by an agent in performing an activity, or the time at which an activity generated an entity, both illustrated later. Another example of qualified involvement is the role an entity played in an activity. The descriptions below state that the composition activity (ex:compose) included the usage of the government data set (ex:dataSet1) in the role of the data to be composed (ex:dataToCompose).

Turtle Example (hide all)
  ex:compose prov:qualifiedUsage [
                a prov:Usage ;
                prov:entity  ex:dataSet1 ;
                prov:hadRole ex:dataToCompose
     ] .


In PROV-N, the role is expressed as one of the list of attributes in the used expression, with the attribute name prov:role.

PROV-N Example (hide all)
  used(ex:compose, ex:dataSet1, -, [prov:role='ex:dataToCompose'])

XML Example (hide all)
  <prov:document>
    ...
    <prov:used>
      <prov:activity prov:ref="ex:compose"/>
      <prov:entity prov:ref="ex:dataSet1"/>
      <prov:role>ex:dataToCompose</prov:role>
    </prov:used>
  </prov:document>


This can then be distinguished from the same activity's usage of the list of regions because the roles played are different.

Turtle Example (hide all)
  ex:compose prov:qualifiedUsage [
                a prov:Usage ;
                prov:entity  ex:regionList ;
                prov:hadRole ex:regionsToAggregateBy
     ] .

PROV-N Example (hide all)
  used(ex:compose, ex:regionList, -, [prov:role='ex:regionsToAggregateBy'])

XML Example (hide all)
  <prov:document>
    ...
    <prov:used>
      <prov:activity prov:ref="ex:compose"/>
      <prov:entity prov:ref="ex:regionList"/>
      <prov:role>ex:regionsToAggregateBy</prov:role>
    </prov:used>
  </prov:document>


Similarly, the provenance includes descriptions that the same activity was enacted in a particular way by Derek, so it indicates that he had the role of ex:analyst, and that the entity ex:composition took the role of the composed data in what the activity generated:

Turtle Example (hide all)
  ex:compose prov:qualifiedAssociation [
                a  prov:Association ;
                prov:agent    ex:derek ;
                prov:hadRole  ex:analyst
  ] .
  ex:composition prov:qualifiedGeneration [
                     a prov:Generation ;
                     prov:activity  ex:compose ;
                     prov:hadRole   ex:composedData
  ] .

PROV-N Example (hide all)
  wasAssociatedWith(ex:compose, ex:derek, -, [prov:role='ex:analyst'])
  wasGeneratedBy(ex:composition, ex:compose, -, [prov:role='ex:composedData'])

XML Example (hide all)
  <prov:document>
    ...
    <prov:wasAssociatedWith>
      <prov:activity prov:ref="ex:compose"/>
      <prov:agent prov:ref="ex:derek"/>
      <prov:role>ex:analyst</prov:role>
    </prov:wasAssociatedWith>
    <prov:wasGeneratedBy>
      <prov:entity prov:ref="ex:composition"/>
      <prov:activity prov:ref="ex:compose"/>
      <prov:role>ex:composedData</prov:role>
    </prov:wasGeneratedBy>
  </prov:document>


Depicting the above visually, we have the following.

Provenance graph annotated with roles played by entities and agents

3.6 Derivation and Revision

After looking at the detail of the compilation activity, there appears to be nothing wrong, so Betty concludes the error is in the government dataset. She looks at the dataset ex:dataSet1, and sees that it is missing data from one of the zipcodes in the area. She contacts the government agency, and a new version of GovData is created, declared to be the next revision of the data. The provenance of this new dataset, ex:dataSet2, states that it is a revision of the old data set, ex:dataSet1.

Turtle Example (hide all)
  ex:dataSet2 a prov:Entity ;
              prov:wasRevisionOf ex:dataSet1 .

PROV-N Example (hide all)
  entity(ex:dataSet2)
  wasDerivedFrom(ex:dataSet2, ex:dataSet1, [prov:type='prov:Revision'])

XML Example (hide all)
  <prov:document>
    ...
    <entity prov:id="dataSet2"/>
    <prov:wasDerivedFrom>
      <prov:generatedEntity prov:ref="ex:dataSet2"/>
      <prov:usedEntity prov:ref="ex:dataSet1"/>
      <prov:type>prov:Revision</prov:type>
    </prov:wasDerivedFrom>
  </prov:document>


Derek notices that there is a new dataset available and creates a new chart based on the revised data, using another compilation activity. Betty checks the article again at a later point, and wants to know if it is based on the old or new GovData. She sees a new description stating that the new chart is derived from the new dataset (the same relation could be expressed between the old chart and old dataset).

Turtle Example (hide all)
  ex:chart2 a prov:Entity ;
            prov:wasDerivedFrom ex:dataSet2 .

PROV-N Example (hide all)
  wasDerivedFrom(ex:chart2, ex:dataSet2)

XML Example (hide all)
  <prov:document>
    ...
    <prov:wasDerivedFrom>
      <prov:generatedEntity prov:ref="ex:chart2"/>
      <prov:usedEntity prov:ref="ex:dataSet2"/>
    </prov:wasDerivedFrom>
  </prov:document>


and that the new chart is a revision of the original one:

Turtle Example (hide all)
  ex:chart2 a prov:Entity ;
            prov:wasRevisionOf ex:chart1 .

PROV-N Example (hide all)
  entity(ex:chart2)
  wasDerivedFrom(ex:chart2, ex:chart1, [prov:type='prov:Revision'])

XML Example (hide all)
  <prov:document>
    ...
    <entity prov:id="chart2"/>
    <prov:wasDerivedFrom>
      <prov:generatedEntity prov:ref="ex:chart2"/>
      <prov:usedEntity prov:ref="ex:chart1"/>
      <prov:type>prov:Revision</prov:type>
    </prov:wasDerivedFrom>
  </prov:document>


Derivation and revision are connections between entities, and so depicted with arrows in our visualization.

Derivation and revision links between entities

3.7 Plans

Betty then wishes to know whether the new data set correctly addresses the error that existed before. The provenance of the new dataset, ex:dataSet2, describes not only who performed the corrections, Edith, but also what instructions she followed in doing so (in PROV terms, the plan). First, the correction activity (ex:correct), the person who corrected it, Edith (ex:edith), and the correction instructions (ex:instructions) are described.

Turtle Example (hide all)
  ex:correct      a prov:Activity .
  ex:edith        a prov:Agent, prov:Person .
  ex:instructions a prov:Plan .

PROV-N Example (hide all)
  activity(ex:correct)
  agent(ex:edith, [prov:type='prov:Person'])
  entity(ex:instructions)

XML Example (hide all)
  <prov:document>
    ...
    <prov:activity prov:id="ex:correct"/>
    <prov:agent prov:id="ex:edith">
      <prov:type>prov:Person</prov:type>
    </prov:agent>
    <prov:entity prov:id="ex:instructions">
      <prov:type>prov:Plan</prov:type>
    </prov:entity>
  </prov:document>


The connection between them is expressed in PROV-O using a qualified association giving details of how Edith was associated with the correction activity, including that she followed the above correction instructions.

Turtle Example (hide all)
  ex:correct prov:qualifiedAssociation [
                 a Association ;
                 prov:agent   ex:edith ;
                 prov:hadPlan ex:instructions
  ] .
  ex:dataSet2 prov:wasGeneratedBy ex:correct .


In PROV-N, the plan is an optional parameter to wasAssociatedWith descriptions.

PROV-N Example (hide all)
  wasAssociatedWith(ex:correct, ex:edith, ex:instructions)
  wasGeneratedBy(ex:dataSet2, ex:correct, -)


In PROV-XML, the plan is an optional child of the wasAssociatedWith element.

XML Example (hide all)
  <prov:document>
    ...
    <prov:wasAssociatedWith>
      <prov:activity prov:ref="ex:correct"/>
      <prov:agent prov:ref="ex:edith"/>
      <prov:plan prov:ref="ex:instructions"/>
    </prov:wasAssociatedWith>
    <prov:wasGeneratedBy>
      <prov:entity prov:ref="ex:dataSet2"/>
      <prov:activity prov:ref="ex:correct"/>
    </prov:wasGeneratedBy>
  </prov:document>

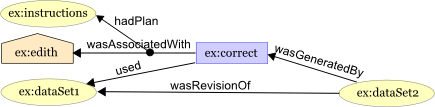

Plans are additional information about the connection from an activity to an agent, and so, in our visualization, connect to the link between them.

Annotaion of example provenance graph with plan followed

3.8 Time

The government agency that produced GovData is concerned to know how long the incorrect chart was in circulation before the corrected chart was created. That is, they wish to compare the times at which the original and the corrected charts were generated. The snippet below shows that the second chart was generated roughly a month after the first.

Turtle Example (hide all)
  ex:chart1 prov:generatedAtTime "2012-03-02T10:30:00"^^xsd:dateTime .
  ex:chart2 prov:generatedAtTime "2012-04-01T15:21:00"^^xsd:dateTime .

PROV-N Example (hide all)
  wasGeneratedBy(ex:chart1, ex:compile,  2012-03-02T10:30:00)
  wasGeneratedBy(ex:chart2, ex:compile2, 2012-04-01T15:21:00)

XML Example (hide all)
  <prov:document>
    ...
    <prov:wasGeneratedBy>
      <prov:entity prov:ref="ex:chart1"/>
      <prov:time>2012-03-02T10:30:00</prov:time>
    </prov:wasGeneratedBy>
    <prov:wasGeneratedBy>
      <prov:entity prov:ref="ex:chart2"/>
      <prov:time>2012-04-01T15:21:00</prov:time>
    </prov:wasGeneratedBy>
  </prov:document>


To ensure their procedures are efficient, the agency also wish to know how long the corrections took once the error was discovered. That is, they wish to know the start and end times of the correction activity (ex:correct). These details are expressed as follows, showing that the corrections took a little over a day.

Turtle Example (hide all)
  ex:correct prov:startedAtTime "2012-03-31T09:21:00"^^xsd:dateTime ;
             prov:endedAtTime   "2012-04-01T15:21:00"^^xsd:dateTime .

PROV-N Example (hide all)
  activity(ex:correct, 2012-03-31T09:21:00, 2012-04-01T15:21:00)

XML Example (hide all)
  <prov:document>
    ...
    <prov:activity prov:id="ex:correct">
      <prov:startTime>2012-03-31T09:21:00</prov:startTime>
      <prov:endTime>2012-04-01T15:21:00</prov:endTime>
    </prov:activity>
  </prov:document>

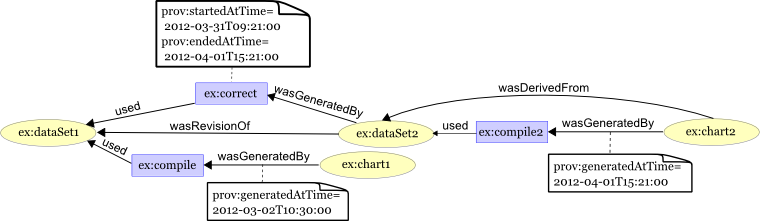

Time is visualized as additional information regarding activities or the links between activities and entities or agents.

Annotation of provenance graph with example timestamps

3.9 Alternate Entities and Specialization

Before noticing anything wrong with the government data, Betty had already posted a blog entry about the article. The blog entry had its own published provenance. In particular, it contains some text copied from the article, and the provenance states that this text (ex:quoteInBlogEntry) is quoted from the article.

Turtle Example (hide all)
  ex:quoteInBlogEntry a prov:Entity ;
               prov:value "Smaller cities have more crime than larger ones" ;
               prov:wasQuotedFrom ex:article .

PROV-N Example (hide all)
  entity(ex:quoteInBlogEntry, prov:value="Smaller cities have more crime than larger ones")
  wasDerivedFrom(ex:quoteInBlogEntry, ex:article, [prov:type='prov:Quotation'])

XML Example (hide all)
  <prov:document>
    ...
    <prov:entity prov:id="ex:quoteInBlogEntry">
      <prov:value>Smaller cities have more crime than larger ones</prov:value>
    </prov:entity>
    <prov:wasDerivedFrom>
      <prov:generatedEntity prov:ref="ex:quoteInBlogEntry"/>
      <prov:usedEntity prov:ref="ex:article"/>
      <prov:type>prov:Quotation</prov:type>
    </prov:wasDerivedFrom>
  </prov:document>


The newspaper, from past experience, anticipated that there could be revisions to the article, and so created identifiers for both the article in general (ex:article) as a URI that got redirected to the first version of the article (ex:articleV1), allowing both to be referred to as entities in provenance data. In the provenance records, the newspaper describes the connection between the two: that the first version of the article is a specialization of the article in general.

Turtle Example (hide all)
  ex:articleV1 a prov:Entity ;
               prov:specializationOf ex:article .

PROV-N Example (hide all)
  entity(ex:articleV1)
  specializationOf(ex:articleV1, ex:article)

XML Example (hide all)
  <prov:document>
    ...
    <prov:entity prov:id="ex:articleV1"/>
    <prov:specializationOf>
      <prov:specificEntity prov:ref="ex:articleV1"/>
      <prov:generalEntity prov:ref="ex:article"/>
    </prov:specializationOf>
  </prov:document>


Later, after the data set is corrected and the new chart generated, a new version of the article is created, ex:articleV2, with its own URI where the article is redirected to. To ensure that those consulting the provenance of ex:articleV2 understand that it is connected with the provenance of ex:article and ex:articleV1, the newspaper describes how these entities are related.

Turtle Example (hide all)
  ex:articleV2 prov:specializationOf ex:article .
  ex:articleV2 prov:alternateOf      ex:articleV1

PROV-N Example (hide all)
  specializationOf(ex:articleV2, ex:article)
  alternateOf(ex:articleV2, ex:articleV1)

XML Example (hide all)
  <prov:document>
    ...
    <prov:specializationOf>
      <prov:specificEntity prov:ref="ex:articleV2"/>
      <prov:generalEntity prov:ref="ex:article"/>
    </prov:specializationOf>
    <prov:alternateOf>
      <prov:alternate1 prov:ref="ex:articleV1"/>
      <prov:alternate2 prov:ref="ex:articleV2"/>
    </prov:alternateOf>
  </prov:document>


Note that above we could have also stated that ex:articleV2 was a revision of ex:articleV1, as we did between ex:chart2 and ex:chart1, which would describe more concretely how the alternate entities are related. Specialization and alternate relations connect entities, and so are visualized as links between them.

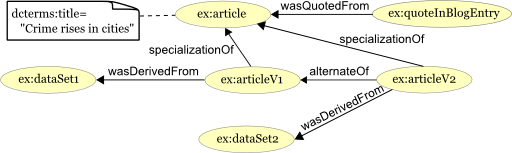

Specialization and alternate links between entities

3.10 Complete PROV data

The full set of examples shown above are available in PROV-O Turtle format or PROV-N format or PROV-XML format. We visualize the whole example below.

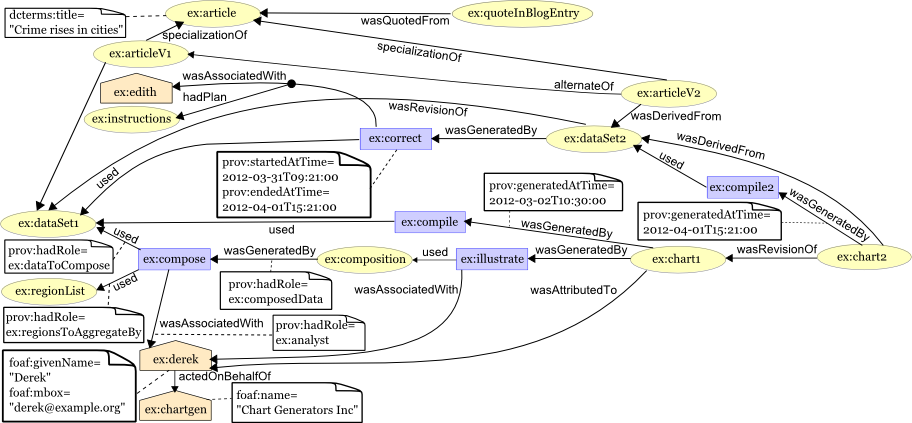

Provenance graph for whole example

A. Acknowledgements

The Provenance Working Group members.

B. Changes Since Fourth Public Working Draft

C. References

C.1 Informative references

[PROV-AQ]
Graham Klyne; Paul Groth; eds. Provenance Access and Query. 12 March 2013, Working Draft. URL: http://www.w3.org/TR/2013/WD-prov-aq-20130312/
[PROV-CONSTRAINTS]
James Cheney; Paolo Missier; Luc Moreau; eds. Constraints of the PROV Data Model. 12 March 2013, W3C Proposed Recommendation. URL: http://www.w3.org/TR/2013/PR-prov-constraints-20130312/
[PROV-DC]
Daniel Garijo; Kai Eckert; eds. Dublin Core to PROV Mapping. 12 March 2013, Working Draft. URL: http://www.w3.org/TR/2013/WD-prov-dc-20130312/
[PROV-DICTIONARY]
Tom De Nies; Sam Coppens; eds. PROV Dictionary. 12 March 2013, Working Draft. URL: http://www.w3.org/TR/2013/WD-prov-dictionary-20130312/
[PROV-DM]
Luc Moreau; Paolo Missier; eds. PROV-DM: The PROV Data Model. 12 March 2013, W3C Proposed Recommendation. URL: http://www.w3.org/TR/2013/PR-prov-dm-20130312/
Luc Moreau; Timothy Lebo; eds. Linking Across Provenance Bundles. 12 March 2013, Working Draft. URL: http://www.w3.org/TR/2013/WD-prov-links-20130312/
[PROV-N]
Luc Moreau; Paolo Missier; eds. PROV-N: The Provenance Notation. 12 March 2013, W3C Proposed Recommendation. URL: http://www.w3.org/TR/2013/PR-prov-n-20130312/
[PROV-O]
Timothy Lebo; Satya Sahoo; Deborah McGuinness; eds. PROV-O: The PROV Ontology. 12 March 2013, W3C Proposed Recommendation. URL: http://www.w3.org/TR/2013/PR-prov-o-20130312/
[PROV-OVERVIEW]
Paul Groth; Luc Moreau; eds. PROV-OVERVIEW: An Overview of the PROV Family of Documents. 12 March 2013, Working Draft. URL: http://www.w3.org/TR/2013/WD-prov-overview-20130312/
[PROV-SEM]
James Cheney; ed. Semantics of the PROV Data Model. 12 March 2013, Working Draft. URL: http://www.w3.org/TR/2013/WD-prov-sem-20130312.
[PROV-XML]
Hook Hua; Curt Tilmes; Stephan Zednik; eds. PROV-XML: The PROV XML Schema. 12 March 2013, Working Draft. URL: http://www.w3.org/TR/2013/WD-prov-xml-20130312/
[PROVENANCE-XG]
Yolanda Gil, James Cheney, Paul Groth, Olaf Hartig, Simon Miles, Luc Moreau, Paulo Pinheiro da Silva Provenance XG Final Report. 8 December 2010. URL: http://www.w3.org/2005/Incubator/prov/XGR-prov/
[TURTLE]
Eric Prud'hommeaux, Gavin Carothers Turtle: Terse RDF Triple Language. 9 August 2011. W3C Working Draft. URL: http://www.w3.org/TR/2011/WD-turtle-20110809/
