CSS Image Values and Replaced Content Module Level 3

Abstract

This CSS Image Values and Replaced Content module has two parts: First, it defines the syntax for <image> values in CSS. <image> values can be a single URI to an image, a list of URIs denoting a series of fallbacks, a reference to an element in the document, or gradients. Second, it defines properties used to control the interaction of replaced content and the CSS layout algorithms. These properties can affect the used image resolution for bitmaps, the replaced object's orientation, and whether and how to preserve the object's aspect ratio.

Status of this document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.

Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

The (archived) public mailing list www-style@w3.org (see instructions) is preferred for discussion of this specification. When sending e-mail, please put the text “css3-images” in the subject, preferably like this: “[css3-images] …summary of comment…”

This document was produced by the CSS Working Group (part of the Style Activity).

This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.

Table of contents

• 1. Introduction
• 2. Conformance
• 3. Resolution Units: the <resolution> value type
• 4. Image Values: the <image> value type
  • 4.1. Image References and Image Slices: the ‘url()’ notation
  • 4.2. Image Fallbacks: the ‘image()’ notation
  • 4.3. Using Elements as Images: The ‘element()’ notation
  • 4.4. Combining images: The ‘cross-fade()’ notation
• 5. Gradients
  • 5.1. Linear Gradients
  • 5.2. Radial Gradients
  • 5.3. Repeating Gradients
  • 5.4. Gradient Color-Stops
• 6. Sizing Images and Objects in CSS
  • 6.1. Object-Sizing Terminology
  • 6.2. CSS⇋Object Negotiation
  • 6.3. Default Intrinsic-Size Resolution
  • 6.4. Sizing Objects: The ‘object-fit’ Property
  • 6.5. Positioning Objects: The ‘object-position’ Property
• 7. Overriding Image Resolutions: the ‘image-resolution’ property
• 8. Orienting an Image on the Page: the ‘image-orientation’ property
• 9. Determining How to Scale an Image: The ‘image-rendering’ Property
• 10. Serialization
  • 10.1. Serializing a <resolution>
  • 10.2. Serializing the ‘url()’ notation
  • 10.3. Serializing the ‘image()’ / <image-list> notation
  • 10.4. Serializing the ‘element()’ / <element-reference> notation
  • 10.5. Serializing the ‘cross-fade()’ / <image-combination> notation
  • 10.6. Serializing Gradients
  • 10.7. Serializing new properties
• 11. Interpolation
  • 11.1. Interpolating <image>
  • 11.2. Interpolating <gradient>
• Acknowledgments
• References
  • Normative references
  • Informative references

1. Introduction

This section is non-normative.

In CSS Levels 1 and 2, image values, such as those used in the ‘background-image’ property, could only be given by a single URI value. This module introduces additional notations that allow a 2D image to be given as a list of URIs denoting fallbacks, as a reference to an element in the document, and as a gradient.

2. Conformance

A document or implementation cannot conform to CSS Image Values & Replaced Content Level 3 alone, but can claim conformance to CSS Image Values & Replaced Content Level 3 if it satisfies the conformance requirements in this specification when implementing CSS or another host language that normatively references this specification.

Conformance to CSS Image Values & Replaced Content Level 3 is defined for three classes:

minimal

A device that does not implement CSS Transitions, CSS Animations, nor CSSOM may ignore the chapters on Serializing and Interpolating values for the purpose of claiming conformance.

transition-capable

A device that implements CSS Transitions or CSS Animations must conform to the minimal class, and additionally must implement the chapter on Interpolation.

CSSOM-capable

A device that implements CSSOM must conform to the minimal class, and additionally must implement the chapter on Serialization.

The conformance requirements are expressed with a combination of descriptive assertions and RFC 2119 terminology. The key words "MUST", "MUST NOT", "REQUIRED", "SHALL", "SHALL NOT", "SHOULD", "SHOULD NOT", "RECOMMENDED", "MAY", and "OPTIONAL" in the normative parts of this document are to be interpreted as described in RFC 2119. However, for readability, these words do not appear in all uppercase letters in this specification. All of the text of this specification is normative except sections explicitly marked as non-normative, examples, and notes. [RFC2119]

Examples in this specification are introduced with the words "for example" or are set apart from the normative text with class="example", like this:

Informative notes begin with the word "Note" and are set apart from the normative text with class="note", like this:

Note, this is an informative note.

3. Resolution Units: the <resolution> value type

This specification defines the following units as part of the <resolution> value type:

dpi

dots per inch

dpcm

dots per centimeter

dppx

dots per ‘px’ unit

The default resolution of raster images in CSS is ‘1dppx’.

4. Image Values: the <image> value type

The <image> value type denotes a 2D image. It is defined as

<image> = <url> | <image-list> | <element-reference> | <image-combination> | <gradient>

Image values can be used in many CSS properties, including the ‘background-image’, ‘list-style-image’, ‘cursor’ properties [CSS21].

4.1. Image References and Image Slices: the ‘url()’ notation

The simplest way to indicate an image is to reference an image file by URI. This is done with the ‘url()’ notation, defined in [CSS21].

background-image: url(wavy.png);

A portion of an image may be referenced (clipped out and used as a standalone image) by use of fragment identifiers. Need a spec to reference here. Expecting to get one from Media Fragments WG.

background-image: url('logos.png#xywh=10,30,60,20')

4.2. Image Fallbacks: the ‘image()’ notation

The ‘image()’ notation allows an author to specify multiple images, each one a fallback for the previous. The UA must use only the first image that it can load and display. The syntax for ‘image()’ is defined as

<image-list> =
image( [ <image-decl> , ]* [ <image-decl> | <color> | <element-reference> | <image-combination> | <gradient> ] )

where <image-decl> is given by

<image-decl> =
[ <string> | <url-token> ] [ snap? && <resolution> ]?

<url-token> is given as [!#$%&*-~]|{nonascii}|{escape} (i.e. the contents of ‘url()’) using the productions in the CSS2.1 tokenization. The <url-token> must not contain unescaped brackets, commas, white space characters, single quotes (') or double quotes ("); if it does the ‘image()’ containing it is invalid.

Each string or url-token represents the URI of an image. If a resolution is given, then the image must be rendered at the specified resolution. If the ‘snap’ keyword is also specified, and the image is a raster image, then the image must be rendered at the resolution closest to the specified resolution that would result in no pixel rounding. I don't think "no pixel rounding" is the right terminology here... basically we want to avoid blurry images.

The final argument may be a color or generated image, to serve as an ultimate fallback if none of the preceeding <image-decl>s can be used. If it is a color, the <image-list> must represent a single-color image of that color with no intrinsic dimensions.

background-image: image(wavy.svg, 'wavy.png' 150dpi, "wavy.gif", blue);

4.3. Using Elements as Images: The ‘element()’ notation

The ‘element()’ function allows an author to reference an element in the document that should be used as an image. As the referenced element changes, for example, by the user typing into a <textarea> element or a script drawing into a <canvas> element in HTML, the image produced by the ‘element()’ function stays in sync, allowing dynamic effects such as script-animated background images or previews of the next slide in a slideshow. The syntax for ‘element()’ is defined as:

<element-reference> = element( [<id-selector> | <identifier> ] )

where <id-selector> is an ID selector [SELECT], and <identifier> is an identifer [CSS3VAL].

If the argument to the ‘element()’ function is an ID selector, the function references the element matched by the selector. If it's an identifier, the function references the element who's CSS element reference identifier is the given identifier. (CSS does not define how an element acquires a CSS element reference identifier; that is determined by the host language.) If no element in the document matches the selector, or no element has the identifier as its CSS element reference identifier, the function represents a fully transparent image with no intrinsic dimensions, equivalent to image(transparent). If the document changes so that which element is matched, or whether an element is matched at all, changes, the image represented by the function must change accordingly.

If the ‘element()’ function refers to an element, then it represents an image with width and height equal to the width and height of the margin box of the referenced element. The image must be constructed by rendering the referenced element and its descendants at the same size that the element would be in its document, over an infinite transparent black background, positioned so that the edges of the margin box of the element is flush with the edges of the image. If the element has decorations or descendants that extend outside the margin box, these will be clipped to the margin box in the generated image by default. ‘background-repeat:extend’ may allow the author to override this behavior so that decorations and descendants outside the margin box are still painted. If the referenced element or an ancestor of the referenced element has a transform applied to it, the transform must be ignored for the purpose of constructing this image (transforms on descendants must be unaffected).

If the argument passed to ‘element()’ isn't an ID selector or an ident, it is a syntax error.

Detecting and Resolving Circular Relationships Introduced by ‘element()’

The ‘element()’ function can produce nonsensical circular relationships, such as an element using itself as its own background. These relationships can be easily and reliably detected and resolved, however, by keeping track of a dependency graph and using common cycle-detection algorithms.

Populate the dependency graph initially by having every element depend on each of its children. Then, whenever a property on an element A uses the ‘element()’ function to refer to an element B, add an edge to the graph by having A depend on B. If a dependency cycle is detected, any ‘element()’ functions that produced a dependency in the cycle represent a fully transparent image with no intrinsic dimensions.

Someone else needs to review this and make sure that I'm not missing any cycles.

4.4. Combining images: The ‘cross-fade()’ notation

When transitioning between images, CSS requires a way to explicitly refer to the intermediate image that is a combination of the start and end images. This is accomplished with the ‘cross-fade()’ function, which indicates the two images to be combined and how far along in the transition the combination is. Authors may also use the ‘cross-fade()’ function for many simple image manipulations, such as tinting an image with a solid color or highlighting a particular area of the page by combining an image with a radial gradient. The syntax for ‘cross-fade()’ is defined as:

<image-combination> = cross-fade( <image>, <image>, <percentage> )

The function represents an image generated by combining the first and second image (referred to in this section as the "start" and "end" images, respectively). The percentage represents how far along the transformation is, with 0% representing the start image, 100% representing the end image, and percentages between that representing corresponding combinations of the two images. The <percentage> must be between 0% and 100% inclusive; any other value is a syntax error.

Given the <percentage> p, the combined image represented by the ‘cross-fade()’ function has a width equal to start image width * (1-p) + end image width * p and a height equal to start image height * (1-p) + end image height * p. The image itself is generated by first scaling both the start and end images to the size of the combined image. Then, the start image has a global alpha applied to it equal to (1-p), the end image has a global alpha applied to it equal to p, and the end image is then composited over the start image with the source-over operation. [[PORTERDUFF]]

5. Gradients

A gradient is an image that smoothly fades from one color to another. These are commonly used for subtle shading in background images, buttons, and many other things. The two functions described in this section allow an author to specify such an image in a terse syntax, so that the UA can generate the image automatically when rendering the page. Gradients are a type of image, and can be used anywhere an image can, such as in the ‘background-image’ or ‘list-style-image’ properties. Gradients have no intrinsic dimensions. The syntax of a <gradient> is:

<gradient> = [ <linear-gradient> | <radial-gradient> | <repeating-linear-gradient> | <repeating-radial-gradient> ]

where <linear-gradient>, <radial-gradient>, <repeating-linear-gradient>, and <repeating-radial-gradient> are defined in their applicable sections below.

In many places this section references a box, such as "the box's top-left corner" or "the box's right side". In all of these circumstances, the "box" refers to the ‘CSS View Box’ (see the "Sizing Images and Objects in CSS" section of this spec for clarification). A gradient has no intrinsic dimensions. This means that, for example, if you use a gradient in a ‘background-image’, the "box" will simply be the size of the background sizing area. If you use a gradient in a list-style-image, the "box" will be a 1em square.

It has been suggested that several of the controls offered by gradients are unnecessary. Repeating gradients could potentially be done by hooking into ‘background-repeat’, sizing and positioning radial gradients could be done by hooking into ‘background-size’ and ‘background-position’, etc.

Angles in gradients denote directions and match the behavior of polar coordinates, where 0deg is East, 90deg is North, and in general a larger angle corresponds to an angle further CCW. Other CSS properties that use angles to denote rotations use the convention that larger angles are further CW. It has been suggested that gradients be changed so that larger angles are more CW, and 0deg either remain East (matching a polar coordinate system with the Y axis flipped) or changed to North (matching bearings).

5.1. Linear Gradients

A linear gradient is created by specifying a gradient-line and then several colors placed along that line. The image is constructed by creating an infinite canvas and painting it with lines perdendicular to the gradient-line, with the color of the painted line being the color of the gradient-line where the two intersect. This produces a smooth fade from each color to the next, progressing in the specified direction.

5.1.1. ‘linear-gradient()’ syntax

<linear-gradient> = linear-gradient(
[
	[ [top | bottom] || [left | right] ]
	|
	<angle>
,]?
<color-stop>[, <color-stop>]+
);

The first argument to the function specifies the gradient-line, which gives the gradient a direction and determines how color-stops are positioned. It may be omitted; if so, it defaults to ‘top’.

The gradient-line may be specified in two different ways. The first is by specifying the angle the gradient-line should assume; this uses the standard algebraic notation for angles where 0deg points to the right, 90deg points up, and positive angles go counterclockwise. The starting-point and ending-point of the gradient-line are determined by extending a line in both direction from the center of the box at the angle specified. In the direction of the angle, the ending-point is the point on the gradient-line where a line drawn perpendicular to the gradient-line would intersect the corner of the box in that direction. The starting-point is determined identically, except in the opposite direction of the angle.

The second way is to simply provide a side or corner of the box that the gradient should start at; the gradient will then automatically angle itself to extend from the specified side or corner to the opposite side or corner in a straight line. To be precise, the gradient is converted to the angle form described in the previous paragraph at used-value time. If a ‘left’, ‘bottom’, ‘right’, or ‘top’ is given, the used value of the gradient is 0deg, 90deg, 180deg, or 270 deg, respectively. If a corner is given, the used value of the gradient is the angle necessary to place the starting-point of the gradient in that corner of the box.

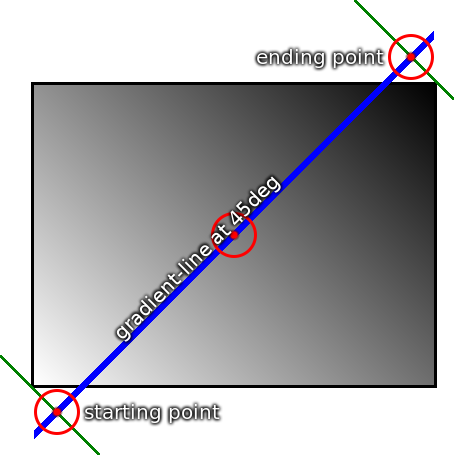

This example illustrates visually how to calculate the gradient-line from the rules above. This shows the starting and ending-point of the gradient-line, along with the actual gradient, produced by an element with ‘background: linear-gradient(45deg, white, black);’.

Notice how, though the starting-point and ending-point are outside of the box, they're positioned precisely right so that the gradient is pure white exactly at the corner, and pure black exactly at the opposite corner. That's intentional, and will always be true for linear gradients.

The gradient's color stops are typically placed between the starting-point and ending-point on the gradient-line, but this isn't required - the gradient-line extends infinitely in both directions. The starting-point and ending-point are merely arbitrary distance markers - the starting-point defines where 0%, 0px, etc are located when specifying color-stops, and the ending-point defines where 100% is located. Color-stops are allowed to have positions before 0% or after 100%.

5.1.2. Linear Gradient Examples

All of the following ‘linear-gradient()’ examples are presumed to be backgrounds applied to a box that is 200px wide and 100px tall.

linear-gradient(yellow, blue);
linear-gradient(top, yellow, blue);
linear-gradient(bottom, blue, yellow);
linear-gradient(-90deg, yellow, blue);
linear-gradient(270deg, yellow, blue);
linear-gradient(top, yellow 0%, blue 100%);

linear-gradient(top left, yellow, blue);

linear-gradient(-45deg, yellow, blue);
linear-gradient(315deg, yellow, blue);

linear-gradient(yellow, blue 20%, #0f0);

5.2. Radial Gradients

In a radial gradient, rather than colors smoothly fading from one side of the box to the other as with linear gradients, they instead emerge from a single point and smoothly spread outward in a circular or elliptical shape.

A radial gradient is specified by first pinpointing the center of the gradient, where the 0% ellipse will be, then specifying the size and shape of the 100% ellipse, ending with a list of color-stops just like a linear-gradient. Between the center and the ending-ellipse, and past the ending-ellipse, concentric ellipses are drawn and colored according to the specified color-stops.

5.2.1. radial-gradient() Syntax

<radial-gradient> = radial-gradient(
	[<bg-position>,]?
	[
		[<shape> || <size>]
		|
		[<length> | <percentage>]{2}
	,]?
	<color-stop>[, <color-stop>]+
)

The first argument to the function specifies the center of the ellipse. <bg-position> is taken from the Backgrounds and Borders Module, and has the same definition. It specifies the center of the gradient. If omitted, it defaults to ‘center’. Color-stop positions are measured along an imaginary line extending from the center of the gradient to the right.

The second argument to the function specifies the size and shape of the ending-ellipse. This can be specified in two ways, with different characteristics:

Implicitly

The size and shape of the ending-ellipse can be defined implicitly with a size and shape keyword. The <shape> is defined as

<shape> = [ circle | ellipse ]

‘circle’ indicates that the ending-ellipse will be a circle with a constant radius. ‘ellipse’ indicates that the gradient-shape will be an axis-aligned ellipse (that is, its major and minor radiuses will be horizontal and vertical, not necessarily in that order).

The <size> keyword is defined as

<size> = [ closest-side | closest-corner | farthest-side | farthest-corner | contain | cover ]

If <shape> is ‘circle’ and <size> is ‘closest-side’, the ending-shape is a circle sized so that it exactly meets the side of the box closest to its center. For example, if the box was 100px wide and 200px tall, and the center of the gradient was ‘10% 10%’, then the closest side is the left side of the box (it is 10px from the starting-point, while the top is 20px from it, and the right and bottom sides are much further). The gradient-shape would thus be a circle with a radius of 10px. If <shape> is ‘ellipse’ and <size> is ‘closest-side’, the gradient-shape is an ellipse sized so that it exactly meets the vertical and horizontal sides of the box closest to its center. Using the same box and starting-point as the previous example, the gradient-shape would be an ellipse with a 20px vertical radius and a 10px horizontal radius. (If necessary, such as if the starting-point is outside of the box, extend the sides of the box so that there is a line the ellipse can meet.)

‘farthest-side’ is identical to ‘closest-side’, except that the gradient-shape is sized to meet the side of the box that is farthest from its center (or the farthest vertical and horizontal sides, if the shape is ‘ellipse’). ‘closest-corner’ and ‘farthest-corner’ size the gradient-shape so that it exactly meets the closest or farthest corner of the box from its center, respectively. If <shape> is ‘ellipse’, the gradient-shape has the same ratio of width to height that it would if ‘closest-side’ or ‘farthest-side’ were specified, as appropriate. ‘contain’ is a synonym for ‘closest-side’, and ‘cover’ is a synonym for ‘farthest-corner’.

If this implicit form is used, then it is converted to an equivalent explicit form (described below) at used-value time.

Explicitly

Alternately, the ending-shape's size and shape can be defined explicitly, by providing two lengths or percentages. These measure the length of the horizontal and vertical axes of the ellipse, respectively. (The axis length is the length from the center of the ellipse to the edge, similar to the radius of a circle, not the diameter.)

Percentages used in the first value are relative to the width of the box, while percentages used in the second value are relative to the height of the box.

Both of the values must be positive - specifying either as zero or negative is a syntax error.

If this argument is omitted, it defaults to ‘ellipse cover’.

If only one argument is provided before the color-stops, and it could be interpreted as either a position or an explicit size (for example, in ‘radial-gradient(10% 10%, red, blue)’), it must be interpreted as a position.

In certain circumstances the given parameters may define a degenerate shape - a circle or ellipse with a radius of 0. In these instances the gradient image is just a solid color equal to the color of the last color-stop in the rule. The following combinations of values will trigger this: ‘closest-side’ if the starting-point is on a box edge, ‘closest-corner’ if the starting-point is on a box corner, and ‘ellipse closest-corner’ if the starting-point is on a box edge.

Color-stops are placed on an imaginary line extending from the center of the gradient toward the right, with the 0% point at the center of the gradient, and 100% at the point where the line intersects the ending-ellipse. The color of each ellipse is equal to the color of the line where the ellipse intersects it. Distances past 100% can be specified, and simply indicate a color-stop placed on the line a corresponding distance from the center. Negative distances are allowed in a radial gradient and work the same as in linear gradients with respect to setting the color of the gradient-line, but colors before the starting-point of the gradient-line are not displayed. For example, ‘radial-gradient(red -50px, yellow 100px)’ would produce an elliptical gradient which starts with a reddish-orange color in the center (the color 1/3 between red and yellow) and transitions to yellow at 100px wide.

5.2.2. Radial Gradient Examples

All of the following examples are applied to a box that is 200px wide and 100px tall.

radial-gradient(yellow, green);
radial-gradient(center, ellipse cover, yellow 0%, green 100%);
radial-gradient(50% 50%, farthest-corner, yellow, green);

radial-gradient(circle, yellow, green);

radial-gradient(red, yellow, green);

radial-gradient(bottom left, farthest-side, red, yellow 50px, green);

radial-gradient(20px 30px, contain, red, yellow, green);
radial-gradient(20px 30px, 20px 30px, red, yellow, green);

radial-gradient(20px 30px, circle contain, red, yellow, green);
radial-gradient(20px 30px, 20px 20px, red, yellow, green);

5.3. Repeating Gradients

In addition to the ‘linear-gradient()’ and ‘radial-gradient()’ functions, this specification defines ‘repeating-linear-gradient()’ and ‘repeating-radial-gradient()’ functions. These two functions take the same values and are interpreted the same as their respective non-repeating siblings defined previously:

<repeating-linear-gradient> = repeating-linear-gradient(
	[
		[ [top | bottom] || [left | right] ]
		||
		<angle>
	,]?
	<color-stop>[, <color-stop>]+
)
<repeating-radial-gradient> = repeating-radial-gradient(
	[<bg-position>,]?
	[
		[<shape> || <size>]
		|
		[<length> | <percentage>]{2}
	,]?
	<color-stop>[, <color-stop>]+
)

When rendered, however, the color-stops are repeated infinitely in both directions, with their positions shifted by multiples of the difference between the last specified color-stop's position and the first specified color-stop's position. For example, ‘repeating-linear-gradient(red 10px, blue 50px)’ is equivalent to ‘linear-gradient(..., red -30px, blue 10px, red 10px, blue 50px, red 50px, blue 90px, ...)’. Note that the last color-stop and first color-stop will always coincide at the boundaries of each group, which will produce sharp transitions if the gradient does not start and end with the same color.

repeating-linear-gradient(red, blue 20px, red 40px)

repeating-radial-gradient(red, blue 20px, red 40px)

repeating-radial-gradient(20px 30px, circle contain, red, yellow, green 100%, yellow 150%, red 200%)

If the difference in the positions of the first and last color-stops is 0 (for example, in the value ‘linear-gradient(red 10px, blue 10px)’), the gradient defines a solid-color image with the color of the last color-stop in the rule (in this case, then, it would simply define a blue image).

5.4. Gradient Color-Stops

<color-stop> = <color> [ <percentage> | <length> ]?

Color-stops are points placed along the line defined by the gradient-line at the beginning of the rule. Color-stops must be specified in order. Percentages refer to the length of the gradient-line, with 0% being at the starting point and 100% being at the ending point. Lengths are measured from the starting-point in the direction of the ending-point. Color-stops are usually placed between the starting-point and ending-point, but that's not required; the gradient-line extends infinitely in both directions, and a color-stop can be placed at any position on the line.

At each color-stop, the line is the color of the color-stop. Between two color-stops, the line's color is linearly interpolated between the colors of the two color-stops, with the interpolation taking place in premultiplied RGBA space. Before the first color-stop, the line is the color of the first color-stop. After the last color-stop, the line is the color of the last color-stop.

The following steps must be applied in order to process the list of color-stops. After applying these rules, all color-stops will have a definite position and they will be in ascending order:

1. If the first color-stop does not have a position, its position defaults to 0%. If the last color-stop does not have a position, its position defaults to 100%.
2. If a color-stop has a position that is less than the specified position of any color-stop before it in the list, its position is changed to be equal to the largest specified position of any color-stop before it.
3. If any color-stop still does not have a position, then, for each run of adjacent color-stops without positions, set their positions so that they are evenly spaced between the preceding and following color-stops with positions.

If multiple color-stops have the same position, they produce an infinitesimal transition from the one specified first in the rule to the one specified last. In effect, the color suddenly changes at that position rather than smoothly transitioning.

It is recommended that authors not mix different types of units, such as px, em, or %, in a single rule, as this can cause a color-stop to unintentionally try to move before an earlier one. For example, the rule ‘background-image: linear-gradient(red, yellow 100px, blue 50%)’ would work as expected as long as the background area is at least 200px tall. If it was 150px tall, however, the blue color-stop's position would be equivalent to "75px", which precedes the yellow color-stop, and would be corrected to a position of 100px.

The definition and implications of "premultiplied" color spaces are given elsewhere in the technical literature, but a quick primer is given here to illuminate the process. Given a color expressed as an rgba() 4-tuple, one can convert this to a premultiplied representation by multiplying the red, green, and blue components by the alpha component. For example, a partially-transparent blue may be given as rgba(0,0,255,.5), which would then be expressed as (0,0,127.5,.5) in its premultiplied representation. Note that fully opaque colors have the same representation in rgba and premultiplied-rgba (you multiply the components by 1), and all fully transparent colors are expressed the same way in the premultiplied representation (you multiply each component by 0, so no matter what the source color was in rgba, the premultiplied representation is (0,0,0,0)). Interpolating colors using the premultiplied representations rather than the plain rgba representations tends to produce more attractive transitions, particularly when transitioning from a fully opaque color to fully transparent.

6. Sizing Images and Objects in CSS

Images used in CSS may come from a number of sources, from defined image formats (such as gif, jpeg, etc), dedicated markup formats (such as SVG), and CSS-specific formats (such as the linear-gradient() value type defined in this specification). As well, a document may contain many other types of objects, such as video, plugins, or nested documents. These images and objects (just objects hereafter) may offer many types of sizing information to CSS, or none at all. This section defines generically the size negotiation model between the object and the CSS layout algorithms.

6.1. Object-Sizing Terminology

In order to define this handling, we define a few terms, to make it easier to refer to various concepts:

intrinsic dimensions

The intrinsic dimensions are defined are the object's preferred, natural size or aspect ratio, if any. There can be an intrinsic height and intrinsic width, defining a definite rectangle. (Most bitmap images fall into this category.) There can be an intrinsic aspect ratio defining the relation of the width to the height, but no definite size. (SVG images designed to scale may fall into this category.) There can be just an intrinsic height or width. Or there can be no intrinsic dimensions at all, implying that the object has no preferred size or aspect ratio. (Embedded documents are often assumed to have no intrinsic size, as are CSS gradients, defined in this specification.)

If an object (such as an icon) has multiple sizes, then the largest size is used. If it has multiple aspect ratios of that size (or of no size), then the aspect ratio closest to the aspect ratio of the default object size is used. This is pretty arbitrary.

specified size

The specified size of an object is given by CSS, such as through the ‘object-fit’ or ‘background-size’ properties. The specified size can be a definite width and height, a set of constraints, or a combination thereof.

concrete object size

The concrete object size is the result of transforming the intrinsic dimensions into a concrete size, based on the specified size and the default object size. A concrete object size always has a definite height and width.

default object size

The default object size is a rectangle with a definite height and width used to determine the concrete object size when both the intrinsic dimensions and specified size are missing dimensions. It varies based on the context in which that the image is being laid out.

Below are some examples of default object sizing areas:

‘background-image’

The default object size is the size of the element's background positioning area. [CSS3BG]

‘list-style-image’

The default object size is a 1em square. [CSS21]

This doesn't reflect the CSS2.1 algorithm (they differ in how they handle images with only one intrinsic dimension and no ratio, due to step 3 of the CSS2.1 algo), but it does reflect reality.

‘border-image’

The default object size is the size of the element's border image area. [CSS3BG]

‘cursor’

The default object size is a UA-defined size that should be based on the size of a typical cursor on the UA's operating system. [CSS21]

replaced elements

The default object size is a rectangle 300px wide and 150px tall. [CSS21]

The only reason these are examples is because the proper place for the normative definitions of default object sizes is in the definitions for the relevant properties. These are the correct values, though.

6.2. CSS⇋Object Negotiation

Objects in CSS are sized and rendered as follows:

1. When an image or object is specified in a document, such as through url() value in a ‘background-image’ property or a @src attribute on an <img> element, CSS queries the object for its intrinsic dimensions.
2. Using the intrinsic dimensions and the specified size, CSS then computes a concrete object size that defines the size and position of the region the object will render in.
3. CSS asks the object to render itself at the concrete object size. CSS does not define how objects render when the concrete object size is different from the object's intrinsic dimensions. The object may adjust itself to match the concrete object size in some way, or even render itself larger or smaller than the concrete object size to satisfy sizing constraints of its own.
4. Unless otherwise specified by CSS, the object is then clipped to the concrete object size.

6.3. Default Intrinsic-Size Resolution

In the absence of more specific rules to the contrary, an object's intrinsic dimensions are resolved to a concrete object size as follows:

• If the specified size is a definite width and height, the concrete object size is given that width and height.
• If the specified size has only a width or height, but not both, then the concrete object size is given that specified width or height. The other dimension is calculated as follows:
  1. If the object has an intrinsic aspect ratio, the missing dimension of the concrete object size is calculated using the intrinsic aspect-ratio and the present dimension.
  2. Otherwise, if the missing dimension is present in the object's intrinsic dimensions, the concrete object size‘s missing dimension is taken from the object’s intrinsic dimensions.
  3. Otherwise, the missing dimension of the concrete objecty size is taken from the default object size.
• If the specified size has neither a definite width nor height, and has no additional contraints, the dimensions of the concrete object size are calculated as follows:
  1. If the object has both an intrinsic width and an intrinsic height, the concrete object size is given that same height and width.
  2. If the object has only an intrinsic width or intrinsic height, and no intrinsic aspect ratio, the concrete object size is given that width or height, and missing dimension is taken from the default object size.
  3. If the object has only an intrinsic aspect ratio, the concrete object size must have that aspect ratio, and additionally be as large as possible without either its height or width exceeding the height or width of the default object size.
  4. Otherwise, the concrete object size is the same as the default object size.

If the specified size has additional constraints, the concrete object size must be sized to satisfy those constraints. For example, the ‘min-width’, ‘min-height’, ‘max-width’, and ‘max-height’ properties specify slightly more complex handling for sizing replaced elements, and ‘background-repeat: round’ can further adjust the size calculated by ‘background-size’ so that the image fits a whole number of times into the background positioning area.

6.4. Sizing Objects: The ‘object-fit’ Property

The ‘object-fit’ property specifies how the contents of a replaced element should be scaled relative to the box established by its used height and width. It also enables scaling a replaced element's contents up to a specified maximum size or down to a specified minimum size while preserving its aspect ratio.

Not all replaced elements can be scaled, but images typically can.

The contents of a replaced element with an intrinsic aspect ratio (which may be derived from intrinsic dimensions) are scaled as follows:

fill

Determine the used ‘height’ and ‘width’ as usual. Scale the content height and width independently so that the edges of the content just meet the edges of the box established by the used ‘height’ and ‘width’.

contain

Determine the used ‘height’ and ‘width’ as usual, except if both ‘height’ and ‘width’ are ‘auto’, and the used value of at least one of ‘max-width’ and ‘max-height’ is not ‘none’, then compute the element's used width and used height as though the intrinsic dimensions of the contents were infinitely large numbers whose ratio is the actual intrinsic ratio of the contents.

Scale the contents of the element, preserving their aspect ratio, to the largest size such that the width of the contents is less than or equal to the used width of the box and the height of the contents is less than or equal to the used height of the box.

cover

Determine the used ‘height’ and ‘width’ as usual, except if both ‘height’ and ‘width’ are ‘auto’, and the used value of at least one of ‘min-width’ and ‘min-height’ is not ‘0’, then compute the used width and used height of the element as though the intrinsic dimensions of the contents were infinitesimally small numbers whose ratio is the actual intrinsic ratio of the contents.

Scale the contents of the element, preserving their aspect ratio, to the smallest size such that the width of the contents is greater than or equal to the used width of the box and the height of the contents is greater than or equal to the height of the box.

The ‘overflow’ property determines how to render parts of the replaced element's content that extend beyond the edges of its box. See the ‘object-position’ property for positioning the object with respect to the element's box.

Note: the ‘object-fit’ property has similar semantics to the fit attribute in [SMIL10].

User agents MAY accept ‘image-fit’ as an alias for ‘object-fit’, as a previous version of this specification used that name. Authors must not use ‘image-fit’ in their stylesheets.

6.5. Positioning Objects: The ‘object-position’ Property

The ‘object-position’ property determines the alignment of the replaced element inside its box. The values have the same meaning as the values for the ‘background-position’ property, using the image as the image and the content box as the positioning area. [CSS21]

Note that areas of the box not covered by the replaced element will show the element's background.

User agents MAY accept ‘image-position’ as an alias for ‘object-position’, as a previous version of this specification used that name. Authors must not use ‘image-position’ in their stylesheets.

7. Overriding Image Resolutions: the ‘image-resolution’ property

The image resolution is defined as the number of image pixels per unit length, e.g., pixels per inch. Some image formats can record information about the resolution of images. This information can be helpful when determining the actual size of the image in the formatting process. However, the information can also be wrong, in which case it should be ignored. By default, CSS assumes a resolution of one image pixel per CSS ‘px’ unit; however, the ‘image-resolution’ property allows using some other resolution.

The ‘image-resolution’ property specifies the resolution of images. Values have the following meanings:

<resolution>

The value sets the resolution of the image. In combination with ‘from-image’, the specified resolution is only used if the image does not have a resolution.

from-image

The UA must look for the resolution in the image itself. If the image does not have a resolution, the specified <resolution> value is used, or ‘1dppx’ if none is given.

img { image-resolution: from-image }

img { image-resolution: 300dpi }

img { image-resolution: from-image 300dpi }
img { image-resolution: 300dpi from-image }


8. Orienting an Image on the Page: the ‘image-orientation’ property

Images from camera phones, digital cameras or scanners may be encoded sideways. For example, the first row of image data may represent the leftmost or rightmost column of image pixels. Furthermore, often such devices have limited resources, and do not have the capability to rotate the image into an upright orientation. However, this type of device may have internal knowledge or can accept input from its user as to the rotational correction to perform.

The image-orientation property provides a way to specify an "out-of-band" rotation to be applied to image source data. This facility is not intended to specify layout transformations such as arbitrary rotation or flipping the image in the horizontal or vertical direction. It is not needed to correctly orient an image when printing in landscape versus portrait orientation, as that rotation is done as part of layout. It should only be used to correct incorrectly-oriented images.

‘image-orientation’ specifies an orthogonal rotation to be applied to an image before it is laid out. CSS layout processing applies to the image after rotation. This implies, for example:

• The intrinsic height and width are derived from the rotated rather than the original image dimensions;
• The height (width) property applies to the vertical (horizontal) dimension of the image, after rotation.

Positive values cause the image to be rotated to the right (in a clockwise direction), while negative values cause a rotation to the left. The computed value of the property is calculated by rounding the specified angle to the nearest quarter-turn (90deg, 100grad, .25turn, etc.), rounding away from 0 (that is, 45deg is rounded to 90deg, while -45deg is rounded to -90deg), then moduloing the value by 1 turn (360deg, 400grad, etc.).

img.ninety     { image-orientation: 90deg }
...
<img class="ninety" src=... />


9. Determining How to Scale an Image: The ‘image-rendering’ Property

The ‘image-rendering’ property provides a hint to the user-agent about what aspects of an image are most important to preserve when the image is scaled, to aid the user-agent in the choice of an appropriate scaling algorithm. When specified on an element, it applies to all images given in properties for the element, such as background images, list-style images, or the content of replaced elements when they represent an image that must be scaled. The values of the ‘image-rendering’ property are interpreted as follows:

auto

The image should be scaled with an algorithm that maximizes the appearance of the image. In particular, scaling algorithms that ‘smooth’ colors are acceptable, such as bilinear interpolation. This is intended for images such as photos.

optimize-contrast

The image should be scaled with an algorithm that maximizes the contrast of the image, preserving sharp lines and not smoothing colors or introducing blur to the image in the process. This is intended for images such as pixel art.

This property does not dictate any particular scaling algorithm to be used. For example, with ‘image-rendering:auto’, a user agent may scale images with bilinear interpolation by default, switch to nearest-neighbor interpolation in high-load situations, and switch to a high-quality scaling algorithm like Lanczos interpolation for static images that aren't moving or changing. Similarly, with ‘image-rendering:optimize-contrast’, a user agent may scale images with nearest-neighbor interpolation by default, and switch to EPX interpolation in low-load situations.

This property previously accepted the values ‘optimizeSpeed’ and ‘optimizeQuality’. These are now deprecated; a user agent may accept them as valid values, but must treat them as aliases for the ‘auto’ value.

10. Serialization

This section describes the serialization of all new properties and value types introduced in this specification, for the purpose of interfacing with the CSS Object Model [CSSOM].

All of these algorithms refer to a variable "s". For each, let s initially be the empty string, run the steps described, and then return s.

10.1. Serializing a <resolution>

The serialization of the <resolution> value type is defined in the CSSOM spec.

This spec defines several new units for resolutions. These can all be converted to the canonical "dpcm" unit that CSSOM defines the serialization in terms of.

10.2. Serializing the ‘url()’ notation

The serialization of the url() function is defined in the CSSOM spec.

10.3. Serializing the ‘image()’ / <image-list> notation

To serialize an <image-list>:

1. Append "image(" to s.
2. For each argument, serialize the argument as an <image-decl>, <color>, <element-reference>, or <gradient> as appropriate, and append it to s. Then, if it is not the final argument, append a comma and a space ", " to s.
3. Append a close parenthesis ")" to s.

To serialize an <image-decl>:

1. Serialize the first part of the value (the <string> or <url-token>) as a string.
2. If a <resolution> was provided, append a space " " to s. Then serialize the <resolution> and append it to s.
3. If the ‘snap’ keyword was provided, append a space " " and the literal string "snap" to s.

10.4. Serializing the ‘element()’ / <element-reference> notation

To serialize an <element-reference>:

1. Append "element(" to s.
2. Serialize the argument as a selector or identifier, as appropriate, and append it to s.
3. Append a close parenthesis ")" to s.

10.5. Serializing the ‘cross-fade()’ / <image-combination> notation

To serialize an <image-combination>:

1. Append "cross-fade(" to s.
2. Serialize the first argument to the function as an <image>, and append it to s.
3. Append a comma and a space ", " to s.
4. Serialize the second argument to the function as an <image>, and append it to s.
5. Append a comma and a space ", " to s.
6. Serialize the third argument to the function as a <percentage>, and append it to s.
7. Append a close parenthesis ")" to s.

10.6. Serializing Gradients

To serialize a <linear-gradient>:

1. Append "linear-gradient(" to s.
2. • If the first argument to the gradient function was a single keyword, serialize the keyword and append it to s.
   • Otherwise, if the first argument to the gradient function was two keywords, serialize the vertical keyword (‘top’ or ‘bottom’) and append it to s, then append a space " " to s, then serialize the horizontal keyword (‘left’ or ‘right’) and append it to s.
   • Otherwise, if the first argument to the gradient function was an <angle>, serialize the <angle> and append it to s.
   • Otherwise, append "top" to s.
3. Append a comma and a space ", " to s.
4. For each color-stop in the gradient, serialize the color-stop, and append it to s. Then, if it is not the final color-stop, append a comma and a space ", " to s.
5. Append a close parenthesis ")" to s.

To serialize a <radial-gradient>:

1. Append "radial-gradient(" to s.
2. If a <bg-position> was specified in the first argument to the gradient function, serialize it and append it to s. Otherwise, append "center" to s.
3. Append a comma and a space ", " to s.
4. • If a <shape> and/or <size> was specified in the second argument to the gradient function:
     1. If a <shape> was specified, serialize it as a keyword and append it to s. Otherwise, append "ellipse" to s.
     2. Append a space " " to s.
     3. If a <size> was specified, serialize it as a keyword and append it to s. Otherwise, append "cover" to s.
   • Otherwise, if two <length>s or <percentage>s were specified in the second argument to the gradient function:
     1. Serialize the first <length> or <percentage> and append it to s.
     2. Append a space " " to s.
     3. Serialize the second <length> or <percentage> and append it to s.
   • Otherwise, append "ellipse cover" to s.
5. Append a comma and a space ", " to s.
6. For each color-stop in the gradient, serialize the color-stop, and append it to s. Then, if it is not the final color-stop, append a comma and a space ", " to s.
7. Append a close parenthesis ")" to s.

To serialize a <repeating-linear-gradient>:

1. Append "repeating-linear-gradient(" to s.
2. Follow the steps for serializing a <linear-gradient>, except skip step 1.

To serialize a <repeating-radial-gradient>:

1. Append "repeating-radial-gradient(" to s.
2. Follow the steps for serializing a <radial-gradient>, except skip step 1.

To serialize a <color-stop>:

1. Serialize the <color>, and append it to s.
2. If a <length> or <percentage> was specified, append a space " " to s, then serialize the <length> or <percentage> and append it to s.

10.7. Serializing new properties

To serialize the ‘image-resolution’ property:

1. If the ‘from-image’ keyword is specified in the property value, append "from-image" to s.
2. If both the ‘from-image’ keyword and a <resolution> are specified, append a space " " to s.
3. If a <resolution is specified, serialize it and append it to s.

To serialize the ‘image-orientation’ property:

1. Serialize the <angle> and append it to s.

To serialize the ‘image-rendering’ property:

1. Serialize the keyword and append it to s.

To serialize the ‘object-fit’ property:

1. Serialize the keyword and append it to s.

To serialize the ‘object-position’ property:

1. Serialize the value as a <bg-position> and append it to s.

11. Interpolation

This section describes how to interpolate between new value types defined in this specification, for use with modules such as CSS Transitions and CSS Animations.

If an algorithm below simply states that two values should be "interpolated" or "transitioned" without further details, then the value should be interpolated as described by the Transitions spec. Otherwise, the algorithm may reference a variable "t" in its detailed description of the interpolation. This is a number which starts at 0% and goes to 100%, and is set to a value that represents the progress through the transition, based on the duration of the transition, the elapsed time, and the timing function in use. For example, with a linear timing function and a 1s duration, after .3s t is equal to .3.

11.1. Interpolating <image>

All images can be interpolated, though some special types of images (like some gradients) have their own special interpolation rules. In general terms, images are interpolated by scaling them to the size of the start image and cross-fading the two while they transition to the size of the end image.

In specific terms, at each point in the interpolation the image is equal to cross-fade(<start image>, <end image>, t).

11.2. Interpolating <gradient>

Gradient images can be interpolated directly in CSS transitions and animations, smoothly animating from one gradient to another. There are only a few restrictions on what gradients are allowed to be interpolated:

1. Both the starting and ending gradient must be expressed with the same function. (For example, you can transition from a linear-gradient() to a linear-gradient(), but not from a linear-gradient() to a radial-gradient() or a repeating-linear-gradient().)
2. Both the starting and ending gradient must have the same number of color-stops. For this purpose, a repeating gradient is considered to have infinite color-stops, and thus all repeating gradients have the same number of color-stops. (Note that one may pad a gradient with additional color-stops placed atop each other, if necessary to make two gradients have the same number of color-stops.)

If the two gradients satisfy both of those constraints, they must be interpolated as described below. If not, they must be interpolated as a generic image.

1. Convert both the start and end gradients to their used value.
2. Interpolate each component and color-stop of the gradients independently. For linear gradients, the only component is the angle. For radial gradients, the components are the horizontal and vertical position of the center and the horizontal and vertical axis lengths.
3. To interpolate a color-stop, first match each color-stop in the start gradient to the corresponding color-stop at the same index in the end gradient. For repeating gradients, the first specified color-stop in the start and end gradients are considered to be at the same index, and all other color-stops following and preceding are indexed appropriately. Then, for each pair of color-stops, interpolate the position and color independently.

Acknowledgments

References

Normative references

[CSS21]

Bert Bos; et al. Cascading Style Sheets Level 2 Revision 1 (CSS 2.1) Specification. 8 September 2009. W3C Candidate Recommendation. (Work in progress.) URL: http://www.w3.org/TR/2009/CR-CSS2-20090908

[CSS3VAL]

Chris Lilley; Håkon Wium Lie. CSS3 Values and Units. 19 September 2006. W3C Working Draft. (Work in progress.) URL: http://www.w3.org/TR/2006/WD-css3-values-20060919

[RFC2119]

S. Bradner. Key words for use in RFCs to Indicate Requirement Levels. Internet RFC 2119. URL: http://www.ietf.org/rfc/rfc2119.txt

[SELECT]

Tantek Çelik; et al. Selectors Level 3. 15 December 2009. W3C Proposed Recommendation. (Work in progress.) URL: http://www.w3.org/TR/2009/PR-css3-selectors-20091215

Informative references

[CSS3BG]

Bert Bos; Elika J. Etemad; Brad Kemper. CSS Backgrounds and Borders Module Level 3. 12 June 2010. W3C Working Draft. (Work in progress.) URL: http://www.w3.org/TR/2010/WD-css3-background-20100612

[CSSOM]

Anne van Kesteren. CSSOM. (forthcoming). W3C Working Draft. (Work in progress.)

[SMIL10]

Philipp Hoschka. Synchronized Multimedia Integration Language (SMIL) 1.0 Specification. 15 June 1998. W3C Recommendation. URL: http://www.w3.org/TR/1998/REC-smil-19980615
