Efficient XML Interchange Evaluation

W3C Working Draft 28 July 2008

This version:
Latest version:
Carine Bournez, W3C


This Working Draft is an evaluation of the Efficient XML Interchange (EXI) Format 1.0 with reference to the Properties identified by the XML Binary Characterization (XBC) Working Group, relative to XML, gzipped XML and ASN.1 PER. It is conducted using the XBC Measurement methodology. For the "compactness" and "processing efficiency" Properties, the performance is measured with EXI Measurement framework, over the test data collected for the EXI measurements, representing XBC Use Cases.

Status of this Document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.

This First Public Working Draft presents initial evaluation of the EXI Format 1.0 conducted by the EXI Working Group as a per-charter requirement for the publication of the EXI Format 1.0 specification as Last Call Working Draft. . This draft includes results for all properties but "processing efficiency". The formats and alternative technologies to which we wish to compare results include at least ASN.1 PER and gzipped XML.

This document was developed by the Efficient XML Interchange (EXI) Working Group. It is intended to be completed and published as a Working Group Note.

Comments on this document are invited and are to be sent to the public public-exi@w3.org mailing list (public archive). If substantive comments are received, the Working Group may revise this Working Group Note.

Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. The group does not expect this document to become a W3C Recommendation. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.

Table of Contents

1. Objectives

This document presents the anticipated benefits of the EXI format 1.0 compared to XML and gzipped XML. Additionally, tests for compactness include comparison to ASN.1 PER. The points of comparison are the requirements set by the EXI Working Group charter, based on the results of the XML Binary Characterization Working Group.

This summarized evaluation of the EXI format uses the testing framework built during the first phase of the EXI Working Group's work so as to select a baseline candidate technology. Although this evaluation aims at demonstrating EXI benefits in the targeted XBC Use Cases, it can be read as a summary of the EXI measurements Note.

2. Background

The methodology used in the evaluation relies on previous work on measurements. The Properties referred to in this document have been defined by the XBC Working Group. The methodology for measurement is detailed in the XBC measurement methodology document. For convenience, Appendix A gives an overview of the properties definitions, as well as some details of their measurements.

In addition, two Properties require an implementation to be evaluated: Compactness and Processing Efficiency. These Properties have been tested using the EXI measurement framework and the associated methodology.

3. Evaluation Results

At the time of the first publication of this document, the Working Group has not tested conformance of implementations. The methodology and framework designed and implemented on Japex by the Working Group are used for the properties that require implementation testing. The other properties can be asserted by checking the specification only.

3.1. Compactness results

This test has been run over the same set of documents as the EXI Working Group's framework test data. The following graphs show the resulting size as a percentage of the original XML document size, sorted by the EXI result, for the sake of legibility (i.e. "best" results on the left). The implementation of EXI used for the measurements is Efficient XML 3.0. It implements the specification of the EXI format 1.0 at the time of writing.

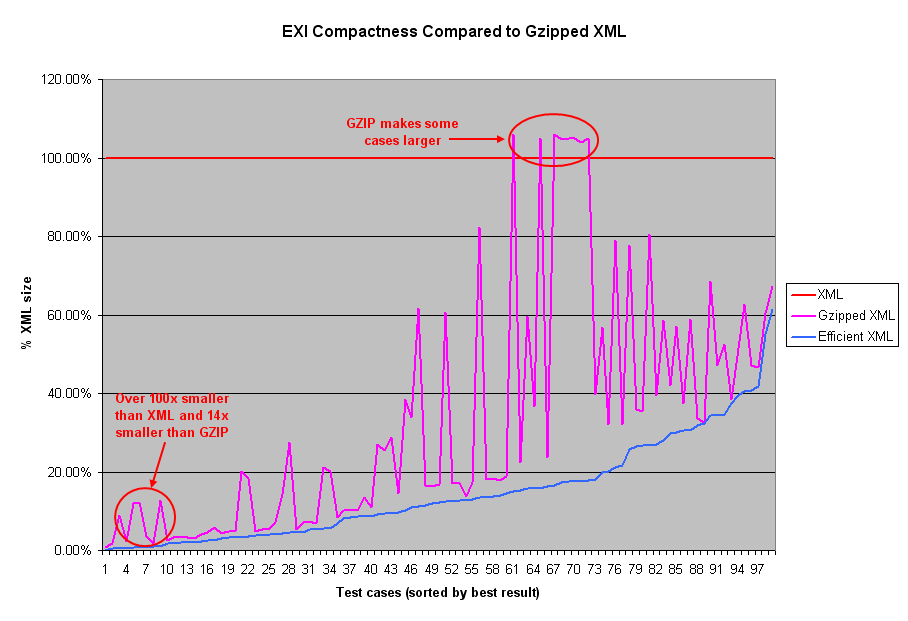

comparison for compactness of EXI against gzipped XML

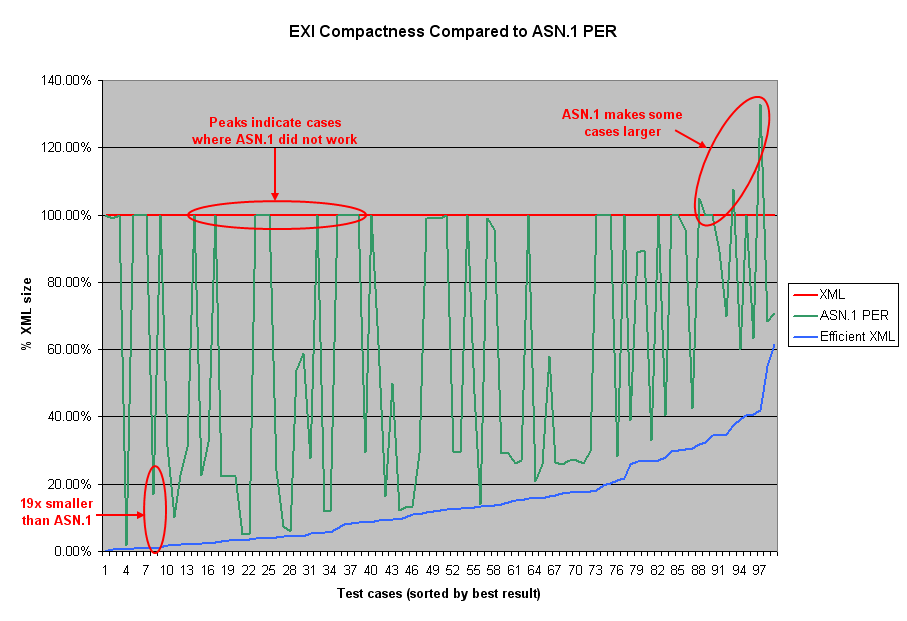

comparison for compactness of EXI against ASN.1 PER

For each test case, the testing framework uses the most appropriate application class: Whenever a schema is available, EXI is used in schema-informed mode, and when a document-analysis-based technique leads to a better result, the compression option is turned on.

The first graph compares EXI to Gzipped XML. As shown by the graph, EXI is consistently smaller than gzipped XML regardless of document size, document structure or the availability of schema information. In some cases, EXI is over 10 times smaller than gzip. In addition, EXI works well in cases where gzip has little effect or even makes documents bigger, such as high volume streams of small messages typical of geolocation, financial exchange and sensor applications.

In the second graph, the same EXI numbers are compared to the ASN.1 PER file sizes. Each EXI encoded file is smaller than the equivalent ASN.1 PER, and sometimes 20 times smaller. In addition, EXI works well in cases where ASN.1 PER actually increases the size of the document or fails to produce an encoding at all (e.g., due to schema deviations.)

3.2. Processing efficiency results

This will be addressed during the Candidate Recommendation phase of the development of the format. The next draft of this document will include processing efficiency results.

3.3. Summary


XML (+gzip)


MUST support

Directly Readable and Writable


The XML format itself satisfies this property, but naturally gzip compression applied to a file format requires creating the intermediate form (XML) first.


Implementations can read and write EXI streams directly via standard XML APIs, such as DOM, SAX and StAX. At least one current implementation also support typed APIs for increased performance.

Transport Independence



EXI can be used over TCP, UDP, HTTP and various wireless and satellite transports.



XML and gzip cannot take advantage of schema information, so this format fails in the Schema and Both classes (It does not achieve compactness typically required by applications that use binary data formats, like ASN.1, CORBA, XDR, etc.)

By definition, it succeeds in the Document class and fails in the Neither class (due to the different requirements, in the Neither class, it would have to be smaller than itself).


See compactness results.

Human Language Neutral



EXI supports all standard character set encodings.

Platform Neutrality



The property cannot be fully evaluated at this time. However, the EXI format specification does not make particular assumption about the platform architecture. An implementation already exists for several popular server, desktop and mobile platforms, including Java EE/SE, Microsoft .NET, Java Mobile Edition and .NET Compact Framework.

Integratable into XML Stack



EXI was designed to integrate well into the XML stack, neither duplicating nor requiring changes to functionality at other layers in the XML stack. It builds on the XML Infoset data model. It implements the same character encodings as text XML and supports the common interfaces as existing XML parsers and serializers. As such, it can be inserted into existing XML applications with minimal time and cost.

Royalty Free



Per the W3C PP.




EXI can represent any collection of XML fragments extracted from any collection of XML documents. All schema optimization, bit-packing and XML compression algorithms apply equally to fragments.




Roundtrip Support


The equivalence is exact in both cases.


EXI supports lossless equivalence for PSVI, Infoset and lexical applications, such as XML Digital Signatures. The EXI "preserve" option can be used when this property is needed.



XML scores 8/20, Gzipped XML 10/20 (see appendix B.)


EXI scores 19/20 (see appendix B.)

Schema Extensions and Deviations



EXI includes schema optimizations that support arbitrary schema extensions and deviations. Applications may specify strict or extensible schema handling and may provide a full schema, partial schema or no schema at all.

Format Version Identifier


Both XML and gzip include an identifier in the header.


EXI header includes version.

Content Type Management



EXI can be used in various contexts, some which use a media type and some which use content encoding, or both.




When schema optimizations are not used, EXI documents are always self-contained.

MUST NOT Prevent

Processing Efficiency


see EXI measurements.

Does Not Prevent

Current implementations achieve performance several times faster than XML using both in-memory tests and more realistic scenarios that involve file and network IO. These implementations do not depend on compile-time schema-binding techniques that make dynamically acquiring, loading or updating schemas impractical or impossible.

Small Footprint

Does Not Prevent

Does Not Prevent

TBD in CR phase: check implementation for a variety of small, mobile devices.

Widespread Adoption

Does Not Prevent

Both XML and gzip have been widely adopted and included in many protocol standards.

Does Not Prevent

Space Efficiency


Does Not Prevent

TBD on CR phase: check implementations for small, mobile devices.

Implementation Cost

Does Not Prevent

Does Not Prevent

TBD in CR phase.

Forward Compatibility

Does Not Prevent

Does Not Prevent

4. Discussion

5. References

[EXI Measurements]
EXI Measurements, Greg White, Jaakko Kangasharju, Don Brutzman, Stephen Williams editors, World Wide Web Consortium, 25 July 2007. http://www.w3.org/TR/exi-measurements/.
[XBC Use Cases]
XML Binary Characterization Use Cases, Mike Cokus, Santiago Pericas-Geertsen editors, World Wide Web Consortium, 31 March 2005. http://www.w3.org/TR/xbc-use-cases/.
[XBC Properties]
XML Binary Characterization Properties, Oliver Goldman, Dmitry Lenkov editors, World Wide Web Consortium, 31 March 2005. http://www.w3.org/TR/xbc-properties/.
[XBC Measurements]
XML Binary Characterization Measurement Methodologies, Stephen D. Williams, Peter Haggar editors, World Wide Web Consortium, 31 March 2005. http://www.w3.org/TR/xbc-measurement/.
[XBC Characterization]
XML Binary Characterization, Oliver Goldman, Dmitry Lenkov editors, World Wide Web Consortium, 31 March 2005. http://www.w3.org/TR/xbc-characterization/.
Information Technology - ASN.1 Encoding Rules: Specification of Packed Encoding Rules (PER) [The ASN.1 PER Standard (ITU-T Rec X.691 | ISO/IEC 8825-2)], International Telecommunication Union (ITU), July 2002. http://www.itu.int/ITU-T/studygroups/com17/languages/X.691-0207.pdf.
[XML 1.0]
Extensible Markup Language (XML) 1.0, Tim Bray et al editors, World Wide Web Consortium, 4 February 2004 (Third Ed). Latest version http://www.w3.org/TR/REC-xml/.
[Efficient XML]
AgileDelta's Efficient XML 3.0, accessed July 2008.
Japex Manual, Santiago Pericas-Geertsen, java.net, April 2006. https://japex.dev.java.net/docs/manual.html.
