'path' elements, 'text' elements and basic shapes can be filled (which means painting the interior of the object) and stroked (which means painting along the outline of the object). Filling and stroking both can be thought of in more general terms as painting operations.
With SVG, you can paint (i.e., fill or stroke) with:

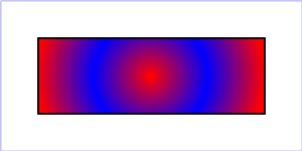

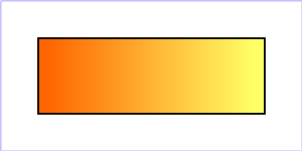

SVG uses the general notion of a paint server. Paint servers are specified using a IRI reference on a 'fill' or 'stroke' property (the IRI reference must be local as described in the IRI Reference Section). Gradients and solid colors are just specific types of paint servers.
Properties 'fill' and 'stroke' take on a value of type <paint>, which is specified as follows:
<paint>: |
none | currentColor | <color> | <iri> | inherit |
Value: | <paint> | inherit (See Specifying paint) |
Initial: | black |
Applies to: | shapes and text content elements |
Inherited: | yes |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
The 'fill' property specifies that the interior of the given graphical element must be painted. The area to be painted shall consist of any areas inside the outline of the shape. To determine the inside of the shape, all subpaths must be considered, and the interior shall be determined according to the rules associated with the current value of the 'fill-rule' property. The zero-width geometric outline of a shape must be included in the area to be painted.
Open subpaths must be filled by performing the fill operation as if an additional "closepath" command were added to the path to connect the last point of the subpath with the first point of the subpath. Thus, fill operations apply to both open subpaths within 'path' elements (i.e., subpaths without a closepath command) and 'polyline' elements.
Value: | nonzero | evenodd | inherit |
Initial: | nonzero |
Applies to: | shapes and text content elements |
Inherited: | yes |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
The 'fill-rule' property indicates the algorithm which must be used to determine what parts of the canvas are included inside the shape. For a simple, non-intersecting path, it is intuitively clear what region lies "inside"; however, for a more complex path, such as a path that intersects itself or where one subpath encloses another, the interpretation of "inside" is not so obvious.

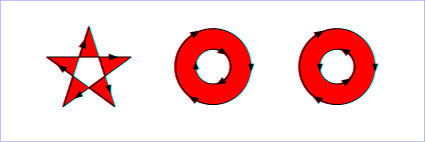

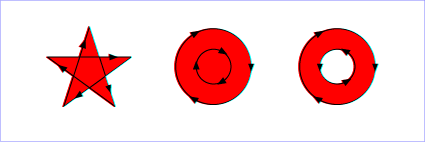

The 'fill-rule' property provides two options for how the inside of a shape is determined:
(Note: the above explanations do not specify what to do if a path segment coincides with or is tangent to the ray. Since any ray will do, one may simply choose a different ray that does not have such problem intersections.)
Value: | <opacity-value> | inherit |
Initial: | 1 |
Applies to: | shapes and text content elements |
Inherited: | yes |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
'fill-opacity' specifies the opacity of the painting operation which shall be used to paint the interior the current object. (See Painting shapes and text.)
Related property: 'stroke-opacity'.
The following are the properties which affect how an element is stroked.
In all cases, strokes which are affected by directionality, such as those having dash patterns, must be rendered such that the stroke operation starts at the same point at which the graphics element starts. In particular, for 'path' elements, the start of the path is the first point of the initial "moveto" command.
For strokes, such as dash patterns whose computations are dependent on progress along the outline of the graphics element, distance calculations must use the SVG user agent's standard Distance along a path algorithms.
When stroking is performed using a complex paint server, such as a gradient, the stroke operation must be identical to the result that would have occurred if the geometric shape defined by the geometry of the current graphics element and its associated stroking properties were converted to an equivalent 'path' element and then filled using the given paint server.
Value: | <paint> | inherit (See Specifying paint) |
Initial: | none |
Applies to: | shapes and text content elements |
Inherited: | yes |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
The 'stroke' property shall paint along the outline of the given graphical element.
A subpath (see Paths) consisting of a single moveto shall not be stroked. A subpath consisting of a moveto and lineto to the same exact location or a subpath consisting of a moveto and a closepath shall be stroked only if the 'stroke-linecap' property is set to "round", producing a circle centered at the given point.
Value: | <length> | inherit |
Initial: | 1 |
Applies to: | shapes and text content elements |
Inherited: | yes |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
Value: | butt | round | square | inherit |
Initial: | butt |
Applies to: | shapes and text content elements |
Inherited: | yes |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
'stroke-linecap' specifies the shape which shall be used at the end of open subpaths when they are stroked.
View this example as SVG (SVG-enabled browsers only)
Value: | miter | round | bevel | inherit |
Initial: | miter |
Applies to: | shapes and text content elements |
Inherited: | yes |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |

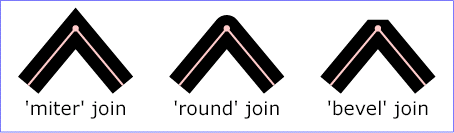

'stroke-linejoin' specifies the shape which shall be used at the corners of paths or basic shapes when they are stroked.
View this example as SVG (SVG-enabled browsers only)
Value: | <miterlimit> | inherit |
Initial: | 4 |
Applies to: | shapes and text content elements |
Inherited: | yes |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
When two line segments meet at a sharp angle and miter joins have been specified for 'stroke-linejoin', it is possible for the miter to extend far beyond the thickness of the line stroking the path. The 'stroke-miterlimit' imposes a limit on the ratio of the miter length to the 'stroke-width'. When the limit is exceeded, the join must be converted from a miter to a bevel.
The ratio of miter length (distance between the outer tip and the inner corner of the miter) to 'stroke-width' is directly related to the angle (theta) between the segments in user space by the formula:
miterLength / stroke-width = 1 / sin ( theta / 2 )
For example, a miter limit of 1.414 converts miters to bevels for theta less than 90 degrees, a limit of 4.0 converts them for theta less than approximately 29 degrees, and a limit of 10.0 converts them for theta less than approximately 11.5 degrees.
Value: | none | <dasharray> | inherit |
Initial: | none |
Applies to: | shapes and text content elements |
Inherited: | yes |
Percentages: | N/A |
Media: | visual |
Animatable: | yes (non-additive) |
Computed value: | Specified value, except inherit |
'stroke-dasharray' specifies the pattern of dashes and gaps that shall be used to stroke paths. <dasharray> contains a list of comma-separated (with optional white space) <length>s that specify the lengths of alternating dashes and gaps that must be used. If an odd number of values is provided, then the list of values shall be repeated to yield an even number of values. Thus, stroke-dasharray: 5,3,2 is equivalent to stroke-dasharray: 5,3,2,5,3,2.
Value: | <length> | inherit |
Initial: | 0 |
Applies to: | shapes and text content elements |
Inherited: | yes |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
'stroke-dashoffset' specifies the distance into the dash pattern that must be used to start the dash.
Value: | <opacity-value> | inherit |
Initial: | 1 |
Applies to: | shapes and text content elements |
Inherited: | yes |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
'stroke-opacity' specifies the opacity of the painting operation used to stroke the current object. (See Painting shapes and text.)
Related property: 'fill-opacity'.
Sometimes it is of interest to let the outline of an object keep its original width no matter which transforms are applied to it. E.g. in a map with a 2px wide line representing roads it is of interest to keep the roads 2px wide even when the user zooms into the map.
To achieve this SVGT1.2 introduces the 'vector-effect' property. Future versions of the SVG language will allow for more powerful vector effects through this property but this version restricts it to the non-scaling stroke.
Value: | non-scaling-stroke | none | inherit |
Initial: | none |
Applies to: | graphics elements |
Inherited: | no |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
The value 'none' specifies that no vector effect shall be applied, i.e. the default rendering behaviour from SVG 1.1 is used which is to first fill the geometry of a shape with a specified paint, then stroke the outline with a specified paint.
The value 'non-scaling-stroke' modifies the way an object is stroked. Normally stroking involves calculating stroke outline of the shape's path in current user space and filling that outline with the stroke paint (color or gradient). With non-scaling-stroke vector effect, stroke outline shall be calculated in the "host" coordinate space instead of user coordinate space. More precisely: a user agent establishes a host coordinate space which in SVG 1.2 is always the same as "screen coordinate space". The stroke outline is calculated in the following manner: first, the shape's path is transformed into the host coordinate space. Stroke outline is calculated in the host coordinate space. Resulting outline is transformed back to the user coordinate space. (Stroke outline is always filled with stroke paint in the current user space). The resulting visual effect of this modification is that stroke width is not dependant on the transformations of the element (including non-uniform scaling and shear transformations) and zoom level.
Note: Future versions of SVG may allow ways to control host coordinate system.
Below is an example of a non-scaling-stroke 'vector-effect'.
<?xml version="1.0"?> <svg width="6cm" height="4cm" viewBox="0 0 600 400" version="1.2" baseProfile="tiny" xmlns="http://www.w3.org/2000/svg" viewport-fill="rgb(255,150,200)"> <desc>Example non-scaling stroke</desc> <rect x="1" y="1" width="598" height="398" fill="none" stroke="black" /> <g transform="scale(9,1)"> <line stroke="black" stroke-width="5" x1="10" y1="50" x2="10" y2="350"/> <line vector-effect="non-scaling-stroke" stroke="black" stroke-width="5" x1="32" y1="50" x2="32" y2="350"/> <line vector-effect="none" stroke="black" stroke-width="5" x1="55" y1="50" x2="55" y2="350"/> </g> </svg>
Graphics elements are blended into the elements already rendered on the canvas using simple alpha compositing, in which the resulting color and opacity at any given pixel on the canvas must be the result of the following formulas (all color values use premultiplied alpha):
Er, Eg, Eb - Element color value Ea - Element alpha value Cr, Cg, Cb - Canvas color value (before blending) Ca - Canvas alpha value (before blending) Cr', Cg', Cb' - Canvas color value (after blending) Ca' - Canvas alpha value (after blending) Ca' = 1 - (1 - Ea) * (1 - Ca) Cr' = (1 - Ea) * Cr + Er Cg' = (1 - Ea) * Cg + Eg Cb' = (1 - Ea) * Cb + Eb
The following rendering properties, which provide information about the color space in which to perform the compositing operations, apply to compositing operation:
The currentColor property may be assigned a color value that has an opacity component. This opacity value is used in the rendering operation using the alpha compositing method described above. That is, the opacity value in currentColor is used when compositing the color into a paint server (which may have its own values for opacity).
SVG enables the author to specify a solid color which will be used to fill the viewport of any element that creates a viewport, such as the svg element.
The 'viewport-fill' property specifies the color which shall be used to fill the viewport created by a particular element. It must cause the entire canvas of the element that it applies to to be filled with the specified solid color. That canvas may then be clipped by that element's viewBox.
Value: | <color> | inherit |
Initial: | none |
Applies to: | viewport-creating elements |
Inherited: | no |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
Below is an example of 'viewport-fill'.
<?xml version="1.0"?> <svg xmlns="http://www.w3.org/2000/svg" version="1.2" viewport-fill="red" baseProfile="tiny"> <desc> Everything here has a red background. The rectangle is not filled, so the red background will show through </desc> <rect x="20" y="20" width="100" height="100" fill="none" stroke="black"/> </svg>
Here is a slightly more complex example. The viewBox gives a coordinate system 300 units wide and 100 units high. The rendering shows what happens when this is displayed inside a square viewport.
<?xml version="1.0"?> <svg xmlns="http://www.w3.org/2000/svg" version="1.2" viewport-fill="yellow" baseProfile="tiny" viewBox="0 0 300 100"> <desc> The viewport has a yellow background. The rectangle is filled and covers the viewport, so the yellow background will only show through in the "leftovers" if the aspect ratio of the viewport differs from thatof the viewBox. </desc> <rect x="0" y="0" width="300" height="100" fill="red" fill-opacity="0.3" stroke="black"/> </svg>
The filling of the viewport is the first operation in the rendering chain of an element. Therefore:
The 'viewport-fill-opacity' property specifies the opacity of the 'viewport-fill' that shall be used for a particular element.
Value: | <opacity-value> | inherit |
Initial: | 1.0 |
Applies to: | viewport-creating elements |
Inherited: | no |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
SVG uses two properties, 'display' and 'visibility', to control the visibility of graphical elements or (in the case of the 'display' property) container elements. Neither of these two properties affects the objects existence in the DOM, i.e. no matter what value of these properties the object still remains in the DOM.
The differences between the two properties are as follows:
Value: |
inline | block | list-item | run-in | compact | marker | table | inline-table | table-row-group | table-header-group | table-footer-group | table-row | table-column-group | table-column | table-cell | table-caption | none | inherit |
Initial: | inline |
Applies to: | 'svg', 'g', 'switch', 'a', 'foreignObject', graphics elements (including the 'text' element) and text sub-elements (i.e., 'tspan' and 'a') |
Inherited: | no |
Percentages: | N/A |
Media: | all |
Animatable: | yes |
Computed value: | Specified value, except inherit |
A value of display: none indicates that the given element and its children shall not be rendered directly (i.e., those elements are not present in the rendering tree). Any computed value other than none indicates that the given element shall be rendered by the SVG user agent.
The 'display' property only affects the direct rendering of a given element, whereas it does not prevent elements from being referenced by other elements.
Elements with display: none do not take up space in text layout operations, do not receive events, and do not contribute to bounding box calculations.
Except for any additional information provided in this specification, the normative definition is the CSS2 definition of the 'display' property.
Value: | visible | hidden | collapse | inherit |
Initial: | visible |
Applies to: | graphics elements (including the 'text' element) and text sub-elements (i.e., 'tspan' and 'a') |
Inherited: | yes |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
Note that if the 'visibility' property is set to hidden on a 'tspan' element, then the text is invisible but shall still takes up space in text layout calculations.
Depending on the value of property 'pointer-events', graphics elements which have their 'visibility' property set to hidden still might receive events.
Except for any additional information provided in this specification, the normative definition is the CSS2 definition of the 'visibility' property.
The creator of SVG content might want to provide a hint to the implementation about how to make speed vs. quality tradeoffs as it performs color interpolation and compositing. The 'color-rendering' property provides a hint to the SVG user agent about how to optimize its color interpolation and compositing operations.
Value: | auto | optimizeSpeed | optimizeQuality | inherit |
Initial: | auto |
Applies to: | container elements, graphics elements and 'animateColor' |
Inherited: | yes |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
The creator of SVG content might want to provide a hint to the implementation about what tradeoffs to make as it renders vector graphics elements such as 'path' elements and basic shapes such as circles and rectangles. The 'shape-rendering' property provides these hints.
Value: |
auto | optimizeSpeed | crispEdges | geometricPrecision | inherit |
Initial: | auto |
Applies to: | shapes |
Inherited: | yes |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
The creator of SVG content might want to provide a hint to the implementation about what tradeoffs to make as it renders text. The 'text-rendering' property provides these hints.
Value: |
auto | optimizeSpeed | optimizeLegibility | geometricPrecision | inherit |
Initial: | auto |
Applies to: | 'text' and 'textArea' elements |
Inherited: | yes |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
The creator of SVG content might want to provide a hint to the implementation about how to make speed vs. quality tradeoffs as it performs image processing. The 'image-rendering' property provides a hint to the SVG user agent about how to optimize its image rendering.:
Value: | auto | optimizeSpeed | optimizeQuality | inherit |
Initial: | auto |
Applies to: | images |
Inherited: | yes |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
In all cases, resampling must be done in a truecolor (e.g., 24-bit) color space even if the original data and/or the target device is indexed color.
The values of any of the painting properties described in this chapter can be inherited from a given object's parent. Painting, however, is always done on each graphics element individually, never at the container element (e.g., a 'g') level. Thus, for the following SVG, even though the gradient fill is specified on the 'g', the gradient is simply inherited through the 'g' element down into each rectangle, each of which is rendered such that its interior is painted with the gradient.
Example Inheritance
<?xml version="1.0"?> <svg width="7cm" height="2cm" viewBox="0 0 700 200" xmlns="http://www.w3.org/2000/svg" version="1.2" baseProfile="tiny"> <desc>Gradients apply to leaf nodes </desc> <g> <defs> <linearGradient xml:id="MyGradient" gradientUnits="objectBoundingBox"> <stop offset="0" stop-color="#F60" /> <stop offset="1" stop-color="#FF6" /> </linearGradient> </defs> <rect x="1" y="1" width="698" height="198" fill="none" stroke="blue" stroke-width="2" /> <g fill="url(#MyGradient)" > <rect x="100" y="50" width="200" height="100"/> <rect x="400" y="50" width="200" height="100"/> </g> </g> </svg>
Any painting properties defined in terms of the object's bounding box use the bounding box of the graphics element to which the operation applies. Note that text elements are defined such that any painting operations defined in terms of the object's bounding box use the bounding box of the entire 'text' element. (See the discussion of object bounding box units and text elements.)
There are several opacity properties within SVG:
Except for object/group opacity (described just below), all other opacity properties are involved in intermediate rendering operations. Object/group opacity can be thought of conceptually as a postprocessing operation. Conceptually, after the object/group is rendered into an RGBA offscreen image, the object/group opacity setting specifies how to blend the offscreen image into the current background.
Object/group opacity can, if applied to container elements, be a resource intensive operation. Therefore this version of SVG restricts this property to only apply to the image element.
Value: | <opacity-value> | inherit |
Initial: | 1 |
Applies to: | image element |
Inherited: | no |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
In SVG Tiny 1.2, all colors are specified in the sRGB color space (see [SRGB]). SVG Tiny 1.2 user agents are not required to, but may, support color management. However, SVG Tiny 1.2 user agents should apply gamma correction if the response curve of the display system differs from that of sRGB
Five syntactical forms are specified for SVG Tiny 1.2 All of them must be supported in a conforming SVG Interpreter:
black | rgb( 0, 0, 0) | green | rgb( 0, 128, 0) | ||
silver | rgb(192, 192, 192) | lime | rgb( 0, 255, 0) | ||
gray | rgb(128, 128, 128) | olive | rgb(128, 128, 0) | ||
white | rgb(255, 255, 255) | yellow | rgb(255, 255, 0) | ||
maroon | rgb(128, 0, 0) | navy | rgb( 0, 0, 128) | ||
red | rgb(255, 0, 0) | blue | rgb( 0, 0, 255) | ||
purple | rgb(128, 0, 128) | teal | rgb( 0, 128, 128) | ||
fuchsia | rgb(255, 0, 255) | aqua | rgb( 0, 255, 255) |
The following list of predefined System Paint servers must be supported. The type of paint returned depends on the operating system, user choices, and the implemenatation. The paint may be a solid color (which may include opacity) or a gradient (which may include multiple stop opacities).
The names are intended to be descriptive. The implementation should attempt to map the predefined System Paint servers to the current appearance of user interface elements on the platform, including user color choices. For each of the predefined System Paint servers below, the text indicates the appropriate user interface element.

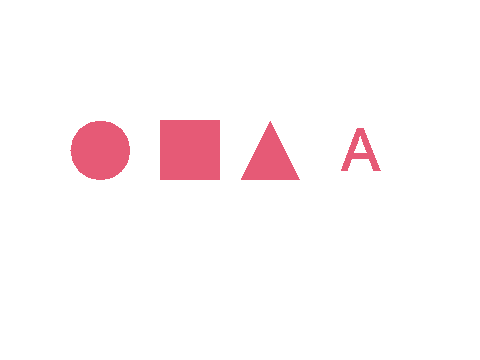

The solidColor element is a paint server that provides a single color with opacity. It can be referenced like the other paint servers (i.e. gradients).
<define name='solidColor'> <element name='solidColor'> <ref name='solidColor.AT'/> <ref name='solidColor.CM'/> </element> </define> <define name='solidColor.CM'> <zeroOrMore> <choice> <ref name='svg.Desc.group'/> <ref name='svg.Animate.group'/> <ref name='svg.Handler.group'/> <ref name='svg.Discard.group'/> </choice> </zeroOrMore> </define> <define name='solidColor.AT' combine='interleave'> <ref name='svg.Properties.attr'/> <ref name='svg.Core.attr'/> </define> <define name='svg.Properties.attr' combine='interleave'> <optional> <attribute name='solid-color' svg:animatable='true' svg:inheritable='false'> <choice> <value>inherit</value> <ref name='SVGColor.datatype'/> </choice> </attribute> </optional> <optional> <attribute name='solid-opacity' svg:animatable='true' svg:inheritable='false'> <choice> <value>inherit</value> <ref name='OpacityValue.datatype'/> </choice> </attribute> </optional> </define>
The solid-color property specifies the color that shall be used for this solidColor element. The keyword currentColor can be specified in the same manner as within a <paint> specification for the fill and stroke properties.
Value: | currentColor | <color> | inherit |
Initial: | black |
Applies to: | solidColor elements |
Inherited: | no |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
The solid-opacity property defines the opacity of a given solid color.
Value: | <opacity-value> | inherit |
Initial: | 1 |
Applies to: | solidColor elements |
Inherited: | no |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
The solidColor paint server applies paint of the specified color using the opacity defined in solid-opacity. The value of solid-opacity is independent of the opacity used to render the paint via fill or stroke (see alpha compositing).
Below is an example of the solidColor element:
<?xml version="1.0" encoding="UTF-8"?> <svg version="1.2" baseProfile="tiny" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" xml:id="svg-root" width="480" height="360" viewBox="0 0 480 360"> <title><solidColor> Example</title> <defs> <solidColor xml:id="solidMaroon" solid-color="maroon" solid-opacity="0.7"/> </defs> <g> <circle transform="translate(100, 150)" fill="url(#solidMaroon)" r="30" /> <rect fill="url(#solidMaroon)" transform="translate(190, 150)" x="-30" y="-30" width="60" height="60" /> <path fill="url(#solidMaroon)" transform="translate(270, 150)" d="M 0 -30 L 30 30 L -30 30 Z" /> <text fill="url(#solidMaroon)" transform="translate(340, 150)" y="21" font-weight="bold" font-size="60">A</text> </g> </svg>
The 'color' property, which defined in CSS2 as the color of text, does not directly apply to SVG elements. The value of the SVG color property may however be used to provide an indirect value for those properties which allow the currentColor keyword: the 'fill', 'stroke', 'solid-color' and 'stop-color' properties.
Value: | <color> | inherit |
Initial: | depends on user agent |
Applies to: | None. Indirectly affects other properties via currentColor |
Inherited: | yes |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
Except for any additional information provided in this specification, the normative definition of the property is in [CSS2].
With SVG, you can fill (i.e., paint the interior) or stroke (i.e., paint the outline) of shapes and text using one of the following:
SVG uses the general notion of a paint server. Gradients and patterns are just specific types of built-in paint servers. The 'solidColor' element is another built-in paint server, described in Color.
Paint servers are referenced using an IRI reference on a 'fill' or 'stroke' property.
Gradients consist of continuously smooth color transitions along a vector from one color to another, possibly followed by additional transitions along the same vector to other colors. SVG provides for two types of gradients, linear gradients and radial gradients.
Once defined, gradients are then referenced using 'fill' or 'stroke' properties on a given graphics element to indicate that the given element shall be filled or stroked with the referenced gradient.
Linear gradients are defined by a
'linearGradient' element.
<define name='linearGradient'> <element name='linearGradient'> <ref name='linearGradient.AT'/> <ref name='GradientCommon.CM'/> </element> </define> <define name='linearGradient.AT' combine='interleave'> <ref name='svg.Properties.attr'/> <ref name='svg.Core.attr'/> <ref name='svg.X12Y12.attr'/> </define> <define name='svg.GradientCommon.attr' combine='interleave'> <ref name='svg.Properties.attr'/> <ref name='svg.Core.attr'/> <optional> <attribute name='gradientUnits' svg:animatable='true' svg:inheritable='false'> <choice> <value>userSpaceOnUse</value> <value>objectBoundingBox</value> </choice> </attribute> </optional> </define> <define name='GradientCommon.CM'> <zeroOrMore> <choice> <ref name='svg.Desc.group'/> <ref name='svg.Animate.group'/> <ref name='svg.Discard.group'/> <ref name='stop'/> </choice> </zeroOrMore> </define>
Attribute definitions:
If x1 = x2 and y1 = y2, then the area to be painted shall be painted as a single color using the color and opacity of the last gradient stop.
If the gradient starts or ends inside the bounds of the target rectangle the terminal colors of the gradient shall be used to fill the remainder of the target region.
Properties shall inherit into the 'linearGradient' element from its ancestors; properties shall not inherit from the element referencing the 'linearGradient' element.
'linearGradient' elements are never rendered directly; their only usage is as something that can be referenced using the 'fill' and 'stroke' properties. The 'display' property does not apply to the 'linearGradient' element; thus, 'linearGradient' elements are not directly rendered even if the 'display' property is set to a value other than none, and 'linearGradient' elements are available for referencing even when the 'display' property on the 'linearGradient' element or any of its ancestors is set to none.
Example lingrad01 shows how to fill a rectangle by referencing a linear gradient paint server.
<?xml version="1.0"?> <svg width="8cm" height="4cm" viewBox="0 0 800 400" xmlns="http://www.w3.org/2000/svg" version="1.2" baseProfile="tiny"> <desc>Example lingrad01 - fill a rectangle using a linear gradient paint server</desc> <g> <defs> <linearGradient xml:id="MyGradient"> <stop offset="0.05" stop-color="#F60" /> <stop offset="0.95" stop-color="#FF6" /> </linearGradient> </defs> <!-- Outline the drawing area in blue --> <rect fill="none" stroke="blue" x="1" y="1" width="798" height="398"/> <!-- The rectangle is filled using a linear gradient paint server --> <rect fill="url(#MyGradient)" stroke="black" stroke-width="5" x="100" y="100" width="600" height="200"/> </g> </svg>
Radial gradients are defined by a
'radialGradient' element.
<define name='radialGradient'> <element name='radialGradient'> <ref name='radialGradient.AT'/> <ref name='GradientCommon.CM'/> </element> </define> <define name='radialGradient.AT' combine='interleave'> <ref name='svg.Properties.attr'/> <ref name='svg.Core.attr'/> <ref name='svg.CxCy.attr'/> <ref name='svg.R.attr'/> </define>
Attribute definitions:
If the gradient starts or ends inside the bounds of the object(s) being painted by the gradient the terminal colors of the gradient shall be used to fill the remainder of the target region.
Properties shall inherit into the 'radialGradient' element from its ancestors; properties shall not inherit from the element referencing the 'radialGradient' element.
'radialGradient' elements must never be rendered directly; their only usage is as something that can be referenced using the 'fill' and 'stroke' properties. The 'display' property does not apply to the 'radialGradient' element; thus, 'radialGradient' elements are not directly rendered even if the 'display' property is set to a value other than none, and 'radialGradient' elements are available for referencing even when the 'display' property on the 'radialGradient' element or any of its ancestors is set to none.
Example radgrad01 shows how to fill a rectangle by referencing a radial gradient paint server.
<?xml version="1.0"?> <svg width="8cm" height="4cm" viewBox="0 0 800 400" xmlns="http://www.w3.org/2000/svg" version="1.2" baseProfile="tiny"> <desc>Example radgrad01 - fill a rectangle by referencing a radial gradient paint server</desc> <g> <defs> <radialGradient xml:id="MyGradient" gradientUnits="userSpaceOnUse" cx="400" cy="200" r="300"> <stop offset="0" stop-color="red" /> <stop offset="0.5" stop-color="blue" /> <stop offset="1" stop-color="red" /> </radialGradient> </defs> <!-- Outline the drawing area in blue --> <rect fill="none" stroke="blue" x="1" y="1" width="798" height="398"/> <!-- The rectangle is filled using a radial gradient paint server --> <rect fill="url(#MyGradient)" stroke="black" stroke-width="5" x="100" y="100" width="600" height="200"/> </g> </svg>
The ramp of colors to use on a gradient is defined by the 'stop' elements that are child elements to either the 'linearGradient' element or the 'radialGradient' element.
<define name='stop'> <element name='stop'> <ref name='stop.AT'/> <ref name='stop.CM'/> </element> </define> <define name='stop.CM'> <zeroOrMore> <choice> <ref name='svg.Desc.group'/> <ref name='svg.Animate.group'/> </choice> </zeroOrMore> </define> <define name='stop.AT' combine='interleave'> <ref name='svg.Properties.attr'/> <ref name='svg.Core.attr'/> <attribute name='offset' svg:animatable='true' svg:inheritable='false'> <ref name='GradientOffset.datatype'/> </attribute> </define>
Attribute definitions:
The 'stop-color' property specifies the color that shall be used at the gradient stop. The keyword currentColor can be specified in the same manner as within a <paint> specification for the 'fill' and 'stroke' properties.
Value: | currentColor | <color> | inherit |
Initial: | black |
Applies to: | 'stop' elements |
Inherited: | no |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
The 'stop-opacity' property specifies the opacity that shall be used for the gradient stop.
Value: | <opacity-value> | inherit |
Initial: | 1 |
Applies to: | 'stop' elements |
Inherited: | no |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
Computed value: | Specified value, except inherit |
The gradient paint server applies paint of the specified gradient using the opacities defined by stop-opacity values. The values of stop-opacity are independent of the opacity used to render the paint via fill or stroke (see alpha compositing)
Some notes on gradients:
<stop offset="0" stop-color="white"/> <stop offset=".2" stop-color="red"/> <stop offset=".2" stop-color="blue"/> <stop offset="1" stop-color="black"/>will have approximately the same effect as:
<stop offset="0" stop-color="white"/> <stop offset=".1999999999" stop-color="red"/> <stop offset=".2" stop-color="blue"/> <stop offset="1" stop-color="black"/>which is a gradient that goes smoothly from white to red, then abruptly shifts from red to blue, and then goes smoothly from blue to black.
The Paint Attribute Module contains the following attributes:
The Opacity Attribute Module contains the following attributes:
[RNG] [Feature String]The Graphics Attribute Module contains the following attributes:
[RNG] [Feature String]The Gradient Module contains the following elements:
[RNG] [Feature String]The Solid Color Module contains the following element:
[RNG] [Feature String]
