Dick Bulterman, CWI
Editors for SMIL 2.0
Aaron Cohen, Intel
Dick Bulterman, Oratrix
Erik Hodge, RealNetworks.

Table of contents

5.1 Overview and Summary of Changes for SMIL 2.1

This section is informative.

SMIL 2.1 Layout provides four classes of changes to SMIL 2.0 layout. First, the SMIL 2.0 HierarchicalLayout module has been replaced by the SubRegionLayout, AlignmentLayout, and OverrideLayout modules; this allows differentiated features to be implemented in profiles without necessarily requiring support for all of the functionality in the HierarchicalLayout module. Second, several new elements and attributes have been added to SMIL 2.1 Layout to express common layout functions in an authoring-efficient manner; these functions include the short-cut notations for media positioning now available in the AlignmentLayout module and support for background image tiling in the BackgroundTilingLayout. Third, new support for simple audio positioning has been added that allows audio placement to be supported by those players that allow audio 2-D imaging. Fourth, a more consistent definition of the default behavior and default values used by the backgroundColor, fit, regAlign, regPoint, soundAlign, and mediaAlign attributes has been specified that allows the expected behavior to be achieved when using validating parsers.

5.2 Introduction

This section is informative.

This section defines the SMIL 2.1 Layout Modules, which contain elements and attributes that allow positioning of media elements on visual and audio rendering surfaces and to control of audio volume. Since these elements and attributes are defined in modules, designers of other markup languages can choose the appropriate level of functionality to be included in their languages. Language designers incorporating other SMIL modules may include all, some or none of the modules described in this section.

5.2.1 Module Overview

This section is normative.

SMIL 2.1 Layout functionality is partitioned across the following seven modules:

BasicLayout
The BasicLayout module defines the core SMIL layout elements and their attributes. Using these attributes, basic positioning can be achieved for simple presentations.
AudioLayout
The AudioLayout module extends the BasicLayout module with a single attribute to control audio output sound levels.
MultiWindowLayout
The MultiWindowLayout module extends the BasicLayout module by defining an alternative to the root-layout element for defining the outer containing rendering space for a presentation. This module also defines functionality for supporting multiple top-level windows simultaneously.
SubRegionLayout
The SubRegionLayout module extends the BasicLayout module by defining a facility for creating logically nested regions. These regions can be created statically within the layout section or dynamically on a media object reference.
AlignmentLayout
The AlignmentLayout module extends the BasicLayout module by defining attributes to position content within a region based on a set of registration points and alignment algorithms. Several convenience attribute values are also provided to simply common authoring cases.
BackgroundTilingLayout
The BackgroundTilingLayout module extends the BasicLayout module by defining a facility to fill a region background with a tiled image instead of simply a background color.
OverrideLayout
The OverrideLayout model extends the BasicLayout module by allowing per-media-object overrides of various layout attribute values.

The SMIL 2.0 HierarchicalLayout module has been deprecated and is not longer part of SMIL 2.1 Layout.

5.2.2 Support for Multiple Layout Models

This section is informative.

The SMIL 2.1 layout architecture allows support for multiple layout models within a presentation. Media layout may be described using the SMIL layout syntax described in this chapter or by using another layout mechanism, such as CSS2 syntax [CSS2]. Other layout types are possible as well.

Support for multiple layout models is implementation profile dependent. A given profile may support multiple layout models simultaneously (with selection performed using the SMIL switch element), or it may dictate that only a single layout model is supported (such as the use of CSS2 layout within the XHTML+SMIL candidate profile[XHTMLplusSMIL].

The remainder of this chapter will focus solely on the use of SMIL 2.1 layout semantics.

5.3 The SMIL 2.1 BasicLayout Module

5.3.1 Changes for SMIL 2.1

This section is informative.

The functionality in this module is essentially identical to the layout functionality in [SMIL20], which in turn was essentially identical to the layout functionality of [SMIL10]. The only exceptions are that SMIL 2.1 BasicLayout defines a new meetBest value for the fit attribute which limits the amount of scaling applied to a media object to 100% (that is, only downward scaling is allowed), and it defines revised default behavior and default values for the backgroundColor and fit attributes.

5.3.2 Overview

This section is informative.

SMIL 2.1 BasicLayout module includes a layout model for organizing media elements into regions on the visual rendering surface. The layout element is used in the document head to declare a set of regions on which media elements are rendered. Media elements declare which region they are to be rendered into with the region attribute.

Each region has a set of CSS2 compatible properties such as top, left, height, width, and backgroundColor. These properties can be declared using a syntax defined by the type attribute of the layout element. In this way, media layout can be described using the either SMIL basic layout syntax or CSS2 syntax (note that these are not functionally identical). Other layout types are possible as well.

For example, to describe a region with the id "r" at location 15,20 that is 100 pixels wide by 50 pixels tall using the SMIL BasicLayout module:

    <layout>
<region id="r" top="15px" left="20px" width="100px" height="50px"/>
</layout>

To display a media element in the region declared above, specify the region's id as the region attribute of the media element:

    <ref region="r" src="http://..." />

5.3.3 Elements and Attributes

This section is normative.

This section defines the elements and attributes that make up the functionality in the SMIL BasicLayout module.

The layout element

The layout element defines a collection of rendering regions that determine how the elements in the document's body are positioned on an abstract rendering surface (either visual or acoustic).

The layout element must appear before any of the declared layout is used in the document. If present, the layout element must appear in the head section of the document. SMIL-defined default layout values can be assigned to all renderable elements by selecting the empty layout element <layout></layout>. If a document contains no layout element, no SMIL-defined default values are assigned and the positioning of the body elements is totally implementation-dependent.

Element Attributes
type
This attribute specifies which layout language is used in the layout element. If the user agent does not understand this language, it must skip the element and all of its content up until the next </layout> tag. The default value of the type attribute is "text/smil-basic-layout". This identifier value supports SMIL 1.0, SMIL 2.0 and SMIL 2.1 BasicLayout module layout semantics.
Element content

If the type attribute of the layout element has the value "text/smil-basic-layout", it may contain the following elements:

region
root-layout

Profiles incorporating the BasicLayout module may define additional elements that are allowed as children of the layout element. If the type attribute of the layout element has a value other than "text/smil-basic-layout", the element contains character data.

The region element

The region element controls the position, size and scaling of media object elements that are placed within it rendering space.

The position of a region, as specified by its top, bottom, left, and right attributes, is always relative to the parent geometry, which is defined by the parent element. For the SMIL BasicLayout module, all region elements must have as their immediate parent a layout element, and the region position is defined relative to the root window declared in the sibling root-layout element. The root-layout element is considered to be the logical parent of all region elements in SMIL BasicLayout. The intrinsic size of a region is equal to the size of the logical parent's geometry.

When region sizes, as specified by width and height attributes are declared relative with the "%" notation, the size of a region is relative to the size of the parent geometry. Sizes declared as absolute pixel values maintain those absolute values.

Conflicts between the region size and position attributes width, height, bottom, left, right, and top are resolved according to the rules for placeholder elements as detailed below. The default values of region position and size attributes is specified as auto. This attribute value has the same meaning here that it does in [CSS2], when there is no distinction drawn between replaced and non-replaced element.

A placeholder element is one which has no intrinsic width or height, but does have a bounding-box which has a width and height. SMIL BasicLayout regions are placeholder elements. Placeholder elements are clipped to the bounding box.

The governing equation for the horizontal dimension is:

bbw (bounding-box-width) = left + width + right

Given that each of these three parameters can have either a value of "auto" or a defined value not "auto", then there are 8 possibilities:

Attribute values

Result before clipping to the bounding box

left width right left width right
auto auto auto 0 bbw 0
auto auto defined 0 bbw - right right
auto defined auto 0 width bbw - width
auto defined defined bbw - right - width width right
defined auto auto left bbw - left 0
defined auto defined left bbw - right - left right
defined defined auto left width bbw - left - width
defined defined defined left width bbw - left - width

The vertical attributes height, bottom, and top are resolved similarly. The governing equation for the vertical dimension is:

bbh (bounding-box-height) = top + height + bottom

Given that each of these three parameters can have either a value of "auto" or a defined value not "auto", then there are 8 possibilities:

Attribute values

Result before clipping to the bounding box

top height bottom top height bottom
auto auto auto 0 bbh 0
auto auto defined 0 bbh - bottom bottom
auto defined auto 0 height bbh - height
auto defined defined bbh - bottom - height height bottom
defined auto auto top bbh - top 0
defined auto defined top bbh - bottom - top bottom
defined defined auto top height bbh - top - height
defined defined defined top height bbh - top - height
Element attributes

The region element can have the following visual attributes:

backgroundColor
The use and definition of this attribute are identical to the "background-color" property in the CSS2 specification. Unlike SMIL 1.0, this module requires support for CSS2 system colors.
This attribute specifies the background color used to fill the area of a region displaying media that is not filled by the media. The display of the background color when the region is not in use by a media element is controlled by the showBackground attribute.
The backgroundColor attribute may take on the CSS value inherit. This means that the background color will be that of the parent element. If the parent element does not have an applicable background color property, the default value depends on the language profile: if the background-color attribute is supported by the language profile, the default value of backgroundColor is inherited from background-color. Otherwise, the default value is transparent.
background-color
Deprecated. Equivalent to backgroundColor, which replaces this attribute. The language profile must define whether or not the background-color attribute is supported. The default value of the background-color attribute is transparent.
bottom
The use and definition of this attribute are identical to the "bottom" property in the CSS2 specification. Attribute values can be non-negative "percentage" values, and a variation of the "length" values defined in CSS2. For "length" values, SMIL 2.1 BasicLayout only supports pixel units as defined in CSS2. It allows the author to leave out the "px" unit qualifier in pixel values (the "px" qualifier is required in CSS2). Conflicts between the region size attributes bottom, left, right, top, width, and height are resolved according to the rules for absolutely positioned, replaced elements in [CSS2]. The default value of bottom attribute is auto.
fit
This attribute specifies the behavior if the intrinsic height and width of a visual media object differ from the values specified by the height and width attributes in the region element. This attribute does not have a one-to-one mapping onto a CSS2 property, but can be simulated in CSS2.
This attribute can have the following values:
fill
Scale the object's height and width independently so that the content just touches all edges of the box.
hidden
Has the following effect:
  • If the intrinsic height (width) of the media object element is smaller than the height (width) defined in the region element, render the object starting from the top (left) edge and fill up the remaining height (width) with the background color.
  • If the intrinsic height (width) of the media object element is greater than the height (width) defined in the region element, render the object starting from the top (left) edge until the height (width) defined in the region element is reached, and clip the parts of the object below (right of) the height (width).
meet
Scale the visual media object while preserving its aspect ratio until its height or width is equal to the value specified by the height or width attributes, while none of the content is clipped. The object's left top corner is positioned at the top-left coordinates of the box, and empty space at the right or bottom is filled up with the background color.
meetBest
The semantic of this value is identical to meet except that the image is not scaled to greater than 100% in either dimension. This limits degradation of upwardly-scaled media content.
scroll
A scrolling mechanism should be invoked when the element's rendered contents exceed its bounds.
slice
Scale the visual media object while preserving its aspect ratio so that its height or width are equal to the value specified by the height and width attributes while some of the content may get clipped. Depending on the exact situation, either a horizontal or a vertical slice of the visual media object is displayed. Overflow width is clipped from the right of the media object. Overflow height is clipped from the bottom of the media object.

The default value of fit is hidden.

Note that the fit attribute applies to visual media once it has an intrinsic two-dimensional size, such as images and video. It does not apply to visual media that is rendered and adapted to varying circumstances, such as the visual display of HTML, until its two-dimensional spatial dimensions have been determined, such as after an HTML page has been laid out to specific size.

height
The use and definition of this attribute are identical to the "height" property in the CSS2 specification. Attribute values follow the same restrictions and rules as the values of the bottom attribute. The intrinsic height of a region is the same as that of the parent geometry. The default value of the height attribute is auto.
left
The use and definition of this attribute are identical to the "left" property in the CSS2 specification. Attribute values follow the same restrictions and rules as the values of the "bottom" attribute. The default value of the left attribute is auto.
regionName
This attribute assigns a name to this region element that can be referred to by the region attribute of media object elements. The regionName attribute is not a unique identifier; multiple region elements can share the same regionName attribute value. This attribute does not have a default value.
right
The use and definition of this attribute are identical to the "right" property in the CSS2 specification. Attribute values follow the same restrictions and rules as the values of the "bottom" attribute. The default value of right attribute is auto.
showBackground
This attribute controls whether the backgroundColor of a region is shown when no media is being rendered to the region:
  • If the value of showBackground is always, then the background color will be shown in the region when no media object is rendering into that region. If the region is part of a hierarchical sub-region layout, then any ancestor regions must also either be active or have a showBackground value of always for the background color to be shown.
  • If the value of showBackground is whenActive, then the background color will be not be shown in the region when no media object is rendering into that region. If the region is part of a hierarchical sub-region layout, then the background color will also be shown when any descendent regions are active.
The default value of showBackground is always.
top
The use and definition of this attribute are identical to the "top" property in the CSS2 specification. Attribute values follow the same restrictions and rules as the values of the bottom attribute. The default value of the top attribute is auto.
width
The use and definition of this attribute are identical to the "width" property in the CSS2 specification. Attribute values follow the same restrictions and rules as the values of the bottom attribute. The intrinsic width of a region is the same as that of the parent geometry. The default value of width attribute is auto.
z-index
The use and definition of this attribute are identical to the "z-index" property in the CSS2 specification, with the following exception:

If two boxes generated by elements A and B have the same stack level, then:
  • If the display of an element A starts later than the display of an element B, the box of A is stacked on top of the box of B (temporal order).
  • Else, if the display of the elements starts at the same time, and an element A occurs later in the SMIL document text than an element B, the box of A is stacked on top of the box of B (document tree order as defined in CSS2).

A profile integrating the SMIL 2.1 BasicLayout module must provide a means of declaring an XML identifier on region elements.

Element examples

In the following example fragment, the position of a text element is set to a 5 pixel distance from the top border of the rendering window:

<smil xmlns="...">
<head>
...
<layout>
...
<region id="a" top="5" />
...
</layout>
</head>
<body>
...
<text region="a" src="text.html" dur="10s" />
...
</body>
</smil>

The root-layout element

The root-layout element determines the value of the layout properties of the root element, which in turn determines the size of the window in which the SMIL presentation is rendered.

If more than one root-layout element is parsed within a single layout element, this is an error, and the document should not be displayed. This does not include root-layout elements skipped by the user agent (e.g. because the enclosing layout element was skipped due to an unrecognized type or because a test attribute evaluated to false).

The semantics of the root-layout element are as in SMIL 1.0: the attributes of the root-layout element determine the size of the top level presentation window, and the declared sibling regions are arranged within this top level window. If either the height or width of the root-layout element is not specified, the value of the attribute is implementation-dependent.

Element attributes
backgroundColor
Defined in backgroundColor under the region element. Note that the effective default behavior is transparent, which implies that, by default, the implementation-dependent window background will be shown.
background-color
Deprecated. Defined in background-color under the region element.
height
Sets the height of the root element. Only length values are allowed. For "length" values, SMIL 2.1 BasicLayout only supports pixel units as defined in CSS2. It allows the author to leave out the "px" unit qualifier in pixel values (the "px" qualifier is required in CSS2).
width
Sets the width of the root element. Only length values are allowed. For "length" values, SMIL 2.1 BasicLayout only supports pixel units as defined in CSS2. It allows the author to leave out the "px" unit qualifier in pixel values (the "px" qualifier is required in CSS2).
Element content

The root-layout element is an empty element. This element supports the SMIL 1.0 syntax where the root-layout element is an empty sibling of the top level region elements.

Element examples

The following example extends the fragment above with a specification of the root-layout element:

<smil xmlns="...">
<head>
<layout>
<root-layout width="320" height="480" />
<region id="a" top="5" />
</layout>
</head>
<body>
<text region="a" src="text.html" dur="10s" />
</body>
</smil>

Note that the root-layout element is placed at a peer-level within the layout section. SMIL Layout also supports a nested containment model using the topLayout element defined in the MultiWindowLayout module.

The region attribute

The region attribute is added to the ref element (and its synonyms). The target of this attribute will be one or more regions with a regionName declared that matches the value of this attribute, or a single region element with a region attribute that matches this value. For processing rules, see the section Implementation details.

5.3.4 SMIL BasicLayout Implementation and Integration

This section is normative.

Implementation Details

SMIL 2.1 BasicLayout module is consistent with the visual rendering model defined in CSS2, it reuses the formatting properties defined by the CSS2 specification, and newly introduces the fit attribute [CSS2]. The reader is expected to be familiar with the concepts and terms defined in CSS2.

SMIL 2.1 layout regions influence the propagation of user interface events (such as a mouse click, or hyperlink activation) to underlying visible elements. When the location of an event corresponds to the background of a region rather than the media that is displayed in that region, a region background color of transparent allows user interface events to pass through to elements lower in the display stacking order. Conversely, regions with non-transparent background colors will capture user interface events, not allowing the event to pass through to elements lower in the display stacking order. This behavior is separate from that of a language profile's ability to make use of user interface events captured by region elements.

An element that does not refer to a valid region element will display in the default region. If not otherwise specified by the profile, the default region is defined as filling and aligned to the upper-left corner of the presentation window. This default region takes on default values for all other region attributes.

The region attribute is applied to an element in order to specify which rendering region is assigned to the element. The attribute refers to the abstract rendering region (either visual or acoustic) defined within the layout section of the document. The referenced abstract rendering region is determined by applying the following rules, in order:

  1. Find all elements in the layout section with regionName attributes that are assigned the same value as that of the region attribute.
  2. Remove the elements from this collection that are removed from the rendered presentation due to the processing of switch elements and test attributes.
  3. If any elements remain, the media should be rendered in all of the referred to regions. If the application cannot render the media simultaneously in multiple regions, then the media should be rendered using the lexically first remaining element.
  4. If no elements have a regionName attribute that is assigned the same value as that of the region attribute, then select the element in the layout section whose unique identifier is the value of the region attribute.

If this process selects no rendering surface defined in the layout section, the values of the formatting properties of this element are defined by the default layout values, which is described in the section on integration requirements for this module.

Integration Requirements

A profile integrating the SMIL 2.1 BasicLayout module must define the content models for the layout element if any elements beyond those specified here are to be allowed as children.

A profile integrating the SMIL 2.1 BasicLayout module must provide a means of declaring an XML identifier on region elements if the profile intends on referring to region elements by XML identifier. This value is used as the argument value to the region attribute. This is not required if the profile will only use the regionName method of referring to a region element.

A profile integrating the SMIL 2.1 BasicLayout module must specify which elements have a region attribute and any inheritance of the attribute.

If not otherwise defined by the profile, the default values of the layout attributes listed in the SMIL 2.1 layout modules will apply to presented elements not otherwise specifying layout semantics.

5.3.5 Document Type Definition (DTD) for the BasicLayout Module

This section is normative.

See the full DTD for the SMIL Layout modules.

5.4 The SMIL 2.1 AudioLayout Module

5.4.1 Changes for SMIL 2.1

This section is informative.

The functionality in this module is identical to the layout functionality in the [SMIL20] SMIL 2.0 AudioLayout module. The SMIL 2.1 text contains minor editorial changes.

5.4.2 Overview

This section is informative.

In SMIL 2.1 AudioLayout, one attribute is supported that allows the sound intensity of an audio object to be specified via the soundLevel attribute.

The following region defines an audio sound level that is set to 50% of its normal recorded value:

  <layout>
...
<region id="a" soundLevel="50%"/>
...
</layout>

When used in conjuction with SMIL 2.1 Animation (and if supported by the profile), the value of the attribute may be varied over time.

5.4.3 Audio Volume Control

This section is normative.

SMIL 2.1 AudioLayout module supports control of aural media volumes via a new property on the region element, soundLevel. Multimedia assigned to a region with an explicit soundLevel attribute will have its audio rendered at the given relative sound intensity.

5.4.4 Elements and Attributes

This section is normative.

This section defines the soundLevel attribute that makes up the SMIL 2.1 AudioLayout module.

The region element

The region element defined in the BasicLayout module is extended with the addition of the soundLevel attribute.

Element attributes

The region element can have the following aural attribute:

soundLevel
Specifies the relative volume of the audio portion of a media element assigned to play within the given region. This associates the region element with a sound reproduction unit. Cascaded regions will accumulate their respective sound level settings, as will be explained below. region's that are used for multiple sources apply their sound level setting to all of them. A sound source may be reproduced by different units, e.g., through application of the regionName attribute. In such a "multiple window" case a separate soundLevel may be applied to each instance of the sound source, one per region. Assigned level changes accumulate across nested regions by multiplying percentage values.

Valid values are non-negative CSS2 percentage values. Percentage values are interpreted relative to the recorded volume of the media. The percentages are interpreted as a ratio of output to input signal level, and is defined in terms of dB:

dB change in signal level = 20 log10(percentage-value / 100)

A setting of '0%' plays the media silently. A value of '100%' will play the media at its recorded volume (0 dB). Similarly, a value of '200%' will play the media nearly twice as loud (6 dB) as its recorded volume (subject to hardware limitations). The default value is '100%'. The absolute sound level of media perceived is further subject to system volume settings, which cannot be controlled with this attribute.

5.4.5 Integration Requirements for the AudioLayout Module

This section is normative.

The functionality in this module builds on top of the functionality in the BasicLayout module, which is a required prerequisite for inclusion of the AudioLayout module.

5.4.6 Document Type Definition (DTD) for the AudioLayout Module

This section is normative.

See the full DTD for the SMIL Layout modules.

5.5 The SMIL 2.1 MultiWindowLayout Module

5.5.1 Changes for SMIL 2.1

This section is informative.

The functionality in this module is identical to the layout functionality in the [SMIL20] SMIL 2.0 MultiWindowLayout module. The SMIL 2.1 text contains minor editorial changes to descriptions and examples.

5.5.2 Overview

This section is informative.

This section defines the functionality in the SMIL 2.1 MultiWindowLayout module. This level contains elements and attributes providing for creation and control of multiple top level windows on the rendering device.

In the architecture of the SMIL 2.1 BasicLayout module, each presentation is rendered into a single root window of a specific size/shape. The root window contains all of the regions used to manage the rendering of specific media objects and is defined by a peer-level root-layout element.

The SMIL 2.1 Layout specification extends the root container level with the notion of a top-level rendering window, called a topLayout window. A SMIL 2.1 layout section may support one or more topLayout windows. The assignment of the regions to individual top level windows allows independent placement and resizing of each top-level window, if supported by the including profile and implementation. The initial placement of the top level windows on the display device and any available means of relocating the top level windows is implementation-dependent.

The top-level windows function as rendering containers only, that is, they do not carry temporal significance. In other words, each window does not define a separate timeline or any other time-container properties. There is still a single master timeline for the SMIL presentation, no matter how many top-level windows have been created. This is important to allow synchronization between media displayed in separate top-level windows.

The display of top level windows can be controlled automatically by the player, or manually by the user of the application. If a window is closed (by the user) while any of the elements displayed in that window are active, there is no effect on the timeline (if any) of those elements. However, a player may choose not to decode content as a performance improvement. The means provided to a user to close top level windows is implementation-dependent.

For SMIL 1.0 compatibility, the root-layout element will continue to support SMIL 1.0 layout semantics. The new topLayout element will support the extension semantics and the improved, nested syntax.

Note also that any one region may belong to at most one top-level (or root-level) window. Regions not declared as children of a topLayout element belong to the root-layout window. If no root-layout element has been declared, the region is assigned to an additional window according to the semantics in the BasicLayout module.

5.5.3 Elements and Attributes

This section is normative.

This section defines the elements and attributes that make up the SMIL 2.1 MultiWindowLayout module.

The topLayout element

The topLayout element determines the size of the a window in which the SMIL presentation is rendered, as well as serving as a top level window in which to place child region elements.

Multiple topLayout elements may appear within a single layout element, each declaring an independent top-level window.

Each instance of a topLayout element determines the size of a separate top-level presentation window, and the descendant regions are arranged within this top-level window and relative to the coordinate system of this window.

This module also provides control over when topLayout windows open and close in a presentation. Note that the precise mapping of topLayout windows on to the host environment is implementation-dependent. It is expected that implementations will "pop up" independent desktop windows if they can, but other means of supporting multiple topLayouts, such as by using frames, are allowed. When automatically opening and closing windows, applications should try to comply with the WAI User Agent Guidelines [UAAG] and allow the user to choose whether to be warned that windows are being opened and closed, and give a method for disabling automatic opening and closing of windows.

Element attributes
backgroundColor
Defined in backgroundColor under the region element. Note that the effective default behavior is transparent, which implies that, by default, the implementation-dependent window background will be shown.
close
Specifies when the top level window should be closed. If the value of close is onRequest, then the top level window should not be closed automatically by the player and will only close if the user explicitly closes it via the user interface. If the value of close is whenNotActive, then the top level window should close automatically when no media is being displayed in any one of the window's regions. For timed media using the SMIL 2.1 timing and synchronization modules, this means when there is no media within its active duration or freeze period using any region of the topLayout. The default value of close is onRequest.
height
Sets the height of the top-level window. Only length values are allowed. For "length" values, SMIL 2.1 MultiWindowLayout only supports pixel units as defined in CSS2. It allows the author to leave out the "px" unit qualifier in pixel values (the "px" qualifier is required in CSS2).
open
Specifies when the top level window should be opened. If the value of open is onStart, then the top level window should be opened when the presentation begins, and if closed, should not be reopened automatically during the presentation. If the value of open is whenActive, then, if not already open, the top level window should be opened when media is displayed in one of the window's regions. For timed media using the SMIL 2.1 timing and synchronization modules, this means when there is any media within its active duration or freeze period using any region of the topLayout. The default value of open is onStart.
width
Sets the width of the top-level window. Only length values are allowed. For "length" values, SMIL 2.1 MultiWindowLayout only supports pixel units as defined in CSS2. It allows the author to leave out the "px" unit qualifier in pixel values (the "px" qualifier is required in CSS2).
Element content

The topLayout element may contain any number of region elements, or be empty.

Element examples

The following example provides a restatement of the root-layout example:

<smil xmlns="...">
  <head>
    <layout>
      <topLayout width="320" height="480" />
        <region id="a" top="5" />
      </topLayout/>
    </layout>
  </head>
  <body>
    <text region="a" src="text.html" dur="10s" />
  </body>
</smil>

Multiple instances of the topLayout element may occur within a single layout element:

  <layout>
    <topLayout id="WinV" title="Video" width="320" height="240"/>
      <region id="pictures" title="pictures" height="100%" fit="meet"/>
    </topLayout>
    <topLayout id="WinC" title="Captions" width="320" height="60">
      <region id="captions" title="caption text" top="90%" fit="meet"/>
    </topLayout>
  </layout>

In this example, two top-level windows are defined ("WinV" and "WinC"), and two regions are defined with one region ("pictures") assigned to WinV and the other ("captions") to WinC. These windows may be opened and closed independently by the presentation or by a user.

The layout element

The MultiWindowLayout module does not redefine the BasicLayout layout element. Instead, it simply extends the content model for that element, as described in the following subsection.

Element content

The layout element defined in the SMIL BasicLayout module is extended by adding topLayout element to the content model of the layout element if the type attribute of the layout element has the value "text/smil-basic-layout".

5.5.4 MultiWindowLayout Module Events

This section is normative.

This module includes two events that may be included in the integrating language profile.

topLayoutOpenEvent
Raised when a topLayout window opens. This event is delivered to the associated topLayout element. If a topLayout closes and then reopens when additional media becomes active in any of its regions, this event will be raised again, and will be raised every subsequent time it reopens.
topLayoutCloseEvent
Raised when a topLayout closes for any reason. This event is delivered to the associated topLayout element. If a topLayout reopens when additional media becomes active in any of its regions, this event will be raised again if and when the topLayout closes again, and will be raised every subsequent time it closes.

5.5.5 Implementation and Integration Requirements for the MultiWindowLayout Module

This section is normative.

Implementation details

Allowing multiple topLayout elements within a single layout element implies support for multiple top level windows. If an implementation does not support multiple top level windows (because of device or processing restrictions), only content in the first top-level window defined in the layout will be rendered. Non-rendered objects will still participate in all SMIL timing and scheduling operations.

If used together with the root-layout element, any direct peer-level regions to the root-layout will be contained within the extents of the root-layout.

5.5.6 Integration Requirements for the MultiWindowLayout Module

This section is normative.

The functionality in this module builds on top of the functionality in the BasicLayout module, which is a required prerequisite for inclusion of the MultiWindowLayout module.

The language profile must specify the declarative names for binding the topLayoutOpenEvent and topLayoutCloseEvent events described in the MultiWindowLayout Module Events section, as well as the bubbling behavior of the events.

5.5.7 Document Type Definition (DTD) for the MultiWindowLayout Module

See the full DTD for the SMIL Layout modules.

5.6 The SMIL 2.1 SubRegionLayout Module

5.6.1 Changes for SMIL 2.1

This section is informative.

The functionality in this module is a subset of the layout functionality in the [SMIL20] HierarchicalLayout module. The SubRegionLayout module for SMIL 2.1 does not introduce any new elements, attributes or attribute values beyond those available in SMIL 2.0. Unlike SMIL 2.0 HierarchicalLayout, SMIL 2.1 SubRegionLayout no longer defines elements and attributes for the registration element or the registration attributes. These are now defined in the AlginmentLayout module. Also unlike SMIL 2.0 HierarchicalLayout, the SMIL 2.1 SubRegionLayout module no longer provides support for an object in a (sub-)region to alter various non-positioning region attributes. This facility is now supported in the OverrideLayout module. Note that all functionality provided by the SMIL 2.0 HierarchicalLayout module is still supported in the SMIL2.1 Layout modules; only the organization of the modules has changed.

5.6.2 Overview

This section is informative.

In SMIL 2.1, the SubRegionLayout module defines two mechanisms for defining regions that are logically contained within a parent region (these are SMIL's sub-regions). First, the SubRegionLayout module extends the definition of the region element to allow for the specification of sub-regions within the layout section as hierarchical content of regions. Second, the SubRegionLayout module extends the attributes allowed on (media) object references to allow a dynamic sub-region to be defined in-line by that object instance only. All values given for placement within sub-regions are defined in terms of the parent region's placement attributes. The ability to define sub-regions can be exploited for authoring convenience or when changing the location of a group of related regions using SMIL 2.1 Animation.

In the following fragment, a parent region (CaptionedVideo) is defined that contains two hierarchical sub-regions: image and captions. The placement of the image and caption content is specified as relative to the dimensions of the parent region. This is an example of a statically-defined hierarchy of sub-regions.

  <layout>
     ...
     <region id="CaptionedVideo" top="10px" left="20px" width="320" height="300">
       <region id="image" title="image content" width="100%" height="240px" fit="meet"/>
       <region id="captions" title="caption text" top="240px" height="60px" fit="meet"/>
     </region>
     ...
  </layout>

A presentation using the above layout specification could also create a dynamic sub-region that is defined for use by this single object:

  <body>
      ...
     <img id="Title" region="image" top="5%" left="3" bottom="10%" right="15%"  src="TitleImage.png"/>
     ...
  </body>

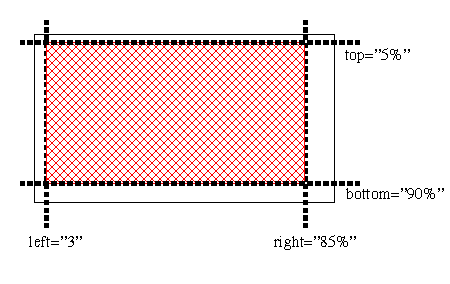

This statement creates a sub-region with the named region "image" with the given extents. In the example above, the effective boundaries of the sub-region for the placement of this object are defined by declaring the top, bottom, left and right edges of the region to the values shown, and then filling the resulting sub-region with the specified image as directed by the fit attribute. If the size of the media object being displayed is smaller than that of the resulting sub-region, the display will be similar to: picture of sub-regions

The use of in-line sub-region placement is intended as a light-weight alternative to defining a large number of single-use regions. Often, the dimensions used for the sub-region will match the dimensions of the media object being placed, but in all cases the values of the fit attribute will govern rendering of the object in the sub-region. The other attributes on the media element that would have been applied to a referenced region are applied to the sub-region instead. Note that the default values for the sub-region attributes are all 'auto', meaning that, by default, a sub-region is created having the same size and position as the parent region.

The use of sub-region positioning leads to authoring convenience and SMIL file compactness, since many separate regions do not need to be defined to handle incidental layout needs. The support for a hierarchy of sub-regions also allows multiple layout objects to be animated in concert by moving the parent region using SMIL 2.1 Animation facilities.

5.6.3 Elements and attributes

This section is normative.

This section defines extensions to the region and ref elements (and its synonyms) to support sub-region functionality.

The region element

This module extends the definition of the region element to include the definition of hierarchical sub-regions.

Element attributes

In the SubRegionLayout module, the region element has no additional attributes beyond that provided in the other included layout modules. However, the semantics of the z-index attribute are extended to support hierarchical sub-regions.

z-index
This attribute is defined as in the BasicLayout module with extensions presented here.
The z-index attribute defines the level of the region within the parent region stacking context. Elements assigned to higher level regions are rendered in front of lower level regions within the same parent region. Child regions are always placed in front of their parent region. This results in a two stage sorting of region visibility: first by parent-child containment, and then by z-index among siblings.

Just as with simple non-hierarchical regions, the stacking order of hierarchical regions may be affected by temporal activation. A region becomes active either when media begins rendering into it, or when one of its child regions becomes active. If two sibling regions have the same z-index, the region most recently made active is in front of the other region.

Element content

The SMIL 2.1 SubRegionLayout module extends the region element content model to include region elements.

The ref element (and its synonyms)

The SubRegionLayout module extends the ref element to allow a separate, unnamed sub-region to be defined for the media object reference containing the sub-region positioning attributes.

Element attributes

The ref element defined in the MediaObject module and its synonyms are extended to include the following positioning attributes.

top
This value uniquely identifies the position or the distance (using CSS2 pixel or non-negative percentage values) of the top edge of the sub-region relative to the top of the region. The "px" unit qualifier in pixel values may be omitted. The default value of top is auto.
bottom
This value uniquely identifies the position or the distance (using CSS2 pixel or non-negative percentage values) of the bottom edge of the sub-region relative to the bottom of the region. The "px" unit qualifier in pixel values may be omitted. The default value of bottom is auto.
height
This value uniquely identifies the position or the distance (using CSS2 pixel or non-negative percentage values) of the bottom edge of the sub-region relative to the top side of the sub-region. The "px" unit qualifier in pixel values may be omitted. The default value of height is auto.
left
This value uniquely identifies the position or the distance (using CSS2 pixel or non-negative percentage values) of the left edge of the sub-region relative to the left of the region. The "px" unit qualifier in pixel values may be omitted. The default value of left is auto.
right
This value uniquely identifies the position or the distance (using CSS2 pixel or non-negative percentage values) of the right edge of the sub-region relative to the right side of the region. The "px" unit qualifier in pixel values may be omitted. The default value of right is auto.
width
This value uniquely identifies the position or the distance (using CSS2 pixel or non-negative percentage values) of the right edge of the sub-region relative to the left side of the sub-region. The "px" unit qualifier in pixel values may be omitted. The default value of width is auto.

Conflicts between the region size attributes bottom, height, left, right, top, and width are resolved according to the rules for placeholder elements described in the section on the region element.

The sub-region positioning attributes will be ignored if they are used on an element without a region attribute (or, if supported, the regionName attribute) that resolves to a region element in the layout section.

5.6.4 SubRegionLayout Module Events

This section is normative.

This module does not define any SMIL 2.1 events.

5.6.5 SubRegionLayout Implementation and Integration

This section is normative.

Implementation Details

The position of a region, as specified by its top and left attributes, is always relative to the parent geometry, which is defined by the parent element. For the SMIL 2.1 SubRegionLayout module, all hierarchical region elements must have as their immediate parent a region or topLayout element. The position of the hierarchical region is defined relative to that parent element. The intrinsic size of a region is equal to the size of the parent geometry.

When region sizes, as specified by width and height attributes are declared relative with the "%" notation, the size of the hierarchical region is relative to the size of the parent region. Sizes declared as absolute pixel values are absolute values even when used with a child region.

Note that a (hierarchical) region may be defined in such a way as to extend beyond the limits of its parent. In this case the child region must be clipped to the parent boundaries.

If a z-index attribute is defined on the hierarchical region, it is evaluated as a local index within that of the parent.

If the fit attribute and alignment attributes regPoint and regAlign are relevant to the placement of a particular media object, the interaction is the same as described in the definition of regPoint. If sub-region positioning attributes are used on a media object along with fit or the alignment attributes regPoint and regAlign, these attributes apply to the sub-region. In this case the fit setting on the referenced region element does not apply to the sub-region.

For both sub-region positioning and registration point use (as defined in the module), the value of the z-index attribute on the associated region is used. If media objects overlap spatially, existing rules for resolving z-index conflicts are applied.

Note that placement within the region may be defined in such a way as to extend the media object beyond the limits of the region. In this case the media object must be clipped to the region boundaries.

If two hierarchical regions with the same z-index attribute value overlap, the existing rules for z-index processing defined in the BasicLayout module are applied. Specifically, the rule concerning time priority is maintained, meaning that in the case of a z-index conflict, the media visible in the overlap will be determined by the region that is rendering the media that has most recently begun in time. If the conflicting media began at the same time, then the rule using the textual order of the media elements in the SMIL document is applied.

For example:

<layout>
   <root-layout width="640px" height="480px" />
   <region id="whole" top="0px" left="0px" width="640px"
                                height="480px" z-index="5"/>
   <region id="right" top="0px" left="320px" width="320px"
                                height="480px" z-index="4">
       <region id="inset" top="140px" left="80" width="160px"
                                height="200px" z-index="6"/>
       <region id="inset2" top="140px" left="80" width="160px"
                                height="200px" z-index="6"/>
       <region id="inset3" top="140px" left="80" width="160px"
                                height="200px" z-index="7"/>
   </region>
</layout>
...
<par>
        <img id="A" region="whole" src="imageA.jpg" dur="10s"/>
        <img id="B" region="inset" src="imageB.jpg" dur="10s"/>
</par>
<par>
        <img id="D" region="inset2" src="imageD.jpg" begin="1s" dur="10s"/>
        <img id="C" region="inset" src="imageC.jpg" begin="0s" dur="10s"/>
</par>
<par>
        <img id="E" region="inset2" src="imageE.jpg" dur="10s"/>
        <img id="F" region="inset3" src="imageF.jpg" dur="10s"/>
</par>
  1. In the first "par", image "A" and image "B" begin at the same time. Image A will obscure image "B", even though the z-index of "inset" is greater than that of "whole". This is because the z-index of "right", which is the region containing "inset" is less than that of "whole".
  2. In the second "par", images "C" and "D" are rendered into regions occupying the same area of the rendering surface. Image "C" will be shown for one second and then obscured by Image "D", since "D" begins after image "C". Note that lexical order is irrelevant here.
  3. In the third "par", the z-index of region "inset" is considered when computing stacking between siblings, and therefore image "F" will be shown, but image "E" will be obscured for the entire 10 seconds that they are both active.

Integration Requirements for the SubRegionLayout Module

The functionality in this module builds on top of the functionality in the BasicLayout module and the MediaObject module, which are required prerequisites for inclusion of the SubRegionLayout module. If the functionality in this module is to be used with the topLayout construct, the MultiWindowLayout module is a prerequisite.

5.6.6 Document Type Definition (DTD) for the SubRegionLayout Module

This section is normative.

See the full DTD for the SMIL Layout modules.

5.7 AlignmentLayout Module

5.7.1 Changes for SMIL 2.1

This section is informative.

This is a new module for SMIL 2.1. It contains the alignment functionality from [SMIL20] and adds the mediaAlign attribute to simplify the specification of object alignment and the soundAlign attribute to support audio 2-D placement.

5.7.2 Overview

This section is informative.

A registration element is an element defined within this module that is used to define a point within a region and a default object alignment algorithm about that point. The element can be used in a media object element, where it is associated with a region and an optional override alignment algorithm. The placement values within registration elements can be either percentages or pixels.

The use of registration points allows for consistent relative placement across regions. As such, registration points are defined outside of any single region.

For example, the following code describes two registration points (with id values "midPoint" and "topMargin"), one of which is defined as a relative location and one at a fixed pixel location, using the SMIL 2.1 AlignmentLayout syntax:

    <layout>
<regPoint id="midPoint" top="50%" left="50%" regAlign="center" />
<regPoint id="topMargin" top="10" left="15" regAlign="topLeft" />
<region id="a" ... />
<region id="b" ... />
</layout>

In this example, the registration point with the id value "midPoint" has a default alignment algorithm that centers the media object about the defined point, while the registration point with the id value "topMargin" has a default alignment algorithm that places the top-left point of the media object at the registration point.

Various media elements could be displayed in the regions using the alignment points as follows:


<ref region="a" src="rtsp://..." dur="2s" regPoint="midPoint" />
<ref region="b" src="http://..." dur="2s"
regPoint="midPoint" regAlign="bottomRight"/>
<ref region="a" src="http://..." dur="2s" regPoint="topMargin" />
<ref region="b" src="http://..." dur="2s"
regPoint="topMargin" regAlign="center"/>

In the first example, a media object is centered in the middle of region a. In the second example, a media object has its bottom right corner centered in the middle of region b. Similarly, in the third example, a media object has its top left corner placed at a point 10,15 within region a, and in the fourth example, an object is centered around the point 10,15 in region b.

Registration points can be used to coordinate the placement of a set of media objects that do not share the same sizes. (For example, a set of images can be aligned to the center of a region.) They can also be used to coordinate the display of images about a particular point in a region, as in:

   <layout>
<regPoint id="middle" top="50%" left="50%" regAlign="center" />
<region id="a" ... />
</layout>
...
<seq>
<ref region="a" src="rtsp://..." dur="2s" regPoint="middle"
regAlign="bottomRight"/>
<ref region="a" src="http://..." dur="2s" regPoint="middle"
regAlign="bottomLeft"/>
<ref region="a" src="http://..." dur="2s" regPoint="middle"
regAlign="topLeft"/>
<ref region="a" src="http://..." dur="2s" regPoint="middle"
regAlign="topRight"/>
</seq>

In this example, four objects are aligned over time to the middle of region. If any media element extends outside the bounds of a region, it will be clipped to the region.

Note that registration points are global within the context of a layout, and are not tied to a particular region, but can be reused across regions. As such, pixel-based offsets should be used with care.

For authoring convenience, SMIL AlignmentLayout module provides several pre-defined region registration points including topLeft, topMid, topRight, midLeft, center, midRight, bottomLeft, bottomMid, and bottomRight.

For example, media objects can be centered in any region like this:

    <ref ... regPoint="center" regAlign="center" />

As a further convenience, SMIL AlignmentLayout module provides the mediaAlign attribute, which defines a combination of regAlign and regPoint attributes. For example, media objects can be centered in any region using mediaAlign as follows:

    <ref ... mediaAlign="center" />

If the mediaAlign attribute and either (or both) of the regPoint and regAlign attributes are used together, the regPoint and/or regAlign value(s) will override the corresponding effective regPoint/regAlign value(s) defined by the mediaAlign value.

The default value of regAlign for a region is topLeft. If the regAlign attribute is used without a regPoint attribute, the alignment operation is relative to the upper left point of the region containing this object, that is, the behavior is the same as if the regPoint were to be specified as topLeft.

Rules for handling clipping of objects within regions based on the regPoint and regAlign attributes are defined below.

5.7.3 Elements and Attributes for the AlignmentLayout Module

This section is normative.

This section defines the elements and attributes that make up the SMIL 2.1 AlignmentLayout module.

The layout element

This element extends the content model of the layout element to support the registration point functionality described in this section.

Element content

If the type attribute of the layout element has the value "text/smil-basic-layout", it is extended to contain the following elements:

region
root-layout
regPoint

The regPoint element

The regPoint element determines the (x, y) coordinates of a point relative to a region upper-left corner for use in aligning elements in the document's body on regions within a visual rendering surface. A regPoint may be defined using absolute (pixel) or relative (percentage) based values. The regPoint functionality is not defined and may not be used for media without intrinsic size.

For the purposes of regPoint functionality, media and regions are defined to be rectangular, with perpendicular sides, with the sides ordered clockwise top, right, bottom, and left. The top side is the edge closest to the point or edge of the display device considered "up".

Element attributes
top
This value uniquely identifies the position or the distance (using CSS2 pixel or non-negative percentage values) of the registration point relative to the top of the region. The "px" unit qualifier in pixel values may be omitted. The default value of top is auto.
bottom
This value uniquely identifies the position or the distance (using CSS2 pixel or non-negative percentage values) of the registration point relative to the bottom of the region. The "px" unit qualifier in pixel values may be omitted. The default value of bottom is auto.
left
This value uniquely identifies the position or the distance (using CSS2 pixel or non-negative percentage values) of the registration point relative to the left location of the region. The "px" unit qualifier in pixel values may be omitted. The default value of left is auto.
right
This value uniquely identifies the position or the distance (using CSS2 pixel or non-negative percentage values) of the registration point relative to the right location of the region. The "px" unit qualifier in pixel values may be omitted. The default value of right is auto.
regAlign
This attribute specifies the default alignment algorithm which is associated with a regPoint relative to the media object. The value of topLeft is the default. The following values are allowed:
topLeft
Align the top-left corner of the object with the registration point.
topMid
Align the top-middle point of the object with the registration point. The top-middle is the point offset width/2 to the right of the object top-left corner.
topRight
Align the top-right corner of the object with the registration point.
midLeft
Align the middle-left point of the object with the registration point. The middle-left is the point offset height/2 down from the object top-left corner.
center
Align the center of the object with the registration point.
midRight
Align the middle-right point of the object with the registration point. The middle-right is the point offset height/2 down from the object top-right corner.
bottomLeft
Align the bottom-left corner of the object with the registration point.
bottomMid
Align the bottom-middle point of the object with the registration point. The bottom-middle is the point offset width/2 right from the object bottom-left corner.
bottomRight
Align the bottom-right corner of the object with the registration point.
Element content

None.

The region element

This module extends the definition of the region element to include the definition of default alignment policies for content in that region.

Element attributes
regPoint
This attribute is identical to the regPoint attribute on media objects defined below, except that it defines a default alignment point for all media objects placed in the region. The default value for this attribute when used on the region element is topLeft.
regAlign
This attribute is identical to the regAlign attribute on media objects defined below, except that it defines a default alignment policy for all media objects placed in the region. The default value for this attribute when used on the region element is topLeft.
mediaAlign
This attribute is identical to the mediaAlign attribute on media objects defined below, except that it defines a default combination registration point/alignment policy for all media objects placed in the region. The default value for this attribute when used on the region element is undefined; the default behavior of this attribute is the behavior resulting from the application of the regPoint and regAlign attributes. (Note that this defines an effective default behavior of topLeft.)
soundAlign
This attribute is identical to the soundAlign attribute on media objects defined below, except that it defines a default 2D placement of the audio portion of a media element assigned to play within the given region. The default value for this attribute when used on the region element is both.
Element content

SMIL 2.1 AlignmentLayout module does not extend the region element content model.

The ref element (and its synonyms)

The AlignmentLayout module extends the ref element to allow the positioning of media content within a region based on the an alignment registration point and an alignment policy.

Element attributes

The ref element defined in the MediaObject module is extended to include the regPoint attribute conjunction with the regPoint element. If a regPoint attribute is missing or refers to a non-existent regPoint element the value of the regAlign attributes are applied to the top-left point of the region containing the media object.

regPoint
This value uniquely identifies the registration point to be used for the placement of the object. The value should be an XML identifier of a regPoint element.
The following values are predefined registration points that do not have to be declared as regPoint elements before they are used:
topLeft
Same as using top="0%" left="0%" on the element without the regPoint attribute.
topMid
Same as using top="0%" left="50%" on the element without the regPoint attribute.
topRight
Same as using top="0%" left="100%" on the element without the regPoint attribute.
midLeft
Same as using top="50%" left="0%" on the element without the regPoint attribute.
center
Same as using top="50%" left="50%" on the element without the regPoint attribute.
midRight
Same as using top="50%" left="100%" on the element without the regPoint attribute.
bottomLeft
Same as using top="100%" left="0%" on the element without the regPoint attribute.
bottomMid
Same as using top="100%" left="50%" on the element without the regPoint attribute.
bottomRight
Same as using top="100%" left="100%" on the element without the regPoint attribute.
Note that the predefined registration points have the same meaning relative to the region as the regAlign attribute values have relative to the media. The defalut value is inherited from the regPoint value defined for the associated region. This implies a default behavior of topLeft.
regAlign
This value uniquely identifies the registration algorithm to be used for the regPoint defined for the object, and overrides any regAlign attribute on the referenced regPoint element. Permissible values are those defined under the regAlign attribute for the regPoint element. If used without an explicit regPoint attribute, the value is relative to the top left point of the region used by the associated media object. The defalut value is inherited from the regAlign value defined for the associated region. This implies a default behavior of topLeft.
mediaAlign
This value uniquely identifies a short-hand notation for combining set combinations of regAlign and regPoint attributes. Valid values are:
topLeft
Same as using the regPoint ="topLeft" and regAlign="topLeft" attributes.
topMid
Same as using the regPoint ="topMid" and regAlign="topMid" attributes.
topRight
Same as using the regPoint ="topRight" and regAlign="topRight" attributes.
midLeft
Same as using the regPoint ="midLeft" and regAlign="midLeft" attributes.
center
Same as using the regPoint ="center" and regAlign="center" attributes.
midRight
Same as using the regPoint ="midRight" and regAlign="midRight" attributes.
bottomLeft
Same as using the regPoint ="bottomLeft" and regAlign="bottomLeft" attributes.
bottomMid
Same as using the regPoint ="bottomMid" and regAlign="bottomMid" attributes.
bottomRight
Same as using the regPoint ="bottomRight" and regAlign="bottomRight" attributes.
If specified together with either (or both) of the regPoint and/or regAlign attributes, the effect values of the respective positioning attribute(s) specified by mediaAlign will be overridden by the values given for regPoint and/or regAlign. This attribute does not have a default value; the default behavior is inherited from the effective values of the regPoint and regAlign attributes.
soundAlign
Specifies the coarse 2D placement of the audio portion of a media element assigned to play within the given region. The default value is inherited from the region. The following values are allowed:
both
Place the audio on both channels. If stereo or other dual-channel audio is used, the audio will be reproduced on both channels, implementation permitting.
left
Place the audio on the left channel only. If stereo audio is used, only the left source audio will be reproduced on the left audio channel, implementation permitting.
right
Place the audio on the right channel only. If stereo audio is used, only the right source audio will be reproduced on the right audio channel, implementation permitting.
Element content

SMIL 2.1 AlignmentLayout module does not extend the ref element content model.

5.7.4 AlignmentLayout Module Events

This section is normative.

This module does not define any SMIL 2.1 events.

5.7.5 SMIL AlignmentLayout Implementation and Integration

This section is normative.

Implementation Details

If an implementation cannot support the soundLevel attribute, it may be ignored. Even when processing is ignored, the attribute must be correctly parsed.

The regPoint element may only appear as an immediate child of a layout element.

If the registration point functionality is used on a media object that also uses sub-region positioning, the registration point applies to the subregion.

For registration point use, the value of the z-index attribute on the associated region is used. If media objects overlap spatially, existing rules for resolving z-index conflicts are applied.

Note that placement within the region may be defined in such a way as to extend the media object beyond the limits of the region. In this case the media object must be clipped to the region boundaries.

The default value of regAlign for a region is topLeft. If the regAlign attribute is used without a regPoint attribute, the alignment operation is relative to the upper left point of the region containing this object, that is, the behavior is the same as if the regPoint were to be specified as topLeft.

If the registration point or alignment functionality is used on a media object, the interaction between the regPoint attribute value, the regAlign attribute value, and the fit attribute value of the region in which the media object is displayed is as follows:

fill fit value:
This depends on the value of the regAlign attribute. (Note: in all cases, the media must maintain proper alignment over the regPoint):
topLeft regAlign value:
Scale the object's height and width independently so that the content just touches the bottom and right edges of the box.
topMid regAlign value:
Scale the object's height and width independently so that the content just touches the bottom edge of the box, and the nearest (to the regPoint) of the left or right edges of the box.
topRight regAlign value:
Scale the object's height and width independently so that the content just touches the bottom and left edges of the box.
midLeft regAlign value:
Scale the object's height and width independently so that the content just touches the nearest (to the regPoint) of the top or bottom edges of the box, and touches the right edge of the box.
center regAlign value:
Scale the object's height and width independently so that the content just touches the nearest (to the regPoint) of the top or bottom edges of the box, and touches the nearest (to the regPoint) of the left or right edges of the box.
midRight regAlign value:
Scale the object's height and width independently so that the content just touches the nearest (to the regPoint) of the top or bottom edges of the box, and touches the left edge of the box.
bottomLeft regAlign value:
Scale the object's height and width independently so that the content just touches the top and right edges of the box.
bottomMid regAlign value:
Scale the object's height and width independently so that the content just touches the top edge of the box, and the nearest (to the regPoint) of the left or right edges of the box.
bottomRight regAlign value:
Scale the object's height and width independently so that the content just touches the top and left edges of the box.
hidden fit value:
Align the media over the given regPoint per the regAlign attribute. If the media so positioned extends past the bounds of the region, clip the excess media. If the media so positioned doesn't meet the bounds of the region, fill the remaining space with the background color of the region.
meet fit value:
This depends on the value of the regAlign attribute. Any part of the region that is not covered by the media is then filled with the region's background color. (Note: in all cases, the media must maintain proper alignment over the regPoint):
topLeft regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the right or bottom edge of the box while none of the content is clipped.
topMid regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches at least one of the left, right, or bottom edges while none of the content is clipped.
topRight regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the left or bottom edge of the box while none of the content is clipped.
midLeft regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches at least one of the top, right, or bottom edges while none of the content is clipped.
center regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches at least one of the top, left, right, or bottom edges while none of the content is clipped.
midRight regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches at least one of the top, left, or bottom edges while none of the content is clipped.
bottomLeft regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the top or right edge of the box while none of the content is clipped.
bottomMid regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches at least one of the top, left, or right edges while none of the content is clipped.
bottomRight regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the top or left edge of the box while none of the content is clipped.
meetBest fit value:
This interaction with the regAlign and regPoint attributes is identical that that of the meet fit value, with the exception that the size of the related media object is never scaled above 100%.
scroll fit value:
Align the media over the given regPoint per the regAlign attribute. If any part of the media extends beyond the bounds of the region, a scrolling mechanism should be invoked that allows viewing of the media that is clipped beyond the bounds of the region.
slice fit value:
This depends on the value of the regAlign attribute. (Note: in all cases, the media must maintain proper alignment over the regPoint):
topLeft regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the right or bottom edge of the box, whichever requires the largest scale factor. Any content that extends beyond the bounds of the region is clipped.
topMid regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the left, right, or bottom edge of the box, whichever requires the largest scale factor. Any content that extends beyond the bounds of the region is clipped. Clipping will occur on up to two sides of the region.
topRight regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the left or bottom edge of the box, whichever requires the largest scale factor. Any content that extends beyond the bounds of the region is clipped.
midLeft regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the top, right, or bottom edge of the box, whichever requires the largest scale factor. Any content that extends beyond the bounds of the region is clipped. Clipping will occur on up to two sides of the region.
center regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the top, left, right, or bottom edge of the box, whichever requires the largest scale factor. Any content that extends beyond the bounds of the region is clipped. Clipping will occur on up to three sides of the region.
midRight regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the top, left, or bottom edge of the box, whichever requires the largest scale factor. Any content that extends beyond the bounds of the region is clipped. Clipping will occur on up to two sides of the region.
bottomLeft regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the top or right edge of the box, whichever requires the largest scale factor. Any content that extends beyond the bounds of the region is clipped.
bottomMidregAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the top, left, or right edge of the box, whichever requires the largest scale factor. Any content that extends beyond the bounds of the region is clipped. Clipping will occur on up to two sides of the region.
bottomRight regAlign value:
Scale the visual media object's height and width while maintaining its aspect ratio so that the content just touches the top or left edge of the box, whichever requires the largest scale factor. Any content that extends beyond the bounds of the region is clipped.

For example, a wide-screen video can be made to play in "letterbox" mode in a region, whose width-to-height ratio is smaller, by using regPoint ="center" and regAlign="center" and setting the region's fit value to "meet". The result is the video will touch the left and right edges of the region and will be centered vertically with the gaps above and below filled in with the region's background color.

Integration Requirements

The functionality in this module builds on top of the functionality in the BasicLayout module and the MediaObject module, which are required prerequisites for inclusion of the AlignmentLayout module.

5.7.6 Document Type Definition (DTD) for the AlignmentLayout Module

This section is normative.

See the full DTD for the SMIL Layout modules.

5.8 BackgroundTilingLayout Module

5.8.1 Changes for SMIL 2.1

This section is informative.

This Layout module is new for SMIL 2.1. It provides functionality that was not supported in previous versions of the SMIL language or its profiles.

5.8.2 Overview

This section is informative.

The SMIL 2.1 BackgroundTilingLayout module defines a backgroundImage attribute that allows an image to be placed onto the background of a layout region. It also provides the same capability for the root-layout and any of the topLayout element(s), if supported by the language profile. This module also defines the backgroundRepeat attribute to control tiling of the background image. These facilities are provided as a convenience extension to SMIL's use of a background color in a region. Although similar functionality can be defined by using a combination of the image media object, the z-index attribute and subregions positioning, this would require substantially more authoring effort.

The BackgroundTilingLayout module allows simple convenience tiling support in a manner that is consistent with CSS2 [CSS2]. For more complex background image operations such as support for animated images or non-image background content, users are expected to use the standard media placement and alignment facilities available in SMIL 2.1 Layout.

5.8.3 Elements and Attributes for the BackgroundTilingLayout Module

This section is normative.

This section defines the backgroundImage and backgroundRepeat attributes that make up the SMIL 2.1 BackgroundTilingLayout module.

The region Element

The root-layout Element

The topLayout Element

This module extends the attribute set for the region, root-layout and topLayout elements.

Element attributes
backgroundImage
This attribute may be used to specify an image that may be placed as the background of a region.
In SMIL 2.1, the image is treated as a single image frame; any behavior that is specified in the image (such as animations or multiple frames) will be ignored. The legal values for this attribute are:
<uri>
This value consists of a URI containing the location of an image to be used as a background image. If the image is larger than the background, it will be clipped as if a fit attribute of hidden was specified. If the image is smaller in either or both dimensions than the region's dimensions, it will be processed according to the value of the backgroundRepeat attribute.
none
This value indicates that no background image should be used.
inherit
This value indicates that the same background image should be used as the logical parent of this region.
The default value is none.
backgroundRepeat
This attribute allows a repeat or tiling strategy to be specified for the background image. The legal values for this attribute are:
repeat
This value indicates that the background image should be repeated horizontally and vertically (that is, it should be tiled).
repeatX
This value indicates that the background image should be repeated horizontally only.
repeatY
This value indicates that the background image should be repeated vertically only.
noRepeat
This value indicates that the background image should not be repeated.
inherit
This value indicates that the same background repeat policy should be used as in the logical parent of this region.
The default value is repeat.
Element content

The SMIL 2.1 BackgrondFillLayout module does not extend the content model for elements integrating these attributes.

5.8.4 BackgroundTilingLayout Module Events

This section is normative.

This module does not define any SMIL 2.1 events.

5.8.5 SMIL BackgroundTilingLayout Implementation and Integration

This section is normative.

Implementation details

For purposes of establishing an inheritance default value, the root-layout element defined in SMIL 2.1 BasicLayout is considered the root of the background image inheritance tree. In this case, both backgroundImage and backgroundRepeat may be used with the root-layout and region elements.

For profiles implementing the SMIL 2.1 MultiWindowLayout module, each top-level layout element is considered to define a separate root of the background image inheritance tree. In this case, both backgroundImage and backgroundRepeat may be used with any topLayout elements.

Integration Requirements

The functionality in this module builds on top of the functionality in the BasicLayout module, which is a required prerequisite for inclusion of the BackgroundTilingLayout module. If this functionality is to be applied to multiple top-level windows, the MultiWindowLayout module must be included.

5.8.6 Document Type Definition (DTD) for the BackgroundTilingLayout Module

This section is normative.

See the full DTD for the SMIL Layout modules.

5.9 OverrideLayout Module

5.9.1 Changes for SMIL 2.1

This section is informative.

The OverrideLayout module contains attributes which were defined as part of the SMIL 2.0 HierarchicalLayout module for allowing placement values in regions to be overridden by attributes on media object references. While the OverrideLayout module is new, the functionality it describes was also available in SMIL 2.0. The only difference in functionality is that certain attributes from the AlignmentLayout module are also support in the SMIL 2.1 version.

5.9.2 Overview

This section is informative.

The SMIL 2.1 OverrideLayout module includes the ability to use the fit, z-index, and backgroundColor attributes on objects displayed in a region in order to declare different behavior from that on the region element.

For languages and profiles integrating the AlignmentLayout module, the ability to specify override behavior for the regAlign, regPoint, mediaAlign, and soundAlign, attributes are defined as part of that module's specification and do not need to be explicitly specified in the OverrideLayout module.

5.9.3 Elements and Attributes for the OverrideLayout Module

This section is normative.

This module does not define any new elements. It provides extensions to the ref element (and its synonyms).

The ref Element

The fit, z-index, and backgroundColor attributes are added to media object references.

Element attributes
backgroundColor
This attribute allows specifying the background color that will be used when a media element is being shown in a sub-region. The range of legal values are the same as the backgroundColor attribute on the region element. The default value for this attribute is inherited from the region element.
fit
This attribute is used on a media element to override the fit attribute defined in the corresponding region definition. It takes the same values as the fit attribute on the region element, and has the same semantics with the exception that the declared fit only applies to the media element using it, and not to other elements which may use the same parent region. The default value for this attribute is inherited from the region element.
z-index
This attribute is used on a media element to override the z-index attribute defined in the corresponding region definition. It takes the same values as the z-index attribute on the region element, and has the same semantics with the exception that the declared z-index only applies to the media element containing the reference, and not to other elements which may use the same parent region. The default value for this attribute is inherited from the region element.
Element content

The SMIL 2.1 OverrideLayout module does not extend the content model for the ref element integrating these attributes.

5.9.4 OverrideLayout Module Events

This section is normative.

This module does not define any SMIL 2.1 events.

5.9.5 SMIL OverrideLayout Implementation and Integration

This section is normative.

Implementation Details

The OverrideLayout module allows individual media object references to override the default values for certain attributes. In all cases, the attributes will apply only to the (sub-)region referenced by the media object. Changes will not propagate to child sub-regions or to parent regions.

Integration Requirements

The functionality in this module builds on top of the functionality in the BasicLayout module, which is a required prerequisite for inclusion of the OverrideLayout module.

5.9.6 Document Type Definition (DTD) for the OverrideLayout Module

This section is normative.

See the full DTD for the SMIL Layout modules.


previous   next   contents
