This chapter describes SVG's declarative filter effects feature set, which when combined with the 2D power of SVG can describe much of the common artwork on the web in such a way that client-side generation and alteration can be performed easily.
A filter effect consists of a series of graphics operations that are applied to a given source graphic to produce a modified graphical result. The result of the filter effect is rendered to the target device instead of the original source graphic. The following illustrates the process:
View this example as SVG (SVG-enabled browsers only)
Filter effects are defined by 'filter' elements. To apply a filter effect to a graphics element or a container element, you set the value of the 'filter' property on the given element such that it references the filter effect.
Each 'filter' element contains a set of filter primitives as its children. Each filter primitive performs a single fundamental graphical operation (e.g., a blur or a lighting effect) on one or more inputs, producing a graphical result. Because most of the filter primitives represent some form of image processing, in most cases the output from a filter primitive is a single RGBA image.
The original source graphic or the result/output from a filter primitive can be used as input into one or more other filter primitives. A common application is to use the source graphic multiple times. For example, a simple filter could replace one graphic by two by adding a black copy of original source graphic offset to create a drop shadow. In effect, there are now two layers of graphics, both with the same original source graphics.
When applied to grouping elements such as 'g', the 'filter' property applies to the contents of the group as a whole. The group's children do not render to the screen directly; instead, the graphics commands necessary to render the children are stored temporarily. Typically, the graphics commands are executed as part of the processing of the referenced 'filter' element via use of the keywords SourceGraphic or SourceAlpha.
The following shows an example of a filter effect.
Example filters01 - introducing filter effects.
<?xml version="1.0"?> <!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 03December 1999//EN" "http://www.w3.org/Graphics/SVG/SVG-19991203.dtd"> <svg width="7.5cm" height="5cm" viewBox="0 0 200 120"> <title>Example filters01.svg - introducing filter effects</title> <desc>An example which combines multiple filter primitives to produce a 3D lighting effect on a graphic consisting of the string "SVG" sitting on top of oval filled in red and surrounded by an oval outlined in red.</desc> <defs> <filter id="MyFilter"> <desc>Produces a 3D lighting effect.</desc> <feGaussianBlur in="SourceAlpha" stdDeviation="4" result="blur"/> <feOffset in="blur" dx="4" dy="4" result="offsetBlur"/> <feSpecularLighting in="blur" surfaceScale="5" specularConstant="1" specularExponent="10" lightColor="white" result="specOut"> <fePointLight x="-5000" y="-10000" z="20000"/> </feSpecularLighting> <feComposite in="specOut" in2="SourceAlpha" operator="in" result="specOut"/> <feComposite in="SourceGraphic" in2="specOut" operator="arithmetic" k1="0" k2="1" k3="1" k4="0" result="litPaint"/> <feMerge> <feMergeNode in="offsetBlur"/> <feMergeNode in="litPaint"/> </feMerge> </filter> </defs> <rect x="1" y="1" width="198" height="118" style="fill:#888888; stroke:blue"/> <g style="filter:url(#MyFilter)"> <g> <path style="fill:none; stroke:#D90000; stroke-width:10" d="M50,90 C0,90 0,30 50,30 L150,30 C200,30 200,90 150,90 z" /> <path style="fill:#D90000" d="M60,80 C30,80 30,40 60,40 L140,40 C170,40 170,80 140,80 z" /> <g style="fill:#FFFFFF; stroke:black; font-size:45; font-family:Verdana"> <text x="52" y="76">SVG</text> </g> </g> </g> </svg>
View this example as SVG (SVG-enabled browsers only)
The filter effect used in the example above is repeated here with reference numbers in the left column before each of the six filter primitives:
1 2 3 4 5 6 |
<filter id="MyFilter"> <desc>Produces a 3D lighting effect.</desc> <feGaussianBlur in="SourceAlpha" stdDeviation="4" result="blur"/> <feOffset in="blur" dx="4" dy="4" result="offsetBlur"/> <feSpecularLighting in="blur" surfaceScale="5" specularConstant="1" specularExponent="10" lightColor="white" result="specOut"> <fePointLight x="-5000" y="-10000" z="20000"/> </feSpecularLighting> <feComposite in="specOut" in2="SourceAlpha" operator="in" result="specOut"/> <feComposite in="SourceGraphic" in2="specOut" operator="arithmetic" k1="0" k2="1" k3="1" k4="0" result="litPaint"/> <feMerge> <feMergeNode in="offsetBlur"/> <feMergeNode in="litPaint"/> </feMerge> </filter> |
The following pictures show the intermediate image results from each of the six filter elements:
|
|
|
|
|||
|
|
|
Filter primitive 'feComposite' composites the result of the specular lighting with the original source graphic.
Filter primitive 'feMerge' composites two layers together. The lower layer consists of the drop shadow result from filter primitive 2. The upper layer consists of the specular lighting result from filter primitive 5.
The description of the 'filter' elements is as follows:
<!ENTITY % filterExt "" > <!ELEMENT filter (feBlend|feFlood| feColorMatrix|feComponentTransfer| feComposite|feConvolveMatrix|feDiffuseLighting|feDisplacementMap| feGaussianBlur|feImage|feMerge| feMorphology|feOffset|feSpecularLighting| feTile|feTurbulence| animate|set %filterExt;)* > <!ATTLIST filter %stdAttrs; %langSpaceAttrs; filterUnits (userSpace | userSpaceOnUse | objectBoundingBox) "userSpace" x %Coordinate; #IMPLIED y %Coordinate; #IMPLIED width %Length; #IMPLIED height %Length; #IMPLIED filterRes CDATA #IMPLIED %xlinkRefAttrs; xlink:href %URI; #IMPLIED externalResourcesRequired %Boolean; #IMPLIED > |
Attribute definitions:
The description of the 'filter' property is as follows:
Value: | <uri> | none | inherit |
Initial: | none |
Applies to: | graphics and container elements |
Inherited: | no |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
A 'filter' element can define a region on the canvas on which a given filter effect applies and can provide a resolution for any intermediate continuous tone images used to process any raster-based filter primitives. The 'filter' element has the following attributes which work together to define the filter effects region:
x-pixels [y-pixels])
indicates the width/height of the intermediate images in pixels.
If not provided, then a reasonable default resolution appropriate for
the target device will be used. (For displays, an appropriate display
resolution, preferably the current display's pixel resolution, is the
default.
For printing, an appropriate common printer resolution, such as 400dpi,
is the default.)For performance reasons on display devices, it is recommended that the filter effect region is designed to match pixel-for-pixel with the background.
It is often necessary to provide padding space because the filter effect might impact bits slightly outside the tight-fitting bounding box on a given object. For these purposes, it is possible to provide negative percentage values for x, y and percentages values greater than 100% for width, height. For example, x="-10%" y="-10%" width="120%" height="120%".
Two possible pseudo input images for filter effects are BackgroundImage and BackgroundAlpha, which each represent an image snapshot of the canvas under the filter region at the time that the <filter> element is invoked. BackgroundImage represents both the color values and alpha channel of the canvas (i.e., RGBA pixel values), whereas BackgroundAlpha represents only the alpha channel.
Implementations of SVG user agents often will need to maintain supplemental background image buffers in order to support the BackgroundImage and BackgroundAlpha pseudo input images. Sometimes, the background image buffers will contain an in-memory copy of the accumulated painting operations on the current canvas.
Because in-memory image buffers can take up significant system resources, SVG content must explicitly indicate to the SVG user agent that the document needs access to the background image before BackgroundImage and BackgroundAlpha pseudo input images can be used. The property which enables access to the background image is 'enable-background':
Value: | accumulate | new [ ( <x> <y> <width> <height> ) ] | inherit |
Initial: | accumulate |
Applies to: | container elements |
Inherited: | no |
Percentages: | N/A |
Media: | visual |
Animatable: | no |
'enable-background' is only applicable to container elements and specifies how the SVG user agents manages the accumulation of the background image.
A value of new indicates two things:
A meaning of enable-background: accumulate (the initial/default value) depends on context:
If a filter effect specifies either the BackgroundImage or the BackgroundAlpha pseudo input images and no ancestor container element has a property value of 'enable-background:new', then the background image request is technically in error. Processing will proceed without interruption (i.e., no error message) and a fully transparent image shall be provided in response to the request.
The optional (<x>,<y>,<width>,<height>) parameters on the new value indicate the sub-region of user space where access to the background image is allowed to happen. These parameters enable the SVG user agent potentially to allocate smaller temporary image buffers than the default values, which might require the SVG user agent to allocate buffers as large as the current viewport. Thus, the values <x>,<y>,<width>,<height> act as a clipping rectangle on the background image canvas.
This section describes the various filter primtives that can be assembed to achieve a particular filter effect.
Unless otherwise stated, all image filters operate on linear premultiplied RGBA samples. Filters which work more naturally on non premultiplied data (feColorMatrix and feComponentTransfer) will temporarily undo and redo premultiplication as specified. All raster effect filtering operations take 1 to N input RGBA images, additional attributes as parameters, and produce a single output RGBA image.
The following attributes are available for most of the filter primitives:
<!ENTITY % filter_primitive_attributes "x %Coordinate; #IMPLIED y %Coordinate; #IMPLIED width %Length; #IMPLIED height %Length; #IMPLIED result CDATA #IMPLIED" > <!ENTITY % filter_primitive_attributes_with_in "%filter_primitive_attributes; in CDATA #IMPLIED">
Attribute definitions:
All filter primitives have attributes x, y, width and height which identify a sub-region which restricts calculation and rendering of the given filter primitive. These attributes are defined according to the same rules as other filter primitives coordinate and length attributes.
x, y, width and height default to the union (i.e., tightest fitting bounding box) of the sub-regions defined for all referenced nodes. If there are no referenced nodes (e.g., for 'feImage' or 'feTurbulence', which have no specified value for in, or if in="SourceGraphic") or for feTile (which is special), the default subregion is 0%,0%,100%,100%, where percentages are relative to the dimensions of the filter region.
x, y, width and height act as a hard clip clipping rectangle.
All intermediate offscreens are defined to not exceed the intersection of x, y, width and height with the filter region. The filter region and any of the x, y, width and height sub-regions are to be set up such that all offscreens are made big enough to accommodate any pixels which even partly intersect with either the filter region or the x,y,width,height subregions.
'feImage' scales the referenced image to fit exactly into the sub-region specified by x, y, width and height.
'feTile' references a previous filter primitive and then stitches the tiles together based on the x, y, width and height values of the referenced filter primitive.
This filter composites two objects together using commonly used imaging software blending modes. It performs a pixel-wise combination of two input images.
<!ELEMENT feBlend (animate|set)* > <!ATTLIST feBlend %stdAttrs; %filter_primitive_attributes_with_in; mode (normal | multiply | screen | darken | lighten) "normal" in2 CDATA #REQUIRED > |
Attribute definitions:
For all feBlend modes, the result opacity is computed as follows:
qr = 1 - (1-qa)*(1-qb)
For the compositing formulas below, the following definitions apply:
cr = Result color (RGB) - premultiplied qa = Opacity value at a given pixel for image A qb = Opacity value at a given pixel for image B ca = Color (RGB) at a given pixel for image A - premultiplied cb = Color (RGB) at a given pixel for image B - premultiplied
The following table provides the list of available image blending modes:
Image Blending Mode | Formula for computing result color |
normal | cr = (1 - qa) * cb + ca |
multiply | cr = (1-qa)*cb + (1-qb)*ca + ca*cb |
screen | cr = cb + ca - ca * cb |
darken | cr = Min ((1 - qa) * cb + ca, (1 - qb) * ca + cb) |
lighten | cr = Max ((1 - qa) * cb + ca, (1 - qb) * ca + cb) |
Example feBlend shows examples of the five blend modes.
<?xml version="1.0"?> <!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 20000303 Stylable//EN" "http://www.w3.org/TR/2000/03/WD-SVG-20000303/DTD/svg-20000303-stylable.dtd"> <svg width="5cm" height="5cm" viewBox="0 0 500 500"> <title>Example feBlend - Examples of feBlend modes</title> <desc>Five text strings blended into a gradient, with one text string for each of the five feBlend modes.</desc> <defs> <linearGradient id="MyGradient" gradientUnits="userSpaceOnUse" x1="100" y1="0" x2="300" y2="0"> <stop offset="0" style="stop-color:#000000"/> <stop offset=".33" style="stop-color:#ffffff"/> <stop offset=".67" style="stop-color:#ff0000"/> <stop offset="1" style="stop-color:#808080"/> </linearGradient> <filter id="Normal"> <feBlend mode="normal" in2="BackgroundImage" in="SourceGraphic"/> </filter> <filter id="Multiply"> <feBlend mode="multiply" in2="BackgroundImage" in="SourceGraphic"/> </filter> <filter id="Screen"> <feBlend mode="screen" in2="BackgroundImage" in="SourceGraphic"/> </filter> <filter id="Darken"> <feBlend mode="darken" in2="BackgroundImage" in="SourceGraphic"/> </filter> <filter id="Lighten"> <feBlend mode="lighten" in2="BackgroundImage" in="SourceGraphic"/> </filter> </defs> <rect style="fill:none; stroke:blue" x="1" y="1" width="498" height="498"/> <g style="enable-background: new"> <rect x="100" y="20" width="300" height="460" style="fill:url(#MyGradient)"/> <g style="font-family:Verdana; font-size:75; fill:#888888; fill-opacity:.6"> <text x="50" y="90" style="filter:url(#Normal)">Normal</text> <text x="50" y="180" style="filter:url(#Multiply)">Multiply</text> <text x="50" y="270" style="filter:url(#Screen)">Screen</text> <text x="50" y="360" style="filter:url(#Darken)">Darken</text> <text x="50" y="450" style="filter:url(#Lighten)">Lighten</text> </g> </g> </svg>
View this example as SVG (SVG-enabled browsers only)
This filter applies a matrix transformation:
| R' | | a00 a01 a02 a03 a04 | | R | | G' | | a10 a11 a12 a13 a14 | | G | | B' | = | a20 a21 a22 a23 a24 | * | B | | A' | | a30 a31 a32 a33 a34 | | A | | 1 | | 0 0 0 0 1 | | 1 |
on the RGBA color and alpha values of every pixel on the input graphics to produce a result with a new set of RGBA color and alpha values.
The calculations are performed on non-premultiplied color values. If the input graphics consists of premultiplied color values, those values are automatically converted into non-premultiplied color values for this operation.
These matrices often perform an identity mapping in the alpha channel. If that is the case, an implementation can avoid the costly undoing & redoing of the premultiplication for all pixels with A = 1.
<!ELEMENT feColorMatrix (animate|set)* > <!ATTLIST feColorMatrix %stdAttrs; %filter_primitive_attributes_with_in; type (matrix | saturate | hueRotate | luminanceToAlpha) "matrix" values CDATA #IMPLIED > |
Attribute definitions:
type="matrix" values="1 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0 1 0"
| R' | |0.213+0.787s 0.715-0.715s 0.072-0.072s 0 0 | | R | | G' | |0.213-0.213s 0.715+0.285s 0.072-0.072s 0 0 | | G | | B' | = |0.213-0.213s 0.715-0.715s 0.072+0.928s 0 0 | * | B | | A' | | 0 0 0 1 0 | | A | | 1 | | 0 0 0 0 1 | | 1 |
| R' | | a00 a01 a02 0 0 | | R | | G' | | a10 a11 a12 0 0 | | G | | B' | = | a20 a21 a22 0 0 | * | B | | A' | | 0 0 0 1 0 | | A | | 1 | | 0 0 0 0 1 | | 1 |where the terms a00, a01, etc. are calculated as follows:
| a01 a01 a02 | [+0.213 +0.715 +0.072] | a10 a11 a12 | = [+0.213 +0.715 +0.072] + | a20 a21 a22 | [+0.213 +0.715 +0.072] [+0.787 -0.715 -0.072] cos(hueRotate value) * [-0.212 +0.285 -0.072] + [-0.213 -0.715 +0.928] [-0.213 -0.715+0.928] sin(hueRotate value) * [+0.143 +0.140-0.283] [-0.787 +0.715+0.072]Thus, the upper left term of the hue matrix turns out to be:
.213 + cos(hueRotate value)*.787 - sin(hueRotate value)*.213
| R' | | 0 0 0 0 0 | | R | | G' | | 0 0 0 0 0 | | G | | B' | = | 0 0 0 0 0 | * | B | | A' | | 0.299 0.587 0.114 0 0 | | A | | 1 | | 0 0 0 0 1 | | 1 |
Example feColorMatrix shows examples of the four types of feColorMatrix operations.
<?xml version="1.0"?> <!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 20000303 Stylable//EN" "http://www.w3.org/TR/2000/03/WD-SVG-20000303/DTD/svg-20000303-stylable.dtd"> <svg width="8cm" height="5cm" viewBox="0 0 800 500"> <title>Example feColorMatrix - Examples of feColorMatrix operations</title> <desc>Five text strings showing the effects of feColorMatrix: an unfiltered text string acting as a reference, use of the feColorMatrix matrix option to convert to grayscale, use of the feColorMatrix saturate option, use of the feColorMatrix hueRotate option, and use of the feColorMatrix luminanceToAlpha option.</desc> <defs> <linearGradient id="MyGradient" gradientUnits="userSpaceOnUse" x1="100" y1="0" x2="500" y2="0"> <stop offset="0" style="stop-color:#ff00ff"/> <stop offset=".33" style="stop-color:#88ff88"/> <stop offset=".67" style="stop-color:#2020ff"/> <stop offset="1" style="stop-color:#d00000"/> </linearGradient> <filter id="Matrix" filterUnits="objectBoundingBox" x="0%" y="0%" width="100%" height="100%"> <feColorMatrix type="matrix" in="SourceGraphic" values=".33 .33 .33 0 0 .33 .33 .33 0 0 .33 .33 .33 0 0 .33 .33 .33 0 0"/> </filter> <filter id="Saturate40" filterUnits="objectBoundingBox" x="0%" y="0%" width="100%" height="100%"> <feColorMatrix type="saturate" in="SourceGraphic" values="40%"/> </filter> <filter id="HueRotate90" filterUnits="objectBoundingBox" x="0%" y="0%" width="100%" height="100%"> <feColorMatrix type="hueRotate" in="SourceGraphic" values="90"/> </filter> <filter id="LuminanceToAlpha" filterUnits="objectBoundingBox" x="0%" y="0%" width="100%" height="100%"> <feColorMatrix type="luminanceToAlpha" in="SourceGraphic" result="a"/> <feComposite in="SourceGraphic" in2="a" operator="in" /> </filter> </defs> <rect style="fill:none; stroke:blue" x="1" y="1" width="798" height="498"/> <g style="font-family:Verdana; font-size:75; font-weight:bold; fill:url(#MyGradient)"> <rect x="100" y="0" width="500" height="20" /> <text x="100" y="90">Unfiltered</text> <text x="100" y="190" style="filter:url(#Matrix)">Matrix</text> <text x="100" y="290" style="filter:url(#Saturate20)">Saturate</text> <text x="100" y="390" style="filter:url(#HueRotate90)">HueRotate</text> <text x="100" y="490" style="filter:url(#LuminanceToAlpha)">Luminance</text> </g> </svg>
View this example as SVG (SVG-enabled browsers only)
This filter primitive performs component-wise remapping of data as follows:
R' = feFuncR( R ) G' = feFuncG( G ) B' = feFuncB( B ) A' = feFuncA( A )
for every pixel. It allows operations like brightness adjustment, contrast adjustment, color balance or thresholding.
The calculations are performed on non-premultiplied color values. If the input graphics consists of premultiplied color values, those values are automatically converted into non-premultiplied color values for this operation. (Note that the undoing and redoing of the premultiplication can be avoided if feFuncA is the identity transform and all alpha values on the source graphic are set to 1.)
<!ENTITY % component_transfer_function_attributes "type (identity | table | linear | gamma) #REQUIRED tableValues CDATA #IMPLIED slope %Number; #IMPLIED intercept %Number; #IMPLIED amplitude %Number; #IMPLIED exponent %Number; #IMPLIED offset %Number; #IMPLIED" > <!ELEMENT feComponentTransfer (feFuncR?,feFuncG?,feFuncB?,feFuncA?) > <!ATTLIST feComponentTransfer %stdAttrs; %filter_primitive_attributes_with_in; > <!ELEMENT feFuncR (animate|set)* > <!ATTLIST feFuncR %stdAttrs; %component_transfer_function_attributes; > <!ELEMENT feFuncG (animate|set)* > <!ATTLIST feFuncG %stdAttrs; %component_transfer_function_attributes; > <!ELEMENT feFuncB (animate|set)* > <!ATTLIST feFuncB %stdAttrs; %component_transfer_function_attributes; > <!ELEMENT feFuncA (animate|set)* > <!ATTLIST feFuncA %stdAttrs; %component_transfer_function_attributes; > |
The attributes below apply to sub-elements 'feFuncR', 'feFuncG', 'feFuncB' and 'feFuncA' define the transfer functions.
Attribute definitions:
Indicates the type of component transfer function. The type of function determines the applicability of the other attributes.
C' = C
k/N <= C < (k+1)/N => C' = vk + (C - k/N)*N * (vk+1 - vk)
C' = slope * C + intercept
C' = amplitude * pow(C, exponent) + offset

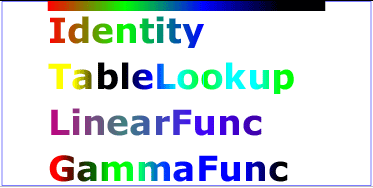

Example feComponentTransfer shows examples of the four types of feComponentTransfer operations.
<?xml version="1.0"?> <!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 20000303 Stylable//EN" "http://www.w3.org/TR/2000/03/WD-SVG-20000303/DTD/svg-20000303-stylable.dtd"> <svg width="8cm" height="4cm" viewBox="0 0 800 400"> <title>Example feComponentTransfer - Examples of feComponentTransfer operations</title> <desc>Four text strings showing the effects of feComponentTransfer: an identity function acting as a reference, use of the feComponentTransfer table option, use of the feComponentTransfer linear option, and use of the feComponentTransfer gamma option.</desc> <defs> <linearGradient id="MyGradient" gradientUnits="userSpaceOnUse" x1="100" y1="0" x2="600" y2="0"> <stop offset="0" style="stop-color:#ff0000"/> <stop offset=".33" style="stop-color:#00ff00"/> <stop offset=".67" style="stop-color:#0000ff"/> <stop offset="1" style="stop-color:#000000"/> </linearGradient> <filter id="Identity" filterUnits="objectBoundingBox" x="0%" y="0%" width="100%" height="100%"> <feComponentTransfer> <feFuncR type="identity"/> <feFuncG type="identity"/> <feFuncB type="identity"/> <feFuncA type="identity"/> </feComponentTransfer> </filter> <filter id="Table" filterUnits="objectBoundingBox" x="0%" y="0%" width="100%" height="100%"> <feComponentTransfer> <feFuncR type="table" tableValues="0 0 1 1"/> <feFuncG type="table" tableValues="1 1 0 0"/> <feFuncB type="table" tableValues="0 1 1 0"/> </feComponentTransfer> </filter> <filter id="Linear" filterUnits="objectBoundingBox" x="0%" y="0%" width="100%" height="100%"> <feComponentTransfer> <feFuncR type="linear" slope=".5" intercept=".25"/> <feFuncG type="linear" slope=".5" intercept="0"/> <feFuncB type="linear" slope=".5" intercept=".5"/> </feComponentTransfer> </filter> <filter id="Gamma" filterUnits="objectBoundingBox" x="0%" y="0%" width="100%" height="100%"> <feComponentTransfer> <feFuncR type="gamma" amplitude="2" exponent="5" offset="0"/> <feFuncG type="gamma" amplitude="2" exponent="3" offset="0"/> <feFuncB type="gamma" amplitude="2" exponent="1" offset="0"/> </feComponentTransfer> </filter> </defs> <rect style="fill:none; stroke:blue" x="1" y="1" width="798" height="398"/> <g style="font-family:Verdana; font-size:75; font-weight:bold; fill:url(#MyGradient)"> <rect x="100" y="0" width="600" height="20" /> <text x="100" y="90">Identity</text> <text x="100" y="190" style="filter:url(#Table)">TableLookup</text> <text x="100" y="290" style="filter:url(#Linear)">LinearFunc</text> <text x="100" y="390" style="filter:url(#Gamma)">GammaFunc</text> </g> </svg>
View this example as SVG (SVG-enabled browsers only)
This filter performs the combination of the two input images pixel-wise in image space using one of the Porter-Duff [PORTERDUFF] compositing operations: over, in, atop, out, xor. Additionally, a component-wise arithmetic operation (with the result clamped between [0..1]) can be applied.
The arithmetic operation is useful for combining the output from the 'feDiffuseLighting' and 'feSpecularLighting' filters with texture data. It is also useful for implementing dissolve. If the arithmetic operation is chosen, each result pixel is computed using the following formula:
result = k1*i1*i2 + k2*i1 + k3*i2 + k4
For these operations, the extent of the resulting image can be affected. In other words, even if two images do not overlap in image space, the extent for over will essentially include the union of the extents of the two input images.
<!ELEMENT feComposite (animate|set)* > <!ATTLIST feComposite %stdAttrs; %filter_primitive_attributes_with_in; operator (over | in | out | atop | xor | arithmetic) "over" k1 %Integer; #IMPLIED k2 %Integer; #IMPLIED k3 %Integer; #IMPLIED k4 %Integer; #IMPLIED in2 CDATA #REQUIRED > |
Attribute definitions:

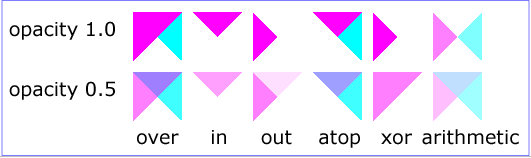

Example feComposite shows examples of the four types of feComposite operations.
<?xml version="1.0"?> <!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 20000303 Stylable//EN" "http://www.w3.org/TR/2000/03/WD-SVG-20000303/DTD/svg-20000303-stylable.dtd"> <svg width="11cm" height="3.25cm" viewBox="0 0 1100 325"> <title>Example feComposite - Examples of feComposite operations</title> <desc>Six pairs of overlapping triangles depicting the six different feComposite operators.</desc> <defs> <path id="Blue100" d="M 0 0 L 100 0 L 100 100 z" style="fill:#00ffff"/> <path id="Red100" d="M 0 0 L 0 100 L 100 0 z" style="fill:#ff00ff"/> <path id="Blue50" d="M 0 125 L 100 125 L 100 225 z" style="fill:#00ffff; fill-opacity:.5"/> <path id="Red50" d="M 0 125 L 0 225 L 100 125 z" style="fill:#ff00ff; fill-opacity:.5"/> <filter id="over" filterUnits="objectBoundingBox" x="-5%" y="-5%" width="110%" height="110%"> <feFlood style="flood-color:#ffffff; flood-opacity:1" result="flood"/> <feComposite in="SourceGraphic" in2="BackgroundImage" operator="over" result="comp"/> <feMerge> <feMergeNode in="flood"/> <feMergeNode in="comp"/> </feMerge> </filter> <filter id="in" filterUnits="objectBoundingBox" x="-5%" y="-5%" width="110%" height="110%"> <feFlood style="flood-color:#ffffff; flood-opacity:1" result="flood"/> <feComposite in="SourceGraphic" in2="BackgroundImage" operator="in" result="comp"/> <feMerge> <feMergeNode in="flood"/> <feMergeNode in="comp"/> </feMerge> </filter> <filter id="out" filterUnits="objectBoundingBox" x="-5%" y="-5%" width="110%" height="110%"> <feFlood style="flood-color:#ffffff; flood-opacity:1" result="flood"/> <feComposite in="SourceGraphic" in2="BackgroundImage" operator="out" result="comp"/> <feMerge> <feMergeNode in="flood"/> <feMergeNode in="comp"/> </feMerge> </filter> <filter id="atop" filterUnits="objectBoundingBox" x="-5%" y="-5%" width="110%" height="110%"> <feFlood style="flood-color:#ffffff; flood-opacity:1" result="flood"/> <feComposite in="SourceGraphic" in2="BackgroundImage" operator="atop" result="comp"/> <feMerge> <feMergeNode in="flood"/> <feMergeNode in="comp"/> </feMerge> </filter> <filter id="xor" filterUnits="objectBoundingBox" x="-5%" y="-5%" width="110%" height="110%"> <feFlood style="flood-color:#ffffff; flood-opacity:1" result="flood"/> <feComposite in="SourceGraphic" in2="BackgroundImage" operator="xor" result="comp"/> <feMerge> <feMergeNode in="flood"/> <feMergeNode in="comp"/> </feMerge> </filter> <filter id="arithmetic" filterUnits="objectBoundingBox" x="-5%" y="-5%" width="110%" height="110%"> <feFlood style="flood-color:#ffffff; flood-opacity:1" result="flood"/> <feComposite in="SourceGraphic" in2="BackgroundImage" result="comp" operator="arithmetic" k1=".5" k2=".5" k3=".5" k4=".5"/> <feMerge> <feMergeNode in="flood"/> <feMergeNode in="comp"/> </feMerge> </filter> </defs> <rect style="fill:none; stroke:blue" x="1" y="1" width="1098" height="323"/> <g style="font-family:Verdana; font-size:40; shape-rendering:crispEdges"> <text x="15" y="75">opacity 1.0</text> <text x="15" y="200">opacity 0.5</text> <g transform="translate(275,25)" style="enable-background:new"> <use xlink:href="#Blue100"/> <use xlink:href="#Red100" style="filter:url(#over)"/> </g> <g transform="translate(275,25)" style="enable-background:new"> <use xlink:href="#Blue50"/> <use xlink:href="#Red50" style="filter:url(#over)"/> <text x="5" y="275">over</text> </g> <g transform="translate(400,25)" style="enable-background:new"> <use xlink:href="#Blue100"/> <use xlink:href="#Red100" style="filter:url(#in)"/> </g> <g transform="translate(400,25)" style="enable-background:new"> <use xlink:href="#Blue50"/> <use xlink:href="#Red50" style="filter:url(#in)"/> <text x="35" y="275">in</text> </g> <g transform="translate(525,25)" style="enable-background:new"> <use xlink:href="#Blue100"/> <use xlink:href="#Red100" style="filter:url(#out)"/> </g> <g transform="translate(525,25)" style="enable-background:new"> <use xlink:href="#Blue50"/> <use xlink:href="#Red50" style="filter:url(#out)"/> <text x="15" y="275">out</text> </g> <g transform="translate(650,25)" style="enable-background:new"> <use xlink:href="#Blue100"/> <use xlink:href="#Red100" style="filter:url(#atop)"/> </g> <g transform="translate(650,25)" style="enable-background:new"> <use xlink:href="#Blue50"/> <use xlink:href="#Red50" style="filter:url(#atop)"/> <text x="10" y="275">atop</text> </g> <g transform="translate(775,25)" style="enable-background:new"> <use xlink:href="#Blue100"/> <use xlink:href="#Red100" style="filter:url(#xor)"/> </g> <g transform="translate(775,25)" style="enable-background:new"> <use xlink:href="#Blue50"/> <use xlink:href="#Red50" style="filter:url(#xor)"/> <text x="15" y="275">xor</text> </g> <g transform="translate(900,25)" style="enable-background:new"> <use xlink:href="#Blue100"/> <use xlink:href="#Red100" style="filter:url(#arithmetic)"/> </g> <g transform="translate(900,25)" style="enable-background:new"> <use xlink:href="#Blue50"/> <use xlink:href="#Red50" style="filter:url(#arithmetic)"/> <text x="-25" y="275">arithmetic</text> </g> </g> </svg>
View this example as SVG (SVG-enabled browsers only)
feConvolveMatrix applies a matrix convolution filter effect. A convolution combines pixels in the source image with neighboring pixels to produce a resulting image. A wide variety of imaging operations can be achieved through convolutions, including blurring, edge detection, sharpening, embossing and beveling.
A matrix convolution is based on an n-by-m matrix (the convolution kernel) which describes how a given pixel value in the source image is combined with its neighboring pixel values to produce a resulting pixel value. Each result pixel is determined by applying the kernel matrix to the corresponding source pixel and its neighboring pixels.
To illustrate, suppose you have a source image which is 5 pixels by 5 pixels, whose color values are as follows:
0 20 40 235 235 100 120 140 235 235 200 220 240 235 235 225 225 255 255 255 225 225 255 255 255
and you define a 3-by-3 convolution kernel as follows:
1 2 3 4 5 6 7 8 9
Let's focus on the pixel at the second row and second column of the image (source pixel value is 120). Assuming the simplest case (where the source image's pixel grid aligns perfectly with the kernel's pixel grid) and assuming default values for attributes divisor, targetX and targetY, then resulting pixel value will be:
(1* 0 + 2* 20 + 3* 40 + 4*100 + 5*120 + 6*140 + 7*200 + 8*220 + 9*240) / (1+2+3+4+5+6+7+8+9)
Because they operate on pixels, matrix convolutions are inherently resolution-dependent. To make 'feConvolveMatrix produce resolution-independent results, an explicit value should be provided for either the filterRes attribute on the 'filter' element and/or attribute kernelUnitLength.
kernelUnitLength, in combination with the other attributes, defines an implicit pixel grid in the filter effects coordinate system (i.e., the coordinate system established by the filterUnits attribute). If the pixel grid established by kernelUnitLength does not align perfectly with the pixel grid established by attribute filterRes, then the source image will be temporarily resampled to align its pixels with kernelUnitLength. The convolution happens on the resampled image. After applying the convolution, the image is resampled back to its original resolution.
<!ELEMENT feConvolveMatrix (animate|set)* > <!ATTLIST feConvolveMatrix %filter_primitive_attributes_with_in; order CDATA #REQUIRED kernelMatrix CDATA #REQUIRED divisor %Number; #IMPLIED targetX %Integer; #IMPLIED targetY %Integer; #IMPLIED edgeMode (duplicate|wrap|none) "duplicate" kernelUnitLength CDATA #IMPLIED > |
Attribute definitions:
Determines how to extend the source image as necessary with color values so that the matrix operations can be applied when the kernel is positioned at or near the edge of the source image.
"duplicate" indicates that the source image is extended along each of its borders as necessary by duplicating the color values at the given edge of the source image.
Original N-by-M image, where m=M-1 and n=N-1: 11 12 ... 1m 1M 21 22 ... 2m 2M .. .. ... .. .. n1 n2 ... nm nM N1 N2 ... Nm NM Extended by two pixels using "duplicate": 11 11 11 12 ... 1m 1M 1M 1M 11 11 11 12 ... 1m 1M 1M 1M 11 11 11 12 ... 1m 1M 1M 1M 21 21 21 22 ... 2m 2M 2M 2M .. .. .. .. ... .. .. .. .. n1 n1 n1 n2 ... nm nM nM nM N1 N1 N1 N2 ... Nm NM NM NM N1 N1 N1 N2 ... Nm NM NM NM N1 N1 N1 N2 ... Nm NM NM NM
"wrap" indicates that the source image is extended by taking the color values from the opposite edge of the image.
Extended by two pixels using "wrap": nm nM n1 n2 ... nm Nm n1 n2 Nm NM N1 N2 ... Nm NM N1 N2 1M 1m 11 12 ... 1m 1M 11 12 2M 2m 21 22 ... 2m 2M 21 22 .. .. .. .. ... .. .. .. .. nm nM n1 n2 ... nm nM n1 n2 Nm NM N1 N2 ... Nm NM N1 N2 1m 1M 11 12 ... 1m 1M 11 12 2m 2M 21 22 ... 2m 2M 21 22
"none" indicates that the source image is extended with pixel values of zero for R, G, B and A.
This filter primitive lights an image using the alpha channel as a bump map. The resulting image is an RGBA opaque image based on the light color with alpha = 1.0 everywhere. The lighting calculation follows the standard diffuse component of the Phong lighting model. The resulting image depends on the light color, light position and surface geometry of the input bump map.
The light map produced by this filter primitive can be combined with a texture image using the multiply term of the arithmetic 'feComposite' compositing method. Multiple light sources can be simulated by adding several of these light maps together before applying it to the texture image.
Dr = (kd * N.L * Lr) / resultScale Dg = (kd * N.L * Lg) / resultScale Db = (kd * N.L * Lb) / resultScale Da = 1.0 / resultScale
where
N is a function of x and y and depends on the surface gradient as follows:
The surface described by the input alpha image Ain (x,y) is:
Z (x,y) = surfaceScale * Ain (x,y)
Surface normal is calculated using the Sobel gradient 3x3 filter:
Nx (x,y)= - surfaceScale * 1/4*(( I(x+1,y-1) + 2*I(x+1,y) + I(x+1,y+1)) - (I(x-1,y-1) + 2*I(x-1,y) + I(x-1,y+1))) Ny (x,y)= - surfaceScale * 1/4*(( I(x-1,y+1) + 2*I(x,y+1) + I(x+1,y+1)) - (I(x-1,y-1) + 2*I(x,y-1) + I(x+1,y-1))) Nz (x,y) = 1.0 N = (Nx, Ny, Nz) / Norm((Nx,Ny,Nz))
L, the unit vector from the image sample to the light is calculated as follows:
For Infinite light sources it is constant:
Lx = cos(azimuth)*cos(elevation) Ly = -sin(azimuth)*cos(elevation) Lz = sin(elevation)
For Point and spot lights it is a function of position:
Lx = Lightx - x Ly = Lighty - y Lz = Lightz - Z(x,y) L = (Lx, Ly, Lz) / Norm(Lx, Ly, Lz)
where Lightx, Lighty, and Lightz are the input light position.
Lr,Lg,Lb, the light color vector is a function of position in the spot light case only:
Lr = Lightr*pow((-L.S),specularExponent) Lg = Lightg*pow((-L.S),specularExponent) Lb = Lightb*pow((-L.S),specularExponent)
where S is the unit vector pointing from the light to the point (pointsAtX, pointsAtY, pointsAtZ) in the x-y plane:
Sx = pointsAtX - Lightx Sy = pointsAtY - Lighty Sz = pointsAtZ - Lightz S = (Sx, Sy, Sz) / Norm(Sx, Sy, Sz)
If L.S is positive no light is present. (Lr = Lg = Lb = 0)
<!ELEMENT feDiffuseLighting ((feDistantLight|fePointLight|feSpotLight),(animate|set|animateColor)*) > <!ATTLIST feDiffuseLighting %stdAttrs; %filter_primitive_attributes_with_in; resultScale %Number; #IMPLIED surfaceScale %Number; #IMPLIED diffuseConstant %Number; #IMPLIED lightColor %SVGColor; #IMPLIED > |
Attribute definitions:
The light source is defined by one of the child elements 'feDistantLight', 'fePointLight' or 'feSpotLight'. These same child elements also apply to filter primitive 'feSpecularLighting'.
<!ELEMENT feDistantLight (animate|set)* > <!ATTLIST feDistantLight %stdAttrs; azimuth %Number; #IMPLIED elevation %Number; #IMPLIED > |
Attribute definitions:
<!ELEMENT fePointLight (animate|set)* > <!ATTLIST fePointLight %stdAttrs; x %Number; #IMPLIED y %Number; #IMPLIED z %Number; #IMPLIED > |
Attribute definitions:
<!ELEMENT feSpotLight (animate|set)* > <!ATTLIST feSpotLight %stdAttrs; x %Number; #IMPLIED y %Number; #IMPLIED z %Number; #IMPLIED pointsAtX %Number; #IMPLIED pointsAtY %Number; #IMPLIED pointsAtZ %Number; #IMPLIED specularExponent %Number; #IMPLIED > |
Attribute definitions:
This filter primitive uses the pixels values from the image from in2 to spatially displace the image from in. This is the transformation to be performed:
P'(x,y) <- P( x + scale * ((XC(x,y) - .5), y + scale * (YC(x,y) - .5))
where P(x,y) is the source image, in, and P'(x,y) is the destination. XC(x,y) and YC(x,y) are the component values of the designated by the xChannelSelector and yChannelSelector. For example, to use the R component of in2 to control displacement in x and the G component of Image2 to control displacement in y, set xChannelSelector to "R" and yChannelSelector to "G".
The displacement map defines the inverse of the mapping performed.
This filter can have arbitrary non-localized effect on the input which might require substantial buffering in the processing pipeline. However with this formulation, any intermediate buffering needs can be determined by scale which represents the maximum displacement in either x or y.
<!ELEMENT feDisplacementMap (animate|set)* > <!ATTLIST feDisplacementMap %stdAttrs; %filter_primitive_attributes_with_in; scale %Number; #IMPLIED xChannelSelector (R | G | B | A) "A" yChannelSelector (R | G | B | A) "A" in2 CDATA #REQUIRED > |
Attribute definitions:
This filter primitive creates an image with infinite extent filled with the color and opacity values from properties 'flood-color' and 'flood-opacity'.
<!ELEMENT feFlood (animate|set|animateColor)* > <!ATTLIST feFlood %stdAttrs; %filter_primitive_attributes_with_in; style %StyleSheet; #IMPLIED %ExchangeSVG-feFloodAttrs; > |
The 'flood-color' property indicates what color to use to flood the current filter primitive sub-region. The keyword currentColor and ICC colors can be specified in the same manner as within a <paint> specification for the 'fill' and 'stroke' properties.
Value: | currentColor | <color> [icc-color(<name>,<icccolorvalue>+)] | inherit |
Initial: | black |
Applies to: | 'feFlood' elements |
Inherited: | no |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
The 'flood-opacity' property defines the opacity value to use across the entire filter primitive sub-region.
Value: | <alphavalue> | inherit |
Initial: | 1 |
Applies to: | 'feFlood' elements |
Inherited: | no |
Percentages: | N/A |
Media: | visual |
Animatable: | yes |
This filter primitive performs a gaussian blur on the input image.
The Gaussian blur kernel is an approximation of the normalized convolution:
H(x) = exp(-x2/ (2s2)) / sqrt(2* pi*s2)
where 's' is the standard deviation specified by stdDeviation.
The value of stdDeviation can be either one or two numbers. If two numbers are provided, the first number represents a standard deviation value along the X axis of the current coordinate system and the second value represents a standard deviation in Y. If one number is provided, then that value is used for both X and Y.
Even if only one value is provided for stdDeviation, this can be implemented as a separable convolution.
For larger values of 's' (s >= 2.0), an approximation can be used: Three successive box-blurs build a piece-wise quadratic convolution kernel, which approximates the gaussian kernel to within roughly 3%.
let d = floor(s * 3*sqrt(2*pi)/4 + 0.5)
... if d is odd, use three box-blurs of size 'd', centered on the output pixel.
... if d is even, two box-blurs of size 'd' (the first one centered one pixel to the left, the second one centered one pixel to the right of the output pixel one box blur of size 'd+1' centered on the output pixel.
Frequently this operation will take place on alpha-only images, such as that produced by the built-in input, SourceAlpha. The implementation may notice this and optimize the single channel case. If the input has infinite extent and is constant, this operation has no effect. If the input has infinite extent and is a tile, the filter is evaluated with periodic boundary conditions.
<!ELEMENT feGaussianBlur (animate|set)* > <!ATTLIST feGaussianBlur %stdAttrs; %filter_primitive_attributes_with_in; stdDeviation CDATA #IMPLIED > |
Attribute definitions:
This filter primitive refers to a graphic external to this filter element, which is loaded or rendered into an RGBA raster and becomes the result of the filter primitive.
This filter primitive can refer to an external image or can be a reference to another piece of SVG. This node produces an image similar to the builtin image source SourceGraphic except that the graphic comes from an external source.
If the xlink:href references a stand-alone image resource such as a JPEG or PNG file, then the image resource is rendered according to the behavior of the 'image' element; otherwise, the referenced resource is rendered according to the behavior of the 'use' element. In either case, the current user coordinate system depends on the value of attribute filterUnits on the 'filter' element.
<!ELEMENT feImage (animate|set|animateTransform)* > <!ATTLIST feImage %stdAttrs; %langSpaceAttrs; class %ClassList; #IMPLIED transform %TransformList; #IMPLIED externalResourcesRequired %Boolean; #IMPLIED %xlinkRefAttrs; xlink:href %URI; #REQUIRED %StylableSVG-StyleAttribute; %ExchangeSVG-ContainerAttrs; %ExchangeSVG-FillStrokeAttrs; %ExchangeSVG-GradientAttrs; %ExchangeSVG-GraphicsAttrs; %ExchangeSVG-MarkerAttrs; %ExchangeSVG-TextContainerAttrs; %ExchangeSVG-TextElementAttrs; %ExchangeSVG-ViewportAttrs; %filter_primitive_attributes; > |
This filter primitive composites input image layers on top of each other using the over operator with Input1 on the bottom and the last specified input, InputN, on top.
Many effects produce a number of intermediate layers in order to create the final output image. This filter allows us to collapse those into a single image. Although this could be done by using n-1 Composite-filters, it is more convenient to have this common operation available in this form, and offers the implementation some additional flexibility.
'feMerge' composites input image layers on top of each other using the over operator with Input1 on the bottom and the last specified input, InputN, on top.
Each 'feMerge' element can have any number of 'feMergeNode' subelements, each of which has an in attribute.
The canonical implementation of feMerge is to render the entire effect into one RGBA layer, and then render the resulting layer on the output device. In certain cases (in particular if the output device itself is a continuous tone device), and since merging is associative, it might be a sufficient approximation to evaluate the effect one layer at a time and render each layer individually onto the output device bottom to top.
<!ELEMENT feMerge (feMergeNode)* > <!ATTLIST feMerge %stdAttrs; %filter_primitive_attributes; > <!ELEMENT feMergeNode (animate|set)* > <!ATTLIST feMergeNode %stdAttrs; in CDATA #IMPLIED > |
This filter primitive performs "fattening" or "thinning" of artwork. It is particularly useful for fattening or thinning an alpha channel,
The dilation (or erosion) kernel is a rectangle with a width of 2*x-radius+1 and a height of y-radius+1.
Frequently this operation will take place on alpha-only images, such as that produced by the built-in input, SourceAlpha. In that case, the implementation might want to optimize the single channel case.
If the input has infinite extent and is constant, this operation has no effect. If the input has infinite extent and is a tile, the filter is evaluated with periodic boundary conditions.
<!ELEMENT feMorphology (animate|set)* > <!ATTLIST feMorphology %stdAttrs; %filter_primitive_attributes_with_in; operator (erode | dilate) "erode" radius %Length; #IMPLIED > |
Attribute definitions:
Example feMorphology shows examples of the four types of feMorphology operations.
<?xml version="1.0"?> <!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 20000303 Stylable//EN" "http://www.w3.org/TR/2000/03/WD-SVG-20000303/DTD/svg-20000303-stylable.dtd"> <svg width="5cm" height="7cm" viewBox="0 0 700 500"> <title>Example feMorphology - Examples of erode and dilate</title> <desc>Five text strings drawn as outlines. The first is unfiltered. The second and third use 'erode'. The fourth and fifth use 'dilate'.</desc> <defs> <filter id="Erode3"> <feMorphology operator="erode" in="SourceGraphic" radius="3" /> </filter> <filter id="Erode6"> <feMorphology operator="erode" in="SourceGraphic" radius="6" /> </filter> <filter id="Dilate3"> <feMorphology operator="dilate" in="SourceGraphic" radius="3" /> </filter> <filter id="Dilate6"> <feMorphology operator="dilate" in="SourceGraphic" radius="6" /> </filter> </defs> <rect style="fill:none; stroke:blue; stroke-width:2" x="1" y="1" width="698" height="498"/> <g style="enable-background: new"> <g style="font-family:Verdana; font-size:75; fill:none; stroke:black; stroke-width:6"> <text x="50" y="90">Unfiltered</text> <text x="50" y="180" style="filter:url(#Erode3)">Erode radius 3</text> <text x="50" y="270" style="filter:url(#Erode6)">Erode radius 6</text> <text x="50" y="360" style="filter:url(#Dilate3)">Dilate radius 3</text> <text x="50" y="450" style="filter:url(#Dilate6)">Dilate radius 6</text> </g> </g> </svg>
View this example as SVG (SVG-enabled browsers only)
This filter primitive offsets the source image relative to its current position in the image space by the specified vector.
This is important for effects like drop shadows.
<!ELEMENT feOffset (animate|set)* > <!ATTLIST feOffset %stdAttrs; %filter_primitive_attributes_with_in; dx %Length; #IMPLIED dy %Length; #IMPLIED > |
Attribute definitions:
An example of 'feOffset' can be found in Example filters01.
This filter primitive lights a source graphic using the alpha channel as a bump map. The resulting image is an RGBA image based on the light color. The lighting caculation follows the standard specular component of the Phong lighting model. The resulting image depends on the light color, light position and surface geometry of the input bump map. The result of the lighting calculation is added. The filter primitive assumes that the viewer is at infinity the z direction (i.e the unit vector in the eye direction is (0,0,1) everywhere.
This filter primitive produces an image which contains the specular reflection part of the lighting calculation. Such a map is intended to be combined with a texture using the add term of the arithmetic 'feComposite' method. Multiple light sources can be simulated by adding several of these light maps before applying it to the texture image.
Sr = ks * pow(N.H, specularExponent) * Lr Sg = ks * pow(N.H, specularExponent) * Lg Sb = ks * pow(N.H, specularExponent) * Lb Sa = max(Sr, Sg, Sb)
where
See 'feDiffuseLighting' for definition of N and (Lr, Lg, Lb).
The definition of H reflects our assumption of the constant eye vector E = (0,0,1):
H = (L + E) / Norm(L+E)
where L is the light unit vector.
Unlike the 'feDiffuseLighting', the 'feSpecularLighting' filter produces a non-opaque image. This is due to the fact that specular result (Sr,Sg,Sb,Sa) is meant to be added to the textured image. The alpha channel of the result is the max of the color components, so that where the specular light is zero, no additional coverage is added to the image and a fully white highlight will add opacity.
The 'feDiffuseLighting' and 'feSpecularLighting' filters will often be applied together. An implementation may detect this and calculate both maps in one pass, instead of two.
<!ELEMENT feSpecularLighting ((feDistantLight|fePointLight|feSpotLight),(animate|set|animateColor)*) > <!ATTLIST feSpecularLighting %stdAttrs; %filter_primitive_attributes_with_in; surfaceScale %Number; #IMPLIED specularConstant %Number; #IMPLIED specularExponent %Number; #IMPLIED lightColor %SVGColor; #IMPLIED > |
Attribute definitions:
The light source is defined by one of the child elements 'feDistantLight', 'fePointLight' or 'feDistantLight'. The se same child elements also apply to filter primitive 'feDiffuseLighting' and are described in the definition of that filter primitive.
This filter primitive creates an image with infinite extent by replicating the source image in image space.
Typically, the source image has been defined with a filter primitive sub-region in order to define the tiling rectangle.
<!ELEMENT feTile (animate|set)* > <!ATTLIST feTile %stdAttrs; %filter_primitive_attributes_with_in; > |
This filter primitive creates an image using the Perlin turbulence function. It allows the synthesis of artificial textures like clouds or marble. For a detailed description the of the Perlin turbulence function, see "Texturing and Modeling", Ebert et al, AP Professional, 1994. The resulting image will have maximal size in image space.
It is possible to create bandwidth-limited noise by synthesizing only one octave.
The following C code shows the exact algorithm used for this filter effect.
For fractalSum, you get a turbFunctionResult that is aimed at a range of
-1 to 1 (the actual result might exceed this range in some cases). To convert to a color value, use the
formula colorValue = ((turbFunctionResult * 255) + 255) / 2
, then clamp to
the range 0 to 255.
For turbulence, you get a turbFunctionResult that is aimed at a range of
0 to 1 (the actual result might exceed this range in some cases). To convert to a color value, use the
formula colorValue = (turbFunctionResult * 255)
, then clamp to the range 0
to 255.
The following order is used for applying the pseudo random numbers.
An initial seed value is computed based on attribute seed.
Then the implementation computes the lattice
points for R, then continue getting additional pseudo random numbers relative to
the last generated pseudo random number and compute the lattice points for G,
and so on for B and A.
#define BSize 0x100 #define BM 0xff #define PerlinN 0x1000 #define NP 12 /* 2^PerlinN */ #define NM 0xfff static uLatticeSelector[BSize + BSize + 2]; static float fGradient[BSize + BSize + 2][2]; static void init(void) { float s; int i, j, k; for(i = 0; i < BSize; i++) { uLatticeSelector[i] = i; for (j = 0; j < 2; j++) fGradient[i][j] = (float) ((rand() % (BSize + BSize)) - BSize) / BSize; s = float(sqrt(fGradient[i][0] * fGradient[i][0] + fGradient[i][1] * fGradient[i] [1])); fGradient[0] = v[0] / s; fGradient[1] = v[1] / s; } while(--i) { k = uLatticeSelector[i]; uLatticeSelector[i] = uLatticeSelector[j = rand() % BSize]; uLatticeSelector[j] = k; } for(i = 0; i < BSize + 2; i++) { uLatticeSelector[BSize + i] = uLatticeSelector[i]; for(j = 0; j < 2; j++) fGradient[BSize + i][j] = fGradient[i][j]; } } #define s_curve(t) ( t * t * (3. - 2. * t) ) #define lerp(t, a, b) ( a + t * (b - a) ) float noise2(float vec[2]) { int bx0, bx1, by0, by1, b00, b10, b01, b11; float rx0, rx1, ry0, ry1, *q, sx, sy, a, b, t, u, v; register i, j; t = vec[0] + PerlinN; bx0 = ((int)t) & BM; bx1 = (bx0+1) & BM; rx0 = t - (int)t; rx1 = rx0 - 1.0f; t = vec[1] + PerlinN; by0 = ((int)t) & BM; by1 = (by0+1) & BM; ry0 = t - (int)t; ry1 = ry0 - 1.0f; i = uLatticeSelector[bx0]; j = uLatticeSelector[bx1]; b00 = uLatticeSelector[i + by0]; b10 = uLatticeSelector[j + by0]; b01 = uLatticeSelector[i + by1]; b11 = uLatticeSelector[j + by1]; sx = float(s_curve(rx0)); sy = float(s_curve(ry0)); q = fGradient[b00]; u = rx0 * q[0] + ry0 * q[1]; q = fGradient[b10]; v = rx1 * q[0] + ry0 * q[1]; a = lerp(sx, u, v); q = fGradient[b01]; u = rx0 * q[0] + ry1 * q[1]; q = fGradient[b11]; v = rx1 * q[0] + ry1 * q[1]; b = lerp(sx, u, v); return lerp(sy, a, b); } // Returns 'turbFunctionResult' float turbulence(float *point, float fBaseFreq, int nNumOctaves, bool bFractalSum) { float fSum = 0.0f; float vec[2]; float fFrequency = fBaseFreq; for(int nOctave = 0; nOctave < nNumOctaves; nOctave++) { vec[0] = fFrequency * point[0]; vec[1] = fFrequency * point[1]; if(bFractalSum) fSum += float(noise2(vec) / (fFrequency / fBaseFreq)); else fSum += float(fabs(noise2(vec)) / (fFrequency / fBaseFreq)); fFrequency *= 2; } return fSum; }
The following C code shows the exact algorithm for the pseudo random number generator.
/* Produces results in the range [1, 2**31 - 2]. Algorithm is: r = (a * r) mod m where a = 16807 and m = 2**31 - 1 = 2147483647 See [Park & Miller], CACM vol. 31 no. 10 p. 1195, Oct. 1988 To test: the algorithm should produce the result 1043618065 as the 10,000th generated number if the original seed is 1. */ #define RAND_m 2147483647 /* 2**31 - 1 */ #define RAND_a 16807 /* 7**5; primitive root of m */ #define RAND_q 127773 /* m / a */ #define RAND_r 2836 /* m % a */ long setup_seed(long seed) { if (seed <= 0) seed = -(seed % (RAND_m - 1)) + 1; if (seed > RAND_m - 1) seed = RAND_m - 1; return seed; } long random(long seed) { long result; result = RAND_a * (seed % RAND_q) - RAND_r * (seed / RAND_q); if (result <= 0) result += RAND_m; return result; }
<!ELEMENT feTurbulence (animate|set)* > <!ATTLIST feTurbulence %stdAttrs; %filter_primitive_attributes; baseFrequency CDATA #IMPLIED numOctaves %Integer; #IMPLIED seed %Number; #IMPLIED stitchTiles (stitch | noStitch) "noStitch" type (fractalNoise | turbulence) "turbulence" > |
Attribute definitions:
The following interfaces are defined below: SVGFilterElement, SVGFilterNodeStandardAttributes, SVGFEBlendElement, SVGFEColorMatrixElement, SVGFEComponentTransferElement, SVGComponentTransferFunctionElement, SVGFEFuncRElement, SVGFEFuncGElement, SVGFEFuncBElement, SVGFEFuncAElement, SVGFECompositeElement, SVGFEConvolveMatrixElement, SVGFEDiffuseLightingElement, SVGFEDistantLightElement, SVGFEPointLightElement, SVGFESpotLightElement, SVGFEDisplacementMapElement, SVGFEFloodElement, SVGFEGaussianBlurElement, SVGFEImageElement, SVGFEMergeElement, SVGFEMergeNodeElement, SVGFEMorphologyElement, SVGFEOffsetElement, SVGFESpecularLightingElement, SVGFETileElement, SVGFETurbulenceElement.
The SVGFilterElement interface corresponds to the 'filter' element.
interface SVGFilterElement : SVGElement, SVGLangSpace, SVGURIReference, SVGUnitTypes { attribute unsigned short filterUnits; attribute SVGLength x; attribute SVGLength y; attribute SVGLength width; attribute SVGLength height; readonly attribute SVGInteger filterResX; readonly attribute SVGInteger filterResY; void setFilterRes ( in unsigned long filterResX, in unsigned long filterResY ) raises( SVGException ); };
in unsigned long filterResX | The X component of attribute filterRes. | |
in unsigned long filterResY | The Y component of attribute filterRes. |
SVGException |
SVG_WRONG_TYPE_ERR: Raised if a parameter is of the wrong type.
|
This interface defines the set of DOM attributes that are common across the filter interfaces.
interface SVGFilterNodeStandardAttributes { attribute unsigned short filterUnits; attribute SVGLength x; attribute SVGLength y; attribute SVGLength width; attribute SVGLength height; attribute DOMString result; };
The SVGFEBlendElement interface corresponds to the 'feBlend' element.
interface SVGFEBlendElement : SVGElement, SVGFilterNodeStandardAttributes { // Blend Mode Types constant unsigned short SVG_FEBLEND_MODE_UNKNOWN = 0; constant unsigned short SVG_FEBLEND_MODE_NORMAL = 1; constant unsigned short SVG_FEBLEND_MODE_MULTIPLY = 2; constant unsigned short SVG_FEBLEND_MODE_SCREEN = 3; constant unsigned short SVG_FEBLEND_MODE_DARKEN = 4; constant unsigned short SVG_FEBLEND_MODE_LIGHTEN = 5; attribute DOMString in; attribute DOMString in2; attribute unsigned short mode; };
SVG_FEBLEND_MODE_UNKNOWN | The type is not one of predefined types. It is invalid to attempt to define a new value of this type or to attempt to switch an existing value to this type. | |
SVG_FEBLEND_MODE_NORMAL | Corresponds to value normal. | |
SVG_FEBLEND_MODE_MULTIPLY | Corresponds to value multiply. | |
SVG_FEBLEND_MODE_SCREEN | Corresponds to value screen. | |
SVG_FEBLEND_MODE_DARKEN | Corresponds to value darken. | |
SVG_FEBLEND_MODE_LIGHTEN | Corresponds to value lighten. |
The SVGFEColorMatrixElement interface corresponds to the 'feColorMatrix' element.
interface SVGFEColorMatrixElement : SVGElement, SVGFilterNodeStandardAttributes { // Color Matrix Types constant unsigned short SVG_FECOLORMATRIX_TYPE_UNKNOWN = 0; constant unsigned short SVG_FECOLORMATRIX_TYPE_MATRIX = 1; constant unsigned short SVG_FECOLORMATRIX_TYPE_SATURATE = 2; constant unsigned short SVG_FECOLORMATRIX_TYPE_HUEROTATE = 3; constant unsigned short SVG_FECOLORMATRIX_TYPE_LUMINANCETOALPHA = 4; attribute DOMString in; attribute unsigned short type; readonly attribute SVGList values; };
SVG_FECOLORMATRIX_TYPE_UNKNOWN | The type is not one of predefined types. It is invalid to attempt to define a new value of this type or to attempt to switch an existing value to this type. | |
SVG_FECOLORMATRIX_TYPE_MATRIX | Corresponds to value matrix. | |
SVG_FECOLORMATRIX_TYPE_SATURATE | Corresponds to value saturate. | |
SVG_FECOLORMATRIX_TYPE_HUEROTATE | Corresponds to value hueRotate. | |
SVG_FECOLORMATRIX_TYPE_LUMINANCETOALPHA | Corresponds to value luminanceToAlpha. |
Provides access to the contents of the values attribute.
The various methods from SVGList, which are defined to accept parameters and return values of type Object, must receive parameters of type SVGNumber and return values of type SVGNumber.
The SVGFEComponentTransferElement interface corresponds to the 'feComponentTransfer' element.
interface SVGFEComponentTransferElement : SVGElement, SVGFilterNodeStandardAttributes { attribute DOMString in; };
This interface defines a base interface used by the component transfer function interfaces.
interface SVGComponentTransferFunctionElement : SVGElement, SVGFilterNodeStandardAttributes { // Component Transfer Types constant unsigned short SVG_FECOMPONENTTRANFER_TYPE_UNKNOWN = 0; constant unsigned short SVG_FECOMPONENTTRANFER_TYPE_IDENTITY = 1; constant unsigned short SVG_FECOMPONENTTRANFER_TYPE_TABLE = 2; constant unsigned short SVG_FECOMPONENTTRANFER_TYPE_LINEAR = 3; constant unsigned short SVG_FECOMPONENTTRANFER_TYPE_GAMMA = 4; attribute unsigned short type; readonly attribute SVGList tableValues; attribute SVGNumber slope; attribute SVGNumber intercept; attribute SVGNumber amplitude; attribute SVGNumber exponent; attribute SVGNumber offset; };
SVG_FECOMPONENTTRANFER_TYPE_UNKNOWN | The type is not one of predefined types. It is invalid to attempt to define a new value of this type or to attempt to switch an existing value to this type. | |
SVG_FECOMPONENTTRANFER_TYPE_IDENTITY | Corresponds to value identity. | |
SVG_FECOMPONENTTRANFER_TYPE_TABLE | Corresponds to value table. | |
SVG_FECOMPONENTTRANFER_TYPE_LINEAR | Corresponds to value linear. | |
SVG_FECOMPONENTTRANFER_TYPE_GAMMA | Corresponds to value gamma. |
Provides access to the contents of the tableValues attribute.
The various methods from SVGList, which are defined to accept parameters and return values of type Object, must receive parameters of type SVGNumber and return values of type SVGNumber.
The SVGFEFuncRElement interface corresponds to the 'feFuncR' element.
interface SVGFEFuncRElement : SVGComponentTransferFunctionElement;
The SVGFEFuncGElement interface corresponds to the 'feFuncG' element.
interface SVGFEFuncGElement : SVGComponentTransferFunctionElement;
The SVGFEFuncBElement interface corresponds to the 'feFuncB' element.
interface SVGFEFuncBElement : SVGComponentTransferFunctionElement;
The SVGFEFuncAElement interface corresponds to the 'feFuncA' element.
interface SVGFEFuncAElement : SVGComponentTransferFunctionElement;
The SVGFECompositeElement interface corresponds to the 'feComposite' element.
interface SVGFECompositeElement : SVGElement, SVGFilterNodeStandardAttributes { // Composite Operators constant unsigned short SVG_FECOMPOSITE_OPERATOR_UNKNOWN = 0; constant unsigned short SVG_FECOMPOSITE_OPERATOR_OVER = 1; constant unsigned short SVG_FECOMPOSITE_OPERATOR_IN = 2; constant unsigned short SVG_FECOMPOSITE_OPERATOR_OUT = 3; constant unsigned short SVG_FECOMPOSITE_OPERATOR_ATOP = 4; constant unsigned short SVG_FECOMPOSITE_OPERATOR_XOR = 5; constant unsigned short SVG_FECOMPOSITE_OPERATOR_ARITHMETIC = 6; attribute DOMString in; attribute DOMString in2; attribute unsigned short operator; attribute SVGInteger k1; attribute SVGInteger k2; attribute SVGInteger k3; attribute SVGInteger k4; };
SVG_FECOMPOSITE_OPERATOR_UNKNOWN | The type is not one of predefined types. It is invalid to attempt to define a new value of this type or to attempt to switch an existing value to this type. | |
SVG_FECOMPOSITE_OPERATOR_OVER | Corresponds to value over. | |
SVG_FECOMPOSITE_OPERATOR_IN | Corresponds to value in. | |
SVG_FECOMPOSITE_OPERATOR_OUT | Corresponds to value out. | |
SVG_FECOMPOSITE_OPERATOR_ATOP | Corresponds to value atop. | |
SVG_FECOMPOSITE_OPERATOR_XOR | Corresponds to value xor. | |
SVG_FECOMPOSITE_OPERATOR_ARITHMETIC | Corresponds to value arithmetic. |
The SVGFEConvolveMatrixElement interface corresponds to the 'feConvolveMatrix' element.
interface SVGFEConvolveMatrixElement : SVGElement, SVGFilterNodeStandardAttributes { // Edge Mode Values constant unsigned short SVG_EDGEMODE_UNKNOWN = 0; constant unsigned short SVG_EDGEMODE_DUPLICATE = 1; constant unsigned short SVG_EDGEMODE_WRAP = 2; constant unsigned short SVG_EDGEMODE_NONE = 3; attribute SVGInteger orderX; attribute SVGInteger orderY; readonly attribute SVGList kernelMatrix; attribute unsigned short edgeMode; attribute SVGNumber divisor; attribute SVGInteger targetX; attribute SVGInteger targetY; attribute SVGNumber kernelUnitLengthX; attribute SVGNumber kernelUnitLengthY; };
SVG_EDGEMODE_UNKNOWN | The type is not one of predefined types. It is invalid to attempt to define a new value of this type or to attempt to switch an existing value to this type. | |
SVG_EDGEMODE_DUPLICATE | Corresponds to value duplicate. | |
SVG_EDGEMODE_WRAP | Corresponds to value wrap. | |
SVG_EDGEMODE_NONE | Corresponds to value none. |
Provides access to the contents of the kernelMatrix attribute.
The various methods from SVGList, which are defined to accept parameters and return values of type Object, must receive parameters of type SVGNumber and return values of type SVGNumber.
The SVGFEDiffuseLightingElement interface corresponds to the 'feDiffuseLighting' element.
interface SVGFEDiffuseLightingElement : SVGElement, SVGFilterNodeStandardAttributes { attribute DOMString in; attribute SVGNumber resultScale; attribute SVGNumber surfaceScale; attribute SVGNumber diffuseConstant; attribute SVGColor lightColor; };
The SVGFEDistantLightElement interface corresponds to the 'feDistantLight' element.
interface SVGFEDistantLightElement : SVGElement { attribute SVGNumber azimuth; attribute SVGNumber elevation; };
The SVGFEPointLightElement interface corresponds to the 'fePointLight' element.
interface SVGFEPointLightElement : SVGElement { attribute SVGNumber x; attribute SVGNumber y; attribute SVGNumber z; };
The SVGFESpotLightElement interface corresponds to the 'feSpotLight' element.
interface SVGFESpotLightElement : SVGElement { attribute SVGNumber x; attribute SVGNumber y; attribute SVGNumber z; attribute SVGNumber pointsAtX; attribute SVGNumber pointsAtY; attribute SVGNumber pointsAtZ; attribute SVGNumber specularExponent; };
The SVGFEDisplacementMapElement interface corresponds to the 'feDisplacementMap' element.
interface SVGFEDisplacementMapElement : SVGElement, SVGFilterNodeStandardAttributes { // Channel Selectors constant unsigned short SVG_CHANNEL_UNKNOWN = 0; constant unsigned short SVG_CHANNEL_R = 1; constant unsigned short SVG_CHANNEL_G = 2; constant unsigned short SVG_CHANNEL_B = 3; constant unsigned short SVG_CHANNEL_A = 4; attribute DOMString in; attribute DOMString in2; attribute unsigned short xChannelSelector; attribute unsigned short yChannelSelector; attribute SVGNumber scale; };
SVG_CHANNEL_UNKNOWN | The type is not one of predefined types. It is invalid to attempt to define a new value of this type or to attempt to switch an existing value to this type. | |
SVG_CHANNEL_R | Corresponds to value R. | |
SVG_CHANNEL_G | Corresponds to value G. | |
SVG_CHANNEL_B | Corresponds to value B. | |
SVG_CHANNEL_A | Corresponds to value A. |
The SVGFEFloodElement interface corresponds to the 'feFlood' element.
interface SVGFEFloodElement : SVGElement, SVGFilterNodeStandardAttributes { attribute DOMString in; #ifdef STYLABLESVG // The following pre-defined attribute collections are only // available in the DOM for Stylable SVG. STYLABLESVGStyleAttribute; #endif STYLABLESVG #ifdef EXCHANGESVG // The following pre-defined attribute collections are only // available in the DOM for Exchange SVG. EXCHANGESVGfeFloodAttrs; #endif EXCHANGESVG };
The SVGFEGaussianBlurElement interface corresponds to the 'feGaussianBlur' element.
interface SVGFEGaussianBlurElement : SVGElement, SVGFilterNodeStandardAttributes { attribute DOMString in; readonly attribute SVGLength stdDeviationX; readonly attribute SVGLength stdDeviationY; void setStdDeviation ( in SVGLength stdDeviationX, in SVGLength stdDeviationY ) raises( SVGException ); };
in SVGLength stdDeviationX | The X component of attribute stdDeviation. | |
in SVGLength stdDeviationY | The Y component of attribute stdDeviation. |
SVGException |
SVG_WRONG_TYPE_ERR: Raised if a parameter is of the wrong type.
|
The SVGFEImageElement interface corresponds to the 'feImage' element.
interface SVGFEImageElement : SVGElement, SVGFilterNodeStandardAttributes, SVGTransformable, SVGLangSpace, SVGURIReference { attribute DOMString className; attribute DOMString in; #ifdef STYLABLESVG // The following pre-defined attribute collections are only // available in the DOM for Stylable SVG. STYLABLESVGStyleAttribute; #endif STYLABLESVG #ifdef EXCHANGESVG // The following pre-defined attribute collections are only // available in the DOM for Exchange SVG. EXCHANGESVGContainerAttrs; EXCHANGESVGFillStrokeAttrs; EXCHANGESVGGradientAttrs; EXCHANGESVGGraphicsAttrs; EXCHANGESVGMarkerAttrs; EXCHANGESVGTextContainerAttrs; EXCHANGESVGTextElementAttrs; EXCHANGESVGViewportAttrs; #endif EXCHANGESVG };
The SVGFEMergeElement interface corresponds to the 'feMerge' element.
interface SVGFEMergeElement : SVGElement, SVGFilterNodeStandardAttributes;
The SVGFEMergeNodeElement interface corresponds to the 'feMergeNode' element.
interface SVGFEMergeNodeElement : SVGElement { attribute DOMString in; };
The SVGFEMorphologyElement interface corresponds to the 'feMorphology' element.
interface SVGFEMorphologyElement : SVGElement, SVGFilterNodeStandardAttributes { // Morphology Operators constant unsigned short SVG_MORPHOLOGY_OPERATOR_UNKNOWN = 0; constant unsigned short SVG_MORPHOLOGY_OPERATOR_ERODE = 1; constant unsigned short SVG_MORPHOLOGY_OPERATOR_DILATE = 2; attribute DOMString in; attribute unsigned short operator; attribute SVGLength radius; };
SVG_MORPHOLOGY_OPERATOR_UNKNOWN | The type is not one of predefined types. It is invalid to attempt to define a new value of this type or to attempt to switch an existing value to this type. | |
SVG_MORPHOLOGY_OPERATOR_ERODE | Corresponds to value erode. | |
SVG_MORPHOLOGY_OPERATOR_DILATE | Corresponds to value dilate. |
The SVGFEOffsetElement interface corresponds to the 'feOffset' element.
interface SVGFEOffsetElement : SVGElement, SVGFilterNodeStandardAttributes { attribute DOMString in; attribute SVGLength dx; attribute SVGLength dy; };
The SVGFESpecularLightingElement interface corresponds to the 'feSpecularLighting' element.
interface SVGFESpecularLightingElement : SVGElement, SVGFilterNodeStandardAttributes { attribute DOMString in; attribute SVGNumber surfaceScale; attribute SVGNumber specularConstant; attribute SVGNumber specularExponent; attribute SVGColor lightColor; };
The SVGFETileElement interface corresponds to the 'feTile' element.
interface SVGFETileElement : SVGElement, SVGFilterNodeStandardAttributes { attribute DOMString in; };
The SVGFETurbulenceElement interface corresponds to the 'feTurbulence' element.
interface SVGFETurbulenceElement : SVGElement, SVGFilterNodeStandardAttributes { // Turbulence Types constant unsigned short SVG_TURBULENCE_TYPE_UNKNOWN = 0; constant unsigned short SVG_TURBULENCE_TYPE_FRACTALNOISE = 1; constant unsigned short SVG_TURBULENCE_TYPE_TURBULENCE = 2; // Stitch Options constant unsigned short SVG_STITCHTYPE_UNKNOWN = 0; constant unsigned short SVG_STITCHTYPE_STITCH = 1; constant unsigned short SVG_STITCHTYPE_NOSTITCH = 2; attribute DOMString in; attribute SVGNumber baseFrequencyX; attribute SVGNumber baseFrequencyY; attribute SVGInteger numOctaves; attribute unsigned short type; attribute SVGNumber seed; attribute unsigned short stitchTiles; };
SVG_TURBULENCE_TYPE_UNKNOWN | The type is not one of predefined types. It is invalid to attempt to define a new value of this type or to attempt to switch an existing value to this type. | |
SVG_TURBULENCE_TYPE_FRACTALNOISE | Corresponds to value fractalNoise. | |
SVG_TURBULENCE_TYPE_TURBULENCE | Corresponds to value turbulence. |
SVG_STITCHTYPE_UNKNOWN | The type is not one of predefined types. It is invalid to attempt to define a new value of this type or to attempt to switch an existing value to this type. | |
SVG_STITCHTYPE_STITCH | Corresponds to value stitch. | |
SVG_STITCHTYPE_NOSTITCH | Corresponds to value noStitch. |
