paint-grad-08-t

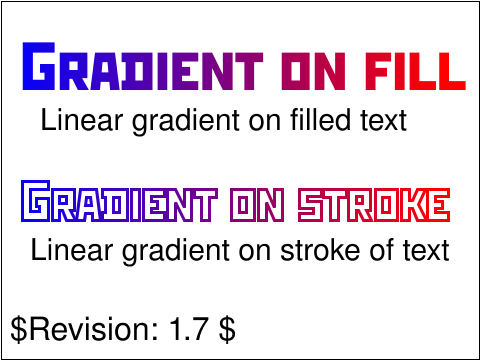

raster image of paint-grad-08-t

Test that the viewer has basic capability to handle linear gradients on fills and stroke of text.

This test uses the following elements : <linearGradient>, <stop> and the following properties : stop-color, fill:url(# ), stroke(url# )

Both elements in this test use the same simple gradient. It is a linear gradient from blue (left) to red (right). From top-down the appearance of objects is as follows.

The first item is a text string "Gradient on fill" with the gradient on the fill of the text.

The second item is a text string that is not filled. It has a 2 user unit stroke on which the gradient is applied.

The rendered picture should match the reference image, except for possible variations in the labelling text (per CSS2 rules).
