Test name:coords-viewattr-01-b
SVG Image PNG Image

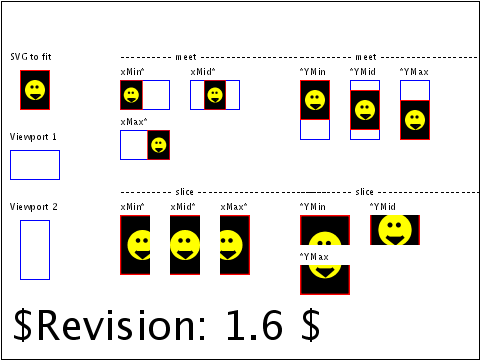

raster of coords-viewattr-01-b

This test verifies the implementation of the viewBox and the preserveAspectRatio attribute. This is a modified version of the sample file included in the SVG specification. It exercises the various preserveAspectRatio values and uses a general entity definition in order to make reading of the SVG source easier.

The rendered picture should match the reference image exactly except for variations in the labeling text.
