Use Case: Using XML formalism to handle channels list

Submitter(s): MStar Semiconductor (JC Verdié),

Description:

  • high level description/overview of the goals of the use case

Provide a declarative approach to handle channels list in TV for web UI and/or application Usage

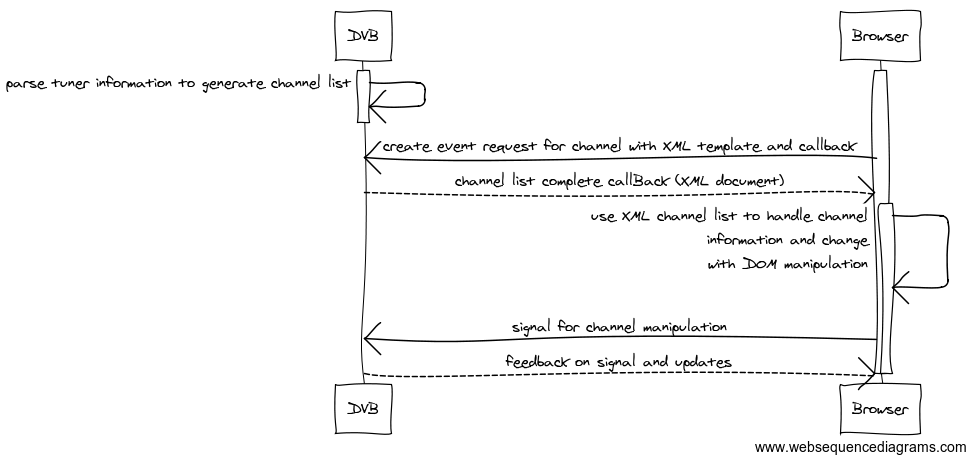

  • Schematic Illustration (devices involved, work flows, etc)


  • Implementation Examples (e.g. JS code snippets)
<dvb:channel id='chann1'>
             <name>ABC</name>
             <dvb:source>onid,pid,sid</dvb:source>
             <dvb:ait>
                   <application>http://wwww.appToLaunch.com
                   </application>
                   <state>signalled</state>
              </dvb:ait>
</dvb:channel>
<iptv:virtualChannel id='chann2'>
<name>ZDF</name>
<iptv:channel id=‘chann2hd’>
             <iptv:source>http://.../streamingHD/video.m3u</iptv:source>
</iptv:channel>
<iptv:channel id=‘chann2sd’>
             <iptv:source>http://.../streamingSD/video.m3u</iptv:source>
</iptv:channel>
</iptv:virtualChannel>

Need/justification:

Today, channel management is handled in HTML Apps using specific JavaScript API, home brew or fetched from other groups such as OIPF Channel management is by nature a declarative process which turns out to be managed in a fully procedural ways with lot of additional code and processing and sometimes a duplicate storage of data (middleware list of services and web front-end database backup or cache)


  • Explanation of benefit to ecosystem

Provide a standardised communication between tuner middleware (whether they are ISDB, DVB, ATSC or others would not be relevant).


  • Why were you not able to use only existing standards to accomplish this?

Existing standards only provide a procedural approach to this data management, implying a lot of additional code in both the browser and the middleware, and a lot of re-processing of data, while the inner nature of structure data in XML is pinpoint aligned with channel management needs.

  • What might you suggest could be standardized?

We are proposing the W3C to work on a standardised XML scheme to describe a channel list with all needed items such as (the following list is not comprehensive):

  • channel name
  • channel type : IP, DVB, ...
  • channel protocol : dvb triplet, rtsp, ...
  • channel access : which can be specialised depending on channel type (IP address , triplet, ...)
  • this is not a formalism presented here, as many channels will now include multiple access points (HD, SD, adaptive streaming, broadcast, ...)

Dependencies:

  • other use cases, proposals or other ongoing standardization activities which this use case is dependant on or related to

Using HTML Video tag to play broadcast video

Comments:

  • any relevant comment that is good to track related to this use case
