XML and Applications

Steven Pemberton, CWI and W3C, Amsterdam

About me

Researcher at CWI in Amsterdam (first non-military internet site in Europe - 1988, whole of Europe connected to USA with 64kb link!)

Co-designed the programming language ABC, that was later used as the basis for Python

At the end of the 80's built a system that you would now call a browser.

Organised 2 workshops at the first Web conference in 1994

Chaired the first style and internationalization workshops at W3C.

Co-author of HTML4, CSS, XHTML, XML Events, XForms, RDFa, etc

Activity lead at W3C

Javascript (1995)

XMLHTTPRequest (1999)

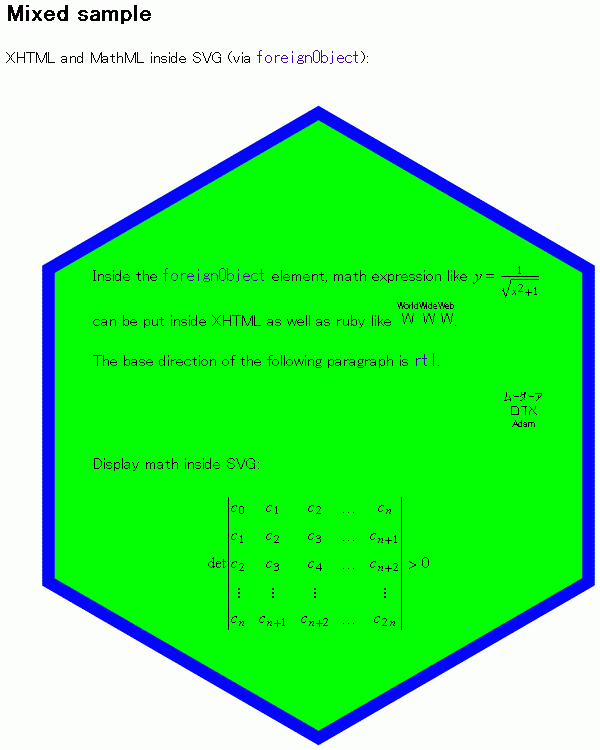

XHTML+SVG+MathML in the browser (2002)

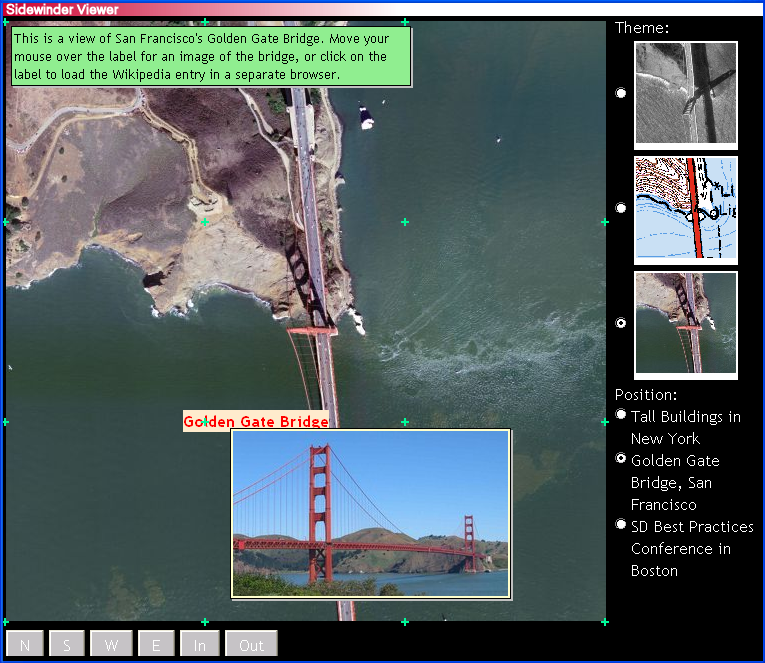

Google Maps (2005)

Maps with XForms (also 2005)

Maps as declarative application

Although the example shown above was only a proof of concept, it did more than Google maps and yet it was only 25K bytes of code compared with 200+K of Javascript for Google Maps.

As we shall see shortly, a program that is an order of magnitude smaller needs only 3% of the effort to build.

HTML5 (2009)

HTML5

Not very much about markup (a few new elements, new ways of doing a couple of things).

Mostly about APIs (from that point of view it is really a DOM group).

What do we need from Web Applications?

• Simplicity
• Usability
• Accessibility
• Device-independence
• Extensibility
•

The cost of producing applications

According to the DoD, 90% of the cost of software is debugging.

According to Fred Brookes, in his classic book The Mythical Man Month, the number of bugs increases quadratically according to code size: L^1.5.

In other words, a program that is 10 times longer is 32 times harder to write.

Or put another way: a program that is 10 times smaller needs only 3% of the effort.

Constructing Applications

The problem is, no one writes applications except programmers.

Interesting exception: spreadsheets

Mostly because they use a declarative programming model.

The nice part about declarative programming is that the computer takes care of all the boring fiddly detail.

Declarative applications

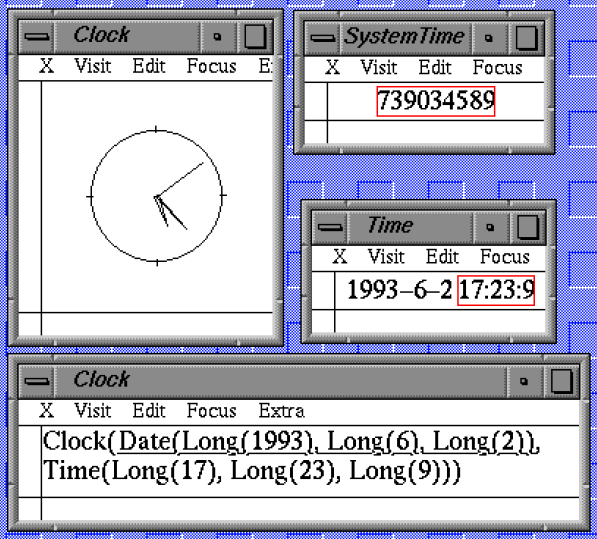

To demonstrate the difference, let's take the example of the clock shown above.

The shortest code I could find of an analogue clock was something over 1000 lines of C (the longest was over 4000 lines):

Clock

Here is the essence of the code used for the Views clock example.

type clock = (h, m, s)
displayed as
   circled(combined(hhand; mhand; shand; decor))
   shand = line(slength) rotated (s × 60)
   mhand = line(mlength) rotated (m × 60)
   hhand = line(hlength) rotated (h × 30 + m ÷ 2)
   decor = ...
   slength = ...
   ...
clock c
c.s = system:seconds mod 60
c.m = (system:seconds div 60) mod 60
c.h = (system:seconds div 3600) mod 24

Techniques

The problem is that HTML5 achieves most of its functionality through procedural programming. This means that to support declarative applications we have to adopt some other approach, such as

• Server-side (see for example Orbeon, Betterforms, Chiba)
• Javascript transformation (see for example IBM's Ubiquity)
• Java transformation (see for example EMC's Formula)
• XSLT (+ supporting Javascript) (see for example XSLTForms)

Using such techniques, HTML becomes the assembly code of the web.

Example: Maps

Maps example

Maps

<instance>
 <data xmlns="">
   <zoom>10</zoom>
   <posx>87140</posx> <posy>130979</posy>
   <x/><y/><scale/><maxpos/><url/>
 </data>
</instance>

<bind nodeset="scale" calculate="power(2, 18 - ../zoom)"/>
<bind nodeset="maxpos" calculate="power(2, 18)-1"/>
<bind nodeset="x" calculate="floor(../posx div ../scale)"/>
<bind nodeset="y" calculate="floor(../posy div ../scale)"/>
<bind nodeset="url"
  calculate="concat('http://a.tile.openstreetmap.org/',
                  ../zoom, '/' , ../y, '/', ../x,
                  '.png')"/>

All the interaction has to do is update zoom, posx, and posy, and output the tile:

<output mediatype="image/*" ref="url" />

Example: Interaction

Wikipedia example

Wikipedia

<instance id="isearch">
  <data xmlns="">
    <action>opensearch</action>
    <search/>
  </data>
</instance>

<submission resource="http://en.wikipedia.org/w/api.php"
  method="get" replace="instance" instance="suggestions"
/>

<instance id="suggestions"><data xmlns=""/></instance>

Results

Wikipedia gives you results that look like this:

<SearchSuggestion version="2.0" xmlns="http://opensearch.org/searchsuggest2">
  <Query>XML</Query>
  <Section>
    <Item>
      <Text>XML</Text>
      <Description>Extensible Markup Language (XML) is a set of rules for encoding documents in machine-readable form. </Description>
      <Url>http://en.wikipedia.org/wiki/XML</Url>
    </Item>
    <Item>
      <Text>XML Schema (W3C)</Text>
      <Description>XML Schema, published as a W3C recommendation in May 2001, is one of several XML schema languages.
      </Description>
      <Url>http://en.wikipedia.org/wiki/XML_Schema_(W3C)</Url>
    </Item>
    ...

Controls

We bind to the search string:

<input ref="search" incremental="true" />

And then, every time the value changes we submit the data:

<send ev:event="xforms-value-changed"/>

We then display the results with:

<repeat nodeset="instance('suggestions')/Section/Item">
     <output value="Text"/>
</repeat>

Advantages

The advantages of this approach are:

• Accessible applications: Because of the model-view-controller approach, it is just as easy to bind an accessible interface to the data as a purely visual one.
• Device independent applications: Likewise, because of the late binding to the data, you can bind device-dependent interfaces just as easily. (This is comparable with the advantages of using content+stylesheets in conventional XML and XHTML)
• Re-use: If someone develops a widget, like an analogue clock, it is available to all applications, and isn't hard-wired into an app (again, like stylesheets)
• Much less coding: Declarative programming is well known for requiring much less coding, mainly because you don't have to worry about all the fiddly administration involved in traditional procedural programming.

In other words: everything you need for the web!

Data point: Big machines

A certain company makes BIG machines (walk in): user interface is very demanding — needs 5 years, 30 people.

This became: 1 year, 10 people with XForms.

Do the sums. Assume one person costs 100k a year. Then this has gone from a 15M cost to a 1M cost. They have saved 14 million! (And 4 years)

Data point: applets

A company is producing many small applications using XForms, based on previous Javascript versions.

They report that the code is less than 25% of the original size (so a tenth of the work).

"[The designers] are really happy to not have to use javascript by the way: they like that if things don't work its not their fault"

Data point: application

(True story)

Manager: I want you to come back to me in 2 days with estimates of how long it will take your teams to make the application

[2 days later]

Javascript man: I'll need 30 days to work out how long it will take to program it

XForms man: I've already done it.

Conclusion

HTML5 provides a lot of functionality, reasonably interoperability between browsers

Unless you are a hard-core programmer, it is not a pleasant environment to produce applications in

Considering HTML as an assembly language allows you to use more amenable methods to produce applications.

XForms resources

A tutorial: http://www.w3.org/MarkUp/Forms/2010/xforms11-for-html-authors/

For an overview of all features, elements and attributes of XForms 1.1, see the XForms 1.1 Quick Reference.

It's not easy reading, but the final arbiter in questions of doubt is the XForms 1.1 Specification.

The implementation used for the examples in this tutorial is XSLTForms.
