Outline

New devices allow web access
... but they are different
So far most new devices adapt themselves to the visual-page-point-click paradigm
... but not for long
The web itself is going to change:
- New browser architecture
- New standards

In more detail

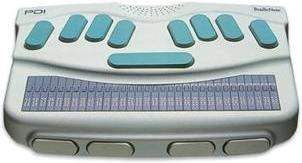

new output devices: Small screens, speech synthesizers, Braille devices
new input devices: Electronic pens (handwriting), speech recognition, gestures
new environments: low bandwith networks, GPS, ambient noise, batteries
The 3 items above are all dynamic
Web pages are becoming Web applications

So what?

Each new device manufacturer builds its own browser to suit existing Web content.

"Smart browsers"
Server-side adaptation

Complex example

This works so far but let's look at something more complex: "google maps in my car."

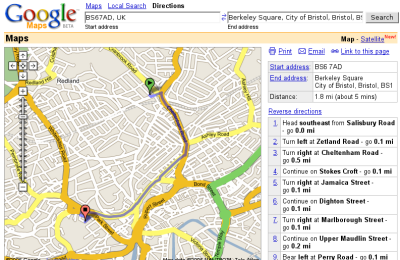

gmaps screenshot

...

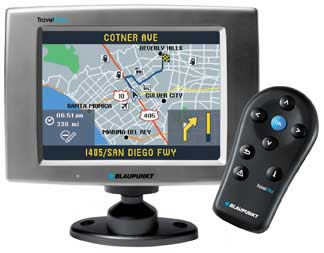

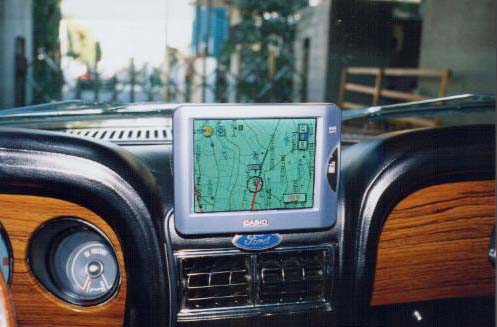

Google maps in my car. I want to have my car navigation system use google maps. Requirements:

I want to be able to click somewhere on the map (or touch the screen)
I want to speak to it, and be able to ask it to repeat, or move to next item or previous in itinerary.
I want it to show me the screen when I'm stopped but to talk to me when I drive
Use my car's GPS obviously, get traffic info, weather, etc.

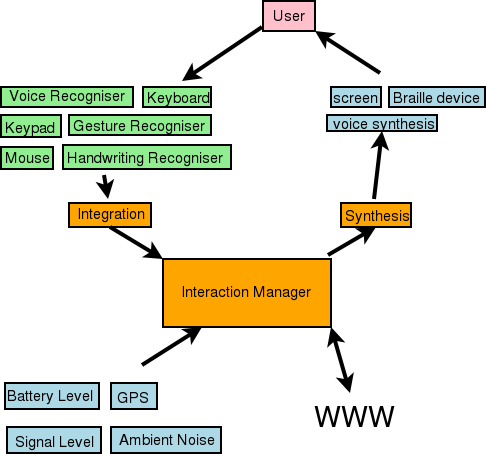

Multimodal Interaction on the Web

New browsers that know what modalities they are connected to.
New browser-server communication

Evolution of the browser architecture

Now:

basic architecture

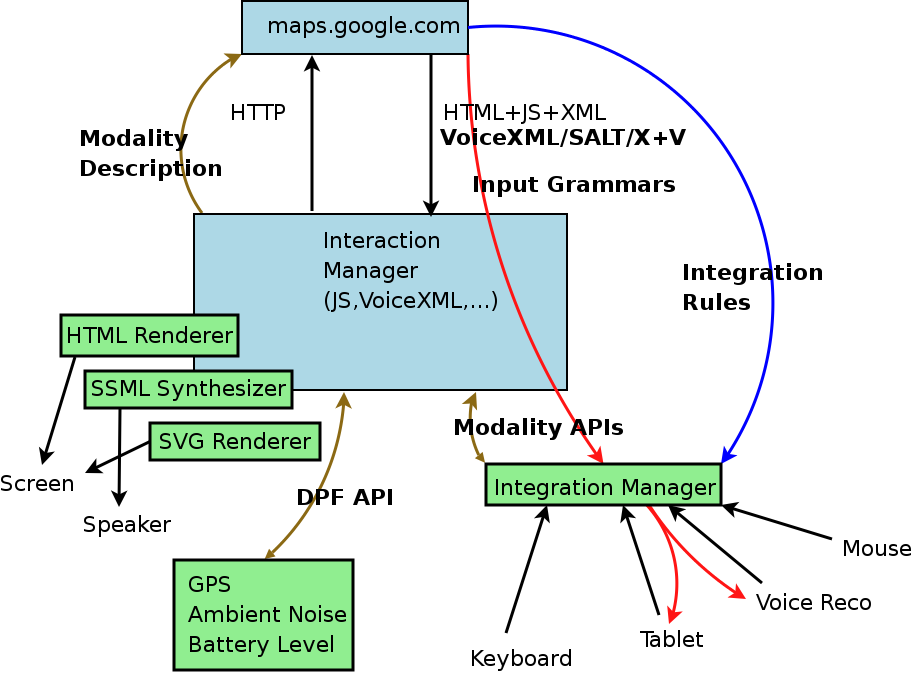

The Multimodal Browser

arch2

What to standardise?

The browser
Web content

But why standardise things that are happening inside the browser?
Why change the Web?

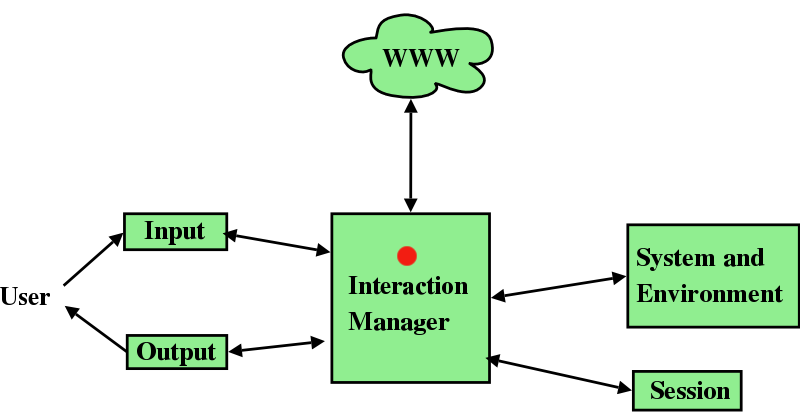

The MMI framework

the boxes don't necessarily map to devices
Reuse of existing markup: XHTML, CSS, SVG for output, SRGS for input

Work items

"connecting" things together: interfaces
Input modalities: speech/text grammars (SRGS), handwriting recognition grammars: InkML
Output modalities: reuse SVG, HTML, CSS, SSML, etc.
Transmitting and merging input data: EMMA, Compositing
Interaction Manager: authoring languages
System and Environment (now DCI)
Sessions

Input Modality Interfaces

For input we need: Grammars, Integration, Interfaces

Interfaces as IDL/WSDL APIs can be used in Javascript directly, or Web Services, respectively

Generic: register, setGrammar, setModel, getData, prompt, pause, events

Specialised: sendVoiceXML

Leading to two types of architectures:

DOM

What to transmit through the pipes

Web site to Browser: HTML, XBL, ES, VoiceXML (interaction management), PNG, SSML, SVG, CSS (output)
Web site to Browser to Recogniser: Grammars, form information
Recogniser to Browser to Web site: recognition results

Grammars: Speech Recognition

Speech Recognition Grammar Specification / Semantic Interpetation for Speech Recognition

<one-of>
  <item>Michael</item>
  <item>Yuriko</item>
  <item>Mary</item>
  <item>Duke</item>
  <item><ruleref uri="#otherNames"/></item>
</one-of>

<one-of><item>1</item> <item>2</item> <item>3</item></one-of>

<one-of>
  <item weight="10">small</item>
  <item weight="2">medium</item>
  <item>large</item>
</one-of>

<one-of>
  <item weight="3.1415">pie</item>
  <item weight="1.414">root beer</item>
  <item weight=".25">cola</item>
</one-of>

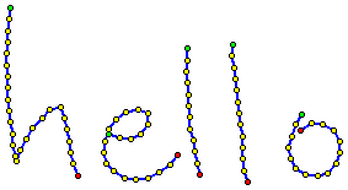

Defining handwritten gestures and grammar: InkML

<ink>
   <trace>
     10 0 9 14 8 28 7 42 6 56 6 70 8 84 8 98 8 112 9 126 10 140
     13 154 14 168 17 182 18 188 23 174 30 160 38 147 49 135
     58 124 72 121 77 135 80 149 82 163 84 177 87 191 93 205
   </trace>
   <trace>
     130 155 144 159 158 160 170 154 179 143 179 129 166 125
     152 128 140 136 131 149 126 163 124 177 128 190 137 200
     150 208 163 210 178 208 192 201 205 192 214 180
   </trace>
   <trace>
     227 50 226 64 225 78 227 92 228 106 228 120 229 134
     230 148 234 162 235 176 238 190 241 204
   </trace>
   <trace>
     282 45 281 59 284 73 285 87 287 101 288 115 290 129
     291 143 294 157 294 171 294 185 296 199 300 213
   </trace>
   <trace>
     366 130 359 143 354 157 349 171 352 185 359 197
     371 204 385 205 398 202 408 191 413 177 413 163
     405 150 392 143 378 141 365 150
   </trace>
</ink>

EMMA: representing and annotating input

Goals:

define a markup language to combine user input information from recognisers to the interaction manager
intermediaries add medatada to recogniser output

EMMA: example

<emma:emma emma:version="1.0"
 xmlns:emma="http://www.w3.org/2003/04/emma#">
  <emma:one-of emma:id="r1"
      emma:start="2003-03-26T0:00:00.15"
      emma:end="2003-03-26T0:00:00.2">
    <emma:interpretation emma:id="int1" emma:confidence="0.75" >
      <origin>Boston</origin>
      <destination>Denver</destination>
      <date>
         <emma:absolute-timestamp
          emma:start="2003-03-26T0:00:00.15"
          emma:end="2003-03-26T0:00:00.2"/>
         03112003
      </date>
    </emma:interpretation>
    <emma:interpretation emma:id="int2" emma:confidence="0.68" >
      <origin>Austin</origin>
      <destination>Denver</destination>
      <date>03112003</date>
    </emma:interpretation>
  </emma:one-of>
</emma:emma>

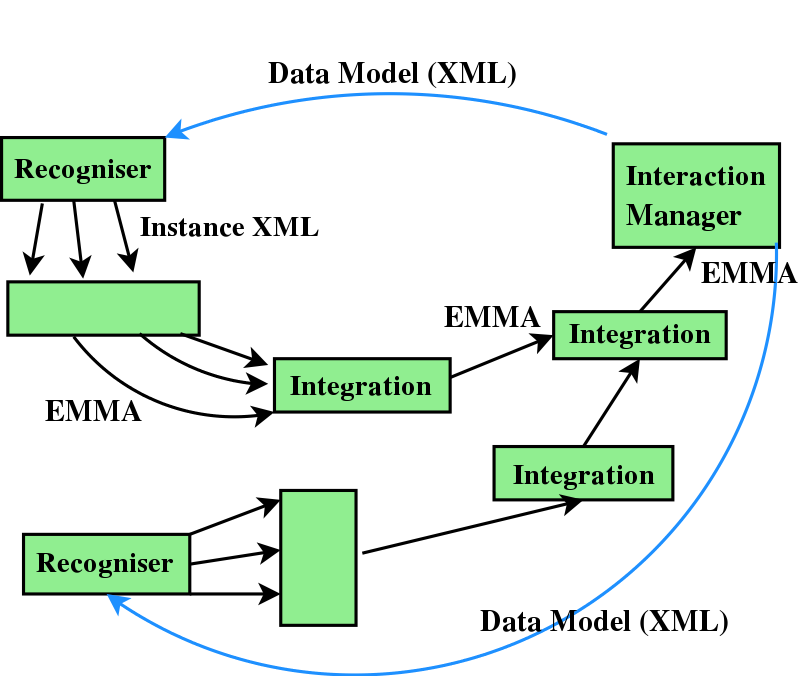

Compositing

Making one emma file out of two

programming language (e.g. Java+DOM)

XSLT

<xsl:if test="@emma:confidence &gt; 40">
  <xsl:copy-of select="."/>
</xsl:if>

Declarative: SMIL

<par>
    <par>
        <ref id="input1" mode="ink" grammar="select.ink" begin="activateEvent"/>
        <ref id="timeout1" dur="2s" begin="input1.activateEvent"/>
    </par>
    <excl end="timeout2.end">
        <priorityClass peers="pause">
            <ref id="timeout2" end="timeout1.end"/>
            <ref id="speech1" mode="speech" grammar="print.grm" begin="activateEvent"/>
        </priorityClass>
    </excl>
</par>

The Dynamic Properties Framework

The DPF specification defines an API to access system properties. E.g.

battery level
signal strength

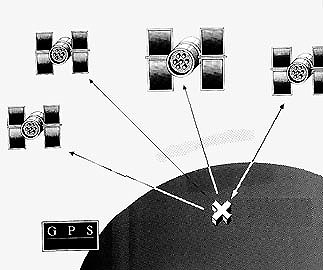

latitude/longitude from GPS
ambient noise
user preferences

DPF: example

<html>
  <head>
    <title>GPS location example</title>
    <script type="text/javascript">
    <![CDATA[
      SystemEnvironment.location.format="zip code";
      SystemEnvironment.location.updateFrequency="20s";
    ]]>
    </script>
    <script defer="defer" type="text/javascript"
      ev:event="se:locationUpdate">
      <![CDATA[
        var field = document.getElementById("location");
        var zipcode = SystemEnvironment.location;
        field.childNodes[0].nodeValue = zipcode;
      ]]>
    </script>
  </head>
  <body>
    <h1>Track your location as you walk</h1>
    <p>Your current zip code is: <span id="location">(please
    wait)</span></p>
  </body>
</html>

Interaction Manager

The manager...

runs the web page or web application
knows what modalities are available
gets information from the DPF and Session components

...

Interaction Manager (2)

...and shapes the interaction accordingly:

with visual media: shows the page on the screen
with audio media: presents an application as a dialogue (a la VoiceXML)

Could be code: JavaScript using the APIs mentioned above, or declarative interaction markup like VoiceXML, with a mapping to API calls(with XBL)

Writing multimodal web content

Existing web pages and applications will still work but won't provide:

modality dependent content
modality dependent interaction

So extensions will be useful.

You can already do it in HTML+JavaScript+MID+DPF (See above)
Declarative markup (better): VoiceXML, SCXML, CCXML

The Voice Browser Activity

Historically precedes the MMI Framework

A specific framework

Now Integrates into MMI

VoiceXML

VoiceXML2: one of W3C's most successful specifications

Simple form-filling applications on the phone

    <field name="adjustment_amount"<
     <grammar type="application/srgs+xml" src="/grammars/currency.grxml"/<
      <prompt<
        What is the value of your account adjustment?
      </prompt<
      <filled<
        <submit  next="/cgi-bin/updateaccount"/<
      </filled<
    </field<
  </form<

CCXML

a standard for telephony platforms

handles events (e.g. incoming calls)

makes outgoing calls, conference calls, start (VoiceXML) dialogues

SCXML

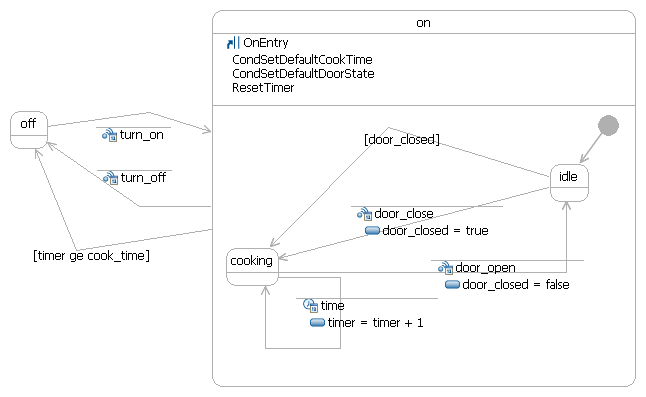

Harel State Tables: a general interaction management paradigm

CCXML provides markup for HST

Can plug in to CCXML, or drive VoiceXML dialogs or MMI interaction

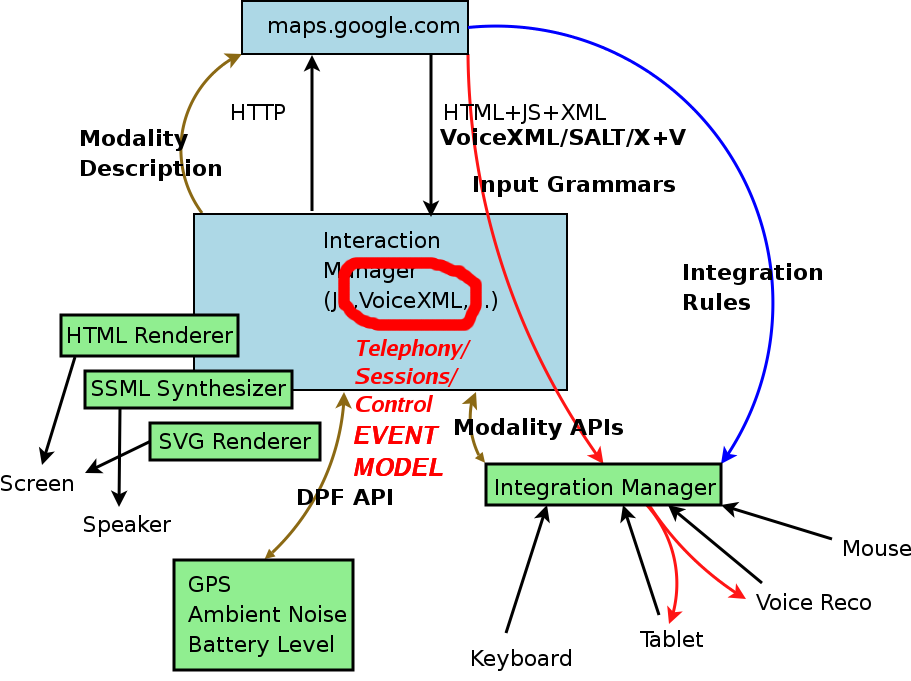

Voice+MMI

How does the Voice Interface Framework specifications fit into the MMI architecture

VoiceXML CCXML and SCXML provide: interaction manager and telephony capabilities
But are mainly focused on voice applications, with telephony controls
They integrate in the MMI framework and add new components

Summary

New multimodal devices can make a better Web experience

The MMI Framework generalises the standard visual browser model

The MMI Framework generalises the standard voice browser model

New specifications needed, for:

Recognition
Interaction
New components: environment, events, integration, etc.

Conclusion

MMI page: w3.org/2002/mmi

VBWG page: w3.org/voice

This presentation: w3.org/2005/Talks/1111-maxf-delhi
