Web Services Choreography Description Language: Primer Version 1.0

editors' copy Day Month Year

This version:
http://www.w3.org/TR/Year/WD-ws-cdl-10-primer-YearMMDD/
Latest version:
http://www.w3.org/TR/ws-cdl-10-primer/
Editors:
Steve Ross-Talbot, Pi4 Technologies Ltd.
Tony Fletcher, Choreology

Abstract

Insert abstract here

Status of this Document

This document is an editors' copy that has no official standing.

Table of Contents

1 Introduction
    1.1 Structure of the primer
2 An Overview of WS-CDL
    2.1 Using WS-CDL
    2.2 Why use WS-CDL?
    2.3 The Structure of WS-CDL
3 Getting Started
    3.1 Degenerate Example
    3.2 Interaction Oriented Design
        3.2.1 Interactions
        3.2.2 Roles
        3.2.3 Participants
        3.2.4 Relationships
        3.2.5 Information Types
        3.2.6 Tokens and locators
        3.2.7 Channels
        3.2.8 Choreographies
        3.2.9 Complete Example
4 Intermediate Topics
    4.1 The Intermediate Example
        4.1.1 Variables
        4.1.2 Non Blocking Workunits
            4.1.2.1 Repetition
        4.1.3 Time
        4.1.4 Recording information
        4.1.5 Conditional Workunits
        4.1.6 Choices
        4.1.7 Parallelization
        4.1.8 Modularization
            4.1.8.1 Choreographies and sub-choreographies
        4.1.9 Performing a sub choreography
        4.1.10 Channel Passing
        4.1.11 Exchanges
    4.2 Extending the example
        4.2.1 Exceptions and Faults
        4.2.2 Finalization
            4.2.2.1 Finalizers and Finalization
        4.2.3 Silent Actions and Conditions
        4.2.4 NoActions
        4.2.5 Complete Example
5 Advanced Topics
    5.1 Dependent Workunits
    5.2 Concurrent Performs
        5.2.1 Managing join conditions
    5.3 Isolation Levels
    5.4 Advanced Channels
        5.4.1 Usage
        5.4.2 Channel Passing Modes
    5.5 Pitfalls
        5.5.1 Distributed choice and race conditions
    5.6 Alignment and Coordination
6 Implementation Considerations
    6.1 End Point Projections
        6.1.1 Java
        6.1.2 WS-BPEL
        6.1.3 Runtime Monitoring
        6.1.4 WSDL1.1
        6.1.5 WSDL2.0
    6.2 WS-Addressing
        6.2.1 Channel Representation


1 Introduction

1.1 Structure of the primer

This primer is intended to give an overview of WS-CDL and can be read by WS-CDL users (e.g. a software professional wishing to write choreography descriptions) and WS-CDL implementers (e.g software professionals wishing to create WS-CDL compliant tools) alike. The first 5 sections are intended for both audiences while the last is intended primarily for implementors.

Section 2 provides an overview of WS-CDL. The first half of Section 3 describes a degenerate example using UML sequence diagrams. The second half of Section 3 walks through building the WS-CDL description of the example. Section 4 examines WS-CDL at a deeper level, extending the previous example and describing how more advanced features can be employed. Section 5 describes the use of WS-CDL within an organization. Section 6 describes some of the implementation considerations for implementers.

2 An Overview of WS-CDL

WS-CDL is a language for specifying peer-to-peer protocols where each party wishes to remain autonomous and in which no party is master over any other – i.e. no centralization point. The description of a peer-to-peer protocol is grounded in what we term an ordered set of interactions, where an interaction is defined loosely as an exchange of messages between parties.

It is essential in understanding Web Services Choreography Description Language (WS-CDL) to realize that there is no single point of control. There are no global variables, conditions or workunits. To have them would require centralised storage and orchestration. WS-CDL does permit a shorthand notation to enable variables and conditions to exist in multiple places, but this is syntactic sugar to avoid repetitive definitions. There is also an ability for variables residing in one service to be aligned (synchronized) with the variables residing in another service, giving the illusion of global or shared state.

It is also important to understand that WS-CDL does not distinguish between observable messages from applications, that might be considered as application or business messages, from the infrastructure upon which an application is based, that might be considered as some form of signal. In WS-CDL all messages are described as information types and have no special significance over each other. All that WS-CDL describes is the ordering rules for the messages which dictate the order in which they should be observed. When these ordering rules are broken WS-CDL considers them to be out-of-sequence messages and this can be viewed as an error in conformance of the services that gave rise to them against the WS-CDL description.

WS-CDL is an XML-based language that can be used to describe the common and collaborative observable behavior of multiple services that need to interact in order to achieve some goal. WS-CDL describes this behavior from a global or neutral perspective rather than from the perspective of any one party and we call a complete WS-CDL description a global model.

Services are any form of computational process with which one may interact, examples are a buying process and a selling process that are implemented as computational services in a Service Oriented Architecture (SOA) or indeed as a Web Services implementation of an SOA. Because WS-CDL is not explicitly bound to WSDL it can play the same global model role for both SOA services and Web Services, that is it is possible to use WS-CDL to describe a global model for services with no WSDL descriptions (perhaps they just have Java interfaces) as easily as it is to describe services that do have or will have WSDL descriptions. The way in which WS-CDL can be used without WSDL descriptions is however implementation dependent.

Common collaborative observable behavior is the phrase we use to describe the behavior of a system of services, for example buyer and seller services, from a global perspective. Each service has an observable behavior that can be described today using WSDL or some other interface description language (e.g. Java). Such observable behavior is described as a set of functions, possibly with parameters, that a service offers coupled with error messages or codes that indicate failure along with the return types for the functions offered. If we used abstract BPEL along with WSDL we can also describe the valid sequences of functions from a single services perspective (i.e. the service we are describing), which is not possible with WSDL or Java alone [NOTE: NEEDS TO BE QUALIFIED WITH WHICH BPEL AND PROFILE]. We refer to this set as the “observable behavior” for a service. This level, the service level, of “observable behavior” does not describe behavior of a system of services because it only deals with a single service. The composition of a set of "observable behaviors" at a service level is what we call the common collaborative observable behavior. The composition is not simply the set of observable behaviors at the service level operating together because such a composition requires further description of the dependencies that the set of services exhibit in order to interoperate correctly. If we captured the ordering rules for a set of service then we would have the common collaborative observable behavior fully specified. This is what WS-CDL is for.

Individual service behaviors can be used in the composition of wider collaboration in which a set of services with their own behaviors could be effectively used. In order to do so a global model that described the peer to peer observable interactions of such a set of services is required to ensure that the services will in-fact cooperate to a commonly understood script. That script is the global model and that script is what WS-CDL is used to describe.

A global model, ensures that the common collaborative observable behavior is not biased towards the view of any one of the services. Instead it describes as peers the entire collaborative observable behavior of all of the services such that no one service can be said to exert any control over any other service. In effect it described the services as a complete distributed application in which each service plays a distinct role and has distinct relationships with its peer services.

One may think of WS-CDL as a language for describing the observable activities of a set of services some of which are synchronized through some common understanding realized by a specific business interaction between the services or by a declaration of interest in the progress of one service by another (e.g. has the buyer accepted the price offered by the seller). The least interesting scenario is one in which WS-CDL can be used to describe a set of services that never synchronize at all; that is there is no observable relationships and no statement of an unobservable relationship that exists between the services. In this case the services perform a choreography, but effectively on different stages and thus need no form of coordination (e.g. a buyer and seller choreography for WallMart versus a Bloomberg Reuters choreography for the exchange of news items). In all other cases the synchronization is what makes life interesting (e.g. a buyer seller choreography coupled with a seller credit check choreography or indeed a seller shipper choreography).

In WS-CDL the mechanisms for describing the common observable behavior range from specific information alignment (e.g. when a buyer and seller record the fact that an order has been accepted in variables that reside at the buyer and at the seller), interaction (e.g. when a buyer requests a price from a seller and receives a price as a response from the seller) and a declaration of interest in the progress of a choreography (e.g. has the bartering choreography between buyer and seller “started” or has it “finished”). In the first two cases synchronization is explicit and visible as a business related activity (e.g. the observable recording of information and it’s alignment and the description of an information exchange between a buyer and seller) and in the last case (e.g. choreography has “started” or “finished”) it is implicit based on the progress of a choreography and not any business relationships.

2.1 Using WS-CDL

WS-CDL is a description and not an executable language, hence the term “Description” in it’s name. It is a language that can be used to unambiguously describe observable service collaborations, we might also refer to this as a business protocol.

When WS-CDL is focused on describing collaboration within a domain of control (e.g. a single company or enterprise) WS-CDL is used to describe the internal workflows that involves multiple services (also called end-points) that constitute observable collaborative behavior. The value in so doing is to encourage conformance of services to a negotiated choreography description and to improve interoperability of services through an agreed choreography description. This is no more than describing a business protocol that defines an observable collaboration between services. You can think of it as a way of ensuring services are well behaved with respect to the goals you wish to achieve within your domain.

When the focus of WS-CDL is across domains of control, WS-CDL is used to describe the ordering of observable message exchanges across domains such as the those that govern vertical protocols such as fpML, FIX, TWIST and SWIFT. These protocols have some form of XML data format definition and then proceed to describe the ordering of message exchanges using a combination of prose and UML sequence diagrams.

2.2 Why use WS-CDL?

WS-CDL can be used to ensure interoperability within and across domains of control to lower interoperability issues, and create solutions within and across domains of control.

WS-CDL can be used to ensure that the total cost of software systems in a distributed environment, within a domain of control and across the world-wide-web is lowered by guaranteeing that the services that participate in a choreography are well behaved on a continuous basis.

Both of these benefits translate into greater up-time and so increase top line profits. At the same time they translate into less testing time and so reduce cost of delivery which decreases bottom line costs.

2.3 The Structure of WS-CDL

WS-CDL is a layered language that provides different levels of expressibility to describe a choreography. Not all of the features of WS-CDL are needed to describe a choreography. The array of features are included in the language to provide a complete and accurate reflection of what is needed to model a particular choreography and depending on what is needed some features of the language will be needed whereas others will not. In this document we shall lead by example and show what the features can be used for and also provide some guidance as to when to use certain features and when not. The high level features of WS-CDL are shown diagrammatically in Figure 1.

At the top most level for any WS-CDL there is a package that contains all other things. All choreographies described in WS-CDL will include a number of types that need to be defined. Among these types we have informationTypes that describe general messages in interaction and variables, roleTypes that define behavior (i.e. a WSDL description), participantTypes that group roleTypesinto a physical representation of a service (e.g. multiple WSDL descriptions at a single location, relationshipTypes that describe how roles are connected - they define the static linkage between roles, channelTypes that describe communication links and their constraints between roleTypes - instances of channelType are used to interact between roleTypes, tokens which are aliases to informationTypes and tokenLocators that describe how attributes may be derived from their carrying informationType. Once the types are defined then choreographies can be defined using them. A choreography has attributes such as a name and a root the latter being the entry point for a choreography as well as comprising a structured set of activities which can include any combination of sequences, parallelisation, choices, workunits, interactions, assignments to variables, silentActions, noAction and the performing of a sub-choreography. A choreography may also include an exceptionBlock that indicated what to do when an exception is raised and a finalizerBlock. All of these parts of a choreography will be further explained and illustrated by means of example.

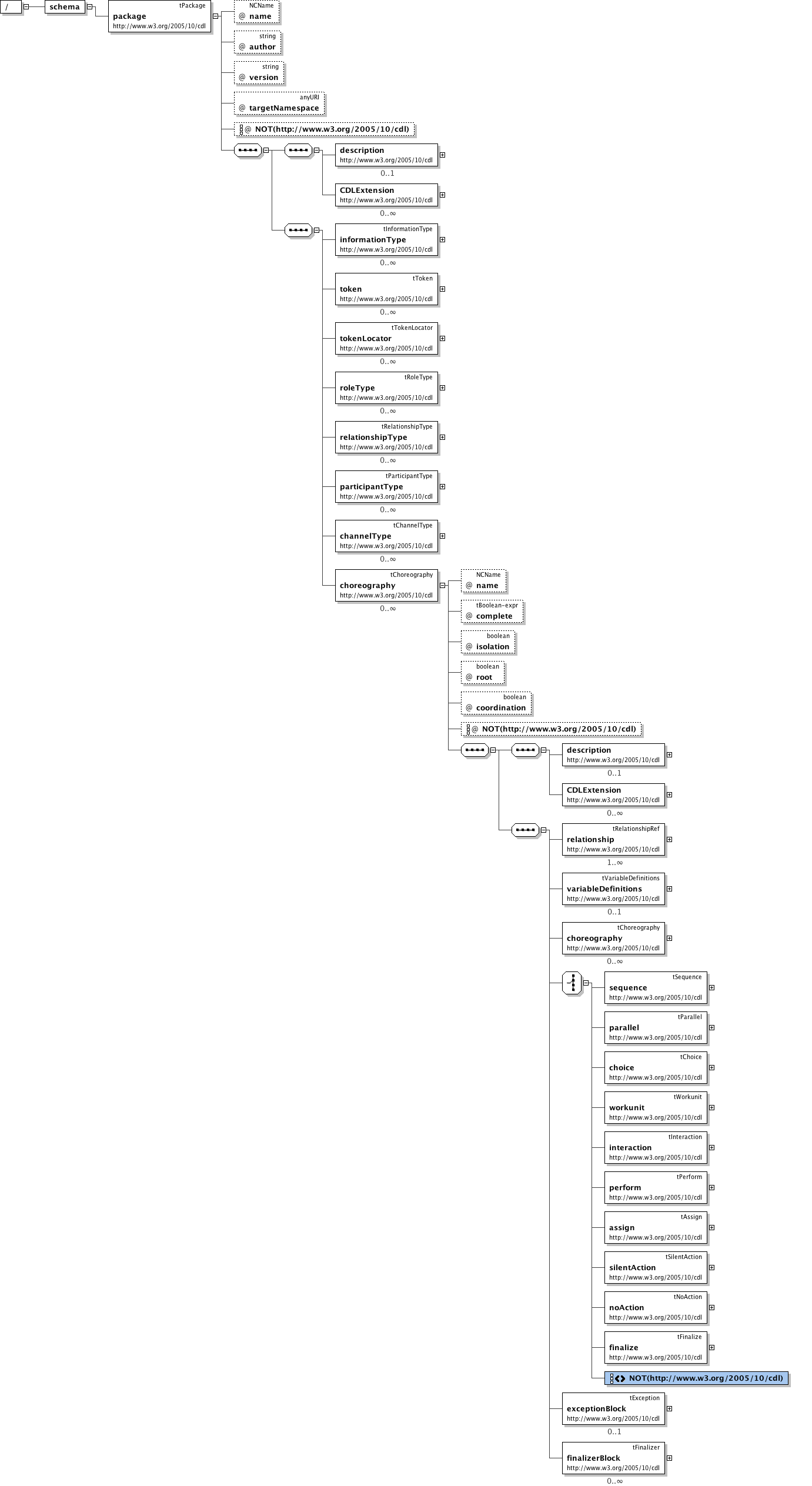

Layered structure of WS-CDL

When we model a choreography we may use silentActions to hide certain values or conditions that give rise to one path being taken over another. We call this notion non-observable conditionals and it makes it possible to model branching based on observing changes in the interactions that occur (e.g. one might observe an exchange between a buyer and a seller which is said to be terminated when a “completed” interaction is observed) instead of having to make the condition itself visible.

If we have no observable conditionals then it is not necessary to perform any explicit state management at the roles that are interacting because we have not needed to express any explicit computation (e.g. totalOrderValue EQUALS expectedOrderValue) required of an observable condition. None of roles used in choreographies of this type have the need for any state variables to control a choreography, rather the progression of a choreography is expressed purely in terms of observable interactions and use observation to determine their state with respect to the other roles.

Some business protocols are defined exposing specific business rules. These constitute shared knowledge between the concerned roles. For example we may terminate an order completion between a buyer and a seller when we calculate that the items delivered match the original order. The business rule in this example is the shared constraint that buyer_quantity equals completion_quantity. At some level the roles must have some shared knowledge of both variables and their values. When business rules of this nature become part of the business protocol such Observable Conditionals can be added into a choreography and which implies state management is needed.

WS-CDL provides some basic interfaces for state management defining it’s requirements as a coordination protocol. The specifics of state management is left as an implementation detail for the community.

3 Getting Started

In order to understand WS-CDL is best to illustrate it through the use of an example. In this section we shall introduce a simple example and build upon it throughout the rest of document to illustrate different parts of WS-CDL. The Appendices have the full listing of the various WS-CDL encodings of the example as well as a url to the WS-CDL descriptions. In all cases the WS-CDL descriptions have been tested against at least one implementation of WS-CDL having been constructed in a validating editor.

3.1 Degenerate Example

The degenerate example involves just the buyer and the seller from the previous example. The buyer simply requests a price from the seller and the seller responds with a price or a fault if the goods are not known or not available. This is illustrated in the sequence diagram in Figure 6 below.

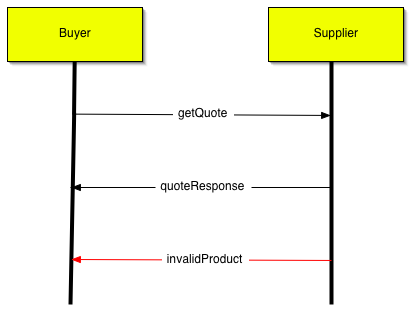

Sequence Diagram For the Degenerate                     Usecase

3.2 Interaction Oriented Design

In this section we introduce the fundamental concept of an interaction, which underpins WS-CDL. We shall use our degenerate example that we have described above and go through the necessary steps to define it as a choreography description in WS_CDL. We shall define the roles, tokens, channels, relationships, participants and variables necessary to properly describe it.

3.2.1 Interactions

An interaction is the realization of a collaboration between roles. Roles are grouped into participants. Roles are analogous to the entities at the top of our UML sequence diagrams and participants group these roles into domains of control which can be said to be the location the behaviors defined by the roles.

With respect to our degenerate usecase a collaboration is a message exchange between the swim lanes in the sequence diagram in Figure 6. In the example when the buyer requests a quote a message is sent from the buyer to the seller with the details of the product included in the quote. The seller can either respond with a quote back to the buyer or can respond with a fault which indicates that the product is invalid. The WS-CDL fragment for this interaction is illustrated below:

Example: WS-CDL fragment
<interaction name="QuoteElicitation" operation="getQuote" channelVariable="tns:Buyer2SellerC">
    <description type="documentation">
        Quote Elicitation
    </description>
    <participate relationshipType="tns:Buyer2Seller" fromRoleTypeRef="tns:BuyerRole" toRoleTypeRef="tns:SellerRole"/>
    <exchange name="QuoteRequest" informationType="tns:QuoteRequestType" action="request">
        <description type="documentation">
                Quote Request Message Exchange
        </description>
        <send variable="cdl:getVariable('quoteRequest','','')"/>
        <receive variable="cdl:getVariable('quoteRequest','','')"/>
    </exchange>
    <exchange name="QuoteResponse" informationType="tns:QuoteResponseType" action="respond">
        <description type="documentation">
            Quote Response Message Exchange
        </description>
        <send variable="cdl:getVariable('quoteResponse','','')"/>
        <receive variable="cdl:getVariable('quoteResponse','','')"/>
    </exchange>
    <exchange name="QuoteResponseFault" informationType="tns:QuoteResponseFaultType" action="respond" faultName="InvalidProductFault">
        <description type="documentation">
            Quote Response Fault Exchange
    </description>
        <send variable="cdl:getVariable('faultResponse','','')"/>
        <receive variable="cdl:getVariable('faultResponse','','')"/>
    </exchange>
</interaction>

Interactions are descriptions of one or more exchanges between a sender and a receiver. Interactions are labeled with an operation name that can be mapped to a WSDL operation, a topic in a publish-and-subscribe environment or a message queue in a point-to-point messaging environment. Interactions take place over a channel, as indicated by a channelVariable, the variable itself will have been declared to be of a particular channelType. The participating relationship further restricts the interaction to the roles that are valid for that relationship.

Each exchange names the type of the thing to be exchanged and the direction of the exchange (e.g. a request, a response, or a fault).

In our degenerate example we have one interaction called "Buyer requests a quote from the seller" which occurs over a channel variables called "Buyer2SellerC" with an operation name "quoteRequest". The interaction has three exchanges, one for the request called "Request Quote", one for the valid response called "Quote Response" and one for the fault called "Invalid Product".

In order to describe this more fully we have to define the channelType for the channelVariable called "Buyer2SellerC", in the interaction, and then define the information types "tns:QuoteRequestType", "tns:QuoteResponseType" and "tns:QuoteResponseFaultType" for the variables -, - and - respectively. We also need to define the relationships, roles and participants that are needed to support this interaction, such as "tns:Buyer2Seller", "tns:BuyerRole" and "tns:SellerRole".

Thus we shall do it in the following order:

  1. Define our roleTypes,
  2. Define our relationshipTypes,
  3. Define our informationTypes,
  4. Define our tokenType,
  5. Define our channelTypes

3.2.2 Roles

There are 2 roles that are played out in the example. These are the “buyer” and the “seller”, they represent the same entities described in the sequence diagram in Figure 6. We define them as BuyerRole and SellerRole as follows:

Example: WS-CDL fragment
<roleType name="BuyerRole">
    <description type="documentation">
        Role for Buyer
    </description>
    <behavior name="BuyerBehavior" interface="BuyerBehaviorInterface">
        <description type="documentation">
            Behavior for Buyer Role
        </description>
    </behavior>
</roleType>
<roleType name="SellerRole">
    <description type="documentation">
        Role for Seller
    </description>
    <behavior name="SellerBehavior" interface="SellerBehaviorInterface">
        <description type="documentation">
            Behavior for Seller
        </description>
    </behavior>
</roleType>

In WS-CDL each role defined has a behavior. A behavior in this sense is the binding point for a WSDL description (either WSDL1.1 or WSDL2.0). The binding point is the interface which normally references a WSDL description but this is optional in WS-CDL. Because it is optional we can use this as a binding point to different service descriptions. In our example the respective interfaces for the roles BuyerRole and SellerRole are BuyerBehaviorInterface and SellerBehaviorInterface which do not refer to any WSDL description and so can be used by implementors to derive WSDL descriptions. For example one might well derive the WSDL descriptions and generate BuyerBehaviorInterface.wsdl and SellerBehaviorInterface.wsdl.

We shall look at how we would bind to an existing WSDL description in the Intermediate section.

The abstract syntax for roles is illustrated below:

Example: WS-CDL roleType definition
roleType ::=
<roleType name="ncname">
	<description type=" documentation" </description>?
<behavior name="ncname" interface="qname"? />+
</roleType>

3.2.3 Participants

In WS-CDL a "Participant" is a set of distinct roles that are implemented as a service. That is the behaviors that relate to the roles are all implemented by the same service. In a sense a "Participant" is akin to a Web Service in which the WSDL that describes that service fulfills the functional description needed to implement the collection of behaviors that the roles require to meet their obligations and in which the Web Service is implemented by the same logical entity albeit a organisation or line of business within an organisation.

"Participants" turn out to be very important in a WS-CDL description, which is why they are mandatory, because they represent the grounding of behaviors into a process - the Web Service that implements them. This is important because it governs our need to ground where things happen for the purpose of behavioral type checking and in understanding who may share what information. Normally roles do not share information, rather information is explicitly exchanged to gain a common understanding in a landscape of peer services. In the case of a "Participant" the information within a "Participant" may be shared in the same sense of information existing in some shared memory between different threads in a process. From a WS-CDL perspective this sharing is based on the roles within the participant. Thus the roles may share information within the boundary of the participant.

From a WS-CDL modeling perspective we might simply consider a "Participant" to be a collection of roles that are represented physically as a single service. In our example the roles would be members of their own participant so there would be a one-to-one mapping. Thus the roles BuyerRole and SellerRole would be in the participants Buyer and Seller respectively.

In WS-CDL the participants for our example would be written as follows:

Example: WS-CDL fragment
 <participantType name="Seller">
     <description type="documentation">
        Seller Participant
    </description>
    <roleType typeRef="tns:SellerRole"/>
</participantType>
<participantType name="Buyer">
    <description type="documentation">
        Buyer Participant
    </description>
    <roleType typeRef="tns:BuyerRole"/>
</participantType>


3.2.4 Relationships

Once we have some roles defined we can define the relationships. In WS-CDL a relationship declares an intention to interact between two roles. In a sequence diagram this is akin to any two of the actors in a sequence diagram that have connecting arrows in any direction. In our example we have relationships between the BuyerRole and the SellerRole and we would define it as the relationship Buyer2Seller as follows:

Example: WS-CDL Fragment
<relationshipType name="Buyer2Seller">
    <description type="documentation">
        Buyer Seller Relationship
    </description>
    <roleType typeRef="tns:BuyerRole"/>
    <roleType typeRef="tns:SellerRole"/>
</relationshipType>

A relationship comprises a name and two role types. We use the convention in this document that the first role type defines the “from” role and the second the “to” role and connect them with the number 2, thus all of our relationships are of the form from2to. WS-CDL does not distinguish between the "to" and "from" roles in a relationship. We simple use this convention as a convenience. It does not imply any directionality with respect to the relationship and is only a naming convention for the primer.

The abstract syntax for relationships is defined as follows:

Example: WS-CDL relationshipType definition
relationshipType ::=
<relationshipType name="ncname">
<role type="qname" behavior="list of ncname"? />
 <role type="qname" behavior="list of ncname"? />
</relationshipType>

3.2.5 Information Types

The informationTypes in a choreography are used to describe the types for many of the variables that we might use in a choreography. They are used to describe the types of messages that we might send between roles in an interaction. In our example we have information types we need to declare for the "request", "response" and "faultResponse". We shall call these QuoteRequestType, QuoteResponseType and QuoteResponseFaultType respectively.

We shall need a few other information types for our tokens, token locators and channel types. We shall explain why they are needed in the section that deals with tokens locators and channel types. For the purpose of completeness we shall define them here and they are called IdentityType and URI.

In WS-CDL the full description is as follows:

Example: WS-CDL Fragment
<informationType name="QuoteRequestType" type="primer:QuoteRequestMsg">
    <description type="documentation">
        Quote Request Message
    </description>
</informationType>
<informationType name="QuoteResponseType" type="primer:QuoteResponseMsg">
    <description type="documentation">
        Quote Response Message
    </description>
</informationType>
<informationType name="QuoteResponseFaultType" type="primer:QuoteResponseFaultMsg">
    <description type="documentation">
        Quote Response Fault Message
    </description>
</informationType>
<informationType name="IdentityType" type="xsd:string">
    <description type="documentation">
        Identity Attribute
    </description>
</informationType>
<informationType name="URI" type="xsd:uri">
    <description type="documentation">
        Reference Token For Channels
    </description>
</informationType>

The abstract syntax for defining information types is as follows:

Example: WS-CDL informationType definition
informationType ::=
<informationType name="ncname"
    type="qname"?|element="qname"?
    exceptionType="true"|"false"? />


3.2.6 Tokens and locators

A token provides a mechanism for defining an alias for an information type. Token locators can then be defined to locate a particular token from within a message type. We define some tokens and token locators here because they are needed when defining channel types.

The key uses of tokens and locators are as follows:

  • Tokens and their locators are used to define the identity attributes that ensure channel communication can be correlated. A token provides a mechanism for defining an alias for an information type. Token locators can then be defined to locate this particular token from within a message type. Tokens and token locators are shown here to define channel types

  • The tokens we define will also be used to refer to a service reference, that is a url, for a web service. In this context a token defines an alias to the web service so that we can refer to it by a shorter name. In our degenerate example we do not reference any web service url but for the sake of completeness we define a URL token here. From an implementation perspective as opposed to a pure usage perspective the channel type reference is needed to understand what data type will be used to transfer an endpoint reference between services when channel passing is enacted. We shall visit channel passing later on in the intermediate section.

    The two informationTypes included earlier are used as references in the token and token locator definitions.

  • Tokens and their locators are a mechanism to make the choreography description more readable and more maintainable through the indirection that they afford. Thus tokens and locators can be used as a simple alias mechanism to refer to informationTypes that have been previously defined and to refer to information within instances of informationTypes such as the purchase order number or the amount or value of an order and even the time to live of a quote which itself may timeout at some point.

We define the tokens id, which represents the information type IdentityType, and URI, which represents the information type URI. We define locators for QuoteRequestType, QuoteResponseType and QuoteResponseFaultType that will cause the identity information, associated with token id, for the informationTypes to be obtained from the contents of these messages when exchanged on the channel. The full description of the tokens and the locators is given below:

Example: WS-CDL Fragment
<token name="id" informationType="tns:IdentityType">
    <description type="documentation">
        Identity token
    </description>
</token>
<token name="URI" informationType="tns:URI">
    <description type="documentation">
        Reference Token for Channels
    </description>
</token>

<tokenLocator tokenName="tns:id" informationType="tns:QuoteRequestType" query="/quote/@id">
    <description type="documentation">
        Identity for Quote Request
    </description>
</tokenLocator>
<tokenLocator tokenName="tns:id" informationType="tns:QuoteResponseType" query="/quote/@key">
    <description type="documentation">
        Identity for Quote Response
    </description>
</tokenLocator>
<tokenLocator tokenName="tns:id" informationType="tns:QuoteResponseFaultType" query="/quote/@key">
    <description type="documentation">
        Identity for Quote Response Fault
    </description>
</tokenLocator>

The abstract syntax for defining a tokens and token locators are as follows:

Example: WS-CDL token definition
                            <token  name="ncname"
                                informationType="qname" />

                            <tokenLocator  tokenName="QName"
                                informationType="QName"
                                part="NCName"?
                                query="XPath-expression" />

3.2.7 Channels

Finally, having defined our roles, information types, tokens and locators we are in a position to define our channel. Channels are the principle mechanism used to realize an interaction.

In our interaction we have a channel variables called Buyer2SellerC that has a type. A channel is named, described, and then related to the roles that realize its behavioral interface. A reference is provided to a service. The channel type will have the capability to derive its identity when in use.

The channel type we shall define is called Buyer2SellerChannel and it is defined as follows:

Example: WS-CDL Fragment
<channelType name="Buyer2SellerChannel">
    <description type="documentation">
        Buyer to Seller Channel Type
    </description>
    <roleType typeRef="tns:SellerRole"/>
    <reference>
        <token name="tns:URI"/>
    </reference>
    <identity type="primary">
        <token name="tns:id"/>
    </identity>
</channelType>

Our channel type, named Buyer2SellerChannel connects us from the BuyerRole to the SellerRole. The latter implements the service at the end of the channel. The reference simply refers to a service, in this case it does nothing for us because we have no specific service to refer to. The identity is marked as primary which means that the token id is interpreted as a primary key for correlation. The token locators we defined earlier are used together with the information type being sent or received on a channel to determine the actual key which can be a composite key if needed. In our example the identity is a single attribute.

The abstract syntax of a channel definition is provided below. We shall look at the other part of a channel type definition in later sections:

Example: WS-CDL Channel definition
channelType::=
<channelType  name="ncname"
    usage="once"|"unlimited"?
    action="request-respond"|"request"|"respond"? >

<passing  channel="qname"
     action="request-respond"|"request"|"respond"?
    new="true"|"false"? />*
<role  type="qname"  behavior="ncname"? />

<reference>
<token name="qname"/>
</reference>

<identity>
<token name="qname"/>+
</identity>?

</channelType>

3.2.8 Choreographies

We can now consider describing the choreography itself. To do this we shall:

  • Declare the relationships, which act as an additional type check on the channels.
  • Declare variables, for instances of the channel and the information types.
  • Define the interactions and their ordering constraints.

The only relationship we have is Buyer2Seller and we prefix this with the name space (tns).

Then we add the variable declaration based on the channel and information types that we have already defined for each of Buyer2SellerC, quoteRequest, quoteResponse and faultResponse which respectively are of types Buyer2SellerChannel, QuoteRequestType, QuoteResponseType and QuoteReponseFaultType. The variables are declared in a variableDefinitions block. In WS-CDL it is important to note that variables are always situated. That is variables are declared to reside at one or more roles independently of each other. This is why the variable declarations have a roleTypes attribute. In our degenerate example we declare our variables to be situated at both the buyer and the seller roles. The fact that two roles may have the same variable name does not have any meaning in WS-CDL. Using the roleTypes attribute in a variable declaration is simply for convenience. The same variable name could be declared twice at two different roles and this is the same as adding the two roles to the roleTypes. If you omit the roleTypes the default behavior is to declare the variable at all roles within this choreography where the roles are inferred from the declared relationships that participate in it.

The WS-CDL fragment below shows how the relationship and variable declarations are put together. We have named the choreography as DegenerateChoreography. We have also set the root attribute to be true because this choreography is the root of the interactions that will take place. When root is set to false the choreography is deemed not to start the interactions.

Example: WS-CDL Fragment
<choreography name="DegenerateChoreography" root="true">
    <description type="documentation">
        The Choreography for the degenerate use case
    </description>
    <relationship type="tns:Buyer2Seller"/>
    <variableDefinitions>
        <variable name="Buyer2SellerC"
            channelType="tns:Buyer2SellerChannel"
            roleTypes="tns:BuyerRole tns:SellerRole">
            <description type="documentation">
                Channel Variable
            </description>
        </variable>
        <variable name="quoteRequest"
            informationType="tns:QuoteRequestType"
            roleTypes="tns:BuyerRole tns:SellerRole">
            <description type="documentation">
                Request Message
            </description>
        </variable>
        <variable name="quoteResponse"
            informationType="tns:QuoteResponseType"
            roleTypes="tns:BuyerRole tns:SellerRole">
            <description type="documentation">
                Response Message
            </description>
        </variable>
        <variable name="faultResponse"
            informationType="tns:QuoteResponseFaultType"
            roleTypes="tns:BuyerRole tns:SellerRole">
            <description type="documentation">
                Fault Message
            </description>
        </variable>
    </variableDefinitions>

To recap, we have

  • defined all of our types,
  • and declared our variables

What remains is to define the interactions and their ordering based on all that has preceded it.

We shall define our single interaction that we presented earlier within a sequence. We don't have to do this but it is good practice to start with a sequence and then add things to it. If you don't an explicit sequence then it is implied.

Thus our example now looks like the following:

Example: WS-CDL Fragment
<?xml version="1.0" encoding="UTF-8"?>
<package
    name="DegenerateExample"
    author="Stephen Ross-Talbot"
    version="1.0"
    targetNamespace="http://www.w3.org/2002/ws/chor/primer"
    xmlns:tns="http://www.w3.org/2002/ws/chor/primer"
    xmlns="http://www.w3.org/2005/10/cdl"
    xmlns:xsd="http://www.w3.org/2001/XMLSchema"
    xmlns:primer="http://www.w3.org/2002/ws/chor/primer">
    <description type="documentation">
        Degenerate Example for Primer
    </description>

	…

    <choreography name="DegenerateChoreography" root="true">
        <description type="documentation">
            The Choreography for the degenerate use case
        </description>
   		…

	  <sequence>
        <interaction name="QuoteElicitation" operation="getQuote" channelVariable="tns:Buyer2SellerC">
            <description type="documentation">
                Quote Elicitation
            </description>
            <participate relationshipType="tns:Buyer2Seller" fromRoleTypeRef="tns:BuyerRole" toRoleTypeRef="tns:SellerRole"/>
            <exchange name="QuoteRequest" informationType="tns:QuoteRequestType" action="request">
                <description type="documentation">
                    Quote Request Message Exchange
                </description>
                <send variable="cdl:getVariable('quoteRequest','','')"/>
                <receive variable="cdl:getVariable('quoteRequest','','')"/>
            </exchange>
            <exchange name="QuoteResponse" informationType="tns:QuoteResponseType" action="respond">
                <description type="documentation">
                    Quote Response Message Exchange
                </description>
                <send variable="cdl:getVariable('quoteResponse','','')"/>
                <receive variable="cdl:getVariable('quoteResponse','','')"/>
            </exchange>
            <exchange name="QuoteResponseFault" informationType="tns:QuoteResponseFaultType" action="respond" faultName="InvalidProductFault">
                <description type="documentation">
                    Quote Response Fault Exchange
                </description>
                <send variable="cdl:getVariable('faultResponse','','')"/>
                <receive variable="cdl:getVariable('faultResponse','','')"/>
            </exchange>
        </interaction>
	  </sequence>
	</choreography>
</package>

In our example above there are three exchanges within a single interaction which is within a sequence. The first exchange is called QuoteRequest is based on a operation defined in the interaction called getQuote and this occurs over a channel variable called BuyerSellerC. This exchange is based on a message being sent from the buyer to seller which is of type tns:QuoteRequestType and it is marked as a request. The exchange also defines the variables that will be used to send and to receive the content of the message of type tns:QuoteResponseType, in each case the variable is called quoteRequest and appears inside a cdl function which understands how to get a variable called cdl:getVariable(...). The first parameter to this function is the name of the variable in the choreography, the second and third parameters in this case are left blank. The roles for these variables are inferred from the direction of the exchange and so we can infer ourselves that quoteRequest was populated before the interaction at the buyer and then when the exchange completes the seller's quoteRequest variable is populated with the same values. The variables are not shared but after the exchange they hold common knowledge between the roles that participate in the exchange.

The second exchange is similar to the first except that it is marked as a respond. As such we can infer the direction is from the seller back to the buyer.

The third and final exchange occurs if the seller finds a fault with the request and as a result decides to send a response, which is why it is marked as a respond. Because this is a fault, we also declare that the exchange has a faultName, in this case we have called the faultName InvalidProduct to denote that the product which is the subject of the quote request is invalid in some way. It could be because it does not exist or indeed because no stock exists at present and so no quote can be provided. The decision as to which one it really is, is obscured.

The abstract syntax for a choreography, thus far, is as follows:

Example: WS-CDL Choreography definition
choreography ::=
	  <choreography  name="ncname"
	            complete="xsd:boolean XPath-expression"?
	            isolation="true"|"false"?
	            root="true"|"false"?
	            coordination="true"|"false"? >
	      <relationship  type="qname" />+
          variableDefinitions?

	      Activity-Notation*

	  </choreography>

variableDefintions ::=
	  <variableDefinitions>
	      <variable   name="ncname"
	          informationType="qname"?|channelType="qname"?
	          roleTypes="list of qname"? />+
	  </variableDefinitions>

Activity-Notation ::=
    <sequence<
        <interaction  name="NCName"
	        channelVariable="QName"
	        operation="NCName">
	        <description;></descriptions>

	        <participate  relationshipType="QName"
	            fromRoleTypeRef="QName" toRoleTypeRef="QName" />

	        <exchange  name="NCName"
	            faultName="QName"?
	            informationType="QName"?|channelType="QName"?
	            action="request"|"respond" >
	            <send variable="XPath-expression"?/>
	            <receive variable="XPath-expression"?/>
	        </exchange>*
	    </interaction>*
    </sequence<


3.2.9 Complete Example

Having described all of the necessary types and having described the salient aspects of the Choreography we present the complete example.

Example: WS-CDL Complete Example
<?xml version="1.0" encoding="UTF-8"?>
<package
    name="DegenerateExample"
    author="Stephen Ross-Talbot"
    version="1.0"
    targetNamespace="http://www.w3.org/2002/ws/chor/primer"
    xmlns:tns="http://www.w3.org/2002/ws/chor/primer"
    xmlns="http://www.w3.org/2005/10/cdl"
    xmlns:xsd="http://www.w3.org/2001/XMLSchema"
    xmlns:primer="http://www.w3.org/2002/ws/chor/primer">
    <description type="documentation">
        Degenerate Example for Primer
    </description>

    <informationType name="QuoteRequestType" type="primer:QuoteRequestMsg">
        <description type="documentation">
            Quote Request Message
        </description>
    </informationType>
    <informationType name="QuoteResponseType" type="primer:QuoteResponseMsg">
        <description type="documentation">
            Quote Response Message
        </description>
    </informationType>
    <informationType name="QuoteResponseFaultType" type="primer:QuoteResponseFaultMsg">
        <description type="documentation">
            Quote Response Fault Message
        </description>
    </informationType>
    <informationType name="IdentityType" type="xsd:string">
        <description type="documentation">
            Identity Attribute
        </description>
    </informationType>
    <informationType name="URI" type="xsd:uri">
        <description type="documentation">
            Reference Token For Channels
        </description>
    </informationType>

    <token name="id" informationType="tns:IdentityType">
        <description type="documentation">
            Identity token
        </description>
    </token>
    <token name="URI" informationType="tns:URI">
        <description type="documentation">
            Reference Token for Channels
        </description>
    </token>
    <tokenLocator tokenName="tns:id" informationType="tns:QuoteRequestType" query="/quote/@id">
        <description type="documentation">
            Identity for Quote Request
        </description>
    </tokenLocator>
    <tokenLocator tokenName="tns:id" informationType="tns:QuoteResponseType" query="/quote/@key">
        <description type="documentation">
            Identity for Quote Response
        </description>
    </tokenLocator>
    <tokenLocator tokenName="tns:id" informationType="tns:QuoteResponseFaultType" query="/quote/@key">
        <description type="documentation">
            Identity for Quote Response Fault
        </description>
    </tokenLocator>

    <roleType name="BuyerRole">
        <description type="documentation">
            Role for Buyer
        </description>
        <behavior name="BuyerBehavior" interface="BuyerBehaviorInterface">
            <description type="documentation">
                Behavior for Buyer Role
            </description>
        </behavior>
    </roleType>
    <roleType name="SellerRole">
        <description type="documentation">
            Role for Seller
        </description>
        <behavior name="SellerBehavior" interface="SellerBehaviorInterface">
            <description type="documentation">
                Behavior for Seller
            </description>
        </behavior>
    </roleType>

    <relationshipType name="Buyer2Seller">
        <description type="documentation">
            Buyer Seller Relationship
        </description>
        <roleType typeRef="tns:BuyerRole"/>
        <roleType typeRef="tns:SellerRole"/>
    </relationshipType>

    <participantType name="Seller">
        <description type="documentation">
            Seller Participant
        </description>
        <roleType typeRef="tns:SellerRole"/>
    </participantType>
    <participantType name="Buyer">
        <description type="documentation">
            Buyer Participant
        </description>
        <roleType typeRef="tns:BuyerRole"/>
    </participantType>

    <channelType name="Buyer2SellerChannel">
        <description type="documentation">
            Buyer to Seller Channel Type
        </description>
        <roleType typeRef="tns:SellerRole"/>
        <reference>
            <token name="tns:URI"/>
        </reference>
        <identity type="primary">
            <token name="tns:id"/>
        </identity>
    </channelType>

    <choreography name="DegenerateChoreography" root="true">
        <description type="documentation">
            The Choreography for the degenerate use case
        </description><relationship type="tns:Buyer2Seller"/>
        <variableDefinitions>
            <variable name="Buyer2SellerC"
                channelType="tns:Buyer2SellerChannel"
                roleTypes="tns:BuyerRole tns:SellerRole">
                <description type="documentation">
                    Channel Variable
                </description>
            </variable>
            <variable name="quoteRequest"
                informationType="tns:QuoteRequestType"
                roleTypes="tns:BuyerRole tns:SellerRole">
                <description type="documentation">
                    Request Message
                </description>
            </variable>
            <variable name="quoteResponse"
                informationType="tns:QuoteResponseType"
                roleTypes="tns:BuyerRole tns:SellerRole">
                <description type="documentation">
                    Response Message
                </description>
            </variable>
            <variable name="faultResponse"
                informationType="tns:QuoteResponseFaultType"
                roleTypes="tns:BuyerRole tns:SellerRole">
                <description type="documentation">
                    Fault Message
                </description>
            </variable>
        </variableDefinitions>

	<sequence>
	        <interaction name="QuoteElicitation" operation="getQuote" channelVariable="tns:Buyer2SellerC">
	            <description type="documentation">
	                Quote Elicitation
	            </description>
	            <participate relationshipType="tns:Buyer2Seller" fromRoleTypeRef="tns:BuyerRole" toRoleTypeRef="tns:SellerRole"/>
	            <exchange name="QuoteRequest" informationType="tns:QuoteRequestType" action="request">
	                <description type="documentation">
	                    Quote Request Message Exchange
	                </description>
	                <send variable="cdl:getVariable('quoteRequest','','')"/>
	                <receive variable="cdl:getVariable('quoteRequest','','')"/>
	            </exchange>
	            <exchange name="QuoteResponse" informationType="tns:QuoteResponseType" action="respond">
	                <description type="documentation">
	                    Quote Response Message Exchange
	                </description>
	                <send variable="cdl:getVariable('quoteResponse','','')"/>
	                <receive variable="cdl:getVariable('quoteResponse','','')"/>
	            </exchange>
	            <exchange name="QuoteResponseFault" informationType="tns:QuoteResponseFaultType" action="respond" faultName="InvalidProductFault">
	                <description type="documentation">
	                    Quote Response Fault Exchange
	                </description>
	                <send variable="cdl:getVariable('faultResponse','','')"/>
	                <receive variable="cdl:getVariable('faultResponse','','')"/>
	            </exchange>
	        </interaction>
	</sequence>
    </choreography>
</package>


4 Intermediate Topics

In the previous section we introduced the most basic of features of WS-CDL using a degenerate example to illustrate how to write down a choreography description. In this section we shall describe how to add further structure to a choreography. In this section we provide the reader with all of the facilities that one would need to write down a choreography that could actually be used in practice. It provides what we consider to be the basic features for real systems described in WS-CDL.

We shall describe how to use variables, loops, conditionals, we shall describe how to modularize a choreography description, how to describe exceptions and what to do about them and how they relate to WSDL faults.

In order to best illustrate all of this we shall revisit our degenerate example and some further complexity to it and then we shall describe it using WS-CDL. Throughout the course of this section we shall continue to add more to our example as a means of illustrating WS-CDL.

4.1 The Intermediate Example

We go back to our degenerate example which had a single interaction which we wrote down as a single UML sequence diagram. We now add a little more to the example to make it more real. We shall concentrate on the process of bartering whereby the buyer requests a price from the seller and enters some sort of repetitive behavior in which the buyer requests an updated price from the seller and continues until the buyer decides to order the goods at the prevailing price. This example is shown in the UML sequence diagram below:

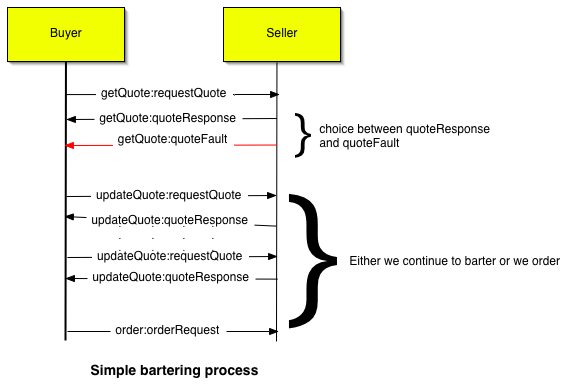

Diagram of the simple bartering process

In the example we can see that we need to understand when a fault has occurred on the initial request for quote, the getQuote operation. We can see that this has three message exchanges which are quoteRequest, quoteResponse and quoteFault respectively. They are exactly the same as the degenerate example we looked at earlier.

We shall need to determine which response we got back. If the response was not a fault then we can continue a process in which the buyer sends an updateQuote operation that includes the last price to see if a better price can be gleaned from the seller.

When the buyer decides to act on a price the buyer simply invokes an order operation at the seller role and we terminate the bartering process by setting a variable to terminate the process. Because variables are situated we shall need to place the variable at a specific role to handle this. In our model we shall place this variable, barteringDone which is a Boolean at the SellerRole.

To model this is WS-CDL we shall need to define a some repetitive behavior that is controlled by our barteringDone variable. There are other ways of doing this which are counter intuitive but for now we shall use just use our variable to control the repetition.

Having set out an the intermediate example we shall now look at extending it. In many systems quotes have a duration associated with them. In technology terms this has given rise to the notion of a duration on a message in standards such as JMS and WS-RM. The durations in most if not all cases are set as part of a business policy rather than being driven by technology and in this extended example we add the notion of a duration to a quote. This is presented in the sequence diagram below. We shall set our duration at 30 seconds and show how we do this in a choreographic description using WS-CDL.

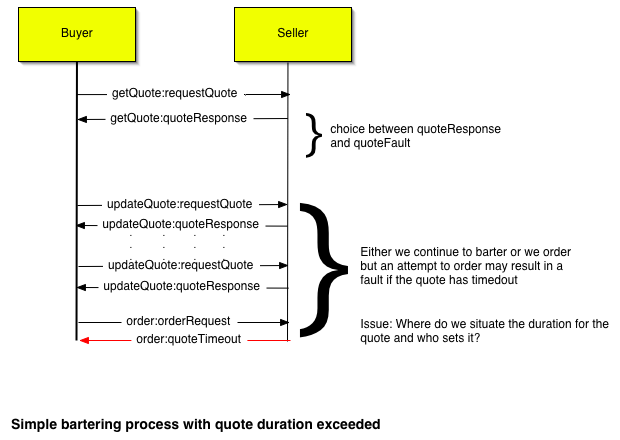

Diagram of the simple bartering process with a quote duration

The most important decisions we shall make when we model this are who sets the duration and who owns the clock by which we measure the duration, in effect at what role do we situate the duration.

When we model this we shall situate the duration at the SellerRole and see what effect this has on our WS-CDL model and then situate it at the BuyerRole and see what the difference is between the two models. It is our opinion that a duration of this nature really belongs at the SellerRole

In our final additions to our intermediate example we shall add some further roles to describe the additional collaborations between a SellerRole, a CreditAgencyRole - this role will be responsible for providing credit checking facilities, a ShippingRole - this role will be responsible for providing onward shipping of the good bought and shipping details which need to be delivered back to the BuyerRole.

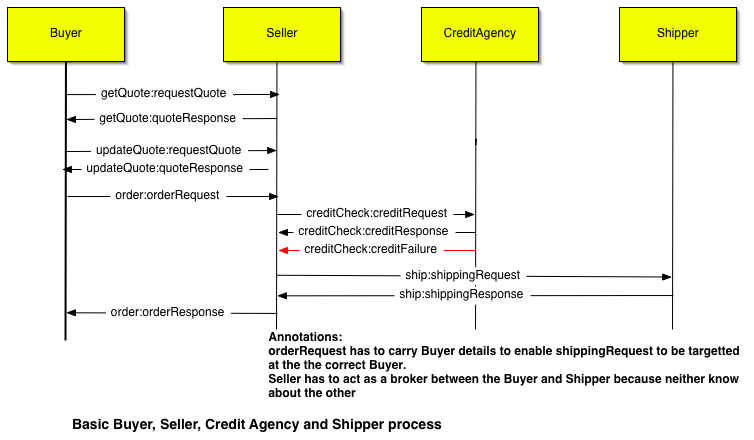

Diagram of the basic buyer, seller, credit agency and shipper

We shall have some key decision to make how we model this example too. We shall model it first as a set of workunits that simply follow one another, a sequence.

We shall also model it as a set of dependent workunits which are running concurrently and in which the act of credit checking will depend on the completion of the bartering process and so will be dependent on a variables value that denotes the completion of the bartering process and similarly between the act of credit checking and shipping.

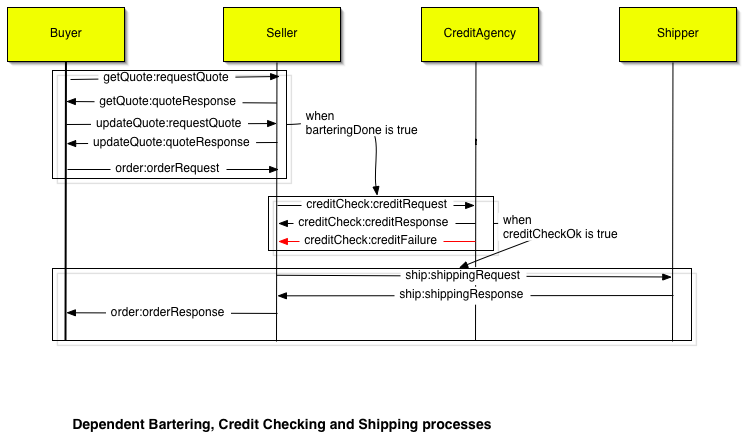

Diagram of the dependent processes

Finally shall model the delivery of the necessary delivery details in two ways. In the first instance we shall simply have the SellerRole receive the details from the ShipperRole and pass them back to the BuyerRole and in the second instance we shall model it as a callback from the ShipperRole directly back to the BuyerRole. The former would require a-priori knowledge of the buyer whereas the latter does not and so would be a better model.

It should be noted that while the sequence diagrams are instructive at an abstract level they do not record the level of detail needed to document the external observable behavior to fully describe these examples. In order to convey enough information to enable developers to construct the necessary services further annotation and textual explanation is needed. The benefit of doing this in WS-CDL is that we can describe all that is needed from an externally observable behavior perspective, akin to a high level design, and so facilitate service construction and onward testing of services guaranteeing interoperability throughout.

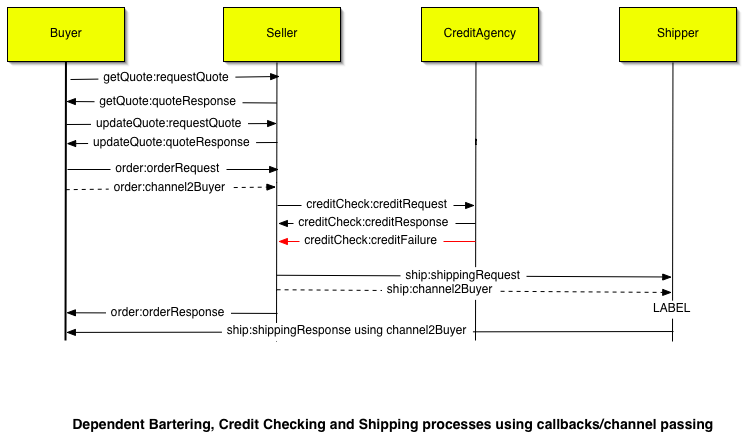

Diagram of the callback solution

4.1.1 Variables

To continue with our example above we need to declare a variable that can be used to control the bartering process. We shall call this variable barteringDone and we shall give it a type of xsd:boolean which we shall declare as an information type in WS-CDL called Boolean. In WS-CDL variables are always situated (or located). That is they are defined at one or more roles. We have seen this already when we defined the channels and messages for the degenerate example. For our barteringDone we need to consider where the control for the value of the variable will be located. We need decide on the master for this process and the slaves. We shall select the SellerrRole as the master and so situate our variable at this role.

It is important to remember that when variables are manipulated in some way the manipulation is also situated. If a variable is situated at one role then it becomes clear that manipulation of that variable is also situation at the same place. When a variable is situated at more than one role we need to be clear about where manipulation takes place because the value of a variable after manipulation is scoped to that role and where it is situated.

Variables are not shared. Rather they exist at the roles they are defined at and only have the same value if some explicit exchange occurs that describes how they become the same value. The fact that they have they may have the same name has no bearing on the semantics of a variable as is no guarantee that they will ever hold the same content, but of course it would be normal to think that they might simply because they bear the same name. So it is good practice in describing choreographies to name variables well so that clarity can be preserved.

The scope of a situated variable, we say quoteRequest@buyer, is at it's role. So in this case it is at the buyer. The use of the @ sign has no significance in WS-CDL. We only use it here as a short hand to indicate where the variable is located. The same short hand is used in the formal description of WS-CDL which can be found at SOME URL TO MARCO'S WORK.

If we tried to copy quoteRequest@buyer to quoteRequest@seller we would exceed the scoping contract. It would not be allowed. If we tried to copy quoteRequest@buyer, in whole or in part, to x@buyer, where x is some variable declared at buyer, then it would succeed. The variable x@buyer after the copy was completed, would indeed have the same value as quoteRequest@buyer. If we wanted to ensure that quoteRequest@seller was populated with the same values as quoteRequest@buyer we would use an interaction in which the variables quoteRequest@buyer and quoteRequest@seller are in the appropriate send and receive parts of the exchange within the interaction, much as we did in our degenerate example in the previous section.

Our barteringDone variable will be situated at the SellerRole which we shall deem to be in control of the loop. The WS-CDL fragments for the information type and the variable declaration are shown below:

Example: WS-CDL Fragment
                <informationType name="BooleanType" type="xsd:boolean">
                <description type="documentation">
                Useful boolean type
                </description>
                </informationType>
                .....
    <choreography name="IntermediateChoreography" root="true">
                <description type="documentation">
                The Choreography for the intermediate use case
                </description><relationship type="tns:Buyer2Seller"/>
        <variableDefinitions>
                <variable name="barteringDone"
                informationType="tns:Boolean"
                roleTypes="tns:SellerRole">
                <description type="documentation">
                Used to control a loop for bartering between buyer and seller
                </description>
                </variable>
                .......
        </variableDefinitions>
                .......
    </choreography>


We may define other variables throughout the course of this section and we shall indicate where they are situated and what type they are as narrative.

4.1.2 Non Blocking Workunits

In this section we look at repetitive workunits and come back to conditional workunits. A workunit provides repetition based on some predicate and provides a way of adding conditionality. Workunits in general have a Body that includes the other choreography structuring constructs. In the specification these structuring constructs are called ActionNotation. The ActionNotation is only performed if the workunits attributes enable it to be performed. In the case of a simple conditional the guard condition (G) is evaluated and if true the Body is performed. In the case of a simple repetition the guard condition (G) is omitted and so will always evaluate to true, the Body is therefore performed and if the repetition condition (R) evaluates to true it is performed again and again until the repetition condition evaluates to false. The more complex scenario is when a guard condition (G) and a repetition condition (R) are both present. In this case the workunit is dependent on the guard condition first and then the repetition condition afterwards. We present the general structure of, non-blocking (B is False), workunits as follows:


                    Workunit (G) (R) (B is False)
                        Body


Where G and R are of type xsd:boolean Xpath expressions and B is an xsd:boolean constrained to be true or false. A typical order of evaluation is as follows:

                    (G) Body (R G) Body (R G) Body


Which equates to (in pseudo code):

                    while (G)
                    {
                        Body
                    } until (!R)


IF G is always True THEN it equates to:

                    repeat
                    {
                        Body
                    } until (!R)


IF R is always False THEN it equates to:

                    if (G)
                    {
                        Body
                    }

4.1.2.1 Repetition

In order to model our repetitive behavior in which, once the buyer has a quote, the buyer engages in a repetitive bartering process in order to get an acceptable price, we need to use a workunit that has some repetition condition. The example below used a workunit that we have named "Repeat until bartering has been completed" that is our repeating workunit for this bartering process. In it we have a condition that governs the repetition, namely barteringDone = false. This condition evaluates the declared variable "barteringDone" to see if it is false. If false the workunit proceeds and repeats until such time as the condition ("barteringDone = false") evaluates to true. Within the workunit we have a number of things that can happen, our choice. Either a silentAction occurs - more of what this actually means later - that models the timeout of a quote and we situate this at the BuyerRole, or a sequence occurs in which the Buyer accepts the quote and engages in the act of buying, or a different sequence that models the Buyer updating the quote - in effect requesting a new price. Only one of these can occur within the choice at any one time. The second sequence includes setting our control variable barteringDone to true and it is this that causes the repetition to terminate.

Note that the repetition is situated at the SellerRole as is the assignment to the variable barteringDone.

Example: WS-CDL Fragment
<?xml version="1.0" encoding="UTF-8"?>
<package name="IntermediateExample" author="Stephen Ross-Talbot" version="1.0"
    targetNamespace="http://www.w3.org/2002/ws/chor/primer"
    xmlns:tns="http://www.w3.org/2002/ws/chor/primer" xmlns="http://www.w3.org/2005/10/cdl"
    xmlns:xsd="http://www.w3.org/2001/XMLSchema"
    xmlns:primer="http://www.w3.org/2002/ws/chor/primer">
    <description type="documentation">Intermediate Example: Simple Bartering Process</description>

    <informationType name="QuoteRequestType" type="primer:QuoteRequestMsg">
        <description type="documentation">Quote Request Message</description>
    </informationType>
    <informationType name="QuoteResponseType" type="primer:QuoteResponseMsg">
        <description type="documentation">Quote Response Message</description>
    </informationType>
    <informationType name="QuoteResponseFaultType" type="primer:QuoteResponseFaultMsg">
        <description type="documentation">Quote Response Fault Message</description>
    </informationType>
    <informationType name="IdentityType" type="xsd:string">
        <description type="documentation">Identity Attribute</description>
    </informationType>
    <informationType name="URI" type="xsd:uri">
        <description type="documentation">Reference Token For Channels</description>
    </informationType>
    <informationType name="OrderRequestType" type="primer:OrderRequestMessage">
        <description type="documentation">Order Request Message</description>
    </informationType>
    <informationType name="OrderResponseType" type="primer:OrderResponseMessage">
        <description type="documentation">Order Response Message</description>
    </informationType>
    <informationType name="Boolean" type="xsd:boolean">
        <description type="documentation">Boolean type for use in loop control</description>
    </informationType>

    <token name="id" informationType="tns:IdentityType">
        <description type="documentation">Identity token</description>
    </token>
    <token name="URI" informationType="tns:URI">
        <description type="documentation">Reference Token for Channels</description>
    </token>

    <tokenLocator tokenName="tns:id" informationType="tns:QuoteRequestType" query="/quote/@id">
        <description type="documentation">Identity for QuoteRequestType</description>
    </tokenLocator>
    <tokenLocator tokenName="tns:id" informationType="tns:QuoteResponseType" query="/quote/@key">
        <description type="documentation">Identity for QuoteResponseType</description>
    </tokenLocator>
    <tokenLocator tokenName="tns:id" informationType="tns:QuoteResponseFaultType"
        query="/quote/@key">
        <description type="documentation">Identity for QuoteResponseFaultType</description>
    </tokenLocator>
    <tokenLocator tokenName="tns:id" informationType="tns:OrderRequestType" query="/order/@orderId">
        <description type="documentation">Identity for OrderRequestType</description>
    </tokenLocator>
    <tokenLocator tokenName="tns:id" informationType="tns:OrderResponseType" query="/order/@orderId">
        <description type="documentation">Id for OrderResponseType</description>
    </tokenLocator>

    <roleType name="BuyerRole">
        <description type="documentation">Role for Buyer</description>
        <behavior name="BuyerBehavior" interface="BuyerBehaviorInterface">
            <description type="documentation">Behavior for Buyer Role</description>
        </behavior>
    </roleType>
    <roleType name="SellerRole">
        <description type="documentation">Role for Seller</description>
        <behavior name="SellerBehavior" interface="SellerBehaviorInterface">
            <description type="documentation">Behavior for Seller</description>
        </behavior>
    </roleType>

    <relationshipType name="Buyer2Seller">
        <description type="documentation">Buyer Seller Relationship</description>
        <roleType typeRef="tns:BuyerRole"/>
        <roleType typeRef="tns:SellerRole"/>
    </relationshipType>

    <participantType name="Seller">
        <description type="documentation">Seller Participant</description>
        <roleType typeRef="tns:SellerRole"/>
    </participantType>
    <participantType name="Buyer">
        <description type="documentation">Buyer Participant</description>
        <roleType typeRef="tns:BuyerRole"/>
    </participantType>

    <channelType name="Buyer2SellerChannel">
        <description type="documentation">Buyer to Seller Channel Type</description>
        <roleType typeRef="tns:SellerRole"/>
        <reference>
            <token name="tns:URI"/>
        </reference>
        <identity type="primary">
            <token name="tns:id"/>
        </identity>
    </channelType>


    <choreography name="IntermediateChoreography" root="true">
        <description type="documentation">The Choreography for the degenerate use case</description>
        <relationship type="tns:Buyer2Seller"/>

        <variableDefinitions>
            <variable name="Buyer2SellerC" channelType="tns:Buyer2SellerChannel"
                roleTypes="tns:BuyerRole tns:SellerRole">
                <description type="documentation">Channel Variable</description>
            </variable>
            <variable name="quoteRequest" informationType="tns:QuoteRequestType"
                roleTypes="tns:BuyerRole tns:SellerRole">
                <description type="documentation">Request Message</description>
            </variable>
            <variable name="quoteResponse" informationType="tns:QuoteResponseType"
                roleTypes="tns:BuyerRole tns:SellerRole">
                <description type="documentation">Response Message</description>
            </variable>
            <variable name="faultResponse" informationType="tns:QuoteResponseFaultType"
                roleTypes="tns:BuyerRole tns:SellerRole">
                <description type="documentation">Fault Message</description>
            </variable>
            <variable name="orderRequest" informationType="tns:OrderRequestType"
                roleTypes="tns:BuyerRole tns:SellerRole">
                <description type="documentation">Order Request Message</description>
            </variable>
            <variable name="barteringDone" informationType="tns:Boolean" roleTypes="tns:SellerRole">
                <description type="documentation">Variable used to control the loop exit from
                t</description>
            </variable>
        </variableDefinitions>

        <sequence>
            <assign roleType="tns:SellerRole">
                <description type="documentation">Initialise Loop Variable</description>
                <copy name="setBarteringDone">
                    <description type="documentation">Set barteringDone to false</description>
                    <source expression="false()"/>
                    <target variable="cdl:getVariable('barteringDone','','')"/>
                </copy>
            </assign>
            <interaction name="QuoteElicitation" operation="getQuote"
                channelVariable="tns:Buyer2SellerC">
                <description type="documentation">Elicit a quote from the seller</description>
                <participate relationshipType="tns:Buyer2Seller" fromRoleTypeRef="tns:BuyerRole"
                    toRoleTypeRef="tns:SellerRole"/>
                <exchange name="QuoteRequest" informationType="tns:QuoteRequestType"
                    action="request">
                    <description type="documentation">Quote Request Message Exchange</description>
                    <send variable="cdl:getVariable('quoteRequest','','')"/>
                    <receive variable="cdl:getVariable('quoteRequest','','')"/>
                </exchange>
                <exchange name="QuoteResponse" informationType="tns:QuoteResponseType"
                    action="respond">
                    <description type="documentation">Quote Response Message Exchange</description>
                    <send variable="cdl:getVariable('quoteResponse','','')"/>
                    <receive variable="cdl:getVariable('quoteResponse','','')"/>
                </exchange>
                <exchange name="QuoteResponseFault" informationType="tns:QuoteResponseFaultType"
                    action="respond" faultName="InvalidProductFault">
                    <send variable="cdl:getVariable('faultResponse','','')"
                        causeException="TerminalFailure"/>
                    <receive variable="cdl:getVariable('faultResponse','','')"
                        causeException="TerminalFailure"/>
                </exchange>
            </interaction>
            <workunit name="WhileBarteringIsNotFinished"
                guard="cdl:getVariable("barteringDone","","")
                = true()" repeat="true()">
                <description type="documentation">While barteringDone is false</description>
                <choice>
                    <sequence>
                        <description type="documentation">Accept the quote and place the order</description>
                        <interaction name="QuoteAccept" operation="order"
                            channelVariable="tns:Buyer2SellerC">
                            <description type="documentation">The Buyer accepts the quote and orders
                                the goods based on the last price</description>
                            <participate relationshipType="tns:Buyer2Seller"
                                fromRoleTypeRef="tns:BuyerRole" toRoleTypeRef="tns:SellerRole"/>
                            <exchange name="OrderRequest" informationType="tns:OrderRequestType"
                                action="request">
                                <send variable="cdl:getVariable('orderRequest','','')"/>
                                <receive variable="cdl:getVariable('orderRequest','','')"/>
                            </exchange>
                        </interaction>
                        <assign roleType="tns:SellerRole">
                            <description type="documentation">Break out of the loop</description>
                            <copy name="setBarteringDone">
                                <description type="documentation">Set barteringDone to true</description>
                                <source expression="true()"/>
                                <target variable="cdl:getVariable('barteringDone','','')"/>
                            </copy>
                        </assign>
                    </sequence>
                    <sequence>
                        <description type="documentation">Reject the quote and ask for a new quote</description>
                        <interaction name="QuoteReelicitation" operation="updateQuote"
                            channelVariable="tns:Buyer2SellerC">
                            <description type="documentation">Barter based on previous quote</description>
                            <participate relationshipType="tns:Buyer2Seller"
                                fromRoleTypeRef="tns:BuyerRole" toRoleTypeRef="tns:SellerRole"/>
                            <exchange name="QuoteRequest" informationType="tns:QuoteRequestType"
                                action="request">
                                <description type="documentation">Quote re-request based on amended
                                    quoteRequest</description>
                                <send variable="cdl:getVariable('quoteRequest','','')"/>
                                <receive variable="cdl:getVariable('quoteRequest','','')"/>
                            </exchange>
                            <exchange name="QuoteResponse" informationType="tns:QuoteResponseType"
                                action="respond">
                                <send variable="cdl:getVariable('quoteResponse','','')"/>
                                <receive variable="cdl:getVariable('quoteResponse','','')"/>
                            </exchange>
                        </interaction>
                    </sequence>
                </choice>
            </workunit>

        </sequence>
    </choreography>
</package>



In summary the WS-CDL description above represents the following:

                        Boolean barteringDone@Seller = false

                        Elicit a quote from the seller

                        repeat
                        {
                            choice
                            {
                                {
                                    Accept the quote and place the order
                                    barteringDone@Seller = true
                                }
                                {
                                    Reject the quote and ask for a new quote
                                }
                            }
                        } until (barteringDone@Seller == false)


4.1.3 Time

In this extension to our simple bartering process we add a duration for a quote of 30 seconds. When a BuyerRole requests a quote the SellerRole sets a duration, or time to live, for the quote of 30 seconds. When a quote has exceeded this time then, as far as the SellerRole is concerned the quote becomes invalid.

This is modeled in the WS-CDL description presented below:

            <workunit name="WhileBarteringIsNotFinished"
                guard="cdl:getVariable("barteringDone","","")
                = true() " repeat="true()">
                <description type="documentation">While barteringDone is false</description>
                <choice>
                    <workunit name="TimeToLiveExceeded"
                        guard="cdl:hasDurationPassed(cdl:getVariable("quoteDuration","",""))
                        = false()  " repeat="true()" block="true">
                        <description type="documentation">Quote times out</description>
                        <noAction roleType="tns:SellerRole">
                            <description type="documentation">DoNothing</description>
                        </noAction>
                    </workunit>
                    <sequence>
                        <description type="documentation">Accept the quote and place the order</description>
                        <interaction name="QuoteAccept" operation="order"
                            channelVariable="tns:Buyer2SellerC">
                            <description type="documentation">The Buyer accepts the quote and orders
                                the goods based on the last price</description>
                            <participate relationshipType="tns:Buyer2Seller"
                                fromRoleTypeRef="tns:BuyerRole" toRoleTypeRef="tns:SellerRole"/>
                            <exchange name="OrderRequest" informationType="tns:OrderRequestType"
                                action="request">
                                <send variable="cdl:getVariable('orderRequest','','')"/>
                                <receive variable="cdl:getVariable('orderRequest','','')"/>
                            </exchange>
                        </interaction>
                        <assign roleType="tns:SellerRole">
                            <description type="documentation">Break out of the loop</description>
                            <copy name="setBarteringDone">
                                <description type="documentation">Set barteringDone to true</description>
                                <source expression="true()"/>
                                <target variable="cdl:getVariable('barteringDone','','')"/>
                            </copy>
                        </assign>
                    </sequence>
                    <sequence>
                        <description type="documentation">Reject the quote and ask for a new quote</description>
                        <interaction name="QuoteReelicitation" operation="updateQuote"
                            channelVariable="tns:Buyer2SellerC">
                            <description type="documentation">Barter based on previous quote</description>
                            <participate relationshipType="tns:Buyer2Seller"
                                fromRoleTypeRef="tns:BuyerRole" toRoleTypeRef="tns:SellerRole"/>
                            <exchange name="QuoteRequest" informationType="tns:QuoteRequestType"
                                action="request">
                                <description type="documentation">Quote re-request based on amended
                                    quoteRequest</description>
                                <send variable="cdl:getVariable('quoteRequest','','')"/>
                                <receive variable="cdl:getVariable('quoteRequest','','')"/>
                            </exchange>
                            <exchange name="QuoteResponse" informationType="tns:QuoteResponseType"
                                action="respond">
                                <send variable="cdl:getVariable('quoteResponse','','')"
                                    recordReference="TimeToLive"/>
                                <receive variable="cdl:getVariable('quoteResponse','','')"/>
                            </exchange>
                            <record name="TimeToLive" when="before">
                                <description type="documentation">Record duration</description>
                                <source expression="quote/timeToLive"/>
                                <target variable="cdl:getVariable('quoteDuration','','')"/>
                            </record>
                        </interaction>
                    </sequence>
                </choice>
            </workunit>



The description above is presented in psuedo-code as follows:

                    Boolean barteringDone@Seller = false

                    Elicit a quote from the seller
                    Update quoteDuration@Seller from quote

                    while barteringDone@Seller = false do
                        choice
                        {
                            sequence
                                { quote accept and set barteringDone@Seller=true }
                            sequence
                                { reject quote }
                            workunit guard=hasDurationPassed@Seller and blocking=true
                            { ...... }
                        }
                    done


The two "Update" lines in the pseudo-code represent the records in the interactions and are tied to the quote response at the SellerRole. We shall look more closely how we define our records in the relevant interactions.

4.1.4 Recording information

Often we need to record information returned from an interaction. For example we need some way of setting the duration on the quote time to live from the SellerRole to the BuyerRole. To do this WS-CDL provides us with a convenient way of recording information at both ends of an interaction. In our example above we add our record to the quote elicitation interactions so that the duration for the quote can be passed and used in the repetition above and we show these interaction as fragments of WS-CDL below:

Example: Record Example
            <interaction name="QuoteElicitation" operation="getQuote"
                channelVariable="tns:Buyer2SellerC">
                <description type="documentation">Quote Elicitation</description>
                <participate relationshipType="tns:Buyer2Seller" fromRoleTypeRef="tns:BuyerRole"
                    toRoleTypeRef="tns:SellerRole"/>
                <exchange name="QuoteRequest" informationType="tns:QuoteRequestType"
                    action="request">
                    <description type="documentation">Quote Request Message Exchange</description>
                    <send variable="cdl:getVariable('quoteRequest','','')"/>
                    <receive variable="cdl:getVariable('quoteRequest','','')"/>
                </exchange>
                <exchange name="QuoteResponse" informationType="tns:QuoteResponseType"
                    action="respond">
                    <description type="documentation">Quote Response Message Exchange</description>
                    <send variable="cdl:getVariable('quoteResponse','','')"
                        recordReference="TimeToLive"/>
                    <receive variable="cdl:getVariable('quoteResponse','','')"/>
                </exchange>
                <exchange name="QuoteResponseFault" informationType="tns:QuoteResponseFaultType"
                    action="respond" faultName="InvalidProductFault">
                    <send variable="cdl:getVariable('faultResponse','','')"
                        causeException="TerminalFailure"/>
                    <receive variable="cdl:getVariable('faultResponse','','')"
                        causeException="TerminalFailure"/>
                </exchange>
                <record name="TimeToLive" when="before">
                    <description type="documentation">Record duration</description>
                    <source expression="quote/timeToLive"/>
                    <target variable="cdl:getVariable('quoteDuration','','')"/>
                </record>
            </interaction>


4.1.5 Conditional Workunits

Having recorded some information we now want to model the predicate and the activities that are dependent on the outcome of the predicate. To do this we use a conditional workunit that follows on from the recording example above, and we present this below:

Example: Conditional Example



In this example what we have done is ask some validation service if the buyer is valid. We have used a record to pull out the response and that response in the variable "buyerIsValid" is used in the guard for the workunit. The equivalent imperative language construct would be something akin to:

 buyerIsValid = perform buyerValidation If (buyerIsValid)
                            perform credit checking

4.1.6 Choices

The body of the workunit that we described above we introduced a choice. The choice element is used to declare possible alternative paths in a choreography. In our example there are only three choices that can be made at this point. The quote could timeout, the buyer decides to accept the quote or the buyer requests an update to the existing quote. We model these as a silentAction for the timeout of the quote – we shall change this later on -, as a simple sequence for the buyer accepting the quote and as a complex sequence to handle the bartering process itself. After adding the basic components the workunit is illustrated below:

Example: WS-CDL Fragment
                <choice>
                    <sequence>
                        <description type="documentation">Accept the quote and place the order</description>
                    </sequence>
                    <sequence>
                        <description type="documentation">Reject the quote and ask for a new quote</description>
                        <interaction name="QuoteReelicitation" operation="updateQuote"
                            channelVariable="tns:Buyer2SellerC">
                            <description type="documentation">Barter based on previous quote</description>
                            <participate relationshipType="tns:Buyer2Seller"
                                fromRoleTypeRef="tns:BuyerRole" toRoleTypeRef="tns:SellerRole"/>
                            <exchange name="QuoteRequest" informationType="tns:QuoteRequestType"
                                action="request">
                                <description type="documentation">Quote re-request based on amended
                                    quoteRequest</description>
                                <send variable="cdl:getVariable('quoteRequest','','')"/>
                                <receive variable="cdl:getVariable('quoteRequest','','')"/>
                            </exchange>
                            <exchange name="QuoteResponse" informationType="tns:QuoteResponseType"
                                action="respond">
                                <send variable="cdl:getVariable('quoteResponse','','')"
                                    recordReference="TimeToLive"/>
                                <receive variable="cdl:getVariable('quoteResponse','','')"/>
                            </exchange>
                            <record name="TimeToLive" when="before">
                                <description type="documentation">Record duration</description>
                                <source expression="quote/timeToLive"/>
                                <target variable="cdl:getVariable('quoteDuration','','')"/>
                            </record>
                        </interaction>
                    </sequence>
                </choice>


We shall start to elaborate the choice by defining the complex sequence that will control the bartering collaboration. What we shall describe are the interactions needed for the bartering process. We start by defining the interaction from buyer to seller to update the price, interaction name="Buyer updates the Quote - in effect requesting a new price", and the exchanges that comprise this interaction. We model this as an interaction within a sequence such that the exchanges are the outbound "updateQuote" and the inbound "acceptUpdatedQuote". This illustrated below:

Example: WS-CDL Fragment
<workunit name="Repeat until bartering has been completed" repeat="barteringDone = false">
                        <choice>
                        <silentAction roleType="BuyerRoleType">
                        <description type="description">Do nothing - let the quote timeout</description>
                        </silentAction>

                        <sequence>
                        …
                        </sequence>

                        <sequence>
                        <interaction name="Buyer updates the Quote - in effect requesting a new price"
                        operation="quoteUpdate" channelVariable="Buyer2SellerC">
                        <description type="documentation">Quot Update</description>
                        <participate relationshipType="BuyerSeller"
                        fromRole="BuyerRoleType" toRole="SellerRoleType" />
                        <exchange name="updateQuote"
                        informationType="QuoteUpdateType" action="request">
                        </exchange>
                        <exchange name="acceptUpdatedQuote"
                        informationType="QuoteAcceptType" action="respond">
                        <description type="documentation">Accept Updated Quote</description>
                        </exchange>
                        </interaction>
                        </sequence>
                        </choice>
                        </workunit>


The final choice element in this workunit is the element that manages the repeat variable "barteringDone". This sequence has two interactions, named "Buyer accepts the quote and engages in the act of buying" and "Buyer send channel to seller to enable callback behavior". The first describes the interaction between buyer and seller to accept the quote – this has an exchange called "Accept Quote" - and thus place an order. The second describes the additional information passed to the seller by the buyer – this has an exchange called "sendChannel" - so that a third party, in our case the shipper, may send back delivery details to the buyer without knowing the buyer before hand. To effect the exchange we need to make sure that the channel variable NAME that resides at both the buyer and the seller independently of each other is used as the output variable at the buyer and the input variable at the seller. To do this we use the WS-CDL function that gets a variable at a specified role. This is why we see "cdl:getVariable('DeliveryDetailsC','','')" and "cdl:getVariable('DeliveryDetailsC','','')" in the exchange. The role is omitted because it can be inferred through the channel used for interaction. The final part of the sequence is to change the value in the variable, "barteringDone", to "true"so that the workunit repeat condition evaluates to false and the workunit terminates. To do this we use an assign element and indicate the actual variable and where it resides my using the "cdl:getVariable('barteringDone','','')" WS-CDL function. This part of the workunit and choice is illustrated below:

Example: WS-CDL Fragment
<workunit name="Repeat until bartering has been completed" repeat="barteringDone = false">
                        <choice>
                        <silentAction roleType="BuyerRoleType">
                        <description type="description">Do nothing - let the quote timeout</description>
                        </silentAction>

                        <sequence>
                        <interaction name="Buyer accepts the quote and engages in the act of buying"
                        operation="quoteAccept" channelVariable="Buyer2SellerC">
                        <description type="description">Quote Accept</description>
                        <participate relationshipType="BuyerSeller"
                        fromRole="BuyerRoleType" toRole="SellerRoleType" />
                        <exchange name="Accept Quote" informationType="QuoteAcceptType"
                        action="request">
                        </exchange>
                        </interaction>
                        <interaction name="Buyer send channel to seller to enable callback behavior"
                        operation="sendChannel" channelVariable="Buyer2SellerC">
                        <description type="description">Buyer sends channel to pass to shipper</description>
                        <participate relationshipType="BuyerSeller"
                        fromRole="BuyerRoleType" toRole="SellerRoleType" />
                        <exchange name="sendChannel" channelType="2BuyerChannelType" action="request">
                        <send variable="cdl:getVariable('DeliveryDetailsC','','')" />
                        <receive variable="cdl:getVariable('DeliveryDetailsC','','')" />
                        </exchange>
                        </interaction>

                        <assign roleType="BuyerRoleType">
                        <copy name="copy">
                        <source expression="true" />
                        <target variable="cdl:getVariable('barteringDone','','')" />
                        </copy>
                        </assign>
                        </sequence>

                        <sequence>
                        …
                        </sequence>
                        </choice>
                        </workunit>


4.1.7 Parallelization

4.1.8 Modularization

4.1.8.1 Choreographies and sub-choreographies

4.1.9 Performing a sub choreography

4.1.10 Channel Passing

4.1.11 Exchanges

4.2 Extending the example

We shall the example further by adding some more roles that will cover credit checking, and delivery. In the context of this we shall look at how we deal with exceptions and faults in WS-CDL and also how we deal with compensation when we need to either proceed or back things out. The former is based on what we call exception work units and the latter finalization. We shall also explain how silent actions and no action may be used to further document the collaborative behavior of our roles.

We illustrate the example as a set of sequence diagrams that describe the scenarios for exception handling, finalization, silent and no actions.

4.2.1 Exceptions and Faults

In this section we examine how we use faults in WSDL (both WSDL1.1 and WSDL2.0) to drive exceptions in WS-CDL.

Credit Check returns a fault, which implies credit failure, and this is dealt with in an exception block and you raise an exception to interrupt the flow of the choreography. The Exception handler returns a message to the buyer to let them know that the order has been cancelled.

4.2.2 Finalization

Supposing the credit checking (which implies debiting the card if ok) and the shipping details are done in parallel and are independent. Then we would have two finalizers which handle the yes go ahead or the no back out both. Add some further details that explain the use case in a real world situation in which separate legs of a trade are executed in parallel (e.g. arbitrage).

4.2.2.1 Finalizers and Finalization

4.2.3 Silent Actions and Conditions

Add a silent action at the credit checker to show that something happens here to do the actual credit checking that is invisible. Silent variable conditional - silent conditional for sending back credit ok or credit fault.

4.2.4 NoActions

4.2.5 Complete Example

The rest of the example is all about describing the interactions and choices needed by the seller to check credit and if successful to request delivery. This is listed in schematic form below. We have not filled all of the details because it is illustrated fully in Appendix I.

Example: WS-CDL Fragment
<interaction name="Seller check credit with CreditChecker"
			operation="creditCheck" channelVariable="Seller2CreditChkC">
  			…
  		</interaction>
		<choice>
			<interaction name="Credit Checker fails credit check"
				operation="creditFailed" channelVariable="Seller2CreditChkC">
  				…
  			</interaction>
			<sequence>
				<interaction name="Credit Checker passes credit"
					operation="creditOk" channelVariable="Seller2CreditChkC">
  					…?
  				</interaction>
				<interaction name="Seller requests delivery details"
					operation="requestShipping" channelVariable="Seller2ShipperC">
  					…
  				</interaction>
				<interaction name="Shipper forward channel to shipper"
					operation="sendChannel" channelVariable="Seller2ShipperC">
  					<description type="description">Pass channel from buyer to shipper</description>
  					<participate relationshipType="SellerShipper"
						fromRole="SellerRoleType" toRole="ShipperRoleType" />
					<exchange name="forwardChannel" channelType="2BuyerChannelType" action="request">
  						<send variable="cdl:getVariable('DeliveryDetailsC','','')" />
  						<receive variable="cdl:getVariable('DeliveryDetailsC','','')" />
  					</exchange>
  				</interaction>
				<interaction name="Shipper sends delivery details to buyer"
					operation="deliveryDetails" channelVariable="DeliveryDetailsC">
  					<description type="description">Pass back shipping details to the buyer</description>
  					<participate relationshipType="ShipperBuyer"
						fromRole="ShipperRoleType" toRole="BuyerRoleType" />
					<exchange name="sendDeliveryDetails"
						informationType="DeliveryDetailsType" action="request">
  					</exchange>
  				</interaction>
  			</sequence>
  		</choice>
	  </sequence>
	</choreography>

In this outline we can see a choice made after a credit check has been done. If the credit check fails we do very little. If it succeeds we "requestShipping" from seller to shipper and pass the buyer details that we got previously onto the shipper. The shipper then responds back to the buyer using the necessary channel details that were passed ("DeliveryDetailsC") to affect the interaction.

5 Advanced Topics

5.1 Dependent Workunits

We can change our example and make it somewhat more interesting by having two workunits. The first is unchanged and the second incorporates all of the previous choreography notation that follows the completion of the first workunit. What we shall do to model this is to make the second workunit dependent on the availability and value of 'barteringDone'. To do this we shall introduce a guard condition into our workunit and make a blocking workunit. Such dependent workunits represent a structural dependence that might exist in real systems and so provides the choreography designer with an elegant way of expressing the dependencies directly as opposed to adding further conditional and state to achieve much the same thing.

Our workunit sketch looks like the following:

Example: WS-CDL Fragment
<parallel>
		<workunit name="Repeat until bartering has been completed" repeat="barteringDone = false">
			…
  		</workunit>

		<workunit name="Process Order" guard="barteringDone = true" blocking="true">
			…
  		</workunit>
	</parallel>

In this example the guard condition is "barteringDone = true" and the blocking is set to "true". This second workunit waits until "barteringDone" is available and is set to true before enacting whatever is described inside of it. We place the two workunits inside a parallel construct which means that the two workunits operate concurrently. The second being dependent on the first waits until its preconditions are met before proceeding.

Example: WS-CDL Fragment
	<parallel>
		<workunit name="Repeat until bartering has been completed" repeat="barteringDone = false">
			…
  		</workunit>

		<workunit name="Process Order" guard="barteringDone = true" blocking="true">
			…
  		</workunit>
	</parallel>

We can use the same data-driven collaboration technique to rewrite how we handle the credit checking response, by introducing another variable, 'creditRatingOk', at the seller role, that records, as a Boolean, the response from the credit check. The second, blocking, workunit is made dependent on the outcome of the first by using a guard that looks a little like the following:

Example: WS-CDL Fragment
	<parallel>
		<workunit name="Check Credit Rating">
			<sequence>
				<interaction name="Seller check credit with CreditChecker"
					operation="creditCheck" channelVariable="Seller2CreditChkC">
  					<description type="description">
						Check the credit for this buyer with the credit check agency
					</description>
  					<participate relationshipType="SellerCreditCheck"
						fromRole="SellerRoleType" toRole="CreditCheckerRoleType" />
					<exchange name="checkCredit" informationType="CreditCheckType" action="request">
  					</exchange>
  				</interaction>
				<choice>
					<sequence>
						<interaction name="Credit Checker fails credit check"
							operation="creditFailed" channelVariable="Seller2CreditChkC">
  							<description type="description">
								Credit response from the credit checking agency
							</description>
  							<participate relationshipType="SellerCreditCheck"
								fromRole="SellerRoleType" toRole="CreditCheckerRoleType" />
							<exchange name="creditCheckFails"
								informationType="CreditRejectType" action="respond">
  							</exchange>
  						</interaction>
						<assign roleType="SellerRoleType">
  							<copy name="copy">
  								<source expression="false" />
  								<target variable="cdl:getVariable('creditRatingOk','','')" />
  							</copy>
  						</assign>
					</sequence>

					<sequence>
						<interaction name="Credit Checker passes credit"
							operation="creditOk" channelVariable="Seller2CreditChkC">
  							<description type="description">
								Credit response from the credit checking agency
							</description>
  							<participate relationshipType="SellerCreditCheck" fromRole="BuyerRoleType"
								toRole="CreditCheckerRoleType" />
							<exchange name="creditCheckPasses"
								informationType="CreditAcceptType" action="respond">
  							</exchange>
		  				</interaction>
						<assign roleType="SellerRoleType">
  							<copy name="copy">
  								<source expression="true" />
  								<target variable="cdl:getVariable('creditRatingOk','','')" />
  							</copy>
  						</assign>
					</sequence>
				</choice>
			</sequence>
		</workunit>


		<workunit name="Request Delivery" guard="creditRatingOk = true" blocking="true">
			…
  		</workunit>
    </parallel>

The operational semantic of the workunit in WS-CDL can be described as follows:

Example: WS-CDL Fragment
Blocking

Workunit (G) (R) (B is True)
	Body

Where
	G => guard condition
	R => repeat condition
	B => blocking attribute
	Body => CDL activities within the work unit

A typical order of evaluation is as follows:

	(G) Body (R G) Body (R G) Body

With respect to a G then the G is only evaluated when the variables are available and evaluate to True and otherwise we wait at the guard  condition. Thus the Body after the first G only gets executed when G is True. Or put another way Body is primed ready for action and then is executed when G evaluates to True.

	IF G is unavailable or evaluates to False THEN it equates to:

	when (G) {
		Body
	} until (!R)

	IF G is always True THEN it equates to:

	repeat {
		Body
	} until (!R)

	IF R is always False THEN it equates to:

	when (G) {
		Body
	}


5.2 Concurrent Performs

This is the unbounded number of sellers in an RFQ process that may use hasDurationPassed in a join condition in one scenario and may use first past the post in another join condition

5.2.1 Managing join conditions

NOTE: In this section make sure we handle join conditions and arrays and lists.

5.3 Isolation Levels

In the RFQ process with multiple sellers the multiple concurrent sub-choreographies at the buyer await responses from the sellers. When a response comes back the buyer in the sub choreography updates an isolated variable if it's value that it has is better than the value it can see for that variable. This ensures that the sub-choreographies are synchronised in their updating of the new isolated variable so that the correct value is arrived at. Note: This raises a pitfall and implementation consideration about when isolated variables get locked. If you lock too soon you may not get the correct or desired behavior.

5.4 Advanced Channels

Once - The passed channel to the shipper is usage once so that it adds to privacy and ensures sound behavioral typing (aka this cannot participate in deadlock and livelock) Shared/Distinct and passing using "new" to be done Note: The "new" could be used to ensure that a fresh channel is passed. This would be used with the once in the advanced example and used as per normal in the normal example. Seller should not have "new" because the seller has received a channel from the buyer to pass to the shipper.

5.4.1 Usage

5.4.2 Channel Passing Modes

5.5 Pitfalls

5.5.1 Distributed choice and race conditions

NOTE: Description of the distributed choice problem

5.6 Alignment and Coordination

Coordination - Credit Check fails. Seller throws exception so goes into an exception state. And because the choreography is coordinated the buyer also goes into its exception state because it was all coordinated. This of course involves hidden communication so that buyer and seller know about each other state with respect to exceptions. Alignment will be done after we have sorted out the rest

6 Implementation Considerations

6.1 End Point Projections

6.1.1 Java

6.1.2 WS-BPEL

6.1.3 Runtime Monitoring

6.1.4 WSDL1.1

6.1.5 WSDL2.0

6.2 WS-Addressing

6.2.1 Channel Representation
