SVG Web Site Showcase Development

Project Manager: Daniel Dardailler <danield@w3.org>
Author of this document: Vincent Hardy

Created: 29 August 2002. Last updated: 29 August 2002.

Table of Contents

• Introduction
• About Scalable Vector Graphics
• The French National Library (BnF)
• Project Description
  • Ambitions
  • Results
• Conclusion
• Original Project Proposal

Introduction

The SVG Web Site Showcase Development project was done in collaboration between the W3C and the French National Library (Bibliothèque Nationale de France).

SVG (Scalable Vector Graphics) is a a graphic vector format recommended by the World Wide Web Consortium (W3C). In order to demonstrate its capacities, the W3C has chosen a virtual exhibition on the Bibliothèque Nationale de France Web site and converted it to SVG. The exibition is called "Maitres de la BD europeenne" and presents the greatest European comic strip authors.

As discussed in the

The project showed how the SVG format can successfully overcome these difficulties, deliver a smaller site and offer a more accessible and easier way to navigate Web site.

About Scalable Vector Graphics

What is SVG?

Scalable Vector Graphics, SVG, is an XML grammar for rich 2D graphics. It is a specification from the World Wide Web Consortium,

Features

SVG provides a rich syntax for describing images in terms of graphic objects (such as text, circles or rectangles) and rendering properties (such as strokes or colors). It can express the following types of graphics:

• Rich static 2D graphics. SVG supports generic shapes, affine transforms, rich text, transparency and filter effects, to name some of the most important static features.
• Dynamic 2D graphics. The Document Object Model (DOM) API, allows dynamic manipulation of SVG documents and makes dynamic graphics possible (e.g., it is possible to change the color of a circle when the mouse moves over it). The DOM API can be used by scripts embeded in the SVG document to add interactive features to the graphic.
• Animated graphics. Most SVG elements (such as rectangles, circles, or images) may contain animation declarations. For example, it is possible to express, with an animation declaration, how the x-coordinate of a rectangle should change over time, when the animation should begin or how long it should last.

The following image was defined in SVG and all the graphical effects (opacity, drop shadow, masking, arbitrary shapes) are described using SVG markup.

Benefits

The broad support behind SVG comes from its many advantages. SVG has sophisticated graphic features, which is naturally important for a graphic format, but it also benefits from being an XML grammar. SVG has all the advantages XML brings such as internationalization (Unicode support), wide tool support, easy manipulation through standard APIs (e.g., the Document Object Model, DOM API), and easy processing and transformation (e.g., through XML Stylesheet Language Transformations, XSLT).

In the graphical arena, and especially compared to bitmap image formats (such as GIF, JPEG or PNG images), SVG has the advantage of being:

• Lightweight. For many types of graphics, an SVG graphic will be more compact than its bitmap equivalent
• Zoomable. SVG content can be viewed at different resolutions, e.g., enlarged or shrunk without losing quality
• Searchable. Because SVG content is XML, it becomes possible to search the content of an SVG image for text elements, comments or any kind of meta-data.
• Structured. A key quality for accessibility reasons.

The French National Library: La Bibliothèque Nationale de France (BnF)

The Bibliothèque Nationale de France (BnF) has four core missions

• Build and enrich its collections
• Describe documents
• Restore and preserve documents
• Make collections available to the public

The SVG exhibition project

The project's ambitions

W3C's goals

While SVG adoption was progressing rapidly in 2001, the W3C recognized that it would be interesting to demonstrate how its new format performs on a real-life web site with difficult constraints. Thefore, the goals for the projects were:

• Use SVG on a large web site
• Use SVG on a graphically rich web site
• Use SVG on an interactive web site

BnF goals

For the French National Library, the goals where to:

• Experiment with a new Web format, as alternative to HTML or Flash
• Experiment with a new XML format

The project constraints

As described in the

• Be faithful to the original content's graphical design
• Provide semantics beyond that provided by the HTML site
• Enhance the original content by adding usability features

The project results

The project started in the fall of 2001 and consisted in converting a web site (which can be seen at:

• Converting all the original HTML content into SVG content
• Converting the original bitmap images to SVG format where possible.
• Converting all the user interactions to SVG using either scripting (ECMA Script) or SMIL animation (Synchronized Multimedia Integration Language) which SVG leverages

The on-line SVG exhibition

The result of the project was put on-line by the BnF web master in June 2002. The site can be visited at the following URL address:

The following two images show screen shots of the main pages of the HTML and SVG versions. There are no visual differences, as required by the constraint that the SVG site should follow the graphical design of the original site very closely. Additions of semantic and usability features are described and explained below.

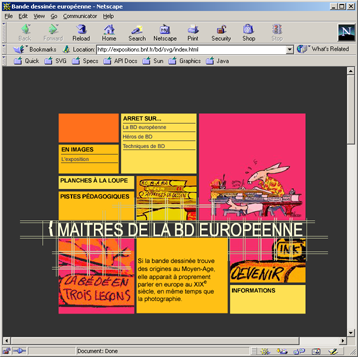

HTML Site Main Page	SVG Site Main Page

Zoomable and Searchable

HTML does not offer as much flexibility as SVG in terms of rendering capabilities. The biggest difference is that SVG documents can be zoomed on whereas raster images in HTML documents cannot be zoomed on.

In the original HTML site, many labels were represented by bitmap images in the GIF format. GIF images guaranteed the visual rendering desired by the graphic designer who authored the site. The drawback of that approach is that the related text cannot be searched, neither by a human operator nor by a Web search engine such as Google. Because SVG provides very tight control over the rendering aspects of graphical elements and text, all bitmap images representing text could be replaced by SVG markup, which preserves the text semantic and is a more lightweight solution in terms of content size.

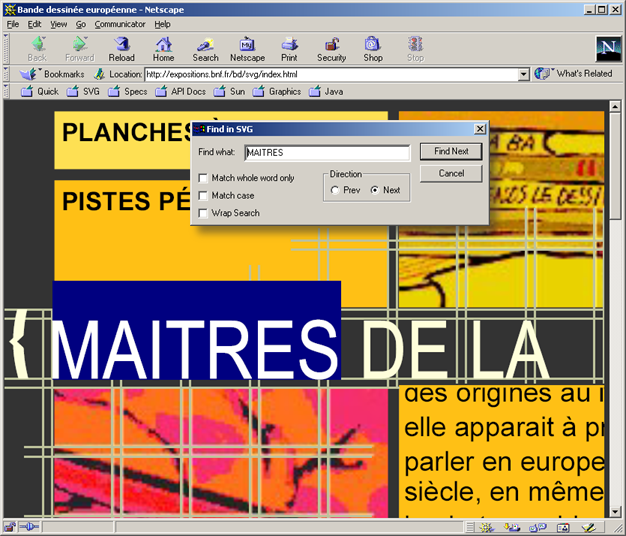

The following two images show screen shots of the HTML and SVG sites, illustrating how the SVG content can be zoomed and how text can be searched. Note that because SVG images are scalable, they also print better than their bitmap equivalent. As a consequence, the main page of the site prints better in its SVG form than in its SVG form.

HTML Site Main Page

SVG Site Main Page

Interactivity and Animation

The SVG site offers all the navigation and interaction facilities that were available in the HTML version but does it in a more efficient way. For example, roll-over menu entries in the HTML version were implemented by swapping bitmap images. In the SVG version, this is achieved by dynamically changing the rendering attributes of graphical elements (such as text or rectangles) which is a lot more concise (in terms of content size) and semantically richer (because the graphical content is preserved which contains more semantic than a bitmap image).

In addition, the SVG site offers interactivity and navigation facilities that go beyond what was available in the HTML version. For example, the navigation arrows (found on most pages of the site) grow when the user moves the mouse cursor towards the arrow and shrink when the cursor moves away. This makes it easier for the user to select the arrow and gives him/her a better experience on the site. The animation effect is achieved by the SVG animation features leveraged from the SMIL animation language. The effect is illustrated by the following images.

Another illustration of what SVG can bring beyond the HTML capabilities is the author index. In the HTML version, the author index was a very long HTML page and the user had to scroll down the page to see the desired author biography. SVG allowed a better, more interactive access to the various authors' biographies by providing a single page author index, as shown by the following images.

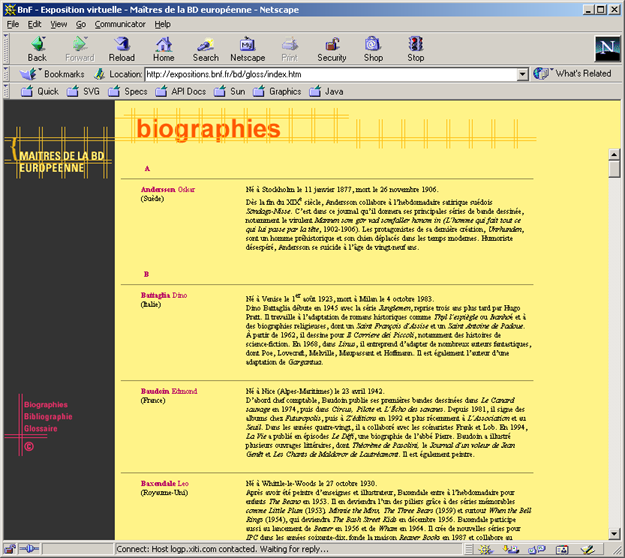

HTML Site Author Index

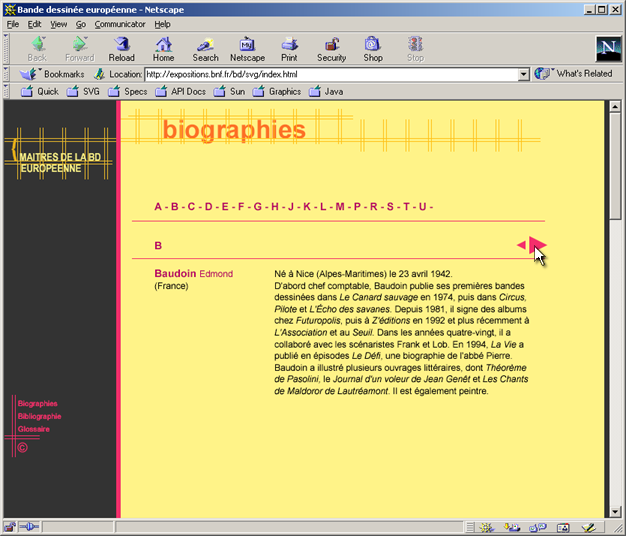

SVG Site Author Index

Reduced content size

The following table and graphs summarize the content size metrics on the original HTML site and on the SVG site.

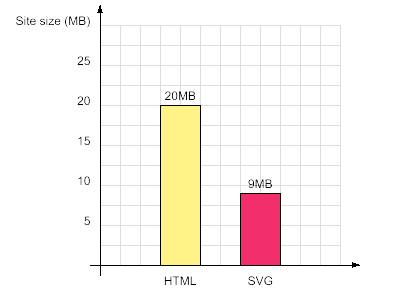

Total Size

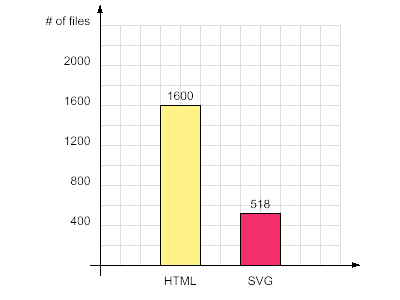

Total File Size

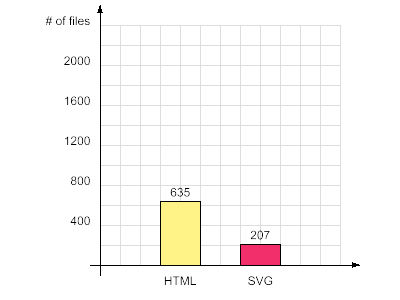

Number of HTML/SVG files

Lessons learned

This project has clearly demonstrated a number of important facts:

• SVG can handle complexity. The site chosen for the experiment is one of the most complex on the BnF web site and SVG showed it is rich enough to describe this type of site and actually go way beyond what HTML can do on that type of content
• SVG can handle large sites. The metrics in the previous section show clearly that SVG can handle large sites and that it does it more efficiently than HTML does. The SVG site is over 50% smaller than the HTML version and it has more functionality.
• SVG provides rich and interesting features. The project showed that the high-end graphical and interactive features found in SVG are useful for content developers.

Conclusion

This collaboration effort with the French National Library has brought very positive results and the two parties have met the goals they wanted to reach.

The BnF has acquired experience with the Scalable Vector Graphics capabilities and will now move to investigations on development and deployment.

The W3C has gained hands-on experience on a high-end web site and gotten confirmation that SVG features are useful, can make sites lighter (the SVG content is smaller than its HTML equivalent), more enjoyable to navigate (the SVG content offers a better visual rendering and has more user-friendly navigation and interactivity features) and more accessible (because it is entirely in XML, the site can be searched by a human operator or by search engines).

Our hope is that SVG sites will become common in the near future. This should satisfy visitors of the BnF web site who, over the summer of 2002 (20-06-2002 to 19-08-2002) prefered viewing the SVG version (3140 visitors, 8096 pages viewed) of the exhibition rather than the HTML version (1 282 visitors, 2 472 pages viewed).

Credits

The following people have been involved in the project:

• Jean-Pierre Gay, the BnF Web Master.
• Emmanuelle Berenger, the Bnf exhibition's graphic designer
• Marie-Claire Forgue, from the W3C Communication team
• Pierre Teller and Agnes Paquet, from the W3C

Original Project Description

Project: SVG Web Site Showcase development

The goal of this project is to showcase SVG on a prestigious web site to demonstrate its applicability and strengths.

Some Web sites are currently using Dynamic HTML (e.g., the Bibliotheque National de France for some of its virtual galleries) in very creative ways, combining HTML with a lot of ECMAScript.

Such sites would benefit from being converted into SVG which would:

• give a better visual rendering
• provide a lighter solution in terms of content size to download to the user browser
• preserve the semantic of the content which makes it searchable by search engines and accessible to users with disabilities.
• offer opportunities for enhanced user experience, such as better navigation controls, by leveraging SVG's animation features.

The project will demonstrate how SVG delivers on those aspects. The Bibliotheque National de France has agreed to participate to this project. If they are satisfied with the result of the project, they agreed to make the SVG content available on their web site.

The project will consist in converting the Dynamic HTML content into its SVG equivalent. The converted SVG content will:

• be faithful to the original content's graphical design. The same layout, typography and colors will be reproduces, only with higher quality.
• provide semantic. The SVG markup will use the language's accessibility features (such as descriptive elements) and favor the use of SMIL (Synchronized Multimedia Integration Language) over JavaScript because the SMIL syntax is more accessible than ECMAScript content.
• enhance the original content. The SVG markup will improve the navigability and user friendliness of the original content by leveraging SVG features such as SMIL animation. For example, the navigation controls (arrows) will change color and grow when the user will get close to them. This makes for a nicer user experience by providing a sophisticated user feedback and by easing the navigation (the click is easier when the target grows).

Deviations from plan

none
