Case Study: The Semantic Web for the Agricultural Domain, Semantic Navigation of Food, Nutrition and Agriculture Journal

Gauri Salokhe, Food and Agriculture Organization of the United Nations Margherita Sini, Food and Agriculture Organization of the United Nations and Johannes Keizer, Food and Agriculture Organization of the United Nations, Italy

May 2007

FAO Logo

General Description


The Food and Agriculture Organization of the United Nations (FAO) leads international efforts to defeat hunger with information. FAO's activities comprise four main areas: (a) putting information within reach, (b) sharing policy expertise, (c) providing a meeting place for nations, and (d) bringing knowledge to the field.

With the advent of the Web in the 1990s, there have been enormous advances in “putting information within reach” and “bringing knowledge to the field”, however this has been at the cost of increasing complexity. The information resources available from the international agriculture arena differ in degree of coverage. For example, some resources focus on generic agriculture and food safety; some focus on sub-disciplines such as nutrition, or animal and plant health; and others focus on the type of data represented for example images or news announcements. As information is so distributed, and heterogeneous in nature, there is not a single search engine that can effectively retrieve a comprehensive set of the resources. As the current Web architecture does not allow integration of similar data from different sources, we are exploring the use of the Semantic Web.

Current Applications

Current applications in the agricultural domain that use the Semantic Web include:

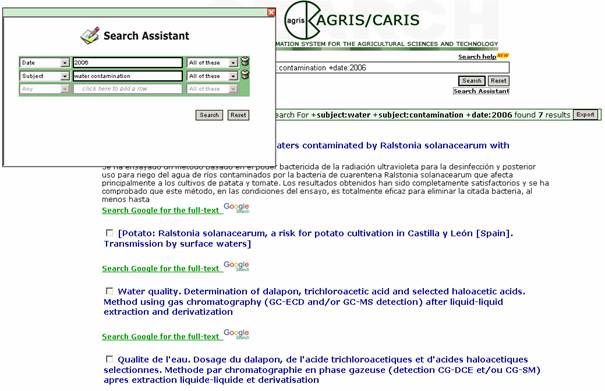

Searching XML files with Keywords from AGROVOC Thesaurus (screendump)

Figure 1: Searching XML files with Keywords from AGROVOC Thesaurus

Use of Ontologies to improve search results

The articles in the Food, Nutrition and Agriculture (FNA) Journal cover topics such as community nutrition, food quality and safety, nutrition assessment, nutrient requirements, food security and rural development. The full-text articles may be in English, French or Spanish. The FAO provides information in this journal about nutrition and food safety to audiences around the world for over four decades.

Metadata about each article in the FNA Journal was available in FAO’s Corporate Document Repository and the FAO’s bibliographical database. The two metadata sets contained slightly overlapping metadata information about each resource. Work has been undertaken to combine the metadata and to convert it to a single RDFS format. The bibliographic multilingual data was managed and stored using the Karlsruhe ontology (KAON) suite of tools.

An ontology was developed in RDF using metadata about articles from FAO’s cataloguing and indexing systems. The AGRIS Application Ontology provided the backbone on which agricultural resources, namely the individual articles from the FNA Journal, could be organized and described (Figure 2). Following the creation of this ontology, instances were created taking the actual metadata merged from the FAO’s Corporate Document Repository and the FAO Bibliographical Database.

A search application (see Figure 3) was created on top of the ontology and the instance data. When a user enters a phrase in the query box, the system searches all the objects in the ontology which may be lexicalized with the query string. The objects can be articles, publications, authors, keywords, subject categories, languages or geographical areas. When one or more matches are found, the user is provided with the list of objects.

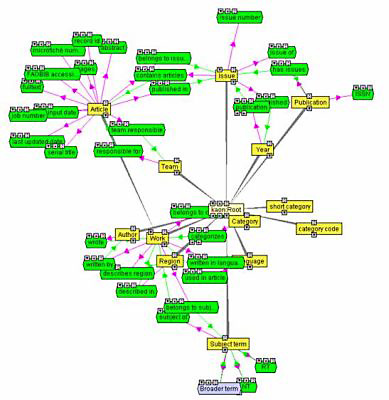

Application Ontology and its relationships expressed in RDF

Figure 2: Application Ontology and its relationships expressed in RDF

The portal is predominantly browse-based although users can also search the metadata using a free-text search. A user is guided through the navigation of data by following the links that connect the different metadata elements, such as articles within a specific issue, authors, languages, or keyword. The user is able to get answers with a single click to questions such as “give me all articles published in this issue”, “give me all authors that wrote about this article”, “list all articles about ‘allergens’”.

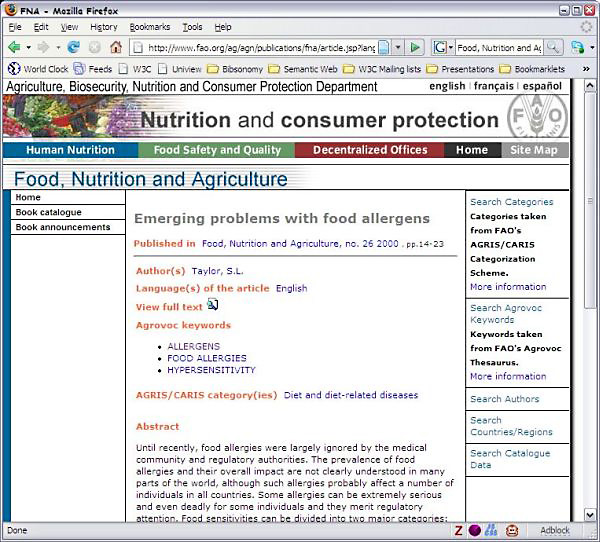

Screendump of the FNA journal interface

Figure 3: The browser interface to the FNA journal

Key Benefits of Using Semantic Web Technology

Future work

These steps are a starting point for further exploitation of other semantic relationships available in a bibliographic metadata record. Making use of existing semantic relationships between, for example, author and keyword, that are not normally exploited in bibliographic databases allowed for more meaningful and hence user-friendly browse experiences. The benefits of converting from RDFS to OWL are currently being explored.

A best case scenario would be a question and answer service which brings together different resource types (people, experts, projects etc.) and exploits the relationships between them to provide answers to questions such as:

This would require the heterogeneous data repositories are made available in RDF along with the controlled vocabularies in RDF/OWL. The access to information also should be languages independent and the tools on top should be able to exploit the multilingual semantics encoded in the RDF/OWL subject ontologies.

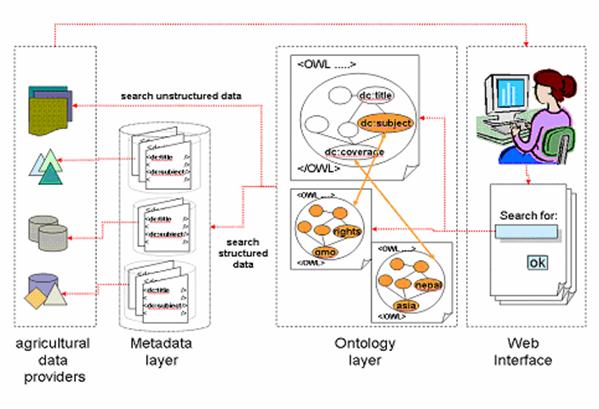

Seamless integration of the ontology layer, metadata layer and data repositories in a chart

Figure 4: Seamless integration of the ontology layer, metadata layer and data repositories
