This specification describes how to use RDF to describe RDF vocabularies. The specification also defines a basic vocabulary for this purpose, as well as an extensibility mechanism to anticipate future additions to RDF.
This document is an internal Working Draft of the World Wide Web Consortium RDF Core Working group. This text is undergoing active editorial work and is subject to change; the draft you are looking at is an evolving snapshot for the RDFCore WG to consider. TODO items are marked @@TODO; these all need to be addressed before wider circulation. Specifically, this text does not yet reflect all of the decisions made during the RDF Core meeting of Aug 1st-2nd.
@@Editorial task list:
The next stage in the lifecycle of this document is for the RDF Core WG to discuss of the remaining RDF open issues that relate to RDF Schema 1.0, and for the editors of this specification to incorporate corresponding changes into the RDF Schema 1.0 Specification.
This specification is a revision of the Candidate Recommendation of March 27 2000, incorporating editorial suggestions received in review comments. This is the first publication of RDF Schema 1.0 as a work item of the RDF Core Working Group. The group is chartered to incorporate feedback on the RDFS design, and to coordinate the completion of RDF Schema with the republication of a revised Model and Syntax RDF Specification.
The Resource Description Framework is part of the W3C Semantic Web Activity. The goal of this activity, and of RDF specifically, is to produce a language for the exchange of machine-understandable descriptions of resources on the Web. A separate specification describes the data model and syntax for the interchange of metadata using RDF.
This section describes the status of this document at the time of its publication. Other documents may supersede this document. Refer to Appendix B, About W3C Documents, for a description of the W3C Technical Report publishing policy.
It is inappropriate to use a W3C Working Draft as reference material or to cite them as other than "work in progress". This is work in progress and does not imply endorsement by, or the consensus of W3C. A list of current W3C Recommendations and other technical documents can be found at http://www.w3.org/TR.
The Resource Description Framework (RDF) is a foundation for processing metadata; it provides interoperability between applications that exchange machine-understandable information on the Web. RDF uses XML to exchange descriptions of Web resources but the resources being described can be of any type, including XML and non-XML resources. RDF emphasizes facilities to enable automated processing of Web resources. RDF can be used in a variety of application areas, for example: in resource discovery to provide better search engine capabilities, in cataloging for describing the content and content relationships available at a particular Web site, page, or digital library, by intelligent software agents to facilitate knowledge sharing and exchange, in content rating, in describing collections of pages that represent a single logical "document", for describing intellectual property rights of Web pages, and for expressing the privacy preferences of a user as well as the privacy policies of a Web site. RDF with digital signatures will be key to building the "Web of Trust" for electronic commerce, collaboration, and other applications.
Descriptions used by these applications can be modeled as relationships among Web resources. The RDF data model, as specified in [RDFMS], defines a simple model for describing interrelationships among resources in terms of named properties and values. RDF properties may be thought of as attributes of resources and in this sense correspond to traditional attribute-value pairs. RDF properties also represent relationships between resources. As such, the RDF data model can therefore resemble an entity-relationship diagram. The RDF data model, however, provides no mechanisms for declaring these properties, nor does it provide any mechanisms for defining the relationships between these properties and other resources. That is the role of RDF Schema.
Resource description communities require the ability to say certain things about certain kinds of resources. For describing bibliographic resources, for example, descriptive attributes including "author", "title", and "subject" are common. For digital certification, attributes such as "checksum" and "authorization" are often required. The declaration of these properties (attributes) and their corresponding semantics are defined in the context of RDF as an RDF schema. A schema defines not only the properties of the resource (e.g., title, author, subject, size, color, etc.) but may also define the kinds of resources being described (books, Web pages, people, companies, etc.).
This document does not specify a vocabulary of descriptive
elements such as "author". Instead, it specifies the
mechanisms needed to define such elements, to define the
classes of resources they may be used with, to restrict
possible combinations of classes and relationships, and to
detect violations of those restrictions. Thus, this document
defines a schema specification language. More
succinctly, the RDF Schema mechanism provides a basic
type system for use in RDF models. It defines
resources and properties such as rdfs:Class
and
rdfs:subClassOf
that are used in specifying
application-specific schemas.
The typing system is specified in terms of the basic RDF data model - as resources and properties. Thus, the resources constituting this typing system become part of the RDF model of any description that uses them. The schema specification language is a declarative representation language influenced by ideas from knowledge representation (e.g., semantic nets, frames, predicate logic) as well as database schema specification languages (e.g. NIAM) and graph data models. The RDF schema specification language is less expressive, but much simpler to implement, than full predicate calculus languages such as CycL [CycL] and KIF [KIF].
RDF and the RDF Schema language were also based on metadata research in the Digital Library community. In particular, RDF adopts a modular approach to metadata that can be considered an implementation of the Warwick Framework [WF]. RDF represents an evolution of the Warwick Framework model in that the Warwick Framework allowed each metadata vocabulary to be represented in a different syntax. In RDF, all vocabularies are expressed within a single well defined model. This allows for a finer grained mixing of machine-processable vocabularies, and addresses the need [EXTWEB] to create metadata in which statements can draw upon multiple vocabularies that are managed in a decentralized fashion by independent communities of expertise.
The RDF Schema Specification provides a machine-understandable system for defining schemas for descriptive vocabularies like the Dublin Core. It allows designers to specify classes of resource types and properties to convey descriptions of those classes, relationships between those properties and classes, and constraints on the allowed combinations of classes, properties, and values.
RDF Schemas might be contrasted with XML Document Type Definitions (DTDs) [XML] and XML Schemas [XMLSCHEMA]. Unlike an XML DTD or Schema, which gives specific constraints on the structure of an XML document, an RDF Schema provides information about the interpretation of the statements given in an RDF data model. While an XML Schema can be used to validate the syntax of an RDF/XML expression, a syntactic schema alone is not sufficient for RDF purposes. RDF Schemas may also specify constraints that should be followed by these data models. @@TODO:XML_AND_RDF_UPDATE Future work on RDF Schema and XML Schema might enable the simple combination of syntactic and semantic rules from both [SCHEMA-ARCH].
@@TODO:DATATYPES This RDF Schema specification has intentionally left unspecified a set of primitive datatypes. As RDF uses XML for its interchange encoding, the work on data typing in XML [XMLDATATYPES] itself should be the foundation for such a capability.
An RDF Schema is expressed by the data model described in the RDF Model and Syntax [RDFMS] specification. The schema description language is simply a set of resources and properties defined by the RDF Schema Specification and implicitly part of every RDF model using the RDF schema machinery.
This document specifies the RDF Schema mechanism as a set of RDF resources (including classes and properties), and constraints on their relationships. The abstract RDF Schema core vocabulary can be used to make RDF statements defining and describing application-specific vocabularies such as the Dublin Core Element Set.
The RDF Schema defined in this specification is a collection
of RDF resources that can be used to describe properties of
other RDF resources (including properties) which define
application-specific RDF vocabularies. The core schema
vocabulary is defined in a namespace informally called
'rdfs
' here, and identified by the URI reference
http://www.w3.org/2000/01/rdf-schema#
. This
specification also uses the prefix 'rdf
' to
refer to the core RDF namespace
http://www.w3.org/1999/02/22-rdf-syntax-ns#
.
As described in the RDF Model and Syntax specification [RDFMS], resources may be instances of
one or more classes; this is indicated with the
rdf:type
property. Classes themselves are often
organized in a hierarchical fashion, for example a class
Dog
might be considered a subclass of
Mammal
which is a subclass of
Animal
, meaning that any resource which is of
rdf:type
Dog
is also considered to
be of rdf:type
Animal
. This
specification describes a property,
rdfs:subClassOf
, to denote such relationships
between classes.
The RDF Schema type system is similar to the type systems of
object-oriented programming languages such as Java. However,
RDF differs from many such systems in that instead of
defining a class in terms of the properties its instances may
have, an RDF schema will define properties in terms of the
classes of resource to which they apply. This is the role of
the rdfs:domain
and rdfs:range
constraints described in Section
3. For example, we could define the author
property to have a domain of Book
and a range of
Literal
, whereas a classical OO system might
typically define a class Book
with an attribute
called author
of type Literal
. One
benefit of the RDF property-centric approach is that it is
very easy for anyone to say anything they want about existing
resources, which is one of the architectural principles of
the Web [BERNERS-LEE98].
This specification anticipates the development of a set of
classes corresponding to a set of datatypes. This
specification does not define any specific datatypes, but
does note that datatypes may be used as the value of the
rdfs:range
property.
rdf:type
property of that resource whose
value is the resource defining the containing class. (These
properties are shown as arcs in the directed labelled graph
representation in figure 2). The RDF resources depicted in
figure 1 are described either in the remainder of this
specification, or in the RDF Model and Syntax specification.

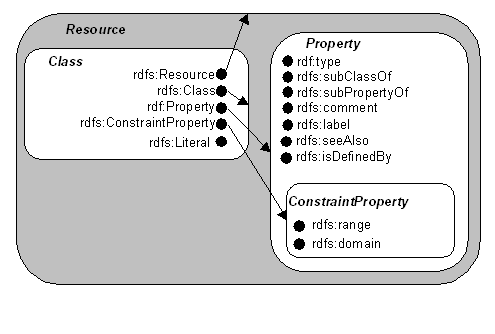

Figure 1: Classes and Resources as Sets and
Elements

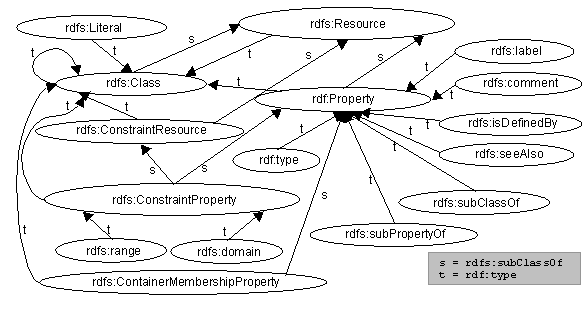

Figure 2 shows the same information about the class
hierarchy as in figure 1, but does so using a "nodes and
arcs" graph representation of the RDF data model. If one
class is a subset of another, then there is an
rdfs:subClassOf
arc from the node representing
the first class to the node representing the second.
Similarly, if a resource is an instance of a class, then
there is an rdf:type
arc from the resource to
the node representing the class. Not all such arcs are shown.
We only show the arc to the most tightly encompassing class,
and rely on the transitivity of the
rdfs:subClassOf
relation to provide the rest.
Figure 2: Class Hierarchy for the RDF Schema
(@@todo: this diagram is an update of the old image; the management of images
for the spec needs more thought before we publish)
The following resources are the core classes that are defined as part of the RDF Schema vocabulary. Every RDF model that draws upon the RDF Schema namespace (implicitly) includes these.
All things being described by RDF expressions are called
resources, and are considered to be instances of the
class rdfs:Resource
. The RDF class
rdfs:Resource
represents the set called
'Resources' in the formal model for RDF presented in section
5 of the Model and Syntax specification [RDFMS].
rdf:Property
represents the subset of RDF
resources that are properties, i.e., all the elements of the
set introduced as 'Properties' in section 5 of the Model and
Syntax specification [RDFMS].
This corresponds to the generic concept of a Type or
Category, similar to the notion of a Class in
object-oriented programming languages such as Java. When a
schema defines a new class, the resource representing that
class must have an rdf:type
property whose value
is the resource rdfs:Class
. RDF classes can be
defined to represent almost anything, such as Web pages,
people, document types, databases or abstract concepts.
Every RDF model which uses the schema mechanism also
(implicitly) includes the following core properties. These
are instances of the rdf:Property
class and
provide a mechanism for expressing relationships between
classes and their instances or superclasses.
This indicates that a resource is a member of a class, and
thus has all the characteristics that are to be expected of a
member of that class. When a resource has an
rdf:type
property whose value is some specific
class, we say that the resource is an instance of
the specified class. The value of an rdf:type
property for some resource is another resource which must be
an instance of rdfs:Class
. The resource known as
rdfs:Class
is itself a resource of
rdf:type
rdfs:Class
. Individual
classes (for example, 'Dog') will always have an
rdf:type
property whose value is
rdfs:Class
(or some subclass of
rdfs:Class
, as described in section 2.3.2). A
resource may be an instance of more than one class.
This property specifies a subset/superset relation between
classes. The rdfs:subClassOf
property is
transitive. If class A is a subclass of some broader class B,
and B is a subclass of C, then A is also implicitly a
subclass of C. Consequently, resources that are instances of
class A will also be instances of C, since A is a sub-set of
both B and C. Only instances of rdfs:Class
can
have the rdfs:subClassOf
property and the
property value is always of rdf:type
rdfs:Class
. A class may be a subclass of more
than one class.
A class can never be declared to be a subclass of itself, nor of any of its own subclasses. Note that this constraint is not expressible using the RDF Schema constraint facilities provided below, and so does not appear in the RDF version of this specification given in Appendix A.

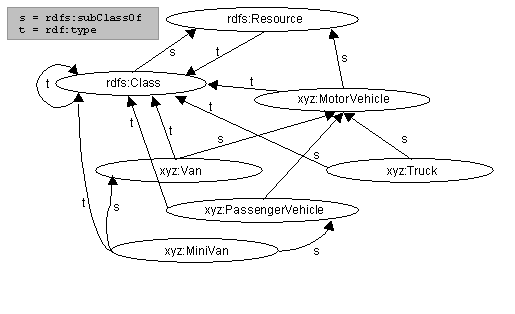

This is a very simple example that expresses the following
class hierarchy. We first define a class
MotorVehicle
. We then define three subclasses of
MotorVehicle
, namely
PassengerVehicle
, Truck
and
Van
. We then define a class Minivan
which is a subclass of both Van
and
PassengerVehicle
.
The RDF/XML shown here uses the basic RDF syntax defined in section 2.2.1 of the Model and Syntax specification [RDFMS]. abbreviation mechanism provided by the RDF serialization syntax.
|
The property rdfs:subPropertyOf
is an instance
of rdf:Property
that is used to specify that one
property is a specialization of another. A property may be a
specialization of zero, one or more properties. If some
property P2 is a subPropertyOf
another more
general property P1, and if a resource A has a P2 property
with a value B, this implies that the resource A also has a
P1 property with value B.
Sub-property hierarchies can be used to express hierarchies
of range and domain constraints. All RDF Schema
rdfs:range
and rdfs:domain
constraints that apply to an RDF property also apply to each
of its sub-properties.
A property can never be declared to be a subproperty of itself, nor of any of its own subproperties. Note that this constraint is not expressible using the RDF Schema constraint facilities provided below, and so does not appear in the RDF version of this specification given in Appendix A.
If the property biologicalFather
is a
subproperty of the broader property
biologicalParent
, and if Fred is the
biologicalFather
of John, then it is implied
that Fred is also the biologicalParent
of John.
|
The property rdfs:seeAlso
specifies a resource
that might provide additional information about the subject
resource. This property may be specialized using
rdfs:subPropertyOf
to more precisely indicate
the nature of the information the object resource has about
the subject resource. The object and the subject resources
are constrained only to be
instances of the class rdfs:Resource
.
The property rdfs:isDefinedBy
is a subproperty
of rdfs:seeAlso
, and indicates the resource
defining the subject resource. As with
rdf:seeAlso
, this property can be applied to any
instance of rdfs:Resource
and may have as its
value any rdfs:Resource
.
The most common anticipated usage is to identify an RDF schema, given a name for one of the properties or classes defined by that schema. Although XML namespace declarations will typically provide the URI where RDF vocabulary resources are defined, there are cases where additional information is required.
For example, constructs such as
<rdfs:subPropertyOf
rdf:resource="http://purl.org/dc/elements/1.0/Creator"/>
do not indicate the URI of the schema that includes the
vocabulary item Creator
(i.e.,
http://purl.org/dc/elements/1.0/
).
In such cases, the rdfs:isDefinedBy
property can
be used to explicitly represent that information. This
approach will also work when the URIs of the namespace and
its components have no obvious relationship, as would be the
case if they were identified using schemes such as GUIDs or
MD-5 hashes.

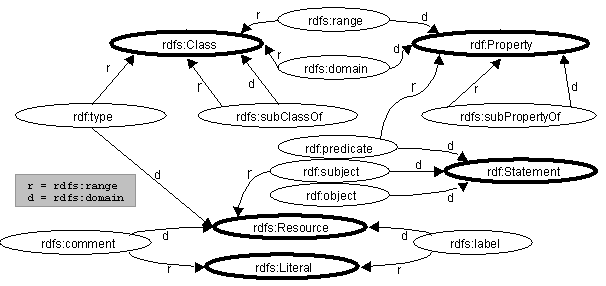

This specification introduces an RDF vocabulary for making statements about constraints on the use of properties and classes in RDF data. For example, an RDF schema might describe limitations on the types of values that are valid for some property, or on the classes to which it makes sense to ascribe such properties.
RDF Schema provides a mechanism for describing such
constraints, but does not say whether or how an application
must process the constraint information. For example, while
an RDF schema can assert that an author
property
is used to indicate resources that are members of the class
Person
, it does not say whether or how an
application should act in processing that class information.
We expect that different applications will use these
constraints in different ways - e.g., a validator will look
for errors, an interactive editor might suggest legal values,
and a reasoning application might infer the class and then
announce any inconsistencies.
RDF schemas can express constraints that relate vocabulary
items from multiple independently developed schemas. Since
URI references are used to identify classes and properties,
it is possible to create new properties whose
domain
or range
constraints
reference classes defined in another namespace.
The following constraints are specified in RDF Schema 1.0:
rdfs:domain
and rdfs:range
constraints on property usage, plus any further constraints defined using the
rdfs:ConstraintResource
extensibility mechanism.
Different applications may exhibit different behaviors when
dealing with RDF constraints.
Some examples of constraints include:
author
property might express that the value
of an author
property must be a resource of
class Person
.
author
property could only
originate from a resource that was an instance of class
Book
.
This specification does not attempt to enumerate every possible form of constraint applicable to RDF vocabulary description. Instead, some basic constraint mechanisms are defined here, accompanied by an extension facility to allow for the subsequent additions of new types of constraint.
Although the RDF data model does not allow for explicit
properties (such as an rdf:type
property) to be
ascribed to Literals (atomic values), we nevertheless
consider these entities to be members of classes (e.g., the
string "John Smith" is considered to be a member of the class
rdfs:Literal
.)
Note: We expect future work in RDF and XML data-typing to provide clarifications in this area.
This resource defines a subclass of
rdfs:Resource
whose instances are RDF schema
constructs involved in the expression of constraints. The
purpose of this class is to provide a mechanism that allows
RDF processors to assess their ability to use the constraint
information associated with an RDF model. Since this
specification does not provide a mechanism for the dynamic
discovery of new forms of constraint, an RDF Schema 1.0
processor encountering previously unknown instances of
rdfs:ConstraintResource
can be sure that it is
unqualified to determine the meaning of those constraints.
This resource defines a subclass of
rdf:Property
, all of whose instances are
properties used to specify constraints. This class is a
subclass of rdfs:ConstraintResource
and
corresponds to the subset of that class representing
properties. Both rdfs:domain
and
rdfs:range
are instances of
rdfs:ConstraintProperty
.
Note that the rdfs:domain
and
rdfs:range
constraints that apply to a property
may be specified indirectly, via sub-property hierarchies.
An instance of ConstraintProperty
that is used
to indicate the class(es) that the values of a property must
be members of. The value of a range
property is
always a Class
. Range constraints are only
applied to properties.
The rdfs:domain
of rdfs:range
is
the class rdf:Property
. This indicates that the
range
property applies to resources that are
themselves properties.
The rdfs:range
of rdfs:range
is the
class rdfs:Class
. This indicates that any
resource that is the value of a range property will be a
class.
An instance of ConstraintProperty
that is used
to indicate the class(es) on whose members some specified property can
be used.
The rdfs:domain
of rdfs:domain
is
the class rdf:Property
. This indicates that the
domain property is used on resources that are properties.
The rdfs:range
of rdfs:domain
is
the class rdfs:Class
. This indicates that any
resource that is the value of a domain property will be a
class.
The RDF Schema uses the constraint properties to constrain
how its own properties can be used. These constraints are
shown below in figure 4. Nodes with
bold outlines are instances of
rdfs:Class
.
Figure 3: Constraints in the RDF Schema
Continuing with our earlier example of
MotorVehicle
, in this example, we define two
properties : registeredTo
and
rearSeatLegRoom
. The registeredTo
property is applicable to any MotorVehicle
and
its value is a Person
(defined in the examples
below). For the sake of this example,
rearSeatLegRoom
only applies to
Minivan
s and PassengerVehicle
s. The
value is a Number
(we anticipate that some
concept like this will be provided by future work on data
types), which is the number of centimeters of rear seat
legroom.
|
The RDF Schema specification builds upon the foundations provided by XML and by the RDF Model and Syntax. It provides some additional facilities to support the evolution both of individual RDF vocabularies, and of the core RDF Schema specification vocabulary introduced in this document.
The Resource Description Framework is intended to be flexible and easily extensible; this suggests that a great variety of schemas will be created and that new and improved versions of these schemas will be a common occurrence on the Web.
The phrase 'RDF vocabulary' is used here to refer to those resources which evolve over time; 'RDF schema' is used to denote those resources which constitute the particular (unchanging) versions of an RDF vocabulary at any point in time. Thus we might talk about the evolution of the Dublin Core vocabulary. Each version of the Dublin Core vocabulary would be a different RDF schema, and would have a corresponding RDF model and concrete syntactic representation.
RDF uses the XML Namespace facility [XMLNS] to identify the schema in which the properties and classes are defined. Since changing the logical structure of a schema risks breaking other RDF models which depend on that schema, this specification recommends that a new namespace URI should be declared whenever an RDF schema is changed.
In effect, changing the RDF statements which constitute a schema creates a new one; new schema namespaces should have their own URI to avoid ambiguity. Since an RDF Schema URI unambiguously identifies a single version of a schema, software that uses or manages RDF (eg., caches) should be able to safely store copies of RDF schema models for an indefinite period. The problems of RDF schema evolution share many characteristics with XML DTD version management and the general problem of Web resource versioning. A general approach to these issues is beyond the scope of this specification.
Since each RDF schema has its own unchanging URI, these can be used to construct unique URI references for the resources defined in a schema. This is achieved by combining the local identifier for a resource with the URI associated with that schema namespace. The XML representation of RDF uses the XML namespace mechanism for associating elements and attributes with URI references for each vocabulary item used.
The resources defined in RDF schemas are themselves Web
resources, and can be described in other RDF schemas. This
principle provides the basic mechanism for RDF vocabulary
evolution. This specification does not attempt to provide a
full framework for expressing mappings between schemas; it
does however provide the rdfs:subClassOf
and
rdfs:subPropertyOf
properties. The ability to
express specialization relationships between classes
(subClassOf
) and between properties
(subPropertyOf
) provides a simple mechanism for
making statements about how such resources map to their
predecessors.
There are many scenarios for which these simple mechanisms are not adequate; a more comprehensive schema mapping mechanism for RDF may be developed in future W3C Activity.
A schema representing version 1.0 of some vocabulary might
define classes corresponding to a number of vehicle types.
The schema for version 2.0 of this vocabulary constitutes a
different Web resource. If the new schema defines for example
a class 'Van' whose members are a subset of the members of
the class 'Van' in version 1.0, the
rdfs:subClassOf
property can be used to state
that all instances of V2:Van
are also instances
of V1:Van
.
Where the vocabulary defines properties, the same approach
can be taken, using rdfs:subPropertyOf
to make
statements about relationships between properties defined in
successive versions of an RDF vocabulary.
This specification defines a subclass of resources known as
'constraint resources' (section 3.1).
This is provided to allow for the addition of new ways of
expressing RDF constraints. Future extensions to the Resource
Description Framework may introduce new resources that are
instances of the rdfs:ConstraintResource
class.
It is necessary to anticipate RDF content which draws upon
properties or classes defined using constraints other than
those available in this version of RDF. As yet unknown
constraints may contribute to a more expressive framework for
specifying RDF constraints.
RDF agents unfamiliar with the semantics of unknown instances
of rdfs:ConstraintResource
may therefore lack
the knowledge to evaluate constraint satisfaction when
vocabulary items are defined using those unknown constraints.
Since RDF itself may not represent declaratively the full
meaning of these constraint resources, the acquisition of RDF
statements about a new ConstraintResource
may
not provide enough information to enable its use. For
example, when encountering a previously unknown constraint
property type called RDF3:mysteryConstraint
we
may learn from a schema that it has a range of
rdfs:Class
and a domain of
rdf:Property
. The range and domain constraints
if encountered alone would be enough to tell us how to
legally use RDF3:mysteryConstraint
, but they do
not tell us anything about the nature of the constraint
expressed when it is used in that fashion.
The rdfs:ConstraintResource
construct is
provided here as a simple future-proofing mechanism, and
addresses some of the issues discussed at greater length in
the Extensible Web Languages W3C NOTE [EXTWEB]. By flagging new forms of constraint
as members of this class, we indicate that they are intended
to express RDF Schema language constraints whose semantics
must be understood for constraint checking to be possible.
Membership in the rdfs:ConstraintResource
class
suggests, but does not imply, that those semantics may be
inexpressible in a declarative form. Since the expressive
facilities available within RDF for doing so are also likely
to evolve, this distinction itself presents a moving target.
All RDF agents will have implicit knowledge of certain
constraints which may or may not be capable of representation
within (some version of) RDF. It may be the case that some
future RDF specification provides facilities which will allow
RDF agents to comprehend declarative specifications for
as-yet uninvented constraint properties. In such a case,
these agents could safely comprehend (some) previously
unencountered forms of constraint. By providing the basic
rdfs:ConstraintResource
class, we anticipate
such developments. All RDF agents written solely to this
specification will appreciate their ignorance of the meaning
of unknown instances of that class, since this specification
provides no mechanism for learning about such constraints
through the interpretation of RDF statements. Future
specifications, should they offer such facilities, could also
define subclasses of ConstraintProperty
to
classify new constructs according to whether or not they had
inexpressible semantics.
The following properties are provided to support simple
documentation and user-interface related annotations within
RDF schemas. Multilingual documentation of schemas is
supported at the syntactic level through use of the
xml:lang
language tagging facility. Since RDF
schemas are expressed within the RDF data model, vocabularies
defined in other namespaces may be used to provide richer
documentation.
This is used to provide a human-readable description of a resource.
This is used to provide a human-readable version of a resource name.
The RDF Model and Syntax specification [RDFMS] introduces the base concepts of RDF.
A number of these are defined formally in the RDF Schema
whose namespace URI is
http://www.w3.org/1999/02/22-rdf-syntax-ns#
. In
addition, some further concepts are introduced in the RDF
Model and Syntax specification but do not appear in the RDF
Model and Syntax schema. These formally belong in the Schema
namespace (for example, rdfs:Literal
and
rdfs:Resource
). In cases where an RDF resource
belongs to the
http://www.w3.org/1999/02/22-rdf-syntax-ns#
namespace, this document can provide only a convenience copy
of that resource's definition.
Appendix A provides an RDF/XML schema
for the RDF resources defined in this document, including RDF
Model concepts such as Literal
and
Resource
. The RDF/XML Schema in Appendix A also
makes RDF statements about resources defined in the RDF Model
and Syntax namespace. These have the status of
annotations rather than definitions.
This corresponds to the set called the 'Literals' in the formal model for RDF presented in section 5 of the Model and Syntax specification [RDFMS]. Atomic values such as textual strings are examples of RDF literals.
This corresponds to the set called the 'Statement' in the formal model for RDF presented in section 5 of the Model and Syntax specification [RDFMS].
This corresponds to the property called the 'subject' in the
formal model for RDF presented in section 5 of the Model and
Syntax specification [RDFMS]. Its
rdfs:domain
is rdf:Statement
and
rdfs:range
is rdfs:Resource
. This
is used to specify the resource described by a reified
statement.
This corresponds to the property called the 'predicate' in
the formal model for RDF presented in section 5 of the Model
and Syntax specification [RDFMS]. Its
rdfs:domain
is rdf:Statement
and
rdfs:range
is rdf:Property
. This is
used to identify the property used in the modeled statement.
This corresponds to the property called the 'object' in the
formal model for RDF presented in section 5 of the Model and
Syntax specification [RDFMS]. Its
rdfs:domain is rdf:Statement
. This is used to
identify the property value in the modeled statement.
This class is used to represent the Container classes
described in section 3 of the Model and Syntax specification
[RDFMS]. It is an instance of
rdfs:Class
and rdfs:subClassOf
of
rdfs:Resource
.
This corresponds to the class called 'Bag' in the formal
model for RDF presented in section 5 of the Model and Syntax
specification [RDFMS]. It is an instance
of rdfs:Class
and rdfs:subClassOf
rdfs:Container
.
This corresponds to the class called 'Sequence' in the formal
model for RDF presented in section 5 of the Model and Syntax
specification [RDFMS]. It is an instance
of rdfs:Class
and rdfs:subClassOf
rdfs:Container
.
This corresponds to the class called 'Alternative' in the
formal model for RDF presented in section 5 of the Model and
Syntax specification [RDFMS]. It is an
instance of rdfs:Class
and
rdfs:subClassOf
rdfs:Container
.
This class has as members the properties _1, _2, _3
...
used to indicate container membership, as
described in section 3 of the Model and Syntax specification
[RDFMS]. This is a
rdfs:subClassOf
rdf:Property
.
This corresponds to the 'value' property described in section 2.3 of the Model and Syntax specification [RDFMS].
This section gives some brief examples of using the RDF Schema machinery to define classes and properties for some possible applications. Note that some of these examples use the abbreviated RDF syntax (mentioned in 2.3.2.1 above) to express class membership.
In this example, Person
is a class with a
corresponding human-readable description of "The class of
people". Animal
is a class presumed to be
defined in another schema. All persons are animals, so we
declare that Person
is a subclass of
Animal
. A Person may have an age property. The
value of age is an integer. A Person may also have an
ssn
("Social Security Number") property. The
value of ssn
is an integer
. A
Person's marital status is one of {Single, Married, Divorced,
Widowed}. This is achieved through use of the
rdfs:range
constraint: we define both a
maritalStatus
property and a class
MaritalStatus
(adopting the convention of using
lower case letters to begin the names of properties, and
capitals for classes). We then use rdfs:range
to
state that a maritalStatus
property only 'makes
sense' when it has a value which is an instance of the class
MaritalStatus
. The schema then defines a number
of instances of this class. Whether resources declared to be
of type MaritalStatus
in another graph are
trusted is an application level decision.
|
In this example we sketch an outline of an RDF vocabulary for
use with searchable Internet services.
SearchQuery
is declared to be a class. Every
SearchQuery
can have both a
queryString
whose value is an
rdfs:Literal
and a queryService
whose value is a SearchService
. A
SearchService
is a subclass of
InternetService
(which is defined elsewhere). A
SearchQuery
has some number of
result
properties (whose value is
SearchResult
). Each SearchResult
has a title
(value is a
rdfs:Literal
), a rating
and of
course, the page itself.
The modularity of RDF allows other vocabularies to be combined with simple schemas such as this to characterize more fully the properties of networked resources. For example, Dublin Core or a library-based classification vocabulary might be used to describe the subject coverage or collections-level properties for each SearchService, while an independently managed "search protocols" vocabulary could be used to describe connection details for (say) LDAP, WHOIS++ or Z39.50 search interfaces offered by the service. By allowing the creation of statements which draw upon specialized schemas from various domains, RDF makes it possible for diverse communities of expertise to contribute to a decentralized web of machine-readable vocabularies.
|
Note: This document was prepared and approved for publication by the W3C RDF Schema Working Group (WG). WG approval of this document does not necessarily imply that all WG members voted for its approval.
David Singer of IBM was the chair of the group throughout most of the development of this specification; we thank David for his efforts and thank IBM for supporting him and us in this endeavor. Particular thanks are also due to Andrew Layman for his editorial work on earlier versions of this specification. Thanks are also due to Ron Daniel and Marja-Riitta Koivunen for their work on the design of the diagrams included in this specification.
The working group membership has included:
Nick Arnett (Verity), Dan Brickley (ILRT / University of Bristol), Walter Chang (Adobe), Sailesh Chutani (Oracle), Ron Daniel (DATAFUSION), Charles Frankston (Microsoft), Joe Lapp (webMethods Inc.), Patrick Gannon (CommerceNet), RV Guha (Epinions, previously of Netscape Communications), Tom Hill (Apple Computer), Renato Iannella (DSTC), Sandeep Jain (Oracle), Kevin Jones, (InterMind), Emiko Kezuka (Digital Vision Laboratories), Ora Lassila (Nokia Research Center), Andrew Layman (Microsoft), John McCarthy (Lawrence Berkeley National Laboratory), Michael Mealling (Network Solutions), Norbert Mikula (DataChannel), Eric Miller (OCLC), Frank Olken (Lawrence Berkeley National Laboratory), Sri Raghavan (Digital/Compaq), Lisa Rein (webMethods Inc.), Tsuyoshi Sakata (Digital Vision Laboratories), Leon Shklar (Pencom Web Works), David Singer (IBM), Wei (William) Song (SISU), Neel Sundaresan (IBM), Ralph Swick (W3C), Naohiko Uramoto (IBM), Charles Wicksteed (Reuters Ltd.), Misha Wolf (Reuters Ltd.)
Not all of the people listed above have been members throughout the entire duration of the working group, but all have contributed to the evolution of this document.
An RDF specification of the core RDF Schema model is given here in RDF/XML serialization syntax. Please note that the namespace URI for the RDF Schema Specification will change in future versions of this specification if the schema changes. This RDF schema includes annotations describing RDF resources defined formally in the RDF Model and Syntax specification, as well as definitions for new resources belonging to the RDF Schema namespace.
Note that there are some constraints (such as those given in 2.3.2 above) on certain RDF Schema resources which are themselves not fully expressible using the RDF Schema specification.
|
To promote confidence and stability, W3C has instituted the following publication policies:
