This document provides techniques for implementing the
checkpoints defined in "User Agent Accessibility Guidelines 1.0".
These techniques address the accessibility of
user interfaces, content rendering, program interfaces, and
languages such as the Hypertext Markup Language
(HTML),
Cascading Style Sheets
(CSS) and
the Synchronized Multimedia Integration Language
(SMIL).
This document is part of a series of accessibility documents
published by the Web Accessibility
Initiative (WAI)
of the World Wide Web Consortium (W3C).
This section describes the status of this document at the time
of its publication. Other documents may supersede this document. The
latest status of this document series is maintained at the W3C.
This is a W3C Working Draft for review by W3C Members and other
interested parties. It is a draft document and may be updated,
replaced or obsoleted by other documents at any time. It is
inappropriate to use W3C Working Drafts as reference material or to
cite them as other than "work in progress". This is work in
progress and does not imply endorsement by, or the consensus of,
either W3C or participants in the WAI User Agent (UA) Working Group.
While User Agent Accessibility Guidelines 1.0 strives to be a stable document (as a W3C
Recommendation), the current document is expected to evolve as
technologies change and content developers discover more effective
techniques for designing accessible Web sites and pages.
Please send comments about this document to the public mailing
list w3c-wai-ua@w3.org
(public
archives).
This document has been produced as part of the Web Accessibility Initiative. The
goals of the User Agent Working
Group are described in the charter. A
list of the Working Group
participants is available.
A list of current W3C Recommendations and other technical documents
can be found at http://www.w3.org/TR.
This document complements the
"User Agent Accessibility Guidelines 1.0". Although it reproduces the guidelines and checkpoints from
that document, it is not a normative reference; the techniques introduced here
are not required for conformance to the Guidelines. The document contains
suggested implementation techniques, examples, and references to other sources
of information as an aid to developers seeking to implement the Authoring Tool
Accessibility Guidelines. These techniques are not necessarily the only way of
satisfying the checkpoint, nor are they necessarily a definitive set of
requirements for satisfying a checkpoint. It is expected to be updated in
response to queries raised by implementors of the Guidelines, for example to
cover new technologies. Suggestions for additional techniques are welcome and
should be sent to the Working Group mailing list at w3c-wai-ua@w3.org. The archive of that
list at http://lists.w3.org/Archives/Public/w3c-wai-ua is also available.
"User Agent Accessibility Guidelines 1.0" is part of a series of accessibility guidelines
published by the Web Accessibility
Initiative (WAI)
. The series also includes "Web Content Accessibility Guidelines 1.0"
[WAI-WEBCONTENT] and "Authoring Tool Accessibility Guidelines 1.0"
[WAI-AUTOOLS].
The following editorial conventions are used throughout
this document:
- HTML element
names are in uppercase letters (e.g., H1, BLOCKQUOTE, TABLE, etc.)
- HTML attribute
names are quoted in lowercase letters
(e.g., "alt", "title", "class", etc.)
Each checkpoint in this document is assigned a priority
that indicates its importance for users with disabilities.
- [Priority 1]
- This checkpoint must be satisfied by user agents,
otherwise one or more groups of users with disabilities will
find it impossible to access the Web. Satisfying
this checkpoint is a basic requirement for enabling
some people to access the Web.
- [Priority 2]
- This checkpoint should be satisfied by user
agents, otherwise one or more groups of users
with disabilities
will find it difficult
to access the Web. Satisfying this checkpoint
will remove significant barriers to Web access for some
people.
- [Priority 3]
- This checkpoint may be satisfied by user agents
to make it easier for one or more groups of users
with disabilities to
access information. Satisfying this checkpoint will improve
access to the Web for some people.
This section lists each checkpoint of the Guidelines
along with some possible techniques for satisfying it.
Each checkpoint also links to larger accessibility topics
where appropriate.
Checkpoints for user interface accessibility:
- 1.1 Ensure that every functionality available through the user interface is also available through every input device API supported by the user agent. Excluded from this requirement are functionalities that are part of the input device API itself (e.g., text input for the keyboard API, pointer motion for the pointer API, etc.) [Priority 1]
-
Note. The device-independence
required by this checkpoint applies to functionalities
described by the other checkpoints in this document
(e.g., installation, documentation,
user agent user interface
configuration, etc.).
This checkpoint does not require user agents to use
all operating system input device APIs, only to make
the software accessible through those they do use.
Techniques:
-
Operating system and application frameworks provide standard
mechanisms for controlling application navigation for
standard input devices. In the case of Windows, OS/2, the X Windows
System, and MacOS, the window manger provides GUI applications
with this information through the messaging queue. In the case of
non-GUI applications, the compiler run-time libraries provide standard
mechanisms for receiving keyboard input in the case of desktop
operating systems. Should you use an application framework such as the
Microsoft Foundation Classes, the framework used must support the same
standard input mechanisms.
When implementing custom GUI controls do so using the standard
input mechanisms defined above. Examples of not using the
standard input devices are:
- communicating directly with the device. For instance,
in Windows, do not open the
keyboard device driver directly. This may circumvent system messaging.
It is often the case that the windowing system needs to change
the form and method for processing standard input mechanisms for proper
application coexistence within the user interface framework.
- implementing your own input queue handler. Devices for
mobility access, such as those that use serial
keys, use standard system facilities
for simulating keyboard and mouse input to all graphical applications.
Example facilities for generating these input device events are the Journal
Playback Hooks in both OS/2 and Windows. These hooks feed the standard
system message queues in these respective windowing systems. To the
application, the resulting keyboard and mouse input messages are treated as
standard input and output device messages generated by the user's actions.
If you implement an interface where the user selects text
then issues a command related to it (e.g., select text then
create a link using the selected text as content),
all operations related to the selection and
operation on the selected text must be done in a device-independent manner.
In the case of a desktop user agent this means that the user must be able to
perform these tasks using either keyboard or mouse.
- Ensure that focus may
be set in a device-independent manner.
- Ensure that software may be installed, uninstalled,
and updated in a device-independent manner.
- Ensure that software may be configured in a
a device-independent manner.
- 1.2 Use the standard input and output device APIs of the operating system. [Priority 1]
-
Do not bypass
the standard output APIs when rendering information
(e.g., for reasons of speed, efficiency, etc.).
For example, do not bypass standard APIs
to manipulate the memory associated
with rendered content, since
assistive technologies
monitor rendering through the APIs.
Techniques:
-
Operating system and application frameworks provide standard
mechanisms for using standard output devices. In the case of
common desktop operating systems such as Windows, OS/2, and MacOS,
standard API are provided for writing to the display and the
multimedia subsystems.
- Do not render text in the form of a bitmap before transferring to the
screen. Screen Readers intercept text drawing calls to create a text
representation of the screen, called an
offscreen model, which is read
to the user. Common operating system 2D graphics engines and drawing
libraries provide functions for drawing text to the screen. Examples
of this are the Graphics Device Interface (GDI) for Windows, Graphics
Programming Interface (GPI) for OS/2, and for the X Windows System or
Motif it is the X library (XLIB).
- Do not provide your own mechanism for generating pre-defined system sounds.
- When using a device do not use the device driver directly.
In the case of display drivers, screen
readers are designed to monitor what is drawn on the screen by hooking
drawing calls at different points in the of the drawing process. By
calling the display driver directly you may be drawing to the display
below the point at which a screen reader for the blind is intercepting
the drawing call.
- Do not draw directly to the video frame buffer. This circumvents
the interception point at which a screen reader hooks the display
calls.
- When writing textual information in a GUI operating system, use standard
text drawing APIs of an operating system. Text converted to offscreen
images or sequences of strokes cannot be intercepted as text drawing calls
at the graphics engine or display driver subsystem of a GUI. Legacy screen
reading solutions intercept these drawing calls before being transferred to
the display and use the text drawn to create a text model representation of
what you see on the screen. This "offscreen model" is used to speak GUI
text. If you do not use the standard text drawing APIs,
legacy screen reading systems will not be able to render it as
speech or Braille.
- Use operating system resources for rendering audio information. In
operating systems like Windows, a set of standard audio sound resources are
provided to support standard sounds such as alerts. These preset sounds
are used to activate SoundSentry visual queues when a problem
occurs; this benefits users with hearing disabilities. These queues may be
manifested by flashing the desktop, active caption bar, or active window.
It is important to use the standard mechanisms to generate audio
feedback so that operating system or special assistive technologies can add
additional functionality for the hearing disabled.
- Enhance the functionality of standard system controls to improve
accessibility where none is provided by responding to standard keyboard
input mechanisms. For example provide keyboard navigation to menus and
dialog box controls in the Apple Macintosh operating system. Another
example is the Java Foundation Classes, where internal frames do not provide
a keyboard mechanisms to give them focus. In this case you will need to
add keyboard activation through the standard keyboard activation facility
for Abstract Window Toolkit components.
- Use standard operating system resources for rendering audio
information. When doing so, do not take exclusive control of system
audio resources. This could prevent an assistive technology such as screen
reader from speaking if they use software text-to-speech conversion.
- 1.3 Ensure that the user can interact with all active elements in a device-independent manner. [Priority 1]
- For example, users who are blind or have physical
disabilities must be able to
activate text links, the links
in a client-side image map, and form controls
without a pointing device.
Note. This checkpoint is an important special case of
checkpoint 1.1.
Techniques:
-
Refer to checkpoint 1.1 and
checkpoint 1.5.
Users must be able to activate text links, form controls,
image maps, and other active elements with mouse or keyboard
or whatever input device is supported.
For client-side image maps:
- Render client-side image maps as text links
on user demand.
- If a text equivalent (specified
via "alt" or "title" in HTML) is available and
not null for the element (like INPUT or IMG in HTML) that has
an associated client-side map, indicate the presence of a map
in text (e.g., "Start
of map") plus the text equivalent and the number of areas in the
map. If the text equivalent is null, do not render the map or its areas.
-
For each AREA in the map, if a text equivalent ("alt" or "title") is
available and not null, render the text equivalent as a
link. Otherwise, render some text like "Map area" plus part or all of
the href value as a link. If alt "text" is null for an AREA, do not render
that AREA.
- In SMIL, image maps may be created with "anchor" elements
using the "href" attribute for the link. Refer to
"Accessibility Features of SMIL" [SMIL-ACCESS] for details.
-
When reading through the whole Web page, read the start of
the map's text equivalent
with the number of areas, but skip over the AREA links. To read and activate
the map areas, use keys that read and navigate link by link or element by
element.
Use the document object model to enable device independent
activation of elements:
- When implementing Document
Object Model specifications ([DOM1], [DOM2]), allow programmatic
activation of active elements,
whether they are links, links in an image map, or any DOM element
that can respond to an event causing a secondary action.
- In the "Document Object Model (DOM) Level 2 Specification"
[DOM2], all elements can be potentially active and it is helpful to
allow for activation of all DOM elements by an assistive technology. For
example, a DOM2 'focusin' event may result in the construction of a
pull-down menu by an attached JavaScript function. Providing a programmatic
mechanism of activating the 'focusin' function will allow users
to operate the user agent through speech. Each DOM element may have
more than one set of activation mechanisms based on the DOM event received
and it is helpful to enable an assistive technology to enumerate those
functions by description and to activate them. An example of this type of
functionality can be seen in the Java Accessibility API
[JAVAAPI]. This API provides
an an AccessibleAction Java interface. This interface provides a list of
actions and descriptions that can be used to describe and activate each
function selectively.
- 1.4 Ensure that every functionality available through the user interface is also available through the standard keyboard API. [Priority 1]
-
Note. This checkpoint is an important special case of
checkpoint 1.1. The comment about
low-level functionalities in checkpoint 1.1
applies to this checkpoint as well.
Refer also to checkpoint 10.8.
Techniques:
-
- Ensure that the user can trigger mouseover,
mouseout, click, etc. events from
the keyboard.
- Ensure that the user can use the keyboard (e.g.,
to navigate links sequentially).
- Ensure that the user can
use the graphical user interface menus from the keyboard.
- Ensure that the keyboard can be used to cut, copy, paste,
and drag.
- Ensure that the user can select text using the keyboard standards
for the platform.
- Allow the user to change the state of form controls using the keyboard.
- 1.5 Ensure that the user interface provides information through redundant output modes. [Priority 1]
-
Note.
For example, if a sound is used to indicate a change to the user,
provide that information as text and graphical information as well;
this will benefit users who are deaf or hard of hearing.
Refer also to checkpoint 5.4.
Techniques:
-
Proportional navigation bars provide orientation information
graphically, but the information
must be available (e.g., as text)
to users relying on synthesized speech or Braille output.
It is important to also support standard output notification of
sound such as notifications found in the Windows control panel for
sounds. Windows maps accessibility features to the event caused by
generation of these specific system sounds. Accessibility features
such as SoundSentry
will flash the screen, as appropriate, in
response to events that would cause these sounds to play. This enables
users with hearing disabilities to use the application.
- Do not forget to provide a text equivalent to voiced
messages. Make sure an auditory message also has a redundant visual
text message. For example, a message like "You've got mail" should also be
presented with icons or text.
- Do not preclude text presentation when providing auditory tutorials.
Tutorials that use speech to guide a user through the operation of the user
agent should also be available at the same time as
graphical representations.
Checkpoints for content accessibility:
- 2.1 Ensure that the user has access to all content, including equivalent alternatives for content. [Priority 1]
Techniques:
-
- 2.2 For presentations that require user interaction within a specified time interval, allow the user to configure the time interval (e.g., by allowing the user to pause and restart the presentation, to slow it down, etc.). [Priority 1]
Techniques:
-
-
Render time-dependent links instead as
a static list that occupies the same screen real estate.
Include (temporal) context in the list of links. For
example, provide the time at which the link appeared along
with a way to easily jump to that portion of the
presentation.
-
Provide easy-to-use controls (including both mouse and
keyboard commands) to allow users to pause the presentation
and advance and rewind by small and large time increments.
- Allow the user to navigate sequences of related links
that vary over time.
-
Provide a mode in which all active elements are highlighted
in some way and can be navigated sequentially. For example,
use a status bar to indicate the presence of active elements
and allow the user to navigate among them with the keyboard
or mouse to identify each element when the presentation is
moving and when it is paused.
- Allow the user to to stop and start the
flow of changes to content. Prompt the user for confirmation of
a pending change.
- 2.3 When the author has not supplied a text equivalent for content as required by the markup language, make available other author-supplied information about the content (e.g., object type, file name, etc.). [Priority 2]
Techniques:
-
Refer to techniques for
missing equivalent alternatives of content.
- 2.4 When a text equivalent for content is explicitly empty (i.e., an empty string), render nothing. [Priority 3]
Checkpoints for user interface accessibility:
- 2.5 If more than one equivalent alternative is available for content, allow the user to choose from among the alternatives. This includes the choice of viewing no alternatives. [Priority 1]
-
For example, if a multimedia presentation has several
captions
(or subtitles) available (e.g., with different
levels of detail, for different reading levels,
in different languages, etc.)
allow the user to choose from among them.
Techniques:
-
- Allow users to choose more than one equivalent. For
instance, users may wish to have captions in different
languages for multilingual audiences. Users may wish to use
both captions and auditory descriptions concurrently as well.
- Distinguish image links from
their long descriptions ("longdesc" in HTML).
- Allow users to received long description text,
according to their preference:
- always
- on request, with a brief signal should indicate its presence (e.g. a tone)
- on request, but without even that signal.
- Make information available with different levels of detail.
For example, for a voice-activated browser, offer two options for
equivalent alternatives to HTML images:
- Speak only "alt" text by default, but allow the user
to hear "longdesc" text on an image by image basis.
- Speak "alt" text and "longdesc" for all images.
- Make apparent through the user agent user interface which
auditory tracks are meant to be played mutually exclusively.
- Provide an interface which displays all available tracks,
with as much identifying information as the author has
provided, and allow users to choose which tracks are
rendered. For example, if the author has provided "alt" or
"title" for various tracks, use that information to construct
the list of tracks.
- Provide an interface which allows users to indicate their
preferred language separately for each kind of
equivalent. The selection can be based on user preferences in
either the user agent (cf., the Content-Language
entity-header field of RFC 2616 [RFC2616], section 14.12)
or the operating system.
Users with disabilities may need to choose the
language they are most familiar with in order to understand a
presentation which may not include all equivalent tracks in
all desired languages. In addition, international users may
prefer to hear the program audio in its original language
while reading captions in their first language, fulfilling
the function of subtitles or to improve foreign language
comprehension. In classrooms, teachers may wish to configure
the language of various multimedia elements to achieve
specific educational goals.

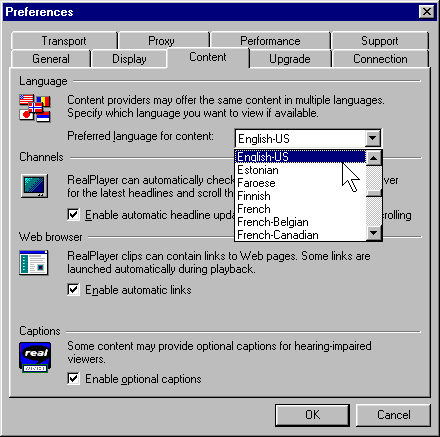

The following image illustrates
how users select preferred language for captions in
the Real Player.

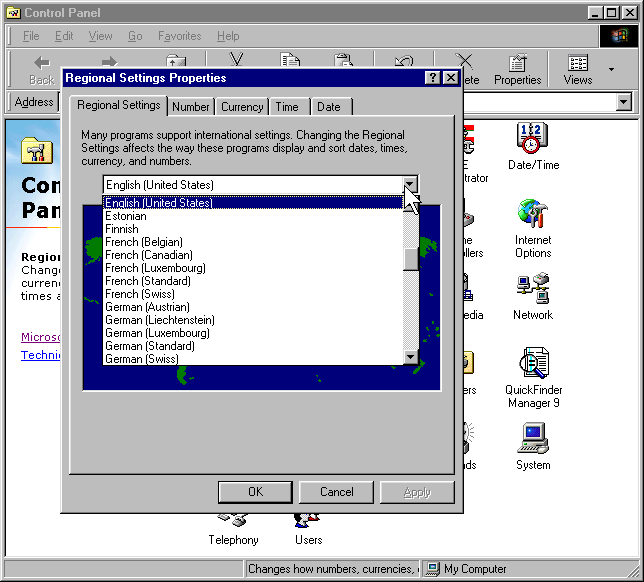

The next image illustrates how users
select preferred language in the Windows operating
system under properties for Regional Settings. This preference
could be inherited by the user agent.
- 2.6 Allow the user to specify that text transcripts, captions, and auditory descriptions be rendered at the same time as the associated auditory and visual tracks. [Priority 1]
- Note. Respect synchronization cues
during rendering.
Techniques:
-
It is important that
captions and
auditory descriptions
be rendered synchronously with the primary content. This ensures
that users with disabilities can use the primary and
equivalent content in combination. For example, if a hard-of-
hearing user is watching a video and reading captions, it is
important for the captions to be synchronized with the audio so
that the individual can use any residual hearing. For audio
description, it is crucial that the primary auditory track and
the auditory description track be kept in sync to avoid having
them both play at once, which would reduce the clarity of the
presentation.
-
User agents that play SMIL ([SMIL]) presentations should take
advantage of a variety of access features defined in SMIL
(refer to "Accessibility Features of SMIL" [SMIL-ACCESS]). A future version
of SMIL (known currently as SMIL "Boston") is in development
and additional access features may be available when this
specification becomes a W3C Recommendation.
As defined in SMIL 1.0, SMIL players should allow users to
turn captions on and off by implementing the test
attribute system-captions which takes the values "on" and
"off." For example, include in the player preferences a way
for users to indicate that they wish to view captions, when
available. SMIL files with captions available should use the
following syntax:
<textstream alt="English captions for My Favorite Movie"
system-captions="on"
src="closed-caps.txt"/>
In this case, when the user has requested captions, this
textstream should be rendered, and when they have not it
should not be rendered.
SMIL 1.0 does not provide a test attribute to configure auditory
descriptions. However, future versions of SMIL (including SMIL "Boston")
are expected to include such a test attribute. Should SMIL "Boston"
become a W3C Recommendation, developers should implement it
then. A test attribute to turn auditory descriptions on and off should be
implemented in parallel to the implementation of the 'system-captions'
attribute. Users should be able to indicate a preference for receiving
available auditory descriptions through the
standard preferences setting section of the
user agent user interface.
Another test attribute, 'system-overdub-or-captions'
in SMIL 1.0, allows
the user to choose between alternate language text or sound.
This attribute specifies whether subtitles or overdub should
be rendered for people who are watching a presentation where
the audio may be in a language they do not understand fluently.
This attribute can have two values: "overdub", which selects
for substitution of one voice track for another, and
"subtitle", which means that the user prefers the display of
subtitles. However, this attribute should not be used to
determine if users need captions. When both are
available, deaf users will prefer to view captions, which
contain additional information on music, sound effects, and
who is speaking, which are not included in subtitles since
those are intended for hearing people.
- User agents that play QuickTime movies should provide the
user with a way to turn on and off the different tracks
embedded in the movie. Authors may use these alternate tracks
to provide equivalent alternatives for use by people with
disabilities. The Apple QuickTime player currently provides
this feature through the menu item "Enable Tracks."
-
User agents that play Microsoft Windows Media Object
presentations should provide support for Synchronized Accessible Media
Interchange (SAMI), a protocol for creating and displaying caption
text synchronized with a multimedia presentation. Users should be
given a way to indicate their preference for viewing captions. In
addition, user agents which play Microsoft Windows Media Object
presentations should enable people to turn on and off other
equivalent alternatives, including auditory description and alternate
visual tracks.
-
Other video or animation formats should incorporate similar
features. At a minimum, users who are blind and users who are
deaf need to be able to turn on and off auditory description and
and captions. The interface to set these preferences must be
accessible. Information on how to author accessible tracks
should be included in documentation about the media player.
- 2.7 For author-identified but unsupported natural languages, allow the user to request notification of language changes in content. [Priority 3]
Techniques:
-
A user agent should treat content language as part of contextual
information. When the language changes, the user agent should either
render the content in the supported language or notify the user of the
language change (if configured for notification). Rendering could
involve speaking in the designated language in the case of an audio
browser or screen reader. If the language was not supported, the
language change notification could be spoken in the default language
by a screen reader or audio browser.
Language switching for blocks of content may be more helpful than
inline language switching. In some language combinations, less than a
few words long foreign phrases are often well-integrated in the
primary language (e.g., Japanese being the primary and English being
the secondary or quoted). In such situations, dynamic switching in
in-line level may make the reading sound unnatural, and possibly
harder to be understood.
Language information for HTML ("lang", "dir") and
the Extensible Markup Language (XML) ("xml:lang")
should be made available through the
Document Object Model (DOM)
([DOM1], [DOM2]).
User agents may announce language changes using style sheets to
generate text (refer to CSS 2 [CSS2] and XSLT [XSLT]) that
indicates the change of language. For instance, the user might choose
to hear "language:German" when the language changes to German and
"language:default" when it changes back. This may be implemented in
CSS 2 with the ':before'
and ':after' pseudo-elements ([CSS2], section 5.12.3)
For example, with the following definition in the stylesheet:
[lang|=es]:before { content: "start Spanish "; }
[lang|=es]:after { content: " end Spanish"; }
the following HTML example:
<P lang="es" class="Spanish">
<A href="foo_esp.html"
hreflang="es">Esta pagina en español</A></P>
might be spoken "start Spanish _Esta pagina en espanol_ end Spanish".
Refer also to
information on matching attributes and attribute values
useful for language matching in CSS 2 ([CSS2], section 5.8.1).
If users don't want to see or hear blocks
of content in another language, allow the user to suggest
hiding that content (e.g., with style sheets).
- Implement content negotiation so that users may
specify language preferences. Or allow the user to
choose a resource when several are available in different
languages.
- Use an appropriate glyph set when rendering visually.
- Use an appropriate voice set when rendering as speech.
- Render characters with the appropriate directionality.
Refer to the
"dir" attribute
and the BDO element in HTML 4.0
([HTML40], sections 8.2 and 8.2.4 respectively). Refer also
to the Unicode standard [UNICODE].
- A user agent may not be able to render all characters in a
document meaningfully, for instance, because the user agent lacks a
suitable font, a character has a value that may not be expressed in
the user agent's internal character encoding, etc. In this case,
section 5.4 of HTML 4.0 [HTML40]
recommends the following for undisplayable characters:
- Adopt a clearly visible (or audible),
but unobtrusive mechanism to alert the user of missing resources.
- If missing characters are presented using their numeric
representation, use the hexadecimal (not decimal) form since this is
the form used in character set standards.
- Refer to "Character Model for the World Wide Web"
[CHARMOD], which defines various aspects of a character
model for the World Wide Web. It contains basic definitions and
models, specifications to be used by other specifications or directly
by implementations, and explanatory material. In particular, early
uniform normalization, string identity matching, string indexing, and
conventions for URIs are addressed.
- For information on language codes, refer to [ISO639].
In addition to the techniques below, refer also to the section on
user control of style.
Checkpoints for content accessibility:
- 3.1 Allow the user to turn on and off rendering of background images. [Priority 1]
Techniques:
-
- 3.2 Allow the user to turn on and off rendering of background audio. [Priority 1]
Techniques:
-
- Allow the user to turn off background
audio through the user agent user interface.
- Authors sometimes specify background sounds with the "bgsound"
attribute. Note. This attribute is not
part of HTML 4.0 [HTML40].
- In CSS 2, background sounds may be turned on/off with the
'play-during' property ([CSS2], section 19.6).
- 3.3 Allow the user to turn on and off rendering of video. [Priority 1]
Techniques:
-
- Allow the user to turn off
video through the user agent user interface. Render a still image
in its place.
- Support the 'display' property in CSS.
- 3.4 Allow the user to turn on and off rendering of audio. [Priority 1]
Techniques:
-
- 3.5 Allow the user to turn on and off animated or blinking text. [Priority 1]
Techniques:
-
- Allow the user to turn off
animated or blinking text through the user agent user interface
(e.g., by hitting the ESCAPE key to stop animations).
Render static text in place of blinking text.
- The BLINK element. Note. The BLINK
element is not defined by a W3C specification.
- The MARQUEE element. Note. The MARQUEE
element is not defined by a W3C specification.
- The CSS 'blink' value of the 'text-decoration' property.
- 3.6 Allow the user to turn on and off animations and blinking images. [Priority 1]
Techniques:
-
- Allow the user to turn off
animated or blinking text through the user agent user interface
(e.g., by hitting the ESCAPE key to stop animations).
Render a still image in its place.
- 3.7 Allow the user to turn on and off support for scripts and applets. [Priority 1]
- Note. This is particularly important
for scripts that cause the screen to flicker, since
people with photosensitive epilepsy can have seizures triggered by
flickering or flashing, particularly
in the 4 to 59 flashes per second (Hertz) range.
Techniques:
-
Peak sensitivity to flickering or flashing occurs at 20 Hertz.
-
Refer to the section on
script techniques
- 3.8 For automatic content changes specified by the author (e.g., content refresh and page forwards), allow the user to slow the rate of change. [Priority 2]
-
For example, alert the users to pages that refresh
automatically
and allow them to specify a refresh rate.
For example, allow the user to slow content refresh
to once per 10 minutes. Or, allow the user to
stop automatic refresh, but indicate that
content needs refreshing and allow the user
to refresh the content by activating a button or link.
Techniques:
-
Content refresh according to an author-specified time interval can be
achieved with the following markup in HTML:
<META http-equiv="refresh" content="60">
The user agent should allow the user to slow (e.g., by configuring
the rate of change in seconds) or disable this type of content
refresh.
Although no HTML specification defines this behavior formally, some
user agents support the use of the META element to refresh the current
page after a specified number of seconds, with the option of replacing
it by a different URI. Instead of this markup, authors should use
server-side redirects (with HTTP).
User agents can provide a link to other content rather than
changing the content automatically.
User agents may also prompt the user and ask whether
to continue with forwards.
- 3.9 Allow the user to turn on and off rendering of images. [Priority 3]
Techniques:
-
- Provide a simple command that allows users to toggle on and off the
rendering of images on a page. This will be useful to users who wish
to switch between viewing the images and the corresponding
text equivalents.
- Refer to techniques for checkpoint 3.1.
In addition to the techniques below, refer also to the section on
user control of style.
Checkpoints for fonts and colors:
- 4.1 Allow the user to configure the size of text. [Priority 1]
-
For example, allow the user to
specify a font family and style directly through the
user agent user interface or
in a user style sheet. A zoom or magnification
feature would also satisfy this checkpoint.
Techniques:
-
- Inherit text size information from user's settings for
the operating system.
- Use system features for magnification/shrinking.
- Implement the CSS 'font-size' property.
- Allow the user to configure the user agent to ignore author-specified
font size.
- Allow the user to scale text while retaining relative
sizes among text of different sizes.
- 4.2 Allow the user to configure font family. [Priority 1]
Techniques:
-
- Implement the CSS 'font-family' property.
- Allow the user to override the author's specified fonts.
- Inherit font information from user's settings for
the operating system.
- 4.3 Allow the user to configure foreground color. [Priority 1]
Techniques:
-
- Implement the CSS 'color' and 'border-color' properties.
- Allow the user to specify minimal contrast between foreground
and background colors, adjusting colors dynamically to meet those
requirements.
- Allow the user to impose a specific foreground color, ignoring
author-supplied colors.
- Inherit foreground color information from user's settings for
the operating system.
- 4.4 Allow the user to configure background color. [Priority 1]
Techniques:
-
- Implement the CSS 'background-color' property and other
background properties.
- Allow the user to impose a specific background color, ignoring
author-supplied colors.
- Inherit background color information from user's settings for
the operating system.
Checkpoints for multimedia:
- 4.5 Allow the user to slow the presentation rate of audio, video, and animations. [Priority 1]
Techniques:
-
Typically, video, animation, and audio are intended to provide information
to the user at a rate that allows comfortable processing of the information
for the typical user. However, for some users, this rate may be too fast to
allow the information to be processed, which makes it inaccessible to the
user. Such users may include individuals with specific learning
disabilities, cognitive deficits, or those with normal cognition but newly
acquired sensory limitations (such as the person who is newly blind,
learning to use a screen reader). The same difficulty is common among
individuals who have beginning familiarity with a language.
For these individuals, the ability to slow the rate of presentation of
information to match the individual's processing speed can make that
information accessible. Since simply slowing the rate of transmission of
an audio track will introduce pitch distortion that may likewise render the
information inaccessible, a user agent providing rate
configuration should also
provide pitch compensation to compensate for different playback speeds.
Note. User agents may not be able to
slow the playback rate for some formats. There are techniques
to slow audio without leading to distortion.
- 4.6 Allow the user to start, stop, pause, advance, and rewind audio, video, and animations. [Priority 1]
Techniques:
-
- Allow the user to advance or rewind the presentation
in small increments. This is particularly valuable to users
with physical disabilities who may not have fine control
over advance and rewind functionalities. Allow users to
configure the size of the increments.
- Let the advance/rewind distances be proportional to the
time you activate the corresponding button.

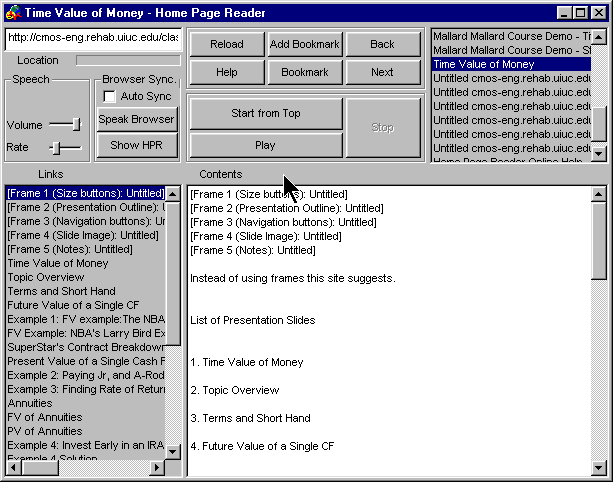

- Home Page Reader lets you insert slowdowns in the middle of
a presentation to let you know where you are.
- Implement an acceleration feature: the longer you hold,
the faster the advance and rewind.
- There are well-known techniques for changing audio
speed without introducing distortion.
- 4.7 Allow the user to configure the audio volume. [Priority 2]
- 4.8 Allow the user to configure the position of captions on graphical displays. [Priority 1]
Checkpoints for synthesized speech:
- 4.9 Allow the user to configure synthesized speech playback rate. [Priority 1]
Techniques:
-
- In CSS2, use the 'speech-rate' property.
- 4.10 Allow the user to configure synthesized speech volume. [Priority 1]
- 4.11 Allow the user to configure synthesized speech pitch, gender, and other articulation characteristics. [Priority 2]
Checkpoints for user interface accessibility:
- 4.12 Allow the user to select from available author and user style sheets or to ignore them. [Priority 1]
- Note. By definition
the browser's default style sheet is always present,
but may be overridden by author or user styles.
Techniques:
-
- Make available "class" and "id" information so that
users can override styles.
- Allow the user to define custom styles for
"class" and "id" attributes specified in the document.
- 4.13 Allow the user to configure how the selection is highlighted (e.g., foreground and background color). [Priority 1]
Techniques:
-

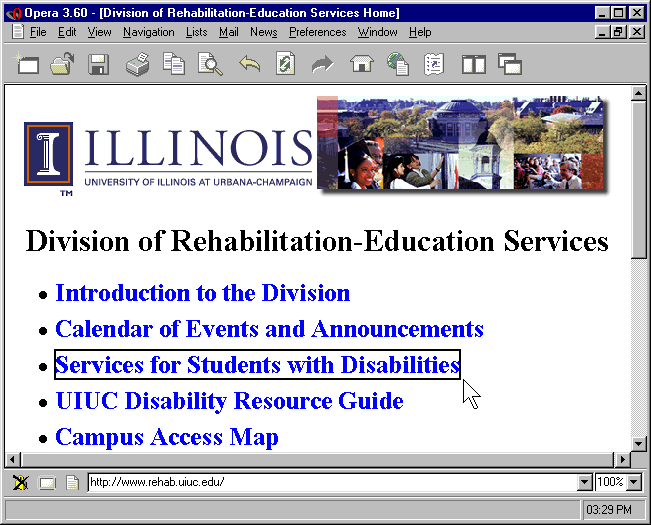

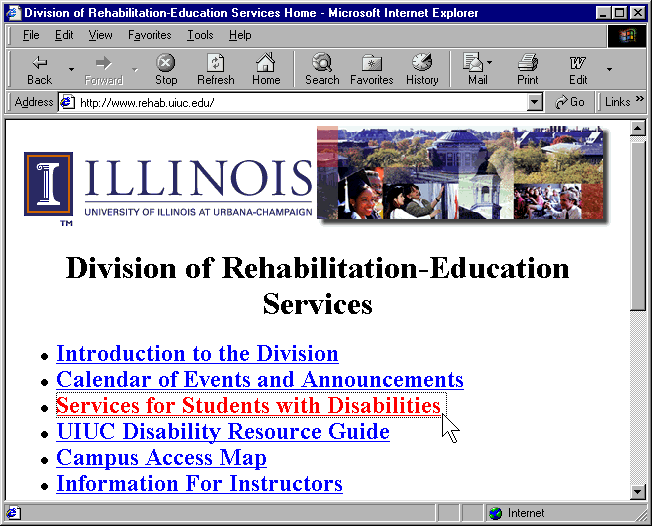

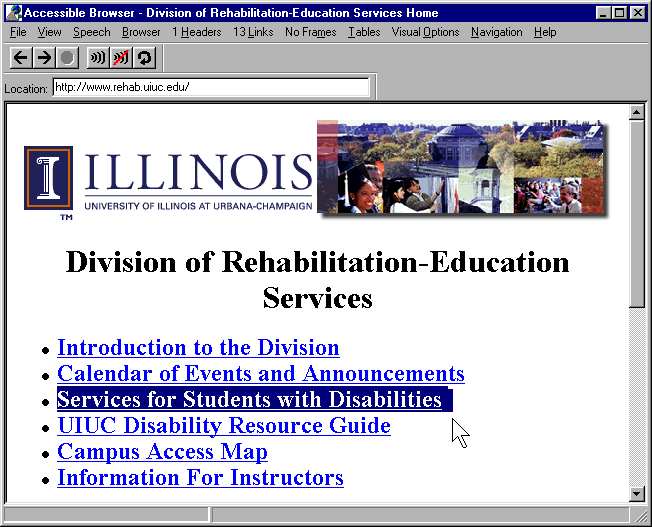

- 4.14 Allow the user to configure how the content focus is highlighted (e.g., foreground and background color). [Priority 1]
- 4.15 Allow the user to configure how the focus changes. [Priority 2]
-
For instance, allow the user to require
that user interface focus
not move automatically
to spawned viewports
Techniques:
-
Allow the user to configure how
current focus changes
when a new viewport is spawned. For instance:
- Never change the current focus, but notify the
user that a new window has appeared. Allow quick navigation
to that window so that the user may shift focus there once
their current activity has ended.
- Always change the current focus and use a discrete
alert (e.g., a flash or beep) to indicate that the current focus
has changed.
Note that if a new viewport
or prompt appears but focus does not move to it, assistive
technologies should still be notified so that they may
(discretely) inform the user, allow querying, etc.
- 4.16 Allow the user to configure user agent initiated spawned viewports, prompts, and other windows. [Priority 2]
-
For instance, allow the user to cancel viewport creation.
Refer also to checkpoint 5.4.
Techniques:
-
User agents may:
- In HTML [HTML40], allow the user to control the process of
opening a document in a new "target" frame or a viewport created by
author-supplied scripts.
- In SMIL [SMIL], allow the user to control
viewports created with the "new" value of the "show" attribute.
- Allow users to turn off support for spawned viewports
entirely
- Prompt them before spawning a viewport. For instance,
for user agents that support CSS2 [CSS2], the following rule
will generate a message to the user at the beginning of
link text for links that are meant to open new windows when
followed:
A[target=_new]:before{content:"Open new window"}
- Users may also want
to configure the size or position of the viewport and to be able to
close the viewport (e.g., with the "back" functionality).
For example, user agents may recognize the
HTML construct target="_blank" and spawn
the window according to the user's preference.
Checkpoints for content accessibility:
- 5.1 Provide programmatic read and write access to content by conforming to W3C Document Object Model (DOM) specifications and exporting interfaces defined by those specifications. [Priority 1]
- For example, refer to DOM Levels 1 and 2 ([DOM1],
[DOM2]). User agents should
export these interfaces using available operating system conventions.
Techniques:
-
A Document Object Model (DOM) is an interface to a standardized tree
structure representation of a document. This interface allows authors
to access and modify the document with client-side scripting language
(e.g., JavaScript) in a consistent manner across scripting languages.
As a standard interface, a DOM makes it easier not just for
authors but for assistive technology developers to extract information
and render it in ways most suited to the needs of particular users.
Information of particular importance to accessibility
that must be available through the DOM includes:
- Content, including equivalent alternatives.
- Style sheet information (for user control of styles).
- Script and event handlers (for device-independent
control of behavior).
- The document structure (for navigation, creation
of alternative views).
User agents should implement W3C DOM Recommendations, including
DOM Level 1 [DOM1] and DOM Level 2 [DOM2]]. The
W3C Recommendation for DOM Level 1 ([DOM1]) provides access to
HTML and XML document information. The DOM Level 2 ([DOM2]) is made of a set of core interfaces to
create and manipulate the structure and contents of a document and a
set of optional modules. These modules contain specialized interfaces
dedicated to XML, HTML, an abstract view, generic stylesheets,
Cascading Style Sheets, Events, traversing the document structure, and
a Range object.
It is important to note that DOM is designed to be used on a server
as well as a client and therefore a lot of user interface-specific
information such as screen coordinate information is not relevant and
not addressed by the DOM specification.
Assistive technologies also require information about browser
highlight mechanisms (e.g., the
selection and
focus) that may not be
available through the W3C DOM.
The DOM Level 1 specification states that "DOM applications may provide
additional interfaces and objects not found in this specification and
still be considered DOM compliant."
Note. The WAI Protocols and Formats Working
Group is focusing its efforts on the DOM as the conduit from which to
extract accessibility information and enhance the
accessibility of a rendered document through a user agent.
Checkpoints for user interface accessibility:
- 5.2 Provide programmatic read and write access to user agent user interface controls using standard APIs (e.g., platform-independent APIs such as the W3C DOM, standard APIs for the operating system, and conventions for programming languages, plug-ins, virtual machine environments, etc.) [Priority 1]
-
For example, ensure that assistive technologies have access to information about the
current input configuration so that
they can trigger functionalities through keyboard events, mouse
events, etc.
Techniques:
-
The operating system APIs that support
accessibility are designed to provide a bridge between the standard user
interface supported by the operating system and alternative user
interfaces developed by third-party assistive technology vendors to
provide access to persons with disabilities. Applications supporting these
APIs are therefore generally more compatible with third-party assistive
technology.
The User Agent Accessibility Guidelines Working Group strongly
recommends using and supporting APIs that improve accessibility and
compatibility with third-party assistive technology. Third-party
assistive technology can use the accessibility information provided by
the APIs to provide an alternative user interface for various
disabilities.
The following is an informative list of currently public APIs that
promote accessibility:
- Microsoft Active Accessibility ([MSAA])
in Windows 95/98/NT versions.
- Sun Microsystems Java Accessibility API ([JAVAAPI]) in Java Code.
If the user agent supports
Java applets and provides a Java Virtual Machine to run them, the user agent
should support the proper loading and operation of a Java native assistive
technology. This assistive technology can provide access to the
applet as defined by Java accessibility standards.
Thus, developers should use the platform's standard user interface components whenever
possible and ensure that custom components provide equivalent
accessibility information as standard user interface components in the
same programmatic way. For other user interface components not based
on a platform's standard toolkit, provide information and events
equivalent to that found in currently available accessibility APIs
(e.g., JAAPI and MSAA).
Many operating systems have built-in accessibility features
for improving the usability of the standard operating system by
persons with disabilities. When designing software that runs above an
underlying operating system, developers should ensure that the
application:
- Makes use of operating system level features.
See the appendix of
accessibility features for some common operating systems.
- Inherits operating system settings related to
accessibility. Pertinent settings include font and color information
and other information described in this document.
Write output to and take input from standard system APIs rather
than directly from hardware controls where possible. This will enable
the I/O to be redirected from or to assistive technology devices - for
example, screen readers and Braille displays often redirect output (or
copy it) to a serial port, while many devices provide character input,
or mimic mouse functionality. The use of generic APIs makes this
feasible in a way that allows for interoperability of the assistive
technology with a range of applications.
User agents should use standard rather than custom controls when
designing user agents. Third-party assistive technology developers
are more likely able to access standard controls than custom
controls. If you must use custom controls, review them for
accessibility and compatibility with third-party assistive
technology.
For information about rapid access to Microsoft Internet Explorer's
DOM through COM, refer to [BHO].
- 5.3 Implement selection, content focus, and user interface focus mechanisms. [Priority 1]
- Refer also to checkpoint 7.1 and checkpoint 5.2.
Note. This checkpoint is an important special case of
checkpoint 5.2.
- 5.4 Provide programmatic notification of changes to content and user interface controls (including selection, content focus, and user interface focus). [Priority 1]
Techniques:
-
Assistive technologies may not "want" notification of all changes.
User agents providing notification may allow configuration of
preferred notifications. If
user agents providing notification do not allow configuration,
assistive technologies may filter out unwanted notifications.
- Refer also to checkpoint 5.2.
- 5.5 Ensure that programmatic exchanges proceed in a timely manner. [Priority 2]
Techniques:
-
- @@This needs work and probably should be in the guidelines@@.
The exchange of information between user
agents must keep pace with changes in the content.
It may be necessary to allow the user to configure the user
agent to pause before changes to content or the user interface
so that an assistive technology has time to react.
- Please refer to the appendix that explains how to
load assistive technologies for DOM access.
- 5.6 Follow operating system conventions and accessibility settings. In particular, follow conventions for user interface design, default keyboard configuration, product installation, and documentation. [Priority 2]
-
Refer also to checkpoint 10.2.
Techniques:
-
Develop the user interface
with standard components per the target platform(s).
Most major operating system
platforms provide a series of design and usability guidelines; these
should be followed when possible (see platforms below).
These checklists, style guides, and human interface guidelines
provide very valuable information for developing applications (e.g.,
UAs) for any platform/operating system/GUI.
For instance, software should use the standard
interface for keyboard events rather than working around it.
Evaluate your standard interface components on the target
platform against any built in operating system accessibility
functions (see Appendix 8) and be sure your UA operates
properly with all these functions.
For example, take caution with the following:
- Microsoft Windows supports an accessibility function called
"High Contrast". Standard window classes and controls automatically
support this setting. However, applications created with custom
classes or controls must understand how to work with the "GetSysColor"
API to ensure compatibility with High Contrast.
- Apple Macintosh supports an accessibility function called "Sticky Keys".
Sticky Keys operates with keys the operating system recognizes
as modifier keys, and therefore a custom UA control should not
attempt to define a new modifier key.
- Respect default input configurations for the operating
system. For example, the default configuration should not include
"Alt-F4" or "Control-Alt-Delete" on
operating systems where that combination has
special meaning to the operating system.
Some guidelines for specific platforms:
-
"Macintosh Human Interface Guidelines" [APPLE-HI]
Apple Computer Inc.
-
"IBM Guidelines for Writing Accessible Applications Using 100% Pure
Java"
[JAVA-ACCESS].
-
"An ICE Rendezvous Mechanism for X Window System Clients"
[ICE-RAP].
-
"Information for Developers About Microsoft Active Accessibility"
[MSAA].
-
"The Inter-Client communication conventions manual"
[ICCCM].
-
"Lotus Notes accessibility guidelines"
[NOTES-ACCESS].
-
"Java accessibility guidelines and checklist"
[JAVA-CHECKLIST].
-
"The Java Tutorial. Trail: Creating a GUI with JFC/Swing"
[JAVA-TUT].
-
"The Microsoft Windows Guidelines for Accessible Software Design"
[MS-SOFTWARE].
General guidelines for producing accessible software:
Follow System Conventions for loading Assistive Technologies:
User agents should follow operating system or application
environment (e.g., Java) conventions for loading assistive
technologies. In the case of Java applets, the browser's Java Virtual
Machine should follow the Sun convention for loading an assistive
technology. Writing an application that follows the Java system
conventions for accessible software does not allow the applet to be
accessible if an assistive technology designed for that environment
cannot be run to make the applet accessible. Refer to
the appendix on loading
assistive technologies for DOM access for information
about how an assistive technology
developer can load its software into a Java Virtual Machine.
Checkpoints for content accessibility:
- 6.1 Implement the accessibility features of supported specifications (markup languages, style sheet languages, metadata languages, graphics formats, etc.). [Priority 1]
- Note. The
Techniques Document [UA-TECHNIQUES]
addresses the accessibility features of W3C specifications.
Techniques:
-
- Features that are known to promote
accessibility should be made obvious to users and easy to find.
- The accessibility features of Cascading Style Sheets
([CSS1], [CSS2]) are described
in "Accessibility Features of CSS" [CSS-ACCESS].
Note that CSS 2 includes properties for
configuring synthesized speech styles.
- The accessibility features of SMIL 1.0
[SMIL] are described in "Accessibility Features of SMIL"
[SMIL-ACCESS].
- The following is a list of accessibility features of
HTML 4.0 [HTML40] in addition
to those described in techniques for
checkpoint 2.1:
- The
CAPTION element (section 11.2.2) for rich table captions.
- Table elements
(THEAD, TBODY, TFOOT (section 11.2.3),
COLGROUP, and
COL (section 11.2.4) that
group table rows and columns into meaningful sections.
- Attributes (
"scope",
"headers",
and "axis", section 11.2.6)
that non-visual browsers may use to render a table in a linear
fashion, based on the semantically significant labels.
- The
"tabindex" attribute (section 17.11.1) for assigning the order of keyboard navigation within a
document.
- The
"accesskey" attribute (section 17.11.2) for assigning keyboard commands to
active components such as links and form
controls.
- 6.2 Conform to W3C specifications when they are appropriate for a task. [Priority 2]
- For instance, for markup, implement
HTML 4.0 [HTML40] or XML 1.0 [XML]. For style sheets, implement
CSS ([CSS1], [CSS2]). For mathematics, implement
MathML [MATHML]. For synchronized multimedia,
implement SMIL 1.0 [SMIL]. For access to the structure of
HTML or XML documents, implement the DOM ([DOM1], [DOM2]).
Refer also to checkpoint 5.1.
- Note. For reasons
of backward compatibility, user agents should continue to support
deprecated features of specifications. The current guidelines
refer to some deprecated language features that do not necessarily
promote accessibility but are widely deployed. Information about
deprecated language features is generally part of
the language's specification.
Checkpoints for user interface accessibility:
- 7.1 Allow the user to navigate viewports (including frames). [Priority 1]
-
Note.
For example, when all frames of a frameset are displayed
side-by-side, allow the user to navigate among them
with the keyboard. Or, when frames are accessed or viewed one at a time
(e.g., by a text browser or speech synthesizer), provide
a list of links to other frames.
Navigating into a viewport makes it the
current viewport.
Techniques:
-
-
Some operating systems provide a means to navigate among all open
windows using multiple input devices (e.g., keyboard and mouse). This
technique would suffice for switching among user agent viewports that
are separate windows. However, user agents may also provide a
mechanism to shift the
user interface focus
among user agent windows, independent of
the standard operating system mechanism.
- Consult the section on frame techniques.
- 7.2 For user agents that offer a browsing history mechanism, when the user returns to a previous viewport, restore the point of regard in the viewport. [Priority 1]
- For example, when users navigate
"back" and "forth" among viewports, they should find the
viewport position where they last left it.
- 7.3 Allow the user to navigate all active elements. [Priority 1]
-
Navigation may include non-active
elements in addition to active elements.
Note. This checkpoint is an important special case of
checkpoint 7.6.
Techniques:
-
Allow the user to sequential navigate all active elements
using a single keystroke. User
agents might also provide other sequential navigation mechanisms
for particular element types or semantic unit.
For example "Find the next table" or
"Find the previous form".
It is important that application developers maintain a logical
element navigation order. For instance, users may use the
keyboard to navigate among elements or element groups
and using the arrow keys within a group of elements. One example
of a group of elements is a set of radio buttons. Users should
be able to navigate to the group of buttons, then be able to
select each button in the group. Similarly, allow users to
navigate from table to table, but also among the cells within
a given table (up, down, left, right, etc.)
- How to indicate that something is in navigation order in Java:
A component is inclusive in
the sequential navigation order when
added to a panel and its isFocusTraversable()
method returns true. A component can be removed from the navigation order
by simply extending the component, overloading this method, and
returning false.
- Give the users the option of navigating to and activating
a link, or just moving the
content focus
to the link. When the user returns
to the page after following the link, restore content focus to that link.
- Many user agents today allow users to navigate sequentially
by repeating a key combination -- for example,
using the "tab" key for forward navigation and "shift-tab" for
reverse navigation. Because the "tab" key is typically on one
side of the keyboard while arrow keys are located on the other,
users should be allowed to configure the user agent so that
sequential navigation is possible with keys that are physically
closer to the arrow keys. Refer also to checkpoint 10.4.
- The default sequential navigation order should respect
the conventions of the natural language of the document.
Thus, for most left-to-right languages, the usual navigation
order is top-to-bottom and left-to-right.
Thus, for right-to-left languages, the order would be
top-to-bottom and right-to-left.
The following view from Jaws for Windows allows users
to navigate links in a document and to select whether to
navigate visited, unvisted, or both types of links:
Excessive use of sequential navigation can reduce the usability of
software for both disabled and non-disabled users. Direct navigation
(e.g., through keyboard shortcuts) should also be possible. Providing
direct navigation involves:
- Assigning each active element a unique identifier (or
use the identifier provided by the author, e.g.,
"accesskey" in HTML). For example number
each active element in a document.
- Documenting how the user may access elements.
- Allowing direct navigation by element content (e.g., the
first letter of element content).
- Allowing direct navigation to a table cell by its row/column
position.
- Allow searching (e.g.,
based on form control text, associated labels, or
form control names).
- 7.4 Allow the user to choose to navigate only active elements. [Priority 2]
Techniques:
-
Refer to techniques for checkpoint 7.3.
- 7.5 Allow the user to search for rendered text content, including rendered text equivalents. [Priority 2]
-
Note.
Use operating system conventions for marking
the result of a search (e.g.,
selection or content focus).
Techniques:
-
- Allow users to search for element content and
attribute values (human-readable ones).
- Allow forward and backward searching from the point
of regard, beginning of document, or end of document.
- Allow users to search the document source view.
- For forms, allow users to find required controls.
Allow users to search on labels as well as content of some controls.
- Allow the user to search among just
text equivalents of other content.
- For multimedia presentations:
- Allow users to search and examine
time-dependent media elements and links in a time-independent manner.
For example, present a static list of time-dependent links.
- Allow users to find all media elements active at
a particular time in the presentation.
- Allow users to view a list of all media elements or
links of the presentations sorted by start or end time or alphabetically.
- For frames, allow users to search for content in all frames
(without having to be in a particular frame).
- 7.6 Allow the user to navigate according to structure. [Priority 2]
- For example, allow the user to navigate familiar
elements of a document: paragraphs, tables and table
cells, headers, lists,
etc. Note.
Use operating system conventions to indicate navigation
progress (e.g.,
selection or content focus).
Techniques:
-
- DOM is minimal (tree navigation)
- Best navigation will involve a mix of source tree
information and rendered information.
- May use commonly understood document models rather
than strict Document Type Definition
(DTD)
navigation. E.g., properly nesting headers in HTML.
Headers should be used only
to convey hierarchy, not for graphical side-effects.
- Allow the user limit navigation to the cells
of a table (notably left and right within a row
and up and down within a column).
Navigation techniques include keyboard navigation from
cell to cell (e.g., using the arrow keys) and page up/down
scrolling.
Refer to the section on table navigation.
- Goal of simplifying the structure view as much as possible.
- Allow the user to configure level of detail/
view of structure.
- Depth first as well as breadth first possible.
Allow next/previous sibling, up to parent, and end of element.
- Navigation of synchronized multimedia: allow users to
stop, pause, fast forward, advance to the next clip, etc.
- Allow the user to navigate characters,
words, sentences, paragraphs, screenfuls,
and other language-dependent pieces of text content.
This may be particularly useful with a speech-based user interface.
Precise and flexible navigation of this kind with a
system cursor is often useful when browsing with accessibility
aids. Evidence of this point is that the leading Windows screen
readers have super-imposed such navigation on a popular web
browser that does not natively support it (e.g., Winvision,
Window-Eyes, and JAWS with Internet Explorer).
Skipping navigation bars:
Author-supplied navigation mechanisms such as navigation bars at
the top of each page may force users with screen readers or some
physical disabilities to wade through numerous links on each page of a
site. User agents may facilitate browsing for these users by allowing
them to skip recognized navigation bars (e.g., through a configuration
option). Some techniques for doing so include:
- Provide a functionality to jump to the first non-link content.
- In HTML, the MAP element may be used to mark up a navigation
bar (even when there is no associated image). Thus, users
might ask that MAP elements not be rendered in order to
hide links inside the MAP element. Note. Starting
in HTML 4.0, the MAP element allows block content, not just
AREA elements.
- 7.7 Allow the user to configure structured navigation. [Priority 3]
- For example, allow the user to navigate only paragraphs,
or only headers and paragraphs, etc.
Techniques:
-
- Allow the user to navigate by element type.
- Allow the user to navigate HTML elements that share the same
"class" attribute.
- Allow the user to expand or shrink portions of the
structured view (configure detail level) for faster access to
important parts content.
Checkpoints for content accessibility:
- 8.1 Make available to the user the author-specified purpose of each table and the relationships among the table cells and headers. [Priority 1]
- For example, provide information about table headers,
how headers relate to cells, table summary
information, cell position information, table dimensions, etc.
Refer also to checkpoint 5.1.
Note. This checkpoint is an important special case of
checkpoint 2.1.
Techniques:
-
- Refer to the section on table techniques
- Allow the user to access this information on demand
(e.g., by activating a menu or keystroke).
The following illustration shows how Internet Explorer
provides cell header information through the context menu:
- 8.2 Indicate to the user whether a link has been visited. [Priority 2]
-
Note. This checkpoint is an important special
case of checkpoint 8.4.
Techniques:
-
- 8.3 Indicate to the user whether a link has been marked up to indicate that following it will involve a fee. [Priority 2]
-
Note. This checkpoint is an important special
case of checkpoint 8.4.
"Common Markup for micropayment per-fee-links"
[MICROPAYMENT] describes how authors may mark up
micropayment information in an interoperable manner.
This information may be provided through the standard user
interface provided the interface is accessible. Thus, any prompt
asking the user to confirm payment must be accessible.
Techniques:
-
- For a link that has content focus, allow
the user to query the link for fee information.
- Refer to the section on link techniques.
- Allow the user to access this information on demand
(e.g., by activating a menu or keystroke for a link).
- 8.4 Make available to the user information that will help the user decide whether to follow a link. [Priority 3]
-
Note.
Useful information includes: whether the link
designates an internal or external anchor,
the type of the target resource, the length and size of an
audio or video clip that will be started, and the
expected natural language
of target resource.
Techniques:
-
- For a link that has content focus, allow
the user to query the link for information.
- Refer to the section on link techniques.
- Allow the user to access this information on demand
(e.g., by activating a menu or keystroke).
- Implement CSS ':visited' and ':link' pseudo-classes, with ':before'
class and the 'content' property to insert text before a link such as
"visited" or "un-visited".
The following image shows how the Opera browser allows the
user to configure how links are rendered, including
controlling the rendering of visited and un-visited links.
Checkpoints for user interface accessibility:
- 8.5 Provide a mechanism for highlighting and identifying (through a standard interface where available) the current viewport, selection, and content focus. [Priority 1]
-
Note. This includes highlighting
and identifying frames.
Note.
This checkpoint is an important special case of
checkpoint 1.1.
Refer also to checkpoint 8.4.
Techniques:
-
- If colors are used to highlight the current
viewport, selection, or content focus,
allow the user to set preferred
colors and to ensure sufficient contrasts.
- If the current viewport is a window, allow the
user to cause the window to pop to the foreground.
- If the current viewport is a frame or the
user doesn't want windows to pop to the foreground,
use colors, reverse videos, or other visual clues
to indicate the current viewport. For speech or
Braille output, render the title or name of a frame
or window and indicate changes in the current
viewport.
- Use operating system conventions, where available,
for specifying selection and content focus (e.g., schemes
in Windows).
- Implement the CSS pseudo-classes ':hover', ':active', and ':focus'.
This will allow users to modify content focus presentation
with user style sheets.
Refer also to the section on frame
techniques
The following image illustrates the use by Opera 3.6 of a solid
line border to indicate content focus:
The following image illustrates the use of system highlight colors
to indicate content focus:
The following image illustrates the use of a dotted line border
to indicate content focus:
- 8.6 Make available to the user an "outline" view of content, built from structural elements (e.g., frames, headers, lists, forms, tables, etc.) [Priority 2]
-
For example, for each frame in a frameset, provide a table
of contents composed of headers where each entry in the
table of contents links to the header in the document.
Note. The outline view doesn't have
to be navigable, but if it is, it may satisfy checkpoint 7.6.
Techniques:
-
- Use commonly understood document models rather
than strict DTD navigation. E.g., properly nesting headers in HTML.
- For documents that don't use structure properly, user agents
may try to create an outline from presentation elements
used (insufficiently) to convey structure.
- Allow the user to shrink and expand the outline view
selectively.
- Provide context-sensitive navigation: for instance, when the
user navigates to a list or table, provide locally useful navigation
mechanisms (e.g., within a table, cell-by-cell navigation) using
similar input commands.
- Refer to the section on
list techniques.
- Implement a structured view by hiding portions of the
document tree by using the CSS
'display'
and
'visibility' properties ([CSS2], sections 9.2.5 and 11.2, respectively).
The following image shows the table of contents view provided by
Amaya. The table of contents view provided by Amaya can be navigated
and the primary graphical view is synchronized with the table of
contents view, so that the element with the focus in the table of
contents is always in the graphical view.
The following technique ideas were provided by
the National Information Standards Organization [NISO]:
A "Navigation Control Center" (NCC)
(NCC) resembles a traditional table of contents, but it is more. The
NCC contains links to all headings at all levels in the book. In addition
to the headings, links to all pages are inserted. Finally we include in the
NCC links to all items that the reader may select to turn off for reading.
For example, if the reader has the automatic reading of footnotes turned
off, there must be a way to quickly get back to that information. For this
reason, the reference to the footnote is placed in the NCC and the reader
can go to the reference, understand the context for the footnote, and then
read the footnote. All items that have the option of turning off automatic
reading can be reached through the NCC.
Once the reader is at a desired location and wishes to begin
reading, the navigation process changes. Of course, the reader may
elect to read sequentially, but often some navigation is required
(e.g., frequently people navigate forward or backward one word or
character at a time). Moving from one sentence or paragraph at a time
is also needed. This type of local navigation is different from the
global navigation used to get to the location of what you want to
read. It is frequently desirable to move from one block element to the
next. For example, moving from a paragraph to the next block element
which may be a list, blockquote, or sidebar is the normally expected
mechanism for local navigation.
- 8.7 Provide a mechanism for highlighting and identifying active elements (through a standard interface where available). [Priority 2]
-
Note. User agents may satisfy this
checkpoint by implementing the appropriate style sheet
mechanisms, such as link highlighting.
Techniques:
-
- Do not rely on color alone to identify active elements.
- Use CSS selectors to associate style with elements. In particular:
- Use CSS link pseudo-classes to highlight links (:link, :active, :hover).
- Use CSS attribute selectors to match elements with associated
scripts.
- Allow users to configure highlighting preferences.
- 8.8 Allow the user to configure the outline view. [Priority 3]
- For example, allow the user
to configure the level of detail of the
outline. Refer also to checkpoint 8.6. Refer also to checkpoint 5.2.
Techniques:
-
For implementations using the CSS 'display'
and 'visibility'
properties ([CSS2], sections 9.2.5 and 11.2, respectively), allow
the user to override the default settings in user style sheets.
Example.
The following CSS 2 style sheet will turn the display
off of all HTML elements inside the BODY element except header elements:
<STYLE type="text/css">
BODY * { display: none }
H1, H2, H3, H4, H5, H6 { display: block }
</STYLE>
Another approach would be to use class selectors to identify
those elements to hide or display.
End example.
- 8.9 Allow the user to configure what information about links to present. [Priority 3]
-
Note.
Using color as the only distinguishing
factor between visited and unvisited links
does not suffice since color may not be perceivable
by all users or rendered by all devices.
Refer also to checkpoint 8.4.
Techniques:
-
- Allow the user to access this information on demand
(e.g., by activating a menu or keystroke).
- Implement CSS ':visited' and ':link' pseudo-classes, with ':before'
class and the 'content' property to insert text before a link such as
"visited" or "un-visited".
Checkpoints for user interface accessibility:
- 9.1 Ensure that when the selection or content focus changes, it is in a viewport after the change. [Priority 2]
-
For example, users navigating links may navigate to a portion
of the document outside the viewport, so the viewport should
scroll to include the new location of the focus.
Techniques:
-
- There are time when the content focus changes (e.g.,
link navigation) and the viewport must
be moved to track it. There are other times when the viewport
changes position (e.g., scrolling)
and the content focus is moved to follow it.
In both cases, the focus (or selection) is in the viewport
after the change.
- Make sure that search windows do not place the new
content focus that is the found object under a search popup.
- When the content focus changes,
"register" the newly focused element in the
navigation sequence; sequential navigation should start from there.
- Only change selection/content focus in the current viewport, not
other viewports.
- 9.2 Prompt the user to confirm any form submission triggered indirectly, that is by any means other than the user activating an explicit form submit control. [Priority 2]
-
For example, do not submit a form automatically
when a menu option is selected, when all fields
of a form have been filled out, or when a mouseover
event occurs.
Techniques:
-
- Put up a dialog indicating the form will be submitted if it is
done by an onChange, after a certain time, or for other
script-based submission.
Allow the user to suppress these dialogs for good.
- If the submit button is not the last control in the form, and
no controls after it have been focused, put up a dialog
pointing this out/asking if the user has filled in the
information after the button.
- If a Javascript submission is fired, allow the user to ask for
it to be intercepted and trigger the dialog mentioned above.
- 9.3 Allow the user to configure notification preferences for common types of content and viewport changes. [Priority 3]
-
For example, allow the user to choose to be notified (or not) that a
script has been executed, that a new
viewport has been opened,
that a pulldown menu has been opened, that a new frame
has received focus, etc.
Techniques:
-
- Refer to the section on frame techniques
- Allow the user to specify an element type for which notification
should be disabled (e.g., table, body, img, ...)
- Allow the user to disable notification of changes to CSS properties
- Allow the user to disable notification of images that are changed
- 9.4 When loading content (e.g., document, video clip, audio clip, etc.) indicate what portion of the content has loaded and whether loading has stalled. [Priority 3]
Techniques:
-
Status information - on content loading - should be provided
in a device-independent manner. Techniques include text and
non-text status indicators. Users should be able to request
status information or have it rendered automatically. User agents
may allow users to configure when status information should be
rendered (e.g., by hiding or showing the status bar).
Screen readers may provide access on demand (e.g., through the
keyboard) to the most recent status information, or to announce
the new information whenever it changes.
Useful status information:
- Document proportions (numbers of lines, pages, width, etc.)
- Number of elements of a particular type (e.g., tables)
- The viewport is at the beginning or end of the document.
- Size of document in bytes.
User agents may allow users to configure what status information
they want rendered. Allow users to access status information on demand
through a keyboard or other shortcut.
Indicate when loading has finished, for example with a percentage
indication or a special message. Indication must not depend
on a particular output device.
- 9.5 Indicate the relative position of the viewport in content (e.g., the percentage of an audio or video clip that has been played, the percentage of a Web page that has been viewed, etc.). [Priority 3]
-
Note. The user agent may
calculate the percentage
according to content focus position,
selection position, or viewport position,
depending on how the user has been browsing.
Techniques:
-
- Provide a scrollbar for the viewport.
- Give the size of the document as well, so that users
may decide whether to download for offline viewing.
For example, the playing
time of an audio file could be stated in terms of hours, minutes,
and seconds. The size of a primarily text based web page might
be stated in both kilobytes and screens, where a screen of
information is calculated based on the current dimensions
of the viewport.
- List the current "page" as page X of a total of Y pages.
- Use a variable pitch audible signal to indicate position.
- Keep the information numerically and generate the output on
user request. See new HTML work on Forms for further examples
(a slider is like a dial is like a menu of lots of options...)
- Provide standard markers for specific percentages through the
document (mile posts)
- Provide markers for positions relative to some position - a user selected
point, the bottom, the H1, etc.
- Put a marker on the scrollbar, or a highlight at the bottom of
the page while scrolling (so you can see what was the bottom
before you started scrolling
Checkpoints for user interface accessibility:
- 10.1 Provide information to the user about current user preferences for input configurations (e.g., keyboard or voice bindings). [Priority 1]
Techniques:
-
If the currently active configuration changes locally (e.g., a
search prompt opens, changing the keyboard mapping for the duration of
the prompt), alert the user. The user must also be informed of the
changed (currently active) configuration. Do not rely on visual or
audio cues alone to alert the user of the change. Do not limit the user
to only one type of alert mechanism. Do not rely on visual cues
(e.g., the underlining of an accelerator key) alone to inform the user
of changes in the configuration.
Named configurations are easier to remember. This is especially
important for persons with certain types of cognitive
disabilities. For example, if the invocation of a search prompt
changes the currently active configuration, the user may remember more
easily which keystrokes are active in search mode if alerted that
there is a "Search Mode". Context-sensitive help (if available) should
reflect the change in mode, and a list of keybindings for the current
mode should be readily available to the user.
- Specified by
the HTML 4.0 "tabindex" attribute
([HTML40], section 17.11.1).
- Provide a list of form controls according to the sequential
navigation order of the form. This allows users to know whether, for
example, a submit button is the last control in a form or whether
the user must activate controls that follow it.
- Provide a structured view of form controls (e.g.,
those grouped by LEGEND or OPTGROUP in HTML) along with
their labels.
- Specified by the HTML 4.0
"accesskey" attribute
([HTML40], section 17.11.2).
- Use system conventions to indicate the current
configuration.
- Document the default configuration.
- Allow direct navigation to active elements (links, form
controls, etc.). For instance,
through a menu that allows users to enter a link number
of link text and to move the
content focus there.
- Allow the user to separate setting the content focus and activating
the control. For links, first-time users of a page may want
to hear link text before deciding whether to follow the link
(activate). More experienced users of a page would prefer to follow
the link directly, without the intervening content focus step.
- Allow the user to configure the user agent so that the
current viewport is automatically maximized.
For example, the parent window of the browser
would automatically be maximized when launched, and each child
window would automatically be maximized when it received
focus. Maximizing does not necessarily mean occupying the whole
screen or parent window; it means expanding the current window
so that the need to scroll horizontally or vertically is as
little as possible.
- 10.2 Avoid default input configurations that interfere with operating system accessibility conventions. [Priority 1]
-
In particular, default configurations should not interfere
with the mobility access keyboard modifiers reserved
for the operating system. Refer also to guideline 5.
- 10.3 Provide information to the user about current author-specified input configurations (e.g., keyboard bindings specified in content such as by "accesskey" in HTML 4.0). [Priority 2]
Techniques:
-
- Make a list of keybindings for the currently rendered page
available to the user. If any of the author-defined keybindings
conflict with application or OS keybindings, alert the user in a
device independent manner. Do not, for example, rely exclusively
on font or color changes, on the playing of an audio clip, or
upon an icon to convey this information to the user.
- In case of conflicts between author-supplied configuration
and user-supplied, operating system defaults,
or user agent default configurations, here
is some possible behavior:
- Do not override default system and UA controls, but alert
the user if author-supplied keybindings conflict with them,
and provide a pass-through mechanism to allow the user to
invoke author-specified UI controls that conflict with
default UA or OS controls/keybindings.
- Allow author-defined keybindings to over-ride UA and OS
keybindings, but alert the user of the conflicts, and provide
a pass-through mechanism so that the conflicting UA / OS
keybindings can still be invoked.
- Allow the user to choose to have the UA re-map author-supplied
keybindings to currently unused keystrokes, then alert the user to
which keystrokes the author-supplied UI controls / keybindings have
been re-mapped.
It is probably useful to distinguish the following classes of user
input configurations:
- What are the defaults "out of the box"?
- What are the current settings different from those out of the box.
- What are those in effect for the current document only?
- What are those that have been overridden by the configuration of the current
document? Also, how to access functionalities no longer available
due to the current input configuration.
In association with local (e.g., "this page only") and off-default bindings,
provide information about how to work around the override.
Note that user support personnel, particularly remote support personnel,
will need the "departures from shipping defaults" view for orientation.
The above classes may be distinguished by displayed properties in a
combined presentation as well as by filtering to present only a restricted
class.
Some reserved keyboard shortcuts are listed in the appendix on accessibility features of some operating
systems.
- 10.4 Allow the user to change the input configuration. [Priority 2]
-
For voice-activated browsers, allow the
user to modify what voice commands activate functionalities.
Similarly,
allow the user to modify the graphical
user agent user interface for quick
access to commonly used functionalities (e.g., through buttons).
Techniques:
-
Provide a convenient interface for allowing users to change input
configurations. For example, allow them to select some pre-configured
options rather than having them enter combinations themselves. This
will speed up configuration and reduce questions to support staff
later on how to configure the user agent.
User agents that allow users to customize or reconfigure
mappings from keyboard, voice, etc. to user agent functionalities
should allow each mapping to be accompanied by a description
so that the user can understand the mapping. For example, if
"Control-P" maps to a print functionality, a short description
would be "Print" or "Print setup".
- Profiles
- Default values
- Device-independent configuration
When using a physical keyboard, some users require single-key
access, others require that keys activated in combination be
physically close together, while others require that they be spaced
physically far apart. When allowing users to configure keyboard access
to functionalities, user agents must consider operating system
conventions, author-specified shortcuts, and user preferences. The
user agent's default configuration should include shortcuts for
frequently performed tasks and should respect operating system
conventions.
User agents, to allow the user to turn on and off author-specified
keyboard configurations, may offer a checkbox in the keyboard mapping
dialog to that would toggle the support for author-specified keyboard
configurations. In HTML 4.0, authors may specify keyboard behavior
with the
"tabindex"
and "accesskey"
attributes
([HTML40], sections 17.11.1 and 17.11.2, respectively).
Allow users to restore easily the user agent's default
configuration.
Allow users to create macros and bind them to keystrokes
or other input methods.
When the author specifies a keyboard shortcut (e.g., with
"accesskey" in HTML), only the shortcut key is defined. It is left
to the user agent to apply a triggering mechanism that will invoke
the shortcut key. For example, Microsoft Internet Explorer 5 uses the ALT key
as the trigger key when running on the Windows platform. This
triggering mechanism, however, conflicts with some default OS and
application keybindings that also rely upon the ALT key for their
triggering mechanism, such as ALT+F (the keybinding that invokes the
"File" menu) and ALT+H (the keybinding that invokes the "Help" menu).
Until a W3C Recommendation or some other specification explains how
to resolve conflicts, user agents may resolve them by allowing users
to choose from among several triggering mechanisms for keyboard
shortcuts. The user agent can ask the user to choose a shortcut
trigger, and warn the user of potential conflicts (e.g., through
context sensitive help, a "More Information" button, a field label,
explanatory text in a .cfg file, etc.). While the interactivity level
of such a mechanism is best left to individual developers to define, a
basic definition request could take a form similar to the following,
platform-specific, example:
Please choose triggering mechanism for shortcut keys.
Some shortcut keys are specified by authors so that you may
activate a link, move through a page, or
activate form controls using a keystroke combination. Half
of the combination (an alphabetic or numeric character) is
pre-defined by the author. In order to trigger the
shortcut key, however, you must select a
"trigger key", which -- when pressed in conjunction with
the shortcut key -- will activate the associated
element. It is
highly recommended that you do not use the ALT or CONTROL
keys for the trigger, as they are commonly used to
trigger application and system events in the Windows
environment.
This type os mechanism/message might be presented to the user the
first time that a page with author-specified shortcut keys is loaded.
Such a mechanism should also form part of the general configuration
mechanism for the user agent.
Ensure uniform behavior when a shortcut key is invoked.
Provide the user with the following options:
- move focus to the element for which the shortcut key has been
defined.
- activate the element for which the shortcut key has been
defined
- prompt the user each time an shortcut key is invoked.
Note. The prompt should also allow the
user to "Save current choice as the
default action for the shortcut key X")
- 10.5 Allow the user to configure the user agent so that the user's preferred one-step operations may be activated with a single input command (keystroke, voice command, etc.). [Priority 2]
- Note. User agents are not required
to provide single command activation of all user agent functionalities
at once, only some of them. This checkpoint is an important special case of
checkpoint 10.4
Techniques:
-
To illustrate problems some users with poor physical control encounter
and why single-key access is important: Put the keyboard Repeat Delay
to very short and the Repeat rate to very fast (or whatever rate is
bothersome). The slightest touch or accidental bump will generate a
key press, illustrating the challenge key combinations pose.
In keyboard-driven browsing the page control keys just right of
ENTER are important so the Web navigation keys should be around ENTER
[which gets a link]. The enhanced keyboard is huge for anyone using
just 1 digit, be it head or hand; and key combinations add tiring, extra
work while individual keys go unused. Example: SHIFT-TAB to get the
previous Anchor means 2 keystrokes which is hard as I'm unsteady (To
get an idea of what how some folks work put the keyboard Repeat Delay
to very short and Repeat rate to very fast, key combinations become a
huge challenge, to say the least) and apt to miss the desired link so it
can take 4 keystrokes to pick a link. Just as Page Up and Down are
paired on the Keypad area Web navigation controls must be paired on
the main keyboard (Less movement around keyboards helps folks with
muscle degeneration as they tend to have slow or reduced mobility).
Opera uses the main alphanumeric key area of keyboards to make all
common browser commands single-key commands. The software keyboard
Mouse, "Mouse Keys" (which turns NumPad into single-key mouse
commands), is a prime example of using keyboards in a different manner
to give people with physical disabilities a usable command structure.
Moreover "Mouse Keys" proves that such innovation doesn't interfere
with expected use by users who don't need single-key configurations
because it can be turned on and off, or
time-out itself.
Some pairs include move Anchor highlight up and down and next page
and back to previous page. Vertical or horizontal pairing might
provide a cue about what movement occurs, perhaps a UI designer could
comment. BACKSPACE for page back and the "=" key for page ahead. The
"[" key for Anchor up and ";" key for down [this is only for
links]. Form boxes should be selected via TAB and SHIFT-TAB, for
limited use a key combo is fine because it actually lessens chances
users get into an unwanted mode. Using O or Zero seems too confusing
so lets use 9 for Previous Frame and I as Next Frame [and Anchor
movements should cycle within a Frame, not the whole page]. DHTML
Layers K as Up and "," as Down with U to Activate events. The 9, I, K,
and "," keys are roughly in line vertically yet key rows are offset so
its harder to slide up or down then left or right, where the sides of
keys fully in line making a mistaken push easier. Because Frames and
Layers divide pages up it would help if browsers used sound files to
say Frames and/or Layers are on a page. Moving between HTML Headings
hasn't been too helpful as many Web pages are non-linear so Headings
doesn't resemble Page-Down command to get to a lower sub-section, H and
N will do.
- 10.6 Follow operating system conventions to indicate the input configuration. [Priority 2]
- For example, on some operating systems,
if a functionality is available from a menu, the
letter of the key that will activate that functionality is
underlined. Note. This checkpoint is an
important special case of checkpoint 5.6.
Techniques:
-
In some operating systems, information about shortcuts is rendered visually
using an underscore under a character in a menu item or button
corresponding to the shortcut key activated with an ALT+character.
For menu accelerators the text in the menu item is often followed by a
CNTRL+function key. These are conventions used by the Sun Java
Foundations Classes [JAVA-TUT]
and Microsoft Foundations Classes for Windows.
- 10.7 Allow the user to configure the user agent through a profile. [Priority 2]
-
Users must be able to select from among available
profiles or no profile (i.e., the user agent default settings).
Techniques:
-
Configuration profiles allow individual users to save their user
agent settings and re-apply them easily. This is particularly valuable
in an environment where several people may use the same
machine. Profiles may include rendering preferences as well as user
email address, proxy information, stylesheet preferences, etc.
The user should be able to easily transfer profiles between
installations of the same user agent (e.g., over the network).
One way to facilitate this is to
follow applicable
operating system conventions for profiles.
Users should be able to switch rapidly between profiles (or the
default settings) and to set a new default profile. This is helpful when:
- Several people use the same machine.
- One user is being helped by another
who may not recognize the information
being displayed using the user's profile.
User agents may apply a profile when the user logs
in. They may also allow users to apply settings
interactively, for example by allowing them to choose
from a list of named profiles in a menu.
Sample profiles (based on common usage scenarios)
can assist users in the initial set up of the user
agent. These profiles can serve as models and may be copied and
fine-tuned to meet an individual's particular needs.
Cascading Style Sheets may be part of a source document or linked
externally. Stand-alone style sheets are useful for implementing user
profiles in public access computer environments where several people
use the same computer. User profiles allow for convenient
customization and may be shared by a group.
A text profile may be pasted in email and is useful
for technical support purposes.
Provide compatibility modes for users who require a familiar
user interface. For instance, let the user choose from a list
of default input configurations from preceding versions of the
software.
- 10.8 Provide default input configurations for frequently performed tasks. [Priority 3]
-
Make the most frequent operations easy to access, and
operable through a single command.
In particular, provide convenient mappings to functionalities
that promote accessibility such as navigation of links.
Functionalities include being able to show, hide,
resize and move graphical viewports
created by the user agent.
Techniques:
-
- Make available different profiles.
- Test the default keyboard configuration for usability.
Ask users with different disabilities and combinations
of disabilities to test configurations.
- For people using one hand, a few fingers, or a headwand
pointer, access to important functionalities must be
available through one or at most two key presses.
- Avoid deeply nested menus.
-
Allow users to accomplish tasks
through repeated keystrokes (e.g., sequential
navigation) since this means less physical repositioning for
all users.
- However, repeated keystrokes may not be efficient for
some tasks. For instance, do not require the user to
position the pointing device by pressing the "down arrow" key
repeatedly.
- Input configurations should allow quick and direct navigation
that does not rely on graphical
output. Do not require
the user to navigate through "space" (through a graphical
user interface) as the only way to activate a functionality.
- 10.9 Allow the user to configure the arrangement of graphical user agent user interface controls. [Priority 3]
Techniques:
-
- Allow multiple icon sizes (big, small, other sizes).
- Allow the user to choose icons and/or text
- Allow the user to change the grouping of icons
- Allow the user to show and hide controls. This can
benefit users with cognitive disabilities and also make life
easier for users who have to navigate them sequentially.
- Allow the user to change the position of control bars, icons, etc.
Do not rely solely on drag-and-drop for reordering tool bar; the
user must be able to configure the
user agent user interface in a device-independent
manner (e.g., through a text-based profile).
Checkpoints for user interface accessibility:
- 11.1 Provide a version of the product documentation that conforms to the Web Content Accessibility Guidelines. [Priority 1]
-
User agents may provide documentation
in many formats, but at least one must conform to
the Web Content Accessibility Guidelines [WAI-WEBCONTENT].
Equivalent alternatives for content,
navigation mechanisms, and illustrations will
all help make the documentation accessible.
Techniques:
-
It is essential that any web-based support and/or documentation
that is produced or maintained by the manufacturer of a user agent or
by a sub-contractor of the user agent's developer, conform
to the Web Content Accessibility Guidelines
[WAI-WEBCONTENT]. This includes (but is not limited to):
- text equivalents of all graphics
- extended descriptions of screen-shots, flow-charts, etc.
- clear and consistent navigation and search mechanisms
- use of the NOFRAMES element when the support/documentation is
presented in a FRAMESET
- serial listings of keystrokes and keybindings
Accessing documentation in familiar applications is particularly
important to users with disabilities who must learn the
functionalities of their tools and be able to configure them for their
needs. Commonly used applications are also more likely to be
compatible with assistive technology. Electronic documentation should
not be provided in proprietary formats.
Where possible, allow users to download documentation in a single
block (e.g., single HTML file, zip archive of several HTML and image
files, etc.)
Run-time help and any Web-based help or support information, as
well as the documentation distributed with the tool, must be fully
accessible to persons with disabilities. Per
checkpoint 1.1, the
user must be able to invoke the run-time help with a simple, well
documented keystroke command. It is strongly suggested that the
keybinding used to invoke the UAs help system be the default "Help"
keybinding for the operating system.
Users with print disabilities may need or desire documentation in
alternative formats such as Braille (refer to
"Braille Formats: Principles of Print to Braille Transcription 1997"
[BRAILLEFORMATS]),
large print, or audio tape. User agent manufacturers may provide user
manuals in alternative formats. Documents in alternative formats can
be created by agencies such as Recording for the Blind and Dyslexic
and the National Braille Press.
User instructions should be expressed in an input device independent
manner. Provide instructions for using or configuring the user agent
in a manner that can be understood by a user of any input device
including a mouse or keyboard. For example, "Select the Home button
on the toolbar" or "Select Home from the Go menu to return to the Home
page."
Universal design means that access to features that help
accessibility should be integrated into standard menus. User agents
should avoid regrouping access to accessibility features into
specialized menus.
Proper documentation is important to developers with disabilities,
not just users with disabilities. A disabled user may be a developer
using the user agent as a test bed or someone who needs critical
information that can only be obtained by as direct a path to the
tool's mechanics and "under-the-hood" features as possible.
Detailed accessible documentation (e.g., distributed on
CD-ROM) is important to allow assistive technology
developers access to APIs, etc.
Ensure that product identification codes are accessible
to users so they may install their software. Codes printed
on product cases will not be accessible to people with
visual disabilities.
- 11.2 Document all user agent features that promote accessibility. [Priority 1]
- For example,
review the documentation or help system to
ensure that it includes information about the functionalities
addressed by the checkpoints of this document.
Techniques:
-
Include references to accessibility features in these parts of the
documentation:
- Indexes.
Include terms related to product accessibility in the documentation index
(e.g., "accessibility", "disability" or "disabilities").
- Tables of Contents.
Include terms related to product accessibility in the documentation table
of contents (e.g., features that promote accessibility)
- Include instructions on how to modify all user
configurable defaults and preferences
(e.g, images, video, style sheets, and scripts) as specified
by the documentation.
- Include a list of all
keyboard shortcuts or other input configuration
information in the accessibility section of
the documentation.
- Document the features implemented to conform with these Guidelines.
Accessibility features should be presented as such, not hidden
under other topics. For instance, users (especially novice users)
should be able to look up "How to turn off blinking text" in the
documentation. Even if the solution for turning off blinking text is
to turn off scripts, users should not have to guess that turning off
scripts will disable blinking text. The user interface should also be
designed so that accessibility topics are presented as such.
- 11.3 Document the default input configuration (e.g., default keyboard bindings). [Priority 1]
Techniques:
-
Here is a table showing mappings between Netscape Navigator
functions (or potential functions) and their keyboard shortcuts in
Macintosh, Unix, and Windows versions. If a function exists in the
browser but does not have a shortcut, its corresponding cell is marked
with an asterisk(*). If the function does not exist, it is left blank.
Note. This table lists some, but not all,
functionalities and keyboard shortcuts of Netscape Navigator. It is
meant to illustrate, not serve as definitive documentation.
Some entries contain links to special notes. The number in
parentheses following the link is the number of the relevant note.
Linear version of
of Netscape Navigator Keyboard Shortcuts.
Netscape Navigator Keyboard Shortcuts
Function |
Macintosh (v 4.61) |
Unix (v 4.51) |
Windows (v 4.7) |
Move within a document |
Scroll to next page |
Page Down |
Page Down |
Page Down |
Scroll to previous page |
Page Up |
Page Up |
Page Up |
Scroll to top |
* |
* |
Ctrl-Home |
Scroll to bottom |
* |
* |
Ctrl-End |
Move between documents |
Open a new document |
Command+L |
Alt+O |
Ctrl+O |
Stop loading a document |
Command+. |
Esc |
Esc |
Refresh a document |
Command+R |
Alt+R |
Ctrl+R |
Load previous document |
Command+[
or
Command+Left Arrow |
Alt+Left Arrow |
Alt+Left Arrow |
Load next document |
Command+]
or
Command+Right Arrow |
Alt+Right Arrow |
Alt+Right Arrow |
Navigate elements within a document |
Move focus to next frame |
* |
* |
* |
Move focus to previous frame |
* |
* |
* |
Move focus to next active element (1) |
Tab |
Tab |
Tab |
Move focus to previous active element (1) |
Shift+Tab |
Shift+Tab |
Shift+Tab |
Find word in page |
Command+F |
Alt+F |
Ctrl+F |
Act on HTML elements |
Select a link |
* |
* |
Enter |
Toggle a check box |
* |
* |
Shift or Enter |
Activate radio button |
* |
* |
Shift |
Move focus to next item in an option box |
* |
* |
Down Arrow or Right Arrow |
Move focus to previous item in an option box |
* |
* |
Up Arrow or Left Arrow |
Select item in an option box |
* |
* |
Enter |
Press a button (2) |
Return |
Enter |
Enter |
Navigate menus |
Activate menu |
* |
* |
Alt+ the underlined letter in the menu title |
Deactivate menu |
* |
Esc |
Esc |
Move focus to next menu item |
* |
* (3) |
Down Arrow |
Move focus to previous menu item |
* |
* (3) |
Up Arrow |
Select menu item |
* |
underlined letter in the menu item |
Enter |
Move focus to submenu |
* |
* (3) |
Right Arrow |
Move focus to main menu |
* |
* (3) |
Left Arrow |
Navigate bookmarks |
View bookmarks menu |
* (4) |
* |
Alt+C+B |
Move focus to next item in bookmarks menu |
Down Arrow (4) |
* |
Down Arrow |
Move focus to previous item in bookmarks menu |
Up Arrow (4) |
* |
Up Arrow |
Select item in bookmarks menu |
Return (4) |
* |
Enter |
Add bookmark |
Command+D |
Alt+K |
Ctrl+D |
Edit bookmarks |
Command+B |
Alt+B |
Ctrl+B |
Delete current bookmark (5) |
Delete |
Alt+D |
Delete |
Navigate history list |
View history list |
Command+H |
Alt+H |
Ctrl+H |
Move focus to next item in history list |
* |
* |
Down Arrow |
Move focus to previous item in history list |
* |
* |
Up Arrow |
Move focus to first item in history list |
* |
* |
Left Arrow |
Select item in history list |
* |
* |
Enter (6) |
Close history list |
Command+W |
Alt+W |
Ctrl+W |
Define view |
Increase font size (7) |
Shift+Command+] |
Alt+] |
Ctrl+] |
Decrease font size (7) |
Shift+Command+[ |
Alt+[ |
Ctrl+[ |
Change font color |
* |
* |
* |
Change background color |
* |
* |
* |
Turn off author-defined style sheets |
* |
* |
* |
Turn on user-defined style sheets (8) |
? |
? |
? |
Apply next user-defined style sheet |
? |
? |
? |
Apply previous user-defined style sheet |
? |
? |
? |
Other functionalities |
Access to documentation |
* |
* |
* |
Notes.
- In Windows, active elements can be links, text
entry boxes, buttons, checkboxes, radio buttons, etc. In Unix and Macintosh,
Tab cycles through text entry boxes only.
- In Windows, this works for any button, since
any button can gain the user interface focus using keyboard commands. In Unix and Macintosh,
this only applies to the "Submit" button following a text entry.
- In Unix, the menus can not be opened with shortcut
keys. However, once a menu is opened it stays opened until it is explicitly
closed, which means that the menus can still be used with shortcut keys to some
extent. Sometimes left and right arrows move between menus and up and down
arrows move within menus, but this does not seem to work consistently, even
within a single session.
- In Macintosh, you can not explicitly view the
bookmarks menu. However, if you choose "Edit Bookmarks", which does
have a keyboard shortcut, you can then navigate through the bookmarks and open
bookmarked documents in the current window.
- To delete a bookmark you must first choose
"Edit Bookmarks" and then move the focus to the bookmark you want to
delete.
- In Windows, when you open a link from the
history menu using Enter, the document opens in a new window.
- All three systems have menu items (and
corresponding shortcut keys) meant to allow the user to change the font size.
However, the menu items are consistently inactive in both Macintosh and Unix.
The user seems to be able to actually change the font sizes only in Windows.
- It is important to allow users to set their
own cascading style sheets (css). Although Netscape does currently allow the
user to override the author's choice of foreground color, background color,
font, and font size, it does not allow some of the advanced capabilities that
make cascading style sheets so powerful. For example, a blind user may want to
save a series of style sheets which show only headers, only links, etc., and
then view the same page using some or all of these style sheets in order to
orient himself to the contents and organization of the page before reading any
of the actual content.
- 11.4 In a dedicated section of the documentation, describe all features of the user agent that promote accessibility. [Priority 2]
-
Note. This is a more
specific requirement than checkpoint 11.2.
Techniques:
-
In the documentation for each product feature, include information
about accessibility. In an easy-to-find section on accessibility
features, list all features that promote accessibility and link
to them. A dedicated section
documenting the features of the user agent that promote accessibility,
however, should not be the only method of documenting such features.
- 11.5 Document changes between software releases. [Priority 2]
Techniques:
-
- Document changes to the user interface.
- At a minimum provide a text description of changes
(e.g., in a README file).
This section introduces some general techniques to promote
accessibility in user agent functionality. A list of assistive
technologies and browsers [USERAGENTS]
designed for accessibility is available at
the WAI Web site.
Users must have access to document content, however they are
browsing. Content can come from:
- the document source, both primary content and
equivalent alternatives.
Document source includes element content, attribute values,
and referenced content (e.g., images).
- style sheets.
- the user agent.
The most basic way to give users access to content is to render the
entire document in one stream, whether it be a two-dimensional
graphical
layout, audio stream, or line-by-line Braille stream).
However, user agents should do much more to ensure that users
can understand a page by:
- Preserving structure when rendering
- Allowing the user to select specific content and query
its structure or context
- Allowing access to equivalent alternatives of content.
- Using and generating metadata to provide context
- Allowing the user to configure the user agent
for different rendering options
These topics are addressed below.
Retain structure when rendering. For example, a graphical
rendering of tables conveys relationships among cells. Serial
renderings (e.g., to speech) must also make those relationships
apparent, otherwise users will not know where a table cell
ends, or a list item, etc. One technique for maintaining structure
is to precede content with "header" information (upon user demand).
For example, give the position of a table cell or it's associated
headers. Or indicate the position of a list item within nested
lists.
Provide "intelligent" structure that may not be exactly
what the DTD says. For instance, in HTML, header elements do
not nest, but presenting the document as hierarchical may
give users a better sense of document structure. Use common
idioms where known, even if they are not expressly in the DTD.
In the Amaya browser [AMAYA], users may
access attribute values as follows: Place the cursor at the element in
question, open/swap to the structure view. You are shown list of
attributes and values. Another technique: select the element (press
escape in Linux), then the attributes are all available from the
attributes menu. For "alt", one can also look at the alternate view,
which renders text equivalents
instead of images - a lynx-like view. All the
views are synchronized for navigation (and for editing).
Users may want to select content based on the rendering
structure alone (i.e., that amounts to selecting across
element borders).
Users may want to select content based on structure (e.g., a table
cell). Amaya allows users to "climb" the document tree by positioning
the cursor and pressing the Escape key. Each Escape selects one node
higher in the document tree, up to the root.
Speech-based user agents providing accessible solutions for images
should, by default, provide no information about images for
which the author has provided no
text equivalent.
The reason for this
is that the image will clutter the user's view with unusable
information adding to the confusion. In the case of an speech
rendering, nothing should be spoken for the image element. This user
should be able to turn off this option to find out what images were
inaccessible so that the content author could be contacted to correct the
problem.
In the case of videos, an assistive technology should, by default,
notify the user that a video exists as this will likely result in
the launch of a plug-in. In the case of a video, user agents should
indicate what type of video it is, accompanied by any associated
equivalent alternative. User agents should prefer
plug-ins that support system-specific accessibility features over
those that don't.
In the case of applets, an assistive technology should, by default,
notify the user that an applet exists, as this will likely result in the launch
of an associated plug-in or browser specific Java Virtual Machine. In
the case of an applet, the notification should include any associated
equivalent alternatives. This is especially important since
applets typically do provide an application frame that would provide
application title information.
When an applet is loaded, it should support the Java system
conventions for loading an assistive technology (refer to the
appendix on loading
assistive technologies for DOM access). When the applet receives
content focus,
the browser user agent should first notify the user about the applet
as described in the previous paragraph and turn control over to the
assistive technology that provides access to the Java applet.
Suppose an object with a preferred geometry is specified
and not rendered, should the equivalent alternative be rendered
in the preferred (but empty) region? What if the
equivalent alternative exceeds the size of the preferred
geometry? One option is to allow the user to specify
through the UI whether to respect the preferred
geometries or ignore them.
For information about equivalent alternatives for SMIL content, refer
to "Accessibility Features of SMIL" [SMIL-ACCESS].
In HTML 4.0 [HTML40], authors supply equivalent alternatives for
content as follows:
- For the IMG element (section 13.2):
The "alt" (section 13.8),
"title" (section 7.4.3), and
"longdesc" (section 13.2) attributes.
- For the OBJECT element (section 13.3): The content of the element and the "title" attribute.
- For the deprecated APPLET element (section 13.4): The "alt" attribute and the content
of the element.
- For the AREA element (section 13.6.1): The "alt" attribute.
- For the INPUT element (section 17.4): The "alt" attribute.
- For the
ACRONYM and ABBR elements (section 9.2.1): The "title" attribute
may be used for the acronym or abbreviation expansion.
- For the TABLE element (section 11.2.1), the
"summary" attribute.
- For frames, the NOFRAMES element (section 16.4.1) and the
"longdesc" attribute (section 16.2.2) on
FRAME and IFRAME (section 16.5).
- For scripts, the
NOSCRIPT element (section 18.3.1).
- The "Altifier Tool" [ALTIFIER]
illustrates smart techniques for generating
text equivalents
for images, etc. when the author hasn't supplied any.
- If no captioning information is available and captioning is turned on,
render "no captioning information available" in the captioning region
of the viewport.
In addition to providing information about content, user agents
must provide contextual information. For example:
- table cell row/column position
- table cell header information.
- Nested list item numbers
- Content language
User agents can use style sheet languages
such as CSS 2 [CSS2] and XSLT [XSLT] to
generate contextual information.
Example.
The following XSLT style sheet
(taken from the XSLT Recommendation [XSLT], Section 7.7)
shows how to one might number H4 elements in HTML with a three-part
label:>
<xsl:template match="H4">
<fo:block>
<xsl:number level="any" from="H1" count="H2"/>
<xsl:text>.</xsl:text>
<xsl:number level="any" from="H2" count="H3"/>
<xsl:text>.</xsl:text>
<xsl:number level="any" from="H3" count="H4"/>
<xsl:text> </xsl:text>
<xsl:apply-templates/>
</fo:block>
</xsl:template>
End example.
To ensure accessibility, users must have final
control over certain renderings.
- For changing text size, allow font size changes or
provide a zoom mechanism.
- To hide content, use the CSS
'display'
and
'visibility' properties ([CSS2], sections 9.2.5 and 11.2, respectively).
Implement CSS ([CSS1], [CSS2]) including the
CSS 2 cascade order (section 6.4.1) and user
style sheets. The CSS 2 cascade order ensures that user style sheets
with
"!important"
(section 6.4.2) take precedence over
author styles, giving
users final control. Style sheets give authors design flexibility
while offering users final control over presentation (refer also to
Web Content Accessibility Guidelines 1.0 checkpoint 3.3
([WAI-WEBCONTENT]). CSS
should be implemented by user agents that implement CSS for text that
it renders. CSS includes properties for audio, Braille (fixed and
refreshable), screen, and print rendering, and all relevant properties
for supported output media should be implemented.
Note that in the CSS cascade order, markup is given less weight
than style sheet rules. Thus, an author may use both presentation
markup and style sheets, and user agents that support style sheets
will prefer the latter.
A user style sheet can be implemented through the
user agent user interface,
which means that the user may not have to understand how to write
style sheets; they are generated or the user agent acts as though they
were. For an example of this, refer to the style sheets implementation
of Amaya [AMAYA], which provides a
GUI-based interface to create and apply internal style sheets. The
same technique could be used to control a user style sheet.
For images, applets, and animations:
Background images may be controlled by the use of local style
sheets, and more effectively if these can be dynamically
updated. Animation rate depends on the players used. User agents that
provide native rendering of animation (for example a movie player, a
driver for animated GIF images, or a java machine) should enable the
control of animation rates, or at least allow the user to stop, and to
play frame-by-frame, as well as straight rendering. A user agent
could provide control of the general timing of a presentation,
combined with the ability to select from available tracks manually. An
issue to bear in mind is that when animation is synchronized with audio,
a user may need the ability to play the animation separately from the
associated audio.
For time-based presentations:
Implement user controls to start, atop, rewind and pause
presentations, and where multiple tracks are supported, to choose
which tracks should be rendered. SMIL 1.0 [SMIL]
provides for a number of these features. A SMIL implementation should
provide for direct user control, as well as activation of the controls
through a published API, for developers of assistive technologies.
For user agents rendering audio:
On selecting from among available description tracks. SMIL 1.0
[SMIL] allows users to specify
captions in different languages. By setting language
preferences in the SMIL player, users may access captions
(or audio) in different languages.
The G2 player from Real Networks currently allows users to specify
which language they prefer, which can be evaluated in a SMIL
document to choose from among text or
auditory tracks. Currently only one language can be indicated which does
not permit choosing, for example, English spoken audio with Spanish
captions.
The Quicktime player currently permits turning on and off any
number of tracks individually, which can include audio, video, and
text.
For user agents rendering video:
Implement the CSS positioning and/or SMIL layout languages. Allow
the user to freeze a presentation, manually move and resize component
visual tracks (including captions, subtitles and signed translations)
and to apply CSS stylesheets to text-based presentation and SVG.
For user agents rendering speech:
CSS 2 aural style sheet properties
([CSS2], section 19) can
allow users to configure speech rate, volume, and pitch. These can be
implemented by allowing the user to write and apply a local style
sheet, or can be automatically generated by means of (accessible) user
controls, which should also be controllable through an API.
User interface:
- Allow the user to select large or small buttons and controls (and
ensure that these values are applied consistently across the user
interface)
- Allow the user to control features such
as menu font sizes, or speech rates - this may be achieved through use
of operating system standards.
- Allow the user to regroup buttons and controls, and reorder menus.
- Address broken link handling so that it doesn't disorient
users. For example, leave the viewport as is and notify user.
- Provide the user with media-independent information
about the status of a link as the link is chosen. For
example, do not rely solely on font styles or color
changes to alert the user whether or not the link has
previously been followed. The user should be able to
pick from amongst a list of alert mechanisms (i.e. color
changes, sound clips, status line messages, etc.), and
should not be limited to only one type of alert
mechanism.
- For assistive technologies: Provide the user with
the option to have the "title" (if present) or the
hyperlink text made available to the user when the user
navigates from link to link.
- Alert the user if following a link involves the
payment of a fee.
- When presenting the user with a list of the hyperlinks
contained in a document, allow the user to choose between
"Display links using hyperlink text" or "Display links by
title (if present)", with an option to toggle between the
two views. For a link without a title, use the link text.
- Provide the user with orientation information about
the listed links. For example, identify a selected
link as "Link X of Y", where "Y" is the total number of
links available in the document.
- Offer the user a list of links which have been visited
and a list of links which have not yet been visited, or
provide a media-independent mechanism to distinguish
between visited and unvisited links. Do _not_ rely on
visual or aural prompts alone to signify the difference
between visited and unvisited links.
- Offer the user a list of links which are internal
(i.e., local to document) and those which are external,
or provide a media-independent mechanism to distinguish
between external and internal links in a list of links.
Do not rely on visual or aural prompts *alone* to
signify the difference between internal and external
links.
- Use the
CSS2 ':before' pseudo-elements
([CSS2], section 5.12.3)
to clearly indicate that something is a link
(e.g., 'A:before { content : "LINK:" }').
- Implement the CSS pseudo-class
':hover'.
Lynx allows the user to choose from the following options
for images without "alt" supplied:
- Insert a generic placeholder (e.g., [IMAGE]) in place of the image.
- Insert the file name in place of the image.
- Render nothing.
The same technique might be used when "alt" is
supplied but whitespace only. However, if an image with
empty or whitespace "alt" text is part of a link:
- Insert a generic placeholder (e.g., [LINK]) in place of the image.
- If supplied for the link element, render the "title" attribute.
- Otherwise, if the link designates an HTML document, use the
content of the TITLE element in that document as link text.
- Otherwise render the filename or URI of the designated resource.
Lynx [LYNX] numbers each link and other
element and provides information about the relative position of the
section of the document. Position is relative to the current page
and the number of the current page out of all pages.
Each page usually has 24 lines.
Information about link status and other properties can be provided
in an information view such as that provided by Netscape Navigator
about how many and what types of elements are in a document.
User agents should not consider that all
local links (to anchors in the same page) have been visited when
the page has been visited.
User agents may use
graphical or aural
icons to indicate visited links or broken links.
Users should be able to:
- Configure what information about links
they wish presented to them.
- Turn on and off automatic rendering of this information
when a link receives content focus.
- Get information about a link on demand, even if automatic
rendering has been turned off.
Jaws for Windows offers a view for configuring a number
of rendering features, notably some concerning link types,
text link verbosity, image map link verbosity, graphical
link verbosity, and internal links:
Ordered lists help non-visual users navigate.
Non-visual users may "get lost" in lists, especially in nested lists
and those that do not indicate the specific nest level for each
list item. Until user agents provide a means to identify list context
clearly (e.g., by supporting the ':before' pseudo-element in CSS2),
content developers should include contextual clues in their lists.
For numbered lists, compound numbers (or letters, numbers,
etc.) are more informative than
simple numbers. Thus, a list numbered "1, 1.1, 1.2, 1.2.1, 1.3, 2,
2.1," provides more context than the same list without
compound numbers, which might be formatted as follows:
1.
1.
2.
1.
3.
2.
1.
and would be spoken as "1, 1, 2, 1, 2, 3, 2, 1", conveying
no information about list depth.
CSS ([CSS1], [CSS2])
allow users to configure number styles (for all list, not just ordered)
through user style sheets.
Example.
The following CSS 2 style sheet
(taken from
CSS 2, section 12.5)
shows how to specify compound numbers
for nested lists created with either UL or OL elements.
Items are numbered as "1", "1.1", "1.1.1", etc.
<STYLE type="text/css">
UL, OL { counter-reset: item }
LI { display: block }
LI:before { content: counters(item, "."); counter-increment: item }
</STYLE>
End example.
Even without CSS, user agents may allow users to turn
on and off contextual rendering of nested lists.
Tables were designed to structure relationships among data. In
graphical
media, tables are often rendered on a two-dimensional grid, but
this is just one possible interpretation of the data. On the Web, the
HTML TABLE element has been used more often than not to achieve a
formatting effect ("layout tables") rather than as a way to structure
true tabular data ("data tables").
Layout tables cause problems for some screen readers and when
rendered, confuse users. Even data tables can be difficult to
understand for users that browse in essentially one dimension,
i.e. for whom tables are rendered serially. The content of any table
cell that visually wraps onto more than one line can be a problem. If
only one cell has content that wraps, there is less problem if it is
in the last column. Large tables pose particular problems since
remembering cell position and header information becomes more
difficult as the table grows.
User agents facilitate browsing by providing access to specific
table cells and their associated header information. How headers are
associated with table cells is markup language-dependent.
Tabular navigation is required by people with visual disabilities
and some types of learning disabilities to determine the content of a
particular cell and spatial relationships between cells (which may
convey information). If table navigation is not available users with
some types of visual disabilities and learning disabilities may not be
able to understand the purpose of a table or table cell.
A linear view of tables -- cells presented row by row or column by
column -- can be useful, but generally only for simple tables. Where
more complex structures are designed, allowing for the reading of a
whole column from header downward is important as is carrying the
ability to perceive which header belongs to which column or group of
columns if more than one is spanned by that header. It is important
for whole cells to be made available as chunks of data in a logical
form. It might be that a header spans several cells so the header
associated with that cell is part of the document chunk for that and
each of the other cells spanned by that header. Inside the cell,
order is important. It must be possible to understand what the
relationships of the items in a cell are to each other.
Properly constructed data tables generally have distinct TH head
cells and TD data cells. The TD cell content gains implicit
identification from TH cells in the same column and/or row.
For layout tables, a user agent can assist the reader by indicating
that no relationships among cells should be expected. Authors should
not use TH cells just for their formatting purpose in layout tables,
as those TH cells imply that some TD cells should gain
meaning from the TH cell content.
When a table is "read" from the screen, the contents of multiline
cells may become intermingled. For example, consider the following
table:
This is the top left cell This is the top right cell
of the table. of the table.
This is the bottom left This is the bottom right
cell of the table. cell of the table.
If read directly from the screen, this table might be rendered
as "This is the top left cell This is the top right cell", which
would be confusing to the user.
A user agent should provide a means of determining the contents of
cells as discrete from neighboring cells, regardless of the size and
formatting of the cells. This information is made available through
the DOM [DOM1]).
The following techniques for speaking data tables are adapted
from the "Tape Recording Manual" produced by the National
Braille Association.
- Read the title, source, captions and any explanatory keys.
- Describe the structure of the table.
Include the number of columns, the headings of each
column and any associated sub-columns, reading from left to right.
The subhead is not considered a column.
If column heads have footnotes, read them following each heading.
- Explain whether the table will be read by rows (horizontally) or by
columns (vertically). The horizontal reading is usual but, in some cases,
the vertical reading better conveys the content. On rare occasions it is
necessary to read a table both ways.
- Repeat the column headings with the figures under them for the first
two rows. If the table is long, repeat the headings every fifth
row. Always repeat them during the reading of the last row.
- Indicate the last row by saying, "and finally . . . " or "last row ..."
- At the completion of the reading say "End table X." If table appeared
on a page other than the one you were recording, add "Returning to text on
page Y."
Non-graphical
rendering of information by a browser or an assistive
technology working through a browser will generally not render more
than a single cell, or a few adjacent cells at a time. Because of
this, the location of a cell of interest within a large table may be
difficult to determine for the users of non-graphical rendering.
In order to provide equivalent access to these users, compliant
browsers should provide a means of determining the row and column
coordinates of the cell having the selection via input (e.g., keyboard)
commands. Additionally, to allow the user of a non-graphical rendering
technology to return to a cell, the browser should allow a means of
moving the selection to a cell based on its row and column
coordinates.
At the time the user enters a table, or while the selection
is located within a table, the user agent should allow an assistive
technology to provide information to the user regarding the dimensions
(in rows and columns) of the table. This information, in combination
with the summary, title, and caption, can allow the user with a
disability to quickly decide whether to explore the table of skip over
it.
Dimensions is an appropriate term, though dimensions needn't be
constants. For example a table description could read: "4 columns for
4 rows with 2 header rows. In those 2 header rows the first two
columns have "colspan=2". The last two columns have a common header
and two subheads. The first column, after the first two rows, contains
the row headers.
Some parts of a table may have 2 dimensions, others three, others
four, etc. Dimensionality higher than 2 are projected onto 2 in a
table presentation.
The contents of a cell in a data table are generally only
comprehensible in context (i.e., with associated header information,
row/column position, neighboring cell information etc.). User agents
provide users with header information and other contextual
information. Techniques for rendering cells include:
- Provide this information through an API.
- Render cells as blocks. This may assist some screen readers.
Using this strategy, the user agent might render individual cells with the
relevant top and side headers attached.
- Allow navigation and querying of cell/header information.
When the selection is on an individual cell, the user would be able to
use a keyboard command to receive the top and left header information for
that cell. The user agent should appropriately account for headers that
span multiple cells.
- Allow users to read one table column or row at a time, which
may help them identify headers.
- Ignore table markup entirely. This may assist some screen readers.
However, for anything more than simple tables, this technique may
lead to confusion.
User agents should use the HTML 4.0
algorithm to calculate
header information
([HTML40], section 11.4.3).
Since not all tables are designed with the header information, user
agents should provide, as an option, a "best guess" of the header
information for a cell. Note that data tables may be organized
top-to-bottom, bottom-to-top, right-to-left, and left-to-right, so
user agents should consider all edge rows when seeking header
information.
Some repair strategies for finding header information include:
-
Consider that the top or bottom row to contains header information.
-
Consider that the leftmost or rightmost column in a column
group contains header information.
- If cells in an edge row or column span more than one row or
column, consider the following row or column to contain header
information as well.
The user may choose the form and amount of this information,
possibly announcing the row heads only once and then the column head
or its abbreviation ("abbr") to announce the cell content.
Issues to consider:
- TH cells on both the left and right of the table need to be considered.
- For TH cells with "rowspan" set:
the content of those TH cells must be considered for each of the N-1
rows below the one containing that TH content.
- An internal TH in a row surrounded on either side
by TDs has no means to specify
to which (row or column) that TH overrides what existed to its left
or above it.
- Finding column header cells assumes they are all above the TD cell
to which they apply.
- A TH with "colspan" set needs to be included in the list of TH for the M-1
columns to the right of the column in which the TH is found.
If the user agent is taking a guess at header information, the user
agent might find two or more possibilities. Provide the user with a
mechanism to review the possible choices and make a selection.
Users of screen readers or other serial access devices
cannot easily glean information about a page "at a glance". This is
particularly difficult when accessing two-dimensional tables and
trying to determine their content. Therefore, contextual information
about tables (available from author-supplied markup or generated
by the user agent) is very important to making them accessible.
Text metadata about tables can come from a number of elements,
attributes, the structure of the table itself, or other sources.
Useful information to make available to users includes:
- The table caption or summary information.
- The number of column groups and columns.
- The number of row groups and rows, in particular information
about table headers and footers.
- Which rows contain header information (whether at the top
or bottom of the table).
- Which columns contain header information (whether at the left
or right of the table).
- Whether there are subheads.
- How many rows or columns a header spans.
- The row/column dimensions of the table.
The user should be able to get table summary information from
inside a cell. It might be helpful to provide two types of table
summary information, i.e. a brief summary and a more detailed summary.
All users should be able to determine quickly the nature and
purpose of a table. Examining the table visually often conveys a sense
of the table contents with a quick scan of the cells. Users with
blindness or low vision, users who have difficulty translating printed
material, or users in an eyes-busy or speech-based environment may not
able to do this. Table summary information can convey the nature of a
table; in HTML, summary information for tables comes from the
"summary" attribute on the TABLE element as well as the CAPTION
element.
An auditory rendering agent, when the point-of-regard moves to a
table, might say, "Table: Tax tables for 1998," thus identifying the
nature of the table. The user could then use keyboard commands to move
the selection to the next logical block of information, or use a
different command to "burrow" into the table.
The "burrow" command should have an opposite "up" command, which
would move the selection from an individual cell to the table as
a whole, so that the user can leave a table from any cell within it,
rather than navigating to the end.
If the user moves the
content focus up to look over the summary
information, it should be possible to burrow back to the same cell.
When navigating a table that contains another table, this strategy
can avoid confusion. For example, if each row of a table
contained five cells, but the second row contained a 4x4 table in the
third cell, a user could be disoriented when the row did not end as
expected. However, when the selection moved to the third cell of
the table, a compliant browser would report that this was a table, and
describe its contents. The user would have the option of navigating to
the fourth cell of the parent table, or burrowing into the table within
this cell.
When rendering tabular information, the fact that it is tabular
information should be apparent. For a graphical user agent, such
information is commonly made obvious by the border attribute
or by visually apparent aligned white space between columns. However,
for a non-graphical agent, such information must also be made
evident.
As the user agent shifts the selection to a table, it should
first allow users to access summary information about the table (e.g.,
the CAPTION element or the "summary" attribute in HTML). Access to
this information allows the user to determine whether or not to
examine the contents of the table, or to move the selection to
the next block of content. Users should be able to choose not
to have the summary information presented, if, for example, they visit
a table frequently and don't want to hear the summary information
repeated each time.
In many data tables, the meaning of the contents of a cell are
related to the contents of adjacent cells. For example, in a table of
sales figures, the sales for the current quarter might be best
understood in relation to the sales for the previous quarter, located
in the adjacent cell.
In order to provide access to contextual information for
individuals using non-graphical browsers, or for individuals with certain
types of learning disabilities, it is necessary for the user agent to
allow the selection to be moved from cell to cell, both
right/left and up/down via keyboard commands. The UA should inform
the user when navigation has led to a table edge.
The most direct method of performing such navigation would be via
the cursor keys, though other navigation strategies might be used.
Users of graphical browsers can easily locate cells within a table
that are at the intersection of a row and column of interest. To
provide equivalent access to users of non-graphical browsers, equivalent
means of navigation should be provided. The search function of a
browser will allow the user to locate key terms within a table, but
will not allow the user to find cells that are at the intersection of
rows and columns of interest.
A rich set of navigation functions could include:
- jump to specific cell (by row/column position).
- up/down 1 or more rows
- left/right 1 or more columns
- bottom row in same column
- right column in same row
- jump to row headers for cell
- jump to column headers for cell
- jump back to cell
- go to first or last cell in a row or column.
- relative and direct navigation. For example, entering
"-3, 20" might mean "left three cells, up 20 cells").
- Allow navigation of table headers or footers only.
In some tables, cells may span more than one row or column and this
affects navigation techniques. For example, if you navigate up into a
cell which spans three columns, which cell above the span cell should
you go into if you go up another cell? Or what happens if you are in
the last cell of a row and the previous row has fewer columns?
- An advanced search mode might provide entries for header information,
allowing the user to find information at the intersection of columns and
rows using the key terms.
-
A search mode might allow the user to search for key terms that are related
to key header terms, allowing searches to be restricted to specific rows or
headers within a table.
The header information visible in a TH cell may be abbreviated,
in which case it should be user preference to see the "abbr"
value if any or the full contents.
Axis information may also help the user search into confined
portions of the table.
Column groups and row groups are other confining partitions of a
table in which a search may be limited.
Software:
Frames were originally designed for use by graphical user
interfaces to allow the graphical viewport to be broken up into pieces
that could change independently (e.g,. selecting an entry in a table
of contents in one frame changes the contents of a second frame).
However Frames can pose problems users who rely on
synthesized speech, refreshable Braille, and magnified
views. The ability to access frame alternatives is
also important for some users with cognitive disabilities.
Problems include:
- Orientation: What frame am I in? How is the frameset organized?
What is the relationship among frames? What happens in frame B when
I select a link in frame A?
- Navigation: How do I get from frame to frame?
To help users, user agents should:
- Consider the author's alternative presentation to frames (e.g.,
provided by the
HTML 4.0 NOFRAMES element ([HTML40], section 16.4.1).
- Inform the user that they are viewing a frameset.
- Provide information about the number of frames in the frameset.
- Provide (possibly nested) lists of links to each frame
in the frameset. The link text can be the frame title
(given by "title" or "name" if "title" is not present). Or,
if no title or name are available, render the title
(e.g., the
HTML TITLE element
[HTML40], section 7.4.2)
of the document that is loaded into the frame.
Other alternative renderings for a frameset include simply
rendering each frame in the frameset sequentially as a block
(e.g., aligned vertically in a
graphical environment).
- Highlight the current frameset (e.g., with a thick border,
by displaying the name of the current frameset in the status
bar, etc.
- Provide information about the current frame.
Make available frame title for
speech synthesizers and Braille displays.
- If a page does not have a list of links within a frame
available outside the frame, make the list available outside
the frame.
- Allow navigation between frames (forward and backward through
the nested structure, return to global list of links to frames).
Note. Recall that the user must be able
to navigate frames through all supported input devices.
- Allow navigation to equivalent alternatives.
- Allow the user to bookmark the current frame.
- Inform the user if an action in one frame causes the content
of another frame to change. Allow the user to navigate quickly
to the frame(s) that changed.
To name frames in HTML, use:
- The "title" attribute on FRAME, or if not present,
- The "name" attribute on FRAME, or if not present,
- Title information of the referenced frame source
(e.g., the TITLE element of the source HTML document), or
- Title information of the referenced long description
(e.g., what "longdesc" refers to in HTML), or
- Frame context
(e.g., "Frame 2.1.3" to indicate the path to this frame in
nested framesets).
Users may also use information about the number of images and words
in the frame to guess the purpose of the frame. For example, few
images and few words is probably a title, more words is probably an
index, many words is probably text area.
Frame structure information should be available through the DOM and
appropriate accessibility interfaces. Using DOM and operating
specific accessibility API to expose frame information provides one
means for assistive technologies to provide alternative control of
frames and rendering of frame information. The user agent should fully
implement the DOM Level 1 Recommendation [DOM1] API related to
frames: HTMLFrameSetElement, HTMLFrameElement, and HTMLIFrameElement.
For people with visual disabilities who enlarge text on the
screen to improve readability, frames become distorted and unusable.
Other users with cognitive disabilities sometimes become disoriented
in complex side-by-side frame configurations. To improve access to
frames, user agents should allow frames to be viewed as a list so the
user can identify the number of frames and the functions of each
frame. If NOFRAMES information is present it should also be rendered
so the user can optionally use that view of the information.
Consider renderings of the following document:
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Frameset//EN">
<HTML lang="en">
<HEAD>
<META http-equiv="Content-Type"
content="text/html; charset=iso-8859-1">
<TITLE>Time Value of Money</TITLE>
</HEAD>
<FRAMESET COLS="*, 388">
<FRAMESET ROWS="51, *">
<FRAME src="sizebtn" marginheight="5" marginwidth="1"
name="Size buttons" title="Size buttons">
<FRAME src="outlinec" marginheight="4" marginwidth="4"
name="Presentation Outline"
title="Presentation Outline">
</FRAMESET>
<FRAMESET ROWS="51, 280, *">
<FRAME src="navbtn" marginheight="5" marginwidth="1"
name="Navigation buttons"
title="Navigation buttons">
<FRAME src="slide001" marginheight="0" marginwidth="0"
name="Slide Image" title="Slide Image">
<FRAME src="note001" name="Notes" title="Notes">
</FRAMESET>
<NOFRAMES>
<P>List of Presentation Slides</P>
<OL>
<LI><A HREF="slide001">Time Value of Money</A>
<LI><A HREF="slide002">Topic Overview</A>
<LI><A HREF="slide003">Terms and Short Hand</A>
<LI><A HREF="slide004">Future Value of a Single CF</A>
<LI><A HREF="slide005">Example 1: FV example:The
NBAs new Larry Bird exception</A>
<LI><A HREF="slide006">FV Example: NBAs Larry
Bird Exception (cont.)</A>
<LI><A HREF="slide007">SuperStars Contract
Breakdown</A>
<LI><A HREF="slide008">Present Value of a Single
Cash Flow</A>
<LI><A HREF="slide009">Example 2: Paying Jr, and
A-Rod</A>
<LI><A HREF="slide010">Example 3: Finding Rate of
Return or Interest Rate</A>
<LI><A HREF="slide011">Annuities</A>
<LI><A HREF="slide012">FV of Annuities</A>
<LI><A HREF="slide013">PV of Annuities</A>
<LI><A HREF="slide014">Example 4: Invest Early in
an IRA</A>
<LI><A HREF="slide015">Example 4 Solution</A>
<LI><A HREF="slide016">Example 5: Lotto Fever
</A>
<LI><A HREF="slide017">Uneven Cash Flows: Example
6:Fun with the CF function</A>
<LI><A HREF="slide018">Example 6 CF worksheet inputs</A>
<LI><A HREF="slide019">CF inputs continued</A>
<LI><A HREF="slide020">Non-Annual Interest
Compounding</A>
<LI><A HREF="slide021">Example 7: What rate are
you really paying?</A>
<LI><A HREF="slide022">Nominal to EAR Calculator</A>
<LI><A HREF="slide023">Continuous Interest Compounding</A>
<LI><A HREF="slide024">FV and PV with non-annual
interest compounding</A>
<LI><A HREF="slide025">Non-annual annuities</A>
<LI><A HREF="slide026">Example 8: Finding Monthly
Mortgage Payment</A>
<LI><A HREF="slide027">solution to Example 8</A>
</OL>
</NOFRAMES>
</FRAMESET>
</HTML>
The following illustrate how some user agents handle this
frameset.
First, rendering in Microsoft Internet Explorer 5.0 on a Windows
platform:
Rendering by Lynx on Linux:
Time Value of Money
FRAME: Size buttons
FRAME: Presentation Outline
FRAME: Navigation buttons
FRAME: Slide Image
FRAME: Notes
List of Presentation Slides
1. Time Value of Money
2. Topic Overview
3. Terms and Short Hand
4. Future Value of a Single CF
5. Example 1: FV example:The NBA's new Larry Bird exception
6. FV Example: NBA's Larry Bird Exception (cont.)
7. SuperStar's Contract Breakdown
8. Present Value of a Single Cash Flow
9. Example 2: Paying Jr, and A-Rod
10. Example 3: Finding Rate of Return or Interest Rate
11. Annuities
12. FV of Annuities
13. PV of Annuities
14. Example 4: Invest Early in an IRA
15. Example 4 Solution
16. Example 5: Lotto Fever
17. Uneven Cash Flows: Example 6:Fun with the CF function
18. Example 6 CF worksheet inputs
19. CF inputs continued
20. Non-Annual Interest Compounding
21. Example 7: What rate are you really paying?
22. Nominal to EAR Calculator
23. Continuous Interest Compounding
24. FV and PV with non-annual interest compounding
25. Non-annual annuities
26. Example 8: Finding Monthly Mortgage Payment
27. solution to Example 8
Graphical rendering by Home Page Reader on Windows:
Audio rendering by Home Page Reader on Windows: @@add here?@@
User agents may also indicate the number of frames in a document
and which frame is the current frame via the menu bar or popup menus.
Users can configure the user agent to include a FRAMES menu item in
their menu bar. The menu bar makes the information highly visible to
all users and is very accessible to assistive technologies. In the
following snapshot, the menu bar indicates the number of frames
and a check next to the name of the frame element indicates which is
the current frame:
For labels explicitly associated with form controls (e.g., "for"
attribute on LABEL in HTML), make available label information when the
user is navigating among the form controls. This information must be
provided in a device-independent manner, and the user should be able
to choose from a list of mechanisms that provide access to the content
of the label.
For semantic information explicitly associated with groupings of
form controls (e.g., groupings of radio buttons or checkboxes contained
in a FIELDSET), make available the information contained in the LEGEND
defined for the FIELDSET to the user. This information must be
provided in a device-independent manner, and the user should be able
to choose from a list of mechanisms that provide access to
the content of the LEGEND.
Provide information about the percentage of form that has already
been filled out as the user moves through the form controls. This
information must be provided in a device-independent manner. The user
should also be able to query the user agent through a simple,
well-documented mechanism (such as a keystroke or keystroke
combination) to learn what percentage of the form has
been completed.
Allow the user to know what percentage of a form has been completed
as the user navigates the form. will help users avoid prematurely
submitting an incomplete form. This is particularly important for
anyone moving through a form sequentially; users who encounter a submit
button usually think this means the end of a form, but it may not
be. (Refer also to the technique detailing methods of providing
users with orientation information about individual form controls when
a form control receives content focus for a more detailed discussion of this
issue.)
Provide the user with orientation information about a form.
Users should be able to query the user agent for:
- the presence of a form -- the user should be able to query to user
agent for the presence of a form within the document being
rendered. Some user agents (such as Opera and Netscape Navigator)
already indirectly provide such functionality in a non-interactive
manner, through the provision of "form navigation" keyboard
commands. When invoked, these "form navigation" commands move the user
agent's current focus
to the first form field contained in the document
currently being rendered (provided, of course, that the document
contains a form. Although providing discrete "form navigation"
commands allows users to quickly move to the
first form field within a document, users need to be
explicitly notified if the document does not contain a form. Such
notification should be conveyed in a device-independent manner, and
the user should not be limited to one means of notification
(i.e., display a message on the status bar and play a sound).
- the number of forms in a document
Provide the user with orientation information about individual form
controls when a form control receives
content focus. For example, the most
basic orientation information would be to identify the form control
with focus as "Field X of Y", where "Y" is the total number of fields
contained in the form. This will help prevent users accessing the form
serially (such as a blind user using a screen reader or someone using
a voice browser over a phone) from prematurely invoking the form's
submit mechanism. It is a common practice for forms (particularly
those used to query search engines) to be laid out visually, so that
the submit and reset buttons (if present) immediately follow a
text-entry field, despite the presence of other form controls (such as
radio buttons and checkboxes) within the FORM element. A user
accessing such a form in a serial manner, therefore, is likely to
mistake the submit button for the end of the form, and activate it,
unaware that it is followed by further form controls which could -- in
the example of a search engine query submission form -- prove an
invaluable aid in tailoring the content being submitted via the
form. Use of such orientation information (i.e., "Field X of Y" or the
percentage of the form completed) will also decrease the amount of
time needed to submit the form (a crucial consideration when forms are
being used to facilitate bidding for online auctions) as well as
reduce the frustration of the end user, who, due to the visually
oriented layout of the form, is confused when the submission of the
form repeatedly leads to a message such as "Form Incomplete - Use your
browser's back button to return to the form".
When a document contains more than one form, form control
orientation information should also include data which will identify
to which form the form control with focus belongs. Notification could
take the form:
Form Z: Field X of Y
where "Z" identifies the form, "X" the form field with focus an
"Y" the total number of form fields contained in "Form Z".
Provide more detailed orientation information pertaining
to form:
- When a grouping of radio buttons receives
content focus, identify the
radio button with content focus as "Radio Button X of Y", where "Y" represents
the total number of radio buttons in the grouping. HTML 4.0
HTML 4.0 specifies the
FIELDSET element
([HTML40], section 17.10),
which allows authors to group thematically related
controls and labels. The
LEGEND element
([HTML40], section 17.10)
assigns a caption to a
FIELDSET. If a LEGEND has been defined for the grouping of radio
boxes, use the information contained within the LEGEND to more
precisely identify the number of radio buttons in the grouping. For
example, if the LEGEND element has been used to identify a FIELDSET of
radio buttons, each of which has a
LABEL element
([HTML40], section 17.9.1)
associated with it, as
"Connection Rate", identify the radio button as it receives
content focus as
"Connection Rate: Radio button X of Y: 28.8kpbs", where "Y" represents
the total number of radio buttons in the grouping and "28.8kbps" is
the information contained in the LABEL associated with the radio
button with content focus.
- Provide information about what is required for each form
control. GUI browsers, for example, could convey such information via
context-sensitive help. Lynx conveys this information by providing
information about the currently selected form control via a status
line message:
- (Radio Button) Use right-arrow or RETURN to toggle
- (Checkbox Field) Use right-arrow or RETURN to toggle
- (Option List) Hit return and use arrow keys and return to select option
- (Text Entry Field) Enter Text. Use UP or DOWN arrows or "tab" to move off
- (Textarea) Enter text. UP/DOWN arrows or "tab" to move off (^Ve for editor)
Note.
The ^Ve (caret-V, e) command, included in the TEXTAREA status
line message, enables the user to invoke an external editor defined
in the local Lynx configuration file (lynx.cfg). For more information,
please refer to the following technique.
Allow the user to invoke an external editor when a TEXTAREA
receives content focus. A user may wish to use an external editor, rather than
enter text directly in a TEXTAREA for myriad reasons, including:
- the ability to more efficiently and expeditiously review the
text being input
- the ability to spell check the text being input
- the ability to use macros or other special features of the
external editor, including the ability to increase the
contrast between foreground and background colors, access to
a wider range of screen-display fonts, etc.
- the ability to save a local copy of the text being input
- the user's familiarity with the external editor will encourage
the user to actually enter text into a TEXTAREA--an exercise
which is often an extremely daunting task, given the
limitations imposed by the physical dimensions of the TEXTAREA.
A user will also find it much easier to review what he or she
has typed when using an external editor.
Provide information about the order of form controls (e.g., as
specified by "tabindex" in HTML). This is important since:
- most forms are visually oriented, employing changes in font
size and color
- users who access forms serially need to know they have
supplied all the necessary information before submitting
the form.
Provide information about required fields. Since authors often use
color changes, font styling, or a graphical symbol alone to express
that a field is required, the user should be able to configure the
user agent so that it alerts him that the field is required for
submission of the form content. Strategies for achieving this
include:
- Allow the user to view a list of required form fields. Such a
list should be invokable via a simple and well documented
keybinding.
- Allow the user to define an alert mechanism (such as the playing
of a sound) which will be invoked when a required field receives
content focus. The user should be able to pick from amongst a list of
alert mechanisms (i.e. color or font-style changes to the field
label, the playing of a sound clip, a status line message, etc.),
and should not be limited to only one type of alert mechanism.
Do not
rely on visual or aural prompts alone to signify a
required form field.
Allow the user to configure the user agent so that SELECT form
fields which use the "multiple" attribute to allow the end user to
select more than one OPTION can be transformed into a list of
checkboxes.
- Preserve the LABELs set for the OPTGROUP and each individual
OPTION, and re-associate them with the user agent generated
checkboxes. The LABEL defined for the OPTGROUP should be
converted into a LEGEND for the resultant FIELDSET, and each
checkbox should retain the LABEL defined for the corresponding
OPTION.
- Note. Lynx automatically transforms SELECT form
fields which use the "multiple" attribute to allow the end user to
select more than one OPTION into checkboxes.
Allow the user to exit a menu without selecting any option. For
example, when navigating through OPTION's, have some key like the ESC
key ot exit the list of OPTION's without making a selection.
Allow the user to configure the user agent sot that SELECT form fields
can be transformed into a list of radio buttons.
- Any such transformation should retain the accessibility information
defined for the original form controls.
- Note.
Lynx provides this functionality as a configurable option,
which can be changed on-the-fly while a page is being rendered.
To promote the comprehensibility of the transformed output for
users using screen-readers and refreshable Braille displays,
Lynx places each OPTION that it transforms into a radio button
on a separate line.
Users (notably users with blindness or any user unaccustomed to
online forms) do not want forms to be submitted without their consent,
e.g., when submitted through scripts. In this case user agents should
request confirmation before submitting the form content. Nor do they
wish to be prompted before each form submission when they have
explicitly submitted the form (e.g., through the standard submit
button).
Inadvertently pressing the RETURN or ENTER key is quite a prevalent
phenomenon among users of every level of expertise - especially
those who often find it necessary to switch between user agents. Lynx,
for example, uses the ENTER key within FORMs as a means of exposing
drop-down (or pop-up, depending upon your point of view) SELECT menus.
Thus, when one encounters a SELECT menu using Lynx, one: exposes the
content of the menu by pressing the ENTER key, and then is able to
navigate between OPTIONs using the up and down arrows or via Lynx's
text-search feature. When one finds the appropriate OPTION, it is
selected by pressing ENTER, which causes the selected item to be
displayed in the SELECT menu listbox.
The problem posed by the default "submit on enter" feature of
most GUI browsers is not limited to the SELECT menu problem outlined
above. Lynx (as well as several other text-based browsers) uses the
ENTER/RETURN key as a means of toggling several FORM controls, such as
the selection of checkboxes and radio buttons.
Speech users may be frustrated and misdirected by the use of
javascript and event handler controlled pseudo-forms, wherein the user
is presented with a menu (in the form of a listbox in GUI browsers),
and is redirected to a different viewport upon selection of an OPTION.
The markup behind such pseudo-forms is a mix of javascript (in
particular the "function switchpage(select)" command) and HTML FORM
controls, which utilize HTML4's event handler script attributes (in
particular the "onchange" event handler attribute has been defined. An
example (gleaned from the document source for one Web site follows:
<SELECT NAME="condition" onchange="switchpage(this)">
When such a menu is encountered by a individual who is
using speech synthesis in conjunction with a javascript
enabled user agent, his or her instinctual reaction will
be to use the UA's navigation mechanism (usually the up
and down arrows) to review the available OPTIONs.
However, each time a new OPTION is displayed, the user is
abruptly taken to a new viewport. Conversely, if one is
using a user agent that does not support javascript (or
has javascript support disabled), then the menu is
displayed, but since there is no SUBMIT mechanism
associated with it, there is no mechanism by which one
can use the menu to quickly switch viewports - the
apparent purpose of this type of pseudo-form. And while
one can avoid having the viewport abruptly changed when
encountering the menu (at least in the Windows
environment) by using the ALT-LEFT-ARROW keystroke to
display the menu in a drop-down list, (a) very few users
know this keystroke, and (b) when one encounters a
listbox on a page in an aural environment, one usually
assumes that he or she is navigating a valid FORM, in
which there are no unexpected side effects to perusing
the contents of a SELECT menu using the arrow keys
Refer also to
Web Content Accessibility Guidelines 1.0
checkpoint 6.3
[WAI-WEBCONTENT]:
Content developers must ensure that pages are
accessible with scripts turned off or in browsers that don't support
scripts.
Some techniques to address form submission:
- Allow the user to configure the user agent. Choices
should include:
- "Never Allow Automatic Submission of Form Content "
or "Never Submit {Do Not Prompt}"
- "Always Allow Automatic Submission of Form Content"
or "Always Submit Without Prompting"
- "Prompt Before Submitting Form Content"
The default setting should be: "Prompt before submitting
form content", so as to allow the user to decide whether
or not HTML4 event handling will occur automatically.
- Configuration can be determined by prompting the user
the first time an event handled or script-driven FORM is
encountered. Choices should include:
- "Submit" {optional verbiage: "This Time Only"}
- "Do Not Submit" {optional verbiage: "This Time Only"}
- "Always Allow Automatic Submission of Form Content"
or "Always Submit Without Prompting"
- "Never Allow Automatic Submission of Form Content "
or "Never Submit {Do Not Prompt}"
- "Always Prompt Before Submitting Form Content"
If the user chooses "Prompt Before Submitting Form
Content", this prompt could be recycled in an abbreviated
fashion. The prompt should include:
- "Submit This Time Only"
- "Do Not Submit"
- "Always Submit and Do Not Ask/Warn Me Again"
- "Never Submit and Do Not Ask/Warn Me Again"
Certain elements of the document language may have associated event
handlers that are triggered when certain events occur. User agents
must be able to identify those elements with event handlers statically
associated (i.e., associated in the document source, not in a script).
- In HTML
- All of the attributes beginning with the prefix "on": "onblur", "onchange", "onclick", "ondblclick", "onkeydown", "onkeypress", "onkeyup", "onload", "onmousedown", "onmousemove", "onmouseout", "onmouseover", "onmouseup", "onreset", "onselect", "onsubmit", and "onunload".
Allow the user to configure the user agent so that
mouseover/mouseout events may be triggered by (and trigger) focus/blur
events. Similarly, allow the user to use a key command, such as
"enter" and "shift-enter" to trigger onclick and ondblclick events.
Implement DOM 2 [DOM2] events with a single activation event and
provide a method for triggering that event from each supported input
device or input API. These should be the same as the click events and
mappings provided above (but note that a user agent which is also an
editor may wish to use single click events for moving a system caret,
and want to provide a different behavior to activate using the
mouse). For example, Amaya [AMAYA] uses a "doAction" command for
activating links and form controls, which can be triggered either by
the mouse (and it is possible to set it for single-click or
double-click) or by the keyboard (it is possible to set it for any key
using Amaya's keyboard configuration)
Document the effects of known important scripts to give users an
idea in advance of what they do. Make script source available to users
so that those familiar with the scripting language may be able to
understand their effects.
Note. User agents may already allow users to
turn off scripts for security reasons.
User agents should make available information about abbreviation
and acronym expansions. For instance, in HTML, look for abbreviations
specified by the ABBR and ACRONYM elements. The expansion may be
given with the "title" attribute.
To provide expansion information, user agents may:
- Allow the user to configure that the expansions be
used in place of the abbreviations,
- Provide a list of all abbreviations in the document,
with their expansions (a generated glossary of sorts)
- Generate a link from an abbreviation to its expansion.
- Allow the user to query the expansion of a selected
or input abbreviation.
- If an acronym has no explicit expansion, user agents
may look up in a glossary of acronyms for that page for
another occurrence. Less reliably,
the user agent may look for possible expansions (e.g.,
in parentheses) in surrounding context.
Several of the more popular mainstream operating systems now
include a common suite of built-in accessibility features that are
designed to assist individuals with varying abilities. Despite
operating systems differences, the built-in accessibility features use
a similar naming convention and offer similar functionalities, within the
limits imposed by each operating system (or particular hardware
platform).
The following is a list of built-in accessibility features from
several platforms:
- StickyKeys
- These allow users to perform a multiple simultaneous
key sequence by pressing and releasing each key in sequential order. StickyKeys
is designed to work with only those keys defined as modifier keys. Modifier
keys are pressed in combination with other keys, to change the outcome of the
second (or more) pressed keys. For example, the SHIFT key is defined as a
modifier key, since it is commonly used to create upper case characters. Each
operating system or hardware platform typically defines a set of keys which can
act as modifier keys. The most common modifier keys include SHIFT, CONTROL, and
ALTERNATE.
- MouseKeys
- These allow users to move the mouse cursor and activate the mouse
button(s) from the keyboard.
- RepeatKeys
- These allow users to set how fast a key repeats (e.g.,
sometimes referred to as typematic rate) when the key is held pressed (e.g.,
Repeat Rate), and also allows control over how quickly the key starts to repeat
after the key has been pressed (e.g., delay Until Repeat). Key repeating may
also be eliminated.
- SlowKeys
- These instruct the computer not to accept a key as
pressed until it has been pressed and held down for a specific user adjustable
length of time.
- BounceKeys
- These prevent extra characters from being typed if
the user bounces (e.g., tremor) on the same key when
pressing or releasing it.
- ToggleKeys
- These provide an audible indication for the status
of keys that have a toggled state (e.g., keys that maintain status after
being released). The most common toggling keys include Caps Lock, Num Lock, and
Scroll Lock.
- SoundSentry
- These monitor the operating system and applications
for sounds, and attempt to provide a
graphical indication when a sound is being
played. Older versions of SoundSentry may have flashed the entire display
screen for example, while newer versions of SoundSentry provide the user with a
selection of options, such as flashing the active window or flashing the active
window caption bar.
The next three built in accessibility features are not as commonly
available as the above group of features, but are included here for
definition, completeness, and future compatibility.
- ShowSounds
- These are user setting or software switches that are
available for the operating system and application (including user agents)
APIs to read, to notify them that the user wishes audio information to also be
presented in a graphical fashion.
- High Contrast
- These automatically change the display fonts and
colors to choices which should provide for easier reading.
- TimeOut
- These allow the built-in accessibility features to
automatically turn off if the computer is unused for a specified length of
time, and is intended for use when the computer is in a public setting (e.g.,
library). TimeOut might also be referred to as reset or automatic
reset.
The next accessibility feature listed here is not considered to be
a built in accessibility feature (since it only provides an alternate
input channel) and is presented here only for definition,
completeness, and future compatibility.
- SerialKeys
- These allow a user to perform all keyboard and
mouse functions from an external assistive device (such as communication aid)
communicating with the computer via a serial character stream (e.g., serial
port, IR port, etc.) rather than or in conjunction with, the keyboard, mouse,
and other standard input devices/methods.
Microsoft Windows 95, Windows 98, and Window NT
4.0
If you are developing a UA or an application for Windows and want
to find out about built-in accessibility features, ask the system via
the "SystemParametersInfo" function. Please refer to [MS-ENABLE]
for more information.
For information about Microsoft keyboard configurations
(Internet Explorer, Windows 95, Windows 98, and more), refer
to documentation on
keyboard assistance for Internet Explorer and MS Windows
[MS-KEYBOARD].
The following accessibility features can be adjusted from the Accessibility
Options Control Panel:
- StickyKeys: modifier keys include SHIFT, CONTROL, and ALTERNATE.
- FilterKeys: grouping term for SlowKeys, RepeatKeys, and
BounceKeys.
- MouseKeys
- ToggleKeys
- SoundSentry
- ShowSounds
- Automatic reset: term used for TimeOut
- High Contrast
- SerialKeys
Additional accessibility features available in Windows 98:
- Magnifier
- This is a windowed, screen enlargement and enhancement program used
by persons with low vision to magnify an area of the
graphical display (e.g., by
tracking the text cursor, current focus, etc.). Magnifier can also invert the colors
used by the system within the magnification window.
- Accessibility Wizard
- This is a setup tool intended to assist a person with
making choices which setting up the accessibility features on a workstation.
Apple Macintosh Operating System
The following accessibility features can be adjusted from the Easy
Access Control panel (Note: Apple convention uses a space within the
accessibility feature names.)
- Sticky Keys: modifier keys include the SHIFT, OPEN APPLE (COMMAND),
OPTION (ALT) and CONTROL keys.
- Slow Keys
- Mouse Keys
The following accessibility features can be adjusted from the Keyboard
Control Panel.
- Key Repeat Rate (e.g., part of RepeatKeys)
- Delay Unit Repeat (e.g., part of RepeatKeys)
The following accessibility feature can be adjusted from the Sound or
Monitors and Sound Control Panel (depends upon which version of the OS).
- Adjusting the volume to off or mute causes the Macintosh to flash the
title bar whenever the operating system detects a sound (e.g., SoundSentry)
Additional accessibility features available for the Macintosh OS:
- CloseView
- This is a full screen, screen enlargement and enhancement program
used by persons with low vision to magnify the information on the graphical
display, and it can also change the colors used by the system.
- SerialKeys
- This is available as freeware from Apple and several other
Web sites.
AccessX, X Keyboard Extension (XKB), and the X Window System
(Note: AccessX became a supported part of the X Window System X Server with
the release of the X Keyboard Extension in version X11R6.1)
The following accessibility features can be adjusted from the AccessX
graphical user interface X client on some DEC, SUN, and SGI operating systems.
Other systems supporting XKB may require the user to manipulate the features
via a command line parameter(s).
- StickyKeys: modifier keys are platform-dependent, but usually include the
SHIFT, CONTROL, and META keys.
- RepeatKeys:
- SlowKeys:
- BounceKeys:
- MouseKeys:
- ToggleKeys:
DOS (Disk Operating System)
The following accessibility features are available from a freeware program
called AccessDOS, which is available from several Internet Web sites including
IBM, Microsoft, and the Trace Center, for either PC-DOS or MS-DOS versions 3.3
or higher.
- StickyKeys: modifier keys include the SHIFT, CONTROL, and ALTERNATE keys.
- Keyboard Response Group: grouping term for SlowKeys, RepeatKeys, and
BounceKeys
- MouseKeys:
- ToggleKeys:
- SoundSentry (incorrectly name ShowSounds):
- SerialKeys:
- TimeOut:
Ensure your UA can be operated using the standard interfaces on the
target platform(s). People with disabilities should be involved in
the design and testing of the software.
Some example tests include:
- All user interface
components must be keyboard accessible and
therefore, must be operable by software or devices that emulate
a keyboard. (Use SerialKeys [see Appendix 8] and/or voice recognition
software to test keyboard event emulation.) Individuals with
varying physical abilities should be able to access your UA using a
SerialKeys device or using voice recognition, provided it is keyboard
accessible.
- All user interface components must track selection and
current focus. Individuals
who have low vision and use screen magnification software should be
able to follow highlighted item(s) (e.g., selection), text input location
(e.g., sometimes referred to as the "caret"), and any control or component
with focus, if your UA exposes these properties correctly.
- All user interface components must provide readable "text" names or
labels, even when not visible. Providing this type of information in
your UA along with the prior two examples, means that individuals
who are blind and accessing your UA using screen reading software
and/or a Braille output device should be able to operate and navigate
within it.
- All user interface components which convey important information
using sound, also need to provide alternate, parallel visual representation
of the information for individuals who are deaf, hard of hearing, or
operating your UA in a noisy or silent
environment where the use of sound isn't practical.
- Establish quality control and assurance processes for consistency of
access strategies across software releases.
There are several methods for developers to accomplish this. Most
of these methods fall into four categories:
- Launch the entire AT inside the address space of the (UA) browser
- Launch some part of the AT, a piece of stub code, a DLL, a Browser Helper
Object [special DLL], etc., inside the address space of the (UA) browser
- Write your own combined UA/AT (e.g., pwWebSpeak)
- Out-of-process access to the DOM
These methods are ordered as developments within a rapidly changing
technology with the most recent advances/methods listed first.
Loading assistive technologies for direct navigation to User Agent DOMs
Note. This method and the method described in the
next section are very similar. What differs is the amount of, or
capability of, the AT that actually gets loaded in the same process or
address space as the User Agent.)
Access to application specific data across process boundaries might
be costly in terms of performance. Therefore, user agents may wish to
provide a mechanism to load the entire assistive technology (AT), into
the process space of the application as a separate thread with direct
access to the DOM.
Determining the Assistive Technologies to load
One technique is to store a reference to an assistive technology in
a system registry file or, in the case of Jave, a properties
file. Registry files are common among many operating system
platforms.
In Windows you have the system registry file. On OS/2 you have the
system.ini file and on distributed network client networks you often
have a system registry server that an application
running on the network client computer can query.
In Java 2, the existence of an "accessibility.properties" file
causes the system event queue to examine the file for assistive
technologies required for loading. If the file contains a property
called "assistive_technologies", it will load all registered assistive
technologies and start them on their own thread in the Java Virtual
Machine that is a single process. An example entry for Java is as
follows:
assistive_technologies=com.ibm.sns.svk.AccessEngine
In Windows, a similar technique could be followed by storing the
name of a Dynamic Link Library (DLL) for an assistive technology in a
designated assistive technology key name, AT pair. An example entry
for Windows could be as follows:
HKEY_LOCAL_MACHINE\Software\Accessibility\DOM
"ScreenReader, VoiceNavigation"
Attaching the Assistive Technologies to the DOM.
Once the assistive technology is determined from the registry, any
user agent on the given operating system can now determine if an
assistive technology needs to be loaded with their application and
load it.
On a non-Java platform, a technique to do this would be to create a
separate thread with a reference to the User Agent's DOM using a
Dynamic Link Library (DLL). This new thread will load the DLL and call
a specified DLL entry name with a pointer to the DOM interface. The
assistive technology's task will then run until such time as is
necessary to end communication with the DOM.
Once loaded, the assistive technology can monitor the DOM as
needed. The assistive technology has the option of communicating with
a main assistive technology of its own and process the DOM as a
caching mechanism for the main AT application or be used as a bridge
to the DOM for the main assistive technology.
In the future, it will be necessary to provide a more comprehensive
reference to the application that not only provides direct navigation to
it's client area DOM, but also multiple DOM's that it is processing
and an event model for monitoring them.
Example Technique: Java's Direct Access
Java is a working example where the direct access to application
components is executed in a timely manner. Here, an assistive
technology running on a separate thread monitors GUI events such as
focus changes. Focus changes give the AT notification of which
component object has focus. The AT can communicate directly with all
components in the application by walking the parent/child hierarchy
and connecting to each component's methods and monitor events
directly. In this case an AT has direct access to component specific
methods as well as those provided for by the Java Accessibility
API. There is no reason that a DOM interface to UA components could
not be provided
In Java 1.1.x, Sun's Java access utilities load an assistive by
monitoring the Java awt.properties file for the presence of assistive
technologies and loads them as shown in the following code example:
import java.awt.*;
import java.util.*;
String atNames = Toolkit.getProperty("AWT.assistive_technologies",null);
if (atNames != null) {
StringTokenizer parser = new StringTokenizer(atNames," ,");
String atName;
while (parser.hasMoreTokens()) {
atName = parser.nextToken();
try {
Class.forName(atName).newInstance();
}
catch (ClassNotFoundException e) {
throw new AWTError("Assistive Technology not found: " + atName);
}
catch (InstantiationException e) {
throw new AWTError("Could not instantiate Assistive" +
" Technology: " + atName);
}
catch (IllegalAccessException e) {
throw new AWTError("Could not access Assistive" +
" Technology: " + atName);
} catch (Exception e) {
throw new AWTError("Error trying to install Assistive" +
" Technology: " + atName + " " + e);
}
}
}
In the above code example, the function
Class.forName(atName).newInstance() creates a new instance of the
assistive technology. The constructor for the assistive technology
will then be responsible for monitoring application component objects
by monitoring system events.
In the following code example, the constructor for the
assistive technology "Access Engine," adds a
focus change listener
using Java accessibility utilities. When the assistive technology is
notified of an objects gaining focus it has direct access to that
object. If the Object, o, implemented a DOM interface the assistive
technology would now have direct access to the DOM in the same process
space as the application.
import java.awt.*;
import javax.accessibility.*;
import com.sun.java.accessibility.util.*;
import java.awt.event.FocusListener;
class AccessEngine implements FocusListener {
public AccessEngine() {
//Add the AccessEngine as a focus change listener
SwingEventMonitor.addFocusListener((FocusListener)this);
}
public void focusGained(FocusEvent theEvent) {
// get the component object source
Object o = theEvent.getSource();
// check to see if this is a DOM component
if (o instanceof DOM) {
...
}
}
public void focusLost(FocusEvent theEvent) {
// Do Nothing
}
}
In this example, the assistive technology has the option of running
standalone or acting as a cache for a bridge that communicates with a
main assistive technology running outside the Java virtual
machine.
Loading part of the assistive technologies for direct access
to User Agent DOMs
Access to application specific data across process boundaries might
be costly in terms of performance. Therefore, user agents may wish to
provide a mechanism to load part of the assistive technology (AT) into
the process space of the application as a separate thread, with direct
access to the DOM, to provide the specific functionality they require.
This could consist of a piece of stub code, a DLL, a Browser Helper
Object, etc. An example of how to do this follows.
Browser Helper Objects
In order to attach to a running instance of Internet Explorer 4.0,
you can use a "Browser Helper Object." A "Browser Helper Object" is a
DLL that will attach itself to every new instance of Internet Explorer
4.0 (only if you explicitly run iexplore.exe). You can use this
feature to gain access to the object model of a particular running
instance of Internet Explorer. You can also use this feature to get
events from an instance of Internet Explorer 4.0. This can be
tremendously helpful when many method calls need to be made to IE, as
each call will be executed much more quickly than the out of process
case.
There are some requirements when creating a Browser Helper Object
- The application that you create must be an in-proc server (that
is, DLL).
- This DLL must implement IObjectWithSite.
- The IObjectWithSite::SetSite() method must be implemented. It is
through this method that your application receives a pointer to
Internet Explorer's IUnknown. (Internet Explorer actually passes a
pointer to IWebBrowser2 but the implementation of SetSite() receives a
pointer to IUnknown.) You can use this IUnknown pointer to automate
Internet Explorer or to sink events from Internet Explorer.
- It must be registered as a Browser Helper Object as described
above.
For more information, please check out:
http://support.microsoft.com/support/kb/articles/Q179/2/30.asp.
http://msdn.microsoft.com/library/techart/bho.htm
Java Access Bridge
In order for native Windows ATs to gain access to Java applications
without the creating a Java native solution Sun Microsystems provides
the "Java Access Bridge." This bridge is loaded as an AT as
described in section 6.1.3. The bridge uses a Java Native Invocation
(JNI) to Dynamic Link Library) (DLL) communication and caching
mechanism that allows a native assistive technology to gather and
monitor accessibility information in the Java environment. In this
environment, the AT determines that a Java application or applet is
running and communicates with the Java Access Bridge DLL to process
accessibility information about the application/applet running in the
Java Virtual Machine.
Loading assistive technologies "as" the User Agent with
access to the DOMs
Specialized user agents might also include the necessary assistive
technology as part of their interface, and thus provide possibly the
best of both worlds. An example would be pwWebSpeak, from The
Productivity Works [PRODWORKS].
Loading assistive technologies for indirect access to User
Agent DOMs
Access to application specific data across process boundaries or
address space might be costly in terms of performance. However, there
are other reasons to consider when accessing the User Agent DOM that
might lead a developer to wish to access the DOM from their own
process or memory address space. One obvious protection this method
provides, is that if the User Agent application fails, it doesn't
disable the user's AT as well. Another consideration would be legacy
systems, where the user relies on their AT for access to other
applications as well as the User Agent, and thus would have their AT
loaded all the time, not just for accessing the User Agent.
There are several ways to gain access to the User Agent's DOM.
Most User Agents support some kind of external interface, or act as a
mini-server to other applications running on the desktop. Internet
Explorer is a good example of this, as IE can behave as a component
object model (COM) server to other applications. Mozilla, the open
source release of Navigator also supports cross platform COM (XPCOM).
An example of using COM to access the IE Object Model can be seen
in the code snippet below. This is an example of how to use COM to
get a pointer to the WebBrowser2 module, which in turn allows you to
get a interface/pointer to the document object, or IE DOM for the Web
page in view.
/* first, get a pointer to the WebBrowser2 control */
if (m_pIE == NULL) {
hr = CoCreateInstance(CLSID_InternetExplorer,
NULL, CLSCTX_LOCAL_SERVER, IID_IWebBrowser2,
(void**)&m_pIE);
/* next, get a interface/pointer to the document in view,
this is an interface to the document object model (DOM)*/
void CHelpdbDlg::Digest_Document() {
HRESULT hr;
if (m_pIE != NULL) {
IDispatch* pDisp;
hr = m_pIE->QueryInterface(IID_IDispatch, (void**) &pDisp);
if (SUCCEEDED(hr)) {
IDispatch* lDisp;
hr = m_pIE->get_Document(&lDisp);
if (SUCCEEDED(hr)) {
IHTMLDocument2* pHTMLDocument2;
hr = lDisp->QueryInterface(IID_IHTMLDocument2,
(void**) &pHTMLDocument2);
if (SUCCEEDED(hr)) {
/* with this interface/pointer, IHTMLDocument2*,
you can then work on the document */
IHTMLElementCollection* pColl;
hr = pHTMLDocument2->get_all(&pColl);
if (SUCCEEDED(hr)) {
LONG c_elem;
hr = pColl->get_length(&c_elem);
if (SUCCEEDED(hr)) {
FindElements(c_elem, pColl);
}
pColl->Release();
}
pHTMLDocument2->Release();
}
lDisp->Release();
}
pDisp->Release();
}
}
}
}
For more information on using COM with IE, please visit the
Microsoft Web site:http://www.microsoft.com/com/default.asp
For more information on using XPCOM with Mozilla, please visit the
Mozilla Web site:
http://www.mozilla.org/
For a working example of the method described in 6.1.4, please
visit the following web site and review HelpDB, developed as a testing
tool for Web table navigation: http://trace.wisc.edu/world/web/document_access/
This informative appendix describes some functionalities
for assistive technologies
to promote accessibility.
- Allow users to navigate up/down and among the cells of a table
(e.g., by using the focus to designate a selected table cell).
- Refer to the section on table navigation.
- It may be useful to allow users to search for text that is
not rendered, but users must be aware that they are doing
so. Otherwise, is would not make sense for users to find text that
they have not yet read.
-
Indicate the row and column dimensions of a selected table.
Note. User agents should consider multidimensional
tables, headers and footers, and multiple header levels.
-
Describe a selected element's
position within larger structures (e.g., numerical or relative
position in a document, table, list, etc.).
For example: tenth link of fifty links;
document header 3.4; list one of two, item 4.5;
third table, three rows and four columns; current
cell in third row, fourth column; etc. Allow users to
get this information on demand (e.g., through a keyboard
shortcut). Provide this information on the status line
on demand from the user.
-
Provide information about form structure
and navigation (e.g., groups of controls, control labels,
navigation order, and keyboard configuration).
For instance, provide information about controls with explicitly
associated labels (the "for" attribute of LABEL in HTML),
about which keys activate the form controls (the
"accesskey" attribute in HTML),
about the sequential navigation order of the form controls
(the"tabindex" attribute in HTML), and about control
groups (the FIELDSET and OPTGROUP elements in HTML).
Refer also to checkpoint 1.3 and
checkpoint 7.3.
- Enable announcing of information regarding title, value, grouping,
type, status and position of specific focused elements.
Metadata of all sorts: titles, dimensions, dates, relationships,
etc. promotes accessibility by providing additional context to
users. Text metadata is particularly useful since it can be rendered
graphically, as Braille, and as speech.
- For information about elements and attributes that convey metadata
in HTML, refer to the index of elements and attributes in
"Techniques for Web Content Accessibility Guidelines 1.0"
[WAI-WEBCONTENT-TECHS].
- For information about elements and attributes that convey metadata
in SMIL, refer to the index of attributes in the W3C Note
"Accessibility Features of SMIL" [SMIL-ACCESS].
- With CSS 2, authors can generate content with the
':before' and ':after' pseudo-elements
([CSS2], section 5.12.3). For more information,
refer to the W3C Note "Accessibility Features of CSS" [CSS-ACCESS].
One useful form of metadata is content summary information. Provide
information, for example, about the number of links, forms, tables,
images, significant words, etc.
For example, this information will help a user get an impression
about the purpose of each frame in a frameset. For example, if the
content of a frame has many links, but few significant words, then the
frame is probably an index of some kind. Content with many
significant words is probably a text page. Content with only a
couple of pictures and few significant words or links is probably for
decoration.
Tools that work with synthesized speech do not always pronounce
text correctly. Therefore, they should provide additional context
so that users can understand content. Techniques include:
- Spelling words
- Indicating punctuation, capitalization, etc.
- Allowing users to reply words alone and in context.
- Using auditory nuances - including pitch, articulation model, volume,
and orientation - to convey meaning the way fonts, spacing, and
borders do in graphical media.
- Generating context. For example, a user agent might speak
the word "link" before a link, "header" before the text content of a
header or "item 1.4" before a list item.
- Rendering text according in the appropriate
natural language.
Refer to "Speak to Write" [SPEAK2WRITE] for information on
speech recognition and accessibility.
Rendering content according to natural language
Assistive technologies may recognize different natural languages and can render
content according to language markup defined for a certain part of the
document. For instance, a screen reader might change the pronunciation
of spoken text according to the language definition. This is usually
desired and done according to the capabilities of the tool. Some
specialized tools might give some finer user control for the
pronunciation as well.
Natural language may be identified by markup (e.g., the
"lang" attribute in HTML 4.0 ([HTML40]
section 8.1) or
"xml:lang"
in XML 1.0
([XML], section 2.12), or by the HTTP Content-Language header
([RFC2616], section 14.12). HTML and XML are available
through DOM Level 1 [DOM1].
Refer to checkpoint 2.7 and checkpoint 5.2.
Note.
A user agent may not support all languages.
- Active element
-
Active elements have associated behaviors
that may be activated (or "triggered") either
through user interaction or through scripts. Which elements
are active depends on the document language and whether the
features are supported by the user agent.
In HTML documents, for example, active
elements include links, image maps, form controls, element
instances with a
value for the "longdesc" attribute, and element
instances with scripts (event handlers) explicitly associated
with them (e.g., through the various "on" attributes).
- An active element's behavior may be triggered
through any number of mechanisms, including the mouse, keyboard, an
API, etc. The effect of activation depends on the element. For instance,
when a link is activated, the user agent generally retrieves the
linked resource. When a
form control is activated, it may change state (e.g., check boxes) or
may take user input (e.g., a text field). Activating an element with
a script assigned for that particular activation mechanism (e.g.,
mouse down event, key press event, etc.) causes the script to be
executed.
- Most systems use the content focus to navigate
active elements and identify which is to be activated.
- Equivalent Alternatives for Content
-
Since rendered content in some
forms is not always accessible to users with disabilities, authors
must supply equivalent alternatives for content. In the context of
this document, the equivalent must fulfill essentially the same
function for the person with a disability (at least insofar as is
feasible, given the nature of the disability and the state of
technology), as the "primary" content does for the person without any
disability. For example, the text "The Full Moon" might convey the
same information as an image of a full moon when presented to
users. Note that equivalent information focuses on fulfilling the same
function. If the image is part of a link and understanding the image
is crucial to guessing the link target, an equivalent must also give
users an idea of the link target.
-
Equivalent alternatives of content include text equivalents (long and short, synchronized and unsynchronized) and
non-text equivalents (e.g., captions, auditory descriptions, a visual
track that shows sign language translation of a written text, etc.).
The Techniques Document [UA-TECHNIQUES] describes the different
mechanisms authors use to supply equivalent alternatives for
content. Please also consult the Web Content Accessibility Guidelines
[WAI-WEBCONTENT] and its associated
Techniques document [WAI-WEBCONTENT-TECHS].
- Application Programming Interface (API)
-
An application programming interface
(API) defines how communication
may take place between applications.
- Assistive Technology
-
In the context of this document, an assistive technology is a user agent
that relies on one or more other user agents to help people with
disabilities interact with a computer. For example, screen reader software
is an assistive technology because it relies on browsers or other
application software to enable Web access, notably for
people with visual and learning disabilities.
Examples of assistive technologies that are important in the context of
this document include the following:
- screen magnifiers, which are used by people with visual
disabilities to enlarge and change colors on the screen to improve the
visual readability of text and images.
- screen readers, which are used by people who are blind or have
reading disabilities to read textual information through synthesized speech
or Braille displays.
- speech recognition software, which may be used by people who
have some physical disabilities.
- alternative keyboards, which are used by people with certain
physical disabilities to simulate the keyboard.
- alternative pointing devices, which are used by people with
certain physical disabilities to simulate mouse pointing and button
activations.
-
Beyond this document, assistive technologies consist of software or
hardware that has been specifically designed to assist people with
disabilities in carrying out daily activities, e.g., wheelchairs,
reading machines, devices for grasping, text telephones,
vibrating pagers, etc.
- Auditory Description
-
An auditory description is
either a prerecorded human voice or a synthesized voice (recorded or
generated dynamically) describing the key visual elements of a
presentation. The auditory description is synchronized with
the auditory track of the presentation, usually during natural pauses in
the auditory track. Auditory descriptions include information about
actions, body language, graphics, and scene changes.
- Author Styles
-
Authors styles are style property values that
originate in documents, their associated style
sheets, or are generated by the server.
- Captions
-
Captions (or sometimes
"closed captions") are
text transcripts that
are synchronized with other auditory or visual tracks.
Captions convey information about spoken words and
non-spoken sounds such as sound effects. They
benefit people who are deaf or
hard-of-hearing, and anyone who cannot hear the audio (e.g.,
someone in a noisy environment). Captions are generally
rendered graphically
above, below, or superimposed over
video. Note. Other terms that include
the word "caption" may have different meanings in this
document. For instance, a "table caption" is a
title for the table, often positioned graphically
above or below the table.
In this document, the intended meaning of "caption"
will be clear from context.
- Configure
-
In the context of this document, "configure" means to
choose preferred settings (for interface layout,
user agent behavior, rendering style, etc.) from a set of options.
This may be done through the user agent's user interface, through
profiles, style sheets, by scripts, etc.
- Control
- In this document, the noun "control" means
"user interface component" or "form component".
- Device-independence
-
The ability to make use of software via any supported input
or output device API.
User agents should follow operating system conventions and
use standard system
APIs for device input and output.
- Documentation
-
Documentation includes all product documentation,
notably installation instructions, the help system, and all product
manuals.
- Documents, Elements, and Attributes
-
A document may be seen as a hierarchy of elements. Element types are defined by a language
specification (e.g., HTML 4.0 or an XML application). Elements may
include content (that may be rendered) and have attributes that take values (and may also be
rendered).
- Events and scripting, Event Handler
- When certain events occur (loading or unloading
events, mouse press or hover events, keyboard events, etc.), user
agents often perform some task (e.g., execute a script). For instance,
in most user agents, when a mouse button is released over a link, the
link is activated and the linked resource retrieved. User agents may
also execute author-defined scripts when certain events occur. The
script bound to a particular event is called an event handler. Note. The interaction of
HTML, style sheets, the Document Object Model ([DOM1], [DOM2]),
and scripting is commonly referred to as
"Dynamic HTML" or DHTML. However, as there is no W3C
specification that formally defines DHTML, this document only
refers to event handlers and scripts.
-
Focus,
Content focus,
User interface focus,
Current focus
- The term "focus" refers to two identifying
mechanisms of user agents:
- The "content focus" designates an active element in a document. A
viewport has at most one content focus.
- The "user interface focus" designates a control of the user
interface that will respond to user input (e.g., a radio button,
text box, menu, etc.).
The term "focus" encompasses both types of focus. Where one is
meant specifically in this document, it is identified.
- When several viewports co-exist, each
may have a content and user interface focus. At all times,
only one content focus or one user interface focus
is active, called the current focus.
The current focus responds to user input. The current
may be toggled between content focus and user interface
focus through the keyboard, pointing device, etc.
Both the content and user interface focus may be
highlighted. Refer also to
the definition of point of regard.
- Graphical
-
In this document, the term "graphical" refers to information
(text, graphics, colors, etc.)
rendered for visual consumption.
- Highlight
-
Any mechanism used to emphasize selected or focused content.
For example, graphical highlight mechanisms include dotted boxes, underlining,
and reverse video.
Synthesized speech highlight mechanisms include
altered voice pitch or volume.
- Input Configuration
-
Every user agent functionality available to the user is mapped
to some user interface mechanism such as menus, buttons, keyboard
shortcuts, voice commands. The default input configuration is the
mapping the user finds after installation of the software;
it must be part of the user agent
documentation.
- Native support
-
A user agent supports a feature natively if it does not require
another piece of software (e.g., plug-in or external program) for
support. Operating system features adopted as part
of the user agent are considered native. However, since the
user agent is responsible for the accessibility of native features, it
is also considered responsible for the accessibility of adopted operating
system features.
- Natural Language
-
Spoken, written, or signed human languages such as French,
Japanese, and American Sign Language.
The natural language of content may be indicated in
markup (e.g., by the
"lang" attribute in HTML 4.0 ([HTML40]
section 8.1), the
HTML 4.0 "hreflang" attribute
for links ([HTML40], section
12.1.5), or by the HTTP Content-Language header
([RFC2616], section 14.12).
- Point of Regard
- The "point of regard" is the position of the viewport in content. Since
users may be viewing content with browsers that render graphically, as speech, as Braille, etc.,
what is meant precisely by "the point of regard" may vary. It may,
depending on the user agent and browsing context, refer to a two
dimensional area (e.g., for graphical rendering) or a single point
(e.g., for aural rendering or voice browsing).
The focus may be used to designate
the point of regard. User agents should not
change the point of regard unexpectedly as this can disorient
users.
- Properties, Values, and Defaults
- A user agent renders a document by applying formatting algorithms and
style information to the document's elements. Formatting depends on a
number of factors, including where the document is rendered:
on screen, on paper, through speakers, on a Braille display,
on a mobile device, etc. Style information
(e.g., fonts, colors, voice inflection, etc.)
may come from the elements themselves
(e.g., certain style attributes in HTML), from style sheets, or
from user agent settings. For the purposes of these guidelines, each
formatting or style option is governed by a property
and each property may take one value from a set of legal
values. (The term
"property"
in this document is used as defined in
CSS 2 ([CSS2], section 3).
A reference to "styles" in this document means a set
of style-related properties.
- The value given to a property by a user agent
when it is installed is called the property's
default value.
- Profile
-
A "profile" is a named and persistent representation
of user preferences that may be
used to configure a user agent. Preferences include
input configurations, style preferences, etc.
On systems with distinct user
accounts, profiles enable users to reconfigure software quickly
when they log on. Profiles may be shared with other
users. Platform-independent profiles are useful for
those who use the same user agent on different platforms.
- Recognize
- A user agent is said to recognize
markup, content types, or rendering effects
when it can identify (through built-in
mechanisms, Document Type Definitions
(DTDs)
style sheets, headers, etc) the information.
For instance, HTML 3.2 user agents may
not recognize the new elements or attributes
of HTML 4.0. Similarly, a user agent may
recognize blinking content
specified by elements or attributes,
but may not recognize that an applet is blinking.
The Techniques Document [UA-TECHNIQUES]
lists some markup known to affect accessibility.
- Rendered content
- An element's rendered
content is that which a user agent renders for the element. This may
be what appears between the element's start and end tags, the value of
an attribute (c.f. the "alt", "title",
and "longdesc" attributes in HTML), or external data (e.g., the IMG
element in HTML). Content may be rendered to a
graphical display, to
an auditory display (to a speaker as speech and non-speech sounds) or
to a tactile display (Braille and haptic displays). Refer also to
the description of equivalent alternatives for content.
- Selection,
Current Selection
- The "selection" generally identifies a range of content (text,
images, etc.) in a document.
The selection
may be structured (based on the
document tree) or unstructured (e.g., text-based).
Content may be selected through user interaction,
scripts, etc. The
selection may be used for a variety of purposes: for cut and paste
operations, to designate a specific element in a document, to identify
what a screen reader should read, etc.
- The selection may be set by the user (e.g., by a pointing
device or the keyboard) or through an application programming
interface (API). A viewport has at most one selection
(though the selection may be rendered
graphically as discontinuous
text fragments). When several
viewports co-exist, each may have a selection, but only one is
active, called the current selection.
-
On the screen, the selection may be highlighted using colors, fonts, graphics,
or other assistive technologies may provide alternative presentation
of the selection through speech, enlargement, or refreshable Braille
display.
- Text transcript
-
A text transcript is a text
equivalent of audio information (e.g., an auditory track). It provides
text for both spoken words and non-spoken sounds such as sound effects.
Text transcripts make presentations accessible to people who are
deaf-blind (they may be rendered as Braille)
and to people who cannot play movies, animations,
etc. Transcripts may be generated on the fly (e.g., by speech-to-text
converters). Refer also to captions.
- Spawned Viewport
- Viewports that are created by the user agent.
This refers to viewports that display content and
does not include, for example, messages or prompts
to the user.
- Standard Device Application Programming Interfaces
-
Operating systems are designed to be used by default with devices such
as pointing devices, keyboards, voice input, etc. The operating
system (or windowing system) provides
"standard APIs" for these
devices. On desktop computers
today, the standard input APIs are for the mouse and keyboard.
For touch screen devices or mobile devices, standard
input APIs may include stylus, buttons, voice, etc. The display and
sound card are considered standard ouput devices for a graphical desktop
computer environment and each has a standard API.
- User-initiated, User Agent initiated
-
User-initiated actions result from user input to the
user agent. User agent initiated actions result from
scripts, operating system conditions, or built-in user agent behavior.
- User Agent
-
A user agent is an application that retrieves and renders Web
content, including text, graphics, sounds, video, images, and other
objects. A user agent may require additional user agents that handle some
types of content. For instance, a browser may run a separate program
or plug-in to render sound or video.
User agents include graphical desktop browsers, multimedia
players, text browsers, voice browsers, and assistive technologies such as screen
readers, screen magnifiers, speech synthesizers, onscreen keyboards,
and voice input software.
- User Interface
-
For the purposes of this document, "user interface" includes
both:
- the "user agent user interface", i.e.,
the controls and mechanisms offered by
the user agent for user interaction, such as menus, buttons,
keyboard access, etc.
- the "content user interface", i.e., the
active elements that
are part of content, such as form controls, links, applets, etc.
that are implemented natively.
The document distinguishes them only where required for clarity.
- User Styles
-
Style property values that come from user interface settings, user
style sheets, or other user interactions are called user styles.
- Views, Viewports, and Current View
- User agents may handle different types of source information:
documents, sound objects, video objects, etc. The user perceives the
information through a viewport, which may
be a window, a frame, a
piece of paper, a speaker, a virtual magnifying glass, etc. A
viewport may contain another viewport (e.g., nested frames).
- User agents may render the same content in a variety of
ways; each rendering is called a view. For instance, a user agent may
allow users to view an entire document or just a list of
the document's headers. These are two different views
of the document.
- The view corresponds to how source information is
rendered and the viewport is where it is rendered.
The viewport that contains both the
current focus and the
current selection is called
the current viewport.
The current viewport is
generally highlighted when several viewports co-exist.
- Generally, viewports give users access to all rendered information,
though not always at once. For example, a video player shows a certain
number of frames per second, but allows the user to rewind and fast
forward. A graphical browser viewport generally features scrollbars or
some other paging mechanism that allows the user to bring the rendered
content into the viewport.
The active participants of the
User Agent Guidelines Working Group who produced this
document were: James Allan, Denis Anson, Kitch Barnicle,
Harvey Bingham, Dick Brown, Al Gilman, Jon Gunderson,
Ian Jacobs, Marja-Riitta Koivunen,
Charles McCathieNevile, Mark Novak, David Poehlman,
Mickey Quenzer, Gregory Rosmaita, Madeleine Rothberg, and
Rich Schwerdtfeger.
Many thanks to the following people who have contributed
through review and past participation: Paul Adelson,
Olivier Borius, Judy
Brewer, Bryan Campbell, Kevin Carey, Wendy Chisholm, David Clark,
Chetz Colwell, Wilson Craig, Nir Dagan, Daniel Dardailler,
B. K. Delong, Neal Ewers, Geoff Freed, John Gardner,
Larry Goldberg, Glen Gordon,
John Grotting, Markku Hakkinen, Eric Hansen, Earle Harrison,
Chris Hasser, Kathy Hewitt, Philipp Hoschka, Masayasu Ishikawa,
Phill Jenkins, Earl Johnson, Jan Kärrman (for help with html2ps),
Leonard Kasday, George Kerscher, Peter Korn, Josh Krieger, Catherine Laws, Greg Lowney, Scott
Luebking, William Loughborough, Napoleon Maou, Peter Meijer, Karen Moses, Masafumi Nakane, Charles Oppermann,
Mike Paciello, David Pawson, Michael Pederson, Helen Petrie, Michael Pieper, Jan Richards, Hans Riesebos, Joe Roeder,
Lakespur L. Roca, Lloyd Rutledge, Liam Quinn,
T.V. Raman, Robert Savellis, Constantine
Stephanidis, Jim Thatcher, Jutta Treviranus, Claus Thogersen,
Steve Tyler, Gregg Vanderheiden, Jaap van Lelieveld, Jon S. von
Tetzchner, Willie Walker, Ben Weiss, Evan Wies, Chris Wilson, Henk
Wittingen, and Tom Wlodkowski.
For the latest version of any W3C specification, please consult the
list of W3C Technical Reports.
- [CHARMOD]
-
"Character Model for the World Wide Web", M. Dürst, 25 February 1999.
This W3C Working Draft is
http://www.w3.org/TR/1999/WD-charmod-19990225.
- [CSS1]
-
"CSS, level 1 Recommendation", B. Bos, H. Wium Lie, eds.,
17 December 1996, revised 11 January 1999. This CSS1 Recommendation
is http://www.w3.org/TR/1999/REC-CSS1-19990111.
- [CSS2]
-
"CSS, level 2 Recommendation", B. Bos, H. Wium Lie, C. Lilley,
and I. Jacobs, eds., 12 May 1998. This CSS2 Recommendation is
http://www.w3.org/TR/1998/REC-CSS2-19980512.
- [CSS-ACCESS]
-
"Accessibility Features of CSS", I. Jacobs, J. Brewer,
The latest version of this W3C Note is available at
http://www.w3.org/TR/CSS-access.
- [DOM1]
-
"Document Object Model (DOM) Level 1 Specification",
V. Apparao, S. Byrne, M. Champion, S. Isaacs, I. Jacobs, A. Le Hors, G. Nicol,
J. Robie, R. Sutor, C. Wilson, and L. Wood, eds. The 1 October
1998 DOM Level 1 Recommendation is
http://www.w3.org/TR/1998/REC-DOM-Level-1-19981001
- [DOM2]
-
"Document Object Model (DOM) Level 2 Specification",
L. Wood, A. Le Hors, V. Apparao,
L. Cable, M. Champion, J. Kesselman,
P. Le Hégaret, T. Pixley, J. Robie,
P. Sharpe, C. Wilson, eds. The DOM2 specification is
a Working Draft at the time of publication.
- [HTML40]
-
"HTML 4.0 Recommendation", D. Raggett, A. Le Hors, and I.
Jacobs, eds. The 24 April 1998 HTML 4.0 Recommendation is
http://www.w3.org/TR/1998/REC-html40-19980424
- [MATHML]
-
"Mathematical Markup Language", P. Ion and R. Miner, eds. The
7 April 1998 MathML 1.0 Recommendation is
http://www.w3.org/TR/1998/REC-MathML-19980407
- [MICROPAYMENT]
-
"Common Markup for micropayment per-fee-links",
T. Michel, ed. The latest version of this
W3C Working Draft is available at
http://www.w3.org/TR/Micropayment-Markup.
- [RDF10]
-
"Resource Description Framework
(RDF) Model and Syntax Specification", O. Lassila, R. Swick,
eds. The 22 February 1999 Recommendation is
http://www.w3.org/TR/1999/REC-rdf-syntax-19990222
- [RFC2119]
-
"Key words for use in RFCs to Indicate Requirement Levels",
S. Bradner, March 1997.
- [RFC2616]
-
"Hypertext Transfer Protocol -- HTTP/1.1,
J. Gettys, J. Mogul, H. Frystyk, L. Masinter, P. Leach,
T. Berners-Lee, June 1999.
- [SMIL]
-
"Synchronized Multimedia Integration Language (SMIL) 1.0
Specification", P. Hoschka, editor.
The 15 June 1998 SMIL 1.0 Recommendation is
http://www.w3.org/TR/1998/REC-smil-19980615
- [SMIL-ACCESS]
-
"Accessibility Features of SMIL", M-R. Koivunen, I. Jacobs.
The latest version of this W3C Note is available at
http://www.w3.org/TR/SMIL-access.
- [UA-CHECKLIST]
- An appendix to this document lists all of the checkpoints,
sorted by priority. The checklist is available
in either tabular form
(at http://www.w3.org/WAI/UA/CR-UAAG10-20000126/uaag10-chktable)
or list form
(at http://www.w3.org/WAI/UA/CR-UAAG10-20000126/uaag10-chklist).
- [UA-IMPLEMENTATION]
-
"Implementation Report for User Agent Accessibility Guidelines 1.0 ", J. Gunderson, I. Jacobs, eds.
This document describes some implementations and how they
satisfy the checkpoints. The draft of the Techniques Document
available at the time of this document's publication
is http://www.w3.org/WAI/UA/WD-UAAG10-IMP-20000126.
The latest draft of the techniques is
available at http://www.w3.org/WAI/UA/UAAG10-IMP/
- [UA-TECHNIQUES]
- The draft of the Techniques Document
available at the time of this document's publication
is http://www.w3.org/WAI/UA/WD-UAAG10-TECHS-20000126.
The latest draft of the techniques is
available at http://www.w3.org/WAI/UA/UAAG10-TECHS/
- [WAI-AUTOOLS]
-
"Authoring Tool Accessibility Guidelines", J. Treviranus,
J. Richards, I. Jacobs, C. McCathieNevile, eds.
The latest Working Draft of these guidelines for designing
accessible authoring tools is available at
http://www.w3.org/TR/WD-WAI-AUTOOLS/
- [WAI-WEBCONTENT]
-
"Web Content Accessibility Guidelines 1.0", W. Chisholm,
G. Vanderheiden, and I. Jacobs, eds.
The 5 May 1999 Recommendation is
http://www.w3.org/TR/1999/WAI-WEBCONTENT-19990505
- [WAI-WEBCONTENT-TECHS]
-
"Techniques for Web Content Accessibility Guidelines 1.0", W. Chisholm,
G. Vanderheiden, and I. Jacobs, eds.
The latest version of this document is available at
http://www.w3.org/TR/WAI-WEBCONTENT-TECHS
- [WAI-WEBCONTENT-ERT]
-
"Techniques For Evaluation And Implementation Of Web Content
Accessibility Guidelines, C. Ridpath.
The latest version of this Working Draft is available at
http://www.w3.org/WAI/ER/IG/ert/.
- [XML]
-
"Extensible Markup Language (XML) 1.0.", T. Bray, J. Paoli, C.M.
Sperberg-McQueen, eds. The 10 February 1998
XML 1.0 Recommendation is
http://www.w3.org/TR/1998/REC-xml-19980210
- [XSLT]
-
"XSL Transformations (XSLT) Version 1.0",
J. Clark. The 16 November 1999 Recommendation is
http://www.w3.org/TR/1999/REC-xslt-19991116.
Note. W3C does not guarantee stability
for any of the following references outside of its control.
These references are included for convenience.
- [ALTIFIER]
-
The
Altifier Tool for generates "alt" text intelligently.
- [AMAYA]
-
Amaya
is W3C's testbed browser/editor.
- [APPLE-HI]
- Information on
accessibility guidelines for
Macintosh applications.
Information on Apple's scripting model can be found at
tn1095
and
tn1164.
Refer also to the Inside Macintosh chapter devoted
to
Interapplication Communication.
- [BHO]
-
Browser Helper Objects: The Browser the Way You Want It,
D. Esposito, January 1999.
- [BRAILLEFORMATS]
-
"Braille Formats: Principles of Print to Braille Transcription 1997"
.
- [CCPP]
-
Composite Capability/Preference Profiles (CC/PP):
A user side framework for content negotiation,
F. Reynolds, J. Hjelm, S. Dawkins, and
S. Singhal, eds. This W3C Note describes
a general yet extensible framework for describing
user preferences and device capabilities. The latest
version is available at
http://www.w3.org/TR/NOTE-CCPP/.
- [ED-DEPT]
-
"Requirements
for Accessible Software Design", US Department of Education,
version 1.1 March 6, 1997.
- [EITAAC]
- "EITAAC Desktop Software standards", Electronic Information Technology Access
Advisory (EITAAC) Committee.
- [IBM-ACCESS]
-
"Software Accessibility" IBM Special Needs Systems.
- [ICCCM]
-
"The Inter-Client communication conventions manual". A protocol for
communication between clients in the X Window system.
- [ICE-RAP]
-
"An ICE Rendezvous Mechanism for X Window System Clients", W. Walker. A
description of how to use the ICE and RAP protocols for X Window clients.
- [ISO639]
- "Codes for the representation of names of languages", ISO
639:1988.
For more information, consult
http://www.iso.ch/cate/d4766.html.
Refer also to
http://www.oasis-open.org/cover/iso639a.html.
- [JAVA-ACCESS]
-
"IBM Guidelines for Writing Accessible Applications Using 100% Pure Java", R.
Schwerdtfeger, IBM Special Needs Systems.
- [JAVAAPI]
-
Information on Java Accessibility API can be found at
Java Accessibility Utilities.
- [JAVA-CHECKLIST]
-
"Java Accessibility Guidelines and Checklist". IBM Special Needs Systems.
- [JAVA-TUT]
- "The Java Tutorial. Trail: Creating a GUI with JFC/Swing". An online tutorial
that describes how to use the Swing Java Foundation Class to build an
accessible User Interface.
- [LYNX]
- The Lynx Browser.
- [MSAA]
- Information on active accessibility can be found at the
Microsoft WWW
site on Active Accessibility.
- [MS-ENABLE]
- Information on
accessibility guidelines for
Windows applications.
Refer also to
Built-in accessibility features.
- [MS-KEYBOARD]
- Information on
keyboard assistance for Internet Explorer and MS Windows.
- [MS-SOFTWARE]
-
"The Microsoft Windows Guidelines for Accessible Software Design".
Note. This page summarizes the guidelines and
includes links to the full guidelines in various formats (including
plain text).
- [NISO]
-
National Information Standards
Organization. One activity pursued by this organization
concerns Digital Talking Books. Refer to the
"Digital Talking Book Features List" draft for more information.
- [NOTES-ACCESS]
-
"Lotus Notes Accessibility Guidelines" IBM Special Needs Systems.
- [PRODWORKS]
- The Productivity Works.
- [SPEAK2WRITE]
-
Speak to Write is
a site about using speech recognition to promote accessibility.
- [SUN-DESIGN]
-
"Designing for Accessibility", Eric Bergman and Earl Johnson. This paper
discusses specific disabilities including those related to hearing, vision,
and cognitive function.
- [SUN-HCI]
-
"Towards Accessible Human-Computer Interaction", Eric Bergman, Earl Johnson,
Sun Microsytems 1995. A substantial paper, with a valuable print bibliography.
- [TRACE-REF]
-
"Application Software Design Guidelines" compiled by G. Vanderheiden. A
thorough reference work.
- [UNICODE]
- The Unicode Consortium. "The Unicode Standard, Version 3.0", Reading,
MA, Addison-Wesley Developers Press, 2000. ISBN 0-201-61633-5. Refer
also to
http://www.unicode.org/unicode/standard/versions/.
- [USERAGENTS]
-
List of
Alternative Web Browsers. This list is maintained by
WAI.
- [WHAT-IS]
-
"What is Accessible Software", James W. Thatcher, Ph.D., IBM, 1997. This paper
gives a short example-based introduction to the difference between software
that is accessible, and software that can be used by some assistive
technologies.
- [XGUIDELINES]
- Information on
accessibility guidelines for
Unix and X Window applications.
The Open Group has various
guides that explain the Motif and Common Desktop
Environment (CDE) with topics like how users interact with Motif/CDE
applications and how to customize these environments.
Note. In X, the terms client and server
are used differently
from their use when discussing the Web.
