Schema ODRL-DD-11.xsd


schema location:  http://odrl.net/1.1/ODRL-DD-11.xsd
targetNamespace:  http://odrl.net/1.1/ODRL-DD

Elements  Complex types  Simple types
accept  dateType  dateAndOrTime
accumulated  feeType
aggregate
annotate
attribution
backup
count
cpu
date
datetime
delete
display
dLocation
duplicate
event
excerpt
execute
fixedamount
format
give
group
hardware
individual
industry
install
interval
lease
lend
memory
modify
move
name
network
payment
percentage
peruse
play
pLocation
postpay
prepay
print
printer
purpose
quality
range
recontext
reference
register
remark
restore
role
save
screen
sell
service
software
spatial
storage
tracked
transaction
transferPerm
uid
uninstall
unit
verify
version
watermark


schema location:  http://odrl.net/1.1/ODRL-EX-11.xsd
targetNamespace:  http://odrl.net/1.1/ODRL-EX

Elements  Complex types  Attr. groups
agreement  assetType  IDGroup
asset  conditionType
condition  constraintType
conditionElement  containerType
constraint  contextType
constraintElement  inheritType
container  offerAgreeType
context  partyType
contextElement  permissionType
inherit  requirementType
offer  revokeType
party  rightsHolderType
permission  rightsType
permissionElement  seqItemType
requirement  sequenceType
requirementElement
revoke
rights
rightsholder
rightsHolderElement
seq-item
sequence


schema location:  http://www.w3.org/TR/2002/REC-xmldsig-core-20020212/xmldsig-core-schema.xsd
targetNamespace:  http://www.w3.org/2000/09/xmldsig#

Elements  Complex types  Simple types
CanonicalizationMethod  CanonicalizationMethodType  CryptoBinary
DigestMethod  DigestMethodType  DigestValueType
DigestValue  DSAKeyValueType  HMACOutputLengthType
DSAKeyValue  KeyInfoType
KeyInfo  KeyValueType
KeyName  ManifestType
KeyValue  ObjectType
Manifest  PGPDataType
MgmtData  ReferenceType
Object  RetrievalMethodType
PGPData  RSAKeyValueType
Reference  SignatureMethodType
RetrievalMethod  SignaturePropertiesType
RSAKeyValue  SignaturePropertyType
Signature  SignatureType
SignatureMethod  SignatureValueType
SignatureProperties  SignedInfoType
SignatureProperty  SPKIDataType
SignatureValue  TransformsType
SignedInfo  TransformType
SPKIData  X509DataType
Transform  X509IssuerSerialType
Transforms
X509Data


schema location:  http://www.w3.org/Encryption/2001/Drafts/xmlenc-core/xenc-schema.xsd
targetNamespace:  http://www.w3.org/2001/04/xmlenc#

Elements  Complex types  Simple types
AgreementMethod  AgreementMethodType  KeySizeType
CipherData  CipherDataType
CipherReference  CipherReferenceType
EncryptedData  EncryptedDataType
EncryptedKey  EncryptedKeyType
EncryptionProperties  EncryptedType
EncryptionProperty  EncryptionMethodType
ReferenceList  EncryptionPropertiesType
EncryptionPropertyType
ReferenceType
TransformsType

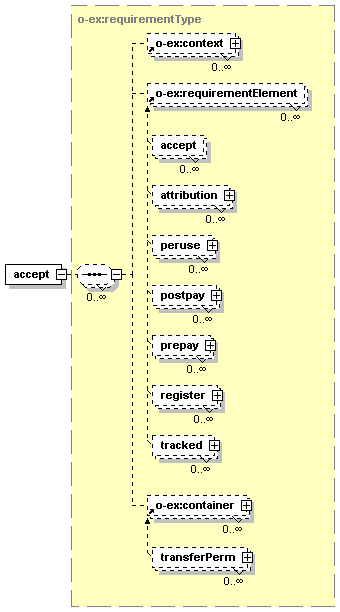

element accept
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:requirementType
children o-ex:context o-ex:requirementElement o-ex:container
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="accept" type="o-ex:requirementType" substitutionGroup="o-ex:requirementElement"/>

element accumulated
diagram
namespace http://odrl.net/1.1/ODRL-DD
type xsd:duration
source
<xsd:element name="accumulated" type="xsd:duration" substitutionGroup="o-ex:constraintElement"/>

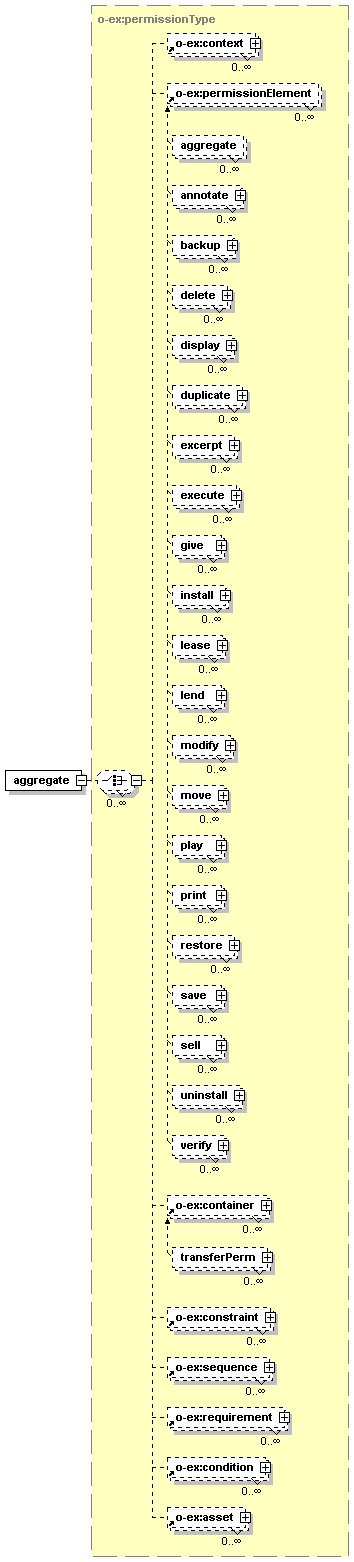

element aggregate
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:permissionType
children o-ex:context o-ex:permissionElement o-ex:container o-ex:constraint o-ex:sequence o-ex:requirement o-ex:condition o-ex:asset
attributes
Name  Type  Use  Default  Fixed  Annotation
exclusive  xsd:boolean  optional
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="aggregate" type="o-ex:permissionType" substitutionGroup="o-ex:permissionElement"/>

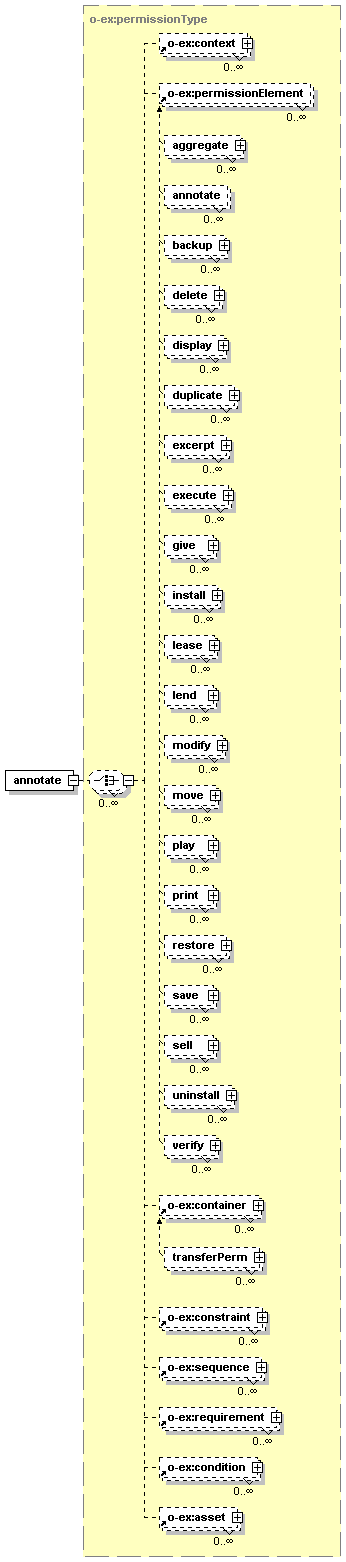

element annotate
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:permissionType
children o-ex:context o-ex:permissionElement o-ex:container o-ex:constraint o-ex:sequence o-ex:requirement o-ex:condition o-ex:asset
attributes
Name  Type  Use  Default  Fixed  Annotation
exclusive  xsd:boolean  optional
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="annotate" type="o-ex:permissionType" substitutionGroup="o-ex:permissionElement"/>

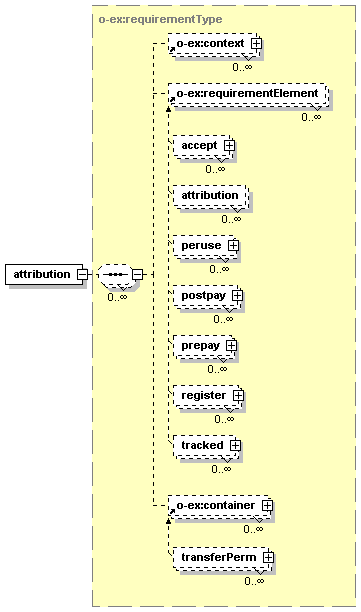

element attribution
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:requirementType
children o-ex:context o-ex:requirementElement o-ex:container
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="attribution" type="o-ex:requirementType" substitutionGroup="o-ex:requirementElement"/>

element backup
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:permissionType
children o-ex:context o-ex:permissionElement o-ex:container o-ex:constraint o-ex:sequence o-ex:requirement o-ex:condition o-ex:asset
attributes
Name  Type  Use  Default  Fixed  Annotation
exclusive  xsd:boolean  optional
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="backup" type="o-ex:permissionType" substitutionGroup="o-ex:permissionElement"/>

element count
diagram
namespace http://odrl.net/1.1/ODRL-DD
type xsd:positiveInteger
source
<xsd:element name="count" type="xsd:positiveInteger" substitutionGroup="o-ex:constraintElement"/>

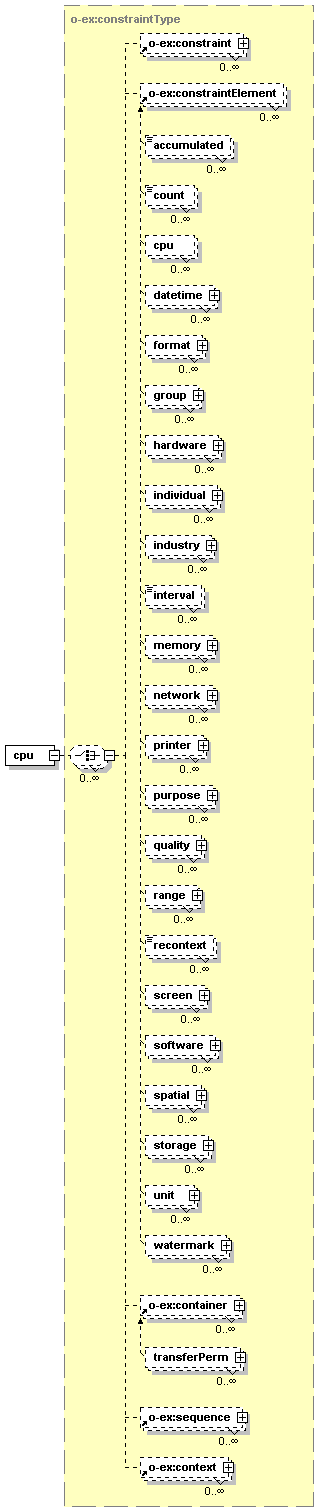

element cpu
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:constraintType
children o-ex:constraint o-ex:constraintElement o-ex:container o-ex:sequence o-ex:context
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
type  xsd:anyURI
source
<xsd:element name="cpu" type="o-ex:constraintType" substitutionGroup="o-ex:constraintElement"/>

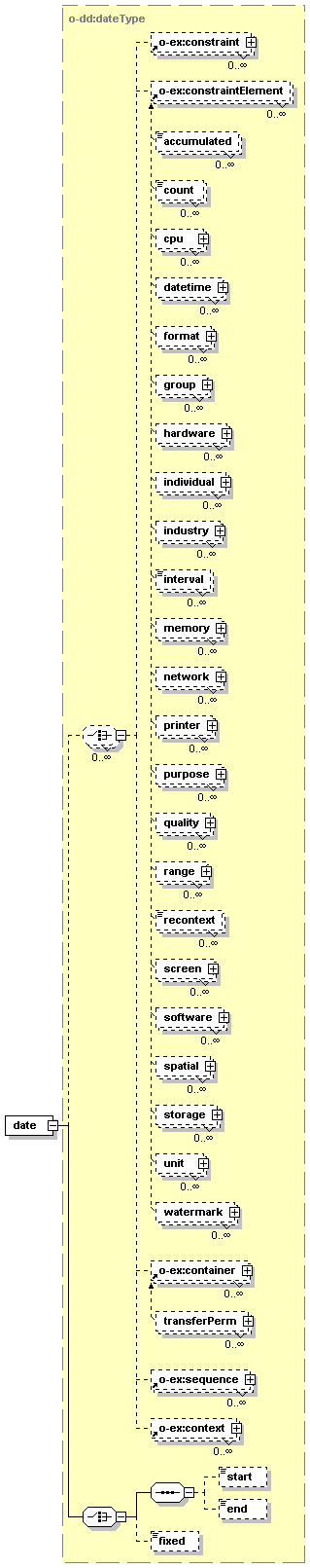

element date
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-dd:dateType
children o-ex:constraint o-ex:constraintElement o-ex:container o-ex:sequence o-ex:context start end fixed
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
type  xsd:anyURI
source
<xsd:element name="date" type="o-dd:dateType" substitutionGroup="o-ex:contextElement"/>

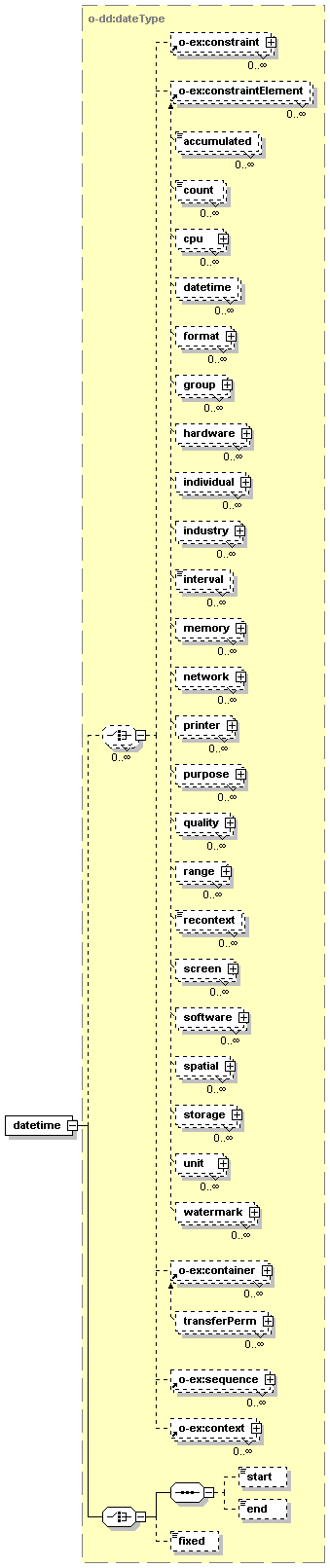

element datetime
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-dd:dateType
children o-ex:constraint o-ex:constraintElement o-ex:container o-ex:sequence o-ex:context start end fixed
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
type  xsd:anyURI
source
<xsd:element name="datetime" type="o-dd:dateType" substitutionGroup="o-ex:constraintElement"/>

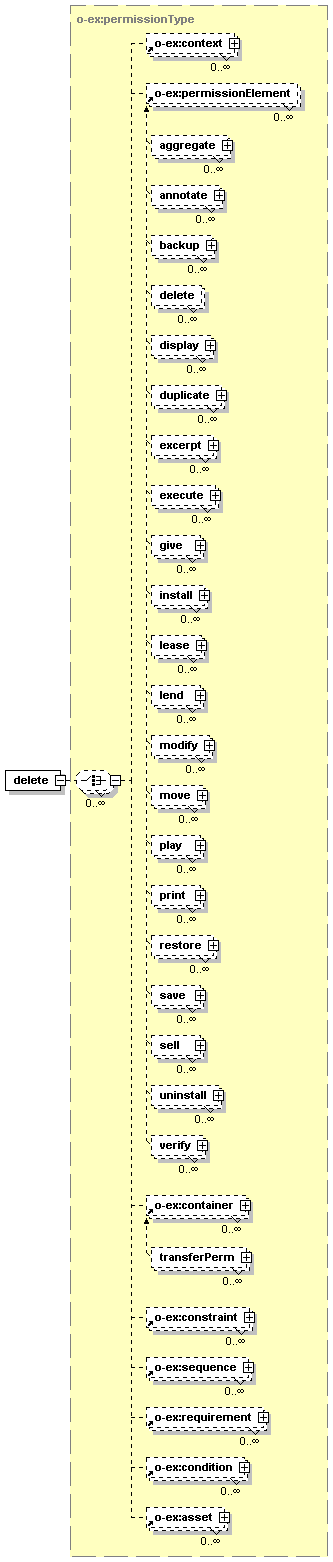

element delete
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:permissionType
children o-ex:context o-ex:permissionElement o-ex:container o-ex:constraint o-ex:sequence o-ex:requirement o-ex:condition o-ex:asset
attributes
Name  Type  Use  Default  Fixed  Annotation
exclusive  xsd:boolean  optional
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="delete" type="o-ex:permissionType" substitutionGroup="o-ex:permissionElement"/>

element display
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:permissionType
children o-ex:context o-ex:permissionElement o-ex:container o-ex:constraint o-ex:sequence o-ex:requirement o-ex:condition o-ex:asset
attributes
Name  Type  Use  Default  Fixed  Annotation
exclusive  xsd:boolean  optional
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="display" type="o-ex:permissionType" substitutionGroup="o-ex:permissionElement"/>

element dLocation
diagram
namespace http://odrl.net/1.1/ODRL-DD
type xsd:anyURI
source
<xsd:element name="dLocation" type="xsd:anyURI" substitutionGroup="o-ex:contextElement"/>

element duplicate
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:permissionType
children o-ex:context o-ex:permissionElement o-ex:container o-ex:constraint o-ex:sequence o-ex:requirement o-ex:condition o-ex:asset
attributes
Name  Type  Use  Default  Fixed  Annotation
exclusive  xsd:boolean  optional
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="duplicate" type="o-ex:permissionType" substitutionGroup="o-ex:permissionElement"/>

element event
diagram
namespace http://odrl.net/1.1/ODRL-DD
type xsd:string
source
<xsd:element name="event" type="xsd:string" substitutionGroup="o-ex:contextElement"/>

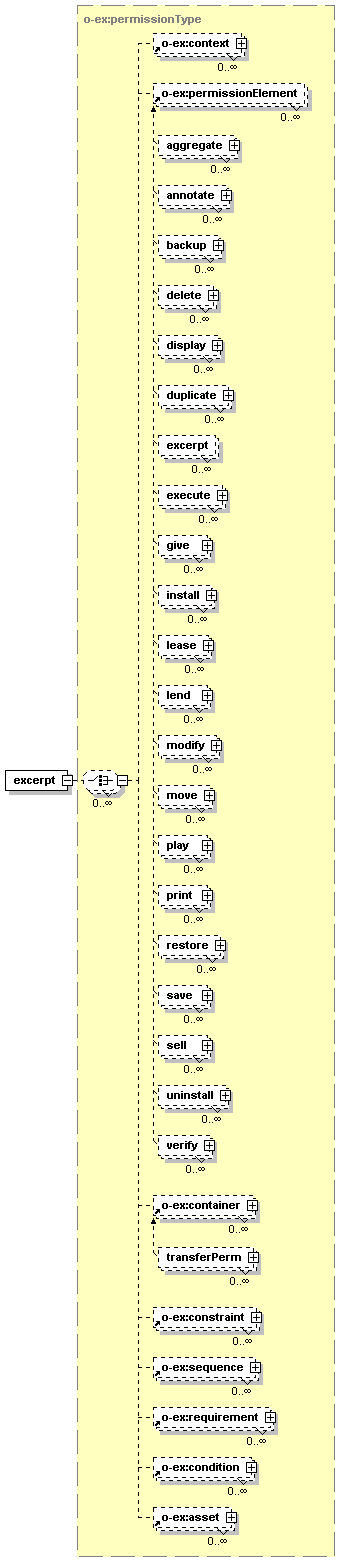

element excerpt
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:permissionType
children o-ex:context o-ex:permissionElement o-ex:container o-ex:constraint o-ex:sequence o-ex:requirement o-ex:condition o-ex:asset
attributes
Name  Type  Use  Default  Fixed  Annotation
exclusive  xsd:boolean  optional
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="excerpt" type="o-ex:permissionType" substitutionGroup="o-ex:permissionElement"/>

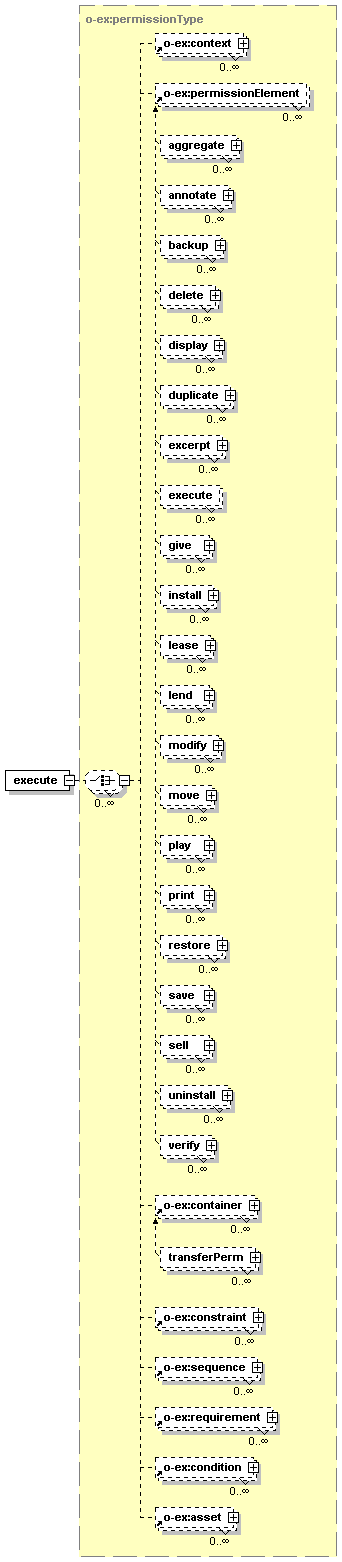

element execute
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:permissionType
children o-ex:context o-ex:permissionElement o-ex:container o-ex:constraint o-ex:sequence o-ex:requirement o-ex:condition o-ex:asset
attributes
Name  Type  Use  Default  Fixed  Annotation
exclusive  xsd:boolean  optional
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="execute" type="o-ex:permissionType" substitutionGroup="o-ex:permissionElement"/>

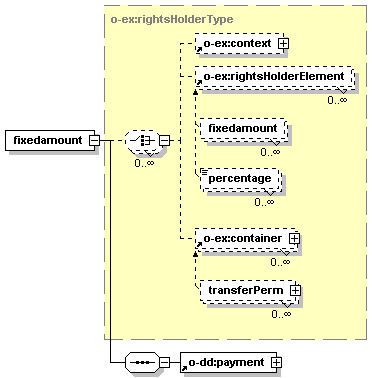

element fixedamount
diagram
namespace http://odrl.net/1.1/ODRL-DD
type extension of o-ex:rightsHolderType
children o-ex:context o-ex:rightsHolderElement o-ex:container o-dd:payment
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="fixedamount" substitutionGroup="o-ex:rightsHolderElement">
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="o-ex:rightsHolderType">
        <xsd:sequence>
          <xsd:element ref="o-dd:payment"/>
        </xsd:sequence>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>

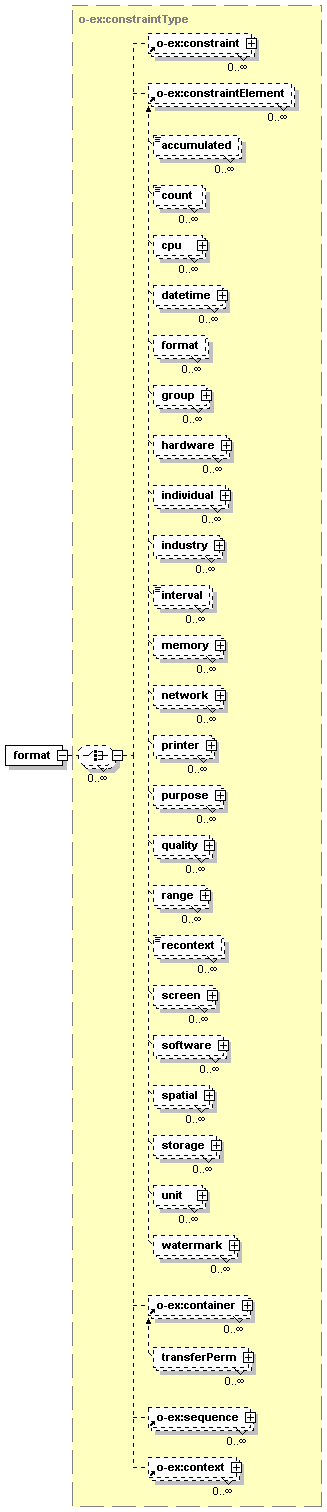

element format
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:constraintType
children o-ex:constraint o-ex:constraintElement o-ex:container o-ex:sequence o-ex:context
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
type  xsd:anyURI
source
<xsd:element name="format" type="o-ex:constraintType" substitutionGroup="o-ex:constraintElement"/>

element give
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:permissionType
children o-ex:context o-ex:permissionElement o-ex:container o-ex:constraint o-ex:sequence o-ex:requirement o-ex:condition o-ex:asset
attributes
Name  Type  Use  Default  Fixed  Annotation
exclusive  xsd:boolean  optional
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="give" type="o-ex:permissionType" substitutionGroup="o-ex:permissionElement"/>

element group
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:constraintType
children o-ex:constraint o-ex:constraintElement o-ex:container o-ex:sequence o-ex:context
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
type  xsd:anyURI
source
<xsd:element name="group" type="o-ex:constraintType" substitutionGroup="o-ex:constraintElement"/>

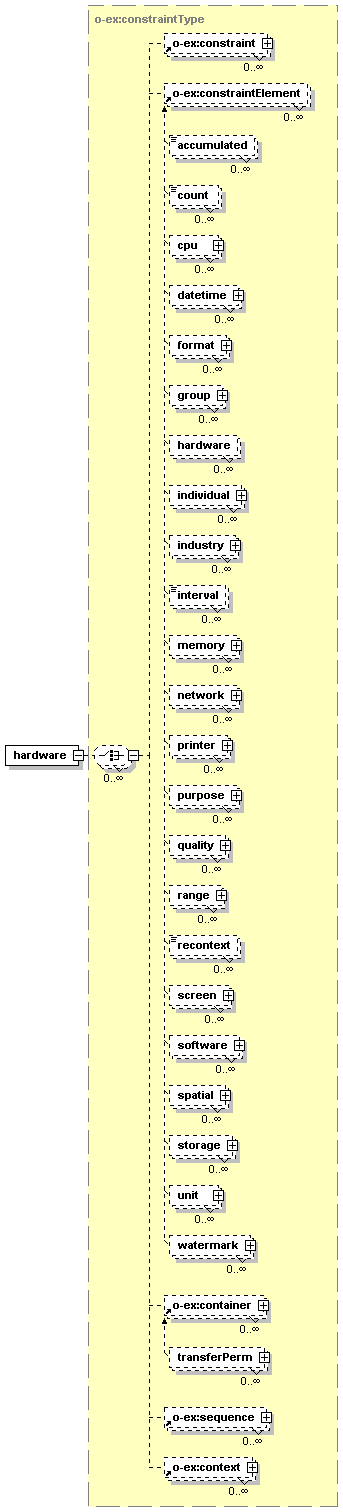

element hardware
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:constraintType
children o-ex:constraint o-ex:constraintElement o-ex:container o-ex:sequence o-ex:context
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
type  xsd:anyURI
source
<xsd:element name="hardware" type="o-ex:constraintType" substitutionGroup="o-ex:constraintElement"/>

element individual
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:constraintType
children o-ex:constraint o-ex:constraintElement o-ex:container o-ex:sequence o-ex:context
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
type  xsd:anyURI
source
<xsd:element name="individual" type="o-ex:constraintType" substitutionGroup="o-ex:constraintElement"/>

element industry
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:constraintType
children o-ex:constraint o-ex:constraintElement o-ex:container o-ex:sequence o-ex:context
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
type  xsd:anyURI
source
<xsd:element name="industry" type="o-ex:constraintType" substitutionGroup="o-ex:constraintElement"/>

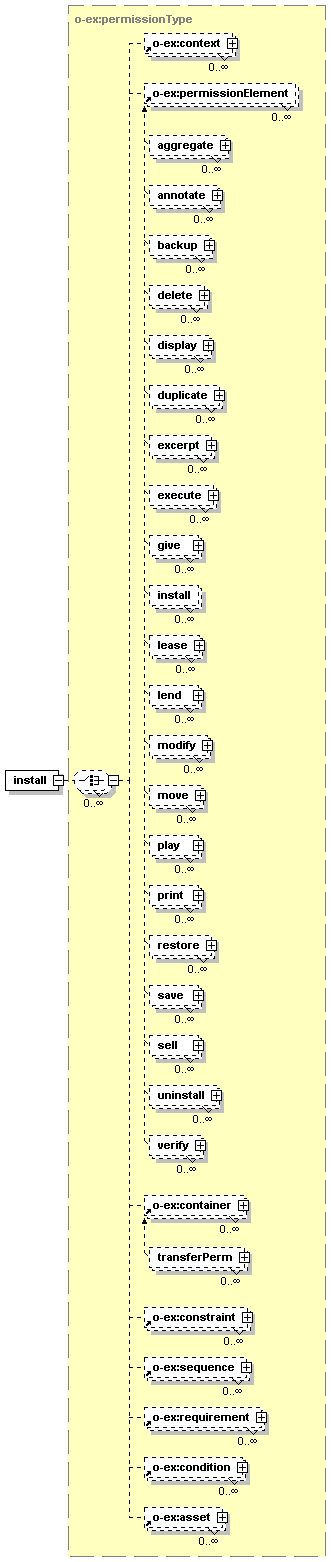

element install
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:permissionType
children o-ex:context o-ex:permissionElement o-ex:container o-ex:constraint o-ex:sequence o-ex:requirement o-ex:condition o-ex:asset
attributes
Name  Type  Use  Default  Fixed  Annotation
exclusive  xsd:boolean  optional
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="install" type="o-ex:permissionType" substitutionGroup="o-ex:permissionElement"/>

element interval
diagram
namespace http://odrl.net/1.1/ODRL-DD
type xsd:duration
source
<xsd:element name="interval" type="xsd:duration" substitutionGroup="o-ex:constraintElement"/>

element lease
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:permissionType
children o-ex:context o-ex:permissionElement o-ex:container o-ex:constraint o-ex:sequence o-ex:requirement o-ex:condition o-ex:asset
attributes
Name  Type  Use  Default  Fixed  Annotation
exclusive  xsd:boolean  optional
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="lease" type="o-ex:permissionType" substitutionGroup="o-ex:permissionElement"/>

element lend
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:permissionType
children o-ex:context o-ex:permissionElement o-ex:container o-ex:constraint o-ex:sequence o-ex:requirement o-ex:condition o-ex:asset
attributes
Name  Type  Use  Default  Fixed  Annotation
exclusive  xsd:boolean  optional
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="lend" type="o-ex:permissionType" substitutionGroup="o-ex:permissionElement"/>

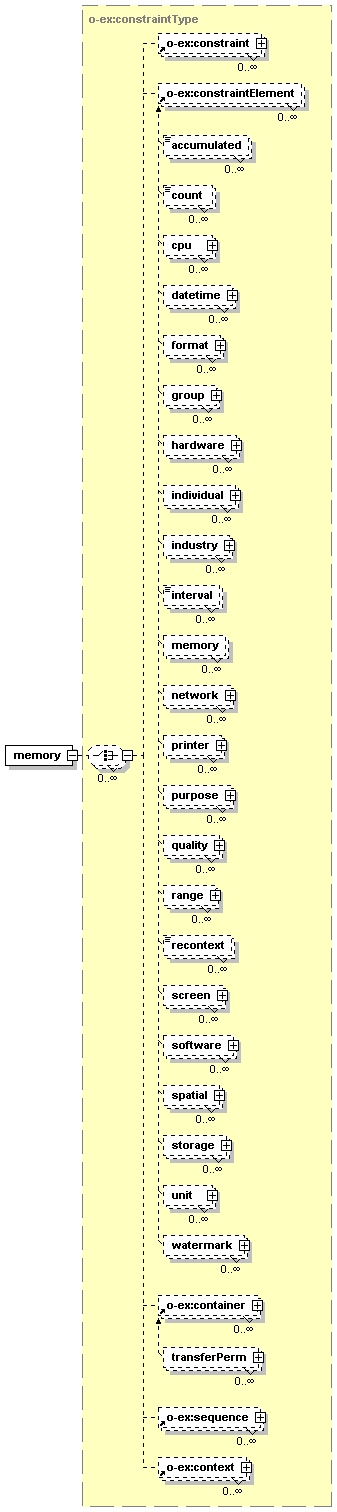

element memory
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:constraintType
children o-ex:constraint o-ex:constraintElement o-ex:container o-ex:sequence o-ex:context
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
type  xsd:anyURI
source
<xsd:element name="memory" type="o-ex:constraintType" substitutionGroup="o-ex:constraintElement"/>

element modify
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:permissionType
children o-ex:context o-ex:permissionElement o-ex:container o-ex:constraint o-ex:sequence o-ex:requirement o-ex:condition o-ex:asset
attributes
Name  Type  Use  Default  Fixed  Annotation
exclusive  xsd:boolean  optional
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="modify" type="o-ex:permissionType" substitutionGroup="o-ex:permissionElement"/>

element move
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:permissionType
children o-ex:context o-ex:permissionElement o-ex:container o-ex:constraint o-ex:sequence o-ex:requirement o-ex:condition o-ex:asset
attributes
Name  Type  Use  Default  Fixed  Annotation
exclusive  xsd:boolean  optional
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="move" type="o-ex:permissionType" substitutionGroup="o-ex:permissionElement"/>

element name
diagram
namespace http://odrl.net/1.1/ODRL-DD
type xsd:string
source
<xsd:element name="name" type="xsd:string" substitutionGroup="o-ex:contextElement"/>

element network
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:constraintType
children o-ex:constraint o-ex:constraintElement o-ex:container o-ex:sequence o-ex:context
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
type  xsd:anyURI
source
<xsd:element name="network" type="o-ex:constraintType" substitutionGroup="o-ex:constraintElement"/>

element payment
diagram
namespace http://odrl.net/1.1/ODRL-DD
children amount taxpercent
used by
element fixedamount
complexType feeType
source
<xsd:element name="payment">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element name="amount">
        <xsd:complexType>
          <xsd:simpleContent>
            <xsd:extension base="xsd:decimal">
              <xsd:attribute name="currency" type="xsd:NMTOKEN" use="required"/>
            </xsd:extension>
          </xsd:simpleContent>
        </xsd:complexType>
      </xsd:element>
      <xsd:element name="taxpercent" minOccurs="0">
        <xsd:complexType>
          <xsd:simpleContent>
            <xsd:extension base="xsd:decimal">
              <xsd:attribute name="code" type="xsd:NMTOKEN" use="required"/>
            </xsd:extension>
          </xsd:simpleContent>
        </xsd:complexType>
      </xsd:element>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

element payment/amount
diagram
namespace http://odrl.net/1.1/ODRL-DD
type extension of xsd:decimal
attributes
Name  Type  Use  Default  Fixed  Annotation
currency  xsd:NMTOKEN  required
source
<xsd:element name="amount">
  <xsd:complexType>
    <xsd:simpleContent>
      <xsd:extension base="xsd:decimal">
        <xsd:attribute name="currency" type="xsd:NMTOKEN" use="required"/>
      </xsd:extension>
    </xsd:simpleContent>
  </xsd:complexType>
</xsd:element>

element payment/taxpercent
diagram
namespace http://odrl.net/1.1/ODRL-DD
type extension of xsd:decimal
attributes
Name  Type  Use  Default  Fixed  Annotation
code  xsd:NMTOKEN  required
source
<xsd:element name="taxpercent" minOccurs="0">
  <xsd:complexType>
    <xsd:simpleContent>
      <xsd:extension base="xsd:decimal">
        <xsd:attribute name="code" type="xsd:NMTOKEN" use="required"/>
      </xsd:extension>
    </xsd:simpleContent>
  </xsd:complexType>
</xsd:element>

element percentage
diagram
namespace http://odrl.net/1.1/ODRL-DD
type restriction of xsd:decimal
facets
minInclusive 0
maxInclusive 100
source
<xsd:element name="percentage" substitutionGroup="o-ex:rightsHolderElement">
  <xsd:simpleType>
    <xsd:restriction base="xsd:decimal">
      <xsd:minInclusive value="0"/>
      <xsd:maxInclusive value="100"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

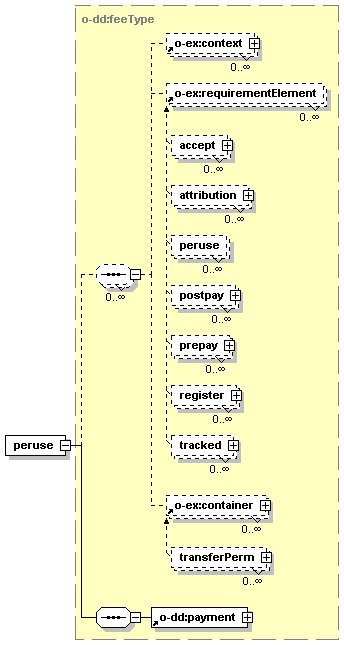

element peruse
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-dd:feeType
children o-ex:context o-ex:requirementElement o-ex:container o-dd:payment
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="peruse" type="o-dd:feeType" substitutionGroup="o-ex:requirementElement"/>

element play
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:permissionType
children o-ex:context o-ex:permissionElement o-ex:container o-ex:constraint o-ex:sequence o-ex:requirement o-ex:condition o-ex:asset
attributes
Name  Type  Use  Default  Fixed  Annotation
exclusive  xsd:boolean  optional
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="play" type="o-ex:permissionType" substitutionGroup="o-ex:permissionElement"/>

element pLocation
diagram
namespace http://odrl.net/1.1/ODRL-DD
type xsd:string
source
<xsd:element name="pLocation" type="xsd:string" substitutionGroup="o-ex:contextElement"/>

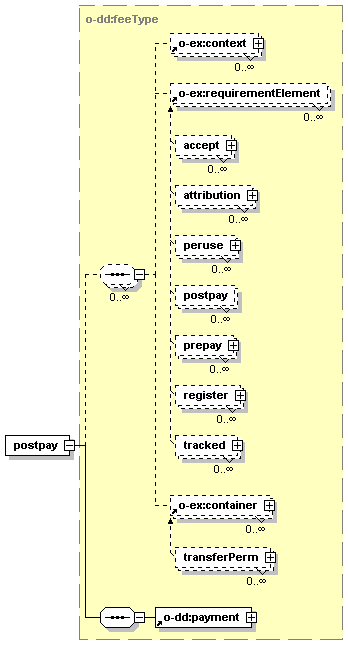

element postpay
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-dd:feeType
children o-ex:context o-ex:requirementElement o-ex:container o-dd:payment
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="postpay" type="o-dd:feeType" substitutionGroup="o-ex:requirementElement"/>

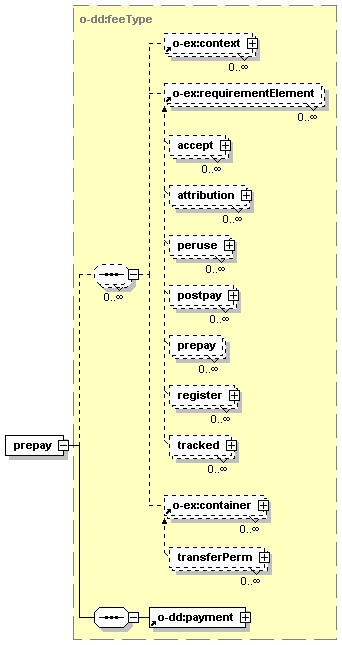

element prepay
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-dd:feeType
children o-ex:context o-ex:requirementElement o-ex:container o-dd:payment
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="prepay" type="o-dd:feeType" substitutionGroup="o-ex:requirementElement"/>

element print
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:permissionType
children o-ex:context o-ex:permissionElement o-ex:container o-ex:constraint o-ex:sequence o-ex:requirement o-ex:condition o-ex:asset
attributes
Name  Type  Use  Default  Fixed  Annotation
exclusive  xsd:boolean  optional
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="print" type="o-ex:permissionType" substitutionGroup="o-ex:permissionElement"/>

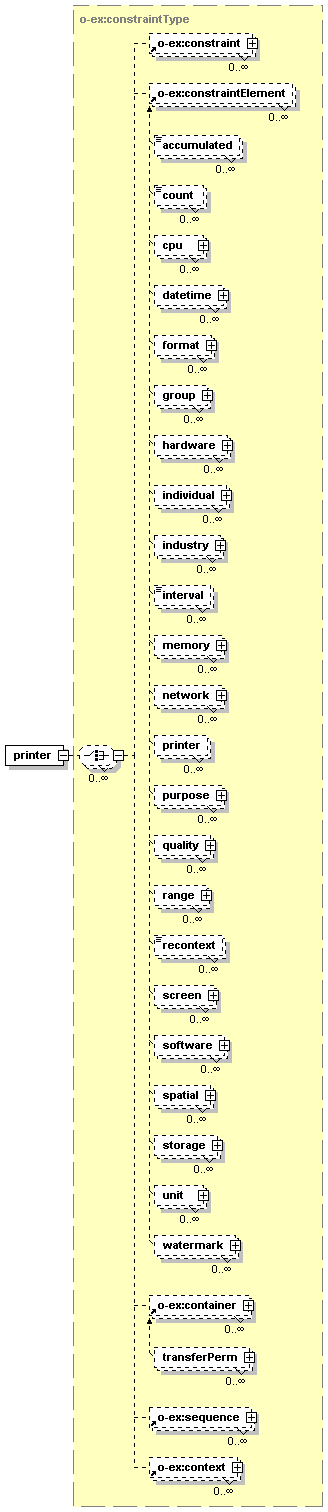

element printer
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:constraintType
children o-ex:constraint o-ex:constraintElement o-ex:container o-ex:sequence o-ex:context
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
type  xsd:anyURI
source
<xsd:element name="printer" type="o-ex:constraintType" substitutionGroup="o-ex:constraintElement"/>

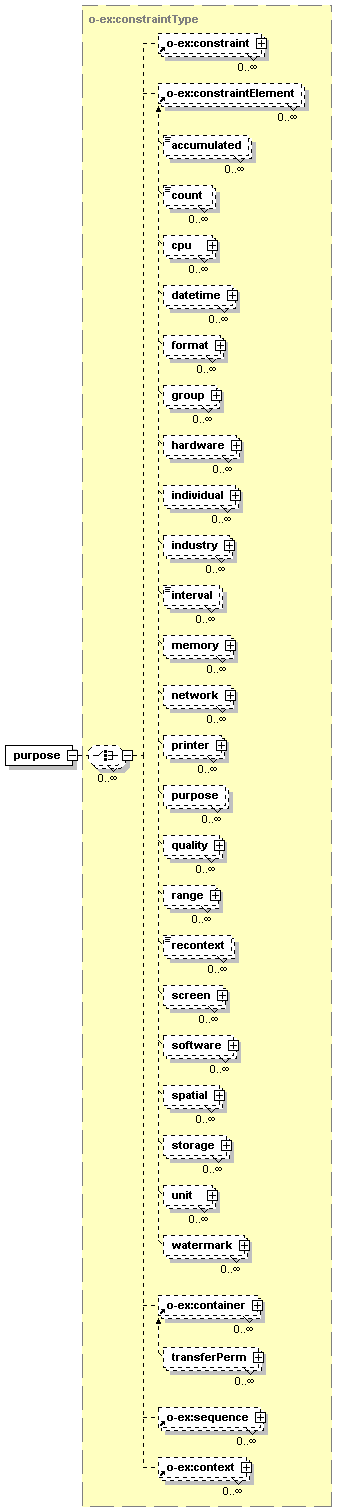

element purpose
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:constraintType
children o-ex:constraint o-ex:constraintElement o-ex:container o-ex:sequence o-ex:context
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
type  xsd:anyURI
source
<xsd:element name="purpose" type="o-ex:constraintType" substitutionGroup="o-ex:constraintElement"/>

element quality
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:constraintType
children o-ex:constraint o-ex:constraintElement o-ex:container o-ex:sequence o-ex:context
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
type  xsd:anyURI
source
<xsd:element name="quality" type="o-ex:constraintType" substitutionGroup="o-ex:constraintElement"/>

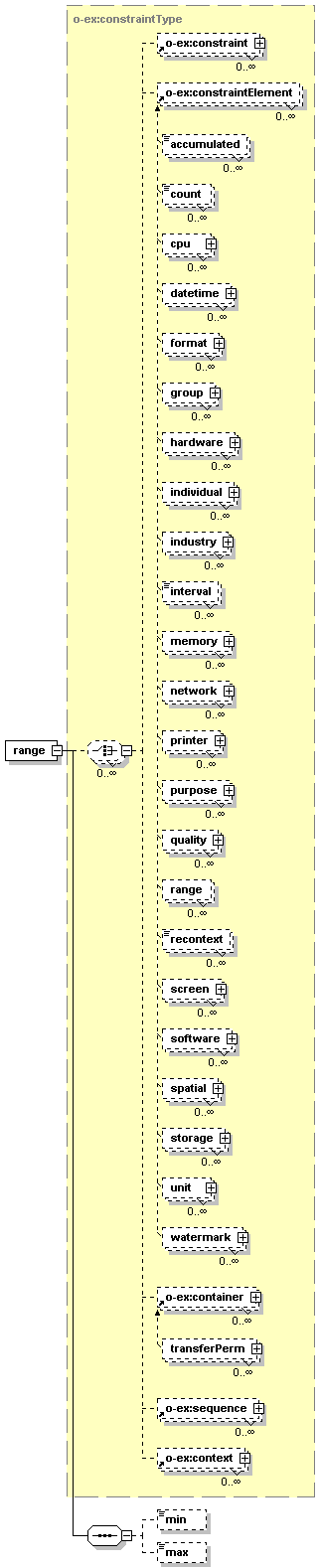

element range
diagram
namespace http://odrl.net/1.1/ODRL-DD
type extension of o-ex:constraintType
children o-ex:constraint o-ex:constraintElement o-ex:container o-ex:sequence o-ex:context min max
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
type  xsd:anyURI
source
<xsd:element name="range" substitutionGroup="o-ex:constraintElement">
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="o-ex:constraintType">
        <xsd:sequence>
          <xsd:element name="min" type="xsd:decimal" minOccurs="0"/>
          <xsd:element name="max" type="xsd:decimal" minOccurs="0"/>
        </xsd:sequence>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>

element range/min
diagram
namespace http://odrl.net/1.1/ODRL-DD
type xsd:decimal
source
<xsd:element name="min" type="xsd:decimal" minOccurs="0"/>

element range/max
diagram
namespace http://odrl.net/1.1/ODRL-DD
type xsd:decimal
source
<xsd:element name="max" type="xsd:decimal" minOccurs="0"/>

element recontext
diagram
namespace http://odrl.net/1.1/ODRL-DD
type xsd:boolean
source
<xsd:element name="recontext" type="xsd:boolean" substitutionGroup="o-ex:constraintElement"/>

element reference
diagram
namespace http://odrl.net/1.1/ODRL-DD
type xsd:anyURI
source
<xsd:element name="reference" type="xsd:anyURI" substitutionGroup="o-ex:contextElement"/>

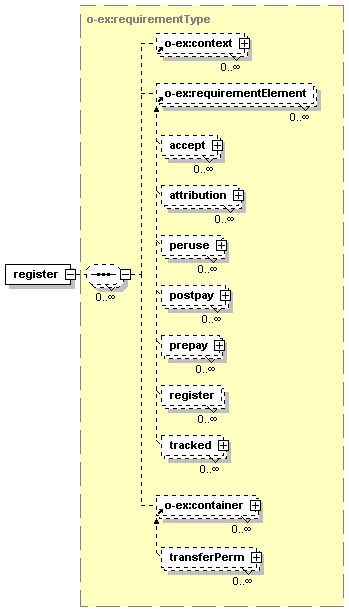

element register
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:requirementType
children o-ex:context o-ex:requirementElement o-ex:container
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="register" type="o-ex:requirementType" substitutionGroup="o-ex:requirementElement"/>

element remark
diagram
namespace http://odrl.net/1.1/ODRL-DD
type xsd:string
source
<xsd:element name="remark" type="xsd:string" substitutionGroup="o-ex:contextElement"/>

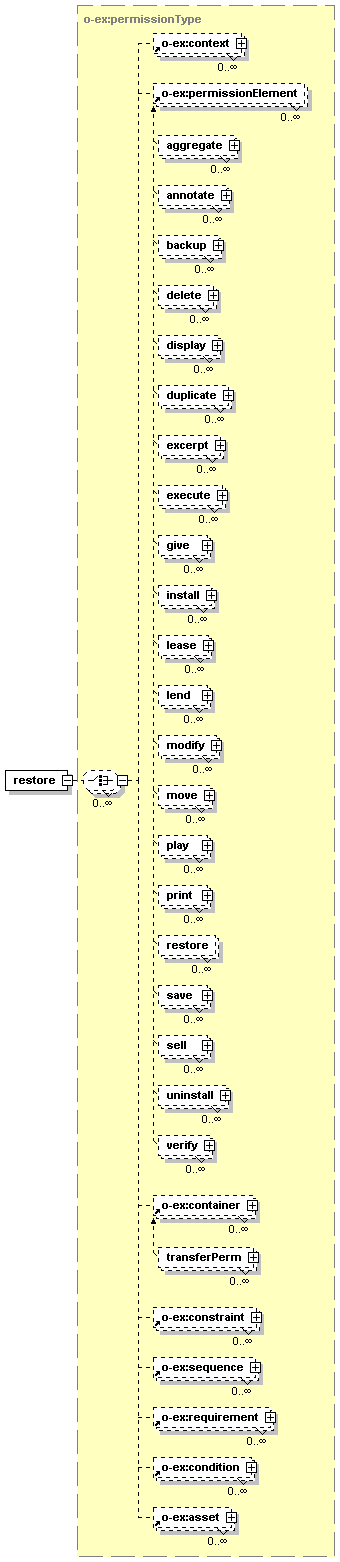

element restore
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:permissionType
children o-ex:context o-ex:permissionElement o-ex:container o-ex:constraint o-ex:sequence o-ex:requirement o-ex:condition o-ex:asset
attributes
Name  Type  Use  Default  Fixed  Annotation
exclusive  xsd:boolean  optional
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="restore" type="o-ex:permissionType" substitutionGroup="o-ex:permissionElement"/>

element role
diagram
namespace http://odrl.net/1.1/ODRL-DD
type xsd:anyURI
source
<xsd:element name="role" type="xsd:anyURI" substitutionGroup="o-ex:contextElement"/>

element save
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:permissionType
children o-ex:context o-ex:permissionElement o-ex:container o-ex:constraint o-ex:sequence o-ex:requirement o-ex:condition o-ex:asset
attributes
Name  Type  Use  Default  Fixed  Annotation
exclusive  xsd:boolean  optional
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="save" type="o-ex:permissionType" substitutionGroup="o-ex:permissionElement"/>

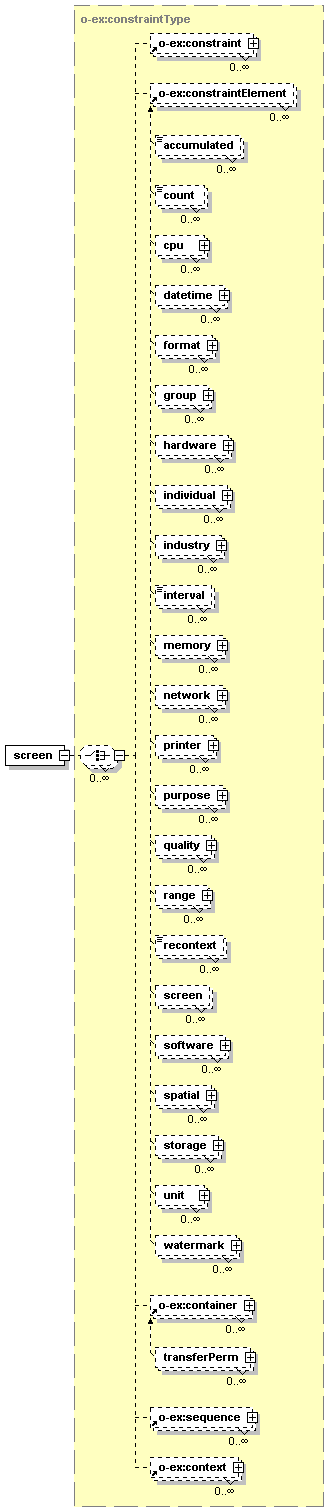

element screen
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:constraintType
children o-ex:constraint o-ex:constraintElement o-ex:container o-ex:sequence o-ex:context
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
type  xsd:anyURI
source
<xsd:element name="screen" type="o-ex:constraintType" substitutionGroup="o-ex:constraintElement"/>

element sell
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:permissionType
children o-ex:context o-ex:permissionElement o-ex:container o-ex:constraint o-ex:sequence o-ex:requirement o-ex:condition o-ex:asset
attributes
Name  Type  Use  Default  Fixed  Annotation
exclusive  xsd:boolean  optional
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="sell" type="o-ex:permissionType" substitutionGroup="o-ex:permissionElement"/>

element service
diagram
namespace http://odrl.net/1.1/ODRL-DD
type xsd:anyURI
source
<xsd:element name="service" type="xsd:anyURI" substitutionGroup="o-ex:contextElement"/>

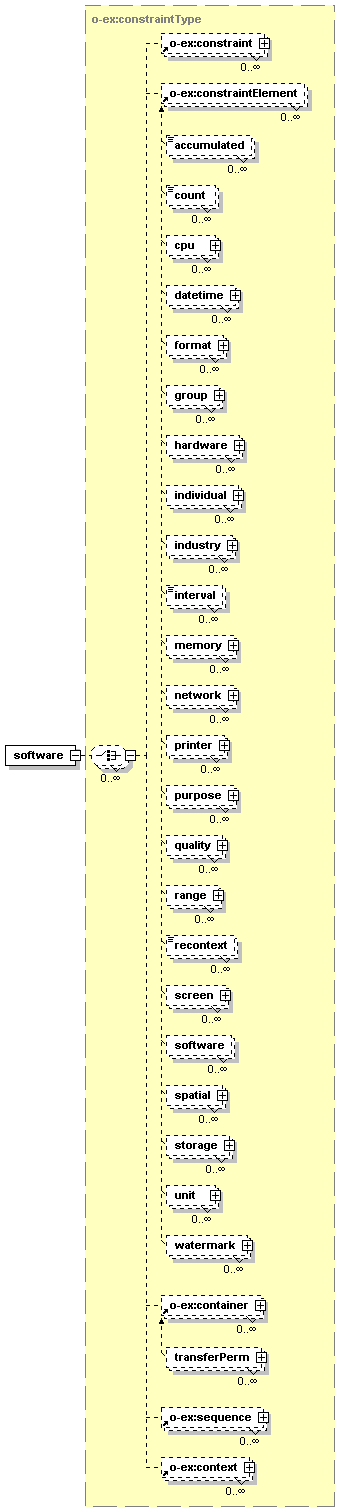

element software
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:constraintType
children o-ex:constraint o-ex:constraintElement o-ex:container o-ex:sequence o-ex:context
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
type  xsd:anyURI
source
<xsd:element name="software" type="o-ex:constraintType" substitutionGroup="o-ex:constraintElement"/>

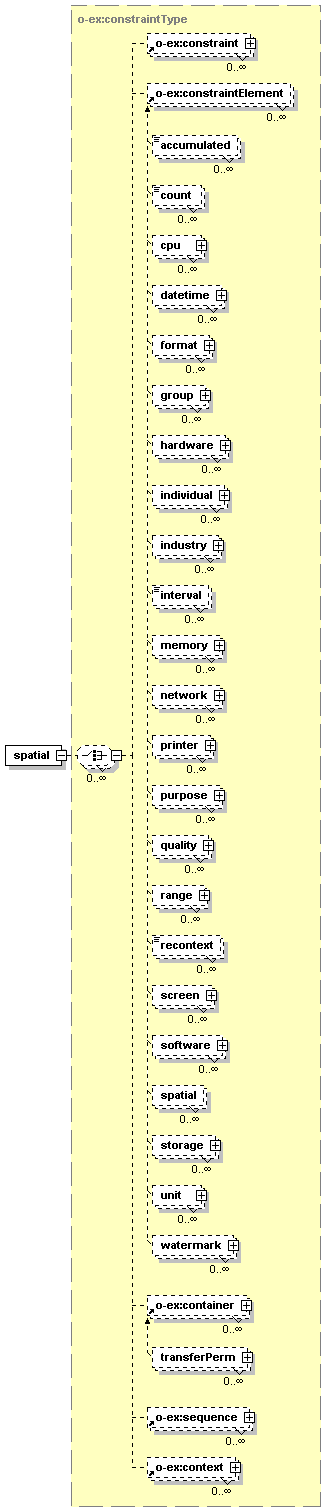

element spatial
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:constraintType
children o-ex:constraint o-ex:constraintElement o-ex:container o-ex:sequence o-ex:context
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
type  xsd:anyURI
source
<xsd:element name="spatial" type="o-ex:constraintType" substitutionGroup="o-ex:constraintElement"/>

element storage
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:constraintType
children o-ex:constraint o-ex:constraintElement o-ex:container o-ex:sequence o-ex:context
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
type  xsd:anyURI
source
<xsd:element name="storage" type="o-ex:constraintType" substitutionGroup="o-ex:constraintElement"/>

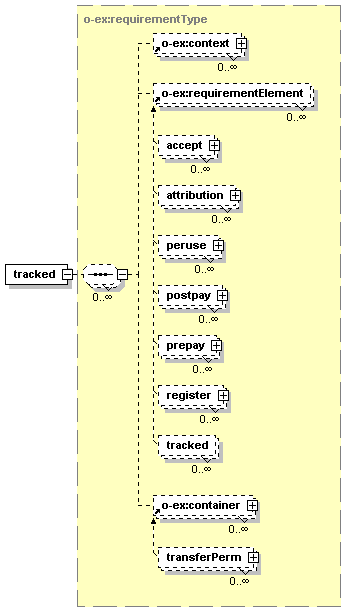

element tracked
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:requirementType
children o-ex:context o-ex:requirementElement o-ex:container
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="tracked" type="o-ex:requirementType" substitutionGroup="o-ex:requirementElement"/>

element transaction
diagram
namespace http://odrl.net/1.1/ODRL-DD
type xsd:string
source
<xsd:element name="transaction" type="xsd:string" substitutionGroup="o-ex:contextElement"/>

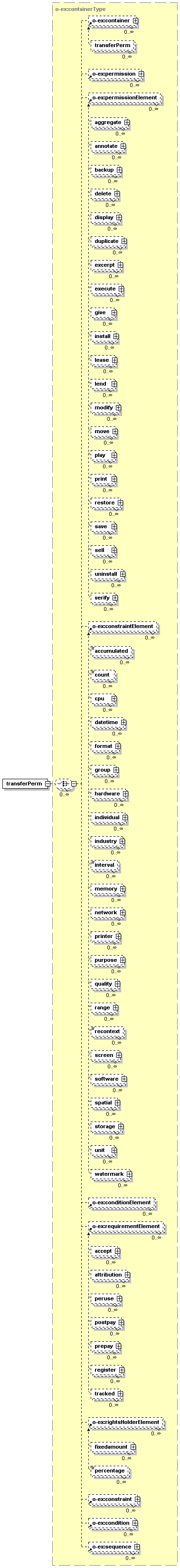

element transferPerm
diagram
namespace http://odrl.net/1.1/ODRL-DD
type extension of o-ex:containerType
children o-ex:container o-ex:permission o-ex:permissionElement o-ex:constraintElement o-ex:conditionElement o-ex:requirementElement o-ex:rightsHolderElement o-ex:constraint o-ex:condition o-ex:sequence
attributes
Name  Type  Use  Default  Fixed  Annotation
type  xsd:NMTOKEN    and
id  xsd:ID
idref  xsd:IDREF
downstream  xsd:NMTOKEN    equal
source
<xsd:element name="transferPerm" substitutionGroup="o-ex:container">
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="o-ex:containerType">
        <xsd:attribute name="downstream" default="equal">
          <xsd:simpleType>
            <xsd:restriction base="xsd:NMTOKEN">
              <xsd:enumeration value="equal"/>
              <xsd:enumeration value="less"/>
              <xsd:enumeration value="notgreater"/>
            </xsd:restriction>
          </xsd:simpleType>
        </xsd:attribute>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>

element uid
diagram
namespace http://odrl.net/1.1/ODRL-DD
type xsd:anyURI
source
<xsd:element name="uid" type="xsd:anyURI" substitutionGroup="o-ex:contextElement"/>

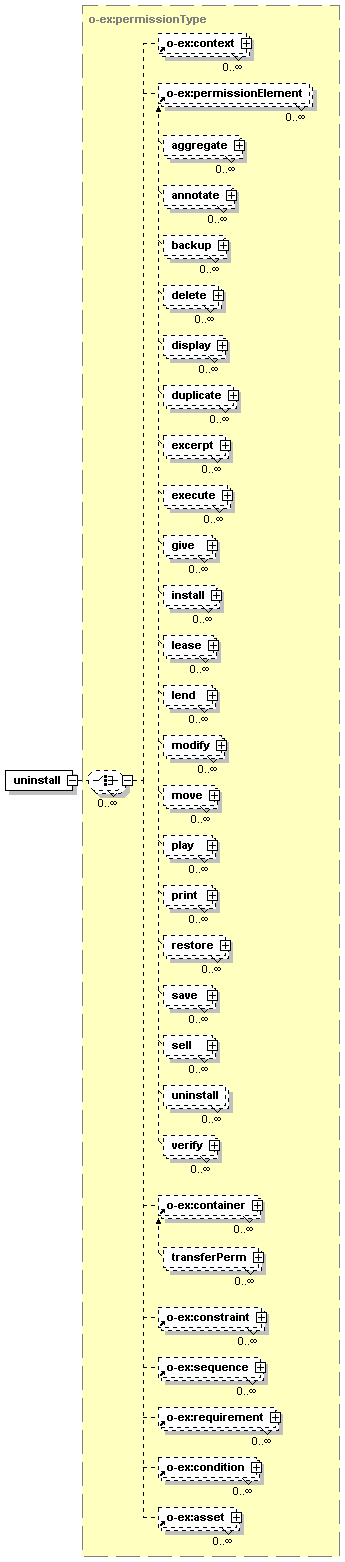

element uninstall
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:permissionType
children o-ex:context o-ex:permissionElement o-ex:container o-ex:constraint o-ex:sequence o-ex:requirement o-ex:condition o-ex:asset
attributes
Name  Type  Use  Default  Fixed  Annotation
exclusive  xsd:boolean  optional
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="uninstall" type="o-ex:permissionType" substitutionGroup="o-ex:permissionElement"/>

element unit
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:constraintType
children o-ex:constraint o-ex:constraintElement o-ex:container o-ex:sequence o-ex:context
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
type  xsd:anyURI
source
<xsd:element name="unit" type="o-ex:constraintType" substitutionGroup="o-ex:constraintElement"/>

element verify
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:permissionType
children o-ex:context o-ex:permissionElement o-ex:container o-ex:constraint o-ex:sequence o-ex:requirement o-ex:condition o-ex:asset
attributes
Name  Type  Use  Default  Fixed  Annotation
exclusive  xsd:boolean  optional
id  xsd:ID
idref  xsd:IDREF
source
<xsd:element name="verify" type="o-ex:permissionType" substitutionGroup="o-ex:permissionElement"/>

element version
diagram
namespace http://odrl.net/1.1/ODRL-DD
type xsd:string
source
<xsd:element name="version" type="xsd:string" substitutionGroup="o-ex:contextElement"/>

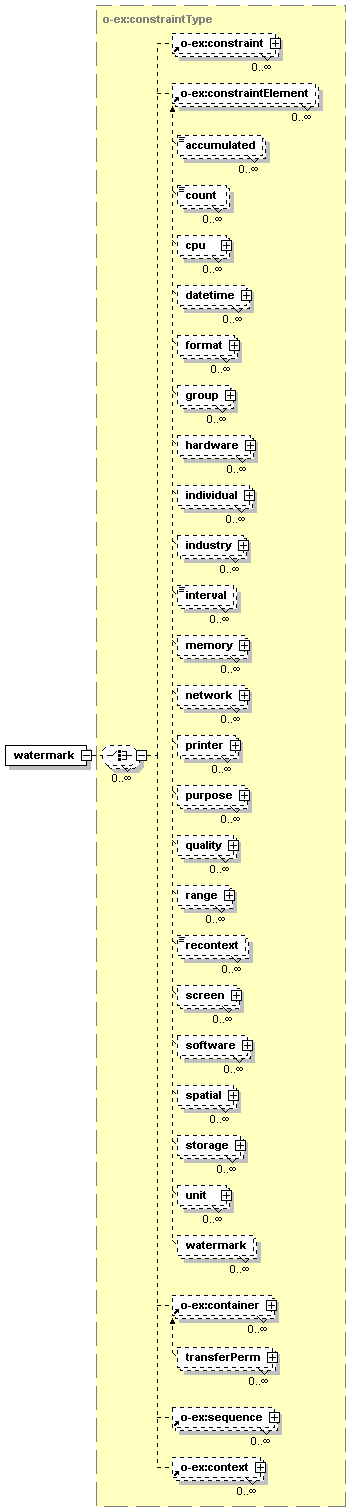

element watermark
diagram
namespace http://odrl.net/1.1/ODRL-DD
type o-ex:constraintType
children o-ex:constraint o-ex:constraintElement o-ex:container o-ex:sequence o-ex:context
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID
idref  xsd:IDREF
type  xsd:anyURI
source
<xsd:element name="watermark" type="o-ex:constraintType" substitutionGroup="o-ex:constraintElement"/>

complexType dateType
diagram
