Schema ODRL-DD-10.xsd


schema location:  http://odrl.net/1.0/ODRL-DD-10.xsd
targetNamespace:  http://odrl.net/1.0/ODRL-DD

Elements  Complex types
accept  dateType
accumulated  feeType
aggregate
annotate
attribution
backup
count
cpu
date
datetime
delete
display
dLocation
duplicate
event
excerpt
execute
fixedamount
format
give
group
hardware
individual
install
interval
lease
lend
memory
modify
move
name
network
payment
percentage
peruse
play
pLocation
postpay
prepay
print
printer
quality
range
recontext
reference
register
remark
restore
role
save
screen
sell
service
software
spatial
storage
tracked
transaction
transferPerm
uid
uninstall
unit
verify
version
watermark


element accept
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="accept" substitutionGroup="o-ex:requiremetElement"/>

element accumulated
diagram
namespace http://odrl.net/1.0/ODRL-DD
type xsd:duration
source
<xsd:element name="accumulated" type="xsd:duration" substitutionGroup="o-ex:constraintElement"/>

element aggregate
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="aggregate" substitutionGroup="o-ex:permissionElement"/>

element annotate
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="annotate" substitutionGroup="o-ex:permissionElement"/>

element attribution
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="attribution" substitutionGroup="o-ex:requiremetElement"/>

element backup
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="backup" substitutionGroup="o-ex:permissionElement"/>

element count
diagram
namespace http://odrl.net/1.0/ODRL-DD
children start end fixed
source
<xsd:element name="count" substitutionGroup="o-ex:constraintElement">
  <xsd:complexType>
    <xsd:choice>
      <xsd:sequence>
        <xsd:element name="start" minOccurs="0">
          <xsd:simpleType>
            <xsd:restriction base="xsd:decimal">
              <xsd:minInclusive value="0"/>
            </xsd:restriction>
          </xsd:simpleType>
        </xsd:element>
        <xsd:element name="end" minOccurs="0">
          <xsd:simpleType>
            <xsd:restriction base="xsd:decimal">
              <xsd:minInclusive value="0"/>
            </xsd:restriction>
          </xsd:simpleType>
        </xsd:element>
      </xsd:sequence>
      <xsd:element name="fixed" minOccurs="0">
        <xsd:simpleType>
          <xsd:restriction base="xsd:decimal">
            <xsd:minInclusive value="0"/>
          </xsd:restriction>
        </xsd:simpleType>
      </xsd:element>
    </xsd:choice>
  </xsd:complexType>
</xsd:element>

element count/start
diagram
namespace http://odrl.net/1.0/ODRL-DD
type restriction of xsd:decimal
facets
minInclusive 0
source
<xsd:element name="start" minOccurs="0">
  <xsd:simpleType>
    <xsd:restriction base="xsd:decimal">
      <xsd:minInclusive value="0"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

element count/end
diagram
namespace http://odrl.net/1.0/ODRL-DD
type restriction of xsd:decimal
facets
minInclusive 0
source
<xsd:element name="end" minOccurs="0">
  <xsd:simpleType>
    <xsd:restriction base="xsd:decimal">
      <xsd:minInclusive value="0"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

element count/fixed
diagram
namespace http://odrl.net/1.0/ODRL-DD
type restriction of xsd:decimal
facets
minInclusive 0
source
<xsd:element name="fixed" minOccurs="0">
  <xsd:simpleType>
    <xsd:restriction base="xsd:decimal">
      <xsd:minInclusive value="0"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

element cpu
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="cpu" substitutionGroup="o-ex:constraintElement"/>

element date
diagram
namespace http://odrl.net/1.0/ODRL-DD
type o-dd:dateType
children start end fixed
source
<xsd:element name="date" type="o-dd:dateType" substitutionGroup="o-ex:contextElement"/>

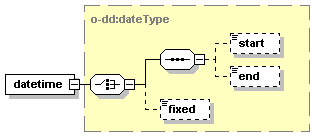

element datetime
diagram
namespace http://odrl.net/1.0/ODRL-DD
type o-dd:dateType
children start end fixed
source
<xsd:element name="datetime" type="o-dd:dateType" substitutionGroup="o-ex:constraintElement"/>

element delete
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="delete" substitutionGroup="o-ex:permissionElement"/>

element display
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="display" substitutionGroup="o-ex:permissionElement"/>

element dLocation
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="dLocation" substitutionGroup="o-ex:contextElement"/>

element duplicate
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="duplicate" substitutionGroup="o-ex:permissionElement"/>

element event
diagram
namespace http://odrl.net/1.0/ODRL-DD
type xsd:string
source
<xsd:element name="event" type="xsd:string" substitutionGroup="o-ex:contextElement"/>

element excerpt
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="excerpt" substitutionGroup="o-ex:permissionElement"/>

element execute
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="execute" substitutionGroup="o-ex:permissionElement"/>

element fixedamount
diagram
namespace http://odrl.net/1.0/ODRL-DD
type o-dd:feeType
children o-dd:payment
source
<xsd:element name="fixedamount" type="o-dd:feeType" substitutionGroup="o-ex:rightsHolderElement"/>

element format
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="format" substitutionGroup="o-ex:constraintElement"/>

element give
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="give" substitutionGroup="o-ex:permissionElement"/>

element group
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="group" substitutionGroup="o-ex:constraintElement"/>

element hardware
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="hardware" substitutionGroup="o-ex:constraintElement"/>

element individual
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="individual" substitutionGroup="o-ex:constraintElement"/>

element install
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="install" substitutionGroup="o-ex:permissionElement"/>

element interval
diagram
namespace http://odrl.net/1.0/ODRL-DD
type xsd:duration
source
<xsd:element name="interval" type="xsd:duration" substitutionGroup="o-ex:constraintElement"/>

element lease
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="lease" substitutionGroup="o-ex:permissionElement"/>

element lend
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="lend" substitutionGroup="o-ex:permissionElement"/>

element memory
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="memory" substitutionGroup="o-ex:constraintElement"/>

element modify
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="modify" substitutionGroup="o-ex:permissionElement"/>

element move
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="move" substitutionGroup="o-ex:permissionElement"/>

element name
diagram
namespace http://odrl.net/1.0/ODRL-DD
type xsd:string
source
<xsd:element name="name" type="xsd:string" substitutionGroup="o-ex:contextElement"/>

element network
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="network" substitutionGroup="o-ex:constraintElement"/>

element payment
diagram
namespace http://odrl.net/1.0/ODRL-DD
children amount taxpercent
used by
complexType feeType
source
<xsd:element name="payment">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element name="amount">
        <xsd:complexType>
          <xsd:simpleContent>
            <xsd:extension base="xsd:decimal">
              <xsd:attribute name="currency" type="xsd:NMTOKEN" use="required"/>
            </xsd:extension>
          </xsd:simpleContent>
        </xsd:complexType>
      </xsd:element>
      <xsd:element name="taxpercent" minOccurs="0">
        <xsd:complexType>
          <xsd:simpleContent>
            <xsd:extension base="xsd:decimal">
              <xsd:attribute name="code" type="xsd:NMTOKEN" use="required"/>
            </xsd:extension>
          </xsd:simpleContent>
        </xsd:complexType>
      </xsd:element>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

element payment/amount
diagram
namespace http://odrl.net/1.0/ODRL-DD
type extension of xsd:decimal
attributes
Name  Type  Use  Default  Fixed
currency  xsd:NMTOKEN  required
source
<xsd:element name="amount">
  <xsd:complexType>
    <xsd:simpleContent>
      <xsd:extension base="xsd:decimal">
        <xsd:attribute name="currency" type="xsd:NMTOKEN" use="required"/>
      </xsd:extension>
    </xsd:simpleContent>
  </xsd:complexType>
</xsd:element>

element payment/taxpercent
diagram
namespace http://odrl.net/1.0/ODRL-DD
type extension of xsd:decimal
attributes
Name  Type  Use  Default  Fixed
code  xsd:NMTOKEN  required
source
<xsd:element name="taxpercent" minOccurs="0">
  <xsd:complexType>
    <xsd:simpleContent>
      <xsd:extension base="xsd:decimal">
        <xsd:attribute name="code" type="xsd:NMTOKEN" use="required"/>
      </xsd:extension>
    </xsd:simpleContent>
  </xsd:complexType>
</xsd:element>

element percentage
diagram
namespace http://odrl.net/1.0/ODRL-DD
type restriction of xsd:decimal
facets
minInclusive 0
maxInclusive 100
source
<xsd:element name="percentage" substitutionGroup="o-ex:rightsHolderElement">
  <xsd:simpleType>
    <xsd:restriction base="xsd:decimal">
      <xsd:minInclusive value="0"/>
      <xsd:maxInclusive value="100"/>
    </xsd:restriction>
  </xsd:simpleType>
</xsd:element>

element peruse
diagram
namespace http://odrl.net/1.0/ODRL-DD
type o-dd:feeType
children o-dd:payment
source
<xsd:element name="peruse" type="o-dd:feeType" substitutionGroup="o-ex:requiremetElement"/>

element play
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="play" substitutionGroup="o-ex:permissionElement"/>

element pLocation
diagram
namespace http://odrl.net/1.0/ODRL-DD
type xsd:string
source
<xsd:element name="pLocation" type="xsd:string" substitutionGroup="o-ex:contextElement"/>

element postpay
diagram
namespace http://odrl.net/1.0/ODRL-DD
type o-dd:feeType
children o-dd:payment
source
<xsd:element name="postpay" type="o-dd:feeType" substitutionGroup="o-ex:requiremetElement"/>

element prepay
diagram
namespace http://odrl.net/1.0/ODRL-DD
type o-dd:feeType
children o-dd:payment
source
<xsd:element name="prepay" type="o-dd:feeType" substitutionGroup="o-ex:requiremetElement"/>

element print
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="print" substitutionGroup="o-ex:permissionElement"/>

element printer
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="printer" substitutionGroup="o-ex:constraintElement"/>

element quality
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="quality" substitutionGroup="o-ex:constraintElement"/>

element range
diagram
namespace http://odrl.net/1.0/ODRL-DD
children min max
source
<xsd:element name="range" substitutionGroup="o-ex:constraintElement">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element name="min" type="xsd:decimal" minOccurs="0"/>
      <xsd:element name="max" type="xsd:decimal" minOccurs="0"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

element range/min
diagram
namespace http://odrl.net/1.0/ODRL-DD
type xsd:decimal
source
<xsd:element name="min" type="xsd:decimal" minOccurs="0"/>

element range/max
diagram
namespace http://odrl.net/1.0/ODRL-DD
type xsd:decimal
source
<xsd:element name="max" type="xsd:decimal" minOccurs="0"/>

element recontext
diagram
namespace http://odrl.net/1.0/ODRL-DD
attributes
Name  Type  Use  Default  Fixed
value  xsd:boolean  required
source
<xsd:element name="recontext" substitutionGroup="o-ex:constraintElement">
  <xsd:complexType>
    <xsd:attribute name="value" type="xsd:boolean" use="required"/>
  </xsd:complexType>
</xsd:element>

element reference
diagram
namespace http://odrl.net/1.0/ODRL-DD
type xsd:anyURI
source
<xsd:element name="reference" type="xsd:anyURI" substitutionGroup="o-ex:contextElement"/>

element register
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="register" substitutionGroup="o-ex:requiremetElement"/>

element remark
diagram
namespace http://odrl.net/1.0/ODRL-DD
type xsd:string
source
<xsd:element name="remark" type="xsd:string" substitutionGroup="o-ex:contextElement"/>

element restore
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="restore" substitutionGroup="o-ex:permissionElement"/>

element role
diagram
namespace http://odrl.net/1.0/ODRL-DD
type extension of xsd:string
attributes
Name  Type  Use  Default  Fixed
idscheme  xsd:NMTOKEN  optional
source
<xsd:element name="role" substitutionGroup="o-ex:contextElement">
  <xsd:complexType>
    <xsd:simpleContent>
      <xsd:extension base="xsd:string">
        <xsd:attribute name="idscheme" use="optional">
          <xsd:simpleType>
            <xsd:restriction base="xsd:NMTOKEN">
              <xsd:enumeration value="MARC"/>
              <xsd:enumeration value="ONIX"/>
              <xsd:enumeration value="MPEG7"/>
            </xsd:restriction>
          </xsd:simpleType>
        </xsd:attribute>
      </xsd:extension>
    </xsd:simpleContent>
  </xsd:complexType>
</xsd:element>

element save
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="save" substitutionGroup="o-ex:permissionElement"/>

element screen
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="screen" substitutionGroup="o-ex:constraintElement"/>

element sell
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="sell" substitutionGroup="o-ex:permissionElement"/>

element service
diagram
namespace http://odrl.net/1.0/ODRL-DD
type xsd:anyURI
source
<xsd:element name="service" type="xsd:anyURI" substitutionGroup="o-ex:contextElement"/>

element software
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="software" substitutionGroup="o-ex:constraintElement"/>

element spatial
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="spatial" substitutionGroup="o-ex:constraintElement"/>

element storage
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="storage" substitutionGroup="o-ex:constraintElement"/>

element tracked
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="tracked" substitutionGroup="o-ex:requiremetElement"/>

element transaction
diagram
namespace http://odrl.net/1.0/ODRL-DD
type xsd:string
source
<xsd:element name="transaction" type="xsd:string" substitutionGroup="o-ex:contextElement"/>

element transferPerm
diagram
namespace http://odrl.net/1.0/ODRL-DD
type extension of o-ex:permissionType
attributes
Name  Type  Use  Default  Fixed
downstream  xsd:NMTOKEN  required  equal
source
<xsd:element name="transferPerm" substitutionGroup="o-ex:constraintElement">
  <xsd:complexType>
    <xsd:complexContent>
      <xsd:extension base="o-ex:permissionType">
        <xsd:attribute name="downstream" use="required" default="equal">
          <xsd:simpleType>
            <xsd:restriction base="xsd:NMTOKEN">
              <xsd:enumeration value="equal"/>
              <xsd:enumeration value="less"/>
              <xsd:enumeration value="notgreater"/>
            </xsd:restriction>
          </xsd:simpleType>
        </xsd:attribute>
      </xsd:extension>
    </xsd:complexContent>
  </xsd:complexType>
</xsd:element>

element uid
diagram
namespace http://odrl.net/1.0/ODRL-DD
type extension of xsd:string
attributes
Name  Type  Use  Default  Fixed
idscheme  xsd:NMTOKEN  required  URI
source
<xsd:element name="uid" substitutionGroup="o-ex:contextElement">
  <xsd:complexType>
    <xsd:simpleContent>
      <xsd:extension base="xsd:string">
        <xsd:attribute name="idscheme" use="required" default="URI">
          <xsd:simpleType>
            <xsd:restriction base="xsd:NMTOKEN">
              <xsd:enumeration value="URI"/>
              <xsd:enumeration value="DOI"/>
              <xsd:enumeration value="X500"/>
              <xsd:enumeration value="ISBN"/>
              <xsd:enumeration value="ISTC"/>
              <xsd:enumeration value="ISO3166"/>
              <xsd:enumeration value="FPI"/>
              <xsd:enumeration value="GUID"/>
              <xsd:enumeration value="mpg_ID"/>
              <xsd:enumeration value="ISAN"/>
              <xsd:enumeration value="ISRC"/>
              <xsd:enumeration value="ISSN"/>
              <xsd:enumeration value="ISWC"/>
              <xsd:enumeration value="IDDN"/>
              <xsd:enumeration value="UUID"/>
            </xsd:restriction>
          </xsd:simpleType>
        </xsd:attribute>
      </xsd:extension>
    </xsd:simpleContent>
  </xsd:complexType>
</xsd:element>

element uninstall
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="uninstall" substitutionGroup="o-ex:permissionElement"/>

element unit
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="unit" substitutionGroup="o-ex:constraintElement"/>

element verify
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="verify" substitutionGroup="o-ex:permissionElement"/>

element version
diagram
namespace http://odrl.net/1.0/ODRL-DD
type xsd:string
source
<xsd:element name="version" type="xsd:string" substitutionGroup="o-ex:contextElement"/>

element watermark
diagram
namespace http://odrl.net/1.0/ODRL-DD
source
<xsd:element name="watermark" substitutionGroup="o-ex:constraintElement"/>

complexType dateType
diagram
namespace http://odrl.net/1.0/ODRL-DD
children start end fixed
used by
elements date datetime
source
<xsd:complexType name="dateType">
  <xsd:choice>
    <xsd:sequence>
      <xsd:element name="start" type="xsd:date" minOccurs="0"/>
      <xsd:element name="end" type="xsd:date" minOccurs="0"/>
    </xsd:sequence>
    <xsd:element name="fixed" type="xsd:date" minOccurs="0"/>
  </xsd:choice>
</xsd:complexType>

element dateType/start
diagram
namespace http://odrl.net/1.0/ODRL-DD
type xsd:date
source
<xsd:element name="start" type="xsd:date" minOccurs="0"/>

element dateType/end
diagram
namespace http://odrl.net/1.0/ODRL-DD
type xsd:date
source
<xsd:element name="end" type="xsd:date" minOccurs="0"/>

element dateType/fixed
diagram
namespace http://odrl.net/1.0/ODRL-DD
type xsd:date
source
<xsd:element name="fixed" type="xsd:date" minOccurs="0"/>

complexType feeType
diagram
namespace http://odrl.net/1.0/ODRL-DD
children o-dd:payment
used by
elements fixedamount peruse postpay prepay
source
<xsd:complexType name="feeType">
  <xsd:sequence>
    <xsd:element ref="o-dd:payment"/>
  </xsd:sequence>
</xsd:complexType>


XML Schema documentation generated with XML Spy Schema Editor www.xmlspy.com
