User Agent Media Fragment Resolution and Processing
As of ISSUE-7 we need to explain what steps are necessary on the client side (UA) to resolve and process a media fragment.
Note that the current algorithms as described below are HTTP-only. Once we gather more implementation experience, this can be used as the base to create a generic resolution and processing algorithm, addressing other transport protocols as well.

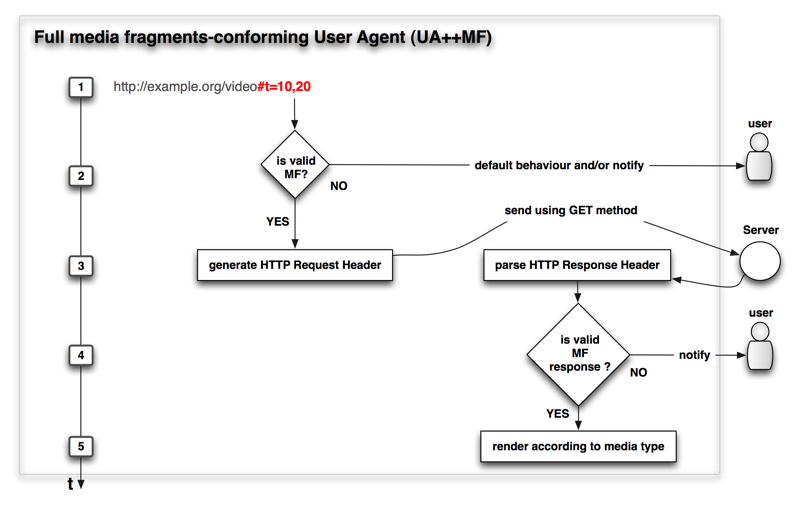

Case: Full media fragments-conforming User Agent (UA++MF)
In case of a UA that is fully conforming to the MF specification (or UA++MF), the necessary steps to resolve and process a media fragment are as follows:
- URI FRAGMENT DETECTION
- The UA++MF performs a URI resolution as of RFC3986.
- IFF a URI fragment is PRESENT (that is,
T.fragment
as of the reference resolution is not empty) the processing CONTINUES, ELSE the URI can per definition not be a MF URI and the processing TERMINATES.
- URI FRAGMENT VALIDATION
- The UA++MF VALIDATES the
T.fragment
against the MF Grammar. - IFF the
T.fragment
is VALID, the processing continues, ELSE essentially three alternative behaviors are possible: (i) fallback to default behavior, (ii) notify user and then fall back, or (iii) notify user and await instructions. One SHOULD take the Common User Agent Problems into account. Note: we have to decide what we do here.
- The UA++MF VALIDATES the
- NETWORK COMMUNICATION
- The UA++MF GENERATES the HTTP header and sends it to the Server using the HTTP GET method; once the UA++MF receives the response it parses the HTTP Response header.
- RESPONSE VALIDATION
- IFF the HTTP Response header is valid the processing CONTINUES, ELSE the user is NOTIFIED and the processing TERMINATES.
- (OPTIONAL) As a fallback, the UA++MF MAY continue the processing with the entire representation. Note: we have to decide what we do here.
- RENDERING
- The UA++MF looks up the media type of the representation from the previous step.
- Based on the INVARIANCE PRINCIPLE (@@ref me), the media type determines how the UA++MF will RENDER the audio-visual octet-stream (the respective media fragment of the obtained resource or the entire resource).
