The Semantic Web as a Semantic Soup
Simon Cox, Harith Alani, Hugh Glaser, Steve Harris
Electronics & Computer Science
University of Southampton, UK
simon.cox@gmail.com, {ha,hg,swh}@ecs.soton.ac.uk
Abstract
The Semantic Web is currently best known for adding metadata to web
pages to allow computers to 'understand' what they contain. This
idea has been applied to people by the Friend of a Friend project
which builds up a network of who people know through their
descriptions placed on web pages in RDF. It is here proposed to use
RDF to describe a person and to have their RDF document follow them
around the Internet. The proposed technique, dubbed Semantic
Cookies, will be implemented by storing a user's RDF in a cookie on
their own computer through the browser. This paper considers the
concept of Semantic Cookies and investigates how far existing
technology can be pushed to accommodate the idea.
1 Introduction
The current effort behind the Semantic Web (SW) is to add
computer-readable information to web documents. However, the SW is
not limited to describing documents. The Friend of a Friend (FoaF)
project[1] is an example of describing personal
information using the semantic markup language RDF[2]. It aims to provide a network of
information about people and the way they are related to each
other. RDF is a computer readable format in that a software agent
can read in an RDF document and also make inferences based on the
information contained in the document and in other sources of RDF
referenced.
Almost all web sites that offer some interactive service store
information about the people who use them. This data must be
gathered during a registration process that can become repetitive
for a person having previously registered for other sites. It is
also difficult to keep the data up to date when person's
circumstances change. Once a person is registered with a website
cookies are used to match a computer with a user.
This report proposes the marrying of the Semantic Web with cookie
technology to provide Semantic Cookies (SC). An example system has
been created as a proof of concept, exploring how far existing
technology can be pushed to provide this new technique.
The report will begin with a discussion of the motivations for
semantic cookies and a brief background of similar technologies.
The FoaF project will be described, showing how RDF can be used to
describe people. Current cookie technology will be explained also
noting limitations. Other existing methods of providing more
enhanced user data will also be covered. Next, the proposed SCs
will be described, stating what they will provide with advantages
and limitations of using cookies. Some example applications will be
mentioned, showing the varied scope for SCs. The report will finish
with the observations and conclusions drawn from the implementation
including what would be required in future technology to improve
the viability of SCs.
2 Background
2.1 Friend
of a Friend (FoaF)
The FoaF project is an application of semantic web technologies
aiming to describe people and the links between them.
Fundamentally, a person has an RDF fragment describing themselves
which is stored in XML format and hosted somewhere on the internet
where other RDF documents may use its URI to reference the person.
Listing 1 shows a very basic FoaF
document saying that the person Simon Cox has a mailbox with a URI
of mailto:samc100@soton.ac.uk.
<rdf:RDF
xmlns:rdf=
"http://www.w3.org/1999/02/22-rdf-syntax-ns#"
xmlns:foaf=
"http://xmlns.com/foaf/0.1/»
<foaf:Person>
<foaf:name>Simon Cox</foaf:name>
<foaf:mbox
rdf:resource=
"mailto:samc100@soton.ac.uk" />
</foaf:Person>
</rdf:RDF>
Listing 1: FoaF
example in RDF
Listing 2 shows a fragment using the
FoaF ontology saying that the person Hugh Glaser knows the person
Simon Cox, and that they have a homepage as well. This example
highlights the aim of RDF, as an application could merge the
fragment with the one above, perhaps to show the homepages of all
the people who know Simon Cox. [caption=FoaF knows
example,label=lst:foaf-knows]
<foaf:Person>
<foaf:name>Hugh Glaser</foaf:name>
<foaf:mbox
rdf:resource="mailto:hg@ecs.soton.ac.uk"/>
<foaf:homepage
rdf:resource="http://ecs.soton.ac.uk/ hg/"/>
<foaf:knows>
<foaf:Person>
<foaf:name>Simon Cox</foaf:name>
<foaf:mbox
rdf:resource=
"mailto:samc100@soton.ac.uk" />
</foaf:Person>
</foaf:knows>
</foaf:Person>
Listing 2:
FoaF knows example
FoaF was designed for decentralised networks where the users manage
their own information. This is both a benefit and a disadvantage
for general public use; it is necessary for a person to be in
control of their own information, however, a user with little
technical experience would find it extremely difficult to manage
their information as RDF is not a trivial format and requires an in
depth understanding to use well. It would be desirable for some
other party to actually manage the information. Therefore a user
with little technical expertise would not be able, or would find it
extremely difficult to update their own information.
2.2 Plain
Cookies
A cookie is a small item of data placed on a client's computer
during an HTTP interaction with a server as a result of a response
[3].
Cookies were initially intended to create stateful sessions over
several HTTP requests/responses. In design of the cookie mechanism,
it was assumed that sessions would be relatively short lived and
would only involve the client and a specific website. The
specification for cookies states that user agents implementing
cookie support should provide at least 4096 bytes per cookie,
although session-based servers using cookies should strive to keep
cookie size as small as possible. Due to this it is not possible to
assume a user agent will be able to handle a cookie larger than 4
KB.
The most common use for cookies is store a session identifier for
which a server can use to maintain a session with a client over a
short period of time. However, cookies are also used for storing
other information with a longer lifespan such as user names and
site specific preferences.
As part of the intended design, cookies can only be accessed and
manipulated by the server that created them. There are several
reasons for this. Firstly, each cookie contains a URL specified at
the time of creation and for each HTTP request that matches the URL
the cookie is sent along with the request. As the vast majority of
servers make use of cookies then there would be a huge amount of
extra data sent over the Internet if all cookies were to be sent
with all requests. Secondly, many sites use cookies to reduce the
amount of information a user need provide to a server and if made
publicly available could pose a security risk. For example, Amazon
has a mechanism called '1-Click ordering'[4] where a user can store their payment
details and need only be logged in (i.e. have a cookie with
Amazon's session ID) to be able to click one button which purchases
the item currently being displayed.
The data in cookies is held in arbitrary name value pairs with no
semantic meaning. There may be a cookie with a name of `surname',
but the value could mean anything, not necessarily the family name
of the person using the computer. Therefore the values in cookies
only bear meaning within the context of the domain that issued it.
A standard naming convention could be applied so that all cookies
with the same name had the same semantic meaning, but this would be
completely impractical due to the nature of the Internet.
2.3 XML Cookies
Microsoft have introduced a form of XML cookies into their Internet
Explorer browser under DHTML behaviors[5]. They are effectively a form of
client-side only cookies, i.e. they can only be accessed through
client-side scripts running in the browser. They are used for
storing the state of a form and any other user data in an XML
format. There are similar restraints to cookies, in that size is
limited to per document (128KB) and per domain (1024KB).
2.4 Wallets
The term wallet, in the context of browser technology, broadly
refers to a software agent that manages personal data on behalf of
a user. A wallet can either be server-side or client-side. With a
server-side wallet, all of the user's personal information is kept
on a central server that the user can direct a website to if it
requires information from the user. A client-side wallet operates
on the user's own machine and interacts directly without the need
for a third party server.
Generally, server-side wallets are used for financial transactions,
storing a shipping/billing address and either the user's credit
card information, or some kind of electronic money. Two examples of
server-side wallets are the MSN Wallet[6] and
PayPal[7].
The main advantage of a server-side wallet is that there is no need
for any software to be installed on a client machine, i.e. only a
browser is needed to be able to use the service. However, the user
is required to tell any website that requires the information about
the location of the wallet service. Also, there is usually some
charge, either to the user or the website for using the service.
There is much more scope for the operation of client-side wallets.
Current trends show them to be evolving into general stores of
personal information for filling in HTML forms. For example, the
browsers such as Mozilla have a wallet built in[8] that operates by storing
the user's information such as forename, surname or e-mail address,
and attempts to fill in form fields that appear to relate to the
information based on the name/id of the form element. For example,
a form element named pcode would be filled with the user's
post code. This a passive form of wallet requiring interaction from
the user to make sure forms are filled in correctly. The advantage
being that a server need not even know a wallet is being used.
Other more active client side wallets would interact directly with
a server to provide information. These would require more trust
from a user to be sure that any information given out was only
given to authorised websites, and that the information could not be
tampered with.
Disadvantages of both forms of client-side wallets are that they
require software to be installed on the user's machine. However, it
is this aspect that delivers the advantages therefore unavoidable.
Having a software agent managing a user's information, whether
server-side or client-side, provides many advantages; mainly:
- access can be restricted to authorised sources,
- integrity of data can be maintained.
3 Semantic Cookies
The motivations for semantic cookies are the summation of the
disadvantages of the different methods described above. Semantic
cookies should provide a means of delivering personal information
transparently to a website without the need for user interaction.
However, the information held should be fully controllable by the
user owning it.
Semantic cookies will provide:
- a means to update the personal information by a separate server
that the user interacts with
- full control over the data if the user needs it
- semantically rich computer readable information
- no need to install extra software other than an Internet
browser
The proposed solution is to store RDF fragments in public cookies.
Public cookies here define a form of cookie that is sent to any
server the client interacts with regardless of their domain. As
mentioned in Section 2.2, there is
no support in current browsers for public cookies; however, a
viable temporary workaround is proposed in Section 4.
The basic mechanism will be that as a user browses a website, their
RDF fragments will be sent to the web server. The web server can
then process the user's personal details extracting as much
information as needed and adapting the service it provides in
response. The web server is also able to send new or changed RDF
fragments back to the client to update their information. In this
way a user need not even realise they have any RDF fragments
relating to them. Since the data is stored on their machine they
also have full control over the contents if they wish to modify it.
This model differs from the traditional paradigm where the whole
Semantic Web is always accessible by following relationships
throughout. In effect, a user's RDF fragment will be a part of the
Semantic Web only as long as their HTTP session with the web
server. This is a requirement to keep the user's information
private as would be expected as the default behavior of the system.
If a user required their information to be a permanent part of the
Semantic Web, then they could visit a website which offers a
persistence service. This web site would receive the user's
semantic cookie and would provide a permanent URI that pointed to a
copy of the RDF.
Storing a user's RDF on a client machine creates an issue if the
user uses more than one machine. However, this allows the
possibility of having a different semantic context for the user
depending on the machine. Obviously certain parts of their
description will remain the same, such as name and date of birth,
but other parts may be dependent on the context, contact email for
example, if given at all might differ between a person's home
computer and their work computer. Using a persistence service, a
user could swap in/out RDF fragments to the machine they are at and
create a different semantic context for themselves.
4 Implementation
The aim of this research is to bring people into the semantic web
without their realisation, or with as little interaction required.
This means utilising existing Internet technology installed on home
computers, therefore the implementation described as follows will
not require any additional software to be installed on a
user's computer.
The problem of a 3rd party website interacting with a user's cookie
can be broken down into four separate cases:
- Retrieve RDF fragments from a user's semantic cookie
- Provide means to query/manipulate RDF
- Create RDF fragments from updated source
- Update/Create user's semantic cookie from updated/new RDF
4.1 Technology
Used
The implementation created for this report uses the following
architecture and any examples will be in the context of this
architecture.
- 3rd party website - website that will make use of a
user's RDF. Uses JSP scripts on an Apache Tomcat server so that the
Java API to the 3store can be used.
- RDF Authority - necessary for the mechanism used to
retrieve a user's cookie. Uses PHP scripts on an Apache web server.
- RDF Storage - to manage storing, manipulating and
querying of RDF. The 3store[9] server is used,
requires MySQL to handle underlying data and the Redland Raptor
library[10] to parse RDF.
4.2 Cookie
Interface
As described above in Section 2.2
cookies are restricted to the domain a server is in. However, this
limitation can be overcome by using a single server to manage
cookies acting as an intermediary between the user and 3rd party
web server.

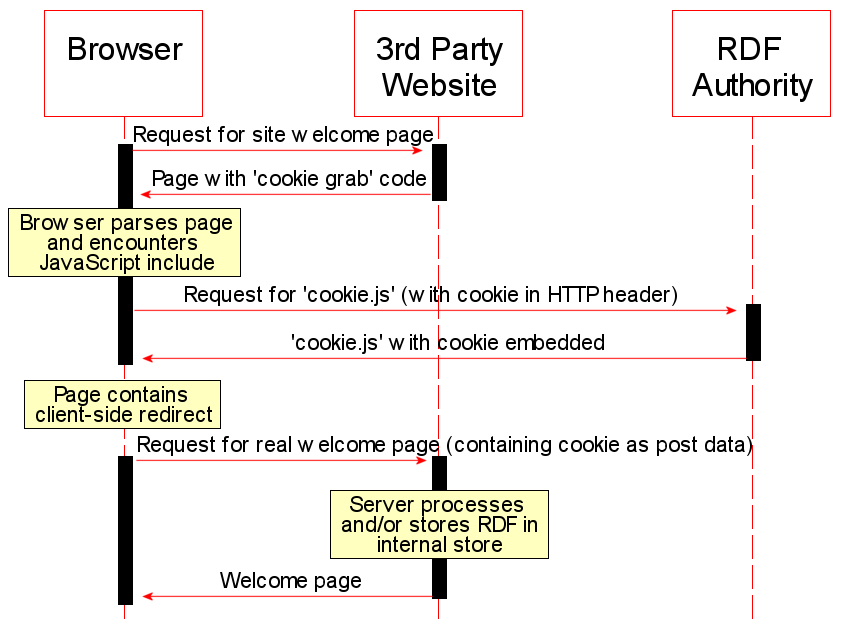

Fig. 1 shows the process for
a 3rd party website to retrieve a cookie from a visiting user. The
website can gain access to the cookie by including a JavaScript
source file from the RDF Authority web server that receives the
cookie and embeds it into the JavaScript source as a variable. The
client-side redirect is not necessary, but provides a cleaner
experience for the user. Once the website receives the RDF in the
post header it can be used as desired.
Figure 1: Retrieving RDF from a user's cookie

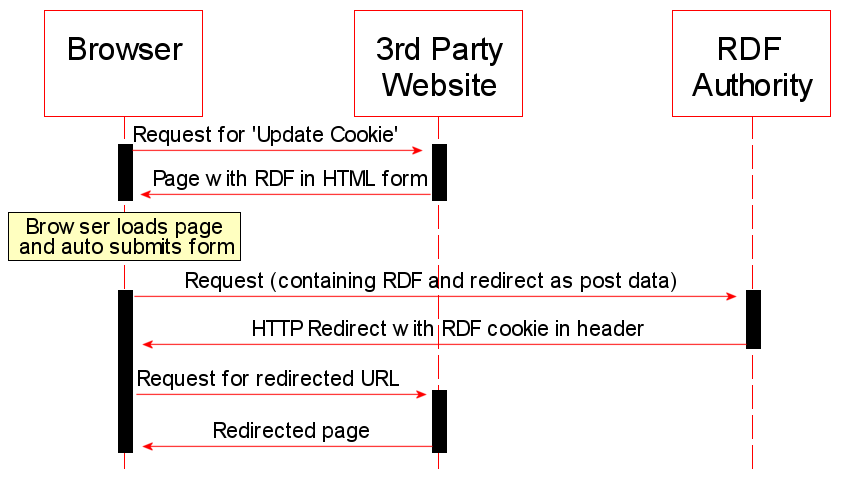

The RDF authority must be used again when the website wants to
either create a new semantic cookie, or update an existing one.
This is a similar process to receiving the cookie and is shown in
Fig. 2. As the response for a
request from the user's client, the website returns the RDF as part
of a hidden form field. The action for the form is to post to the
RDF authority which responds with the RDF in a cookie header along
with a redirect to a specified page on the 3rd party website.
Again, the form page contains automatic form submission code to
reduce the number of clicks for the user.
Figure 2: Updating RDF in a user's cookie
4.3 Querying/Updating
User RDF
The RDF fragments need to be parsed into a format that can be
queried and/or updated in order for the website to use them. For
this implementation the 3store system was chosen to handle RDF,
although any suitable RDF store could be used. The 3store is a
database of triples built on top of MySQL and uses Raptor to parse
the RDF. It can be queried in different ways, either using
RDQL[11] or in a more programmatic way with the
API provided. RDQL is a proposed W3C standard and has a similar
syntax to SQL allowing for complex queries. Either way the 3store
is queried, a set of triples is returned that match the criteria.
To update user information held in the 3store new triples can be
asserted into the database and old triples can be removed.
4.4 Creating RDF
Fragments
If a user's information has been changed in the 3store and the user
wants to update their cookie with it then the relevant triples must
be exported from the database to create the fragments that will be
placed in the user's cookie. Unfortunately, the problem of deciding
which triples are relevant to a user is not trivial.
RDF triples form a graph structure with either a URI or a literal
as nodes and predicates as edges. By picking out a specific node to
be root the structure can be traversed outwards to create an RDF
document. To distinguish between users in the implementation it is
assumed that all semantic cookies will contain a
<foaf:mbox_sha1sum> predicate. This is the SHA1 hash of their
e-mail address. The root node for a user can be found by using
the RDQL in Listing 3.
SELECT ?person
WHERE (?person, <foaf:mbox_sha1sum>, ßha1 hash")
Listing 3: Selecting the root
node
Naively, the rest of the RDF could be constructed using the query
in Listing 4 recursively
calling it for every object that is a URI.
SELECT ?predicate, ?object
WHERE ("current URI", ?predicate, ?object)
Listing 4: Recursive query
However, this approach could result in a very large number of
triples being returned from a 3store with many relating triples.
The implementation avoids the problem by relying on the fact that
the 3store assigns a model identifier to triples asserted at the
same time. As long as each user is associated with a unique model
then only triples asserted for that user will be retrieved in
queries, thus limiting the scope. However, this is very much
implementation specific and does not solve the problem for the
general case.
One way of avoiding the problem would be to restrict the queries to
specific ontologies. In this case only the predicates described in
the ontologies would be followed. The drawback to this approach is
that if a website does not know about an ontology used in a user's
RDF, then when the cookie gets replaced information under the
unknown ontology would be lost.
5 Usage
There are many possibilities of how semantic cookies could be used,
although there are several models that most would fit into. These
models are not mutually exclusive, for example a persistence store
would probably offer some form of RDF editor.
5.1 3rd Party
Website
The 3rd party website actually processes the information in the
cookie and offers some kind of service to the user based on the
content of the cookie. For example, the Audioscrobler
service[12] collects user's listening habits by
recording the songs they listen to. One service provided is to
suggest which songs or artists a user may like which can be
delivered as an RDF feed. When the user visits the Audioscrobbler
website an option would be offered to `remember' their suggested
artists. When the user then visits a website selling music, the
Audioscrobbler triple would be discovered in their RDF which would
be used to retrieve the list of suggested artists. By comparing
this list to their database, music the user may be interested in
could be suggested for purchase.
All of the above could be accomplished without using semantic
cookies, however, they provide the means for it to happen without
any user intervention, in fact the user need not even know they
have any RDF associated with them.
5.2 Persistence
Store
A persistence service would allow a user to visit their website and
`deposit' their RDF for long term storage. The service may also
allow the user's RDF to be made publicly viewable and in which case
provide a URI for it. This would allow the user's personal
information, or a subset of it, to be a permanent part of the
semantic web.
The user may also choose to publish their RDF if it grew to a large
size. Currently cookies have a maximum limit of 4KB, although this
could change if browser developers bring in support for semantic
cookies. However, for user's with a slow Internet connection it
would be faster to simply send a URI to a permanent RDF store than
to transmit the entirety of their RDF fragments.
The persistence store could also be used to hold different RDF
contexts for a person. These would all contain the same subset of
information such as the person's name and date of birth, but would
allow for differing context specific information. For example, a
person could have a `home' and `work' context. The home context
would have (amongst other things) their personal email address, a
delivery address as their home and perhaps their music listening
tastes. The work context would have work email address, the
delivery address would be their place of work, and perhaps a link
to their position in a company organisation chart. This could be
performed by simply having the two different contexts on the user's
home and work computer, however, a laptop or PDA may be used at
home and at work and would need to be able to change context
depending on how it was being used. To accomplish this the user
would visit the persistence store, save their current context
(probably not making it publicly visible) and select one of their
other registered contexts.
5.3 RDF Editor
The user's RDF is stored locally and can be edited using a text
editor or some other RDF tool. However, the majority of Internet
user's would not have the ability, or inclination, to edit RDF
themselves. A useful service would be for a website to provide a
simple means to view and edit the information in a user's semantic
cookie. The user would visit the website where they would be able
to browse the contents of their RDF fragments and edit any
information that had changed or add new information. The website
could offer a wizard to update or add common ontologies to the
user's RDF.
6 Observations &
Conclusion
A working system has been implemented where a user can visit a
website which can gain access to a cookie containing an RDF
document. The RDF retrieved from the user can be inserted into a
3store which can be queried and updated. A new RDF document can be
extracted from the 3store and used to replace a user's existing
cookie.
The process of implementing a semantic cookie solution has
highlighted many issues that would need to be addressed by a full
prototype system.
6.1 Security
Security is very important when dealing with personal data and
access to a user's semantic cookie should be controlled. There are
no actual security procedures set in place in the current
implementation as it is a proof of concept and the infrastructure
is capable of providing access control.
With the current method of retrieving and updating user cookies the
RDF authority would handle access control as it is the central
point in the system. The user would specify in their RDF a security
policy which stated the access rights to the RDF for different
domains. Any access to the cookie must come via a request from the
client to the RDF authority web server, in which case the RDF
authority will always receive the user's RDF fragments before a 3rd
party has had a chance to change it. The request from the client
would always contain the address of the requesting website to allow
the RDF authority to make access decisions.
Public key cryptography would be used as part of the cookie
delivery mechanism to avoid eavesdropping and spoofing. When a user's
RDF is requested the RDF authority would encrypt it using the
website's public key. This stops spoofing as the website would be
unable to decrypt the RDF. When attempting to update a user's
cookie the website would encrypt the RDF with the public key of the
RDF authority and sign it with their private key. This stops
eavesdroppers and allows the RDF authority to confirm the RDF
update request came from the specified website.
6.2 Cookie Size
As mentioned above in Section 5.2 for large RDF fragments a
persistence store could be used and the cookie would just hold the
URI for the store. A simpler intermediate approach would be to
compress the RDF that is stored in the cookie. The easiest place to
provide for this would be in the RDF authority as it reduces the
complexity required for a 3rd party website to be able to use
semantic cookies.
6.3 Understanding
Ontologies
The RDF specification is just a syntax that allows items to be
linked with predicates. For predicates to have a semantic meaning
an ontology must be used. However, due to the nature of the
Internet there are many different ontologies that describe the same
things. It is impractical to expect all users of the Internet to
use the same ontologies and equally impractical to expect all
websites to be able to understand all of the different ontologies.
Ontology mapping overcomes this problem by providing the notion of
mapping items of one ontology onto another to show that they are
semantically the same. For example, the two elements from different
ontologies <O1:FirstName> and <O2:Forename> describe
the same thing, a person's given name. When a user who uses the
ontology O1 to describe themselves, visits a website that only
understands the ontology O2, the website would need to use some
form of ontology mapping lookup service to find a mapping between
O1 and O2 so that they could make use of the user's personal data.
6.4 Other Issues
The benefit of RDF being machine readable also stands as a
disadvantage if is not well formed. As the RDF is accessible by the
user and open to modification it is possible that it may be left in
an illegal state which would render it useless. It would be
advisable to discourage inexperienced users from attempting to
modify their semantic cookie, and instead use an online RDF editor
as described in Section 5.3.
This would ensure that the RDF is always well formed, assuming the
editor service behaved correctly. This also gives rise to another
possible use of an RDF editor to attempt to fix an invalid semantic
cookie.
6.5 Proposed
System
The system implemented proves that semantic cookies are possible
with current technology, however the solution is not scalable due
to the central RDF authority required to handle access to the
cookie which would become a bottleneck. This could be overcome by
allowing the user to choose a different RDF authority. However,
this would then require them to inform websites of the URL for the
authority, breaking one of the aims of semantic cookies to not
require user intervention.
The ideal solution would involve client-side support for either
semantic cookies or at least public cookies. The HTTP protocol
would be a good place for this architecture with the browser
natively supporting semantic cookies. A possible implementation
would add several new HTTP headers:
- Has-Semantic-Cookie - sent by the client with all
requests. The presence of this header would indicate that the user
has a semantic cookie. This is not strictly needed, but it removes
the need to transmit the entire semantic cookie for each request
which would be an unnecessarily large strain on Internet resources.
- Semantic-Cookie
- if sent by the server in a response indicates that the server
wishes to be sent the semantic cookie. Upon receiving the response
the user's browser may respond with an HTTP request including the
Semantic-Cookie header.
- if sent by the client in a request, the header value would
contain the user's RDF fragments which are visible to the server as
specified in the user's RDF access policy.
- Set-Semantic-Cookie - sent by the server in a
response. The header value would contain new RDF fragments to be
stored in the user's semantic cookie. The user's browser would
choose how to handle the new fragments depending on the current
access policy.
The access policy would be embedded in the user's RDF as described
above in Section 6.1.
It may be possible to create browser plugins to handle the extended
HTTP headers above. Although this would require the user to install
extra software it would be far simpler than to get browser
manufacturers to actually change their own code to add support. The
Mozilla Firefox browser offers good support for extending the
browser through `extensions'[13],
although its not clear whether user code can be inserted into the
HTTP protocol handling section. This would be a good place to
investigate a practical implementation for browser support of
semantic cookies.
Acknowledgment
The work reported in this paper was supported in part by the
Advanced Knowledge Technologies (AKT) Project (www.aktors.org), EPSRC Grant Number
GR/N15764/01.
References
- [1]
- "The foaf project," RDFWeb.org. [Online]. Available:
http://www.foaf-project.org/
- [2]
- E. Miller, "Rdf specification," 2000. [Online]. Available:
http://www.w3.org/RDF/
- [3]
- D. Kristol, "Rfc 2109, http state management mechanism," Bell
Laboratories, Lucent Technologies, February 1997. [Online].
Available: http://rfc.net/rfc2109.html
- [4]
- "Ordering via 1-click," amazon.com. [Online]. Available:
http://www.amazon.com/exec/obidos/tg/browse/-/468480/ref=br_lr__2/104-1067665-4483110
- [5]
- "Introduction to dhtml behaviours," Microsoft. [Online].
Available:
http://msdn.microsoft.com/library/default.asp?url=/workshop/author/behaviors/overview.asp
- [6]
- "Msn wallet," Microsoft. [Online]. Available:
https://wallet.msn.com/home/home.aspx
- [7]
- "Paypal." [Online]. Available: http://www.paypal.com/
- [8]
- G. W. Bauer, "User data management," mozilla.org, February
2004. [Online]. Available:
http://www.mozilla.org/projects/ui/communicator/browser/wallet/
- [9]
- D. N. Gibbins and S. Harris, "3store," AKT. [Online].
Available: http://inanna.ecs.soton.ac.uk/3store/
- [10]
- D. Beckett, "Raptor rdf parser toolkit," University of Bristol.
[Online]. Available: http://www.redland.opensource.ac.uk/raptor/
- [11]
- A. Seaborne, "Rdql - a query language for rdf," HP Labs
Bristol, January 2004. [Online]. Available:
http://www.w3.org/Submission/RDQL/
- [12]
- R. Jones. [Online]. Available: http://www.audioscrobbler.com/
- [13]
- "Mozilla firefox extensions," Mozilla. [Online]. Available:
http://texturizer.net/firefox/extensions/
