XML Encryption: Applications and Proposal Overview

Ed Simon, Entrust Technologies

Lafayette, California   2000 November 2


Contents

1. XML Encryption: Applications & Proposal Overview

2. XML Encryption: Applications

3. XML Encryption Application: Wireless online banking

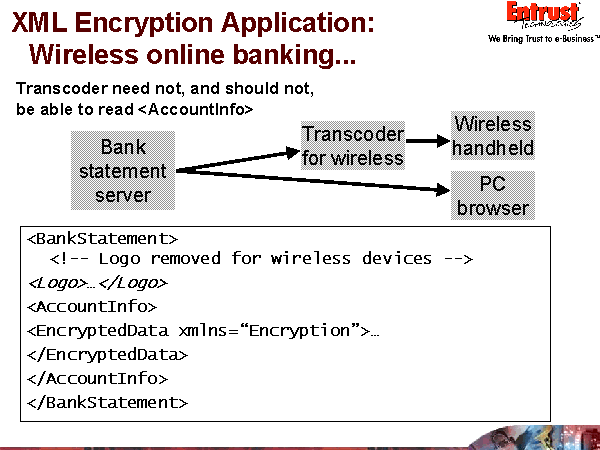

4. XML Encryption Application: Wireless online banking...

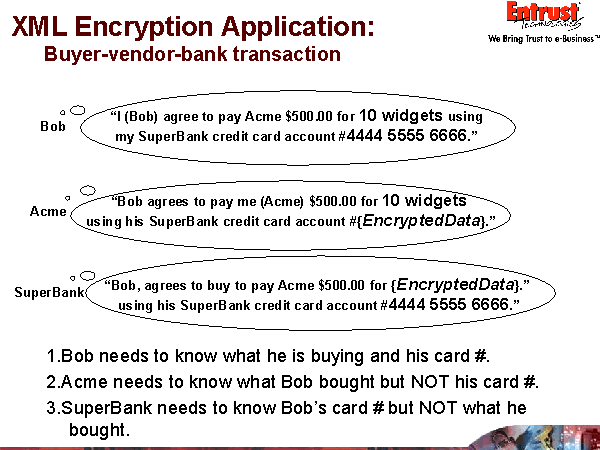

5. XML Encryption Application: Buyer-vendor-bank transaction

6. XML Encryption Application: Buyer-vendor-bank transaction...

7. XML Security Application: Fine-Grained Access Control

8. XML Security Application: Fine-Grained Access Control...

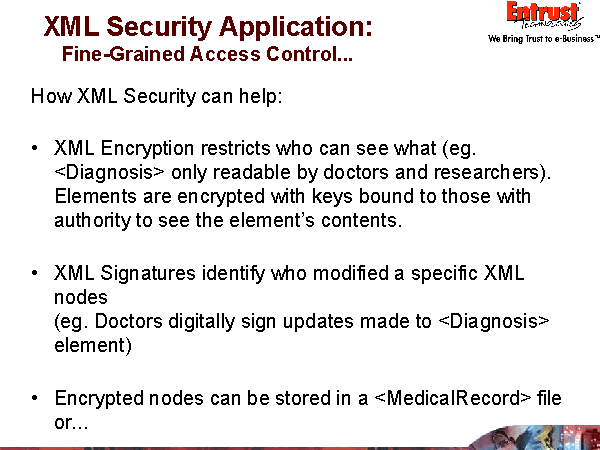

9. XML Security Application: Fine-Grained Access Control...

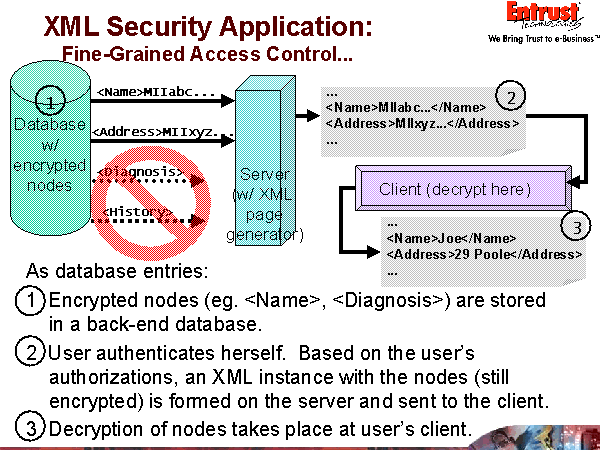

10. XML Security Application: Fine-Grained Access Control...

11. XML Encryption: Proposal Overview

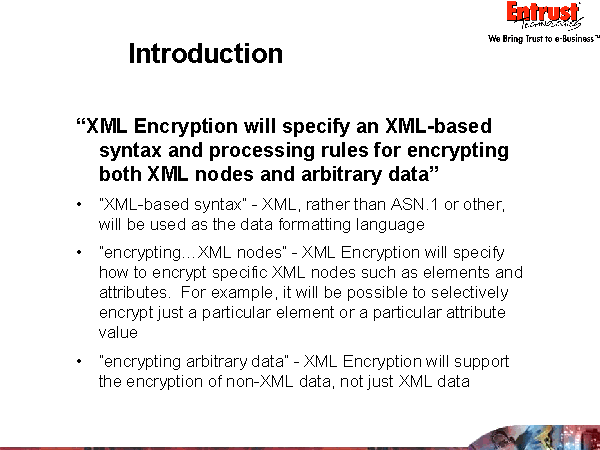

12. Introduction

13. The Technical Details

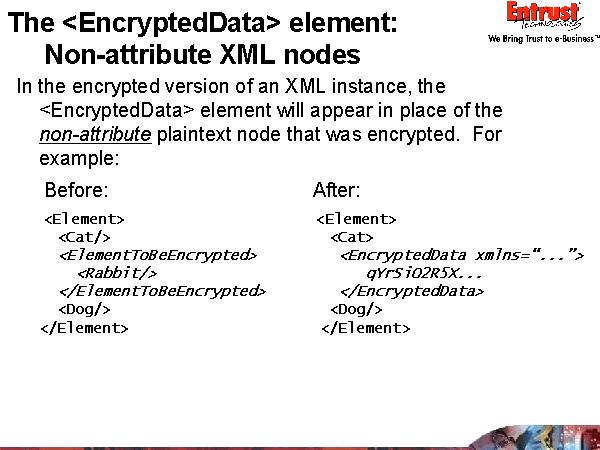

14. The <EncryptedData> element: Non-attribute XML nodes

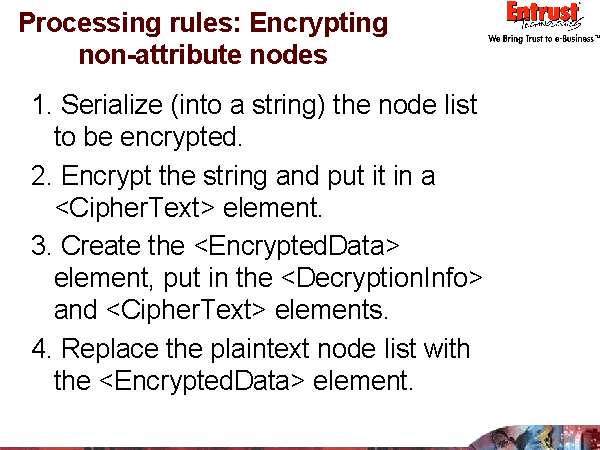

15. Processing rules: Encrypting non-attribute nodes

16. Processing rules: Decrypting non-attribute nodes

17. The <EncryptedData> element: XML Attribute nodes

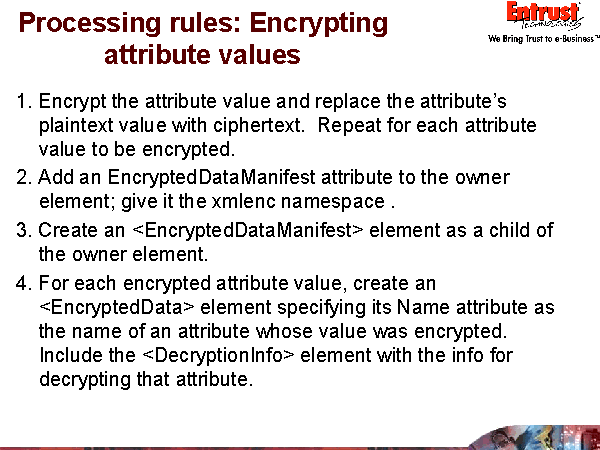

18. Processing rules: Encrypting attribute values

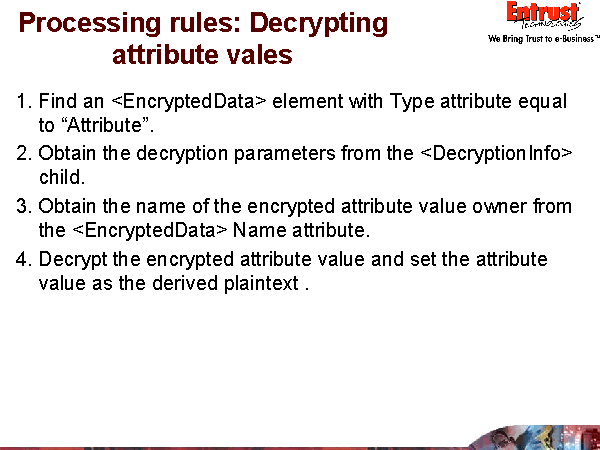

19. Processing rules: Decrypting attribute vales

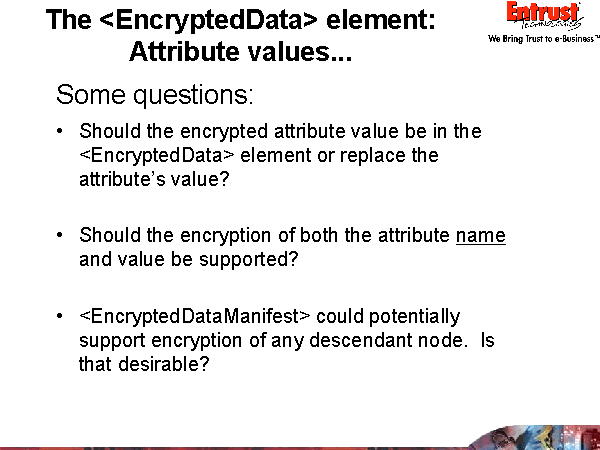

20. The <EncryptedData> element: Attribute values...

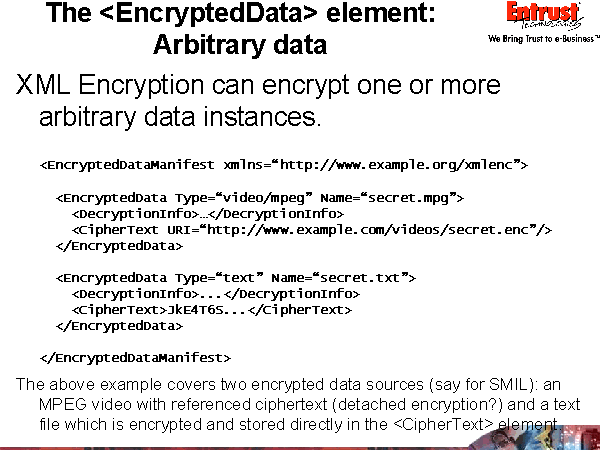

21. The <EncryptedData> element: Arbitrary data

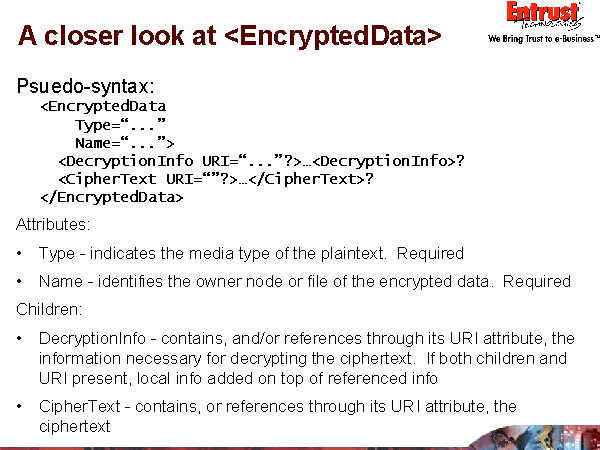

22. A closer look at <EncryptedData>

23. The <DecryptionInfo> element

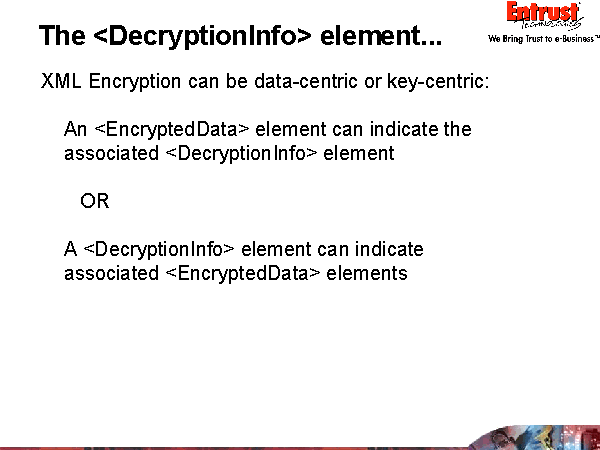

24. The <DecryptionInfo> element...

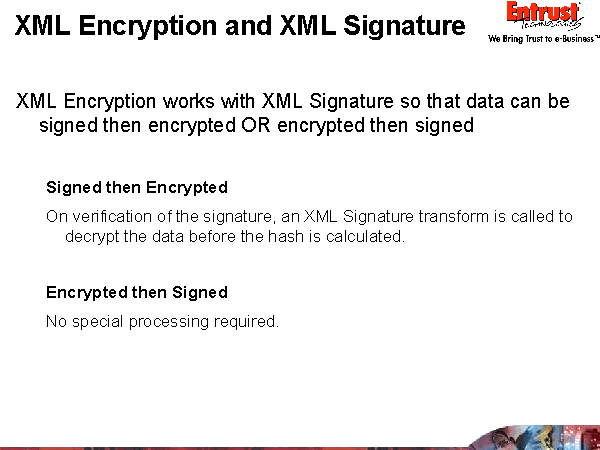

25. XML Encryption and XML Signature

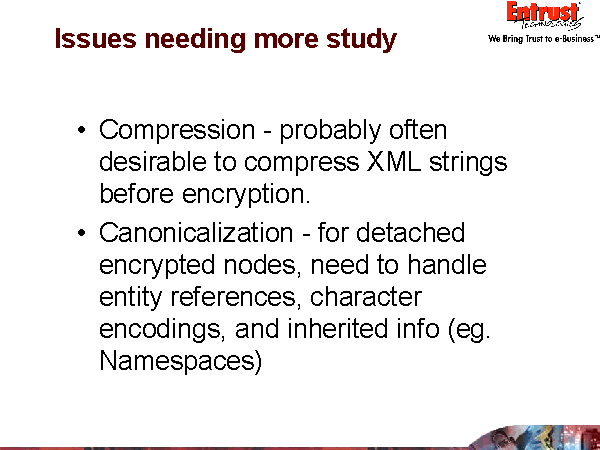

26. Issues needing more study

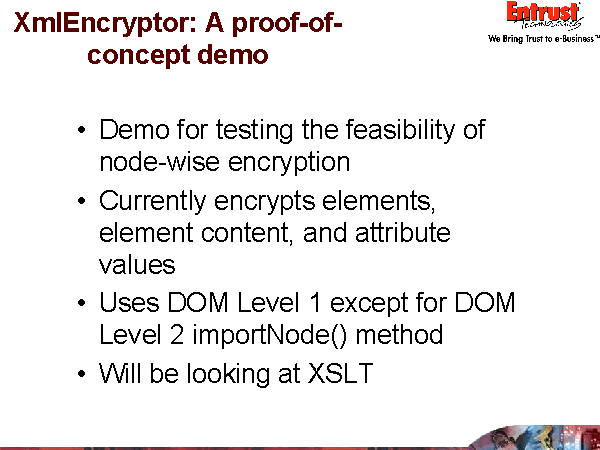

27. XmlEncryptor: A proof-of-concept demo

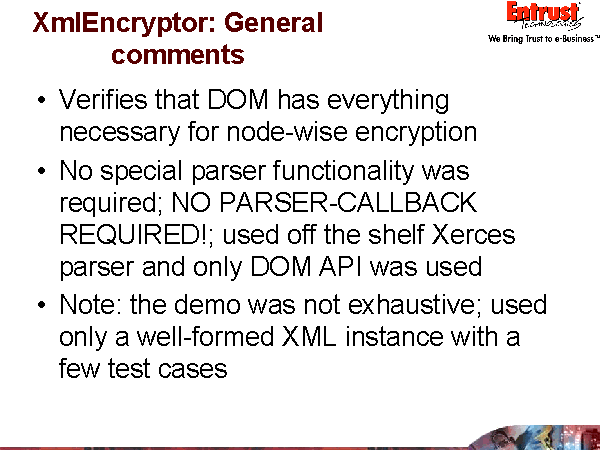

28. XmlEncryptor: General comments

29. Addendum: PWC Questions

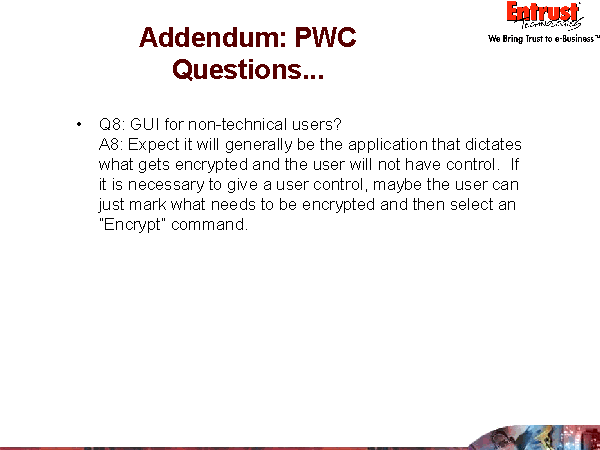

30. Addendum: PWC Questions...

31. Addendum: PWC Questions...

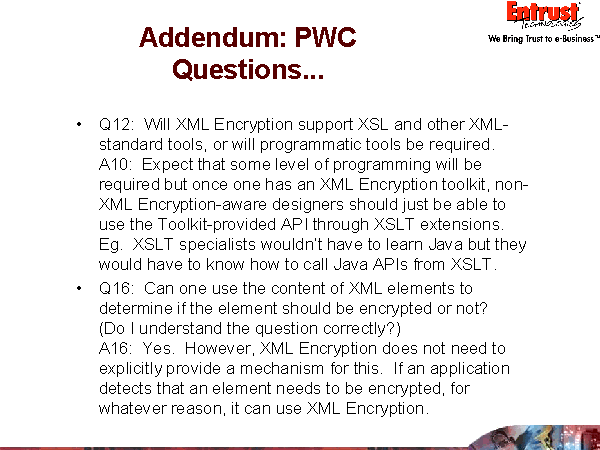

32. Addendum: PWC Questions...

33. XML Encryption: Contact info
