This specification defines a collection of information that describes the structure of Web Publications so that user agents can provide user experiences tailored to reading publications, such as sequential navigation and offline reading. This information includes the default reading order, a list of resources, and publication-wide metadata.
This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at https://www.w3.org/TR/.
This draft provides a preliminary outline of a Web Publication. Many details are under active consideration within the Publishing Working Group and are subject to change. The most prominent known issues have been identified in this document and links provided to comment on them.
The work the past few month has been focused on sections 3. Web Publication Construction and 4. Web Publication Properties, which include the definition of a manifest making use of terms in schema.org. Later sections, in particular 5. Web Publication Lifecycle and the corresponding A. WebIDL are out of sync with this version. Subsequent drafts will focus on updating those sections.
This document was published by the Publishing Working Group as a Working Draft. This document is intended to become a W3C Recommendation. Comments regarding this document are welcome. Please send them to public-publ-wg@w3.org (subscribe, archives).
Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.
This document was produced by a group operating under the W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.
This document is governed by the 1 February 2018 W3C Process Document.
This section is non-normative.
A Web Publication is a discoverable and identifiable collection of resources. Information about the Web Publication is expressed in a machine-readable document called a manifest, which is what enables user agents to understand the bounds of the Web Publication and the connection between its resources.
The manifest includes metadata that describe the Web Publication, as a publication has an identity and nature beyond its constituent resources. The manifest also provides a list of all the resources that belong to the Web Publication and a default reading order, which is how it connects resources into a single contiguous work.
A Web Publication is discoverable in one of two ways: resources either include a link to the manifest
(via an HTTP Link header or an HTML link
element [html]), or the manifest can
be loaded directly by a compatible user agent.
With the establishment of Web Publications, user agents can build new experiences tailored specifically for their unique reading needs.
This section is non-normative.
This specification only defines requirements for the production and rendering of valid Web Publications. As much as possible, it leverages existing Open Web Platform technologies to achieve its goal—that being to allow for a measure of boundedness on the Web without changing the way that the Web itself operates.
Moreover, the specification is designed to adapt automatically to updates to Open Web Platform technologies in order to ensure that Web Publications continue to interoperate seamlessly as the Web evolves (e.g., by referencing the latest published versions instead of specific dated versions).
Further, this specification does not attempt to constrain the nature of a Web Publication: any type of work that can be represented on the Web constitutes a potential Web Publication.
The specification is also intended to facilitate different user agent architectures for the consumption of Web Publications. While a primary goal is that traditional Web user agents (browsers) will be able to consume Web Publications, this should not limit the capabilities of any other possible type of user agent (e.g., applications, whether standalone or running within a user agent, or even Web Publications that include their own user interface). As a result, the specification does not attempt to architect required solutions for situations whose expected outcome will vary depending on the nature of the user agent and the expectations of the user (e.g., how to prompt to initiate a Web Publication, or at what point or how much of a Web Publication to cache for offline use).
This document uses terminology defined by the W3C Note "Publishing and Linking on the Web" [publishing-linking], including, in particular, user, user agent, browser, and address.
An identifier is metadata that can be used to refer to Web Content in a persistent and unambiguous manner. URLs, URNs, DOIs, ISBNs, and PURLs are all examples of persistent identifiers frequently used in publishing.
A manifest represents structured information about a Web Publication, such as informative metadata, a list of all resources, and a default reading order.
For the purposes of this specification, non-empty is used to refer to an element, attribute or property whose text content or value consists of one or more characters after whitespace normalization, where whitespace normalization rules are defined per the host format.
The general term URL is defined by the URL Standard [url]. It is used as in other W3C specifications, like HTML [html]. In particular, a URL allows for the usage of characters from Unicode following [rfc3987]. See the note in the HTML5 specification for further details.
A Web Publication is a collection of one or more resources, organized together through a manifest into a single logical work with a default reading order. The Web Publication is uniquely identifiable and presentable using Open Web Platform technologies.
As well as sections marked as non-normative, all authoring guidelines, diagrams, examples, and notes in this specification are non-normative. Everything else in this specification is normative.
The key words MAY, MUST, MUST NOT, OPTIONAL, RECOMMENDED, REQUIRED, SHOULD, and SHOULD NOT are to be interpreted as described in [RFC2119].
This specification defines two conformance classes: one for Web Publications and one for user agents that process them.
A Web Publication conforms to this specification if it meets the following criteria:
A user agent conforms to this specification if it meets the following criteria:
This section is non-normative.

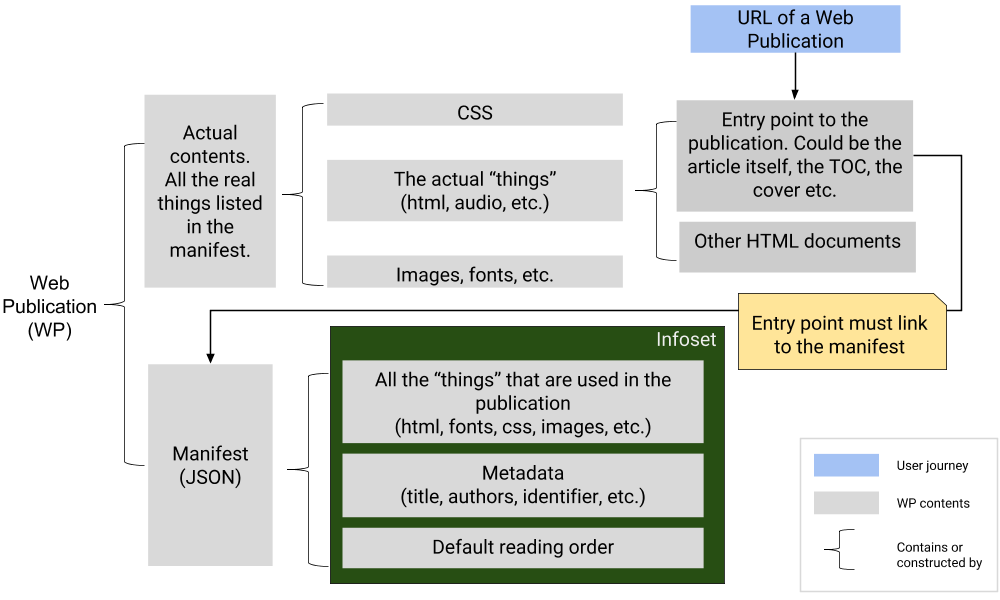

A Web Publication is defined by a set of items known as its information set (infoset). The infoset is both abstract and concrete. It is abstract in the sense that it represents a set of information that a user agent has to compile about the Web Publication, but it also becomes concrete when the user agent creates an internal representation of that information.
A manifest, on the other hand, is a serialization of an infoset created by the author of a Web Publication. The manifest is expressed using the JSON-LD [json-ld] format — a variant of JSON [ecma-404] for expressing linked data. The manifest can be created as a standalone resource or it can be embedded within an HTML document.
Although the infoset is primarily compiled from a Web Publication's manifest, some information is obtained outside the manifest. The table of contents, for example, may be referenced from the manifest but is serialized in an HTML document.
This specification describes the requirements for creating both the infoset and manifest. This section, in particular, details how to create a manifest, and the next lists the various properties common to infosets and manifests.
A Web Publication Manifest MUST start by setting the JSON-LD context [json-ld]. The context has the following two major components:
https://schema.org
https://www.w3.org/ns/wp-context
{
"@context" : ["https://schema.org", "https://www.w3.org/ns/wp-context"],
…
}
The Web Publication context file MAY add features to the properties defined in Schema.org (e.g., the requirement for the creator property to be order preserving).
As part of the continuous contacts with Schema.org the additional features defined in the Web Publication context file could migrate to the core Schema.org vocabulary.
Although Schema.org is often referenced using the http
URI scheme, the vocabulary is being migrated to use the
secure https
scheme as its default. This specification requires the use
https
when referencing Schema.org in the manifest.
The Web Publication Manifest MUST include a Publication Type using the
@type
keyword [json-ld]. The type MAY be mapped onto the CreativeWork
type [schema.org].
{
"@context" : ["https://schema.org", "https://www.w3.org/ns/wp-context"],
"@type" : "CreativeWork"
…
}
Schema.org also includes a number of more specific types, all subtypes of
CreativeWork
, such as Article, Book, and Course.
These MAY be used instead of CreativeWork
.
{
"@context" : ["https://schema.org", "https://www.w3.org/ns/wp-context"],
"@type" : "Book"
…
}
Refer to the Schema.org site for the complete list of CreativeWork
subtypes.
The naming, syntax, and requirements for manifest properties are defined in 4. Web Publication Properties.
Although authors only have to understand the serialization requirements for manifest terms, they are encouraged to read through the infoset definitions for each property, as well. The infoset definitions describe, in some cases, how items are compiled in the absence of explicit information in the manifest.
Relative URL strings MAY be used in the manifest. These URLs are resolved into absolute URL strings using a base URL [url].
The base URL for relative URLs is determined as follows:
For embedded manifests, this means that relative URLs are resolved against the URL of the primary
entry page unless the page declares a base direction (i.e., in a <base>
element in its header or via an xml:base
attribute [html]).
A manifest can be embedded within an HTML document using the script
element [html].
When embedding a manifest, the type
attribute of the containing script
element MUST be set to application/ld+json
.
Additionally, the script
element MUST include a unique identifier in an id
attribute [html]. This identifier ensures that the manifest can be
referenced.
<script id="example_manifest" type="application/ld+json">
{
…
}
</script>
Resources SHOULD provide a link to the manifest of the Web Publication to which they belong to enable discovery. Links MUST take one or both of the following forms:
An HTTP Link
header field [rfc5988] with its rel
parameter
set to the value "publication
".
Link: <https://example.com/webpub/manifest>; rel=publication
A link
element [html] with its rel
attribute set to the
value "publication
".
<link href="https://example.com/webpub/manifest" rel="publication"/>
When a manifest is embedded within an HTML document, the link MUST include a fragment identifier that
references the script
element that contains the manifest (see 3.3 Embedding a Manifest).
<link href="#example_manifest" rel="publication">
…
<script id="example_manifest" type="application/ld+json">
{
"@context" : ["https://schema.org", "https://www.w3.org/ns/wp-context"],
…
}
</script>
The exact value of rel
is still to be agreed upon and
should be registered by IANA.
The following details might be moved to the lifecycle section in a future draft.
When a resource links to multiple manifests, a user agent MAY choose to present one or more alternatives to the end user, or choose a single alternative on its own. The user agent MAY choose to present any manifest based upon information that it possesses, even one that is not explicitly listed as a parent (e.g., based upon information it calculates or acquires out of band). In the absence of a preference by user agent implementers, selection of the first manifest listed is suggested as a default.
A Web Publication MUST include at least one HTML document [html] that links to the manifest. This page is referred to as the primary entry page of the Web Publication.
The manifest may be embedded into the primary entry page; in this case the link element MUST use a relative URL to refer to the manifest.
The manifest itself MUST NOT include a reference to itself, i.e., the reference to the manifest MUST NOT appear as part of the 4.5 Resource Categorization Properties.
There are no restrictions on a Web Publication beyond this requirement. The Web Publication MAY include references to resources of any media type, both in the default reading order and as dependencies of other resources.
When adding resources to a Web Publication, consider support in user agents. The use of progressive enhancement techniques and the provision of fallback content, as appropriate, will ensure a more consistent reading experience for users regardless of their preferred user agent.
The table of contents provides a hierarchical list of links that reflects the structural outline of the major sections of the Web Publication.
The table of contents is expressed via an HTML element in one of the resources (typically a nav
element [html]). This element MUST be
identified by the role
attribute [html] value
"doc-toc
" [dpub-aria-1.0], and MUST be the first element in the document so
designated.
The table of contents SHOULD be located in the primary entry page of the Web Publication. If not, the manifest SHOULD identify the resource that contains the structure.
There are no requirements on the table of contents itself, except that, when specified, it MUST include a link to at least one resource.
Refer to the table of contents property definition for more information on how to identify in the infoset and manifest which resource contains the table of contents.
This section is non-normative.
Both the Web Publication infoset and manifest are defined by a common set of properties that describe the basic information a user agent requires to process and render a Web Publication. These properties are categorized as followed:
Descriptive properties describe aspects of a Web Publication, such as its title, creator, and language. These properties are primarily drawn from Schema.org and its hosted extensions [schema.org], so they map to one or several Schema.org properties and inherit their syntax and semantics. (The following property categories typically do not have Schema.org equivalents, so are defined specifically for Web Publications.)
Resource categorization properties describe or identify common sets of resources, such as the resource list and default reading order. These properties refer to one or more external resources (images, script files, separate metadata files, etc.).
Informative properties identify resources that contain additional information about the Web Publication, such as its privacy policy or an accessibility report.
Structural properties identify key meta structures of the Web Publication, such as the cover image or the the location of the table of contents.
The categorization of properties is done to simplify comprehension of their purpose; the groupings have no relevance outside this specification (i.e., the groupings do not exist in the infoset or manifest).
Schema.org includes a large number of properties that, though relevant for publishing, are not mentioned in this specification — Web Publication authors can use any of these properties. This document defines only the minimal set of infoset items, and their mapping to Schema.org when appropriate.
There are discussion on whether a best practices document would be created, referring to more schema.org terms. If so, it should be linked from here.
The requirements for the expression of Web Publication properties are defined by the infoset as follows:
As the infoset properties do not all have to be serialized in the manifest, the requirements for the manifest will differ in some cases. Refer to each property's definition to determine whether it is required in the manifest or can be compiled from other information.
With the exception of the descriptive properties, the Web Publication properties typically link to one or more resources. When a property requires a link value, the link MUST be expressed in one of the following two ways:
PublicationLink
object that
can be used to express the URL, the media type, and other characteristics of the target
resource.{
…
"resources" : [
"datatypes.svg",
{
"@type" : "PublicationLink",
"url" : "test-utf8.csv",
"encodingFormat" : "text/csv",
"name" : "Test Results",
"description" : "CSV file containing the full data set used."
},
{
"@type" : "PublicationLink",
"url" : "terminology.html",
"encodingFormat" : "text/html",
"rel" : "glossary"
}
]
}
PublicationLink
DefinitionThis specification defines a new type for links called
PublicationLink
. It consists of the following properties:
Term | Description | Required Value | [schema.org] Mapping | Optionality |
---|---|---|---|---|
url
|
Location of the resource. | A URL [url]. Refer to the property definitions that accept this type for additional restrictions. |
url
|
REQUIRED |
encodingFormat
|
Media type of the resource (e.g., text/html ). |
MIME Media Type [rfc2046]. |
encodingFormat
|
OPTIONAL |
name
|
Name of the item. | Text. |
name
|
OPTIONAL |
description
|
Description of the item. | Text. |
description
|
OPTIONAL |
rel
|
The relationship of the resource to the Web Publication. |
One or more relations. The values are either the relevant relationship terms of the IANA link registry [iana-link-relations], or specially-defined URLs if no suitable link registry item exists. |
(None) | OPTIONAL |
(Extracting a discussion on #232 into a separate Issue.)
Schema.org has a (currently "pending") type LinkRole which may be a good alternative to the (publication specific) PublicationLink. Maybe worth considering using the schema.org type.
The accessibility properties provides information about the suitability of a Web Publication for consumption by users with varying preferred reading modalities. These properties typically supplement an evaluation against established accessibility criteria, such as those provided in [WCAG20]. (For linking to a detailed accessibility report, see 4.6.1 Accessibility Report.)
The following infoset items are categorized as accessibility properties:
The more detailed descriptions of these properties, as well as the possible values, are described on the WebSchemas Wiki site.
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
accessMode
|
The human sensory perceptual system or cognitive faculty through which a person may process or perceive information. | Text. Expected values. |
accessMode
|
accessModeSufficient
|
A list of single or combined accessModes that are sufficient to understand all the intellectual content of a resource. | Comma-separated values. Expected values. |
accessModeSufficient
|
accessibilityAPI
|
Indicates that the resource is compatible with the referenced accessibility API. | Text. Expected values. |
accessibilityAPI
|
accessibilityControl
|
Identifies input methods that are sufficient to fully control the described resource. | Text. Expected values. |
accessibilityControl
|
accessibilityFeature
|
Content features of the resource, such as accessible media, alternatives and supported enhancements for accessibility. | Text. Expected values. |
accessibilityFeature
|
accessibilityHazard
|
A characteristic of the described resource that is physiologically dangerous to some users. | Text. Expected values. |
accessibilityHazard
|
accessibilitySummary
|
A human-readable summary of specific accessibility features or deficiencies, consistent with the other accessibility metadata but expressing subtleties such as “short descriptions are present but long descriptions will be needed for non-visual users” or “short descriptions are present and no long descriptions are needed.” | Text. |
accessibilitySummary
|
Note that the author MAY also provide a reference to a more detailed Accessibility Report, beyond the accessibility information expressed by these properties.
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "CreativeWork",
…
"accessMode" : ["textual", "visual"],
"accessModeSufficient" : ["textual"],
…
}
A Web Publication's address is a URL [url] that represents the primary entry page for the Web Publication.
If the address does not resolve to an HTML document [html], user agents SHOULD NOT provide access to it to users. A Web Publication MAY have more than one address, but all the addresses MUST resolve to the same document.
The referenced document SHOULD be a resource of the Web Publication. It can be any resource, including one that is not listed in the default reading order. This document MUST include a link to the manifest to ensure a bidirectional linking relationship (i.e., that user agents can also locate the manifest from the document at the address).
If the document is not a Web Publication resource, user agents SHOULD load the first document in the default reading order when initiating the Web Publication.
To improve the usability of Web Publications, particularly in user agents that do not support Web Publications, authors are encouraged to include navigation aids in the referenced document that facilitate consumption of the content, (e.g., provide a table of contents or a link to one).
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
url
|
URL of the primary entry page. | A URL [url]. |
url
|
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "Book",
…
"url" : "https://publisher.example.org/mobydick",
…
}
A Web Publication's canonical identifier is a unique identifier that resolves to the preferred version of the Web Publication.
Ensuring uniqueness of canonical identifiers is outside the scope of this specification. The actual achievable uniqueness depends on such factors as the conventions of the identifier scheme used and the degree of control over assignment of identifiers.
The canonical identifier is intended to provide a measure of permanence above and beyond the Web Publication's address(es). If a Web Publication is permanently relocated to a new URL, for example, the canonical identifier provides a way of discovering the new location (e.g., a DOI registry could be updated with the new URL, or a redirect could be added to the URL of the canonical identifier). It is also intended to provide a means of identifying instances of the same Web Publication hosted at different URLs.
The canonical identifier MUST be a URL [url].
If a URL is not provided in the manifest, or the value is an invalid URL, the Web Publication does not have a canonical identifier. User agents MUST NOT attempt to construct a canonical identifier from any other identifiers provided in the manifest.
The canonical identifier can be used as the target of a "canonical"
link [rfc6596] (e.g., a link
element [html] whose
rel
attribute has the value canonical
or an HTTP
Link
header field [rfc5988] similarly identified).
Is a canonical identifier necessary to call out explicitly in the infoset, or can it be handled by other metadata.
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
@id
|
Preferred version of the Web Publication. | A URL [url]. | (None) |
The specification of the canonical identifier MAY be complemented by the inclusion of
additional types of identifiers for the Web Publication using the identifier
property [schema.org] and/or its subtypes.
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "CreativeWork",
…
"@id" : "http://www.w3.org/TR/tabular-data-model/",
"url" : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
…
}
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "Book",
…
"isbn" : "9780123456789",
"url" : "https://publisher.example.org/mobydick",
…
}
A creator is an individual or entity responsible for the creation of the Web
Publication. Creators are represented by Person
and Organization
objects, respectively.
The following infoset items are categorized as creators:
A Web Publication MAY have more than one of each of these types of creators.
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
artist
|
The primary artist for the publication, in a medium other than pencils or digital line art. | One or more Person . |
artist
|
author
|
The author of the publication. | One or more Person or Organization . |
author
|
colorist
|
The individual who adds color to inked drawings. | One or more Person . |
colorist
|
contributor
|
Contributor whose role does not fit to one of the other roles in this table. | One or more Person or Organization . |
contributor
|
creator
|
The creator of the publication. | One or more Person or Organization . |
creator
|
editor
|
The editor of the publication. | One or more Person . |
editor
|
illustrator
|
The illustrator of the publication. | One or more Person . |
illustrator
|
letterer
|
The individual who adds lettering, including speech balloons and sound effects, to artwork. | One or more Person . |
letterer
|
penciler
|
The individual who draws the primary narrative artwork. | One or more Person . |
penciler
|
publisher
|
The publisher of the publication. | One or more Person or Organization . |
publisher
|
readBy
|
A person who reads (performs) the publication (for audiobooks). | One or more Person . |
readBy
|
translator
|
The translator of the publication. | One or more Person or Organization . |
translator
|
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "Book",
…
"url" : "https://publisher.example.org/mobydick",
"author" : {
"@type" : "Person",
"name" : "Herman Melville"
}
}
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "CreativeWork",
…
"@id" : "http://www.w3.org/TR/tabular-data-model/",
"url" : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
"author" : [{
"@type" : "Person",
"name" : "Jeni Tennison",
},{
"@type" : "Person",
"name" : "Gregg Kellogg",
},{
"@type" : "Person",
"name" : "Ivan Herman",
"url" : "https://www.w3.org/People/Ivan/"
}],
"editor" : [{
"@type" : "Person",
"name" : "Jeni Tennison",
},{
"@type" : "Person",
"name" : "Gregg Kellogg",
}],
"publisher" : {
"@type" : "Organization",
"name" : "World Wide Web Consortium",
"url" : "https://www.w3.org/"
}
…
}
The Web Publication has a natural language value (e.g., English, French, Chinese), as well as a natural base writing direction (left-to-right or right-to-left). The infoset has entries to set these values, which can influence, for example, the behavior of a user agent (e.g., it might place a pop-up for a table of contents on the right hand side for publications whose natural base direction is right-to-left).
Similarly, each natural language property value in the Web Publication's infoset (e.g., title, creators) is localizable [string-meta], meaning that the same information is available for each.
As a result, the infoset has entries to set:
of both the Web Publication and the natural language properties values of the infoset.
The infoset MAY contain global language and base direction declarations for the Web Publication. The natural language MUST be a tag that conforms to [bcp47], while the base language direction MUST have one of the following values:
ltr
: indicates that the textual values are explicitly directionally set to
left-to-right text;rtl
: indicates that the textual values are explicitly directionally set to
right-to-left text;auto
: indicates that the textual values are explicitly directionally set to
the direction of the first character with a strong directionality.When specified, these properties are also used as defaults for textual values in the infoset.
It is important to differentiate the language of the publication from the language and the base direction of the individual resources that compose it. If such resources are, for example, in HTML, the language and direction need to be set in those resources, too. The language and base direction of the publication are not inherited.
The global language information MAY be overridden by individual values.
When using Web Publication manifests with bidirectional text, user agents SHOULD identify the base direction of any given natural language value by scanning the text for the first strong directional character. Once the base direction has been identified, user agents MUST determine the appropriate rendering and display of natural language values according to the Unicode Bidirectional Algorithm [bidi]. This could require wrapping additional control characters or markup around the string prior to display, in order to apply the base direction. (See C. Examples for bidirectional texts.)
This section, in particular the features related to text directions, must be reviewed by I18N experts.
If the manifest is embedded in the primary entry page via a
script
element, and the manifest does not set the global language and/or
the base direction (see 4.4.5.2.1 Global Language and Direction), the
lang
and the dir
attributes of the script
element
are used as the global language and base direction, respectively (see the
details on handling the lang
and dir
attributes in [html]).
It is to be discussed whether this last paragraph, i.e., inheriting values from
script
, should be kept.
If a user agent requires the language and one is not available in the infoset (globally, or specifically for that property), or the obtained value is invalid, the user agent MAY attempt to determine the language. This specification does not mandate how such a language tag is created. The user agent might:
No default values are specified for the language or the default base direction.
As this infoset item refers to several aspects of setting language and direction, these are treated separately.
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
inLanguage
|
Default language for the Web Publication as well as the textual infoset values | language code as defined in [bcp47] | inLanguage |
inDirection
|
Default base direction for the Web Publication as well as the textual infoset values | ltr , rtl , or auto |
(None) |
If authors intend to use a manifest, or a manifest template, both as
embedded manifest and as a separate resource, they are strongly encouraged to set these
properties explicitly to avoid interference of the containing script
element in case of embedding.
It is possible to set the language for any textual value in the manifest. This
information MUST be set using the @value
and @language
keywords (instead of a
simple string) [json-ld]:
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "Book",
…
"author" : {
"@type" : "Person",
"name" : {
"@value" : "Marcel Proust",
"@language" : "fr"
}
}
}
The value of the language tag MUST be set to a language code as defined in [bcp47].
It is not possible to set the direction explicitly for a value.
Setting the direction for a natural text value is currently not possible in JSON-LD [json-ld]. In case the JSON-LD community, as well as the schema.org community, introduces such a feature, future versions of this specification may extend the ability of Web Publication Manifests to include this.
The last modification date is the date when the Web Publication was last updated (i.e., whenever changes were last made to any of the resources of the Web Publication, including the manifest).
The last modification date does not necessarily reflect all changes to the Web Publication (e.g., third-party content could change without the author being aware). User agents SHOULD check the last modification date of individual resources to determine if they have changed and need updating.
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
dateModified
|
Last modification date of the publication. | A Date or DateTime
value [schema.org], both expressed in ISO 8601 Date, or Date Time
formats, respectively [iso8601]. |
dateModified
|
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "CreativeWork",
…
"@id" : "http://www.w3.org/TR/tabular-data-model/",
"url" : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
"dateModified" : "2015-12-17",
…
}
The publication date is the date on which the Web Publication was originally published. It represents a static event in the lifecycle of a Web Publication and allows subsequent revisions to be identified and compared.
The exact moment of publication is intentionally left open to interpretation: it could be when the Web Publication is first made available online or could be a point in time before publication when the Web Publication is considered final.
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
datePublished
|
Creation date of the publication. | A Date or DateTime , both expressed
in ISO 8601 Date, or Date Time formats, respectively [iso8601]. |
datePublished
|
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "CreativeWork",
…
"@id" : "http://www.w3.org/TR/tabular-data-model/",
"url" : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
"datePublished" : "2015-12-17",
"dateModified" : "2016-01-30",
…
}
The reading progression establishes the reading direction from one resource to the next within a Web Publication.
The value of this property may be:
ltr
: left-to-right;rtl
: right-to-left.The default value is ltr
.
This infoset item has no effect on the rendering of the individual primary resources; it is only relevant for the progression direction from one resource to the other.
The reading progression of a Web Publication is used to adapt such publication level interactions as menu position, swap direction, defining tap zones to lead the user to the next and previous pages, touch gestures, etc.
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
readingProgression
|
Reading direction from one resource to the other. | ltr or rtl |
(None) |
If this value is not set, its default value is ltr
.
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "Book",
…
"url" : "https://publisher.example.org/mobydick",
"readingProgression" : "ltr"
}
The title provides the human-readable name of the Web Publication.
The title is specified by the manifest expression, when
present. If not included in the manifest, user agents MAY use the value of the title
element [html] of the Web Publication’s primary
entry page (if present) .
Relying on the title
element could be semantically problematic if
the Web Publication consists of several HTML resources (e.g., one per chapter of a book),
because the HTML definition defines this element as "metadata" for the enclosing HTML document,
not for a collection of resources. Using this element is, on the other hand, preferred in
the case of a publication consisting of a single HTML document (e.g., a scholarly journal
article).
When specified in the infoset, the title MUST be non-empty.
If a user agent requires a title and one is not available in the infoset, it MAY create one (e.g., provide a language-specific placeholder title or use the URL of the manifest).
A user agent is not expected to produce a meaningful title [wcag20] for a Web Publication when one is not specified.
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
name
|
Human-readable name of the Web Publication. | Text. |
name
|
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "Book",
…
"url" : "https://publisher.example.org/mobydick",
"name" : "Moby Dick"
}
Web Publication resources are specified via the default reading order, the resource list, and the links, as defined in this section. These lists contain references to informative properties like the privacy policy, and structural properties like the table of contents.
Note that a particular resource's URL MUST NOT appear in more than one of these lists, and a URL MUST NOT be repeated within a list.
The default reading order is a specific progression through a set of Web Publication resources.
A user might follow alternative pathways through the content, but in the absence of such interaction the default reading order defines the expected progression from one resource to the next.
The default reading order MUST include at least one resource.
The default reading order is specified directly in the manifest. However, if the reading order consists of only a single resource, namely the primary entry page of the Web Publication, the default reading order need not be specified.
If present in the Web Publication Manifest, this item MUST be mapped on the
readingOrder
term, defined specifically for Web Publications.
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
readingOrder
|
An array of:
The order in the array is significant. The URLs MUST NOT include fragment identifiers. |
(None) |
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "Book",
…
"url" : "https://publisher.example.org/mobydick",
"name" : "Moby Dick",
"readingOrder" : [
"html/title.html",
"html/copyright.html",
"html/introduction.html",
"html/epigraph.html",
"html/c001.html",
…
]
}
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "Book",
…
"url" : "https://publisher.example.org/mobydick",
"name" : "Moby Dick",
"readingOrder" : [{
"@type" : "PublicationList",
"url" : "html/title.html",
"encodingFormat" : "text/html",
"name" : "Title page"
},{
"@type" : "PublicationList",
"url" : "html/copyright.html",
"encodingFormat" : "text/html",
"name" : "Copyright page"
},{
…
}]
}
The resource list enumerates all resources that are used in the processing and rendering of a Web Publication (i.e., that are within its bounds) and that are not listed in the default reading order.
The union of the resource list and default reading order represents the definitive list of resources that belong to the Web Publication. All other resources are external to the Web Publication.
The completeness of the resource list will affect the usability of the Web Publication in certain reading scenarios (e.g., the ability to read the Web Publication offline). For this reason, it is strongly RECOMMENDED to provide a comprehensive list of all of the Web Publication's constituent resources beyond those listed in the default reading order.
In some cases, a comprehensive list of these resources might not be easily achieved (e.g., third-party scripts that reference resources from deep within their source), but a user agent SHOULD still be able to render a Web Publication even if some of these resources are not identified as belonging to the Web Publication (e.g., when it is taken offline without them).
If a user agent encounters a resource that it cannot locate in the resource list, it MUST treat the resource as external to the Web Publication (e.g., it might alert the user before loading, open the resource in a new window, or unload the current Web Publication and resume normal Web browsing).
This was not decided on the Toronto F2F, and is still open.
We talk about the bounds of the publication but we never explicitly define what it means, where it comes from and what a UA is to do with it (and in what specific use cases).
If present in the Web Publication Manifest, this item MUST be mapped on the
resources
term, defined specifically for Web Publications.
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
resources
|
An array of:
The order in the array is not significant. The URLs MUST NOT include fragment identifiers. |
(None) |
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "CreativeWork",
…
"@id" : "http://www.w3.org/TR/tabular-data-model/",
"url" : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
…
"resources" : [
"datatypes.html",
"datatypes.svg",
"datatypes.png",
"diff.html",
{
"@type" : "PublicationLink",
"url" : "test-utf8.csv",
"encodingFormat" : "text/csv"
},{
"@type" : "PublicationLink",
"url" : "test-utf8-bom.csv",
"encodingFormat" : "text/csv"
},{
…
}
],
…
}
The links property enumerates resources that are significant to a Web Publication but are not essential to the processing and rendering of it (i.e., the content of the Web Publication remains readable even if the resources are not available). Examples of linked resources might include:
The completeness of the links
list might affect the usability of the Web
Publication in certain scenarios (e.g., a user agent might chose to omit these resources
when taking a publication offline, or they could be omitted when packaged version of the Web
Publication is created). For this reason, it is strongly RECOMMENDED to provide a
comprehensive list of all of the Web Publication's non-critical resources.
The links
list SHOULD include resources necessary to render a linked resource
(e.g., scripts, images, style sheets).
Resources listed in the links
list MUST NOT be listed in the default reading order or resource list.
Term | Description | Required Value | [schema.org] Mapping |
---|---|---|---|
links
|
An array of:
The order in the array is not significant. |
(None) |
An accessibility report provides information about the suitability of a Web Publication for consumption by users with varying preferred reading modalities. These reports typically identify the result of an evaluation against established accessibility criteria, such as those provided in [WCAG21], and are an important source of information in determining the usability of a Web Publication.
The infoset SHOULD include a link to an accessibility report when one is available for a Web Publication. It is RECOMMENDED that the report be included as a resource of the Web Publication.
It is also RECOMMENDED that the accessibility report be provided in a human-readable format, such as HTML [html]. Augmenting these reports with machine-processable metadata, such as provided in Schema.org [schema.org], is also RECOMMENDED.
If present in the manifest, the accessibility report MUST be expressed as a PublicationLink
. The rel
value of the PublicationLink
MUST include
the https://www.w3.org/ns/wp#accessibility-report
identifier.
The Working Group will attempt to define the accessibility-report
term by IANA, to avoid using a URL.
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "Book",
…
"url" : "https://publisher.example.org/mobydick",
"name" : "Moby Dick",
"links" : [{
"@type" : "PublicationLink",
"url" : "https://www.publisher.example.org/mobydick-accessibility.html",
"rel" : "https://www.w3.org/ns/wp#accessibility-report"
},{
…
}],
…
}
Users often have the legal right to know and control what information is collected about them, how such information is stored and for how long, whether it is personally identifiable, and how it can be expunged. Including a statement that addresses such privacy concerns is consequently an important part of publishing Web Publications. Even if no information is collected, such a declaration increases the trust users have in the content.
A link to a privacy policy can be included in the infoset. It is RECOMMENDED that the privacy policy be included as a resource of the Web Publication.
It is RECOMMENDED that the privacy policy be provided in a human-readable format, such as HTML [html].
Refer to 9. Privacy for more information about privacy considerations in Web Publications.
If present in the manifest, the privacy policy MUST be expressed as a PublicationLink
. The rel
value of the PublicationLink
MUST include
the privacy-policy
identifier [iana-link-relations].
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "CreativeWork",
…
"@id" : "http://www.w3.org/TR/tabular-data-model/",
"url" : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
…
"links" : [{
"@type" : "PublicationLink",
"url" : "https://www.w3.org/Consortium/Legal/privacy-statement-20140324",
"encodingFormat" : "text/html",
"rel" : "privacy-policy"
},{
…
}],
…
}
The cover is a resource that user agents can use to present the Web Publication (e.g., in a library or bookshelf, or when initially loading the Web Publication).
The working group has not reached consensus on whether the cover should be any resource or should be limited to images.
The infoset SHOULD include a reference to a cover.
More than one cover MAY be referenced from the infoset (e.g., to provide alternative formats and sizes for different device screens). If multiple covers are specified, each instance MUST define at least one unique property to allow user agents to determine its usability (e.g., a different format, height, width or relationship).
If present in the manifest, the cover MUST be expressed as a PublicationLink
. The URL expressed in the url
term
MUST NOT include a fragment identifier.
The rel
value of the PublicationLink
MUST include the
https://www.w3.org/ns/wp#cover
identifier.
If the cover is in an image format, a title
and description
SHOULD
be provided. User agents can use these properties to provide alternative text and
descriptions when necessary for accessibility.
The Working Group will attempt to define the cover
term by IANA,
to avoid using a URL.
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "Book",
…
"url" : "https://publisher.example.org/donquixote",
"name" : "Don Quixote",
"resources" : [{
"@type" : "PublicationLink",
"url" : "cover.html",
"encodingFormat" : "text/html"
"rel" : "https://www.w3.org/ns/wp#cover"
},{
…
}],
…
}
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "Book",
…
"url" : "https://publisher.example.org/mobydick",
"name" : "Moby Dick",
"resources" : [{
"@type" : "PublicationLink",
"url" : "whale-image.jpg",
"encodingFormat" : "image/jpeg",
"rel" : "https://www.w3.org/ns/wp#cover",
"title" : "Moby Dick attacking hunters",
"description" : "A white whale is seen surfacing from the water to attack a small whaling boat"
},{
…
}],
…
}
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "Book",
…
"url" : "https://publisher.example.org/donquixote",
"name" : "Gulliver's Travels",
"resources" : [{
"@type" : "PublicationLink",
"url" : "lilliput.jpg",
"encodingFormat" : "image/jpeg",
"rel" : "https://www.w3.org/ns/wp#cover"
},{
"@type" : "PublicationLink",
"url" : "lilliput.svg",
"encodingFormat" : "image/svg+xml",
"rel" : "https://www.w3.org/ns/wp#cover"
},{
…
}],
…
}
The table of contents property identifies the resource that contains the Web Publication's table of contents.
User agents MUST compute the table-of-contents
as follows:
rel
value including
contents
[iana-link-relations], the corresponding
url
value identifies the table of content resource. role
[html] value doc-toc
[dpub-aria-1.0], the
user agent MUST use that element as the table of contents. If identifying the Table of Content is ambiguous (e.g., several table of content resources
are identified, or several elements with a role
value doc-toc
is
found within the table of content resource), the user agent MAY choose among them. This
specification does not mandate how this choice is made. The user agent might:
If this process does not result in a link to the table of contents, the Web Publication does not have a table of contents and this property MUST NOT be included in the infoset.
If present in the manifest, the table of content MUST be expressed as a PublicationLink
. The URL expressed in the
url
term MUST NOT include a fragment identifier.
The rel
value of the PublicationLink
MUST include the contents
identifier [iana-link-relations].
The link to the table of contents MAY be specified in either the default reading order or resource-list, but MUST NOT be specified in both.
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "Book",
…
"url" : "https://publisher.example.org/mobydick",
"name" : "Moby Dick",
"resources" : [{
"@type" : "PublicationLink",
"url" : "toc_file.html",
"rel" : "contents"
},{
…
}],
…
}
<head>
…
<script type="application/ld+json">
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "CreativeWork",
…
"@id" : "http://www.w3.org/TR/tabular-data-model/",
"url" : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
…
}
</script>
…
</head>
<body>
…
<section role="doc-toc">
…
</section>
…
</body>
The infoset is designed to provide a basic set of properties for use by user agents in presenting and rendering a Web Publication, but MAY be extended in the following ways:
Although both methods are valid, the use of linked records to extend the infoset is RECOMMENDED.
This specification does not define how such additional properties are compiled, stored or exposed by user agents in their internal representation of the infoset. A user agent MAY ignore some or all extended properties.
Extending the manifest through links to a record, such as an ONIX [onix] or
BibTeX [bibtex] file, MUST be expressed using a PublicationLink
object, where:
rel
value of the PublicationLink
SHOULD include a relevant identifier defined by
IANA or by other organizations; if the link record contains descriptive metadata it MUST
include the describedby
(IANA) identifier; encodingFormat
in the link MUST use the MIME media
type [rfc2046] defined for that particular type of record, if applicable.Linked records MUST be included in the resource list when they are part of the Web Publication (i.e., are needed for more than just infoset extensibility). Otherwise, they MUST be included in the links list.
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "Book",
…
"url" : "https://publisher.example.org/mobydick",
"name" : "Moby Dick",
"links" : [{
"@type" : "PublicationLink",
"url" : "https://www.publisher.example.org/mobydick-onix.xml",
"encodingFormat" : "application/onix+xml",
"rel" : "describedby"
},{
…
}],
…
}
The application/onix+xml
MIME type has not yet been registered by
IANA at the time of writing this document, and is included in the example for illustrative
purposes only.
Additional properties can be included directly in the manifest. It is RECOMMENDED that these properties be taken from public schemes like [schema.org] or [dcterms] and use values from controlled vocabularies whenever possible. Proprietary terms MAY be used, but it is RECOMMENDED that such terms be included using Compact IRIs [json-ld], with prefixes defined as part of the context.
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "CreativeWork",
…
"@id" : "http://www.w3.org/TR/tabular-data-model/",
"url" : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
"copyrightYear" : "2015",
"copyrightHolder" : "World Wide Web Consortium",
…
}
{
"@context" : ["https://schema.org","https://www.w3.org/ns/wp-context"],
"@type" : "CreativeWork",
…
"@id" : "http://www.w3.org/TR/tabular-data-model/",
"url" : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
"dc:subject" : ["Document Structures","Resource Description Framework (RDF)"]
…
}
A prefix definition dc
for [dcterms] is included in the context file
of [schema.org]. This means that it is not necessary to add the prefix explicitly. The same is
true for a number of other public vocabularies; see the schema.org context file for further
details.
The publishing working group is currently evaluating the best approach for implementing Web Publications in user agents. This note is intended to provide an overview of where current thinking is at and what issues are under consideration.
The development of Web Publications is not viewed as a separate forking of the Web, but an enhancement layer that can be supported by user agents. To that end, the primary constraints on any solution for Web Publications are that:
While this specification will provide implementation flexibility for user agents, there are still a number of areas that have been identified as potentially needing to be detailed. These include:
initialization expectations for a Web Publication:
the creation of a "publication state":
tracking the extent of a Web Publication:
establishing the bounds of a Web Publication:
The working group intends to flesh out the lifecycle in later revisions once it is clearer what models are viable and what solutions can be standardized. Input on the feasibility and challenges of these approaches is welcome at any time.
This section requires additional work now that we also allow JSON-LD embedded in HTML.
The steps for obtaining a manifest are given by the following algorithm. The algorithm, if successful, returns a processed manifest and the manifest URL; otherwise, it terminates prematurely and returns nothing. In the case of nothing being returned, the user agent MUST ignore the manifest declaration.
Document
of the top-level browsing context, let origin be the
Document
's origin, and manifest link be the first link
element in tree order whose rel
attribute contains the token
publication
. null
, terminate this algorithm. href
attribute's value is the empty string, then
abort these steps. href
attribute, relative to the element's base URL. If parsing fails, then abort these steps. Document
. crossOrigin
attribute's value is
'use-credentials
', then set request's credentials to
'include
'. See the diagram in the appendix for a visual representation of the algorithm.
The new JSON-LD based approach will require additional processing from the client. Due to the flexible nature of JSON-LD and schema.org, a simple conversion from JSON to WebIDL will not be enough.
The steps for processing a manifest are given by the following algorithm. The algorithm takes a text string as an argument, which represents a manifest, and a manifest URL [url], which represents the location of the manifest, and a document URL [url]. The output from inputting a JSON document into this algorithm is a processed manifest.
"{}"
. Object
: "{}"
. WebPublicationManifest
dictionary.
See the diagram in the appendix for a visual representation of the algorithm.
This section contains placeholders for possible reading enhancements/features the user agent may/should/must provide. The list is subject to addition, modification and removal as the enhancements get discussed in more detail.
Before starting a discussion on the individual affordances' issues, the WG should have a consensus on what exactly is to be defined for each of those.
When a user agent obtains a manifest it SHOULD provide the option to switch the display to publication mode.
This feature has the following requirements:
Publication mode is a display mode implemented by the user agent that follows the conventions listed in presentation and navigation.
The layout and rendering of Web Publications is governed by the same rules that apply to all Web content: HTML documents are styled and laid out according to the rules of CSS, SVG documents are rendered as defined by that format, etc. This specification requires no particular profile or subset of CSS, HTML, or SVG to be supported, other than the expectations set for these technologies by their respective specifications.
This specification intentionally avoids introducing any new layout features. Any shortcoming of the Web platform in terms of layout needs to be addressed for the whole Web platform, which means via CSS.
This working group will work with other relevant groups of the W3C to address platform-wide limitations that negatively impact Web Publications.
For the purposes of layout, each resource of a Web Publication is treated as a separate document. User agents MUST NOT mix content from multiple resources in the same rendering (e.g., CSS floats or absolutely positioned elements from one resource cannot intrude or overlap with content from an other resource).
Despite this general requirement that each resource should be treated as a separate document for the purpose of layout, there are some places where CSS specifications should be amended to be able to deal more intelligently with collections of resources like Web Publications.
One instance is the definition of cross-references, which are currently restricted to work only within a single document. This restriction should be relaxed to allow for cross-references between separate resources of a single Web Publication.
Another related would be to allow counters to accumulate across multiple resources of a single Web Publication (e.g., so that figures in multiple sections may be numbered in a single sequence).
When a user agent renders a Web Publication, it SHOULD provide user settings to customize the experience.
User settings MAY include:
This specification does not cover how user agents override author styles to offer user settings.
To provide user settings in their reader mode, browsers usually get rid of most of the author styles. There is always a tension in reading environments between author styles and the user's preference, which is very hard to balance.
2.1.11 Personalization
The user must have the possibility to personalize his or her reading experience.
Picking up on #52
This section is non-normative.
Publications have historically been presented via paged media, whereas Web pages almost always scroll. As the preferences of individual readers vary, and as different types of publications are better suited for one or the other, this specification encourages user agents to support both, and to offer a choice to their users.
It might be useful for authors to be able to specify a preference between scrolling and
pagination, even if a strict requirement is not possible. This should most likely be
addressed through an extension of @viewport
or of the viewport meta
tag(see [css-device-adapt]), or possibly through an extension of @page
(see [css-page-3]). This should be discussed with the relevant working groups (CSSWG, WebPlatformWG, WHATWG).
2.1.10 Pagination
It should be possible to see the Web Publication in a “paginated” view.
picking up on #52
See also https://w3c.github.io/wpub/#aff-presentation
When a user agent renders a Web Publication in a paginated layout, it MUST lay out each document in the default reading order sequentially, with the last page of a resource being followed by the first page of the subsequent one.
To avoid blank pages, if a resource ends on a left page (resp. right page), the subsequent one should start on a right page (resp. left page) even if the page progression (see [css-page-3]) would otherwise lead to it starting on the opposite page. It should also be possible to use the break-before property (see [css-break-3]) to force the content to resume on the opposite side if that was desired by the author.
[css-page-3] needs to be amended to describe this exception to the general behavior when dealing with collections of documents instead of individual documents.
How is pagination supposed to work when subsequent resources have opposite page progression directions (see [css-page-3]). For example, due to different a different writing mode? This is not necessarily a problem from a layout point of view, as each page is independent, but from an UI point of view. If swiping left means next page until the end of one chapter, and starts meaning previous page in the next chapter because the language is switched from English to Hebrew, this is going to be confusing.
[css-page-3] needs to be amended so that page counters are not automatically reset to at the beginning of each new resource belonging to the same Web Publication.
2.1.10 Pagination
It should be possible to see the Web Publication in a “paginated” view.
picking up on #52
See also https://w3c.github.io/wpub/#aff-presentation
A WP can be read in a browser offline with no change in fidelity from the online experience
Detail on inter-publication search across multiple resources will be included in a future draft.
User agents should provide an affordance that saves the reading progression in the publication and return the user to that location the next time that she opens the publication again.
The user must be able to leave the Web Publication and return to it at the last position they left from. The User Agent must retain the reading position, based on the last known position of the reader in the web publication. The position should be based on the reader's position in the file, within the reading order.
The user agent may retain reading state if the web publication is revised.
The navigation of the web publication should be defined in the Default Reading Order required by the Information Set.
User Agents should not have to set the reading state in the following type of resources:
Reading state should only apply to content documents listed as being within the bounds of the Web Publication.
Example 1:
Sarah is reading a long article on her way to work. She arrives before she has
finished, but wants to continue from the place she left off. The user agent should remember her
reading state for the next time she opens the publication.
If a tester opens a web publication in a WP-aware UA, moves ahead in the publication, closes the reader, then reopens it, they should be returned to the last known reading state.
This section is non-normative.
The document referred from this section, i.e., Web Annotation Extensions for Web Publications [wpub-ann], has been recently renamed. Its previous was "Locators for Web Publication". The terminology used in this section has to be realigned with the name change.
Locators are used to identify, locate, retrieve, and/or reference locations and content fragments within
Web Publications (e.g., for address(es), bookmarks, and annotations). Locators traditionally
take the form of fragment identifiers [rfc3986], where the portion of a URL preceded by a number sign character (#
)
identifies a specific position within the referenced resource.
For some use cases, it is essential to identify and reference a Web Publication resource—or a location in or a segment of a resource—in the scope or context of the Web Publication to which it belongs. A traditional fragment identifier cannot satisfy this requirement, since only the URL of the constituent resource containing the location or content fragment of interest is expressed. The Web Annotation Extensions for Web Publications [wpub-ann] document, based on the Web Annotation Model [annotation-model], addresses this issue by providing the means to express both the URL of the resource and the URL of the Web Publication.
Web Publication Locators also address the problem of referencing into a resource that was not authored with such a need in mind. A fragment identifier can only reference elements with explicit identifiers and locations with explicit anchor points. Web Publication Locators include a variety of selectors that work with the general structures and content of a resource (e.g., text selectors, CSS selectors).
As Web Publication Locators currently rely on a JSON-based expression syntax, it is not yet clear how much of this syntax can be translated to a fragment identifier. This may limit the usefulness beyond expressions that are also JSON-based (e.g., outside of annotations or bookmarks).
Illustrate with example of an easy to understand Web Publication Locator, such as might be used in annotating a simple Web Publication.
The semantics of Web Publication Locators are a mapping and extension of the Web Annotation Data Model [annotation-model] and Vocabulary [annotation-vocab] for describing and referencing a segment of a Web resource. As a result, Web Publication Locators provide the expressiveness needed for a broad range of annotation and bookmarking use cases. Additionally, Web Publication Locators provide a way to identify and reference a location within a Web Publication (i.e., as distinct from identifying and referencing a content fragment consisting of a span of characters or bytes). A Web Publication Locator can be used to identify, retrieve and/or reference a fragment of a Web Publication that spans multiple resources.
In composing a Web Publication Locator, use the canonical identifier of the Web Publication in preference to any alternative addresses. Such use facilitates the collation of Web Publication Locators associated with a particular Web Publication. URLs of Web Publication resources appearing in a Web Publication Locator should match the URL of the resource provided in the infoset.
The WebIDL is not yet fully aligned with the infoset. This section will be updated in a future release.
This section is non-normative.
Although a Web Publication manifest is authored as [json-ld], user agents process this information into an internal data structure representing the infoset in order to utilize the properties. The exact manner in which this processing occurs, and how the data is used internally, is user agent-dependent. To ensure interoperability when exposing the infoset items, however, this appendix defines a common, abstract representation of the data structures using the standard formalism of the Web Interface Definition Language [webidl-1] which can express the expected names, datatypes, and possible restrictions for each member of the infoset. (A WebIDL representation can be mapped onto ECMAScript, C, or other programming languages.)
WebPublicationManifest
dictionary dictionary WebPublicationManifest
{
required DOMString url
;
DOMString lang
;
TextDirection
direction
= "auto";
TextDirection
readingProgression
= "auto";
sequence<LocalizableString
> name
;
DOMString id
;
sequence<Contributor
> authors
;
DOMString dateModified
;
DOMString datePublished
;
sequence<PublicationLink
> links
;
sequence<PublicationLink
> readingOrder
;
sequence<PublicationLink
> resources
;
sequence<PublicationLink
> toc
;
};
The WebPublicationManifest
has the following members:
url
lang
direction
readingProgression
name
id
authors
dateModified
datePublished
links
readingOrder
resources
toc
authors
member The current infoset for creators is not fully defined; this dictionary might be further improved once there is agreement on how they should be handled.
dictionary Contributor
{
required LocalizableString
name
;
DOMString id
;
};
The author
member is a sequence of Contributor
dictionaries where each
dictionary has the following members:
name
id
LocalizableString
dictionaryThis definition includes a slightly tweaked version of the i18n recommendation that also includes a string value in addition to a language and a direction.
Some metadata in the infoset have strong requirements for
internationalization. For those members, this specification relies on the best practices established by the i18n
WG and on the LocalizableString
dictionary.
dictionary LocalizableString
{
required DOMString value
;
DOMString lang
;
TextDirection
dir
= "auto";
};
When lang
or dir
are specified in LocalizableString
, these values
override the default language and base direction specificed in WebPublicationManifest
.
LocalizableString
has the following members:
value
lang
dir
PublicationLink
dictionary dictionary PublicationLink
{
required DOMString url
;
DOMString encodingFormat
;
DOMString name
;
sequence<DOMString> rel
;
sequence<PublicationLink
> children
;
};
The PublicationLink dictionary contains the following members:
url
encodingFormat
name
rel
children
TextDirection
enum enum TextDirection
{
"ltr",
"rtl",
"auto"
};
The TextDirection
enum can contain the following values:
ltr
rtl
auto
This section is non-normative.
This is the simple version of a book manifest example. A somewhat more elaborate version for the same publication is also available as an example.
{
"@context": ["https://schema.org", "https://www.w3.org/ns/wp-context"],
"@type": "Book",
"url": "https://publisher.example.org/mobydick",
"author":
{
"@type": "Person",
"name": "Herman Melville"
},
"dateModified": "2018-02-10T17:00:00Z",
"readingOrder": [
"html/title.html",
"html/copyright.html",
"html/introduction.html",
"html/epigraph.html",
"html/c001.html",
"html/c002.html",
"html/c003.html",
"html/c004.html",
"html/c005.html",
"html/c006.html"
],
"resources": [
"css/mobydick.css",
{
"@type": "PublicationLink",
"rel": "https://www.w3.org/ns/wp#cover-page",
"url": "images/cover.jpg",
"encodingFormat": "image/jpeg"
},{
"@type": "PublicationLink",
"url": "html/toc.html",
"rel": "contents",
},{
"@type": "PublicationLink",
"url": "fonts/STIXGeneral.otf",
"encodingFormat": "application/vnd.ms-opentype"
},{
"@type": "PublicationLink",
"url": "fonts/STIXGeneralBol.otf",
"encodingFormat": "application/vnd.ms-opentype"
},{
"@type": "PublicationLink",
"url": "fonts/STIXGeneralBolIta.otf",
"encodingFormat": "application/vnd.ms-opentype"
},{
"@type": "PublicationLink",
"url": "fonts/STIXGeneralItalic.otf",
"encodingFormat": "application/vnd.ms-opentype"
}
]
}
This is the simple version of an embedded manifest example. A more elaborate version for the same document is also available as an example.
<!DOCTYPE html>
<html lang="en-US">
<head>
<title>Model for Tabular Data and Metadata on the Web</title>
<link href="#wpm" rel="publication" />
...
<script id="wpm" type="application/ld+json">
{
"@context" : ["https://schema.org", "https://www.w3.org/ns/wp-context"],
"@type" : "CreativeWork",
"@id" : "http://www.w3.org/TR/tabular-data-model/",
"url" : "http://www.w3.org/TR/2015/REC-tabular-data-model-20151217/",
"copyrightYear" : "2015",
"copyrightHolder" : "World Wide Web Consortium",
"creator" : [
{
"@type" : "Person",
"name" : "Jeni Tennison"
},
{
"@type" : "Person",
"name" : "Gregg Kellogg"
},
{
"@type" : "Person",
"name" : "Ivan Herman"
}
],
"datePublished" : "2015-12-17",
"resources" : [
"datatypes.html",
"datatypes.svg",
"datatypes.png",
"diff.html",
"test-utf8.csv",
"test-utf8-bom.csv",
"test-utf16.csv",
"test-utf16-bom.csv",
"test.xls",
"test.xlsx"
]
}
</script>
</head>
<body>
....
<section id="toc" role="doc-toc">
<h2 resource="#h-toc" id="h-toc" class="introductory">Table of Contents</h2>
<ul class="toc">
<li class="tocline"><a class="tocxref" href="#intro"><span class="secno">1. </span>Introduction</a></li>
...
</ul>
</section>
...
</body>
</html>
{
"@context": ["https://schema.org", "https://www.w3.org/ns/wp-context"],
"@type": "Audiobook",
"@id": "https://librivox.org/flatland-a-romance-of-many-dimensions-by-edwin-abbott-abbott/",
"url": "https://w3c.github.io/wpub/experiments/audiobook/",
"name": "Flatland: A Romance of Many Dimensions",
"author": "Edwin Abbott Abbott",
"readBy": "Ruth Golding",
"publisher": "Librivox",
"dateModified": "2018-06-14T19:32:18Z",
"datePublished": "2008-10-12",
"license": "https://creativecommons.org/publicdomain/zero/1.0/",
"resources": [
{"rel": "cover", "url": "http://ia800704.us.archive.org/9/items/LibrivoxCdCoverArt12/Flatland_1109.jpg", "encodingFormat": "image/jpeg"},
{"rel": "contents", "url": "toc.html", "encodingFormat": "text/html"}
],
"readingOrder": [
{"url": "http://www.archive.org/download/flatland_rg_librivox/flatland_1_abbott.mp3", "encodingFormat": "audio/mpeg", "name": "Part 1, Sections 1 - 3"},
{"url": "http://www.archive.org/download/flatland_rg_librivox/flatland_2_abbott.mp3", "encodingFormat": "audio/mpeg", "name": "Part 1, Sections 4 - 5"},
{"url": "http://www.archive.org/download/flatland_rg_librivox/flatland_3_abbott.mp3", "encodingFormat": "audio/mpeg", "name": "Part 1, Sections 6 - 7"},
{"url": "http://www.archive.org/download/flatland_rg_librivox/flatland_4_abbott.mp3", "encodingFormat": "audio/mpeg", "name": "Part 1, Sections 8 - 10"},
{"url": "http://www.archive.org/download/flatland_rg_librivox/flatland_5_abbott.mp3", "encodingFormat": "audio/mpeg", "name": "Part 1, Sections 11 - 12"},
{"url": "http://www.archive.org/download/flatland_rg_librivox/flatland_6_abbott.mp3", "encodingFormat": "audio/mpeg", "name": "Part 2, Sections 13 - 14"},
{"url": "http://www.archive.org/download/flatland_rg_librivox/flatland_7_abbott.mp3", "encodingFormat": "audio/mpeg", "name": "Part 2, Sections 15 - 17"},
{"url": "http://www.archive.org/download/flatland_rg_librivox/flatland_8_abbott.mp3", "encodingFormat": "audio/mpeg", "name": "Part 2, Sections 18 - 20"},
{"url": "http://www.archive.org/download/flatland_rg_librivox/flatland_9_abbott.mp3", "encodingFormat": "audio/mpeg", "name": "Part 2, Sections 21 - 22"}
]
}
This section is non-normative.
(These examples were originally published in the Activity Streams Recommendation [activitystreams-core].)
Character order in memory | Direction | Method | Expected display |
---|---|---|---|
פעילות הבינאום, W3C |
rtl | First strong directional character | פעילות הבינאום, W3C |
The document is titled, "⁧פעילות הבינאום, W3C⁩"
|
ltr | First strong directional character | The document is titled, "פעילות הבינאום, W3C" |
‏HTML היא שפת סימון |
rtl | Bidi Control Character | HTML היא שפת סימון |
‎'سلام' is hello in Persian |
ltr | Bidi Control Character | 'سلام' is hello in Persian |
This section is non-normative.
These diagrams provide a visual view of the lifecycle steps, as specified in 5. Web Publication Lifecycle.
This section is non-normative.
This section is non-normative.
The editors would like to specially thank the following individuals for making significant contributions to the authoring and editing of this specification:
The following people were active in the Working Group at the time of publication:
The Working Group would also like to thank the members of the Digital Publishing Interest Group for all the hard work they did paving the road for this specification.
