Credential Management Level 1

W3C Working Draft,

This version:
http://www.w3.org/TR/2016/WD-credential-management-1-20160425/
Latest version:
http://www.w3.org/TR/credential-management-1/
Editor's Draft:
https://w3c.github.io/webappsec-credential-management/
Previous Versions:
http://www.w3.org/TR/2015/WD-credential-management-1-20150430/
Version History:
https://github.com/w3c/webappsec-credential-management/commits/master/index.src.html
Feedback:
public-webappsec@w3.org with subject line “[credential-management] … message topic …” (archives)
Editor:
(Google Inc.)
Use Cases:
https://w3c.github.io/webappsec/usecases/credentialmanagement/
Participate:
File an issue (open issues)

Abstract

This specification describes an imperative API enabling a website to request a user’s credentials from a user agent, and to help the user agent correctly store user credentials for future use.

Status of this document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.

This document was published by the Web Application Security Working Group as a Working Draft. This document is intended to become a W3C Recommendation.

The (archived) public mailing list public-webappsec@w3.org (see instructions) is preferred for discussion of this specification. When sending e-mail, please put the text “credential-management” in the subject, preferably like this: “[credential-management] …summary of comment…

Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

This document was produced by the Web Application Security Working Group.

This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.

This document is governed by the 1 September 2015 W3C Process Document.

1. Introduction

This section is not normative.

Signing into websites is more difficult than it should be. The user agent is in a unique position to improve the experience in a number of ways, and most modern user agents have recognized this by providing some measure of credential management natively in the browser. Users can save usernames and passwords for websites, and those credentials are autofilled into sign-in forms with varying degrees of success.

The autocomplete attribute offers a declarative mechanism by which websites can work with user agents to improve the latter’s ability to detect and fill sign-in forms by marking specific fields as "username" or "password", and user agents implement a wide variety of detection heuristics to work with websites which haven’t taken the time to provide this detail in markup.

While this combination of heuristic and declarative detection works relatively well, the status quo leaves some large gaps where detection is problematic. Sites with uncommon sign-in mechanisms (submitting credentials via XMLHttpRequest [XMLHTTPREQUEST], for instance) are difficult to reliably detect, as is the increasingly common case in which users wish to authenticate themselves using a federated identity provider. Allowing websites to more directly interact with the user agent’s credential manager would allow the credential manager to be more accurate on the one hand, and to assist users with federated sign-in on the other.

These use cases are explored in more detail in §1.1 Use Cases and in Credential Management: Use Cases and Requirements; this specification attempts to address many of the requirements that document outlines by defining a Credential Manager API which a website can use to request credentials for a user, and to ask the user agent to persist credentials when a user signs in successfully.

Note: The API defined here is intentionally small and simple: it does not intend to provide authentication in and of itself, but is limited to providing an interface to the existing credential managers implemented by existing user agents. That functionality is valuable right now, without significant effort on the part of either vendors or authors. There’s certainly quite a bit more which could be done, of course. See §9 Future Work for some thoughts we’ve punted for now, but which could be explored in future iterations of this API.

1.1. Use Cases

Modern user agents generally offer users the capability to save passwords when signing into a website, and likewise offer the capability to fill those passwords into sign-in forms fully- or semi-automatically when users return to a website. From the perspective of a website, this behavior is completely invisible: the website doesn’t know that passwords have been stored, and it isn’t notified that passwords have been filled. This is both good and bad. On the one hand, a user agent’s password manager works regardless of whether or not a site cooperates, which is excellent for users. On the other, the password managers' behaviors are a fragile and proprietary hodgepodge of heuristics meant to detect and fill sign-in forms, password change forms, etc.

A few problems with the status quo stand out as being particularly problematic:

  • User agents have an incredibly difficult time helping users with federated identity providers. While detecting a username/password form submission is fairly straightforward, detecting sign-in via a third-party is quite difficult to reliably do well. It would be nice if a website could help the user agent understand the intent behind the redirects associated with a typical federated sign-in action.
  • Likewise, user agents struggle to detect more esoteric sign-in mechanisms than simple username/password forms. Authors increasingly asynchronously sign users in via XMLHttpRequest or similar mechanisms in order to improve the experience and take more control over the presentation. This is good for users, but tough for user agents to integrate into their password managers. It would be nice if a website could help the user agent make sense of the sign-in mechanism they choose to use.
  • Finally, changing passwords is less well-supported than it could be if the website explicitly informed the user agent that credentials had changed.

1.2. Examples

1.2.1. Password-based Sign-in

A website that supports only username/password pairs can request credentials, and use them in existing sign-in forms:

navigator.credentials.get({ "password": true }).then(
    function(credential) {
      if (!credential) {
        // The user either doesn’t have credentials for this site, or
        // refused to share them. Insert some code here to show a basic
        // login form (or, ideally, do nothing, since this API should
        // really be progressive enhancement on top of an existing form).
        return;
      }
      if (credential.type == "password") {
        fetch("https://example.com/loginEndpoint", { credentials: credential, method: "POST" })
          .then(function (response) {
            // Notify the user that signin succeeded! Do amazing, signed-in things!
          });
      } else {
        // See the Federated Sign-in example
      }
    });

1.2.2. Federated Sign-in

A website that supports federated identity providers as well as passwords can request credentials, and use them to kick off the sign-in flow for the user’s chosen provider:

navigator.credentials.get({
  "password": true,
  "federated": {
    "providers": [ "https://federation.com" ]
  }
}).then(
    function(credential) {
      if (!credential)
        return;

      if (credential.type == "federated") {
        switch (credential.provider) {
        case "https://www.facebook.com/":
          // Use Facebook’s SDK, a la
          // https://developers.facebook.com/docs/facebook-login/login-flow-for-web/#logindialog
          FB.login(function (response) {
            if (response.status === "authorized") {
              // Can now use FB.api() calls
            } else {
              // Explain to the user that we would really like them to
              // click "Log me in".
            }
          });
          break;

        case "https://accounts.google.com/":
          // Ditto
          break;

        // ...
        }
      } else {
        fetch("https://example.com/loginEndpoint", { credentials: credential, method: "POST" })
          .then(function (response) { ... })
          .catch(function (response) { ... });
      }
    });

Note: This API does not go out to the identity provider to grab a token, or authenticate the user in any way. It provides a hint to the website as to which identity provider the user prefers to use, and little more. See §9 Future Work for directions future versions of this API could take.

1.2.3. Post-sign-in Confirmation

To ensure that credentials are persisted correctly, it may be useful for a website to tell the credential manager that sign-in succeeded.

If a user is signed in by calling fetch() on a PasswordCredential object, submitting that data to a sign-in endpoint, then we can check the response to determine whether the user was signed in successfully, and notify the user agent accordingly. Given a sign-in form like the following:
<form action="https://example.com/login" method="POST" id="theForm">
  <label for="username">Username</label>
  <input type="text" id="username" autocomplete="username">
  <label for="password">Password</label>
  <input type="text" id="password" autocomplete="current-password">
  <input type="submit">
</form>

Then the developer can handle the form submission with something like the following handler:

document.querySelector('#theForm').addEventListener("submit", e => {
    if (navigator.credentials) {
      e.preventDefault();

      // Construct a new PasswordCredential from the HTMLFormElement
      // that fired the "submit" event: this will suck up the values of the fields
      // labeled with "username" and "current-password" autocomplete
      // attributes:
      var c = new PasswordCredential(e.target);

      // Fetch the form’s action URL, passing that new credential object in
      // as the fetch’s credentials. If the response indicates success, ask
      // the user agent to ask the user to store the credential for future use:
      var init = { method: "POST", credentials: c };
      fetch(e.target.action, init).then(r => {
        if (/* |r| is a "successful" Response */)
          navigator.credentials.store(c);
      });
    }
});
If we’re using a federated identity provider:
if (navigator.credentials) {
  navigator.credentials.store(
    new FederatedCredential({
      "id": "username",
      "provider": "https://federation.com"
    })
  );
}

1.2.4. Change Password

This same storage mechanism can be reused for "password change" with no modifications: if the user changes her credentials, the website can notify the user agent that she’s successfully signed in with new credentials. The user agent can then update the credentials it stores:

MegaCorp Inc. allows users to change their passwords by POSTing data to a backend server asynchronously. After doing so successfully, they can update the user’s credentials by calling store() with the new information.

Given a password change form like the following:

<form action="https://example.com/changePassword" method="POST" id="theForm">
  <input type="hidden" id="username" autocomplete="username" value="user">
  <label for="password">New Password</label>
  <input type="text" id="password" autocomplete="new-password">
  <input type="submit">
</form>

The developer can handle the form submission with something like the following:

document.querySelector('#theForm').addEventListener("submit", e => {
  if (navigator.credentials) {
    e.preventDefault();

    // Construct a new PasswordCredential from the HTMLFormElement
    // that fired the "submit" event: this will suck up the values of the fields
    // labeled with "username" and "new-password" autocomplete
    // attributes:
    var c = new PasswordCredential(e.target);

    // Fetch the form’s action URL, passing that new credential object in
    // as the fetch’s credentials. If the response indicates success, ask
    // the user agent to ask the user to store the credential for future use:
    var init = { method: "POST", credentials: c };
    fetch(e.target.action, init).then(r => {
      if (/* |r| is a "successful" Response */)
        navigator.credentials.store(c);
    });
  }
});

1.2.5. Layering on top of a legacy system

The API is designed in such a way as to cleanly sit on top of an existing password-based sign-in system’s backend. For instance, the username and password parameters can be renamed by adjusting the PasswordCredential's idName and passwordName attributes, and additional data can be added to a request by setting the additionalData attribute.

MegaCorp Inc. has an existing sign-in system that expects the username to be submitted as a parameter named "u" and a the password as a parameter named "p". The following code accomplishes this:
// Given a PasswordCredential |credential|:
credential.idName = "u";
credential.passwordName = "p";
fetch("https://example.com/loginEndpoint", { credentials: credential, method: "POST" });
Further, MegaCorp Inc. protects itself against attack by appending a CSRF token to the request. The following code accomplishes this:
// Given a PasswordCredential |credential|:
credential.additionalData = new FormData();
credential.additionalData.append("csrf", "[random token value goes here]");

fetch("https://example.com/loginEndpoint", { credentials: credential, method: "POST" });
MegaCorp Inc.'s backend servers cannot accept POST requests submitted as multipart/form-data. They need to submit the credential information as application/x-www-form-urlencoded instead. They can accomplish this by setting the additionalData attribute to a URLSearchParams object (which serializes as a urlencoded submission):
// Given a PasswordCredential |credential|:
credential.additionalData = new URLSearchParams();

// Note that MegaCorp Inc. doesn’t need to append any data to the
// object. Setting additionalData to an empty URLSearchParams object
// is enough to change the content type of the submission.

fetch("https://example.com/loginEndpoint", { credentials: credential, method: "POST" });

2. Key Concepts and Terminology

Credentials#credentialsReferenced in:1. Introduction (2)3.1. Credential Types (2)
Password Credentials#password-credentialsReferenced in:3.1. Credential Types
Federated Credentials#federated-credentialsReferenced in:3.1. Credential Types
Broadly speaking, credential is an assertion about an entity which enables a trust decision. This specification defines two specific types of credentials which are useful for authentication: "password" credentials, which consist of a username/password pair, and "federated" credentials, which point out to a federated identity provider which is trusted to correctly assert a user’s authentication.

Note: These two types are, of course, not exhaustive. Future versions of this and other documents will likely define other types of credentials.

Credential Store#credential-storeReferenced in:3.1. Credential Types4.1.2. Store a Credential 4.2.1. Gather SiteBoundCredentials (2)4.2.2. Request an SiteBoundCredential without user mediation 4.2.4. Store SiteBoundCredential (2) (3)4.3.1. Require user mediation for origin 5.2. Requiring User Mediation6.5. Script Injection7.2. Signing-Out7.4. Locally Stored Data
A credential store is an opaque storage mechanism which offers a user agent the ability to:
  1. Store, retrieve, and modify Credential objects.

  2. To mark an origin with a requires user mediation#requires-user-mediationReferenced in:4.2.2. Request an SiteBoundCredential without user mediation 4.3.1. Require user mediation for origin 5.2. Requiring User Mediation (2)7.2. Signing-Out flag.

  3. To associate an origin with a protocol set#protocol-setReferenced in:7.4. Locally Stored Data.

The implementation is vendor-specific, and the interface provided is not exposed to the web.

Note: The types of credentials defined in this document are stored locally in a user agent’s credential store, but future versions of this and other documents will likely define credential types which are external to the user agent.

Federated Identity Provider #federated-identity-providerReferenced in:1. Introduction1.2.2. Federated Sign-in1.2.3. Post-sign-in Confirmation2. Key Concepts and Terminology3.1.4. FederatedCredential (2)3.2.2. Identifying providers9. Future Work
A federated identity provider is an entity which a website trusts to correctly authenticate a user, and which provides an API for that purpose. OpenID Connect is an example of such a framework, used by a number of providers.

3. Interfaces

3.1. Credential Types

This document defines a generic and extensible Credential interface from which all credentials will inherit, and a slightly less generic SiteBoundCredential, which defines the specific attributes shared by any Credential persisted in user agent’s credential store.

PasswordCredential and FederatedCredential both inherit from SiteBoundCredential, and, as you might expect, are the concrete types mapped to password credentials and federated credentials, respectively.

3.1.1. Credential

dictionary CredentialData#dictdef-credentialdataReferenced in:3.1.1. Credential {
  USVString id#dom-credentialdata-idReferenced in:1.2.3. Post-sign-in Confirmation3.1.3.1.
    PasswordCredential(HTMLFormElement form) Constructor
  3.1.3.2.
    PasswordCredential(PasswordCredentialData data) Constructor
   (2);
};

interface Credential#credentialReferenced in:2. Key Concepts and Terminology3.1. Credential Types3.1.1. Credential (2) (3) (4) (5)3.2. Credential Manager (2) (3) (4) (5) (6)3.2.1.
    get() Parameters
  3.2.1.1.
    CredentialRequestOptions dictionary
   (2)3.2.1.2.
    FederatedCredentialRequestOptions dictionary
  4.1.1.
    Request a Credential
   (2) (3)4.1.2.
    Store a Credential
  4.1.3.
    Clone credential
   (2)4.2.1.
    Gather SiteBoundCredentials
  4.2.2.
    Request an SiteBoundCredential without user mediation
   (2) (3)4.2.3.
    Request a SiteBoundCredential with user mediation
   (2)5.2. Requiring User Mediation (2) (3)5.3. Credential Selection (2)6.1. Cross-origin Credential Leakage6.3. Origin Confusion7.3. Chooser Leakage (2) (3)7.4. Locally Stored Data8.2. Extension Points (2) {
  readonly attribute USVString id;
  readonly attribute DOMString type;
};
Credential implements Transferable;
id#dom-credential-idReferenced in:3.1.1. Credential3.1.3.2. PasswordCredential(PasswordCredentialData data) Constructor 3.3.2. Extract a body and Content-Type for request’s attached credential (2)4.2.4. Store SiteBoundCredential (2) (3) (4), of type USVString, readonly
The credential’s identifier. This might be a GUID, username, or email address, for instance.
type#dom-credential-typeReferenced in:3.1.1. Credential (2), of type DOMString, readonly
The credential’s type. This attribute’s getter returns the value of the credential’s [[type]] slot.

Note: The [[type]] slot’s value will be the same for all credentials implementing a particular interface. Currently, PasswordCredential objects have a [[type]] of password, and FederatedCredential objects have a [[type]] of federated.

[[type]]#dom-credential-type-slotReferenced in:3.1.1. Credential (2) (3) (4) (5)3.1.3. PasswordCredential (2)3.1.3.2. PasswordCredential(PasswordCredentialData data) Constructor 3.1.4. FederatedCredential (2)8.2. Extension Points (2) (3)
All Credential objects have an internal slot named [[type]], which unsurprisingly contains a string representing the type of the credential. This property is exposed to the web via the type attribute.

Credential objects implement Transferable, and MUST support the the structured clone algorithm. Unless otherwise specified, the cloning mechanism for all objects which implement Credential is defined in §4.1.3 Clone credential.

dictionary SiteBoundCredentialData#dictdef-siteboundcredentialdataReferenced in:3.1.3. PasswordCredential3.1.4. FederatedCredential : CredentialData {
  USVString name#dom-siteboundcredentialdata-nameReferenced in:3.1.3.1.
    PasswordCredential(HTMLFormElement form) Constructor
  3.1.3.2.
    PasswordCredential(PasswordCredentialData data) Constructor
  ;
  USVString iconURL#dom-siteboundcredentialdata-iconurlReferenced in:3.1.3.1.
    PasswordCredential(HTMLFormElement form) Constructor
  3.1.3.2.
    PasswordCredential(PasswordCredentialData data) Constructor
  ;
};

interface SiteBoundCredential#siteboundcredentialReferenced in:3.1. Credential Types (2)3.1.2.
    SiteBoundCredential
   (2)3.1.3. PasswordCredential3.1.4. FederatedCredential4.1.1.
    Request a Credential
   (2)4.1.2.
    Store a Credential
   (2)4.2.1.
    Gather SiteBoundCredentials
  4.2.2.
    Request an SiteBoundCredential without user mediation
  4.2.3.
    Request a SiteBoundCredential with user mediation
  4.2.4.
    Store SiteBoundCredential
   : Credential {
  readonly attribute USVString name;
  readonly attribute USVString iconURL;
};

3.1.2. SiteBoundCredential

name#dom-siteboundcredential-nameReferenced in:3.1.1. Credential3.1.3.2. PasswordCredential(PasswordCredentialData data) Constructor 4.2.4. Store SiteBoundCredential (2), of type USVString, readonly
A name associated with the credential, intended as a human-understandable public name.
iconURL#dom-siteboundcredential-iconurlReferenced in:3.1.1. Credential3.1.3.2. PasswordCredential(PasswordCredentialData data) Constructor 4.2.4. Store SiteBoundCredential (2) (3) (4)7.3. Chooser Leakage, of type USVString, readonly
A URL pointing to an image for the credential. This URL MUST be an a priori authenticated URL.

Anne suggests that this might be better modeled as an ImageBitmap or blob:. We also need to figure out responsiveness. Perhaps [MANIFEST]'s format? <https://github.com/w3c/webappsec/issues/247>

[[origin]]#dom-siteboundcredential-origin-slotReferenced in:3.1.2. SiteBoundCredential 4.2.1. Gather SiteBoundCredentials 4.2.4. Store SiteBoundCredential (2)4.3.2. Does credential match origin B? 6.1. Cross-origin Credential Leakage
All SiteBoundCredential objects have an internal slot named [[origin]], which stores the origin to which the credential is bound. This property is not directly exposed to the web.

All SiteBoundCredential objects MUST define an options matching algorithm#options-matching-algorithmReferenced in:3.1.3.3. Matching Algorithm 3.1.4.1. Matching Algorithm 3.2. Credential Manager4.2.1. Gather SiteBoundCredentials which returns Match#matchReferenced in:3.1.3.3. Matching Algorithm 3.1.4.1. Matching Algorithm (2) if the object matches a CredentialRequestOptions object, and Does Not Match#does-not-matchReferenced in:3.1.4.1. Matching Algorithm 4.2.1. Gather SiteBoundCredentials otherwise.

3.1.3. PasswordCredential

dictionary PasswordCredentialData#dictdef-passwordcredentialdataReferenced in:3.1.3. PasswordCredential3.1.3.1.
    PasswordCredential(HTMLFormElement form) Constructor
  3.1.3.2.
    PasswordCredential(PasswordCredentialData data) Constructor
   : SiteBoundCredentialData {
  USVString password#dom-passwordcredentialdata-passwordReferenced in:3.1.3.1.
    PasswordCredential(HTMLFormElement form) Constructor
  3.1.3.2.
    PasswordCredential(PasswordCredentialData data) Constructor
   (2);
};

typedef (FormData or URLSearchParams) CredentialBodyType#typedefdef-credentialbodytypeReferenced in:3.1.3. PasswordCredential (2);

[Constructor(PasswordCredentialData data),
 Constructor(HTMLFormElement form),
 Exposed=Window]

interface PasswordCredential#passwordcredentialReferenced in:1.2.3. Post-sign-in Confirmation (2)1.2.4. Change Password1.2.5. Layering on top of a legacy system (2) (3) (4)3.1. Credential Types3.1.1. Credential3.1.3. PasswordCredential (2) (3) (4)3.1.3.2.
    PasswordCredential(PasswordCredentialData data) Constructor
  3.1.3.3.
    Matching Algorithm
  3.2.1.1.
    CredentialRequestOptions dictionary
  3.3. Integration with Fetch (2) (3) (4)3.3.1. Monkey Patches to Fetch (2) (3) (4)3.3.2.
    Extract a body and Content-Type for request’s attached credential
  4.1.1.
    Request a Credential
   (2) (3)4.1.2.
    Store a Credential
  4.2.4.
    Store SiteBoundCredential
   (2)6.1. Cross-origin Credential Leakage6.2. Same-origin Leakage : SiteBoundCredential {
  attribute USVString idName;
  attribute USVString passwordName;

  attribute CredentialBodyType? additionalData;
};

idName#dom-passwordcredential-idnameReferenced in:1.2.5. Layering on top of a legacy system3.1.3. PasswordCredential3.1.3.1. PasswordCredential(HTMLFormElement form) Constructor 3.1.3.2. PasswordCredential(PasswordCredentialData data) Constructor 3.3.2. Extract a body and Content-Type for request’s attached credential (2) (3) (4), of type USVString

This attribute represents the name which will be used for the ID field when submitting the PasswordCredential to a remote endpoint via fetch(). It defaults to "username", but can be overridden by a developer to match whatever the backend service expects.

passwordName#dom-passwordcredential-passwordnameReferenced in:1.2.5. Layering on top of a legacy system3.1.3. PasswordCredential3.1.3.1. PasswordCredential(HTMLFormElement form) Constructor 3.1.3.2. PasswordCredential(PasswordCredentialData data) Constructor 3.3.2. Extract a body and Content-Type for request’s attached credential (2) (3) (4), of type USVString

This attribute represents the name which will be used for the ID field when submitting the PasswordCredential to a remote endpoint via fetch(). It defaults to "password", but can be overridden by a developer to match whatever the backend service expects.

additionalData#dom-passwordcredential-additionaldataReferenced in:1.2.5. Layering on top of a legacy system (2) (3) (4) (5)3.1.3. PasswordCredential3.1.3.1. PasswordCredential(HTMLFormElement form) Constructor (2)3.3.2. Extract a body and Content-Type for request’s attached credential , of type CredentialBodyType, nullable

If the developer wishes to specify additional data to insert into the request body when submitting the credential information to a remote endpoint, they can do so by assigning a FormData or URLSearchParams object to this attribute. The credential information will be mixed into the object to produce the body. The value is null unless otherwise specified.

[[type]]

All PasswordCredential objects have their [[type]] slot’s value set to the string "password#dom-passwordcredential-passwordReferenced in:1.2.1. Password-based Sign-in".

All PasswordCredential objects have an internal slot named [[password]]#dom-passwordcredential-password-slotReferenced in:3.1.3.2. PasswordCredential(PasswordCredentialData data) Constructor 3.3.2. Extract a body and Content-Type for request’s attached credential (2)4.2.4. Store SiteBoundCredential (2)6.1. Cross-origin Credential Leakage which stores the credential’s password. This property is not directly exposed to the web, but used to construct the request body during fetch().

3.1.3.1. PasswordCredential(HTMLFormElement form) Constructor

The PasswordCredential(form)#dom-passwordcredential-passwordcredentialReferenced in:1.2.3. Post-sign-in Confirmation1.2.4. Change Password3.1.3. PasswordCredential constructor, when invoked with an HTMLFormElement (form), must run these steps.

Note: §1.2.3 Post-sign-in Confirmation and §1.2.4 Change Password provide examples of the intended usage.

  1. Let data be a new PasswordCredentialData dictionary.

  2. Let formData be the result of executing the FormData constructor on form.

  3. Let elements be a list of all the submittable elements whose form owner is form, in tree order.

  4. Let idName and passwordName be empty strings.

  5. For each field in elements, run the following steps:

    1. If field does not have an autocomplete attribute, then skip to the next field.

    2. Let name be the value of field’s name attribute.

    3. If formData’s has() method returns false when executed on name, then skip to the next field.

    4. If field’s autocomplete attribute’s value contains an autofill detail token that is an ASCII case-insensitive match for any of the following strings, then run the associated steps:

      "current-password"

      "new-password"

      Set data’s password member’s value to the result of executing formData’s get() method on name, and passwordName to name.

      "photo"

      Set data’s iconURL member’s value to the result of executing formData’s get() method on name.

      "name"

      "nickname"

      Set data’s name member’s value to the result of executing formData’s get() method on name.

      "username"

      Set data’s id member’s value to the result of executing formData’s get() method on name, and idName to name.

  6. Let c be the result of executing the PasswordCredential(data) constructor on data. Rethrow any exception generated.

  7. Set c’s idName attribute to idName.

  8. Set c’s passwordName attribute to passwordName.

  9. If form’s enctype is "multipart/form-data", then:

    1. Set c’s additionalData attribute to formData.

    Otherwise:

    1. Let params be a new URLSearchParams object.

    2. For each entry in formData’s entries:

      1. If entry’s type is "file", skip to the next entry.

      2. Execute params append() method on entry’s name and value.

    3. Set c’s additionalData attribute to formData.

  10. Return c.

3.1.3.2. PasswordCredential(PasswordCredentialData data) Constructor

The PasswordCredential(data)#dom-passwordcredential-passwordcredential-dataReferenced in:3.1.3. PasswordCredential3.1.3.1. PasswordCredential(HTMLFormElement form) Constructor constructor, when invoked with a PasswordCredentialData (data), must run these steps:

  1. Let c be a new PasswordCredential object.

  2. If any of the following are the empty string, throw a TypeError exception:

    • data’s id member’s value

    • data’s password member’s value

  3. Set c’s properties as follows:

    [[type]] slot

    "password"

    [[password]] slot

    data’s password member’s value

    id

    data’s id member’s value

    idName

    "username"

    iconURL

    data’s iconURL member’s value

    name

    data’s name member’s value

    passwordName

    "password"

  4. Return c.

3.1.3.3. Matching Algorithm

PasswordCredential objects' options matching algorithm always returns Match.

3.1.4. FederatedCredential

dictionary FederatedCredentialData#dictdef-federatedcredentialdataReferenced in:3.1.4. FederatedCredential : SiteBoundCredentialData {
  USVString provider#dom-federatedcredentialdata-providerReferenced in:1.2.3. Post-sign-in Confirmation;
  DOMString protocol;
};

[Constructor(FederatedCredentialData data), Exposed=Window]
interface FederatedCredential#federatedcredentialReferenced in:1.2.3. Post-sign-in Confirmation3.1. Credential Types3.1.1. Credential3.1.4. FederatedCredential3.1.4.1.
    Matching Algorithm
   (2)3.2.1.1.
    CredentialRequestOptions dictionary
  3.2.2. Identifying providers4.1.1.
    Request a Credential
   (2)4.1.2.
    Store a Credential
  4.2.4.
    Store SiteBoundCredential
   (2)9. Future Work : SiteBoundCredential {
  readonly attribute USVString provider;
  readonly attribute DOMString? protocol;
};
provider#dom-federatedcredential-providerReferenced in:1.2.2. Federated Sign-in3.1.4. FederatedCredential (2)3.1.4.1. Matching Algorithm 3.2.2. Identifying providers4.2.4. Store SiteBoundCredential (2), of type USVString, readonly
The credential’s federated identity provider. For details regarding valid formats, see §3.2.2 Identifying providers.
protocol#dom-federatedcredential-protocolReferenced in:3.1.4. FederatedCredential3.1.4.1. Matching Algorithm , of type DOMString, readonly, nullable
The credential’s federated identity provider’s protocol (e.g. "openidconnect"). If this value is null, then the protocol can be inferred from the provider.
[[type]]
All FederatedCredential objects have their [[type]] slot’s value set to the string "federated#dom-federatedcredential-federatedReferenced in:1.2.2. Federated Sign-in".
3.1.4.1. Matching Algorithm

FederatedCredential objects' options matching algorithm is as follows. Given a FederatedCredential (credential) and a CredentialRequestOptions (options):

  1. Let federated be the value of options’s federated property.
  2. If the providers property is present in federated:
    1. For each provider in federatedproviders list:
      1. Return Matches if credential’s provider is a case-sensitive match for provider.
  3. If the protocols property is present in federated:
    1. For each protocol in federatedprotocols list:
      1. Return Matches if credential’s protocol is a case-insensitive match for protocol.
  4. Return Does Not Match.

3.2. Credential Manager

The credential manager hangs off of the Navigator object, and exposes methods to request credentials, and to notify the user agent when interesting events occur: successful sign in and sign out.

partial interface Navigator {
  readonly attribute CredentialsContainer credentials#dom-navigator-credentialsReferenced in:1.2.1. Password-based Sign-in1.2.2. Federated Sign-in1.2.3. Post-sign-in Confirmation (2) (3)1.2.4. Change Password3.2.1.2.
    FederatedCredentialRequestOptions dictionary
   (2);
};
interface CredentialsContainer#credentialscontainerReferenced in:3.2. Credential Manager7.2. Signing-Out8.2. Extension Points {
  Promise<Credential?> get(CredentialRequestOptions options);
  Promise<Credential> store(Credential credential);
  Promise<void> requireUserMediation();
};
get()#dom-credentialscontainer-getReferenced in:1.2.1. Password-based Sign-in1.2.2. Federated Sign-in3.2. Credential Manager (2) (3)3.2.1. get() Parameters 3.2.1.2. FederatedCredentialRequestOptions dictionary (2)4.1.1. Request a Credential 5.3. Credential Selection6.1. Cross-origin Credential Leakage (2) (3)6.3. Origin Confusion7.1. Timing Attacks (2)8.3. Browser Extensions
Request a credential from the credential manager.

The options argument contains an object filled with type-specific sets of parameters which will be used to select a particular Credential to return. This process is described in each Credential type’s options matching algorithm.

When get() is called, the user agent MUST execute the algorithm defined in §4.1.1 Request a Credential on types and options.

Note: If and when we need to support returning more than a single credential in response to a single call, we will likely introduce a getAll() method which would return Promise<sequence<Credential>>.

Arguments for the CredentialsContainer.get(options) method.
Parameter Type Nullable Optional Description
options#dom-credentialscontainer-get-options-optionsReferenced in:3.2. Credential Manager (2) CredentialRequestOptions The set of properties governing the scope of the request.
store()#dom-credentialscontainer-storeReferenced in:1.2.3. Post-sign-in Confirmation (2)1.2.4. Change Password (2)3.2. Credential Manager (2) (3)5.1. Storing and Updating Credentials6.3. Origin Confusion6.5. Script Injection8.3. Browser Extensions
Ask the credential manager to store a Credential for the user. Authors could call this method after a user successfully signs in, or after a successful password change operation.

When store() is called, the user agent MUST execute the algorithm defined in §4.1.2 Store a Credential with credential as an argument.

Arguments for the CredentialsContainer.store(credential) method.
Parameter Type Nullable Optional Description
credential#dom-credentialscontainer-store-credential-credentialReferenced in:3.2. Credential Manager Credential The credential to be stored.
requireUserMediation()#dom-credentialscontainer-requireusermediationReferenced in:3.2. Credential Manager (2)7.2. Signing-Out
Ask the credential manager to require user mediation before returning credentials for the origin in which the method is called. This might be called after a user signs out of a website, for instance, in order to ensure that she isn’t automatically signed back in next time she visits.

When requireUserMediation() is called, the user agent MUST execute the algorithm defined in §4.3.1 Require user mediation for origin with the origin of the incumbent settings object in which this method is called.

3.2.1. get() Parameters

In order to obtain the desired Credential via get(), the caller specifies a few parameters in a CredentialRequestOptions object.

Note: The CredentialRequestOptions dictionary is an extension point. If and when new types of credentials are introduced that require options, their dictionary types will be added to the dictionary so they can be passed into the request. See §8.2 Extension Points.

3.2.1.1. CredentialRequestOptions dictionary
dictionary CredentialRequestOptions#dictdef-credentialrequestoptionsReferenced in:3.1.2.
    SiteBoundCredential
  3.1.4.1.
    Matching Algorithm
  3.2. Credential Manager3.2.1.
    get() Parameters
   (2)4.1.1.
    Request a Credential
  4.2.1.
    Gather SiteBoundCredentials
  4.2.2.
    Request an SiteBoundCredential without user mediation
  4.2.3.
    Request a SiteBoundCredential with user mediation
  8.2. Extension Points {
  boolean password = false;
  FederatedCredentialRequestOptions federated;

  boolean unmediated = false;
};
password#dom-credentialrequestoptions-passwordReferenced in:1.2.1. Password-based Sign-in1.2.2. Federated Sign-in3.2.1.1. CredentialRequestOptions dictionary , of type boolean, defaulting to false
If set, the user agent will request PasswordCredential objects, as outlined in §4.1.1 Request a Credential.
federated#dom-credentialrequestoptions-federatedReferenced in:1.2.2. Federated Sign-in3.1.4.1. Matching Algorithm 3.2.1.1. CredentialRequestOptions dictionary 3.2.1.2. FederatedCredentialRequestOptions dictionary (2), of type FederatedCredentialRequestOptions
If set, the user agent will request FederatedCredential objects, as outlined in §4.1.1 Request a Credential.
unmediated#dom-credentialrequestoptions-unmediatedReferenced in:3.2.1.1. CredentialRequestOptions dictionary 3.2.1.2. FederatedCredentialRequestOptions dictionary 4.1.1. Request a Credential 8.1. Website Authors, of type boolean, defaulting to false
If true, the user agent will only attempt to provide a Credential without user interaction. It MUST NOT present the user with any visible prompt to grant access to a Credential: if the user has opted-into always giving a particular site access to a particular set of credentials, they will be provided. If not, the promise will resolve with undefined. For processing details, see the algorithm defined in §4.1.1 Request a Credential.
3.2.1.2. FederatedCredentialRequestOptions dictionary
dictionary FederatedCredentialRequestOptions#dictdef-federatedcredentialrequestoptionsReferenced in:3.2.1.1.
    CredentialRequestOptions dictionary
   (2)3.2.2. Identifying providers {
  sequence<USVString> providers;
  sequence<DOMString> protocols;
};
providers#dom-federatedcredentialrequestoptions-providersReferenced in:1.2.2. Federated Sign-in3.1.4.1. Matching Algorithm 3.2.1.2. FederatedCredentialRequestOptions dictionary (2) (3)3.2.2. Identifying providers7.1. Timing Attacks, of type sequence<USVString>
An array of federation identifiers. For details regarding valid formats see §3.2.2 Identifying providers.
protocols#dom-federatedcredentialrequestoptions-protocolsReferenced in:3.1.4.1. Matching Algorithm (2)3.2.1.2. FederatedCredentialRequestOptions dictionary , of type sequence<DOMString>
A sequence of protocol identifiers.
Suppose https://example.com/ only supports federated sign-in via https://identity.example.com/. It could request credentials via the following call:
navigator.credentials.get({
  "federated": {
    "providers": [ "https://identity.example.com/" ]
  }
}).then(function (credential) {
  // ...
});

If it wanted to ensure that the user agent didn’t bother the user with questions, it could ask only for unmediated credentials (and, therefore, to receive Credentials if and only if the user had chosen to automatically sign into the origin):

navigator.credentials.get(
  "federated": {
    "providers": [ "https://identity.example.com/" ]
  },
  "unmediated: true
).then(function (credential) {
  // ...
});

3.2.2. Identifying providers

Every site should use the same identifier when referring to a specific federated identity provider. For example, Facebook Login shouldn’t be "Facebook" and "Facebook Login" and "FB" and "FBL" and "Facebook.com" and so on. It should have a canonical identifier which everyone can make use of, as consistent identification makes it possible for user agents to be helpful.

For consistency, federations passed into the APIs defined in this document (e.g. FederatedCredentialRequestOptions's providers array, or FederatedCredential's provider property) MUST be identified by the ASCII serialization of the origin the provider uses for sign in. That is, Facebook would be represented by https://www.facebook.com and Google by https://accounts.google.com.

The ASCII serialization of an origin does not include a trailing U+002F SOLIDUS ("/"), but user agents SHOULD accept them silently: https://accounts.google.com/ is clearly intended to be the same as https://accounts.google.com.

3.3. Integration with Fetch

In order to actually authenticate a user, PasswordCredential objects may be submitted to a server for evaluation. To prevent the risk that sensitive credential information will be exposed directly to a page’s JavaScript (see §6.1 Cross-origin Credential Leakage), we hide the credential information in non-web-exposed slots on the PasswordCredential object, and extract them during fetch() in ways that will remain opaque to anything other than the remote (same-origin) server.

PasswordCredential objects may be bound to a Request by passing them into the Request constructor as the "credentials" member of a RequestInit object:

[ Given a PasswordCredential named 'c' ]
var init = {
  method: "POST",
  credentials: c
};
var r = Request("https://example.com/endpoint", init);

Note: The credential information will be transmitted as the request’s body, just as it would be for a form submission. This means that the "method" cannot be "GET".

Until the request hits the network, the credential object will be hidden from JavaScript. Once the user agent determines that the Request is going to hit the network (that is, once Fetch hits the "HTTP-network-or-cache fetch" algorithm), the PasswordCredential will be serialized into a body and content type as defined in §3.3.2 Extract a body and Content-Type for request’s attached credential, and the request will proceed out to the server-side authentication endpoint.

3.3.1. Monkey Patches to Fetch

To accomplish the above, Fetch could be modified in the following ways:

  1. A request has an associated attached credential#request-attached-credentialReferenced in:3.3.1. Monkey Patches to Fetch (2) (3) (4)3.3.2. Extract a body and Content-Type for request’s attached credential (null, or a PasswordCredential). Unless stated otherwise, it is null.

  2. A request’s credentials mode gains a new "password" value, which implies the same behavior as "include", with the additional assertion that the request has a non-null attached credential which will be serialized into its body when it hits the network.

  3. The RequestCredentials enum is renamed to "RequestCredentialsMode, and likewise updated with the new "password" value:

    enum RequestCredentialsMode { "omit", "same-origin", "include", "password" };

  4. The RequestInit dictionary is updated to accept a PasswordCredential as its credentials member:

    typedef (PasswordCredential or RequestCredentials) CredentialInfo#typedefdef-credentialinfoReferenced in:3.3.1. Monkey Patches to Fetch;

    partial dictionary RequestInit {
      CredentialInfo credentials;
    };

  5. Replace step 20 of the current Request constructor with the following:

    1. If credentials is non-null:

      1. If credentials is a PasswordCredential, then set request’s credentials mode to "password", and request’s attached credential to credentials.

        Otherwise, set request’s credentials mode to credentials.

  6. Replace step 32 of the current Request constructor with the following:

    1. If request’s method is GET or HEAD, then throw a TypeError if any of the following are true:

      • init’s body member is present and non-null

      • inputBody is non-null

      • request’s attached credential is non-null

  7. The HTTP-network-or-cache fetch algorithm is updated with the following step after the existing step 2:

    1. If httpRequest’s attached credential is not null, run these substeps:

      1. Assert: httpRequest’s body is null.

      2. Let body and type be the result of running §3.3.2 Extract a body and Content-Type for request’s attached credential on httpRequest.

      3. If type is the empty string, return a network error.

      4. Let httpRequest’s body be body, Content-Type be type, and redirect mode be "manual".

These patches are combined into an outstanding pull request against Fetch. <https://github.com/whatwg/fetch/issues/237>

3.3.2. Extract a body and Content-Type for request’s attached credential

Given a Request (request), this algorithm returns a Body (body) and a string (Content-Type):

  1. Let credential be request’s attached credential.

  2. Let body be a new body, and Content-Type be the empty string.

  3. If credential is a PasswordCredential, run these substeps.

    1. If request’s url’s scheme is not the same as request’s client’s origin's scheme, or request’s url’s host’s registerable domain is not the same as request’s client’s origin's host’s registerable domain, then skip the remaining substeps.

    2. Let data be a copy of credential’s additionalData attribute if it is not undefined, and a new FormData object otherwise.

    3. Let list be an empty list.

    4. If data is a FormData object, then:

      1. Set list to a copy of data’s entries.

      2. Remove all entry objects from list whose name is either credential’s idName or credential’s passwordName.

      3. Let entry be a new entry whose name is credential’s idName and whose value is credential’s id.

      4. Append entry to list.

      5. Let entry be a new entry whose name is credential’s passwordName and whose value is credential’s [[password]].

      6. Append entry to list.

      7. Push the result of running the multipart/form-data encoding algorithm, with list as the form data set and with "utf-8" as the explicit character encoding, to body’s stream.

      8. Set Content-Type to multipart/form-data;boundary=, followed by the multipart/form-data boundary string generated by the multipart/form-data encoding algorithm.

      Otherwise data is a URLSearchParams object, so:

      1. Set list to a copy of data’s list.

      2. Remove all name-value pairs from list whose name is either credential’s idName or credential’s passwordName.

      3. Append a new name-value pair to list whose name is credential’s idName and whose value is credential’s id.

      4. Append a new name-value pair to list whose name is credential’s passwordName and whose value is credential’s [[password]].

      5. Push the result of running the application/x-www-form-urlencoded serializer, with list, to body’s stream.

      6. Set Content-Type to application/x-www-form-urlencoded;charset=UTF-8.

  4. Return body and Content-Type.

4. Algorithms

4.1. Processing Credentials

4.1.1. Request a Credential

Given a sequence<DOMString> (types) and a CredentialRequestOptions object (options), this algorithm returns a Promise which resolves with either a single Credential object if one can be obtained, or undefined if not.

If called from an environment which is not a secure context, or from somewhere other than a top-level browsing context, the Promise will be rejected with a NotSupportedError.

  1. Let settings be the incumbent settings object.
  2. Let origin be settingsorigin.
  3. Return a Promise rejected with NotSupportedError if any of the following statements are true:
    1. settings does not have a responsible document
    2. settingsresponsible document is not the active document in the top-level browsing context
    3. settings is not a secure context
  4. Let types be an empty set.
  5. For each key in options:
    1. Let interface be the interface whose name is key, or null if no interface’s name matches.
    2. If interface is not null, insert interface into possible types.
  6. Let type be the lowest common ancestor interface of the interfaces contained in types.

    Note: That is, given a set containing PasswordCredential and FederatedCredential, type will be SiteBoundCredential.

  7. Return a Promise rejected with TypeMismatchError if type is Credential.
  8. Let promise be a newly created Promise object.
  9. Return promise, and execute the remaining steps asynchronously.
  10. Switch on type, and execute the associated steps:
    FederatedCredential
    SiteBoundCredential
    PasswordCredential
    1. Let result be the result of executing §4.2.2 Request an SiteBoundCredential without user mediation, passing in origin, types and options.
    2. If result is not null, resolve promise with result, and terminate this algorithm.
    3. If options’s unmediated is true, resolve promise with undefined, and terminate this algorithm.
    4. Resolve promise with the result of executing §4.2.3 Request a SiteBoundCredential with user mediation, passing in origin, types, and options.
    This is an extension point.
    When new credential types are defined in the future, they’ll go here.

Note: Currently, we reject a call to get() if the options provided specify a set of Credential types that don’t play well together (e.g. some future "NeedsLotsOfUserInteractionCredential" type in the same request as an PasswordCredential). We may wish to define a more graceful fallback mechanism if/when new credential types are defined.

4.1.2. Store a Credential

Given a Credential object (credential), this algorithm executes a type-specific storage algorithm. SiteBoundCredential objects will be persisted to the user agent’s credential store. Future object types could, for instance, be persisted to some other (potentially remote) storage mechanism.

If called from an environment which is not a secure context, or from somewhere other than a top-level browsing context, the Promise will be rejected with a NotSupportedError.

  1. Let settings be the incumbent settings object.
  2. Let origin be settingsorigin.
  3. Return a Promise rejected with NotSupportedError if any of the following statements are true:
    1. settings does not have a responsible document
    2. settingsresponsible document is not the active document in the top-level browsing context
    3. settings is not a secure context
  4. Let promise be a newly created Promise object.
  5. Return promise, and execute the remaining steps asynchronously.
  6. Switch on type, and execute the associated steps:
    FederatedCredential
    SiteBoundCredential
    PasswordCredential
    1. Resolve promise with the result of executing §4.2.4 Store SiteBoundCredential, passing in credential and origin.
    This is an extension point.
    When new credential types are defined in the future, they’ll go here.

4.1.3. Clone credential

Given a Credential (input), the following algorithm defines the way in which a structured clone will be produced. This algorithm plugs into the internal structured cloning algorithm defined in [HTML]:

  1. Let output be a Credential object of the same type as input’s constructor.
  2. For each internal slot on input:
    1. Let name be the name of the slot.
    2. Let source value be the slot’s value.
    3. Let cloned value be the result of invoking the internal structured cloning algorithm with source value as the "input" argument, and memory as the "memory" argument.
    4. If an exception results from the previous step, abort the overall structured clone algorithm, and pass that exception through to the caller.
    5. Add a new slot to output having name name and value cloned value.
  3. Set deep clone to own.

4.2. Processing SiteBoundCredentials

4.2.1. Gather SiteBoundCredentials

Given an origin (origin), and a set of interfaces (types), and an CredentialRequestOptions dictionary (options), this algorithm returns a sequence of SiteBoundCredential from the user agent’s credential store which are potential candidates:

  1. Let credentials be the set of Credential objects in the credential store whose [[origin]] slot is equal to the ASCII serialization of origin.

    Note: This is an exact match, not a registerable domain match. See §6.1 Cross-origin Credential Leakage for details as to why.

  2. Remove any items from credentials whose interface is not present in types.
  3. Remove any items from credentials whose options matching algorithm returns Does Not Match when executed on options.
  4. Return credentials.

4.2.2. Request an SiteBoundCredential without user mediation

This algorithm accepts an origin (origin), a set of interfaces (types) and an CredentialRequestOptions dictionary (options), and returns either a single SiteBoundCredential object if and only if one can be provided without user mediation, or null if not.

  1. If the user agent has disabled sharing credentials without user mediation, or origin’s requires user mediation flag in the user agent’s credential store is true, return null.

    Note: See §5.2 Requiring User Mediation for details.

  2. Let credentials be the result of executing §4.2.1 Gather SiteBoundCredentials on origin, types, and options.
  3. If credentials is empty, or contains more than one Credential object, return null.

    Note: In the future, we may wish to allow multiple Credential objects to be returned; for the moment, we’re erring on the cautious side to avoid accidentally revealing explicit relationships between user accounts.

  4. Otherwise, let credential be the single Credential object in credentials.
  5. Return credential.

Note: If a user agent implements some sort of "private browsing" mode, we recommend that this algorithm always return null when the user has enabled private browsing.

4.2.3. Request a SiteBoundCredential with user mediation

This algorithm accepts an origin (origin), a set of interfaces (types) and an CredentialRequestOptions dictionary (options), and returns either a single SiteBoundCredential object, or null if none can be provided.

  1. Let credentials be the result of executing §4.2.1 Gather SiteBoundCredentials on origin, types, and options.
  2. Ask the user which Credential to share.

    Note: This behavior is vendor-specific. Guidelines for user agent behavior are presented in §5 User Mediation.

  3. Let credential be the Credential the user chose, or null if the user chose not to share a credential with origin.
  4. Return credential.

4.2.4. Store SiteBoundCredential

This algorithm accepts a SiteBoundCredential (credential), and an origin (origin), and hands it to the internal credential manager for processing. It returns credential regardless of whether the user allows or disallows the credential to be persisted to the credential store:

  1. Set credential’s [[origin]] slot to the ASCII serialization of origin.
  2. If credential’s iconURL is not an a priori authenticated URL, set credential’s iconURL to the empty string.
  3. Switch on credential’s primary interface, and execute the associated steps:
    PasswordCredential
    1. If the user agent’s credential manager contains a PasswordCredential storedCredential whose id attribute is credential’s id and whose [[origin]] slot is origin, then:
      1. If the user grants origin permission to update credentials (as discussed in §5.1 Storing and Updating Credentials), then:
        1. Set storedCredential’s [[password]] to the value of credential’s [[password]] slot.
        2. Set storedCredential’s name to the value of credential’s name.
        3. Set storedCredential’s iconURL to the value of credential’s iconURL.
    2. Otherwise:
      1. If the user grants origin permission to store credentials (as discussed in §5.1 Storing and Updating Credentials), then store credential in the credential store.
    FederatedCredential
    1. If the user agent’s credential manager does not contain a FederatedCredential storedCredential whose id attribute is credential’s id and whose provider attribute is credential’s provider, then:
      1. If the user grants origin permission to store credentials (as discussed in §5.1 Storing and Updating Credentials), store credential in the credential store.
    This is an extension point.
    When new credential types are defined in the future, they’ll go here.
  4. Return credential.

4.3. Helpful Algorithms

4.3.1. Require user mediation for origin

  1. Let promise be a newly created Promise object.
  2. Return promise, and execute the remaining steps asynchronously.
  3. Set origin’s requires user mediation flag to true in the user agent’s credential store.
  4. Resolve promise with undefined.

4.3.2. Does credential match origin B?

  1. Let origin A be the value of credential’s [[origin]] slot.
  2. If origin A is the same as origin B, return Exact Match.
  3. If origin A’s scheme is origin B’s scheme, and origin A’s host's registerable domain is origin B’s host's registerable domain, then return Fuzzy Match.
  4. Return No Match

5. User Mediation

Exposing credential information to the web via an API has a number of potential impacts on user privacy. The user agent, therefore, MUST involve the user in a number of cases in order to ensure that she clearly understands what’s going on, and with whom her credentials are being shared.

5.1. Storing and Updating Credentials

Credential information is sensitive data, and users MUST remain in control of that information’s storage. Inadvertent credential storage could, for instance, unexpectedly link a user’s local profile on a particular device to a specific online persona. To mitigate the risk of surprise:

  1. Credential information MUST NOT be stored or updated without explicit user consent. For example, the user agent could display a "Save this password?" dialog box to the user in response to each call to store().
  2. User consent MAY be requested every time a credential is stored or updated, or the user agent MAY request a more persistent grant of consent which would apply to some or all subsequent API operations.

    For example, a user agent may offer an option to "Always save passwords", or "Always save password on this site".

  3. User agents SHOULD notify users when credentials are stored. This might take the form of an icon in the address bar, or some similar location.
  4. User agents MUST allow users to manually remove stored credentials. This functionality might be implemented as a settings page, or via interaction with a notification as described above.

5.2. Requiring User Mediation

If a an origin’s requires user mediation flag is set to false in the user agent’s credential store, then Credential objects from that origin MAY be provided to pages from that origin without user interaction. The user will be signed-in to that origin persistently, which, on the one hand, is desirable from the perspective of usability and convenience, but which might nevertheless surprise the user.

If the user agent syncs the state of a Credential between devices, an origin could explicitly tie the devices together in a way which might surprise their owner.

To mitigate the risk of surprise:

  1. User agents MUST allow users to require user mediation for Credential objects. This functionality might be implemented as a global toggle that requires user mediation for all origins, or via more granular settings for specific origins (or specific credentials on specific origins).
  2. User agents MUST NOT set an origin’s requires user mediation slot’s value to false without user consent. For example, the credential chooser described in §5.3 Credential Selection could have a checkbox which the user could toggle to mark the selected credential as available without mediation for the origin, or the user agent could have an onboarding process for its credential manager which asked a user for a default setting.
  3. User agents MUST notify users when credentials are provided to an origin. This could take the form of an icon in the address bar, or some similar location.
  4. If a user clears her browsing data for an origin (cookies, localStorage, and so on), the user agent MUST require user mediation for that origin by executing the algorithm defined in §4.3.1 Require user mediation for origin.

5.3. Credential Selection

When responding to a call to get() on an origin without credentials that are available without user mediation, user agents MUST ask the user for permission to share credential information. This SHOULD take the form of a credential chooser#credential-chooserReferenced in:5.2. Requiring User Mediation which presents the user with a list of credentials that are available for use on a site, allowing her to select one which should be provided to the website, or to reject the request entirely.

The chooser interface SHOULD be implemented in such a way as to be distinguishable from UI which a website could produce. For example, the chooser might overlap the user agent’s UI in some unspoofable way.

The chooser interface SHOULD include an indication of the origin which is requesting credentials.

The chooser interface SHOULD include all Credential objects associated with the origin that requested credentials.

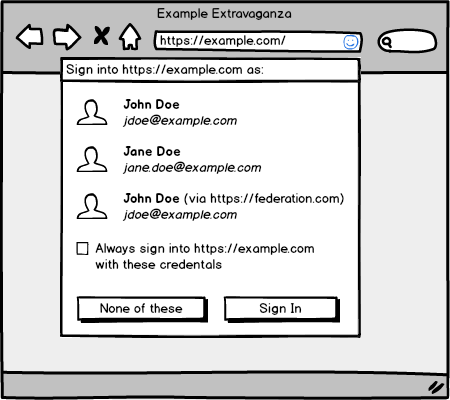

The following image is an exceptionally non-normative mock:

A mockup of what a chooser might look like.

User agents MAY internally associate information with each Credential object beyond the attributes specified in this document in order to enhance the utility of such a chooser. For example, favicons could help disambiguate identity providers, etc. Any additional information stored MUST not be exposed directly to the web.

6. Security Considerations

6.1. Cross-origin Credential Leakage

Credentials are sensitive information, and user agents need to exercise caution in determining when they can be safely shared with a website. The safest option is to restrict credential sharing to the exact origin on which they were saved. That is likely too restrictive for the web, however: consider sites which divide functionality into subdomains: example.com vs admin.example.com.

As a compromise between annoying users, and securing their credentials, user agents:

  1. MUST NOT share credentials between origins whose scheme components are not the same. That is: credentials saved on https://example.com/ will never be available to http://example.com/ via a user agent’s autofill mechanism
  2. MAY use the Public Suffix List [PSL] to determine the effective scope of a credential by comparing the registerable domains of the credential’s [[origin]] with the origin in which get() is called. That is: credentials saved on https://admin.example.com/ and https://example.com/ MAY be offered to users when get() is called from https://www.example.com/.
  3. MUST NOT offer credentials to an origin in response to get() without user mediation if the credential’s origin is not an exact match for the calling origin. That is, Credential objects for https://example.com would not be returned directly to https://www.example.com, but could be offered to the user via the chooser.

PasswordCredentials further mitigate the risk of data leakage by never exposing the [[password]] slot directly to a page’s JavaScript, but only allowing its submission to a same-origin server-side endpoint via fetch().

Additionally, authors SHOULD mitigate the risk of leakage by setting a reasonable Content Security Policy [CSP2] which restricts the origins to which data can be sent. In particular, authors should ensure that the following directives are set, explicitly or implicitly, in their pages' policies:

  1. connect-src further restricts the origins to which fetch() may submit data (which mitigates the risk of redirect-based attacks).
  2. child-src restricts the nested browsing contexts which may be embedded in a page, making it more difficult to inject a malicious postMessage() target. [WEBMESSAGING]

6.2. Same-origin Leakage

Cross-site scripting attacks could make it possible to exploit PasswordCredential's integration with fetch() in order to leak credential information via a vulnerable same-origin endpoint. To mitigate this kind of risk, authors SHOULD set a reasonable Content Security Policy which restricts the kinds of content which can execute in their sites' context. [CSP2] Moreover, authors should ensure that both script-src and object-src directives are set in any policy they specify in order to ensure that only trusted script is executed on a page with access to a user’s credentials.

6.3. Origin Confusion

If framed pages have access to the APIs defined here, it might be possible to confuse a user into granting access to credentials for an origin other than the top-level browsing context, which is the only security origin which users can reasonably be expected to understand.

Therefore, Nested browsing contexts and other environments like Workers [WORKERS] cannot receive or store Credential objects; the user agent MUST reject promises generated by calls to get() and store() with a SecurityError when called from a context which is not a top-level browsing context.

See the algorithms defined in §4.1.1 Request a Credential and §4.1.2 Store a Credential for details.

6.4. Insecure Sites

User agents MUST NOT expose the APIs defined here to environments which are not secure contexts. User agents MAY implement autofill mechanisms which store user credentials and fill sign-in forms on non-a priori authenticated URLs, but those sites cannot be trusted to interact directly with the credential manager in any meaningful way, and those sites MUST NOT have access to credentials saved in secure contexts (as discussed in §6.1 Cross-origin Credential Leakage.

6.5. Script Injection

If a malicious party is able to inject script into an origin, they could (among many other things you wouldn’t like) overwrite the behavior of store() to steal a user’s credentials as they’re written into the credential store.

Authors SHOULD mitigate the risk of such attacks by properly escaping input and output, and add layers of defense in depth by setting a reasonably strong Content Security Policy [CSP2] which restricts the origins from which script can be injected, and by using Subresource Integrity checks [SRI] to ensure that only trusted JavaScript is executed.

7. Privacy Considerations

7.1. Timing Attacks

If the user has no credentials for an origin, a call to get() will resolve very quickly indeed. A malicious website could distinguish between a user with no credentials and a user with credentials who chooses not to share them.

This could allow a malicious website to determine if a user has credentials saved for particular federated identity providers by repeatedly calling get() with a single item in the providers array. The risk is mitigated by the fact that the user would, sooner or later, be prompted to provide credentials to the site which would certainly raise her suspicions as to its behavior.

User agents SHOULD also rate-limit credential requests. It’s almost certainly abusive for a page to request credentials more than a few times in a short period.

7.2. Signing-Out

If a user has chosent to automatically sign-in to websites, as discussed in §5.2 Requiring User Mediation, then the user agent will provide credentials to an origin whenever it asks for them. The website can instruct the user agent to suppress this behavior by calling CredentialsContainer's requireUserMediation() method, which will turn off automatic sign-in for a given origin.

The user agent relies on the website to do the right thing; an inattentive (or malicious) website could simply neglect to call this method, causing the user agent to continue providing credentials against the user’s apparent intention.

The user MUST have some control over this behavior. As noted in §5.2 Requiring User Mediation, clearing cookies for an origin will also reset that origin’s requires user mediation flag in the credential store to true. Additionally, we recommend that the user agent provide some UI affordance for disabling automatic sign-in for a particular origin. This could be tied to the notification that credentials have been provided to an origin, for example.

7.3. Chooser Leakage

If a user agent displays images supplied by a website or federation (for example, if a Credential's iconURL is displayed), requests for these images MUST NOT be directly tied to instantiating the chooser in order to avoid leaking chooser usage. One option would be to fetch the images in the background when saving or updating a Credential, and to cache them for the lifetime of the Credential.

These images MUST be fetched with the credentials mode set to "omit", the skip-service-worker flag set, the client set to null, the initiator set to the empty string, and the destination set to subresource.

Moreover, if the user agent allows the user to change either the name or icon associated with the credential, the alterations to the data SHOULD NOT be exposed to the website (consider a user who names two credentials for an origin "My fake account" and "My real account", for instance).

7.4. Locally Stored Data

This API offers an origin the ability to store data persistently along with a user’s profile. Since most user agents treat credential data differently than "browsing data" (cookies, etc.) this might have the side effect of surprising a user who might believe that all traces of an origin have been wiped out when they clear their cookies.

User agents SHOULD provide UI that makes it clear to a user that credential data is stored for an origin, and SHOULD make it easy for users to remove such data when they’re no longer interested in keeping it around.

Moreover, the credential store’s association between origins and protocol sets SHOULD be cleared along with "browsing data" if no Credential has been stored for the origin.

8. Implementation Considerations

This section is non-normative.

8.1. Website Authors

Add some thoughts here about when and how the API should be used, especially with regard to unmediated. <https://github.com/w3c/webappsec/issues/290>

8.2. Extension Points

As noted in §9 Future Work, there is known interest in extending the API defined here to serve use cases beyond those this document addresses. To that end, the API is fairly generic, with several explicit extension points.

If we wished to add a new credential type, how would we spell it out?
  1. Define a new ExampleCredential that inherits from Credential, and define the value of its [[type]] slot:
    interface ExampleCredential : Credential {
      // Definition goes here.
    };

    ...

    All ExampleCredential objects have their [[type]] slot’s
    value set to the string "example".

  2. Define the options that the new credential type requires, and add them to the CredentialRequestOptions dictionary with a property name that matches the [[type]] slot’s value.
    dictionary ExampleCredentialRequestOptions {
      // Definition goes here.
    };

    partial dictionary CredentialRequestOptions {
      ExampleCredentialRequestOptions? example;
    };

  3. Add ExampleCredential to the switch in step 8 of §4.1.1 Request a Credential, and define the request behavior necessary to grab and return the new type.
  4. Add ExampleCredential to the switch in step 6 of §4.1.2 Store a Credential, and define the persistance behavior necessary to store the new type.

You might also need new primitives. For instance, you might want to return many Credential objects rather than just one. That might be accomplished in a generic fashion by adding a getAll() method to CredentialsContainer, and defining a CredentialSet object that contained a sequence<Credential>, and could be easily extended to meet some use case.

For any such extension, we recommend getting in touch with public-webappsec@ for consultation and review.

8.3. Browser Extensions

Ideally, user agents that implement an extension system of some sort will allow third-parties to hook into these API endpoints in order to improve the behavior of third party credential management software in the same way that user agents can improve their own via this imperative approach.

This could range from a complex new API that the user agent mediates, or simply by allowing extensions to overwrite the get() and store() endpoints for their own purposes.

9. Future Work

This section is non-normative.

The API defined here does the bare minimum to expose user agent’s credential managers to the web, and allows the web to help those credential managers understand when federated identity providers are in use. The next logical step will be along the lines sketched in documents like [WEB-LOGIN] (and, to some extent, Mozilla’s BrowserID [BROWSERID]).

The user agent is in the unique position of being able to effectively mediate the relationship between users, identity providers, and websites. If the user agent can remove some of the risk and confusion associated with the typical authentication flows, users will be in a significantly better position than today.

A natural way to expose this information might be to extend the FederatedCredential interface with properties like authentication tokens, and possibly to add some form of manifest format with properties that declare the authentication type which the provider supports.

The API described here is designed to be extensible enough to support use cases that require user interaction, perhaps with websites other than the one which requested credentials. We hope that the Promise-based system we’ve settled on is extensible enough to support these kinds of asynchronous flows which could require some level of interaction between multiple browsing contexts (e.g. mediated activity on idp.com might resolve a Promise handed back to rp.com) in the future without redesigning the API from the ground up.

Baby steps.

Groups like the Web Payments IG and the Credentials CG have expressed interest in extending the API defined in this document in order to address use cases beyond those outlined in §1.1 Use Cases. They’ve documented these use cases in detail in Web Payments Use Cases 1.0 and Credentials CG Use Cases, and anticipate extending the API in a separate document to solve a different set of problems than WebAppSec is currently chartered to deal with.

Conformance

Document conventions

Conformance requirements are expressed with a combination of descriptive assertions and RFC 2119 terminology. The key words “MUST”, “MUST NOT”, “REQUIRED”, “SHALL”, “SHALL NOT”, “SHOULD”, “SHOULD NOT”, “RECOMMENDED”, “MAY”, and “OPTIONAL” in the normative parts of this document are to be interpreted as described in RFC 2119. However, for readability, these words do not appear in all uppercase letters in this specification.

All of the text of this specification is normative except sections explicitly marked as non-normative, examples, and notes. [RFC2119]

Examples in this specification are introduced with the words “for example” or are set apart from the normative text with class="example", like this:

This is an example of an informative example.

Informative notes begin with the word “Note” and are set apart from the normative text with class="note", like this:

Note, this is an informative note.

Conformant Algorithms

Requirements phrased in the imperative as part of algorithms (such as "strip any leading space characters" or "return false and abort these steps") are to be interpreted with the meaning of the key word ("must", "should", "may", etc) used in introducing the algorithm.

Conformance requirements phrased as algorithms or specific steps can be implemented in any manner, so long as the end result is equivalent. In particular, the algorithms defined in this specification are intended to be easy to understand and are not intended to be performant. Implementers are encouraged to optimize.

Index

Terms defined by this specification

Terms defined by reference

References

Normative References

[CSP2]
Mike West; Adam Barth; Daniel Veditz. Content Security Policy Level 2. 21 July 2015. CR. URL: https://w3c.github.io/webappsec/specs/CSP2/
[FETCH]
Anne van Kesteren. Fetch Standard. Living Standard. URL: https://fetch.spec.whatwg.org/
[HTML]
Ian Hickson. HTML Standard. Living Standard. URL: https://html.spec.whatwg.org/multipage/
[HTML5]
Ian Hickson; et al. HTML5. 28 October 2014. REC. URL: http://www.w3.org/html/wg/drafts/html/master/
[MIXED-CONTENT]
Mike West. Mixed Content. 8 October 2015. CR. URL: https://w3c.github.io/webappsec/specs/mixedcontent/
[PSL]
Mozilla Foundation. Public Suffix List. URL: https://publicsuffix.org/
[RFC2119]
S. Bradner. Key words for use in RFCs to Indicate Requirement Levels. March 1997. Best Current Practice. URL: https://tools.ietf.org/html/rfc2119
[RFC6454]
A. Barth. The Web Origin Concept. December 2011. Proposed Standard. URL: https://tools.ietf.org/html/rfc6454
[WebIDL-1]
Cameron McCormack; Boris Zbarsky. WebIDL Level 1. 8 March 2016. CR. URL: https://heycam.github.io/webidl/
[WEBMESSAGING]
Ian Hickson. HTML5 Web Messaging. 19 May 2015. REC. URL: http://dev.w3.org/html5/postmsg/
[WHATWG-URL]
Anne van Kesteren; Sam Ruby. URL Standard. Living Standard. URL: https://url.spec.whatwg.org/
[XHR]
Anne van Kesteren. XMLHttpRequest Standard. Living Standard. URL: https://xhr.spec.whatwg.org/

Informative References

[BROWSERID]
Ben Adida; et al. BrowserID. 26 February 2013. URL: https://github.com/mozilla/id-specs/blob/prod/browserid/index.md
[MANIFEST]
Marcos Caceres; Anssi Kostiainen; Kenneth Rohde Christiansen; et al. Manifest for web application. WD. URL: http://w3c.github.io/manifest/
[SRI]
Devdatta Akhawe; et al. Subresource Integrity. 12 November 2015. CR. URL: http://www.w3.org/TR/SRI/
[WEB-LOGIN]
Jason Denizac; Robin Berjon; Anne van Kesteren. web-login. URL: https://github.com/jden/web-login
[WORKERS]
Ian Hickson. Web Workers. 24 September 2015. WD. URL: http://www.w3.org/TR/workers/
[XMLHTTPREQUEST]
Anne van Kesteren; et al. XMLHttpRequest Level 1. 30 January 2014. WD. URL: http://www.w3.org/TR/XMLHttpRequest/

IDL Index

dictionary CredentialData {
  USVString id;
};

interface Credential {
  readonly attribute USVString id;
  readonly attribute DOMString type;
};
Credential implements Transferable;

dictionary SiteBoundCredentialData : CredentialData {
  USVString name;
  USVString iconURL;
};

interface SiteBoundCredential : Credential {
  readonly attribute USVString name;
  readonly attribute USVString iconURL;
};

dictionary PasswordCredentialData : SiteBoundCredentialData {
  USVString password;
};

typedef (FormData or URLSearchParams) CredentialBodyType;

[Constructor(PasswordCredentialData data),
 Constructor(HTMLFormElement form),
 Exposed=Window]

interface PasswordCredential : SiteBoundCredential {
  attribute USVString idName;
  attribute USVString passwordName;

  attribute CredentialBodyType? additionalData;
};

dictionary FederatedCredentialData : SiteBoundCredentialData {
  USVString provider;
  DOMString protocol;
};

[Constructor(FederatedCredentialData data), Exposed=Window]
interface FederatedCredential : SiteBoundCredential {
  readonly attribute USVString provider;
  readonly attribute DOMString? protocol;
};

partial interface Navigator {
  readonly attribute CredentialsContainer credentials;
};

interface CredentialsContainer {
  Promise<Credential?> get(CredentialRequestOptions options);
  Promise<Credential> store(Credential credential);
  Promise<void> requireUserMediation();
};

dictionary CredentialRequestOptions {
  boolean password = false;
  FederatedCredentialRequestOptions federated;

  boolean unmediated = false;
};

dictionary FederatedCredentialRequestOptions {
  sequence<USVString> providers;
  sequence<DOMString> protocols;
};

enum RequestCredentialsMode { "omit", "same-origin", "include", "password" };

typedef (PasswordCredential or RequestCredentials) CredentialInfo;

partial dictionary RequestInit {
  CredentialInfo credentials;
};

Issues Index

Anne suggests that this might be better modeled as an ImageBitmap or blob:. We also need to figure out responsiveness. Perhaps [MANIFEST]'s format? <https://github.com/w3c/webappsec/issues/247>
These patches are combined into an outstanding pull request against Fetch. <https://github.com/whatwg/fetch/issues/237>
Add some thoughts here about when and how the API should be used, especially with regard to unmediated. <https://github.com/w3c/webappsec/issues/290>
