FLASH29: Setting the label property for form components

Applicability

This technique relates to:

User Agent and Assistive Technology Support Notes

See User Agent Support for Flash for general information on user agent support.

Description

The objective of this technique is to explicitly associate a form component with its label text by setting the component's label property. Setting this property will visually place a label next to the component, and exposes the label text to assistive technology.

Components that support the label property are:

For other components, the label text has to placed adjacent to the form component manually. For these components, the label text can be associated with the form component using one of these approaches:

Examples

In order for these form controls to be accessible to assistive technology, the following lines of code will have to be added once to the movie's script:

When the Button component is used:

import fl.accessibility.ButtonAccImpl; ButtonAccImpl.enableAccessibility();

When the RadioButton component is used:

import fl.accessibility.RadioButtonAccImpl; RadioButtonAccImpl.enableAccessibility();

When the CheckBox component is used:

import fl.accessibility.CheckBoxAccImpl; CheckBoxAccImpl.enableAccessibility();

Example 1: Setting the label using the Component Inspector panel

  1. Add the Button, CheckBox or RadioButton component to the movie by dragging it on the the stage from the 'Components' panel.

  2. With the component selected, open the 'Component Inspector' panel by selecting it in the 'Window' menu or using the Shift + F7 shortcut.

  3. In the Component Inspector, under the 'Parameters' tab, enter the label text for the 'label' parameter.

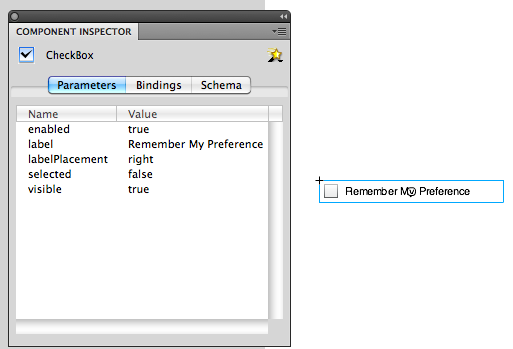

The screenshot below illustrates this technique.

Setting a component's label in the Component Inspector Panel

Example 2: Setting the label on a Button, CheckBox and RadioButton component using ActionScript 3.0

Example Code:

import fl.accessibility.ButtonAccImpl
import fl.accessibility.CheckBoxAccImpl
import fl.accessibility.RadioButtonAccImpl
import fl.controls.Button;
import fl.controls.CheckBox;
import fl.controls.RadioButton;

ButtonAccImpl.enableAccessibility();
var myButton: Button = new Button();
myButton.label = "Submit Details";
myButton.x = 10;
myButton.y = 10
addChild(myButton);

CheckBoxAccImpl.enableAccessibility();
var myCheckBox: CheckBox = new CheckBox();
myCheckBox.label = "notify me";
myCheckBox.x = 10;
myCheckBox.y = 40
addChild(myCheckBox);

RadioButtonAccImpl.enableAccessibility();
var myRadioButton: RadioButton = new RadioButton();
myRadioButton.label = "Male";
myRadioButton.x = 10;
myRadioButton.y = 60;
addChild(myRadioButton);

This technique is demonstrated in the working example of Setting the label on a Button, CheckBox and RadioButton component using ActionScript 3.0. The source of Setting the label on a Button, CheckBox and RadioButton component using ActionScript 3.0 is available.

Tests

Procedure

When the Button, CheckBox or RadioButton components are used:

  1. confirm that labels describing the purpose of the button have been provided through the component's label property.

Expected Results

  1. #1 is true

If this is a sufficient technique for a success criterion, failing this test procedure does not necessarily mean that the success criterion has not been satisfied in some other way, only that this technique has not been successfully implemented and can not be used to claim conformance.

Techniques are Informative

Techniques are informative—that means they are not required. The basis for determining conformance to WCAG 2.0 is the success criteria from the WCAG 2.0 standard—not the techniques. For important information about techniques, please see the Understanding Techniques for WCAG Success Criteria section of Understanding WCAG 2.0.
