W3C

CSS Flexible Box Layout Module

W3C Working Draft, 22 March 2012

This version:
http://www.w3.org/TR/2012/WD-css3-flexbox-20120322/
Latest version:
http://www.w3.org/TR/css3-flexbox/
Editor's Draft:
http://dev.w3.org/csswg/css3-flexbox/
Previous versions:
http://www.w3.org/TR/2011/WD-css3-flexbox-20111129/
http://www.w3.org/TR/2011/WD-css3-flexbox-20110322/
http://www.w3.org/TR/2009/WD-css3-flexbox-20090723/
Issues List:
Bugzilla Bugs for Flexbox
Discussion:
www-style@w3.org with subject line "[css3-flexbox] …message topic…"
Editors:
Tab Atkins Jr., Google Inc.
Alex Mogilevsky, Microsoft Corporation, alexmog@microsoft.com
L. David Baron, Mozilla Corporation, dbaron@dbaron.org
Authors and former editors:
Neil Deakin, Mozilla Corporation, enndeakin@gmail.com
Ian Hickson, formerly of Opera Software, ian@hixie.ch
David Hyatt, formerly of Netscape Corporation, hyatt@apple.com

Abstract

The specification describes a CSS box model optimized for user interface design. In the flexbox layout model, the children of a flexbox can be laid out in any direction, and can "flex" their sizes, either growing to fill unused space or shrinking to avoid overflowing the parent. Both horizontal and vertical alignment of the children can be easily manipulated. Nesting of these boxes (horizontal inside vertical, or vertical inside horizontal) can be used to build layouts in two dimensions.

Status of this document

This section describes the status of this document at the time of its publication. Other documents may supersede this document. A list of current W3C publications and the latest revision of this technical report can be found in the W3C technical reports index at http://www.w3.org/TR/.

Publication as a Working Draft does not imply endorsement by the W3C Membership. This is a draft document and may be updated, replaced or obsoleted by other documents at any time. It is inappropriate to cite this document as other than work in progress.

The (archived) public mailing list www-style@w3.org (see instructions) is preferred for discussion of this specification. When sending e-mail, please put the text “css3-flexbox” in the subject, preferably like this: “[css3-flexbox] …summary of comment…

This document was produced by the CSS Working Group (part of the Style Activity).

This document was produced by a group operating under the 5 February 2004 W3C Patent Policy. W3C maintains a public list of any patent disclosures made in connection with the deliverables of the group; that page also includes instructions for disclosing a patent. An individual who has actual knowledge of a patent which the individual believes contains Essential Claim(s) must disclose the information in accordance with section 6 of the W3C Patent Policy.

Table of contents

1. Introduction

This section is not normative.

CSS 2.1 defined four layout modes — algorithms which determine the size and position of boxes based on their relationships with their sibling and ancestor boxes: block layout, designed for laying out documents; inline layout, designed for laying out text; table layout, designed for laying out information in a tabular format; and positioned layout, designed for very explicit positioning without much regard for other elements in the document. This module introduces a new layout mode, flexbox layout, which is designed for laying out more complex applications and webpages.

Flexbox layout is superficially similar to block layout. It lacks many of the more complex text or document-formatting properties that can be used in block layout, such as ‘float’ and ‘columns’, but in return it gains more simple and powerful tools for aligning its contents in ways that webapps and complex web pages often need.

The contents of a flexbox can be laid out in any direction (left, right, down, or even up!), can have their order swapped around dynamically (i.e., display order is independent of source order), and can "flex" their sizes and positions to respond to the available space. If a flexbox is multi-line, the flexbox items flow in two dimensions, wrapping into separate lines in a fashion similar to how text is wrapped into multiple lines.

For example, the following HTML snippet uses flexbox to create a toolbar with icons. The flexbox is horizontal, and the children's widths don't fill the flexbox's width, so the additional space is distributed around and between the children. As the flexbox grows (perhaps because the user is viewing the page on a wider screen), the children spread out evenly and automatically:

<ul>
  <li><button><img src='new.svg' alt="New"></button></li>
  <li><button><img src='upload.svg' alt="Upload"></button></li>
  <li><button><img src='save.svg' alt="Save"></button></li>
  <li><button><img src='trash.svg' alt="trash"></button></li>
</ul>
<style>
ul { display: flexbox; flex-pack: distribute; }
/* Irrelevant styling for this example removed. */
</style>

Example rendering of the above code snippet, at two different flexbox widths.

1.1. Module interactions

This module extends the definition of the ‘display’ property.

1.2. Values

This specification follows the CSS property definition conventions from [CSS21]. Value types not defined in this specification are defined in CSS Level 2 Revision 1 [CSS21]. Other CSS modules may expand the definitions of these value types: for example [CSS3COLOR], when combined with this module, expands the definition of the <color> value type as used in this specification.

In addition to the property-specific values listed in their definitions, all properties defined in this specification also accept the inherit keyword as their property value. For readability it has not been repeated explicitly.

2. The Flexbox Box Model

An element with ‘display:flexbox’ or ‘display:inline-flexbox’ is a flexbox. Children of a flexbox are called flexbox items and are laid out using the flexbox box model.

Unlike block layout, which is normally biased towards laying things out vertically, and inline layout, which is normally biased toward laying things out horizontally, the flexbox layout algorithm is agnostic as to the direction the flexbox happens to be laid out in. To make it easier to talk about flexbox layout in a general way, we will define several direction-agnostic terms here to make the rest of the spec easier to read and understand.

An illustration of the various directions and sizing terms used in this specification, respectively for ‘row’ and ‘column’ flexboxes.

The main axis of a flexbox is the axis on which flexbox items are laid out along. The flexbox items are ordered such that they start on the main-start side of the flexbox, and go toward the main-end side. A flexbox item's width or height, whichever is in the main axis, is the item's main size. The flexbox item's main size property is either the ‘width’ or ‘height’ property, whichever is in the main axis.

The axis perpendicular to the main axis is called the cross axis, and similarly has cross-start and cross-end directions and sides defined. The width or height of a flexbox item, whichever is in the cross axis, is the item's cross size, and similarly the cross size property is whichever of ‘width’ or ‘height’ that is in the cross axis.

The contents of a flexbox can be easily and powerfully manipulated with a handful of properties. Most significantly, flexbox items can "flex" their main size by using the ‘flex’ property. This "flexing" allows the items to get bigger or smaller based on the available space in the page. If there is leftover space in the flexbox after all of the flexbox items have finished flexing, the items can be aligned, centered, or distributed with the ‘flex-pack’ property. Flexbox items can also be completely rearranged within the flexbox with the ‘flex-order’ property.

In the cross axis, flexbox items can either "flex" to fill the available space or be aligned within the space with the ‘flex-align’ property. If a flexbox is multi-line, new lines are added in the cross-end direction, and can similarly be aligned, centered, or distributed within the flexbox with the ‘flex-line-pack’ property.

3. New values for ‘display’ property

Name: display
New value: flexbox | inline-flexbox

You can declare that an element is a flexbox, and thus should use flexbox layout for its contents, by setting the ‘display’ property on the element to the value ‘flexbox’ or ‘inline-flexbox’.

The ‘flexbox’ value makes the flexbox a block-level element. The ‘inline-flexbox’ value makes the flexbox an inline-level element. When it is necessary to distinguish them, this specification will refer to the former kind of flexbox as a block flexbox and the latter type as an inline flexbox.

Flexboxes use a new layout algorithm, and so some properties that were designed with the assumption of block layout don't make sense in a flexbox context. In particular:

If an element's specified value for ‘display’ is ‘inline-flexbox’ and the element is floated or absolutely positioned, the computed value of ‘display’ must be ‘flexbox’.

A flexbox establishes a new flexbox formatting context for its contents. This is similar to a block formatting context root: floats do not intrude into the flexbox, and the flexbox's margins do not collapse with the margins of its contents. Additionally, each of the flexbox items establish a new formatting context for its contents.

4. Flexbox Items

Flexbox layout algorithm operates on flexbox items, which are boxes that satisfy at least one of the following criteria:

  1. Immediate block-level children of flexbox
  2. Atomic inline-level children of flexbox
  3. Contiguous run of non-replaced inline children, wrapped into an anonymous box

Some values of ‘display’ trigger "fixup" to ensure a sensible tree structure. For example, a lone ‘table-cell’ box is fixed up by generating ‘table’, ‘table-row-group’, and ‘table-row’ boxes around it. This fixup must occur before a flexbox's contents are checked to see if it's necessary to generate anonymous flexbox items.

In the future, other kinds of fixup such as ‘display:run-in’ or ‘display:ruby’ should also run before flexbox fixup.

Examples of flexbox items:

<div style="display:flexbox">

    <!-- flexbox item: block-level child -->
    <div id="item1">block</div>

    <!-- not a flexbox item, because it's out-of-flow -->
    <div id="not-an-item1.5" style="position: absolute;">block</div>

    <!-- flexbox item: block-level child -->
    <div id="item2" style="display:table">table</div>

    <!-- flexbox item: anonymous table wrapped around table-cell -->
    <div id="item3" style="display:table-cell">table-cell</div>

    <!-- flexbox item: anonymous block around inline content -->
    anonymous item 4

    <!-- flexbox item: block-level child -->
    <div id="item5">block</div>

    <!-- flexbox item: anonymous block around inline content -->
    anonymous item 6.1
    <span id="item6.1">
        text 6.2
        <div id="not-an-item6.3">block</div>
        text 6.4
    </span>

    <!-- flexbox item: block-level replaced element -->
    <iframe id="item7"></iframe>

    <!-- flexbox item: inline-level replaced element -->
    <img id="item7" style="display:inline">

    <!-- flexbox item: inline-level replaced element -->
    <button id="item8">button</button>

    <!-- flexbox item: inline-table -->
    <div id="item9" style="display:inline-table">table</div>

    <!-- flexbox item: floated inline, which changes to a block -->
    <span id="item10" style="float: left;">span</span>
</div>

Notice that block element "not-an-item6.3" is not a separate flexbox item, because it is contained inside an inline element which is being wrapped into an anonymous flexbox item. Similarly, the block element "not-an-item1.5" is not a flexbox item, because it's absolutely positioned and thus out of flow.

4.1. Absolutely Positioned Flexbox Children

Absolutely positioned children of a flexbox are not flexbox items, but they leave behind "placeholders" in their normal position in the box tree. These placeholders are anonymous inline boxes with a width and height of ‘0px’, and they interact normally with the flexbox layout algorithm. In particular, they'll trigger the creation an anonymous flexbox item wrapper boxes, or join neighboring inline elements in their anonymous flexbox item wrapper boxes.

The "static position" of an absolutely positioned child of a flexbox (the position when the ‘top’/‘right’/‘bottom’/‘left’ properties are ‘auto’), then, is the final position of their corresponding placeholder, after flexbox layout has been performed.

Note: In most cases, this means that absolutely positioned items will have no effect on flexbox layout, even if they force the generation of an anonymous flexbox item wrapper, because those wrapper items will also collapse to zero size and have no effect. The only exception is when the flexbox has ‘flex-pack:justify’, in which case the anonymous flexbox item will cause there to be two packing spaces where there would otherwise be only one, which will appear as a double-size space between two "real" items.

5. Multi-line Flexbox

A flexbox can be either single-line or multi-line, depending on the ‘flex-wrap’ property. A single-line flexbox lays out all of its children in a single line, even if that would cause the flexbox to overflow its bounds. A multi-line flexbox breaks its flexbox items across multiple lines to avoid overflowing, similar to how text is broken onto a new line when it gets too wide to fit on the existing line. Every line contains at least one flexbox item, unless the flexbox itself is completely empty.

When additional lines are created, they are stacked in the flexbox in the cross axis. Each line is completely independent; flexible lengths and the ‘flex-pack’ and ‘flex-align’ properties only consider the items on a single line at a time. The main size of a line is the same as the main size of the flexbox's content box. The cross size of a line depends on whether the flexbox is single-line or multi-line: the cross size of the sole line in a single-line flexbox is the same as the cross size of the flexbox's content box, while the cross size of a line in a multi-line flexbox is the minimum size necessary to contain the flexbox items on the line, after aligning them with ‘flex-align’. The lines themselves are then aligned within a flexbox with the ‘flex-line-pack’ property.

This example shows four buttons that do not fit horizontally.

<style>
#div1 {
	display: flexbox;
	flex-flow: row wrap;
	width: 300px;
}
button {
	flex:80px 1;
}
<style>

<div id="div1">
	<button id="button1">Elephant</button>
	<button id="button2">Tiger</button>
	<button id="button3">Antelope</button>
	<button id="button4">Wildebeest</button>
</div>

The buttons are first set to their preferred widths, in this case 80 pixels. This will allow the first three buttons to fit in 240 pixels with 60 pixels left over of remaining space. Because the ‘flex-flow’ property specifies a multi-line flexbox (due to the ‘wrap’ keyword appearing in its value), the flexbox will create an additional line to contain the last button.

Flexibility is applied to each element, separately for each line. The first line has 60 pixels of remaining space and all of the buttons have the same flexibility, so each of the three buttons on that line will receive 20 pixels of extra width, ending up 100px wide. The remaining button is on a line of its own and will stretch to the entire width of the line, or 300 pixels.

If the box was resized, the buttons may rearrange onto different lines as necessary.

If the style rules in the example above were changed to the following:

#div1 {
	display: flexbox;
	flex-flow: row wrap;
	flex-pack: center;
	width: 300px;
}
button {
	flex:80px 1;
	max-width: 90px;
}

Similar to the previous example, the first three buttons will fit on the first line, and the last button will wrap onto a new line. However, when the buttons attempt to flex they can only grow to 90px each, due to their ‘max-width’ property. This leaves 30px of free space on the first line and 210px of free space on the second line. Because ‘flex-pack’ is set to ‘center’, the buttons will be centered on each line, with the free space split equally on either side.

6. Ordering and Orientation

The first level of flexbox functionality is the ability to lay out a flexbox's contents in any direction and in any order. This allows an author to trivially achieve effects that would previously have required complex or fragile methods, such as using the ‘float’ property to lay out a horizontal navigation bar (which then requires further effort with the ‘clear’ property or others to make the elements interact nicely with the rest of the page). This functionality is exposed through the ‘flex-flow’ and ‘flex-order’ properties.

6.1. Flexbox Flow Direction: the ‘flex-direction’ property

Name: flex-direction
Value: row | row-reverse | column | column-reverse
Initial: row
Applies To: flexboxes
Inherited: no
Computed Value: specified value
Media: visual
Animatable: no

The ‘flex-direction’ property specifies how flexbox items are placed in the flexbox, by setting the direction of the flexbox's main axis. This affects the direction that flexbox items are laid out in, and the meaning of the ‘flex-pack’ property.

row
The flexbox's main axis has the same orientation as the inline axis of the current writing mode (the direction that text is laid out in). The main-start and main-end directions are equivalent to the "start" and "end" directions, respectively, of the current writing mode.
row-reverse
Same as row, except the main-start and main-end directions are swapped.
column
The flexbox's main axis has the same orientation as the block axis of the current writing mode (the direction that blocks are laid out in). The main-start and main-end directions are equivalent to the "before" and "after" directions, respectively, of the current writing mode.
column-reverse
Same as column, except the main-start and main-end directions are swapped.

6.2. Flexbox Wrapping: the ‘flex-wrap’ property

Name: flex-wrap
Value: nowrap | wrap | wrap-reverse
Initial: nowrap
Applies To: flexboxes
Inherited: no
Computed Value: specified value
Media: visual
Animatable: no

The ‘flex-wrap’ property controls whether the flexbox is single-line or multi-line, and the direction of the cross axis, which affects the direction new lines are stacked in and the meaning of the ‘flex-align’, ‘flex-item-align’, and ‘flex-line-pack’ properties.

nowrap
The flexbox is single-line. The cross-start direction is equivalent to either the "start" or "before" direction of the current writing mode, whichever is in the cross-axis, and the cross-end direction is the opposite direction of cross-start.
wrap
The flexbox is multi-line. The cross-start direction is equivalent to either the "start" or "before" direction of the current writing mode, whichever is in the cross-axis, and the cross-end direction is the opposite direction of cross-start.
wrap-reverse
Same as wrap, except the cross-start and cross-end directions are swapped.

6.3. Flex Direction and Wrap: the ‘flex-flow’ shorthand

Name: flex-flow
Value: <'flex-direction'> || <'flex-wrap'>
Initial: see individual properties
Applies To: flexboxes
Inherited: see individual properties
Computed Value: see individual properties
Media: visual
Animatable: no

The ‘flex-flow’ property is a shorthand for setting the ‘flex-direction’ and ‘flex-wrap’ properties together.

Some examples of valid flows:

div { flex-flow: row; }
/* Initial value. Main axis is
   inline, no wrap. */
div { flex-flow: column wrap; }
/* Main axis is block-direction and lines
   wrap in the inline direction.  For an
   English page, the main axis is top-to-bottom
   and lines wrap to the right. */
div { writing-mode: vertical-rl;
      flex-flow: column wrap-reverse; }
/* Main axis is block direction (right to
   left). New lines wrap upwards. */

6.4. Display Order: the ‘flex-order’ property

Flexbox items are, by default, displayed and laid out in the same order as they appear in the source document. The ‘flex-order’ property may be used to change this ordering.

Name: flex-order
Value: <number>
Initial: 0
Applies to: flexbox items
Inherited: no
Computed value: specified value
Media: visual
Animatable: yes

The ‘flex-order’ property assigns flexbox items to ordinal groups.

Ordinal groups control the order in which flexbox items appear. A flexbox will lay out its content starting from the lowest numbered ordinal group and going up. Items with the same ordinal group are laid out in the order they appear in the source document. ‘flex-order’ has no effect on stacking/layering; elements must still be drawn over/under each other based on document order, ‘z-index’, and other relevant means.

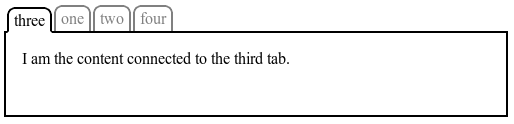

The following figure shows a simple tabbed interface, where the tab for the active pane is always in front:

This could be implemented with the following CSS (showing only the flexbox-relevant code):

.tabs {
	display: flexbox;
}
.tabs > .current {
	flex-order: -1; /* Lower than the default of 0 */
}

Many web pages have a similar shape in the markup, with a header on top, a footer on bottom, and then a content area and one or two additional columns in the middle. Generally, it's desirable that the content come first in the page's source code, before the additional columns. However, this makes many common designs, such as simply having the additional columns on the left and the content area on the right, difficult to achieve. This has been addressed in many ways over the years, often going by the name "Holy Grail Layout" when there are two additional columns. ‘flex-order’ makes this trivial. For example, take the following sketch of a page's code and desired layout:

<!DOCTYPE html>
<header>...</header>
<div id='main'>
   <article>...</article>
   <nav>...</nav>
   <aside>...</aside>
</div>
<footer>...</footer>
In this page the header is at the top and the footer at the bottom, but the article is in the center, flanked by the nav on the right and the aside on the left.

This layout can be easily achieved with Flexbox:

#main { display: flexbox; }
#main > article { flex:1;         flex-order: 2; }
#main > nav     { width: 200px;   flex-order: 1; }
#main > aside   { width: 200px;   flex-order: 3; }

As an added bonus, the columns will all be equal-height by default, and the main content will be as wide as necessary to fill the screen. Additionally, this can then be combined with media queries to switch to an all-vertical layout on narrow screens:

@media all and (max-width: 600px) {
	/* Too narrow to support three columns */
	#main { flex-flow: column; }
	#main > article, #main > nav, #main > aside {
		/* Return them to document order */
		flex-order: 0; width: auto;
	}
}

(Further use of multiline flexboxes to achieve even more intelligent wrapping left as an exercise for the reader.)

7. Flexibility: the ‘flex’ property

The defining aspect of flexbox layout is the ability to make the flexbox items "flex", altering their width or height to fill the available space. This is done by using a ‘flex’ property. A flexbox distributes free space to its items proportional to their positive flexibility, or shrinks them to prevent overflow proportional to their negative flexibility.

Name: flex
Value: [ [ <pos-flex> <neg-flex>? ] || <preferred-size> ] | none
Initial: none
Applies to: flexbox items
Inherited: no
Computed Value: specified value
Media: visual
Animatable: yes

The ‘flex’ property specifies the parameters of a flexible length: the positive and negative flexibility, and the preferred size.

<pos-flex> and <neg-flex> are non-negative <number>s. The <pos-flex> component sets the positive flexibility; if omitted, the positive flexibility defaults to ‘1’. The <neg-flex> component sets the negative flexibility; if omitted, it defaults to ‘0’.

The <preferred-size> component sets the preferred size. It can be set to any value that would be valid in the ‘width’ or ‘height’ property, except values that are not applicable to a component value (of values defined in CSS2.1, only 'inherit' is not valid for <preferred-size>; in the future other values may be introduced that are not applicable as length component). If omitted, the preferred size defaults to ‘0px’. If set to ‘auto’, the value of ‘width’ or ‘height’ (whichever is in parallel to main axis) is used as preferred size.

 If the <preferred-size> is ‘0’, it must be specified with a unit (like ‘0px’) to avoid ambiguity; unitless zero will either be interpreted as as one of the flexibilities, or is a syntax error.

The keyword ‘none’ is equivalent to "0 0 auto".

A ‘<flex>’ value is transitionable, by transitioning the preferred size, positive flexibility, and negative flexibility independently. ‘<flex>’ can also transition to and from a <length>, by treating the length as if it were a flexible length with a positive and negative flexibility of zero and a preferred size of the length.

Flexibility allows elements to respond directly to the available space, optionally taking into account size of content:

<!DOCTYPE html>
<style>
	div { display:flexbox; outline:1px solid silver; }
	p { flex:1 auto; margin:1em; background:gold; }
</style>
<div>
	<p>"flexing"</p>
	<p>allows the items to get bigger</p>
	<p>or</p>
	<p>smaller</p>
</div>
items with equal flexibility extend by equal amount

8. Alignment

After a flexbox's contents have finished their flexing and dimensions of margin boxes of all flexbox items are finalized, they can be aligned in both the main axis with ‘flex-pack’ and the cross axis with ‘flex-align’ and ‘flex-item-align’. These properties make many common types of alignment trivial, including some things that were very difficult in CSS 2.1, like horizontal and vertical centering.

8.1. Axis Alignment: the ‘flex-pack’ property

Name: flex-pack
Value: start | end | center | justify | distribute
Initial: start
Applies to: flexboxes
Inherited: no
Computed Value: specified value
Media: visual
Animatable: no

The ‘flex-pack’ property aligns flexbox items in the main axis of the current line of the flexbox. This is done after any flexible lengths and any auto margins have been resolved. Typically it helps distribute extra free space leftover when either all the flexbox items on a line are inflexible, or are flexible but have reach their maximum size, but it also exerts some control over the alignment of items when they overflow the line.

start
Flexbox items are packed toward the start of the line. The main-start margin edge of the first flexbox item on the line is placed flush with the main-start edge of the line, and each subsequent flexbox item is placed flush with the preceding item.
end
Flexbox items are packed toward the end of the line. The main-end margin edge of the last flexbox item is placed flush with the main-end edge of the line, and each preceding flexbox item is placed flush with the subsequent item.
center
Flexbox items are packed toward the center of the line. The flexbox items on the line are placed flush with each other and aligned in the center of the line, with equal amounts of empty space between the main-start edge of the line and the first item on the line and between the main-end edge of the line and the last item on the line. (If the leftover free-space is negative, the flexbox items will overflow equally in both directions.)
justify
Flexbox items are evenly distributed in the line. If the leftover free-space is negative or there is only a single flexbox item on the line, this value is identical to ‘start’. Otherwise, the main-start margin edge of the first flexbox item on the line is placed flush with the main-start edge of the line, the main-end margin edge of the last flexbox item on the line is placed flush with the main-end edge of the line, and the remaining flexbox items on the line are distributed so that the empty space between any two adjacent items is the same.
distribute
Flexbox items are evenly distributed in the line, with half-size spaces on either end. If the leftover free-space is negative or there is only a single flexbox item on the line, this value is identical to ‘center’. Otherwise, the flexbox items on the line are distributed such that the empty space between any two adjacent flexbox items on the line is the same, and the empty space before the first and after the last flexbox items on the line are half the size of the other empty spaces.

An illustration of the five ‘flex-pack’ keywords and their effects on a flexbox with three colored items.

8.2. Cross Axis Alignment: the ‘flex-align’ and ‘flex-item-align’ properties

Name: flex-align
Value: start | end | center | baseline | stretch
Initial: stretch
Applies to: flexboxes
Inherited: no
Computed Value: specified value
Media: visual
Animatable: no
Name: flex-item-align
Value: auto | start | end | center | baseline | stretch
Initial: auto
Applies to: flexbox items
Inherited: no
Computed Value: auto’ computes to parent's ‘flex-align’; otherwise as specified
Media: visual
Animatable: no

Flexbox items can be aligned in the cross axis of the current line of the flexbox, similar to ‘flex-pack’ but in the perpendicular direction. ‘flex-align’ sets the default alignment for all of the flexbox's items, including anonymous flexbox items. ‘flex-item-align’ allows this default alignment to be overridden for individual flexbox items (for anonymous flexbox items, ‘flex-item-align’ always matches the value of ‘flex-align’ on their associated flexbox).

A value of auto for ‘flex-item-align’ computes to the value of ‘flex-align’ on the flexbox item's flexbox. The alignments are defined as:

start
The cross-start margin edge of the flexbox item is placed flush with the cross-start edge of the line.
end
The cross-end margin edge of the flexbox item is placed flush with the cross-end edge of the line.
center
The flexbox item's margin box is centered in the cross axis within the line. (If the cross size of the flexbox is less than that of the flexbox item, it will overflow equally in both directions.)
baseline

If the flexbox item's inline axis is the same as the cross axis, this value is identical to ‘start’.

Otherwise, all flexbox items on the line with an alignment of ‘baseline’ that don't run afoul of the previous paragraph are aligned such that their baselines align, and the item with the largest distance between its baseline and its cross-start margin edge is placed flush against the cross-start edge of the line.

stretch

If the cross size property of the flexbox item is ‘auto’, it resolves to the length necessary to make the cross size of the item's margin box the same size as the line, while still respecting ‘min/max-width/height’ constraints as normal.

The cross-start margin edge of the flexbox item is placed flush with the cross-start edge of the line.

An illustration of the five ‘flex-align’ keywords and their effects on a flexbox with four colored items.

By using a vertical flexbox and ‘flex-align’, we can achieve behavior very close to HTML's <center> element:

<div>
  <p>foo foo foo foo</p>
  <p>bar bar<br>bar bar</p>
  <p>foo foo foo foo foo foo foo
     foo foo foo foo foo</p>
</div>
<style>
  div {
    display: flexbox;
    flex-flow: column;
    flex-align: center;
    width: 200px;
  }
</style>

8.3. Resolving 'auto' margins

Margins on flexbox items can be set to 'auto', with effect very similar to auto margins in normal flow.

Auto margins can be used for simple alignment or for fine control.

Note that auto margins work consistently in both dimensions, so a simple markup like this

div { 	display:flexbox;
	width:4em; height:4em; background:silver;
}
p { margin:auto; }
<div><p>OK</p></div>

will center the single child: image of square OK button

And this

div {	display:flexbox;
	width:calc(100% - 4em); height:calc(100% - 4em);
	border: 1em solid blue; border-radius:50%;
	margin:auto;
}
div#demo { width:9em; height:9em; }
<div id="demo"><div><div></div></div></div>

will produce nested centered boxes: concentric blue circles

8.4. flex-line-pack’ property

Name: flex-line-pack
Value: start | end | center | justify | distribute | stretch
Initial: stretch
Applies to: multi-line flexboxes
Inherited: no
Computed Value: specified value
Media: visual
Animatable: no

The ‘flex-line-pack’ property aligns a flexbox's lines within the flexbox when there is extra space in the cross axis, similar to how ‘flex-pack’ aligns individual items within the main axis:

start
Lines are packed toward the start of the flexbox. The cross-start edge of the first line in the flexbox is placed flush with the cross-start edge of the flexbox, and each subsequent line is placed flush with the preceding line.
end
Lines are packed toward the end of the flexbox. The cross-end edge of the last line is placed flush with the cross-end edge of the flexbox, and each preceding line is placed flush with the subsequent line.
center
Lines are packed toward the center of the flexbox. The lines in the flexbox are placed flush with each other and aligned in the center of the flexbox, with equal amounts of empty space between the cross-start content edge of the flexbox and the first line in the flexbox and between the cross-end content edge of the flexbox and the last line in the flexbox. (If the leftover free-space is negative, the lines will overflow equally in both directions.)
justify
Lines are evenly distributed in the flexbox. If the leftover free-space is negative or there is only a single line in the flexbox, this value is identical to ‘start’. Otherwise, the cross-start edge of the first line in the flexbox is placed flush with the cross-start content edge of the flexbox, the cross-end edge of the last line in the flexbox is placed flush with the cross-end content edge of the flexbox, and the remaining lines in the flexbox are distributed so that the empty space between any two adjacent lines is the same.
distribute
Lines are evenly distributed in the flexbox, with half-size spaces on either end. If the leftover free-space is negative or there is only a single line in the flexbox, this value is identical to ‘center’. Otherwise, the lines in the flexbox are distributed such that the empty space between any two adjacent lines is the same, and the empty space before the first and after the last lines in the flexbox are half the size of the other empty spaces.
stretch
Lines stretch to take up the remaining space. If the leftover free-space is negative, this value is identical to ‘start’. Otherwise, the free-space is split equally between all of the lines, increasing their cross size.

Note: Only multi-line flexboxes ever have free space in the cross axis for lines to be aligned in, because in a single-line flexbox the sole line automatically stretches to fill the space.

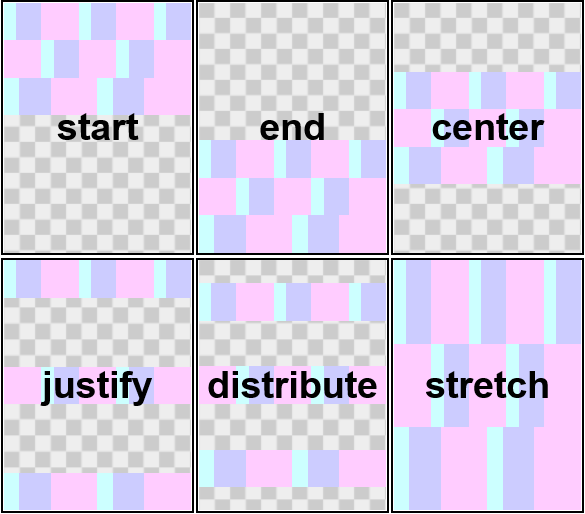

An illustration of the ‘flex-line-pack’ keywords and their effects on a multi-line flexbox.

9. Flexbox Layout Algorithm

This section contains normative algorithms detailing the exact layout behavior of a flexbox and its contents. The algorithms here were designed to optimize readability and theoretical simplicity, and may not necessarily be the most efficient. Implementations may use whatever actual algorithms they wish, but must produce the same results as the algorithms described here.

This note will outline the general structure of the layout algorithm, before I go into the ugly details below, to aid in reading the relatively-long and complex algorithm.

  1. Generate anonymous flexbox items as necessary.
  2. Reorder flexbox items according to ‘flex-order’.
  3. Find the hypothetical main size of every flexbox item.
  4. Linebreak the flexbox, if it's multi-line.
  5. Based on the hypothetical sizes of the items, find the real main size of the flexbox.
  6. Resolve any flexible lengths. All items now have a real main size.
  7. Update layout for the items based on their real main sizes, and determine their hypothetical cross size.
  8. Find the real cross size of the flexbox and its lines.
  9. Align the lines, per ‘flex-line-pack’.
  10. Align in the cross axis, per ‘flex-align’.
  11. Update layout for the items based on their real cross sizes.
  12. Align in the main axis, per ‘flex-pack’.

This section is mainly intended for implementors. Authors writing web pages should generally be served well by the individual property descriptions, and do not need to read this section unless they have a deep-seated urge to understand arcane details of CSS layout.

To lay out a flexbox and its contents, follow these steps:

  1. Generate anonymous flexbox items around runs of contiguous inline content in the flexbox, as described in the Flexbox Items section.
  2. Re-order the flexbox items according to their ‘flex-order’. The items with the lowest (most negative) ‘flex-order’ values are first in the ordering. If multiple items share a ‘flex-order’ value, they're ordered by document order. This affects the order in which the flexbox items generate boxes in the box-tree, and how the rest of this algorithm deals with the items.
  3. Determine the hypothetical main size of items:
    1. If item has a definite preferred size, it is the hypothetical main size.
    2. Otherwise layout the flexbox items using the shrink-to-fit algorithm:

      1. In row-direction flexbox, shrink-to-fit size of a flex item along the main axis is its ‘max-content’, as defined in [CSS3-WRITING-MODES]

      2. In column-direction flexbox, shrink-to-fit size of a flex item along the main axis is the extent in block direction that it gets when laid out using its 'fit-content' as its size in inline direction and using cross-size of flexbox content box as available measure, also as defined in [CSS3-WRITING-MODES].

        In multi-line column-direction flexbox, cross-size of the whole flexbox content box is used as available measure, not the share of individual flexbox line, to avoid a circular dependency of line breaks on shrink-to-fit calculations.

    Do not apply min/max-width/height constraints to the preferred size of flexible lengths - those constraints are handled elsewhere in this algorithm, and doing so will produce incorrect results.

  4. If the flexbox is single-line, collect all the flexbox items into a single flexbox line.

  5. If the flexbox is multi-line, group the flexbox items into multiple lines:

    1. Determine the maximum line length, based on the main size of the flexbox. The maximum line length is main size of the flexbox's content box, constrained by the min and max main size constraints of the flexbox. If the main size depends on the flexbox's content, then:

      • for ‘min-content’, the maximum line length is the flexbox's minimum main size, constrained by the min and max main size constraints of the flexbox.
      • for ‘max-content’, the maximum line length is infinity, constrained by the min and max main size constraints of the flexbox.
      • for ‘fit-content’, the maximum line length is the greater of the flexbox's min size constraint and the smaller of the flexbox's max size constraint and the available space.
    2. Collect as many consecutive flexbox items as possible, starting from the first item, while keeping the sum of their margin-box main size smaller than the flexbox's available space. If a flexbox item is sized with a flexible length, then for the purpose of this step, clamp its size between its minimum and maximum main sizes. The items so collected form a single flexbox line.
    3. Repeat the previous step, starting each time from the first flexbox item not yet collected into a flexbox line, until all flexbox items have been collected into flexbox lines.
  6. Find the actual main size of the flexbox. If the flexbox's main size doesn't rely on its contents, its actual main size is calculated per the appropriate rules. Otherwise, its main size is the length of its longest line, calculated by summing the main sizes of the margin boxes of each flexbox item in the line, constrained by the flexbox's min and max main size constraints. If any margins are set to 'auto', consider them to be set to zero until resolved in a separate step.
  7. For each flexbox line,
    1. Resolve the flexible lengths of the items contained within it. All flexbox items now have a final main size. Update each item's hypothetical cross size based on this main size.
    2. Calculate the leftover free-space by subtracting the sum of the margin-box main sizes of the items on the line from the main size of the flexbox's content box.
    3. Resolve 'auto' margins on main axis:
      1. If leftover free-space is positive and any items on this line have at least one main-axis margin set to 'auto', distribute the leftover free-space equally to these margins.
      2. If leftover free-space is negative, any main-axis 'auto' margins on items in this line are set to zero.
    4. Align the items along the main axis per ‘flex-pack’.
  8. Calculate the cross size of each flexbox line. For each flexbox line:
    1. If the flexbox is single-line and has a definite cross size, the single flexbox line's cross size is the cross size of the flexbox's content box. End this step of the algorithm.
    2. If main axis is parallel to inline axis, collect all the flexbox items with a ‘flex-item-align’ of ‘baseline’. Find the maximum of the distances from their baseline to the cross-start edge of their margin box, and the maximum of the distances from their baseline to the cross-end edge of their margin box. Sum these two values.
    3. For remaining flexbox items, find the maximum of the cross sizes of their margin boxes.
    4. The cross size of the flexbox line is the larger of the numbers found in the previous two steps.
    5. If the flexbox is multi-line, has a definite cross size, 'flex-line-pack' is set to 'stretch' and sum of cross size of all lines is less than cross size of content box, increase cross size of each line by equal amount to exactly match the cross size of content box.
  9. If the flexbox doesn't have a definite cross size, the cross size of its content box is the sum of the cross sizes of all of its lines.
  10. Determine the final cross size of each flexbox item.

    1. If a flexbox item has ‘flex-item-align:stretch'' and its preferred cross size is 'auto' and its margin-box cross size is smaller than cross-size of its flexbox line, its final cross size is set so that its margin-box cross size is equal to cross-size of its flexbox line.
    2. For all other flexbox items, its final cross size is its hypothetical cross size.
    3. If the resulting cross size of any item conflicts with 'min-width', 'max-width', 'min-height' or 'max-height', correct the result to comply with the restrictions.
  11. Resolve 'auto' margins on cross axis. For each flexbox item, if its margin box cross size is smaller than cross size of its line and it has any margins in cross direction set to 'auto', distribute the difference equally to the auto margins.
  12. For each flexbox line, align the flexbox items per 'flex-item-align'.
  13. Align the flexbox lines per 'flex-line-pack'. The leftover free-space is calculated by subtracting the sum of the flexbox line's cross sizes from the cross size of the flexbox's content box.
  14. Layout all items again in their final size and position. Implementations can determine when this step is needed and how it can be optimized, but for precise results it has to be assumed that this step is performed.

To resolve the flexible lengths of the items within a flexbox line:

  1. Determine sign of flexibility
    1. Add margin-box hypothetical main sizes of all items, adjusted for min/max.
    2. If the sum is less than available space, use positive flexibility, otherwise use negative flexibility.

    for the rest of the algorithm use flexibility with the sign determined in this step

  2. Reset all flexible sizes to their preferred size
  3. Find free space by subtracting sum of margin-box main sizes of flexbox items from available space.
  4. Distribute free space proportional to flex:
    1. If the free space is positive, but step 1 chose negative flexibility, do nothing
    2. If the free space is negative, but step 1 chose positive flexibility, do nothing
    3. Add a portion of free space to each flexible item, proportional to item's flexibility
  5. Fix min/max violations:
    1. Adjust each flexible item for min/max.
    2. If the size has changed, it is a violation.
    3. The violation may be positive (min violation) or negative (max violation). Accumulate the difference.
  6. If the sum of all violations is:
    Zero
    Exit the algorithm.
    Positive
    Freeze items with max violations, and return to step 2.
    Negative
    Freeze items with min violations, and return to step 2.

For the purposes of this algorithm, measurements are considered definite if their precise value is known before the start of the algorithm. For example, sizes in pixels or inches are always definite; 'auto' and percent may or may not be definite, which depends on how these values were handled before this algorithm is applied.

10. Page breaks in flexbox

Flexboxes can break across pages between items, between lines of items (in multi-line mode) and inside items, as long as 'break-' property allow that. All 'break-' properties are supported on flexbox, on flexbox items and inside flexbox items.

The following breaking rules refer to fragmentation container as “page”. The same rules apply to any other fragmenters. Change “page” to the appropriate fragmenter type as needed.

Breaks in and around flexbox are determined as follows:

  1. Break-before, break-after, break-inside properties on flexbox itself have effect as normal. If breaks inside flexbox are allowed, break points are determined using following rules.
  2. When flexbox is continued after a break, flexbox’s available space in block direction is reduced by space consumed in previous pages. Consumed space before page break is:
    1. If flexbox starts on that page: the distance between start of content box of the flexbox and the end of available space
    2. If flexbox continues from previous page: the size of available space.

    If as a result of this adjustment block-direction size of flexbox becomes negative, it is set to zero.

  3. Forced breaks on flexbox items
    1. In a row-direction single-line flexbox, breaks before and after items apply to the flexbox
    2. In column-direction single-line flexbox and all multi-line flexboxes:
      1. Forced break before the first item is applied to the flexbox
      2. Forced break after the last item is applied to the flexbox
      3. Forced break before or after any other item terminates the set of items to be laid out on this page
  4. When necessary, a break inside a flexbox item is considered as follows:
    1. If the item has “break-inside:avoid”, it is pushed to the next page
    2. Otherwise, it may be broken, according to breaking rules and algorithms applicable to its display type.
    3. Forced breaks inside flexbox item content are handled normally, but in row-direction flexbox they don't affect layout of sibling flexbox items (e.g. a forced break inside an item doesn't prevent its next sibling from appearing on the same page)
  5. Column-direction flexbox: single-line
    1. If flexbox main-axis size is definite, flexbox algorithm must be run first, without constraints of available space on page and using all content of the flexbox. Otherwise flexbox items use the preferred size, adjusted for min/max.

      If page size varies and flexbox size depends on page size, this step has to be repeated on each page, again with the whole content of the flexbox.

    2. Set of items that will fit on current page is determined by adding main-axis margin-box sizes of flexbox items until total size exceeds available space or a forced break is encountered.
    3. If border box of an item doesn’t fit in available space, a break inside the item is considered
    4. Items that fit on a page completely or partially are aligned according to ‘flex-pack’ property, independently from the rest of flexbox content.

      Note that flexible lengths are not recalculated on each page, even if there is additional free space.

    It is the intent of this spec that column-direction single-line flexbox paginates very similarly to block flow. As a test of the intent, a flexbox with "flex-pack:start" and no flexible items should paginate identically to a block with non-floating children with same content, same used size and same used margins. This rule is simplified and not normative, but if there is any difference it should be noted here.

  6. Column-direction flexbox: multi-line
    1. Items are collected in lines and laid out as usual, but in available space on current page.
    2. If border box of an item doesn’t fit on main-axis and it is the only item in its line:
      1. If the flexbox is not at the top of the page, it is moved to the next page.
      2. If the flexbox is already at the top of the page, the item may produce overflow. If 'overflow' property of the flexbox is set to 'visible', it is paginated using same rules as visible overflow of blocks in normal flow.

        After the break, continuation of overflow items may overlap with other items and/or content after the flexbox. It is undesirable but there is no good resolution for this spacial conflict and this outcome is similar to effect of "overflow:visible" elsewhere.

    3. Breaks inside items (forced or unforced) are not allowed
  7. Row-direction flexbox: single-line
    1. Main-axis space distribution in each line is done based on complete content of the flexbox and without space constraint in block direction.

      If page size varies and flexbox size depends on page size, this step needs to be repeated on each page.

    2. Flexbox items are sized and positioned as usual, but in block-direction available space of min(remaining available space in flexbox, remaining space on the page).
    3. Any items with baseline alignment must be aligned before considering breaks inside items.
    4. If border box of an item doesn’t fit in current page, a break inside the item is considered
    5. Items that have fit completely on a previous page and items that are pushed to next page don’t have any rendering, leaving empty space as needed.
    6. Items that fit completely or partially on current page are aligned on cross-axis:
      1. For the purposes of cross-axis alignment, minimum of remaining available space in flexbox and available space at current page is used.
      2. If an item is broken in the previous step and its alignment is not baseline, its cross-axis margin-box size is set to available space. If item alignment is baseline, its cross-axis size is adjusted so that it extends to exactly the end of available space.
  8. Row-direction flexbox: multi-line
    1. Collect items into lines and determine line heights:
      1. If 'flex-line-pack' is 'stretch' and flexbox size in block direction is definite, layout of the complete flexbox has to be done first to determine line heights. Layout is done as usual for non-paginated case, but accounting for forced breaks.

        If page size varies, this step may have to be redone, again with complete content; special consideration should be to be given to line breaks to ensure that item at the start of current page is also at the start of a line in this hypothetical layout. This specification currently doesn't define how exactly to achieve that.

      2. Otherwise, items are collected into lines and each line is laid out as a single-line flexbox to determine block-direction size of each line.
    2. Lines are added one at a time, until out of available space or a forced break is encountered
    3. Breaks inside items (forced or unforced) are not allowed.
    4. If the first flexbox line on a page doesn't fit in cross-axis,
      1. If the flexbox is not at the top of the page, it is moved to the next page.
      2. If the flexbox is already at the top of the page, the item may produce overflow. If 'overflow' property of the flexbox is set to 'visible', it is paginated using same rules as visible overflow of blocks in normal flow.
    5. If size of flexbox in inline direction is not definite, multi-line layout algorithm is run using the set of items that have fit on the current page.
    6. Line packing is done on each page, with content on the page

11. CSSOM

'Flex' property is currently defined as shorthand only, combining three values. When queried  from OM, it is seen as a string with up to three values, which can be very complicated to deal with properly.

There should be separate properties to access flexibility components in OM, such as:

[Supplemental] interface "CSSStyleDeclaration {
	attribute DOMString? flexPositive;
	attribute DOMString? flexNegative;
	attribute DOMString? flexPreferredSize;
};
See Bug-16145

12. Conformance

12.1. Document conventions

Conformance requirements are expressed with a combination of descriptive assertions and RFC 2119 terminology. The key words “MUST”, “MUST NOT”, “REQUIRED”, “SHALL”, “SHALL NOT”, “SHOULD”, “SHOULD NOT”, “RECOMMENDED”, “MAY”, and “OPTIONAL” in the normative parts of this document are to be interpreted as described in RFC 2119. However, for readability, these words do not appear in all uppercase letters in this specification.

All of the text of this specification is normative except sections explicitly marked as non-normative, examples, and notes. [RFC2119]

Examples in this specification are introduced with the words “for example” or are set apart from the normative text with class="example", like this:

This is an example of an informative example.

Informative notes begin with the word “Note” and are set apart from the normative text with class="note", like this:

Note, this is an informative note.

12.2. Conformance classes

Conformance to CSS Flexbox Layout Module is defined for three conformance classes:

style sheet
A CSS style sheet.
renderer
A UA that interprets the semantics of a style sheet and renders documents that use them.
authoring tool
A UA that writes a style sheet.

A style sheet is conformant to CSS Flexbox Layout Module if all of its statements that use syntax defined in this module are valid according to the generic CSS grammar and the individual grammars of each feature defined in this module.

A renderer is conformant to CSS Flexbox Layout Module if, in addition to interpreting the style sheet as defined by the appropriate specifications, it supports all the features defined by CSS Flexbox Layout Module by parsing them correctly and rendering the document accordingly. However, the inability of a UA to correctly render a document due to limitations of the device does not make the UA non-conformant. (For example, a UA is not required to render color on a monochrome monitor.)

An authoring tool is conformant to CSS Flexbox Layout Module if it writes style sheets that are syntactically correct according to the generic CSS grammar and the individual grammars of each feature in this module, and meet all other conformance requirements of style sheets as described in this module.

12.3. Partial implementations

So that authors can exploit the forward-compatible parsing rules to assign fallback values, CSS renderers must treat as invalid (and ignore as appropriate) any at-rules, properties, property values, keywords, and other syntactic constructs for which they have no usable level of support. In particular, user agents must not selectively ignore unsupported component values and honor supported values in a single multi-value property declaration: if any value is considered invalid (as unsupported values must be), CSS requires that the entire declaration be ignored.

12.4. Experimental implementations

To avoid clashes with future CSS features, the CSS2.1 specification reserves a prefixed syntax for proprietary and experimental extensions to CSS.

Prior to a specification reaching the Candidate Recommendation stage in the W3C process, all implementations of a CSS feature are considered experimental. The CSS Working Group recommends that implementations use a vendor-prefixed syntax for such features, including those in W3C Working Drafts. This avoids incompatibilities with future changes in the draft.

12.5. Non-experimental implementations

Once a specification reaches the Candidate Recommendation stage, non-experimental implementations are possible, and implementers should release an unprefixed implementation of any CR-level feature they can demonstrate to be correctly implemented according to spec.

To establish and maintain the interoperability of CSS across implementations, the CSS Working Group requests that non-experimental CSS renderers submit an implementation report (and, if necessary, the testcases used for that implementation report) to the W3C before releasing an unprefixed implementation of any CSS features. Testcases submitted to W3C are subject to review and correction by the CSS Working Group.

Further information on submitting testcases and implementation reports can be found from on the CSS Working Group's website at http://www.w3.org/Style/CSS/Test/. Questions should be directed to the public-css-testsuite@w3.org mailing list.

12.6. CR exit criteria

For this specification to be advanced to Proposed Recommendation, there must be at least two independent, interoperable implementations of each feature. Each feature may be implemented by a different set of products, there is no requirement that all features be implemented by a single product. For the purposes of this criterion, we define the following terms:

independent
each implementation must be developed by a different party and cannot share, reuse, or derive from code used by another qualifying implementation. Sections of code that have no bearing on the implementation of this specification are exempt from this requirement.
interoperable
passing the respective test case(s) in the official CSS test suite, or, if the implementation is not a Web browser, an equivalent test. Every relevant test in the test suite should have an equivalent test created if such a user agent (UA) is to be used to claim interoperability. In addition if such a UA is to be used to claim interoperability, then there must one or more additional UAs which can also pass those equivalent tests in the same way for the purpose of interoperability. The equivalent tests must be made publicly available for the purposes of peer review.
implementation
a user agent which:
  1. implements the specification.
  2. is available to the general public. The implementation may be a shipping product or other publicly available version (i.e., beta version, preview release, or “nightly build”). Non-shipping product releases must have implemented the feature(s) for a period of at least one month in order to demonstrate stability.
  3. is not experimental (i.e., a version specifically designed to pass the test suite and is not intended for normal usage going forward).

The specification will remain Candidate Recommendation for at least six months.


Acknowledgments

Thanks for feedback and contributions to Andrew Fedoniouk, Arron Eicholz, James Elmore, Ben Horst, Boris Zbarsky, Brad Kemper, Brian Heuston, Christian Stockwell, Christoph Päper, Daniel Holbert, Erik Anderson, Eugene Veselov, Fantasai, John Jansen, Markus Mielke, Ning Rogers, Ojan Vafai, Peter Salas, Phil Cupp, Robert O'Callahan, Rossen Atanassov, Shinichiro Hamaji, Tony Chang.

References

Normative references

[CSS21]
Bert Bos; et al. Cascading Style Sheets Level 2 Revision 1 (CSS 2.1) Specification. 7 June 2011. W3C Recommendation. URL: http://www.w3.org/TR/2011/REC-CSS2-20110607
[CSS3-WRITING-MODES]
Elika J. Etemad; Koji Ishii; Shinyu Murakami. CSS Writing Modes Module Level 3. 1 September 2011. W3C Working Draft. (Work in progress.) URL: http://www.w3.org/TR/2011/WD-css3-writing-modes-20110901/
[RFC2119]
S. Bradner. Key words for use in RFCs to Indicate Requirement Levels. Internet RFC 2119. URL: http://www.ietf.org/rfc/rfc2119.txt

Other references

[CSS3COLOR]
Tantek Çelik; Chris Lilley; L. David Baron. CSS Color Module Level 3. 7 June 2011. W3C Recommendation. URL: http://www.w3.org/TR/2011/REC-css3-color-20110607

Property index

Property Values Initial Applies to Inh. Percentages Media
display flexbox | inline-flexbox
flex [ [ <pos-flex> <neg-flex>? ] || <preferred-size> ] | none none flexbox items no specified value visual
flex-align start | end | center | baseline | stretch stretch flexboxes no specified value visual
flex-direction row | row-reverse | column | column-reverse row flexboxes no specified value visual
flex-flow <'flex-direction'> || <'flex-wrap'> see individual properties flexboxes see individual properties see individual properties visual
flex-item-align auto | start | end | center | baseline | stretch auto flexbox items no ‘auto’ computes to parent's ‘flex-align’; otherwise as specified visual
flex-line-pack start | end | center | justify | distribute | stretch stretch multi-line flexboxes no specified value visual
flex-order <number> 0 flexbox items no specified value visual
flex-pack start | end | center | justify | distribute start flexboxes no specified value visual
flex-wrap nowrap | wrap | wrap-reverse nowrap flexboxes no specified value visual

Index
