This specification defines the Extensible Stylesheet Language
(XSL). XSL is a language for expressing stylesheets. Given a class of
arbitrarily structured XML [XML] or [XML 1.1]
documents or data files, designers use
an XSL stylesheet to express their intentions about how that
structured content should be presented; that is, how the source
content should be styled, laid out, and paginated onto some
presentation medium, such as a window in a Web browser or a
hand-held device, or a set of
physical pages in a catalog, report, pamphlet, or book.
1.1 Processing a Stylesheet
An XSL stylesheet processor accepts a document
or data in XML
and an XSL stylesheet and produces the presentation of that XML source
content that was intended by the designer of that
stylesheet. There are two aspects of this
presentation process:
first, constructing a result tree from the XML source tree and second,
interpreting the result tree to produce formatted
results suitable for presentation on a
display, on paper, in speech, or onto other media. The first
aspect is called tree transformation and the
second
is called formatting. The process of formatting
is performed by the formatter. This formatter
may simply be a rendering engine inside a browser.
Tree transformation allows the structure of the result tree to be significantly
different from the structure of the source tree. For example, one could add
a table-of-contents as a filtered selection of an original source document,
or one could rearrange source data into a sorted tabular presentation.
In constructing the result tree,
the tree transformation process also adds the information necessary to
format that result tree.
Formatting is enabled by including formatting semantics
in the result tree. Formatting semantics are
expressed in terms of a catalog of classes of
formatting
objects. The nodes of the result tree are formatting
objects. The classes of formatting objects
denote typographic abstractions such as page, paragraph,
table, and so
forth. Finer control over the presentation of these abstractions is
provided by a set of formatting properties, such as
those controlling indents, word- and
letter spacing, and widow, orphan, and hyphenation control.
In XSL, the
classes of formatting objects and
formatting properties
provide the vocabulary for expressing presentation intent.
The XSL processing model is intended to be
conceptual only. An implementation is not
mandated to provide these as separate
processes. Furthermore, implementations are free to process
the source document in any way that produces the same result
as if it were processed using the conceptual XSL processing
model. A diagram depicting the detailed conceptual model is
shown below.
1.1.1 Tree Transformations
Tree transformation constructs the result tree. In XSL,
this tree is called the element and attribute
tree, with objects primarily in the
"formatting object" namespace. In this tree, a formatting
object
is represented as an XML element, with the properties represented by a
set of XML attribute-value pairs. The content of the formatting object
is the content of the XML element. Tree
transformation is defined in the XSLT Recommendation
[XSLT].

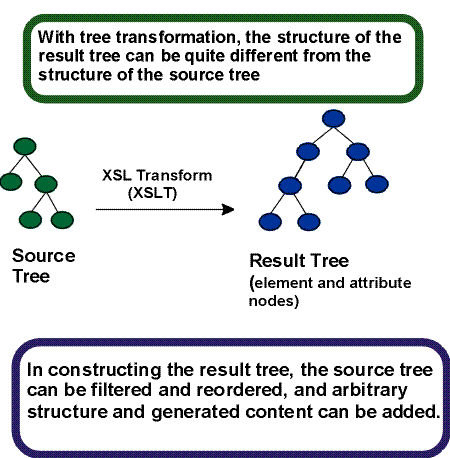

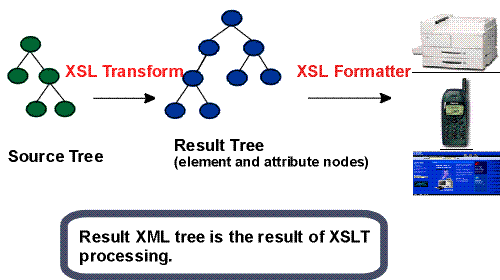

A diagram depicting this conceptual process is
shown below.
The XSL stylesheet is used in tree transformation. A stylesheet
contains a set of tree construction rules. The tree construction rules
have two parts: a pattern that is matched against elements in the
source tree and a template that constructs a portion of the result
tree. This allows a stylesheet to be applicable to a wide class of
documents that have similar source tree structures.
In some implementations of XSL/XSLT,
the result of tree construction
can be output as an XML document. This would allow an XML document
which contains formatting objects and formatting properties to be
output. This capability is neither necessary for an XSL processor nor
is it encouraged. There are, however, cases where this is important,
such as a server preparing input for a known client; for example, the way
that a WAP
(http://www.wapforum.org/faqs/index.htm)
server prepares specialized input for a WAP capable
hand held device. To preserve accessibility, designers of Web systems
should not develop architectures that require (or use) the
transmission of documents containing formatting objects and properties
unless either the transmitter knows that the client can accept
formatting objects and properties or the transmitted document contains
a reference to the source document(s) used in the construction of the
document with the formatting objects and properties.
1.1.2 Formatting
Formatting interprets the result tree in its formatting object tree
form to produce the presentation intended by the designer
of the stylesheet from which the XML element and attribute
tree in the "fo" namespace was constructed.

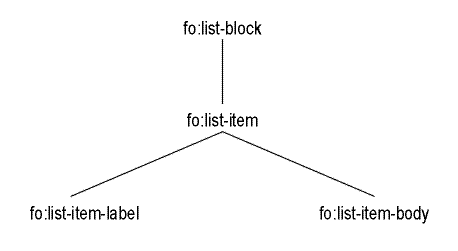

The vocabulary of formatting objects supported by XSL - the set of
fo: element types - represents the set of
typographic abstractions available to the
designer. Semantically, each formatting object represents a
specification for a part of the pagination, layout, and styling
information that will be applied to the content of that formatting
object as a result of formatting the whole result tree. Each
formatting object class represents a particular kind of formatting
behavior. For example, the block formatting object class represents
the breaking of the content of a paragraph into lines. Other parts of
the specification may come from other formatting objects; for
example, the formatting of a paragraph (block formatting
object)
depends on both the specification of properties on the block
formatting object and the specification of the layout structure into
which the block is placed by the formatter.
The properties associated with an instance of a formatting object
control the formatting of that object. Some of the properties, for
example "color", directly specify the formatted result.
Other properties, for example 'space-before', only constrain the set
of possible formatted results without specifying any particular
formatted result. The formatter may make choices among other
possible considerations such as esthetics.

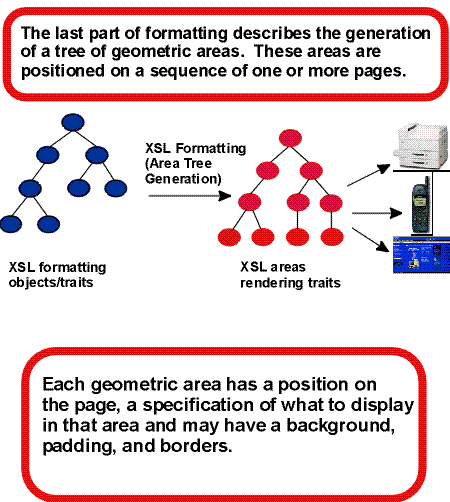

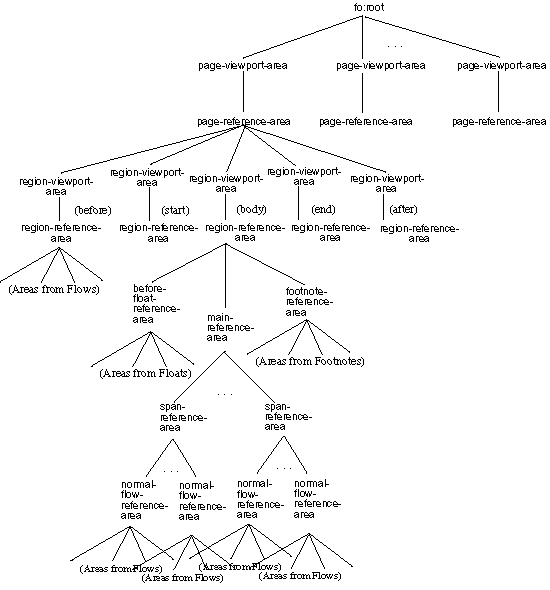

Formatting consists of the generation of a tree
of geometric areas, called the area tree. The
geometric areas are
positioned on a sequence of one or more pages (a browser typically
uses a single page). Each geometric area has a position on the page, a
specification of what to display in that area and may have a
background, padding, and borders. For example, formatting a
single
character generates an area sufficiently large enough to hold the
glyph that is used to present the character visually and the glyph is
what is displayed in this area. These areas may be nested. For
example, the glyph may be positioned within a line, within a
block, within a page.
Rendering
takes the area tree, the abstract model of the presentation (in terms
of pages and their collections of areas), and causes a
presentation to appear on the relevant medium, such as a browser
window on a computer display screen or sheets of paper. The semantics
of rendering are not described in detail in this specification.
The first step in formatting is to "objectify" the element
and attribute
tree obtained via an XSLT transformation.
Objectifying the tree basically consists of turning the
elements in the
tree into formatting object nodes and the
attributes into property specifications. The result of this step is
the formatting object tree.
As part of the step of objectifying, the characters that occur in
the result tree are replaced by fo:character nodes.
Characters in text nodes which consist
solely of white space characters and
which are children of elements whose corresponding formatting objects do
not permit fo:character nodes as children are ignored. Other characters
within elements whose corresponding formatting objects do not permit
fo:character nodes as children are errors.
The content of the fo:instream-foreign-object
is not objectified;
instead the object representing the fo:instream-foreign-object
element points to the appropriate node in the element and
attribute tree.
Similarly any non-XSL namespace child element
of fo:declarations is not objectified; instead the object representing
the fo:declarations element points to the appropriate node in the
element and attribute tree.
The second phase in formatting is to refine the formatting
object tree
to produce the refined formatting object tree.
The refinement process handles the mapping from properties
to traits. This consists of: (1) shorthand expansion into
individual properties, (2) mapping of corresponding
properties, (3) determining computed values (may include
expression evaluation),
(4) handling white-space-treatment and linefeed-treatment
property effects, and (5) inheritance.
Details on
refinement are found in 5 Property Refinement / Resolution.

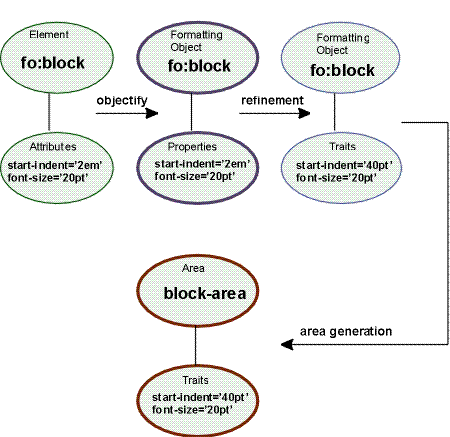

The refinement step is depicted in the diagram below.
The third step in formatting is the construction of the area
tree. The
area tree is generated as described in the semantics of each
formatting object. The traits applicable to each formatting
object
class control how the areas are generated. Although every
formatting property may be specified on every formatting object, for
each formatting object class, only a subset of the formatting
properties are used to determine the traits for objects of
that class.
Area generation is depicted in the diagram below.
1.2 Benefits of XSL
Unlike the case of HTML, element names in XML have no intrinsic
presentation semantics. Absent a stylesheet, a processor could not
possibly know how to render the content of an XML document other
than as an undifferentiated string of characters. XSL provides
a comprehensive model and a vocabulary for writing such stylesheets using XML syntax.
This document is intended for implementors of such XSL processors.
Although it can be used as a reference manual for writers of XSL
stylesheets, it is not tutorial in nature.
XSL builds on the prior work on Cascading Style Sheets
[CSS2] and
the Document Style Semantics and Specification Language
[DSSSL].
While many of XSL's formatting objects and properties correspond
to the common set of properties, this would not be
sufficient by
itself to accomplish all the goals of XSL. In particular, XSL introduces
a model for pagination and layout that extends what is currently available
and that can in turn be extended, in a straightforward way, to page
structures beyond the simple page models described in this specification.
1.2.1 Paging and Scrolling
Doing both scrollable document windows and pagination introduces
new complexities to the styling (and pagination) of XML content.
Because pagination introduces arbitrary boundaries
(pages or regions on pages) on the content, concepts such as
the control
of spacing at page, region, and block boundaries become
extremely important. There are also concepts related to
adjusting the spaces between lines (to adjust the page
vertically)
and between words and letters (to justify the lines of text).
These do not always arise with simple scrollable document
windows, such as those found in today's browsers. However, there
is a correspondence between a page with multiple regions, such as a body,
header, footer, and left and right sidebars, and a Web
presentation using "frames". The distribution of content into the regions
is basically the same in both cases, and XSL handles both
cases in an analogous fashion.
XSL was developed to give designers control over the features
needed when documents are paginated as well as to provide an
equivalent "frame" based structure for browsing on the Web.
To achieve this control, XSL has extended the set of formatting
objects and formatting properties beyond those available in
either CSS2 or DSSSL.
In addition, the selection
of XML source components that can be styled (elements,
attributes, text nodes, comments, and processing
instructions) is based on XSLT and
XPath [XPath],
thus providing the
user with an extremely powerful selection mechanism.
The design of the formatting objects and properties extensions
was first inspired by DSSSL. The actual extensions, however, do not
always look like the DSSSL constructs on which they were based. To either
conform more closely with the CSS2 specification or to
handle cases more simply than in DSSSL, some extensions have diverged from DSSSL.
There are several ways in which extensions were made. In some cases,
it sufficed to add new values, as in the case of those added to reflect
a variety of writing-modes, such as top-to-bottom and bottom-to-top, rather
than just left-to-right and right-to-left.
In other cases, common properties that are expressed in CSS2
as one property with multiple simultaneous values, were split into
several new properties to provide independent control over independent
aspects of the property. For example, the "white-space" property was
split into four properties:
a "white-space-treatment" property that
controls how white space is processed, a "linefeed-treatment" property that controls
how line feeds are processed,
a "white-space-collapse" property that controls
how multiple consecutive spaces are collapsed,
and a "wrap-option" property
that controls whether lines are automatically wrapped when
they encounter a boundary, such as the edge of a column.
The effect of splitting a property into two or more
(sub-)properties is to make the equivalent existing CSS2
property a "shorthand" for the set of sub-properties it subsumes.
In still other cases, it was necessary to create new properties.
For example, there are a number of new properties that control how
hyphenation is done. These include identifying the script and country
the text is from as well as such properties as "hyphenation-character"
(which varies from script to script).
Some of the formatting objects and many of the properties in XSL
come from the CSS2 specification, ensuring compatibility
between the two.
There are four classes of XSL properties that can be identified as:
CSS properties by copy (unchanged from their CSS2
semantics)
CSS properties with extended values
CSS properties broken apart and/or extended
XSL-only properties
1.2.2 Selectors and Tree Construction
As mentioned above, XSL uses XSLT and XPath for tree construction
and pattern selection, thus providing a high degree of control
over how portions of the source content are presented, and what
properties are associated with those content portions, even where
mixed namespaces are involved.
For example, the patterns of XPath allow the selection of a portion
of a string or the Nth text node in a paragraph. This allows
users to have a rule that makes all third paragraphs in
procedural steps appear in bold, for instance. In addition,
properties can be associated with a content portion based on the
numeric value of that content portion or attributes on the
containing element. This allows one to have a style rule
that makes negative values appear in "red" and positive
values appear in "black". Also, text can be generated
depending on a particular context in the source tree,
or portions of the source tree may be presented
multiple times with different styles.
1.2.3 An Extended Page Layout Model

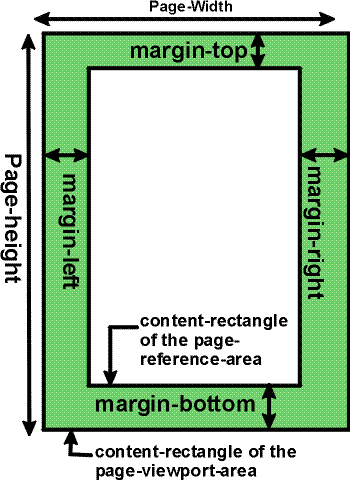

There is a set of formatting objects in XSL to describe both the
layout structure of a page or "frame"
(how big is the body; are there multiple columns;
are there headers, footers, or sidebars; how big are these)
and the rules by which the XML source content is placed into these "containers".

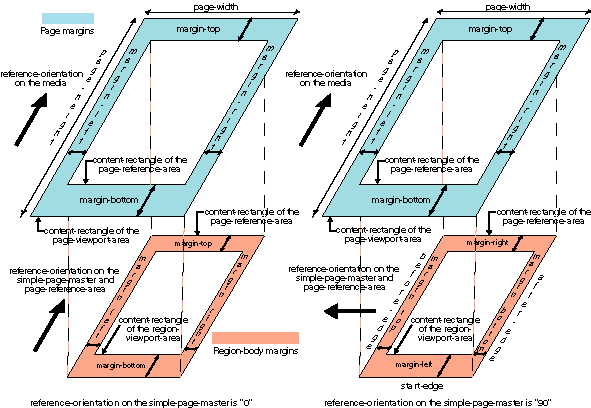

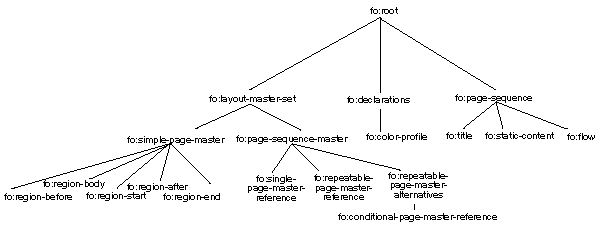

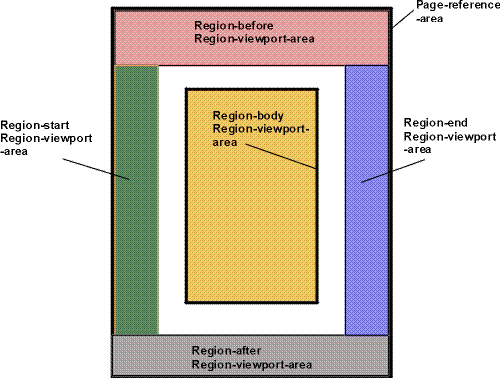

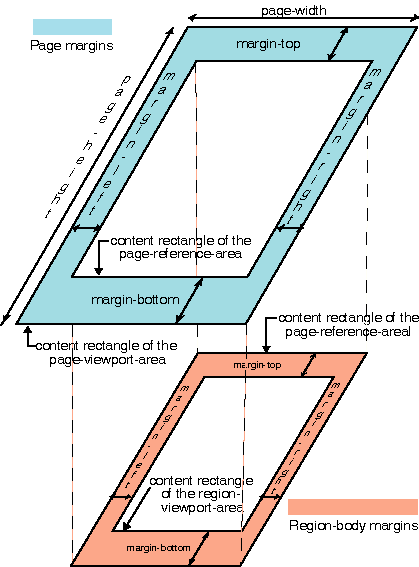

The layout structure is defined in terms of one or more instances
of a "simple-page-master" formatting object. This formatting
object allows one to define independently filled regions for
the body (with multiple columns), a header, a footer, and sidebars
on a page. These simple-page-masters can be used in page sequences
that specify in which order the various simple-page-masters shall be used.
The page sequence also specifies how styled content is to fill those pages.
This model allows one to specify a sequence of simple-page-masters
for a book chapter where the page instances are automatically
generated by the formatter or an explicit sequence of pages

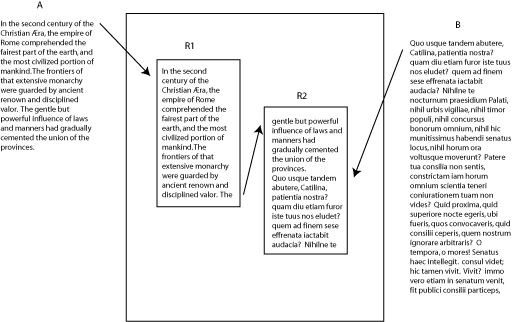

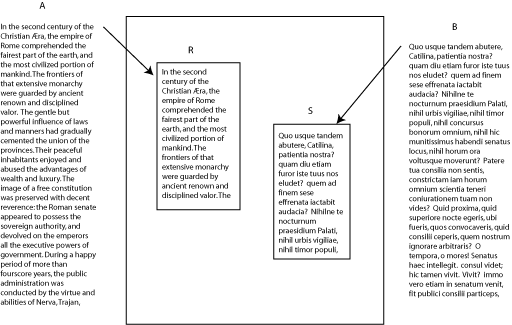

such as used in a magazine layout. Styled content is assigned
to the various regions on a page by associating the name of the
region with names attached to styled content in the result tree.
In addition to these layout formatting objects and properties,
there are properties designed to provide the level of control
over formatting that is typical of paginated documents.
This includes control over hyphenation, and expanding the control over
text that is kept with other text in the same line, column,
or on the same page.

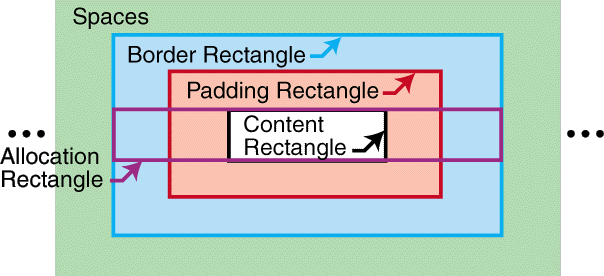

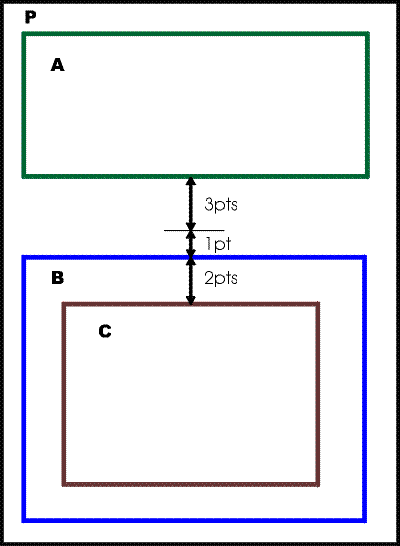

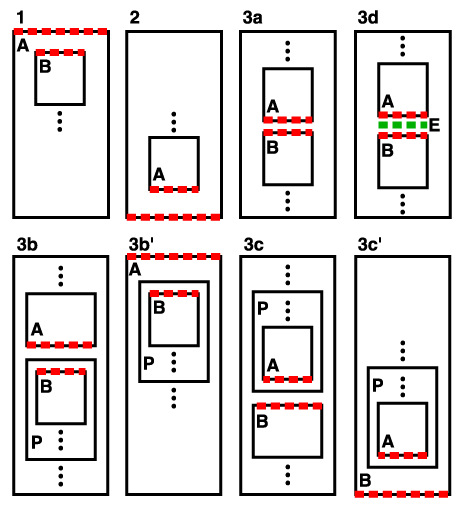

1.2.4 A Comprehensive Area Model

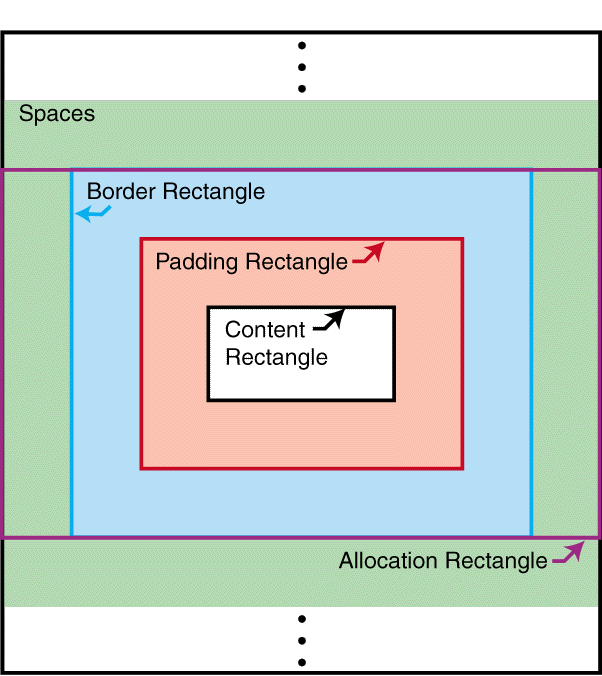

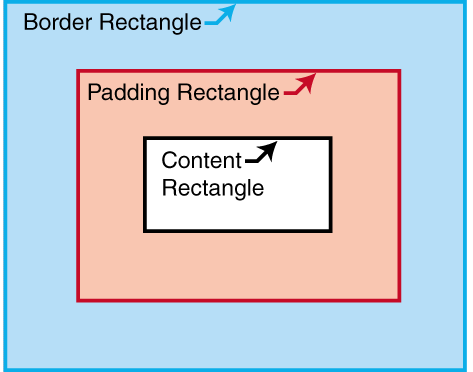

The extension of the properties and formatting objects,
particularly in the area on control over the spacing of blocks, lines,
and page regions and within lines, necessitated an extension of the
CSS2 box formatting model. This extended model is described
in 4 Area Model of this
specification. The CSS2 box model is a
subset of this model. See the mapping of the CSS2 box model
terminology to the XSL Area Model terminology in
7.2 XSL Areas and the CSS Box Model.

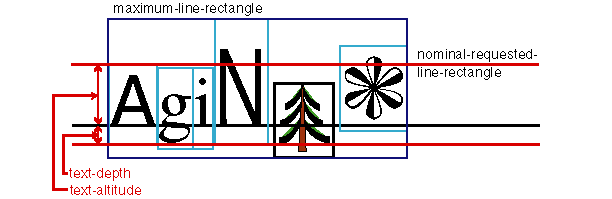

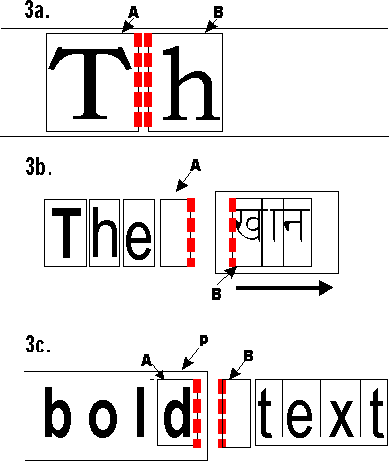

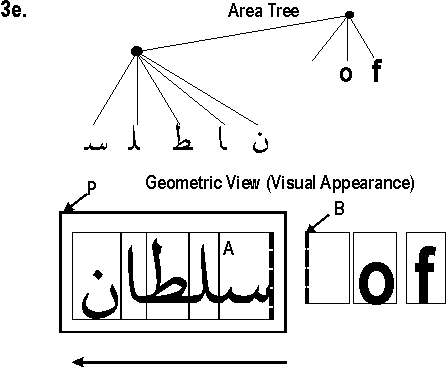

The area model provides a vocabulary for describing
the relationships and space-adjustment between
letters, words, lines, and blocks.

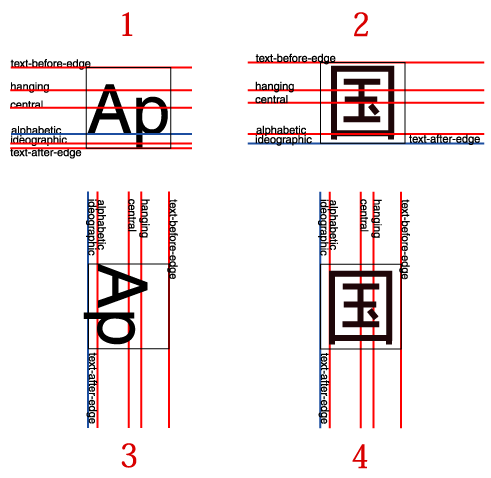

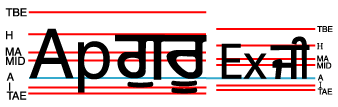

1.2.5 Internationalization and Writing-Modes

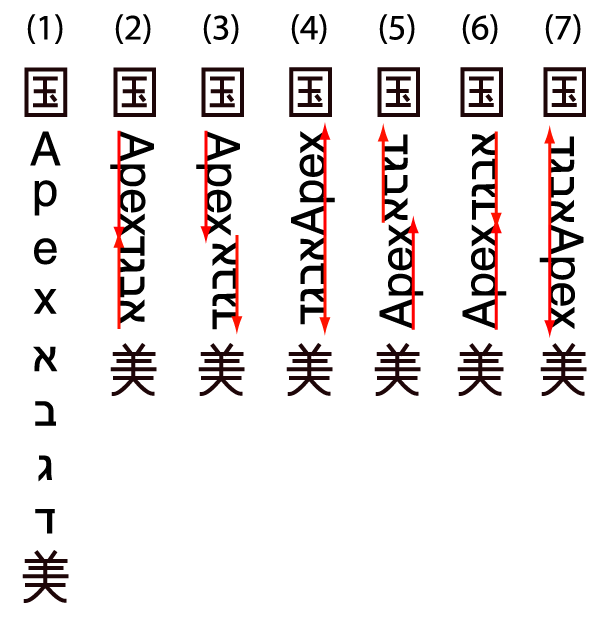

There are some scripts, in particular in the Far East, that are
typically set with words proceeding from top-to-bottom and
lines proceeding either from right-to-left (most common) or
from left-to-right. Other directions are also
used. Properties expressed in terms of a fixed,
absolute frame of reference (using top, bottom, left, and right)
and which apply only to a notion of words proceeding from left to right
or right to left do not generalize well to
text written in those scripts.
For this reason XSL (and before it DSSSL) uses a relative frame of
reference for the formatting object and property descriptions. Just as
the CSS2 frame of reference has four directions (top, bottom, left and right),
so does the XSL relative frame of reference have four directions
(before, after, start, and end), but these are relative to the "writing-mode". The
"writing-mode" property is a way of controlling the
directions needed by a formatter to correctly place
glyphs, words, lines, blocks, etc. on the page or screen.

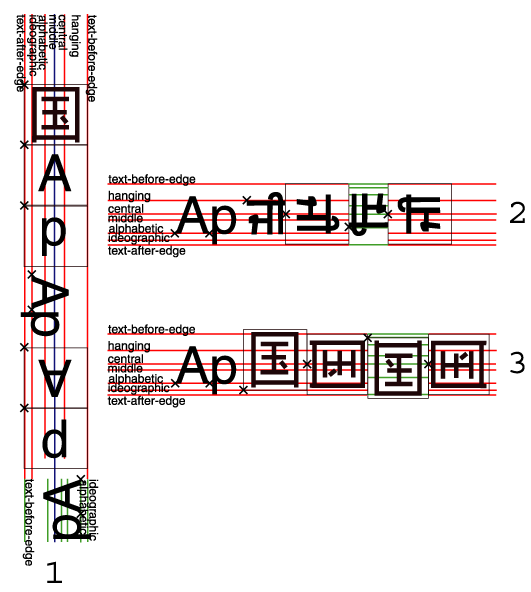

The "writing-mode" expresses the basic directions noted
above. There are writing-modes for "left-to-right - top-to-bottom"
(denoted as "lr-tb"), "right-to-left - top-to-bottom" (denoted as "rl-tb"),
"top-to-bottom - right-to-left" (denoted as "tb-rl") and more. See 7.29.7 writing-mode
for the description of the "writing-mode" property.

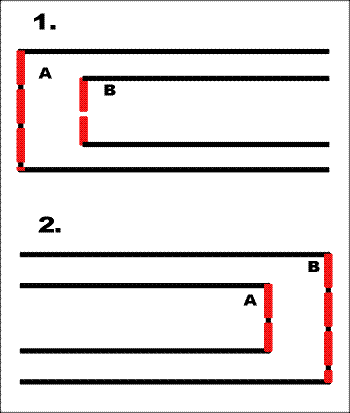

Typically, the writing-mode value specifies two directions:
the first is the inline-progression-direction which determines
the direction in which words will
be placed and the second is the block-progression-direction
which determines the direction in which blocks (and lines)
are placed one after another.

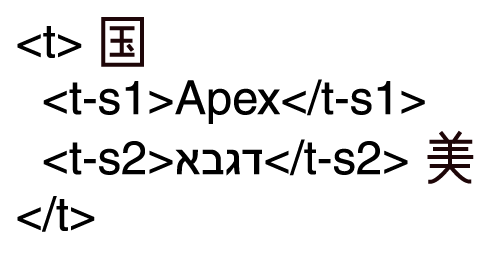

In addition, the inline-progression-direction
for a sequence of characters may be implicitly determined using
bidirectional character types for those characters from the
Unicode Character Database [UNICODE Character Database]
for those characters and the Unicode bidirectional (BIDI) algorithm [UNICODE UAX #9].
Besides the directions that are explicit in the name of the
value of the "writing-mode" property, the writing-mode determines
other directions needed by the formatter, such as the
shift-direction (used for subscripts and superscripts), etc.
1.2.6 Linking
Because XML, unlike HTML, has no built-in semantics,
there is no built-in notion of a hypertext link.
In this context, "link" refers
to "hypertext link" as defined in
http://www.w3.org/TR/html401/struct/links.html#h-12.1
as well as some of the aspects of "link" as defined in
http://www.w3.org/TR/xlink/#intro,
where "link is a relationship between two or more resources or
portions of resources, made explicit by an XLink linking element".
Therefore,
XSL has a formatting object that expresses the dual semantics of
formatting the content of the link reference and the
semantics of following the link.
XSL provides a few mechanisms for changing the presentation
of a link target that is being visited. One of these mechanisms
permits indicating the link target as such;
another allows for control over the placement of the link
target in the viewing area; still another permits some degree of
control over the way the link target is displayed in relationship
to the originating link anchor.
XSL also provides a general mechanism for changing the way elements
are formatted depending on their active state. This is particularly
useful in relation to links, to indicate whether a given link
reference has already been visited, or to apply a given style
depending on whether the mouse, for instance, is hovering over
the link reference or not.
