XForms for HTML Authors, Part 2

Steven Pemberton, W3C/CWI

Version date: 2009-06-08

Introduction

This is the second part of XForms for HTML Authors. Part 1 introduced mostly features that have some equivalent with features from HTML. This part introduces completely new concepts that have no HTML equivalent.

Table of Contents

Events and actions

XForms uses XML Events for handling events: this is a more flexible way of doing the onclick style of event handling used in HTML. The important thing to know about XML Events is that it uses exactly the same event mechanism as HTML, only written differently.

Consider this simple HTML example:

<button name="OK" onclick="alert("You clicked me!"); return true;">

This says that if the <button> element (or any of its children) gets the click event, then the piece of code in the onclick attribute is performed.

We say "or any of its children" because in a case like

<a href="..." onclick="...">A <em>very</em> nice place to go</a>

or

<a href="..." onclick="..."><strong>More</strong></a>

you want the onclick to be performed even if the click actually happens on the <em> or <strong> elements. In these cases we call the element that was clicked on the target, and the element that responds to the event an observer (though target and observer are often the same element).

So what you see is that there are three important things involved: an event, an observer, and a piece of script (called a handler). As you can see from the above, we usually aren't worried about which element was the target.

There are some problems with the way HTML specifies the relationship between the three:

XML Events specifies the relationship between the event, observer and handler in a different way. The equivalent to:

<button name="OK" onclick="alert("You clicked me!"); return true;">

in XForms would be:

<trigger>
   <label>OK</label>
   <message level="modal" ev:event="DOMActivate">You clicked me!</message>
</trigger>

This says that the <message> element is a handler for the DOMActivate event (which is used in preference to click, because triggers can be activated in different ways, not just by clicks), and in the absence of any other information, the parent element is the observer (<trigger> in this case). Note that elements that have ev: attributes are evaluated only when the event happens, and not when the document is loading, as <script> is in HTML.

Note that the event attribute has a prefix ev: for the XML Events namespace; this means that you have to have a declaration for the prefix somewhere suitable in your document: xmlns:ev="http://www.w3.org/2001/xml-events".

You can catch more than one event by having more handlers for an element:

<trigger>
   <label>OK</label>
   <message level="modal" ev:event="DOMActivate">You clicked me!</message>
   <message level="modal" ev:event="DOMFocusIn">You focused on me!</message>
</trigger>

If you need to do more than one action for an event, you can enclose them in an <action> element:

<trigger>
   <label>Restore limits</label>
   <action ev:event="DOMActivate">
       <setvalue ref="min" value="0"/>
       <setvalue ref="max" value="100"/>
   </action>
</trigger>

(In case you didn't guess, setvalue sets a value in an instance)

We'll be seeing more actions later on.

All of XForms processing, from the initial loading of the instance, to the submission, is based on events; you can listen to almost every part of the processing model; see the XForms Events Overview for details. Most examples here use DOMActivate.

For more details of XML Events, see XML Events for HTML Authors.

Switch

The switch element allows you to expose and hide different parts of the user interface, for example to give wizard-like behavior. Here is an example that first asks for name, city, and email address, and then asks for favorite food, drink and music.

Example switch Example switch

By default the first case is selected first; the <toggle> action causes another case to be selected:

<switch>
   <case id="start">
      <group>
         <label>About you</label>
         <input ref="name"><label>Name:</label></input>
         <input ref="city"><label>City:</label></input>
         <input ref="email"><label>Email:</label></input>
      </group>
      <trigger>
         <label>Next</label>
         <toggle case="preferences" ev:event="DOMActivate"/>
      </trigger>
   </case>

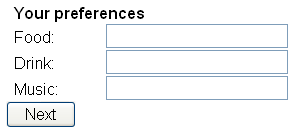

   <case id="preferences">
      <group>
         <label>Your preferences</label>
         <input ref="food"><label>Food:</label></input>
         <input ref="drink"><label>Drink:</label></input>
         <input ref="music"><label>Music:</label></input>
      </group>
      <trigger>
         <label>Next</label>
         <toggle case="history" ev:event="DOMActivate"/>
      </trigger>
   </case>
   <case id="history">
      ...
   </case>
   ...
</switch>

Adding a back button is trivial:

Switch with back button

<switch>
   <case id="start">
      ...
   </case>
   <case id="preferences">
      <group>
         <label>Your preferences</label>
         <input ref="food"><label>Food:</label></input>
         <input ref="drink"><label>Drink:</label></input>
         <input ref="music"><label>Music:</label></input>
      </group>
      <trigger>
         <label>Back</label>
         <toggle case="start" ev:event="DOMActivate"/>
      </trigger>
      <trigger>
         <label>Next</label>
         <toggle ev:event="DOMActivate" case="history"/>
      </trigger>
   </case>
   <case id="history">
      ...
   </case>
   ...
</switch>

You can use it for simple/advanced views:

simple/advance switch Advanced switch

<switch>
   <case id="simple">
      <input ref="to"><label>To:</label></input>
      <input ref="subject"><label>Subject:</label></input>
      <trigger>
         <label>Advanced &gt;&gt;&gt;</label>
        <toggle case="advanced" ev:event="DOMActivate"/>
     </trigger>
   </case>
   <case id="advanced">
      <input ref="to"><label>To:</label></input>
      <input ref="subject"><label>Subject:</label></input>
      <input ref="cc"><label>Cc:</label></input>
      <input ref="bcc"><label>Bcc:</label></input>
      <trigger>
         <label>&lt;&lt;&lt; Simple</label>
         <toggle case="simple" ev:event="DOMActivate"/>
      </trigger>
   </case>

You can use it for display/edit interactions:

Show switch

Edit switch

<switch>
   <case id="show">
      <output ref="name"><label>Name:</label></output>
      <output ref="city"><label>City:</label></output>
      <output ref="email"><label>Email:</label></output>
      <trigger>
         <label>Edit</label>
         <toggle case="edit" ev:event="DOMActivate"/>
      </trigger>
   </case>

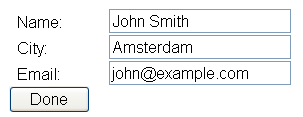

   <case id="edit">
      <input ref="name"><label>Name:</label></input>
      <input ref="city"><label>City:</label></input>
      <input ref="email"><label>Email:</label></input>
      <trigger>
         <label>Done</label>
         <toggle case="show" ev:event="DOMActivate"/>
      </trigger>
   </case>
</switch>

As another example, consider the bank name and address example from part 1. Here we can split it so that the prefill part is one case:

Bank account number input

When the account number has been filled in, pressing Find causes it to be submitted and the next case to be displayed. There you see

Bank account address edit

<switch>
   <case id="start">
      <input ref="accountnumber"><label>Account</label></input>
      <trigger>
         <label>Find</label>
         <action ev:event="DOMActivate">
            <send submission="prefill"/>
            <toggle case="show"/>
         </action>
      </trigger>
   </case>
   <case id="show">
      <output ref="accountnumber"><label>Account: </label></output>
      <input ref="name"><label>Name; </label></input>
      <textarea ref="address"><label>Address</label></textarea>
      <trigger>
         <label>Submit</label>
         <action ev:event="DOMActivate">
            <send submission="change"/>
            <toggle case="start"/>
            <setvalue ref="accountnumber"/>
         </action>
      </trigger>
      <trigger>
         <label>Cancel</label>
         <action ev:event="DOMActivate">
            <toggle case="start"/>
            <setvalue ref="accountnumber"/>
         </action>
      </trigger>
   </case>
</switch>

In fact this is slightly too simplistic, since you shouldn't really toggle to the start case until you know that the submission has been successful. To do this right, you should only submit, and then wait for the signal that the submission was successful. We can fix this by replacing the Submit trigger above with the following:

<submit submission="change">
    <label>Submit</label>
    <action ev:event="xforms-submit-done" ev:observer="change">
        <toggle case="start"/>
        <setvalue ref="accountnumber"/>
    </action>
</submit>

Note that the xforms-submit-done event is sent to the submission element, so in this case the observer is not the submit control, and has been explicitely set to the submission element.

Repeat

Repeat can be used for shopping-cart like behavior where items can be added and deleted. The essence of a repeat is that it binds to a repeating element in an instance.

For example, a simple to-do application:

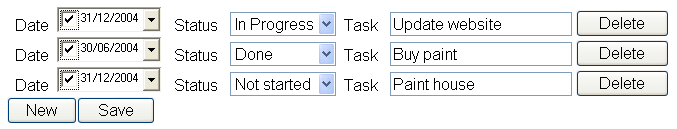

A to-do application

The instance in this case consists of a number of to-do items, where each item consists of a task name, a status, and a date (these are not XForms elements, but elements in the instance that we want to change using XForms controls):

<items>
   <todo>
      <task>Update website</task>
      <status>started</status>
      <date>2004-12-31</date>
   </todo>
   <todo>
      ...
   </todo>
   ...
</items>

Firstly to define the model. We get the initial values from a file, and add a submission that allows you to save the instance back to the same file, and we bind the type of the date field:

<model>
   <instance src="todo-list.xml"/>
   <submission id="save" method="put" action="todo-list.xml" replace="none"/>
   <bind nodeset="todo/date" type="xsd:date"/>
</model>

In the body, we can bind controls to this structure in the following way:

<repeat nodeset="todo">
   <input ref="date"><label>Date</label></input>
   <select1 ref="status" selection="open">
      <label>Status</label>
      <item><label>Not started</label><value>unstarted</value></item>
      <item><label>In Progress</label><value>started</value></item>
      <item><label>Done</label><value>finished</value></item>
   </select1>
   <input ref="task"><label>Task</label></input>
</repeat>

This binds to existing to-do items, and lets you edit them. Note the selection="open" on the select1. This means that the possible values are not restricted to just those displayed.

Adding items in a repeat

To add items, you use the insert action. The following trigger inserts a new element before (position="before") the first item in the to-do list (at="1"):

<trigger>
   <label>New</label>
   <insert nodeset="todo" position="before" at="1" ev:event="DOMActivate"/>
</trigger>

To add an item at the end you insert it after (position="after") the last item (at="count(todo)"):

<insert nodeset="todo" position="after" at="count(todo)" ev:event="DOMActivate"/>

The current item

Each repeat has an index associated with it that indicates the 'current item' in that repeat. It is initially 1, but if you use a control in a repeat, the index gets set to that row. You can also set it explicitely with a <setindex/> action. You can make the current row visible by styling it with the CSS ::repeat-index selector (see the later section on styling):

<style type="text/css">
      ...
   ::repeat-index {background-color: yellow}
      ...
</style>

If a repeat element has an id, then you can access its index with the function index using the id value to identify the repeat. So using that you can add elements to a repeating set relative to the current element as well as at the beginning and end. If we add an id to the repeat above:

<repeat nodeset="todo" id="todo-repeat">

we can then insert a new item after (position="after") the current position (at="index('to-do-repeat')") with:

<insert nodeset="todo" position="after" at="index('todo-repeat')" ev:event="DOMActivate"/>

Initializing inserted items

Since any new item is initialized from the last item in the initial data, you will probably want to copy values into any new element inserted in a list. So instead of just an insert, we bundle all the actions in an <action> element, and we set each value with a setvalue action:

<trigger>
   <label>New</label>
   <action ev:event="DOMActivate">
      <insert nodeset="todo" position="after" at="count(todo)"/>
      <setvalue ref="todo[last()]/status">unstarted</setvalue>
      <setvalue ref="todo[last()]/task"/>
      <setvalue ref="todo[last()]/date" value="substring-before(now(), 'T')"/>
   </action>
</trigger>

The first setvalue just sets the status of the inserted item to the string "unstarted"; the second sets its task to the empty string, and the third calculates today's date. The function now() returns a date and time string like 2005-11-26T09:19:33+1:00 (this is a standard format described by ISO) which consists of the date, the letter T, the local time (on your computer) and then the offset of the local time from the universal timezone UTC (+ or - some number of hours and minutes, or Z if you are in the UTC time zone). So the substring-before expression just returns all the text before the letter T, i.e. today's date.

Deleting items in a repeat

To delete an item, you can use this, for example next to the 'new' button:

<trigger>
   <label>Delete</label>
   <delete nodeset="todo" at="index('todo-repeat')" ev:event="DOMActivate"/>
</trigger>

However, the best place to include it is in the repeat, so you get one delete button per item (as in the screen-shot above), making it obvious which item is being deleted (since the repeat current item gets set to the row the button is in when you press it). Since within the repeat the context has already been set to the item set, you use nodeset=".":

<repeat nodeset="todo" id="todo-repeat">
   <input ref="date"><label>Date</label></input>
   <select1 ref="status" selection="open">
      <label>Status</label>
      <item><label>Not started</label><value>unstarted</value></item>
      <item><label>In Progress</label><value>started</value></item>
      <item><label>Done</label><value>finished</value></item>
   </select1>
   <input ref="task"><label>Task</label></input>
   <trigger>
      <label>Delete</label>
      <delete ev:event="DOMActivate" nodeset="." at="index('todo-repeat')" />
   </trigger>
</repeat>

Finally of course you need the button to save the result:

<submit submission="save"><label>Save</label></submit>

Getting User Interface values from the model

In all examples up to now, user interface text such as labels have been text directly in the controls. However, XForms allows you to include such text from instance values as well.

These techniques often require the use of more than one instance. This is easy, since you can have as many instances as you want in a model:

<model>
    <instance><data xmlns=""><a/><b/><c/><lang/></data></instance>
    <instance id="languages"><items xmlns=""><written/><spoken/>...</items></instance>
    <instance id="currencies" src="currencies.xml"/>
    ...
</model>

To identify which instance you mean, you use the instance function:

<input ref="instance('languages')/written">...
<output ref="instance('currencies')/eur">...

The first instance in a model is the default, and 'unadorned' references always refer to that:

<input ref="a">...

The most obvious example of wanting to get values from an instance is for a select or select1. For example, suppose you want to offer a choice of languages in a select1:

<select1 ref="lang">
    <label>Language:</label>
    <item><label>English</label><value>en</value></item>
    <item><label>Fran├žais</label><value>fr</value></item>
    <item><label>Deutsch</label><value>de</value></item>
</select1>

but later discover you want to add another language not only to this form but also to several others that offer the same choice. Better then to put the choices in a single file, and then load that into an instance, and refer to that instead:

<instance id="languages" src="languages.xml"/>

where languages.xml contains something like this:

<languages>
    <language><name>English</name><code>en</code></language>
    <language><name>Fran├žais</name><code>fr</code></language>
    <language><name>Deutsch</name><code>de</code></language>
</languages>

Then you can rewrite the select1 to use this instance, using <itemset> instead of a sequence of <item>s:

<select1 ref="lang">
    <label>Language:</label>
    <itemset nodeset="instance('languages')/language">
        <label ref="name"/>
        <value ref="code"/>
    </itemset>
</select1>

Then any time you want to add a new language, you only have to edit the languages.xml file (with an XForm using repeat of course!) and all forms using it will be updated with the new value.

In the same way, the text for any <label> can be got from an instance as well:

<label ref="instance('labels')/name" />

using an instance like this:

<labels>
   <name>Name:</name>
   <age>Age:</age>
   ...
</labels>

which makes localization very easy.

Although you could use HTTP language negotiation to load the correct language version of the labels for you, you could also make it a user choice, for example like this:

<model>
    <instance id="labels" src="labels.xml"/>
    <submission id="en" action="labels-en.xml" replace="instance" method="get"/>
    <submission id="nl" action="labels-nl.xml" replace="instance" method="get"/>
</model>
 ...
<submit submission="en"><label>English</label></submission>
<submit submission="nl"><label>Nederlands</label></submission>

Another option is to have all the messages for all the languages in one place. The format could be any one of a number, for example first one message in each language, then the next message in each language, and so on:

<messages>
   <message name="name">
      <language code="en">Name:</lang>
      <language code="nl">Naam:</lang>
      <language code="fr">Nom:</lang>
      ...
   </message>
   <message name="age">
      ...
</messages

or first all messages for one language, then all the messages for the next language:

<translations>
   <language code="en>
      <message name="name">Name:</message>
      <message name="age">Age:</message>
      ...
   </language>
   <language code="nl">
      <message name="name">Naam:</message>
      <message name="age">Leeftijd:</message>
      ...

</translations>

Then the user can select the user interface language of the form:

<select1 ref="instance('choices')/lang">
<item><label>English</label><value>en</value></item>
<item><label>Nederlands</label><value>nl</value></item>
 ...
</select1>

and labels can be selected on the basis of this choice, either this for the languages within messages form:

<label ref="instance('messages')/message[@name='age']/language[@code=instance('choices')/lang]"/>

or this for the messages within languages form:

<label ref="instance('translations')/language[@code=instance('choices')/lang]/message[@name='age']"/>

Selecting values that contain spaces

You will have noticed in the introduction to the <select> element in XForms that the values of the selected items are all packed into a string. For example

<select ref="colors">
   <label>Colors</label>
   <item><label>Red</label><value>red</value></item>
   <item><label>Green</label><value>green</value></item>
   <item><label>Blue</label><value>blue</value></item>
</select>

would leave a value like "red green blue" in the value colors.

This has two downsides: firstly it is very un-XML like, since it is essentially packing several values into a single string, forcing you to unpack it later. Secondly it means that you can't include values that contain a space: you can't select from a list of cities like New York, San Francisco, Las Vegas.

The reason that the basic form is like this is because it is what HTML Forms do, and XForms needs to be able to talk to servers that expect data in the HTML Forms style.

However, XForms also allows you to select on structured data, which does allow you to have spaces in the data.

For example, suppose we want to select from a set of cities, and return data like:

<instance>
   <country xmlns="">
      <name>USA</name>
      <visited>
         <city>Las Vegas</city>
         <city>New York</city>
         <city>San Francisco</city>
      </visited>
   </country>
</instance>

To do this, we need an instance to hold the city values we wish to use:

<instance id="places">
   <cities xmlns="">
         <city>Atlanta</city>
         <city>Boston</city>
         <city>Las Vegas</city>
         <city>New Orleans</city>
         <city>New York</city>
         <city>San Francisco</city>
   </cities>
</instance>

and then refer to that with the following select. Note that we now use itemset instead of item, since we are getting the values from an instance, and we use copy instead of value because we are copying a whole structure (such as <city>New York</city>, and not just a value such as "New York":

<select ref="visited">
   <label>Cities visited</label>
   <itemset nodeset="instance('places')/city">
      <label ref="."/>
      <copy ref="."/>
   </itemset>
</select>

Help, Hint and Alert

All controls with the exception of <output> can also have <help>, <hint> and <alert> elements as well as a <label> element. These are to give extra information to the user for different purposes:

<input ref="code">
   <label>Security code</label>
   <hint>The 3 or 4 digit number on the back or front of your card</hint>
   <help>This is a three or four digit security code that is usually either
         on the front of your card just above and to the right of your
         credit card number, or the last three digits of the number printed
         on the signature space on the back of the card.</help>
   <alert>Must be three or four digits.</alert>
</input>

Defining your own types

This is not the place for a tutorial on XML Schema, but suffice to say that if you already have a schema defining some data types, then all you have to do to use it in your XForms is to refer to it from the model element:

<model schema="http://www.example.com/schemas/types.xsd">
   ...

or you can include a schema directly in the body of the model element:

<model>
    <instance>...</instance>
    <xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema">...</xsd:schema>
    ...
</model>

Of all the facilities that XML Schema provides for defining data types, XForms has equivalents for them all with one exception: patterns. These define, using regular expressions, the pattern that a value must conform to. For example, here is a new simpleType called curse, that is a restriction on the base type string:

<model>
   <instance><data xmlns=""><flw/></data></instance>
   <schema xmlns="http://www.w3.org/2001/XMLSchema">
      <simpleType name="curse">
         <restriction base="xsd:string">
            <pattern value="[a-z][a-z][a-z][a-z]"/>
         </restriction>
      </simpleType>
   </schema>
   <bind nodeset="flw" type="curse" />
   ...
</model>

Bear in mind that support for XML Schema is optional in an XForms user agent (without Schema it is then called XForms Basic), though almost all user agents do support the use of Schema.

Privacy related values

Forms are often used to collect data that are privacy-related, such as name, address, birthdate, and so on.

XForms has a way of allowing you to document which values are privacy related by using a set of datatypes from a specification called P3P.

To use these you can use a binding for p3ptype:

<bind nodeset="surname" p3ptype="user.name.family"/>
<bind nodeset="tel" p3ptype="user.home-info.telecom.telephone"/>

Apart from documenting the use of privacy-related values, this also gives the opportunity for user agents to prefill such values for you, and to warn you about their use.

Styling

XForms elements are styled using CSS. The only thing that you have to watch out for is that different implementations use different levels of CSS, so that sometimes you have to repeat some styling rules.

The main problem is with CSS1 and 2, which don't know about namespaces, so that if you have written your XForms elements using prefixes such as

<xf:label>Age:</xf:label>

then you have to write your CSS selectors including the same namespace prefix:

xf\:label {background-color: yellow}

However, a CSS3 and higher stylesheet doesn't need the prefix, and so (assuming there are no <label> elements from other namespaces in your document), you can just write:

label {background-color: yellow}

There are some special selectors in CSS3 for addressing particular dynamic cases of XForms use, and many implementations already support them. In particular, you will see:

Implementations that only support CSS1 or 2 often implement these as special values of the 'class' attribute. For example:

input.invalid {border: thin red solid}

and you should check in your implementation documentation which get used. However, implementors have recently agreed to coordinate these values, so that they will all use the same names. The agreement is to start class names representing pseudo-classes with "-pc-" and then the name of the class, and for pseudo-elements "-pe-" and then the element name. For example:

input.-pc-invalid {border: thin red solid}
 .-pe-repeat-item {background-color: yellow}

Some techniques

Page counts

The traditional technique to display how many people have visited a page is to keep a count of the number of hits, and when the page is requested to generate an image for that number, which then gets displayed in the page. An image of several thousands of bytes is of course a rather inefficient way of transferring about half a dozen bytes of information .

With XForms it is much simpler. You just keep a file with a count of the number of hits:

<n>56356</n>

import it into an instance:

<instance src="hits.xml"/>

and display the number of hits with an <output>:

<output ref="/n"><label>Number of hits:</label></output>

Initializing instance values

When you use a bind for a value, like:

<bind nodeset="today" calculate="substring-before(now(), 'T')"/>

then the value 'today' will be set invariantly to that value: you can never change it. However, if you just want to initialise a value when the form gets loaded, and let the user change it, then you can use a setvalue action, listening for the event xforms-ready, which gets sent to the model element:

<model>
   <instance>
      <data xmlns="">
         <date/>
         ...
      </data>
   </instance>
   <action ev:event="xforms-ready">
      <setvalue ref="date" value="substring-before(now(), 'T')"/>
      ...
   </action>
</model

Trigger styling

Althought not defined as such in the XForms specification, an emerging practice amongst implementations is to style <trigger appearance="minimal"> as text instead of as a button. So for example instead of using the show/edit style of <switch> above, you can make each individual field switchable:

<switch>
   <case id="showName">
      <trigger appearance="minimal">
         <label ref="name"/>
         <toggle case="editName" ev:event="DOMActivate"/>
      </trigger>
   </case>
   <case id="editName">
      <input ref="name">
          <label>Name:</label>
          <toggle case="showName" ev:event="DOMFocusOut"/>
      </input>
   </case>
</switch>

Note the use of DOMFocusOut to revert to the displayed value: when you finish editing the value and exit the field, the view reverts.

Tabbed browsing

<switch> allows you to present a tabbed interface to data. First you have your triggers to select a pane, and then the switch for the different panes. The rest is styling:

<trigger id="togglehome" appearance="minimal">
    <label>Home</label>
    <toggle case="home" ev:event="DOMActivate"/>
</trigger>
<trigger id="toggleproducts" appearance="minimal">
    <label>Products</label>
    <toggle case="products" ev:event="DOMActivate"/>
</trigger>
<trigger id="togglesupport" appearance="minimal">
    <label>Support</label>
    <toggle case="support" ev:event="DOMActivate"/>
</trigger>
<trigger id="togglecontact" appearance="minimal">
    <label>Contact</label>
    <toggle case="contact" ev:event="DOMActivate"/>
</trigger>
<switch>
    <case id="home">
        <h1>Home</h1>
        ...
    </case>
    <case id="products">
        <h1>Products</h1>
        ...
    </case>
    <case id="support">
        <h1>Support</h1>
        ...
    </case>
    <case id="contact">
        <h1>Contact</h1>
        ...
    </case>
</switch>

A tabbed page

Model-based switching

Although using <switch> is useful for exposing and hiding parts of the interface, sometimes it is useful to be able to affect the display on the basis of values in the instance. With CSS-based implementations, you can do this using a technique called 'model-based switching'.

The essence of the idea is to bind a <group> to a value that can be made relevant or not, and to hide irrelevant groups:

<group ref="...">
   ...
</group>

and in the CSS:

group:disabled {display: none}

So for example, we don't want to ask questions about someone's husband or wife if they are not married:

<instance>
   <details xmlns="">
      <name/>
      <age/>
      <maritalstatus/>
      <spouse>
         <name/>
         <age/>
         ...
      </spouse>
   </details>
</instance>
<bind nodeset="spouse" relevant="../maritalstatus='m'" />
 ...
<select1 ref="maritalstatus">
   <label>Marital status</label>
   <item><label>Single</label><value>s</value></item>
   <item><label>Married</label><value>m</value></item>
   <item><label>Widowed</label><value>w</value></item>
   <item><label>Divorced</label><value>d</value></item>
</select1>
 ...
<group ref="spouse">
   <label>Spouse</label>
   <input ref="name"><label>Name</label></input>
   ...
</group>

Using this technique, you can use a trigger to change a value that causes some controls to become available. Here, the value called toggle is used to control which cases are visible. It is initially 1, and so initially the value case[1] is relevant. A trigger causes toggle to be set to 2, making the next case relevant:

<instance id="control">
   <cases xmlns="">
      <toggle>1</toggle>
      <case>1</case>
      <case>2</case>
      <case>3</case>
      <case>4</case>
   </cases>
</instance>
<bind nodeset="instance('control')/case" relevant=". = ../toggle"/>
 ...
<group ref="instance('control')/case[1]">
   <input ...>
   ...
   <trigger>
      <label>Next</label>
      <setvalue ref="instance('control')/toggle" value="2" ev:event="DOMActivate"/>
   </trigger>
</group><group ref="instance('control')/case[2]">
   ...
   <trigger>
      <label>Next</label>
      <setvalue ref="instance('control')/toggle" value="3" ev:event="DOMActivate"/>
   </trigger>
</group>
 ...

Master/detail views 1

There are times when you don't want to look at all the items in a repeating structure, but want to make a selection, or you want to see a summary, and then select items for detailed inspection. This is when you can use master/detail forms. There are several ways to achieve this. Let us take the to-do list example from earlier, and treat it in a different way. In the example above we displayed all the elements from the list. Now we are going to display just one.

To remind you, the to do list looks like this:

<items>
   <todo>
      <task>Update website</task>
      <status>started</status>
      <date>2004-12-31</date>
   </todo>
   <todo>
      ...
   </todo>
   ...
</items>

This is stored in the file todo-list.xml:

<instance id="todo" src="todo-list.xml"/>

However, now we are going to create a second instance to hold a value that indicates which of the items we are looking at:

<instance id="admin">
    <data xmlns="">
        <index>1</index>
    </data>
</instance>

Using this we can look at just one of the to do items:

<group ref="todo[position()=instance('admin')/index]">
    <output ref="date"/> <output ref="status"/> <output ref="task"/>
</group>

This lets us look at just the first item:

A to do item

Now we can add controls to step through the items:

<group ref="todo[position()=instance('admin')/index]">
    <trigger>
        <label>&lt;</label>
         <setvalue ev:event="DOMActivate"
              ref="instance('admin')/index" value=". - 1"/>
    </trigger>
    <output ref="date"/> <output ref="status"/> <output ref="task"/>
    <trigger>
        <label>&gt;</xforms:label>
        <setvalue ev:event="DOMActivate"
             ref="instance('admin')/index" value=". + 1"/>
    </trigger>
</group>

Thanks to this we can step through the items one by one by clicking on the buttons:

Item with buttons

Because of the way that todo[position()=instance('admin')/index] works, if index goes below 1 or above the number of items in the to do list, nothing will be displayed. What we need to do is disable the triggers when they reach the end items. To do this we add two more elements to the admin instance, along with a couple of binds:

<instance id="admin">
    <data xmlns="">
        <index>1</index>
        <notfirst/>
        <notlast/>
    </data>
</instance>
<bind nodeset="instance('admin')/notfirst"
      relevant="../index &gt; 1"/>
<bind nodeset="instance('admin')/notlast"
      relevant="../index &lt; count(instance('todo')/item)"/>

We don't care about the value of the two new elements (they are both empty strings), but we do care when they are relevant. The element notfirst is relevant when index is greater than one, and the element notlast is relevant when index is less than the number of items in the to do list. The reason we want these is to bind the triggers to them:

<group ref="todo[position()=instance('admin')/index]">
    <trigger ref="instance('admin')/notfirst">
        <label>&lt;</label>
        <setvalue ev:event="DOMActivate"
              ref="instance('admin')/index" value=". - 1"/>
    </trigger>
    <output ref="date"/> <output ref="status"/> <output ref="task"/>
    <trigger ref="instance('admin')/notlast">
        <label>&gt;</xforms:label>
        <setvalue ev:event="DOMActivate"
             ref="instance('admin')/index" value=". + 1"/>
    </trigger>
</group>

Then when index is 1, the first trigger will be disabled, since notfirst will not be relevant:

A disabled trigger

and likewise, the second trigger will be disabled at the last item in the to do list.

Now, with this basic structure, you can do what you like with the selected item: edit it, expand it, and so on.

Master/detail views 2

Another approach is to select the task with a select1, and use that to display the relevant item:

Master/detail with select1

To do this we will store the selected task in the admin instance like above:

<instance id="admin">
   <data xmlns=""><selected/></data>
</instance>

The select1 stores the result there, getting the tasks from the to-do data; the label and the value are the same thing:

<select1 ref="instance('admin')/selected">
   <label>What</label>
   <itemset nodeset="instance('todo')/todo">
      <label ref="task"/>
      <value ref="task"/>
   </itemset>
</select1>

We can then use the selected task to display all the details for that item:

<group ref="todo[task=instance('admin')/selected]">
   <output ref="task"/>
   <output ref="status"/>
   <output ref="date"/>
</group>

Note that if there are several to-do items with the same title, this will only show the first one. You can fix this by replacing the group with a repeat:

<repeat nodeset="todo[task=instance('admin')/selected]">
   <output ref="task"/>
   <output ref="status"/>
   <output ref="date"/>
</repeat>

Master/detail views 3

Using more or less the same approach, we can do a master/detail view with a search box. Instead of the select1, we use an input:

<input ref="instance('admin')/selected">
   <label>What</label>
</input>

However, we would like to show all items that match the input, so we use a repeat again:

<repeat nodeset="todo[contains(task,instance('admin')/selected)]">
   <output ref="task"/>
   <output ref="status"/>
   <output ref="date"/>
</repeat>

This selects all todo items where the task string contains the selected string:

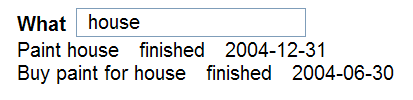

Master/detail with a repeat

If you add incremental="true" to the input, the repeat will even get updated as you type!

<input incremental="true" ref="instance('admin')/selected">
   <label>What</label>
</input>

Note that the search is case sensitive:

Case sensitive search

case sensitive search

This is because the contains function is case sensitive. To do a case-insensitive match, you have to use the XPath translate function:

translate(string, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz')

which returns the string in the first parameter with all the upper-case letters replaced by lower-case. So the contains expression has to be written:

contains(translate(task, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz'),
         translate(selected, 'ABCDEFGHIJKLMNOPQRSTUVWXYZ', 'abcdefghijklmnopqrstuvwxyz'))

case-insensitive search

Master/detail views 4

Finally, let's combine approaches 1 and 2, where you can select a task on the basis of its title, but also step through them one by one with nudge buttons:

Master/detail with select1 and nudge buttons

The data instance remains the same:

<instance id="todo" src="todo-list.xml"/>

The admin instance is more or less the same, with an element for the selected task, but we'll add the two elements for the trigger relevance, as in the first example:

<instance id="admin">
   <data xmlns=""><selected/><notfirst/><notlast/></data>
</instance>

The select1 is exactly the same, but we will add triggers before and after it, one to get the previous item and one to get the next item. For the previous item what we want to do is set the selected string in the admin instance to the task of the previous item:

<trigger>
    <label>&lt;</label>
    <action ev:event="DOMActivate">
        <setvalue
             ref="instance('admin')/selected"
             value="...something here..."/>
    </action>
</trigger>

Now what goes in "...something here..."? We know how to find the to-do item that has the selected task:

todo[task=instance('admin')/selected]

To find the previous to-do item we use preceding-sibling, which returns a list of all the to-do items before the one selected:

todo[task=instance('admin')/selected]/preceding-sibling::todo

and then take the first of these (i.e. the first preceding sibling)

todo[task=instance('admin')/selected]/preceding-sibling::todo[1]

and finally we select the task field of that item:

todo[task=instance('admin')/selected]/preceding-sibling::todo[1]/task

The trigger to find the next item is exactly the same, except you use following-sibling instead of preceding-sibling.

Finally, what should we bind to notfirst and notlast in order to make the triggers irrelevant when they are at the first and last item? Well, the 'previous' trigger is only relevant when there are previous items available:

 <bind
  nodeset="instance('admin')/notfirst"
  relevant="instance('todo')/todo[task=instance('admin')/selected]/preceding-sibling::todo"/>

For notlast, replace preceding-sibling with following-sibling again.

Here it is all put together:

<model>
    <instance id='todo' src="todo.xml" />
    <instance id='admin'>
        <data xmlns="">
            <notfirst/><selected/><notlast/>
        </data>
    </instance>
    <bind nodeset="instance('admin')/notfirst"
          relevant="instance('todo')/todo[task=instance('admin')/selected]/preceding-sibling::todo"/>
    <bind nodeset="instance('admin')/notlast"
          relevant="instance('todo')/todo[task=instance('admin')/selected]/following-sibling::todo"/>
</model>
 ...
<trigger ref="instance('admin')/notfirst">
    <label>&lt;</label>
    <action ev:event="DOMActivate">
        <setvalue
            ref="instance('admin')/selected"
            value="instance('todo')/todo[task=instance('admin')/selected]/preceding-sibling::todo[1]/task"/>
    </action>
</trigger>
<select1 ref="instance('admin')/selected">
    <label>What</label>
    <itemset nodeset="instance('todo')/todo">
       <label ref="task"/>
       <value ref="task"/>
    </itemset>
</select1>
<trigger ref="instance('admin')/notlast">
    <label>&gt;</label>
    <action ev:event="DOMActivate">
        <setvalue
            ref="instance('admin')/selected"
            value="instance('todo')/todo[task=instance('admin')/selected]/following-sibling::todo[1]/task"/>
    </action>
</trigger>
<group ref="todo[task=instance('admin')/selected]">
     <output ref="task"/>
     <output ref="status"/>
     <output ref="date"/>
</group>
