A hand conversion to HTML of the original MacWord (or Word for Mac?) document written in March 1989 and later redistributed unchanged apart from the date added in May 1990. Provided for historical interest only. The diagrams are a bit dotty, but available in versioins linked below. The text has not been changed, even to correct errors such as misnumbered figures or unfinished references.
This document was an attempt to persuade CERN management that a global hypertext system was in CERN's interests. Note that the only name I had for it at this time was "Mesh" -- I decided on "World Wide Web" when writing the code in 1990.
Other versions which are available are:
©Tim Berners-Lee 1989, 1990, 1996, 1998. All rights reserved.
This proposal concerns the management of general information about accelerators and experiments at CERN. It discusses the problems of loss of information about complex evolving systems and derives a solution based on a distributed hypertext system.
Many of the discussions of the future at CERN and the LHC era end with the question - ªYes, but how will we ever keep track of such a large project?º This proposal provides an answer to such questions. Firstly, it discusses the problem of information access at CERN. Then, it introduces the idea of linked information systems, and compares them with less flexible ways of finding information.
It then summarises my short experience with non-linear text systems known as ªhypertextº, describes what CERN needs from such a system, and what industry may provide. Finally, it suggests steps we should take to involve ourselves with hypertext now, so that individually and collectively we may understand what we are creating.
CERN is a wonderful organisation. It involves several thousand people, many of them very creative, all working toward common goals. Although they are nominally organised into a hierarchical management structure,this does not constrain the way people will communicate, and share information, equipment and software across groups.
The actual observed working structure of the organisation is a multiply connected "web" whose interconnections evolve with time. In this environment, a new person arriving, or someone taking on a new task, is normally given a few hints as to who would be useful people to talk to. Information about what facilities exist and how to find out about them travels in the corridor gossip and occasional newsletters, and the details about what is required to be done spread in a similar way. All things considered, the result is remarkably successful, despite occasional misunderstandings and duplicated effort.
A problem, however, is the high turnover of people. When two years is a typical length of stay, information is constantly being lost. The introduction of the new people demands a fair amount of their time and that of others before they have any idea of what goes on. The technical details of past projects are sometimes lost forever, or only recovered after a detective investigation in an emergency. Often, the information has been recorded, it just cannot be found.
If a CERN experiment were a static once-only development, all the information could be written in a big book. As it is, CERN is constantly changing as new ideas are produced, as new technology becomes available, and in order to get around unforeseen technical problems. When a change is necessary, it normally affects only a small part of the organisation. A local reason arises for changing a part of the experiment or detector. At this point, one has to dig around to find out what other parts and people will be affected. Keeping a book up to date becomes impractical, and the structure of the book needs to be constantly revised.
The sort of information we are discussing answers, for example, questions like
The problems of information loss may be particularly acute at CERN, but in this case (as in certain others), CERN is a model in miniature of the rest of world in a few years time. CERN meets now some problems which the rest of the world will have to face soon. In 10 years, there may be many commercial solutions to the problems above, while today we need something to allow us to continue.

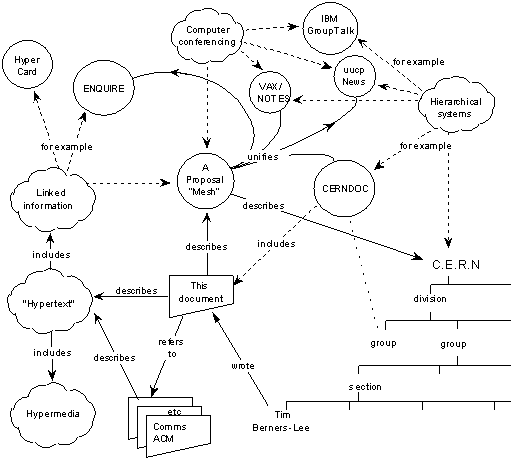

In providing a system for manipulating this sort of information, the hope would be to allow a pool of information to develop which could grow and evolve with the organisation and the projects it describes. For this to be possible, the method of storage must not place its own restraints on the information. This is why a "web" of notes with links (like references) between them is far more useful than a fixed hierarchical system. When describing a complex system, many people resort to diagrams with circles and arrows. Circles and arrows leave one free to describe the interrelationships between things in a way that tables, for example, do not. The system we need is like a diagram of circles and arrows, where circles and arrows can stand for anything.
We can call the circles nodes, and the arrows links. Suppose each node is like a small note, summary article, or comment. I'm not over concerned here with whether it has text or graphics or both. Ideally, it represents or describes one particular person or object. Examples of nodes can be
The arrows which links circle A to circle B can mean, for example, that A...
These circles and arrows, nodes and links, have different significance in various sorts of conventional diagrams:
|Diagram||Nodes are||Arrows mean|
|Family tree||People||"Is parent of"|
|Dataflow diagram||Software modules"||Passes data to"|
|PERT chart||Tasks||"Must be done before"|
|Organisational chart||People||"Reports to"|
The system must allow any sort of information to be entered. Another person must be able to find the information, sometimes without knowing what he is looking for.
In practice, it is useful for the system to be aware of the generic types of the links between items (dependences, for example), and the types of nodes (people, things, documents..) without imposing any limitations.
Many systems are organised hierarchically. The CERNDOC documentation system is an example, as is the Unix file system, and the VMS/HELP system. A tree has the practical advantage of giving every node a unique name. However, it does not allow the system to model the real world. For example, in a hierarchical HELP system such as VMS/HELP, one often gets to a leaf on a tree such as
HELP COMPILER SOURCE_FORMAT PRAGMAS DEFAULTS
only to find a reference to another leaf: "Please see
HELP COMPILER COMMAND OPTIONS DEFAULTS PRAGMAS"
and it is necessary to leave the system and re-enter it. What was needed was a link from one node to another, because in this case the information was not naturally organised into a tree.
Another example of a tree-structured system is the uucp News system (try 'rn' under Unix). This is a hierarchical system of discussions ("newsgroups") each containing articles contributed by many people. It is a very useful method of pooling expertise, but suffers from the inflexibility of a tree. Typically, a discussion under one newsgroup will develop into a different topic, at which point it ought to be in a different part of the tree. (See Fig 1).
From mcvax!uunet!pyrdc!pyrnj!rutgers!bellcore!geppetto!duncan Thu Mar... Article 93 of alt.hypertext: Path: cernvax!mcvax!uunet!pyrdc!pyrnj!rutgers!bellcore!geppetto!duncan >From: email@example.com (Scott Duncan) Newsgroups: alt.hypertext Subject: Re: Threat to free information networks Message-ID: <firstname.lastname@example.org> Date: 10 Mar 89 21:00:44 GMT References: <1784.2416BB47@isishq.FIDONET.ORG> <email@example.com... Sender: firstname.lastname@example.org Reply-To: email@example.com (Scott Duncan) Organization: Computer Technology Transfer, Bellcore Lines: 18 Doug Thompson has written what I felt was a thoughtful article on censorship -- my acceptance or rejection of its points is not particularly germane to this posting, however. In reply Greg Lee has somewhat tersely objected. My question (and reason for this posting) is to ask where we might logically take this subject for more discussion. Somehow alt.hypertext does not seem to be the proper place. Would people feel it appropriate to move to alt.individualism or even one of the soc groups. I am not so much concerned with the specific issue of censorship of rec.humor.funny, but the views presented in Greg's article. Speaking only for myself, of course, I am... Scott P. Duncan (firstname.lastname@example.org OR ...!bellcore!ctt!duncan) (Bellcore, 444 Hoes Lane RRC 1H-210, Piscataway, NJ...) (201-699-3910 (w) 201-463-3683 (h))
The Subject field allows notes on the same topic to be linked together within a "newsgroup". The name of the newsgroup (alt.hypertext) is a hierarchical name. This particular note is expresses a problem with the strict tree structure of the scheme: this discussion is related to several areas. Note that the "References", "From" and "Subject" fields can all be used to generate links.
Keywords are a common method of accessing data for which one does not have the exact coordinates. The usual problem with keywords, however, is that two people never chose the same keywords. The keywords then become useful only to people who already know the application well.
Practical keyword systems (such as that of VAX/NOTES for example) require keywords to be registered. This is already a step in the right direction. A linked system takes this to the next logical step. Keywords can be nodes which stand for a concept. A keyword node is then no different from any other node. One can link documents, etc., to keywords. One can then find keywords by finding any node to which they are related. In this way, documents on similar topics are indirectly linked, through their key concepts. A keyword search then becomes a search starting from a small number of named nodes, and finding nodes which are close to all of them.
It was for these reasons that I first made a small linked information system, not realising that a term had already been coined for the idea: "hypertext".
In 1980, I wrote a program for keeping track of software with which I was involved in the PS control system. Called Enquire, it allowed one to store snippets of information, and to link related pieces together in any way. To find information, one progressed via the links from one sheet to another, rather like in the old computer game "adventure". I used this for my personal record of people and modules. It was similar to the application Hypercard produced more recently by Apple for the Macintosh. A difference was that Enquire, although lacking the fancy graphics, ran on a multiuser system, and allowed many people to access the same data.
Documentation of the RPC project (concept) Most of the documentation is available on VMS, with the two principle manuals being stored in the CERNDOC system. 1) includes: The VAX/NOTES conference VXCERN::RPC 2) includes: Test and Example suite 3) includes: RPC BUG LISTS 4) includes: RPC System: Implementation Guide Information for maintenance, porting, etc. 5) includes: Suggested Development Strategy for RPC Applications 6) includes: "Notes on RPC", Draft 1, 20 feb 86 7) includes: "Notes on Proposed RPC Development" 18 Feb 86 8) includes: RPC User Manual How to build and run a distributed system. 9) includes: Draft Specifications and Implementation Notes 10) includes: The RPC HELP facility 11) describes: THE REMOTE PROCEDURE CALL PROJECT in DD/OC Help Display Select Back Quit Mark Goto_mark Link Add Edit
This example is basically a list, so the list of links is more important than the text on the node itself. Note that each link has a type ("includes" for example) and may also have comment associated with it. (The bottom line is a menu bar.)
Soon after my re-arrival at CERN in the DD division, I found that the environment was similar to that in PS, and I missed Enquire. I therefore produced a version for the VMS, and have used it to keep track of projects, people, groups, experiments, software modules and hardware devices with which I have worked. I have found it personally very useful. I have made no effort to make it suitable for general consumption, but have found that a few people have successfully used it to browse through the projects and find out all sorts of things of their own accord.
Meanwhile, several programs have been made exploring these ideas, both commercially and academically. Most of them use "hot spots" in documents, like icons, or highlighted phrases, as sensitive areas. touching a hot spot with a mouse brings up the relevant information, or expands the text on the screen to include it. Imagine, then, the references in this document, all being associated with the network address of the thing to which they referred, so that while reading this document you could skip to them with a click of the mouse.
"Hypertext" is a term coined in the 1950s by Ted Nelson [...], which has become popular for these systems, although it is used to embrace two different ideas. One idea (which is relevant to this problem) is the concept: "Hypertext": Human-readable information linked together in an unconstrained way.
The other idea, which is independent and largely a question of technology and time, is of multimedia documents which include graphics, speech and video. I will not discuss this latter aspect further here, although I will use the word "Hypermedia" to indicate that one is not bound to text.
It has been difficult to assess the effect of a large hypermedia system on an organisation, often because these systems never had seriously large-scale use. For this reason, we require large amounts of existing information should be accessible using any new information management system.
To be a practical system in the CERN environment, there are a number of clear practical requirements.
CERN is distributed, and access from remote machines is essential.
Access is required to the same data from different types of system (VM/CMS, Macintosh, VAX/VMS, Unix)
Information systems start small and grow. They also start isolated and then merge. A new system must allow existing systems to be linked together without requiring any central control or coordination.
If we provide access to existing databases as though they were in hypertext form, the system will get off the ground quicker. This is discussed further below.
One must be able to add one's own private links to and from public information. One must also be able to annotate links, as well as nodes, privately.
Storage of ASCII text, and display on 24x80 screens, is in the short term sufficient, and essential. Addition of graphics would be an optional extra with very much less penetration for the moment.
An intriguing possibility, given a large hypertext database with typed links, is that it allows some degree of automatic analysis. It is possible to search, for example, for anomalies such as undocumented software or divisions which contain no people. It is possible to generate lists of people or devices for other purposes, such as mailing lists of people to be informed of changes. It is also possible to look at the topology of an organisation or a project, and draw conclusions about how it should be managed, and how it could evolve. This is particularly useful when the database becomes very large, and groups of projects, for example, so interwoven as to make it difficult to see the wood for the trees.
In a complex place like CERN, it's not always obvious how to divide people into groups. Imagine making a large three-dimensional model, with people represented by little spheres, and strings between people who have something in common at work.
Now imagine picking up the structure and shaking it, until you make some sense of the tangle: perhaps, you see tightly knit groups in some places, and in some places weak areas of communication spanned by only a few people. Perhaps a linked information system will allow us to see the real structure of the organisation in which we work.
The data to which a link (or a hot spot) refers may be very static, or it may be temporary. In many cases at CERN information about the state of systems is changing all the time. Hypertext allows documents to be linked into "live" data so that every time the link is followed, the information is retrieved. If one sacrifices portability, it is possible so make following a link fire up a special application, so that diagnostic programs, for example, could be linked directly into the maintenance guide.
Discussions on Hypertext have sometimes tackled the problem of copyright enforcement and data security. These are of secondary importance at CERN, where information exchange is still more important than secrecy. Authorisation and accounting systems for hypertext could conceivably be designed which are very sophisticated, but they are not proposed here.
In cases where reference must be made to data which is in fact protected, existing file protection systems should be sufficient.
The following are three examples of specific places in which the proposed system would be immediately useful. There are many others.
The Remote procedure Call project has a skeleton description using Enquire. Although limited, it is very useful for recording who did what, where they are, what documents exist, etc. Also, one can keep track of users, and can easily append any extra little bits of information which come to hand and have nowhere else to be put. Cross-links to other projects, and to databases which contain information on people and documents would be very useful, and save duplication of information.
The CERNDOC system provides the mechanics of storing and printing documents. A linked system would allow one to browse through concepts, documents, systems and authors, also allowing references between documents to be stored. (Once a document had been found, the existing machinery could be invoked to print it or display it).
Personal skills and experience are just the sort of thing which need hypertext flexibility. People can be linked to projects they have worked on, which in turn can be linked to particular machines, programming languages, etc.
An increasing amount of work is being done into hypermedia research at universities and commercial research labs, and some commercial systems have resulted. There have been two conferences, Hypertext '87 and '88, and in Washington DC, the National Institute of Standards and Technology (NST) hosted a workshop on standardisation in hypertext, a followup of which will occur during 1990.
The Communications of the ACM special issue on Hypertext contains many references to hypertext papers. A bibliography on hypertext is given in [NIST90], and a uucp newsgroup alt.hypertext exists. I do not, therefore, give a list here.
Much of the academic research is into the human interface side of browsing through a complex information space. Problems addressed are those of making navigation easy, and avoiding a feeling of being "lost in hyperspace". Whilst the results of the research are interesting, many users at CERN will be accessing the system using primitive terminals, and so advanced window styles are not so important for us now.
Most systems available today use a single database. This is accessed by many users by using a distributed file system. There are few products which take Ted Nelson's idea of a wide "docuverse" literally by allowing links between nodes in different databases. In order to do this, some standardisation would be necessary. However, at the standardisation workshop, the emphasis was on standardisation of the format for exchangeable media, nor for networking. This is prompted by the strong push toward publishing of hypermedia information, for example on optical disk. There seems to be a general consensus about the abstract data model which a hypertext system should use.
Many systems have been put together with little or no regard for portability, unfortunately. Some others, although published, are proprietary software which is not for external release. However, there are several interesting projects and more are appearing all the time. Digital's "Compound Document Architecture" (CDA) , for example, is a data model which may be extendible into a hypermedia model, and there are rumours that this is a way Digital would like to go.
The US Department of Defence has given a big incentive to hypermedia research by, in effect, specifying hypermedia documentation for future procurement. This means that all manuals for parts for defence equipment must be provided in hypermedia form. The acronym CALS stands for ªComputer-aided Acquisition and Logistic Support).
There is also much support from the publishing industry, and from librarians whose job it is to organise information.
Let us see what components a hypertext system at CERN must have. The only way in which sufficient flexibility can be incorporated is to separate the information storage software from the information display software, with a well defined interface between them. Given the requirement for network access, it is natural to let this clean interface coincide with the physical division between the user and the remote database machine.
This division also is important in order to allow the heterogeneity which is required at CERN (and would be a boon for the world in general).

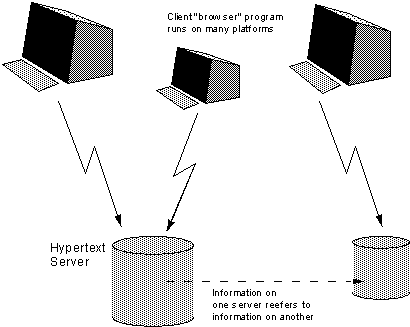

Fig 2. A client/server model for a distributed hypertext system.
Therefore, an important phase in the design of the system is to define this interface. After that, the development of various forms of display program and of database server can proceed in parallel. This will have been done well if many different information sources, past, present and future, can be mapped onto the definition, and if many different human interface programs can be written over the years to take advantage of new technology and standards.
The system must achieve a critical usefulness early on. Existing hypertext systems have had to justify themselves solely on new data. If, however, there was an existing base of data of personnel, for example, to which new data could be linked, the value of each new piece of data would be greater.

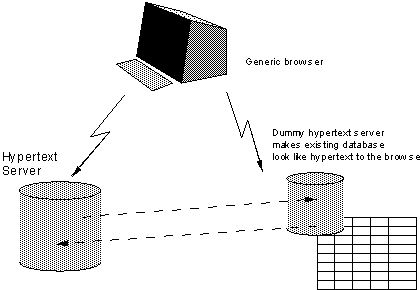

What is required is a gateway program which will map an existing structure onto the hypertext model, and allow limited (perhaps read-only) access to it. This takes the form of a hypertext server written to provide existing information in a form matching the standard interface. One would not imagine the server actually generating a hypertext database from and existing one: rather, it would generate a hypertext view of an existing database.
Some examples of systems which could be connected in this way are
In some cases, writing these servers would mean unscrambling or obtaining details of the existing protocols and/or file formats. It may not be practical to provide the full functionality of the original system through hypertext. In general, it will be more important to allow read access to the general public: it may be that there is a limited number of people who are providing the information, and that they are content to use the existing facilities.
It is sometimes possible to enhance an existing storage system by coding hypertext information in, if one knows that a server will be generating a hypertext representation. In 'news' articles, for example, one could use (in the text) a standard format for a reference to another article. This would be picked out by the hypertext gateway and used to generate a link to that note. This sort of enhancement will allow greater integration between old and new systems.
There will always be a large number of information management systems - we get a lot of added usefulness from being able to cross-link them. However, we will lose out if we try to constrain them, as we will exclude systems and hamper the evolution of hypertext in general.
We should work toward a universal linked information system, in which generality and portability are more important than fancy graphics techniques and complex extra facilities.
The aim would be to allow a place to be found for any information or reference which one felt was important, and a way of finding it afterwards. The result should be sufficiently attractive to use that it the information contained would grow past a critical threshold, so that the usefulness the scheme would in turn encourage its increased use.
The passing of this threshold accelerated by allowing large existing databases to be linked together and with new ones.
Here I suggest the practical steps to go to in order to find a real solution at CERN. After a preliminary discussion of the requirements listed above, a survey of what is available from industry is obviously required. At this stage, we will be looking for a systems which are future-proof:
We may find that with a little adaptation, pars of the system we need can be combined from various sources: for example, a browser from one source with a database from another.
I imagine that two people for 6 to 12 months would be sufficient for this phase of the project.
A second phase would almost certainly involve some programming in order to set up a real system at CERN on many machines. An important part of this, discussed below, is the integration of a hypertext system with existing data, so as to provide a universal system, and to achieve critical usefulness at an early stage.
(... and yes, this would provide an excellent project with which to try our new object oriented programming techniques!) TBL March 1989, May 1990
