animate-elem-203-t

FAIL

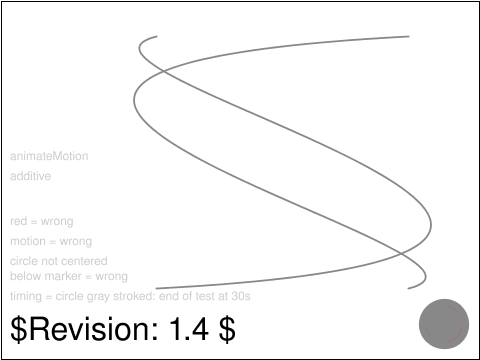

raster image of animate-elem-203-t

Precision test for additive animateMotion using, mpath element, path attribute, values, from-to.

The main indication for a failed test is the appearence of the red fill of the circle. A switch of the stroke of the circle from blue to gray indicates the end of the test at 30s.

A circles is moved along some paths (two of them indicated in gray) with a duration of 30s using additive animateMotion. The superposition is no motion. The circle is positioned always at the bottom right. The colour of the circle switches from blue to gray after the animation is finished. If the red center of the circle becomes visible, an error is occured.
