shapes-line-02-t

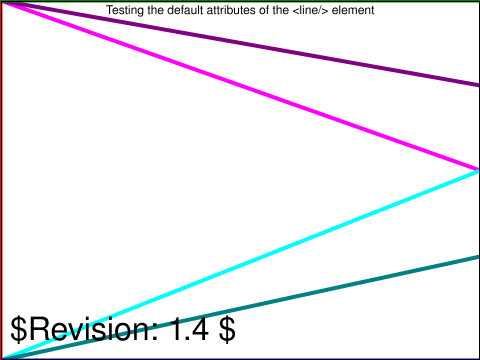

raster image of shapes-line-02-t

For this test to pass the following lines must be drawn: - Green line across the top from 480,0 to 0,0 - Red line across the left hand side from 0,0 to 0,360 - Blue line across the bottom from 480,360 to 0,360 - Purple line across the test from 480,85 to 0,0 - Fuchsia line across the test from 0,0 to 480,170 - Aqua line across the test from 0,360 to 480,170 - Teal line across the test from 480,256 to 0,360

If the x1, x2, y1, or y2 attribute is not specified the effect is as if a value of "0" were specified.

The rendered picture should match the reference image, except for possible variations in the labelling text (per CSS2 rules).
