Should Mirror Operations Be Dropped?

Slide image generated by PowerPoint


David Booth
W3C Fellow / Hewlett-Packard

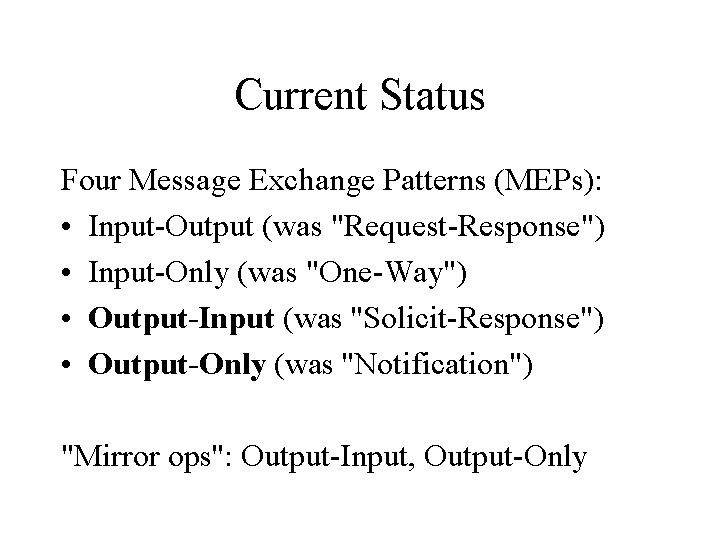

Current Status

Slide image generated by PowerPoint
Four Message Exchange Patterns (MEPs):
Input-Output (was "Request-Response")
Input-Only (was "One-Way")
Output-Input (was "Solicit-Response")
Output-Only (was "Notification")
"Mirror ops": Output-Input, Output-Only

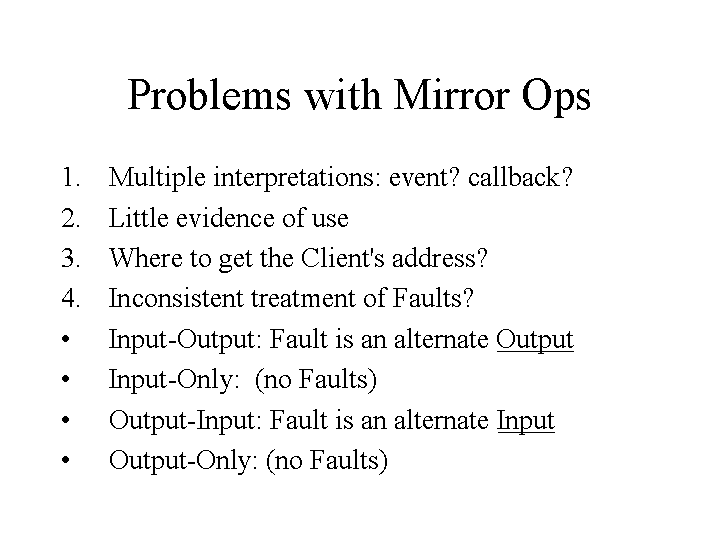

Problems with Mirror Ops

Slide image generated by PowerPoint
Multiple interpretations: event? callback?
Little evidence of use
Where to get the Client's address?
Inconsistent treatment of Faults?
Input-Output: Fault is an alternate Output
Input-Only:  (no Faults)
Output-Input: Fault is an alternate Input
Output-Only: (no Faults)

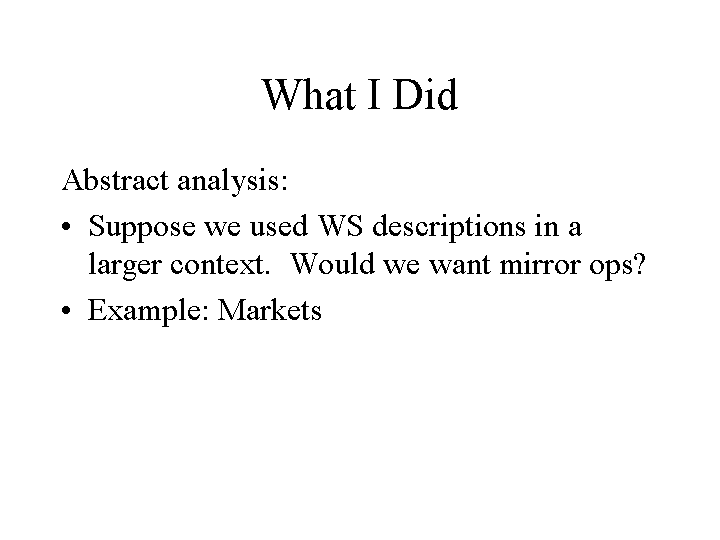

What I Did

Slide image generated by PowerPoint
Abstract analysis:
Suppose we used WS descriptions in a larger context.  Would we want mirror ops?
Example: Markets

Potential Application: Markets

Slide image generated by PowerPoint
Multiple Clients, Multiple Services
Any Client can talk to any Service (of the same type)

Markets

Slide image generated by PowerPoint

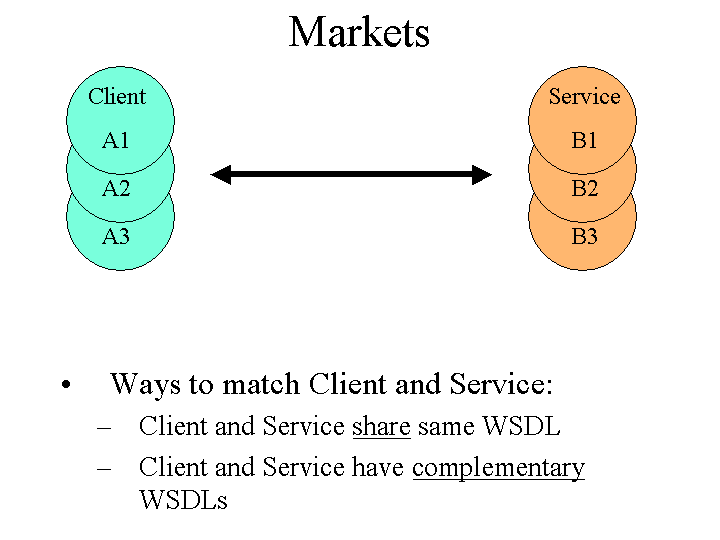

Ways to match Client and Service:
Client and Service share same WSDL
Client and Service have complementary WSDLs

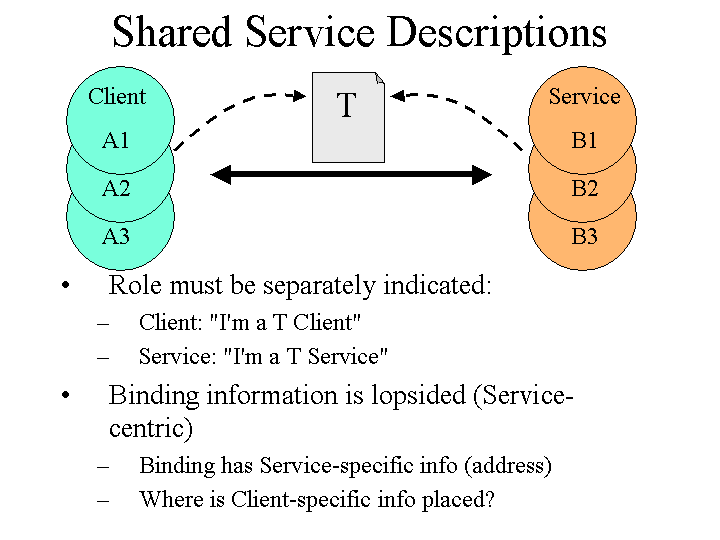

Shared Service Descriptions

Slide image generated by PowerPoint
Role must be separately indicated:
Client: "I'm a T Client"
Service: "I'm a T Service"
Binding information is lopsided (Service-centric)
Binding has Service-specific info (address)
Where is Client-specific info placed?

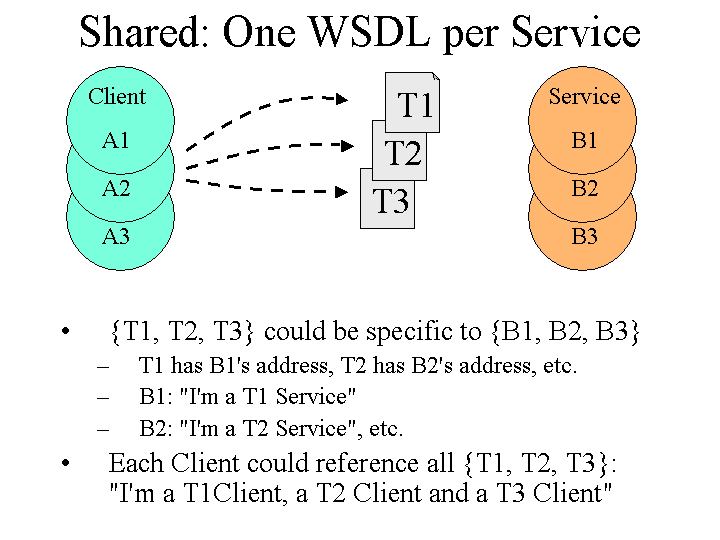

Shared: One WSDL per Service

Slide image generated by PowerPoint
{T1, T2, T3} could be specific to {B1, B2, B3}
T1 has B1's address, T2 has B2's address, etc.
B1: "I'm a T1 Service"
B2: "I'm a T2 Service", etc.
Each Client could reference all {T1, T2, T3}:
"I'm a T1Client, a T2 Client and a T3 Client"

Shared: Referencing a Common T

Slide image generated by PowerPoint
{T1, T2, T3} could reference generic T
T1 has B1's address, T2 has B2's address, etc.
B1: "I'm a T1"
T is Service-centric, but not identity-centric (I.e., no address)
Client could reference generic T:
"I'm a T Client"

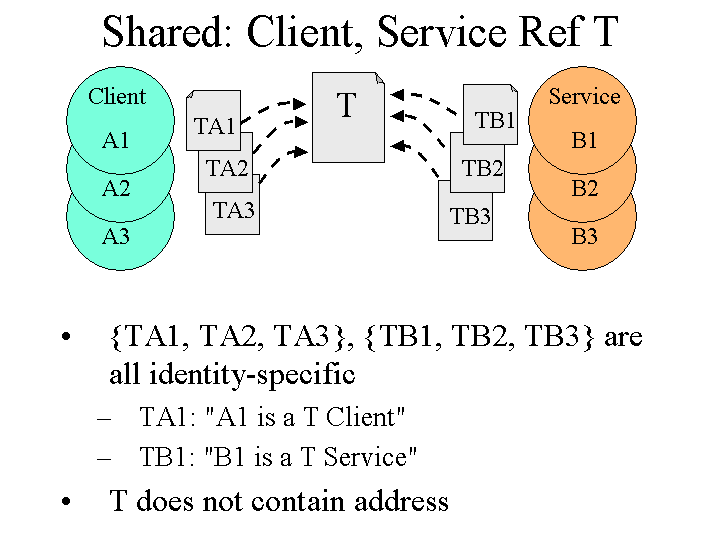

Shared: Client, Service Ref T

Slide image generated by PowerPoint
{TA1, TA2, TA3}, {TB1, TB2, TB3} are all identity-specific
TA1: "A1 is a T Client"
TB1: "B1 is a T Service"
T does not contain address

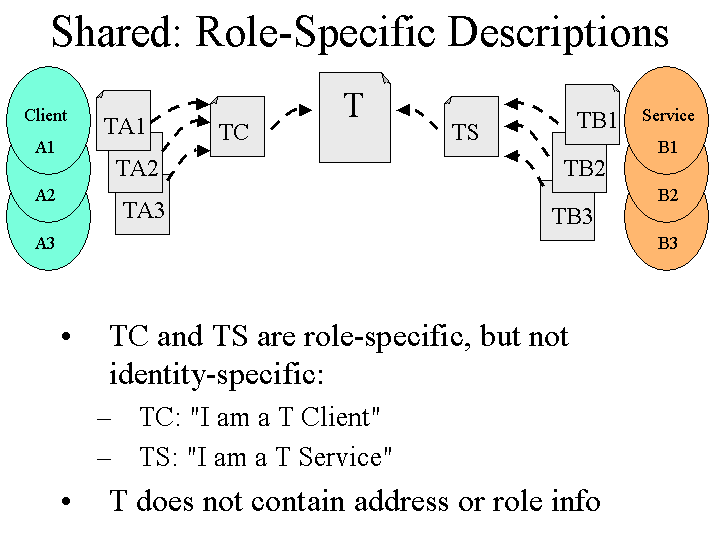

Shared: Role-Specific Descriptions

Slide image generated by PowerPoint
TC and TS are role-specific, but not identity-specific:
TC: "I am a T Client"
TS: "I am a T Service"
T does not contain address or role info

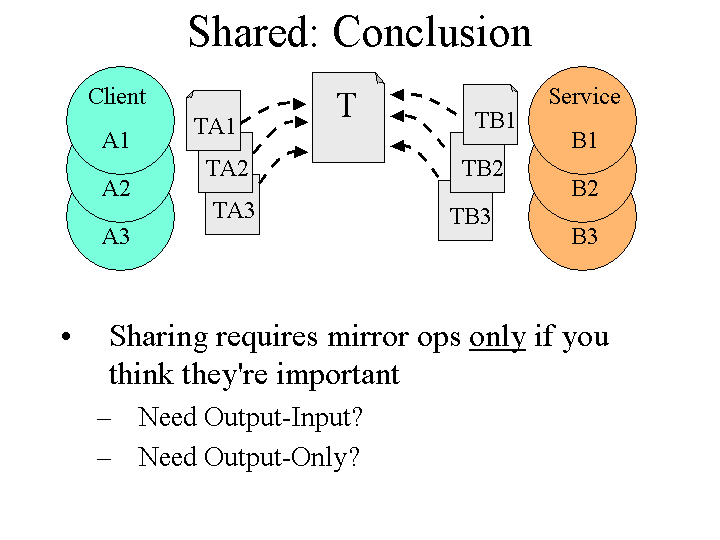

Shared: Conclusion

Slide image generated by PowerPoint
Sharing requires mirror ops only if you think they're important
Need Output-Input?
Need Output-Only?

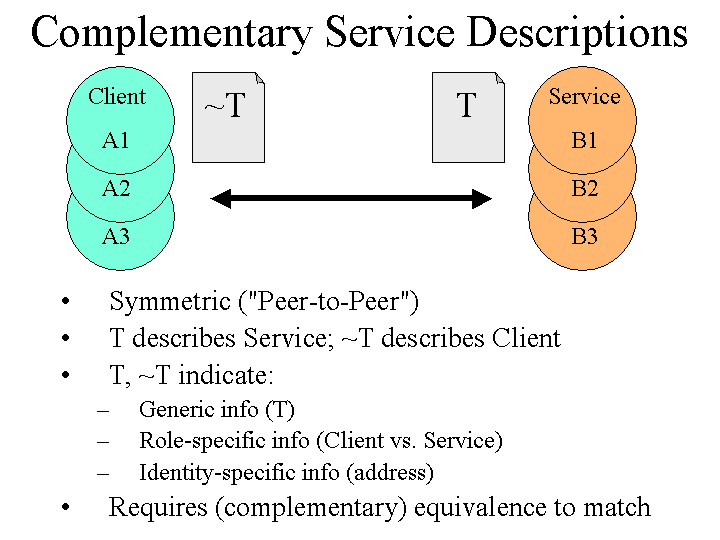

Complementary Service Descriptions

Slide image generated by PowerPoint
Symmetric ("Peer-to-Peer")
T describes Service; ~T describes Client
T, ~T indicate:
Generic info (T)
Role-specific info (Client vs. Service)
Identity-specific info (address)
Requires (complementary) equivalence to match

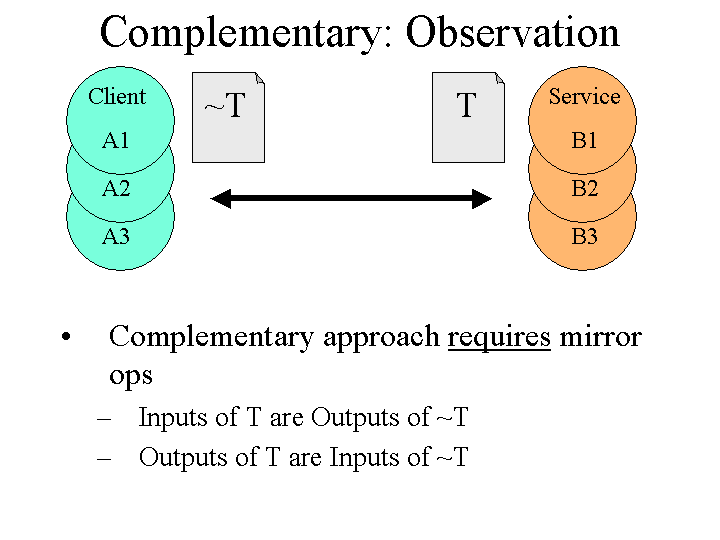

Complementary: Observation

Slide image generated by PowerPoint
Complementary approach requires mirror ops
Inputs of T are Outputs of ~T
Outputs of T are Inputs of ~T

Complementary: Identity-Specific Info

Slide image generated by PowerPoint

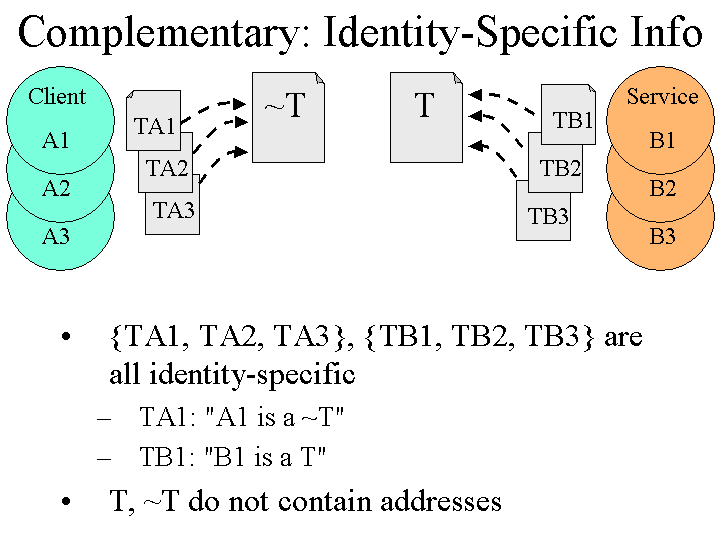

{TA1, TA2, TA3}, {TB1, TB2, TB3} are all identity-specific
TA1: "A1 is a ~T"
TB1: "B1 is a T"
T, ~T do not contain addresses

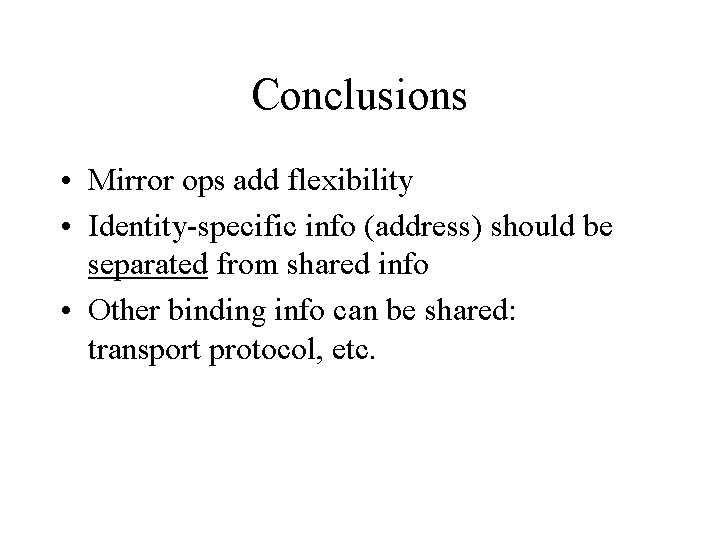

Conclusions

Slide image generated by PowerPoint
Mirror ops add flexibility
Identity-specific info (address) should be separated from shared info
Other binding info can be shared:
transport protocol, etc.

END

Slide image generated by PowerPoint

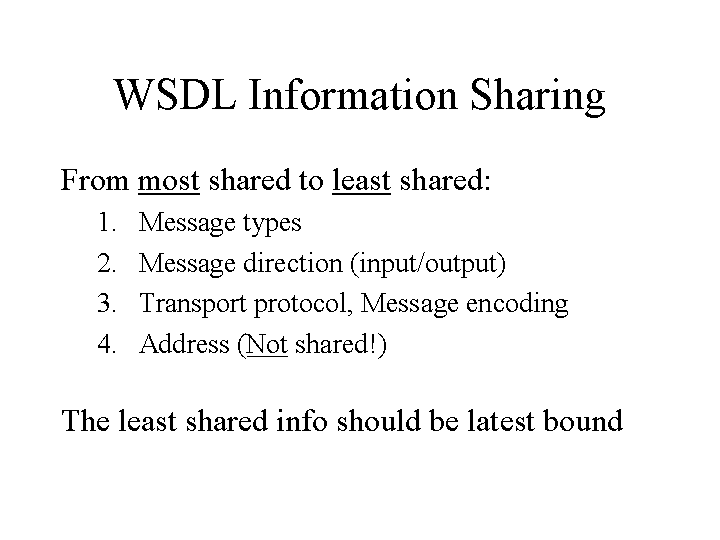

WSDL Information Sharing

Slide image generated by PowerPoint
From most shared to least shared:
Message types
Message direction (input/output)
Transport protocol, Message encoding
Address (Not shared!)
The least shared info should be latest bound

Observations on MEPs

Slide image generated by PowerPoint

MEPs

Slide image generated by PowerPoint

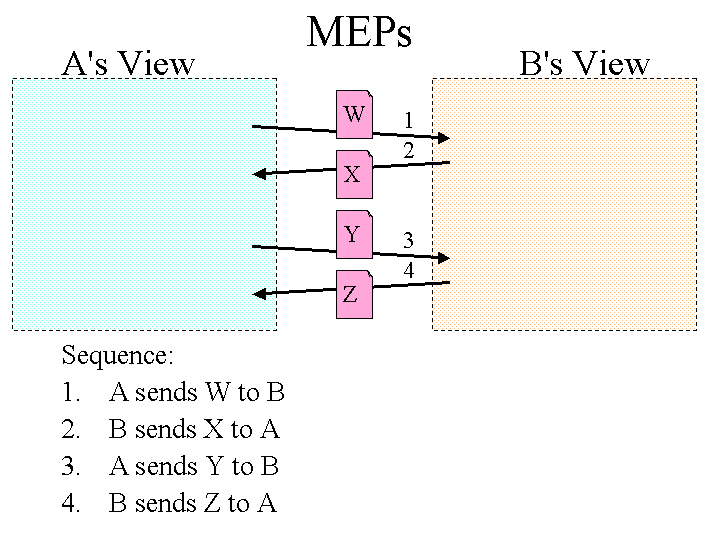

Sequence:
A sends W to B
B sends X to A
A sends Y to B
B sends Z to A

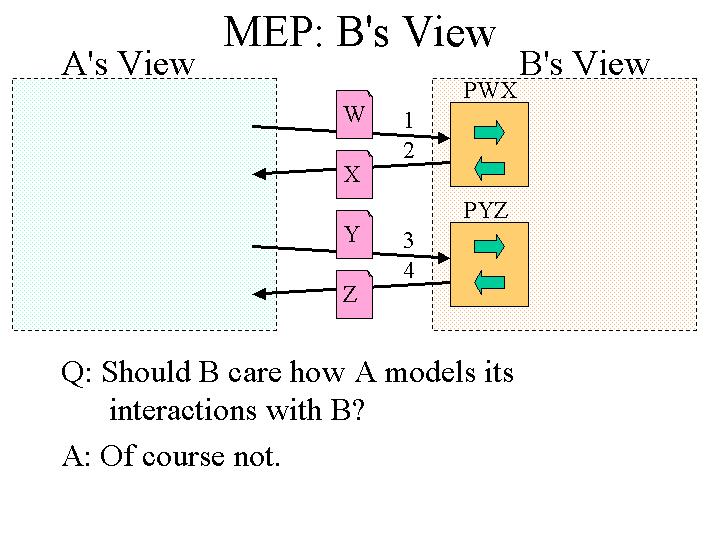

MEP: B's View

Slide image generated by PowerPoint

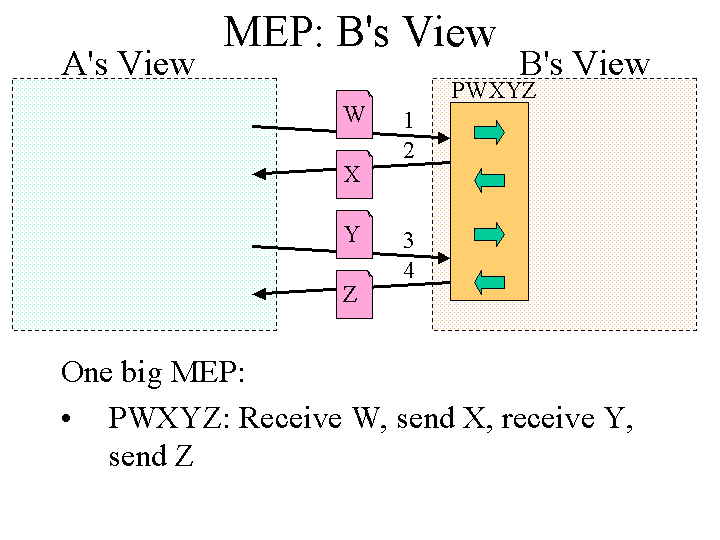

One big MEP:
PWXYZ: Receive W, send X, receive Y, send Z

MEP: B's View

Slide image generated by PowerPoint

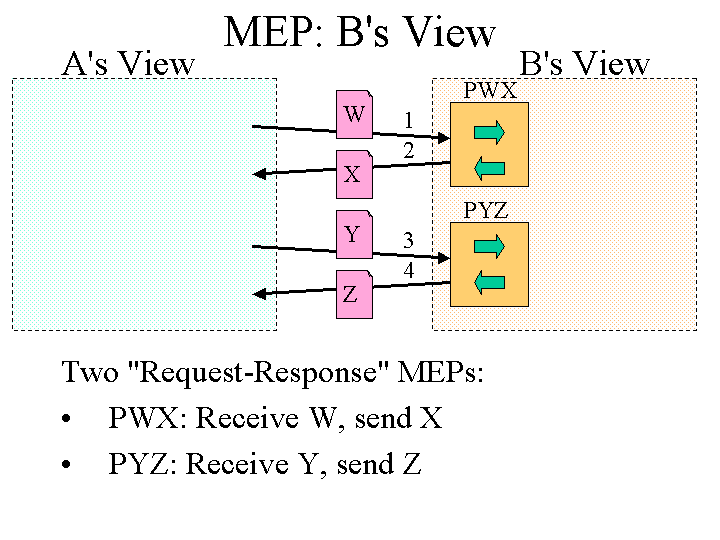

Two "Request-Response" MEPs:
PWX: Receive W, send X
PYZ: Receive Y, send Z

MEP: B's View

Slide image generated by PowerPoint
Q: Should B care how A models its interactions with B?
A: Of course not.

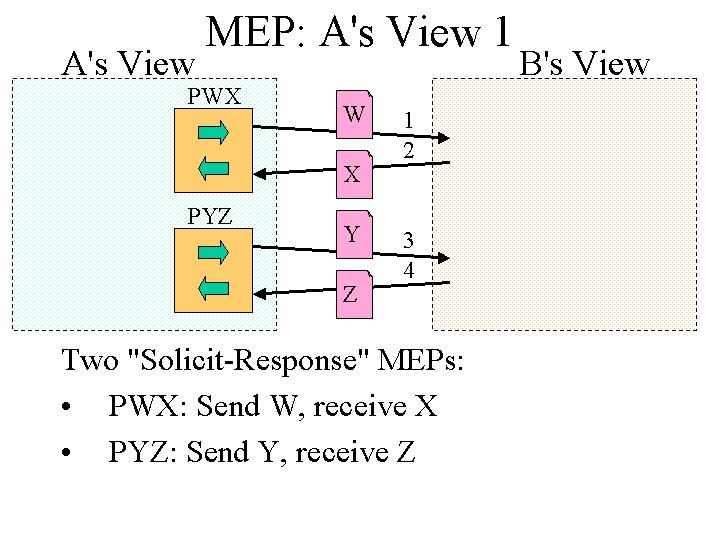

MEP: A's View 1

Slide image generated by PowerPoint
Two "Solicit-Response" MEPs:
PWX: Send W, receive X
PYZ: Send Y, receive Z

MEP: A's View 2

Slide image generated by PowerPoint

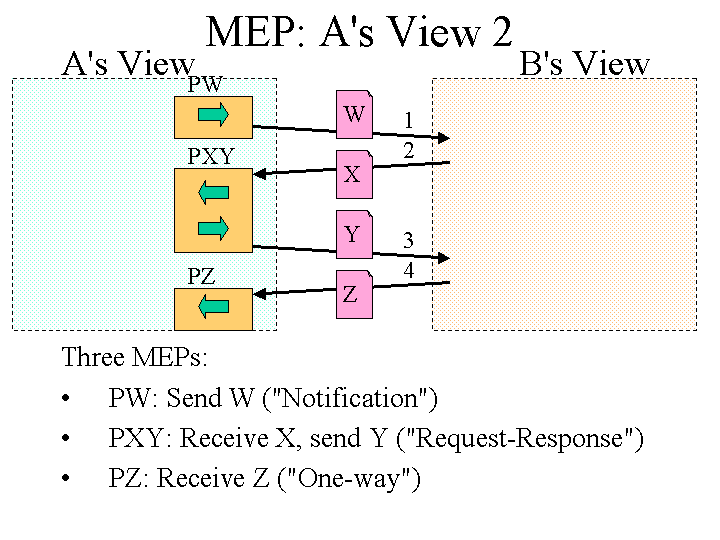

Three MEPs:
PW: Send W ("Notification")
PXY: Receive X, send Y ("Request-Response")
PZ: Receive Z ("One-way")

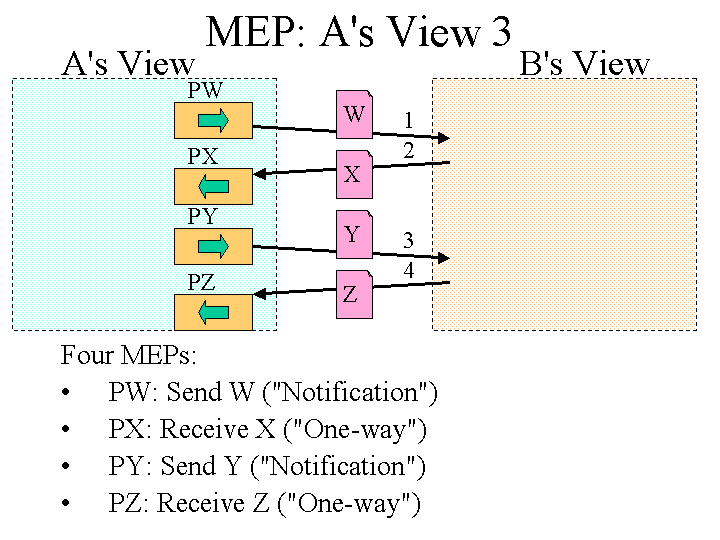

MEP: A's View 3

Slide image generated by PowerPoint
Four MEPs:
PW: Send W ("Notification")
PX: Receive X ("One-way")
PY: Send Y ("Notification")
PZ: Receive Z ("One-way")

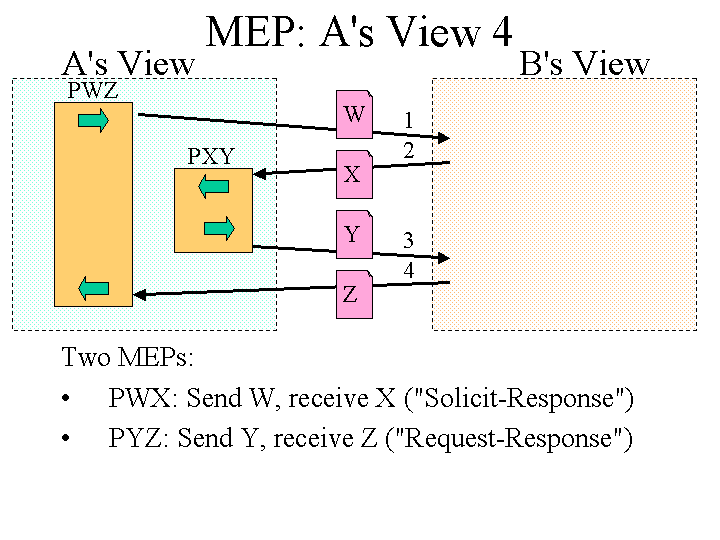

MEP: A's View 4

Slide image generated by PowerPoint
Two MEPs:
PWX: Send W, receive X ("Solicit-Response")
PYZ: Send Y, receive Z ("Request-Response")

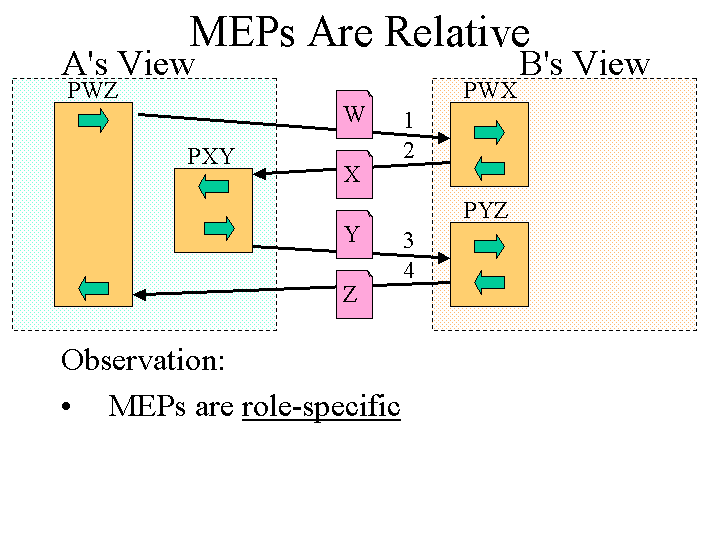

MEPs Are Relative

Slide image generated by PowerPoint
Observation:
MEPs are role-specific

MEPs Are Relative

Slide image generated by PowerPoint

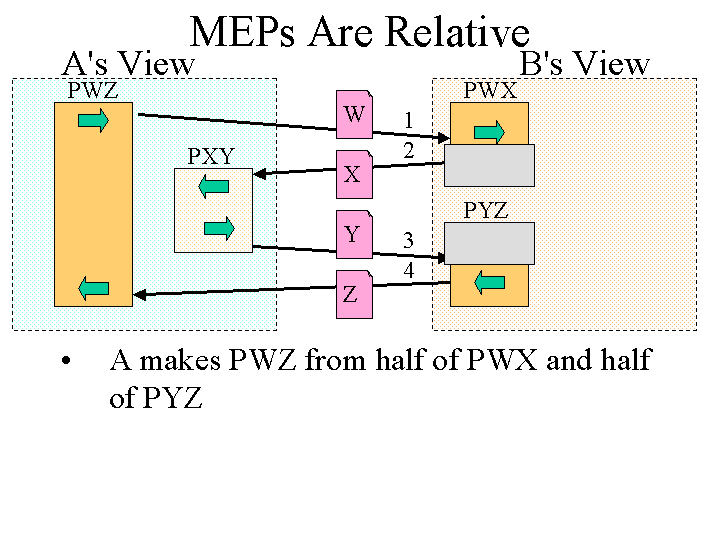

A makes PWZ from half of PWX and half of PYZ

MEPs Are Relative

Slide image generated by PowerPoint

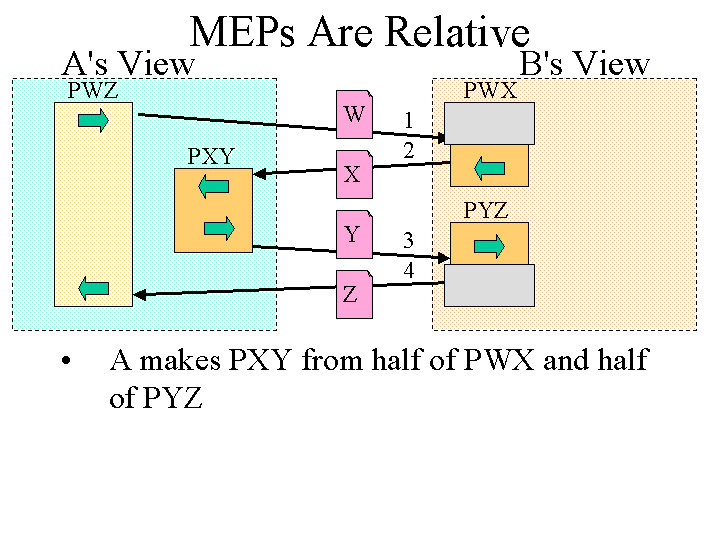

A makes PXY from half of PWX and half of PYZ

Role-Specific Information

Slide image generated by PowerPoint

Role-Specific Information

Slide image generated by PowerPoint

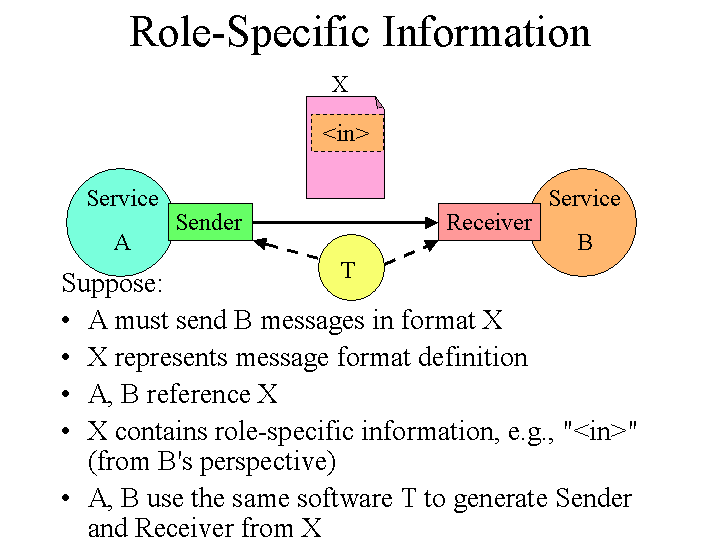

Suppose:
A must send B messages in format X
X represents message format definition
A, B reference X
X contains role-specific information, e.g., "<in>" (from B's perspective)
A, B use the same software T to generate Sender and Receiver from X

Role-Specific Information

Slide image generated by PowerPoint

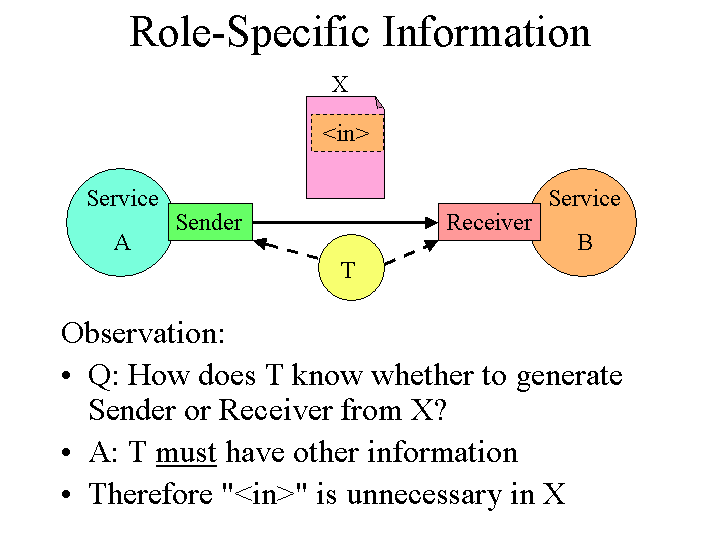

Observation:
Q: How does T know whether to generate Sender or Receiver from X?
A: T must have other information
Therefore "<in>" is unnecessary in X

Role-Specific Information

Slide image generated by PowerPoint

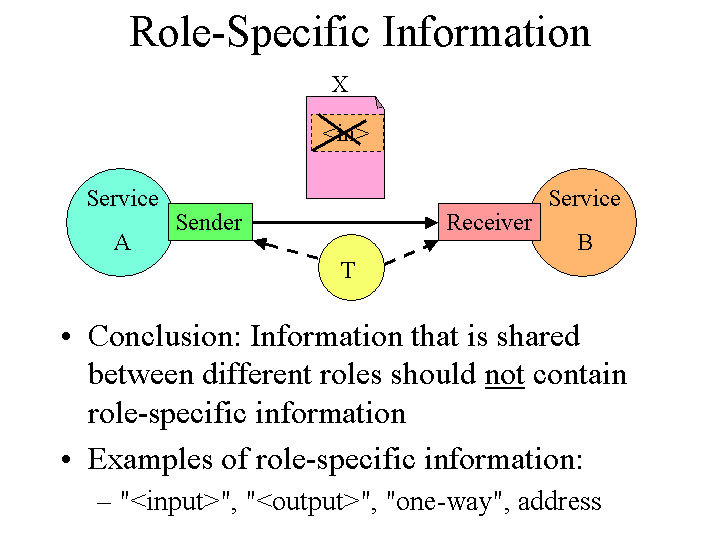

Conclusion: Information that is shared between different roles should not contain role-specific information
Examples of role-specific information:
"<input>", "<output>", "one-way", address
