SOAP Version 1.2 Part 2: Adjuncts

Editors' Copy May 31 2002

This version:
soap12-part2.html
Latest version:
http://www.w3.org/TR/soap12-part2/
Previous versions:
http://www.w3.org/TR/2001/WD-soap12-20010709/
Editors:
Martin Gudgin, DevelopMentor
Marc Hadley, Sun Microsystems
Jean-Jacques Moreau, Canon
Henrik Frystyk Nielsen, Microsoft

Abstract

SOAP Version 1.2 is a lightweight protocol intended for exchanging structured information in a decentralized, distributed environment. SOAP Version 1.2 Part 2: Adjuncts defines a set of adjuncts that may be used with SOAP Version 1.2 Part1: Messaging Framework. This specification depends on SOAP Version 1.2 Part 1: Messaging Framework [1].

Status of this Document

This document is an editors' copy that has no official standing.

This section describes the status of this document at the time of its publication. Other documents may supersede this document. The latest status of this document series is maintained at the W3C.

This is the fourth W3C Working Draft of the SOAP Version 1.2 specification for review by W3C members and other interested parties. It has been produced by the XML Protocol Working Group (WG), which is part of the XML Protocol Activity.

Refer to appendix E. Part 2 Change Log for a detailed list of changes since the last publication of this document. A list of open issues against this document can be found at "http://www.w3.org/2000/xp/Group/xmlp-issues".

Comments on this document should be sent to xmlp-comments@w3.org (public archive [14]). It is inappropriate to send discussion email to this address.

Discussion of this document takes place on the public xml-dist-app@w3.org mailing list [15] under the email communication rules in the XML Protocol Working Group Charter [16].

This is a public W3C Working Draft. It is a draft document and may be updated, replaced, or obsoleted by other documents at any time. It is inappropriate to use W3C Working Drafts as reference material or to cite them as other than "work in progress". A list of all W3C technical reports can be found at http://www.w3.org/TR/.


Short Table of Contents

1. Introduction
2. SOAP Data Model
3. SOAP Encoding
4. SOAP RPC Representation
5. A Convention for Describing Features and Bindings
6. SOAP-Supplied Message Exchange Patterns
7. SOAP HTTP Binding
8. References
A. Mapping Application Defined Names to XML Names
B. Using W3C XML Schema with SOAP Encoding (Non-Normative)
C. RPC and SOAP HTTP Binding Examples (Non-Normative)
D. Acknowledgements (Non-Normative)
E. Part 2 Change Log (Non-Normative)


Table of Contents

1. Introduction
1.1 Notational Conventions
2. SOAP Data Model
2.1 Graph Edges
2.1.1 Edge labels
2.2 Graph Nodes
2.2.1 Single and Multi reference nodes
2.3 Values
3. SOAP Encoding
3.1 Rules for Encoding Graphs in XML
3.1.1 Encoding graph edges and nodes
3.1.2 Encoding simple values
3.1.3 Encoding compound values
3.1.4 Computing the Type Name property
3.1.4.1 itemType Attribute Information Item
3.1.5 Unique identifiers
3.1.5.1 id Attribute Information Item
3.1.5.2 ref Attribute Information Item
3.1.5.3 Constraints on id and ref attribute information items
3.1.6 arraySize Attribute Information Item
3.2 Decoding Faults
4. SOAP RPC Representation
4.1 RPC and SOAP Body
4.1.1 RPC Invocation
4.1.2 RPC Response
4.1.3 SOAP Encoding Restriction
4.2 RPC and SOAP Header
4.3 RPC Faults
5. A Convention for Describing Features and Bindings
5.1 Model and Properties
5.1.1 Properties
5.1.2 Property Scope
5.1.3 Properties and Features
6. SOAP-Supplied Message Exchange Patterns
6.1 Property Conventions for Message Exchange Patterns
6.2 Request-Response Message Exchange Pattern
6.2.1 Message Exchange Pattern Name
6.2.2 Description
6.2.3 State Machine Description
6.2.4 Fault Handling
7. SOAP HTTP Binding
7.1 Introduction
7.2 Binding Name
7.3 Supported Message Exchange Patterns
7.4 Request-Response MEP Operation
7.4.1 Behavior of Requesting SOAP Node
7.4.1.1 Init
7.4.1.2 Requesting
7.4.1.3 Sending+Receiving
7.4.1.4 Success and Fail
7.4.2 Behavior of Responding SOAP Node
7.4.2.1 Init
7.4.2.2 Receiving
7.4.2.3 Receiving+Sending
7.4.2.4 Success and Fail
7.5 Security Considerations
8. References
8.1 Normative References
8.2 Informative References

Appendices

A. Mapping Application Defined Names to XML Names
A.1 Rules for mapping application defined names to XML Names
A.2 Examples
B. Using W3C XML Schema with SOAP Encoding (Non-Normative)
B.1 Validating using the minimum schema
B.2 Validating using the SOAP Encoding schema
B.3 Validating using more specific schemas
C. RPC and SOAP HTTP Binding Examples (Non-Normative)
C.1 Sample Encoding of Call Requests
C.2 Sample Encoding of Response
D. Acknowledgements (Non-Normative)
E. Part 2 Change Log (Non-Normative)
E.1 SOAP Specification Changes
E.2 XML Schema Changes


1. Introduction

SOAP Version 1.2 (SOAP) is a lightweight protocol intended for exchange of structured information between peers in a decentralized, distributed environment. The SOAP specification consists of three parts. Part 2 (this document) defines a set of adjuncts that MAY be used with the SOAP messaging framework:

  1. The SOAP Data Model represents application-defined data structures and values as a directed, edge-labeled graph of nodes (see 2. SOAP Data Model).

  2. The SOAP Encoding defines a set of rules for encoding instances of data that conform to the SOAP Data Model for inclusion in SOAP messages (see 3. SOAP Encoding).

  3. The SOAP RPC Representation defines a convention for how to use the SOAP Data Model for representing RPC calls and responses (see 4. SOAP RPC Representation).

  4. A convention for describing features and bindings (see 5. A Convention for Describing Features and Bindings).

  5. A request response message exchange pattern definition (see 6. SOAP-Supplied Message Exchange Patterns).

  6. The SOAP HTTP Binding defines a binding of SOAP to HTTP [2] following the rules of the SOAP Protocol Binding Framework[1] (see 7. SOAP HTTP Binding).

Part 0 [13] is a non-normative document intended to provide an easily understandable tutorial on the features of the SOAP Version 1.2 specifications.

Part 1 [1] defines the SOAP messaging framework.

Note:

In previous versions of this specification the SOAP name was an acronym. This is no longer the case.

1.1 Notational Conventions

The keywords "MUST", "MUST NOT", "REQUIRED", "SHALL", "SHALL NOT", "SHOULD", "SHOULD NOT", "RECOMMENDED", "MAY", and "OPTIONAL" in this document are to be interpreted as described in RFC2119 [3].

This specification uses a number of namespace prefixes throughout; they are listed in Table 1. Note that the choice of any namespace prefix is arbitrary and not semantically significant (see [10]).

Table 1: Prefixes and Namespaces used in this specification
PrefixNamespaceNotes
env"http://www.w3.org/2001/12/soap-envelope"Defined by Part 1 [1].
enc"http://www.w3.org/2001/12/soap-encoding"A normative XML Schema [4], [5] document for the "http://www.w3.org/2001/12/soap-encoding" namespace can be found at http://www.w3.org/2001/12/soap- encoding.
xs"http://www.w3.org/2001/XMLSchema"Defined in the W3C XML Schema specification [4], [5].
xsi"http://www.w3.org/2001/XMLSchema-instance"Defined in the W3C XML Schema specification [4], [5].
context"http://www.w3.org/2001/12/soap/bindingFramework/ExchangeContext/"See 6.2 Request-Response Message Exchange Pattern.
mep"http://www.w3.org/2001/12/soap/mep/"See 6.2 Request-Response Message Exchange Pattern.
fail"http://www.w3.org/2001/12/soap/mep/FailureReasons/"See 6.2 Request-Response Message Exchange Pattern.
reqres"http://www.w3.org/2001/12/soap/mep/request-response/"See 6.2 Request-Response Message Exchange Pattern.

Namespace names of the general form "http://example.org/..." and "http://example.com/..." represent application or context-dependent URIs [6].

This specification uses the Extended Backus-Naur Form (EBNF) as described in [8].

With the exception of examples and sections explicitly marked as "Non-Normative", all parts of this specification are normative.

2. SOAP Data Model

The SOAP Data Model represents application-defined data structures and values as a directed edge-labeled graph of nodes. Components of this graph are described in the following sections.

The purpose of the SOAP Data Model is to provide a mapping of non-XML based data to some wire representation. It is important to note that use of the SOAP Data Model, the accompanying SOAP Encoding (see 3. SOAP Encoding), and/or the SOAP RPC Representation (see 4. SOAP RPC Representation) is OPTIONAL. Applications which already model data in XML, for example using W3C XML Schema [4],[5], may not need to use the SOAP Data Model. Due to their optionality, it is NOT a requirement to implement the SOAP Data Model, the SOAP Encoding and/or the SOAP RPC Representation as part of a SOAP node.

2.1 Graph Edges

Edges in the graph are said to originate at a graph node and terminate at a graph node. An edge that originates at a graph node is known as an outbound edge with respect to that graph node. An edge that terminates at a graph node is known as an inbound edge with respect to that graph node. An edge MAY originate and terminate at the same graph node.

The outbound edges of a given graph node MAY be distinguished by label or by position, or both. Position is a total order on such edges; thus any outbound edge MAY be identified by position.

2.1.1 Edge labels

An edge label is an XML Schema Qualified Name (see XML Schema Part 2: Datatypes [5]). Two edge labels are equal if and only if both of the following are true:

  1. Their local name values are the same.

  2. Either of the following is true:

    1. Their namespace name values are missing.

    2. Their namespace name values are present and the same.

See 2.3 Values for uses of edge labels and position to distinguish the members of encoded values, and XML Schema Part 2: Datatypes [5] for more information about comparing XML qualified names.

2.2 Graph Nodes

A graph node is either a terminal graph node or a non-terminal graph node. A non-terminal graph node has one or more outbound edges. A terminal graph node has no outbound edges and an optional lexical value. Both types of graph node have an optional unique identifier of type ID in the namespace named "http://www.w3.org/2001/XMLSchema", (see XML Schema Part2: DataTypes [5]) and an optional type name of type QName in the namespace named "http://www.w3.org/2001/XMLSchema" (see XML Schema Part2: DataTypes [5]).

2.2.1 Single and Multi reference nodes

A graph node may be single reference or multi reference. A single reference graph node has a single inbound edge. A multi reference graph node has multiple inbound edges.

2.3 Values

A simple value is represented as a terminal graph node.

A compound value is represented as a non-terminal graph node as follows:

  1. If the labels of a non-terminal graph node's outbound edges are not unique (i.e. they can be duplicated), the non-terminal graph node is known as a "generic". Outbound edges of a generic MAY be distinguished by label and/or position, according to the needs of the application.

  2. A non-terminal graph node whose outbound edges are distinguished solely by their labels is known as a "struct". The outbound edges of a struct MUST be labeled with distinct names (see 2.1.1 Edge labels).

  3. A non-terminal graph node whose outbound edges are distinguished solely by position is known as an "array". The outbound edges of an array MUST NOT be labelled.

Editorial note
The Working Group solicits feedback from implementors regarding the usefulness or otherwise of 'generics'.

3. SOAP Encoding

SOAP Encoding describes how to encode instances of data that conform to the data model described in 2. SOAP Data Model. This encoding MAY be used to transmit data in SOAP header blocks and/or SOAP bodies. Other data models, alternate encodings of the SOAP Data Model as well as unencoded data MAY also be used in SOAP messages (see [1]SOAP encodingStyle Attribute for specification of alternative encoding styles and see 4. SOAP RPC Representation for restrictions on data models and encodings used to represent SOAP Remote Procedure Calls).

The serialization rules defined in this section are identified by the URI "http://www.w3.org/2001/12/soap-encoding". SOAP messages using this particular serialization SHOULD indicate that fact by using the SOAP encodingStyle attribute information item (see [1]SOAP encodingStyle Attribute).

3.1 Rules for Encoding Graphs in XML

XML allows very flexible encoding of data. SOAP Encoding defines a narrower set of rules for encoding the graphs described in 2. SOAP Data Model. This section defines the encoding at a high level, and the subsequent sub-sections describe the encoding rules in more detail. The encodings described in this section can be used in conjunction with the mapping of RPC calls and responses specified in 4. SOAP RPC Representation.

The encodings are described below from the perspective of a de-serializer. In each case, the presence of an XML serialization is presumed, and the mapping to a corresponding graph is described.

More than one encoding is typically possible for a given graph. When serializing a graph for transmission inside a SOAP message any representation that deserializes to the identical graph MAY be used; when receiving an encoded SOAP message, all representations MUST be accepted.

3.1.1 Encoding graph edges and nodes

Each graph edge is encoded as an element information item and each element information item represents a graph edge. 3.1.3 Encoding compound values describes the relationship between edge labels and the local name and namespace name properties of such element information items.

The graph node at which an edge terminates is determined by examination of the serialized XML as follows:

  1. If the element information item representing the edge does not have a ref attribute information item (see 3.1.5.2 ref Attribute Information Item) among its attributes then that element information item is said to represent a node in the graph and the edge terminates at that node.

  2. If the element information item representing the edge does have a ref attribute information item (see 3.1.5.2 ref Attribute Information Item) among its attributes, then the value of that attribute information item MUST be identical to the value of exactly one id attribute information item ( see 3.1.5.1 id Attribute Information Item) in the same envelope. In this case the edge terminates at the graph node represented by the element information item on which the id attribute information item appears. That element information item MUST be in the scope of an encodingStyle attribute with a value of "http://www.w3.org/2001/12/soap-encoding".

All nodes in the graph are encoded as described in 1 above. Additional inbound edges for multi reference graph nodes are encoded as described in 2 above.

3.1.2 Encoding simple values

The lexical value of a terminal graph node (simple value) is the sequence of Unicode characters identified by the character information item children of the element information item representing that node.

3.1.3 Encoding compound values

An outbound edge of a graph node is encoded as an element information item child of the element information item that represents the node (see 3.1.1 Encoding graph edges and nodes). Particular rules apply depending on what kind of compound value the graph node represents. These rules are as follows:

  1. For a graph edge which is distinguished by label ("struct" or "generic"), the namespace name and local name properties of the element information item together determine the value of the edge label.

  2. For a graph edge which is distinguished by position ("array" or "generic"):

    • The ordinal position of the graph edge corresponds to the position of the element information item relative to its siblings

    • If outbound edges are distinguished only by position ("array") then the local name and namespace name properties of the element information item are not significant.

  3. The following rules apply to the encoding of a graph node that represents an "array":

  4. If a graph edge does not terminate in a graph node then it can either be omitted from the serialization or it can be encoded as an element information item with an xsi:nilattribute information item whose value is "true".

3.1.4 Computing the Type Name property

The type name property of a graph node is a {namespace name, local name} pair computed as follows:

  1. If the element information item representing the graph node has an xsi:type attribute information item among its attributes then the type name property of the graph node is the value of the xsi:type attribute information item.

    Note:

    This attribute is of type QName in the namespace named "http://www.w3.org/2001/XMLSchema" (see XML Schema Part 2: Datatypes [5]); its value consists of the pair {namespace name, local name}. Neither the prefix used to construct the QName nor any information relating to any definition of the type is considered to be part of the value. The SOAP graph carries only the qualified name of the type.

  2. Otherwise if the parent element information item of the element information item representing the graph node has a soap:itemType attribute information item (see 3.1.4.1 itemType Attribute Information Item) among its attributes then the type name property of the graph node is the value of the soap:itemType attribute information item

  3. Otherwise the value of the type name property of the graph node is unspecified.

Note:

These rules define how the type name property of a graph node in a graph is computed from a serialized encoding. This specification does not mandate validation using any particular schema language or type system. Nor does it include built in types or provide any standardized faults to reflect value/type name conflicts.

However, nothing prohibits development of additional specifications to describe the use of SOAP with particular schema languages or type systems. Such additional specifications MAY mandate validation using particular schema language, and MAY specify faults to be generated if validation fails. Such additional specifications MAY specify augmentations to the deserialized graph based on information determined from such a validation. The use by SOAP of xsi:type is intended to facilitate integration with the W3C XML Schema language (see B. Using W3C XML Schema with SOAP Encoding). Other XML based schema languages, data schemas and programmatic type systems MAY be used but only to the extent that they are compatible with the serialization described in this specification.

3.1.4.1 itemType Attribute Information Item

The itemType attribute information item has the following Infoset properties:

  • A local name of itemType ;

  • A namespace name of "http://www.w3.org/2001/12/soap-encoding".

  • A specified property with a value of true.

The type of the itemType attribute information item is QName in the namespace named "http://www.w3.org/2001/XMLSchema". The value of the itemType attribute information item is used to compute the type name property (see 3.1.4 Computing the Type Name property) of members of an array.

3.1.5 Unique identifiers

3.1.5.1 id Attribute Information Item

The id attribute information item has the following Infoset properties:

  • A local name of id ;

  • A namespace name which is empty

  • A specified property with a value of "true".

The type of the id attribute information item is ID in the namespace named "http://www.w3.org/2001/XMLSchema". The value of the id attribute information item is a unique identifier that can be referred to by a ref attribute information item (see 3.1.5.2 ref Attribute Information Item).

3.1.5.2 ref Attribute Information Item

The ref attribute information item has the following Infoset properties:

  • A local name of ref ;

  • A namespace name which is empty

  • A specified property with a value of true.

The type of the ref attribute information item is IDREF in the namespace named "http://www.w3.org/2001/XMLSchema". The value of the ref attribute information item is a reference to a unique identifier defined by an id attribute information item (see 3.1.5.1 id Attribute Information Item).

3.1.5.3 Constraints on id and ref attribute information items

The value of a ref attribute information item MUST also be the value of exactly one id attribute information item.

A ref attribute information item and an id attribute information item MUST NOT appear on the same element information item.

3.1.6 arraySize Attribute Information Item

The arraySize attribute information item has the following Infoset properties:

  • A local name of arraySize ;

  • A namespace name of "http://www.w3.org/2001/12/soap-encoding".

  • A default value of "*"

The type of the arraySize attribute information item is arraySize in the namespace named "http://www.w3.org/2001/12/soap-encoding".

The value of the arraySize attribute information item MUST conform to the following EBNF grammer

[1]arraySizeValue::=("*" | concreteSize) nextConcreteSize*
[2]nextConcreteSize::=" " concreteSize
[3]concreteSize::=[0-9]+

The array's dimensions are represented by each item in the list of sizes (unspecified size in case of the asterisk). The number of items in the list represents the number of dimensions in the array. The asterisk, if present, MUST only appear in the first position in the list.

3.2 Decoding Faults

During deserialization a SOAP receiver:

  • SHOULD generate an env:Sender SOAP fault with a subcode of enc:MissingID if the message violates the constraints on id and ref attribute information items (see 3.1.5.3 Constraints on id and ref attribute information items).

  • MAY generate an env:Sender SOAP fault with a subcode of enc:UntypedValue if the type name property of an encoded graph node is unspecified.

4. SOAP RPC Representation

One of the design goals of SOAP is to encapsulate remote procedure call (RPC) functionality using the extensibility and flexibility of XML. This section defines a uniform representation of RPC requests and responses.

The SOAP encodingStyle attribute information item (see [1]SOAP encodingStyle Attribute) is used to indicate the encoding style of the RPC representation. The encoding thus specified needs to support "struct" and "array" compound value constructs defined in 2.3 Values. The encoding style defined in 3. SOAP Encoding supports such constructs and is therefore suitable for use with the SOAP RPC representation.

This SOAP RPC Representation is not predicated on any SOAP protocol binding. When SOAP is bound to HTTP, an RPC invocation maps naturally to an HTTP request and an RPC response maps to an HTTP response. (see 7. SOAP HTTP Binding). However, the SOAP RPC Representation is not limited only to the SOAP HTTP Binding.

To invoke an RPC, the following information is needed:

SOAP relies on the protocol binding to provide a mechanism for carrying the URI of the target SOAP node. For HTTP the request URI indicates the resource against which the invocation is being made. Other than requiring it to be a valid URI, SOAP places no restriction on the form of an address (see RFC2396 [6] for more information on URIs).

4.1 RPC and SOAP Body

RPC invocations and responses are both carried in the SOAP Body element (see [1]SOAP Body) using the following representation.

4.1.1 RPC Invocation

An RPC invocation is modeled as a struct where parameter access is by name or as an array where parameter access is by position.

Applications MAY process invocations with missing parameters but also MAY fail to process the invocation and return a fault.

4.1.2 RPC Response

An RPC response is modeled as a struct where parameter access is by name or as an array where parameter access is by position.

  • The response is represented by a single struct or array containing an outbound edge for the return value and each [out] or [in/out] parameter.

  • If the response is represented by a struct, then each parameter is represented by an outbound edge with a label corresponding to the name of the parameter (see A. Mapping Application Defined Names to XML Names). A non-void return value is represented in the struct by an outbound edge that may be given any unique label. The QName of the label of the edge representing the return value is given by a separate outbound edge with a local name of result and the namespace name "http://www.w3.org/2001/12/soap-rpc". This result outbound edge MUST be present and hold the qname of the edge containing the return value within any struct response if the return value of the procedure is non-void. This result outbound edge MUST NOT be present if the return value of the procedure is void.

  • If the response is represented by an array, each outbound edge has a label corresponding to the position of the parameter. A return value MUST be present if the return value of the procedure is non-void. If present, the return value MUST be represented as the first edge of the array with parameters following. If no return value is present, then parameters begin with the first outbound edge of the array.

  • Invocation faults are handled according to the rules in 4.3 RPC Faults. If a protocol binding adds additional rules for fault expression, those MUST also be followed.

An RPC response MUST NOT contain both a result and a fault, because a result indicates success and a fault indicates failure.

4.1.3 SOAP Encoding Restriction

When using SOAP encoding (see 3. SOAP Encoding) in conjunction with the RPC convention described here, the SOAP Body MUST contain only a single child element information item, that child being the serialized RPC invocation or response struct or array. I.e. when using the SOAP encoding for serializing RPC invocations and responses, the encoding is constrained to produce a single tree of element information items.

4.2 RPC and SOAP Header

Additional information relevant to the encoding of an RPC invocation but not part of the formal procedure or method signature MAY be expressed in a SOAP envelope carrying an RPC invocation or response. Such additional information MUST be expressed as SOAP header blocks.

4.3 RPC Faults

The SOAP RPC Representation introduces additional SOAP fault subcode values to be used in conjunction with the fault codes described in [1]SOAP Fault Codes. The namespace name for these SOAP fault subcode values is "http://www.w3.org/2001/12/soap-rpc" and the namespace prefix rpc: is used in this section to indicate association with this namespace. A schema document for this namespace can be found at http://www.w3.org/2001/12/soap-rpc .

Errors arising during RPC invocations are reported according to the following rules (in decreasing order of precedence):

  1. A fault with a Value of "env:Receiver" for Code SHOULD be generated when the receiver cannot handle the message because of some temporary condition, e.g. when it is out of memory.

  2. A fault with a Value of "env:DataEncodingUnknown" for Code SHOULD be generated when the arguments are encoded in a data encoding unknown to the receiver.

  3. A fault with a Value of "env:Sender" for Code and a Value of "rpc:ProcedureNotPresent" for Subcode MAY be generated when the receiver does not support the procedure or method specified.

  4. A fault with a Value of "env:Sender" for Code and a Value of "rpc:BadArguments" for Subcode MUST be generated when the receiver cannot parse the arguments or when there is a mismatch between what the receiver expects and what the sender has sent.

  5. Other faults arising in an extension or from the application SHOULD be generated as described in [1]SOAP Fault Codes.

In all cases the values of the Detail and Reason element information items are implementation defined. Details of their use MAY be specified by an external document.

Note:

Senders might receive different faults from those listed above in response to an RPC invocation if the receiver does support the (optional) RPC convention described here.

5. A Convention for Describing Features and Bindings

This section describes a convention describing Features (including MEPs) and Bindings in terms of properties and property values. The convention is sufficient to describe the distributed states of Feature and Binding specifications as mandated by the Binding Framework (see [1]SOAP Protocol Binding Framework) and it is used to describe a Request-Response MEP 6.2 Request-Response Message Exchange Pattern and the SOAP HTTP Binding 7. SOAP HTTP Binding elsewhere in this document. Along with the convention itself, an informal model is defined that describes how properties propagate through a SOAP system. Note that this model is intended to be illustrative only, and is not meant to imply any constraints on the structure or layering of any particular SOAP implementation.

5.1 Model and Properties

In general, a SOAP message is the information that one SOAP node wishes to exchange with another SOAP node according to a particular set of features, including a MEP. In addition, there may be information essential to exchanging a message that is not part of the message itself. Such information is sometimes called message meta-data. In the model, the message, any message meta-data, and the various information items that enable features are represented as abstractions called properties.

5.1.1 Properties

Under the convention, properties are represented as follows:

  • Properties are named with XML qualified names (QNames). For example, myNS:RetryCount where RetryCount is the name of the property, and myNS is a prefix mapped to a namespace.

  • Property values are typed, and the type of a property-value is defined by an XML Schema simple datatype in the specification which introduces the property. For example, the type of RetryCount is xsi:int .

5.1.2 Property Scope

Properties within a SOAP node can differ in terms of their scope and the origins of their values. Some properties are scoped per message-exchange, while others have a wider significance. For example, the scope of a SOAP message property is per message-exchange, but the scope of a User Identity property may extend beyond the exchange of a single message. The values of some properties arise directly from the operations of the SOAP node and message exchanges, while others arise in implementation specific ways due to the local environment. As shown in the figure below, we make the distinction between per message-exchange and more widely scoped properties by assigning them to different containers called Message Exchange Context and Environment respectively. All properties, regardless of their scope, are shared by SOAP and a particular Binding.

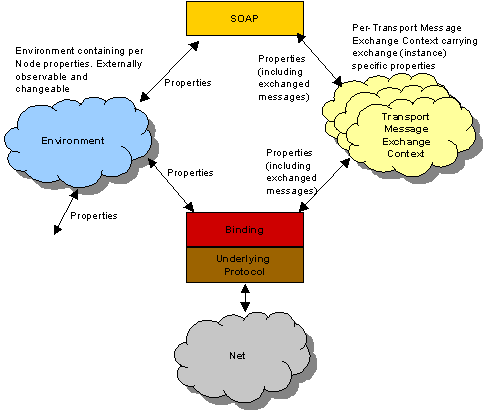

Model describing properties shared between SOAP and Binding

The values of properties in Environment may depend upon local circumstances (as depicted by the external arrow from Environment in the figure above). More specifically, the properties in the example could be influenced by an Operating System User ID on whose behalf a message exchange is being executed. The mapping of information in a particular implementation to such properties is outside the scope of the binding framework although the abstract representation of such information as properties is not.

5.1.3 Properties and Features

A feature may be expressed through multiple properties and a single property may enable more than one feature. For example, the properties called User ID and Password may be used to enable a feature called Authentication. As a second example, a single property called Message ID could be used to enable one feature called Transaction and a second feature called Message Correlation.

6. SOAP-Supplied Message Exchange Patterns

6.1 Property Conventions for Message Exchange Patterns

Table 2 describes the properties (in accordance with the property naming conventions defined in this document) that support the description of message exchange patterns (MEPs). Other properties may be involved in the specification of particular MEPs, but the properties in this table are generally applicable to all MEPs.

Table 2: Property definitions supporting the description of MEPs
Property NameProperty Description
context:ExchangePatternName A URI that names the MEP in operation.
context:FailureReason A URI value that denotes a pattern specific, binding independent reason for the failure of a message exchange. Underlying protocol binding specifications may define properties to convey more binding specific details of the failure.

6.2 Request-Response Message Exchange Pattern

This section defines the message exchange pattern (MEP) called "Request-Response". The description is an abstract presentation of the operation of this MEP. It is not intended to describe a real implementation or to suggest how a real implementation should be structured.

6.2.1 Message Exchange Pattern Name

This message exchange pattern is identified by the URI:

  • "http://www.w3.org/2001/12/soap/mep/request-response/"

Protocol binding specifications may use this URI to declare their support for the MEP and its associated semantics.

6.2.2 Description

The Request-Response MEP defines a pattern for the exchange of two messages between two adjacent SOAP nodes along a SOAP message path. One message is exchanged in each direction between a requesting SOAP node and a responding SOAP node.

In the normal operation of a message exchange conforming to the Request-Response MEP, a request message is first transferred from the requesting SOAP node to the responding SOAP node. Following the successful processing of the request message by the responding SOAP node, a response message is transferred from the responding SOAP node to the requesting SOAP node.

Abnormal operation during a Request-Response message exchange may be caused by a failure to transfer the request message, a failure at the responding SOAP node to process the request message, or a failure to transfer the response message. Such failures MAY be silent at either or both of the requesting and responding SOAP nodes involved. Also, during abnormal operation each SOAP node involved in the message exchange MAY differ in its determination of the successful completion of the message exchange.

The scope of a Request-Response MEP is limited to the exchange of a request message and a response message between one requesting and one responding SOAP node. This pattern does not mandate any correlation between multiple requests nor specific timing for multiple requests. Implementations MAY choose to support multiple ongoing requests (and associated response processing) at the same time.

6.2.3 State Machine Description

The Request-Response MEP defines a set of properties described in Table 3.

Table 3: Property definitions for Request-Response MEP
Property NameProperty Description
reqres:Role A URI denoting the pattern specific role of the local SOAP node participating in the message exchange.
reqres:State A URI denoting the current state of the message exchange. This value is managed by the binding instance and may be inspected by other entities monitoring the progress of the message exchange.
reqres:OutboundMessage An abstract structure that represents the current outbound message in the message exchange. This abstracts both SOAP Envelope and any other information structures that are transferred along with the envelope.
reqres:InboundMessage An abstract structure that represents the current inbound message in the message exchange. This abstracts both SOAP Envelope and any other information structures that are transferred along with the envelope.
reqres:ImmediateDestination A URI denoting the immediate destination of an outbound message.
reqres:ImmediateSender A URI denoting the immediate sender of an inbound message.

To initiate a message exchange conforming to the Request-Response MEP, the requesting SOAP node instantiates a local message exchange context. Table 4 describes how the context is initialized.

Table 4: Instantiation of a Message Exchange Context for a requesting SOAP node
Property NameProperty Value
context:ExchangePatternName "http://www.w3.org/2001/12/soap/mep/request-response/"
context:FailureReason None
reqres:Role RequestingSOAPNode
reqres:State Init
reqres:OutboundMessage An abstraction of the request message
reqres:ImmediateDestination An identifier (URI) that denotes the responding SOAP node

There may be other properties related to the operation of the message exchange context instance. Such properties are initialized according to their own feature specifications.

Once the message exchange context is initialized, control of the context is passed to a (conforming) local binding instance.

The diagram below shows the logical state transitions at the requesting and responding SOAP nodes during the lifetime of the message exchange. At each SOAP node, the local binding instance updates (logically) the value of the reqres:State property to reflect the current state of the message exchange. The state names are relative URIs, relative to a Base URI value carried in the reqres:Role property of the local message exchange context.

Request-Response MEP State Transition Diagram.

When the local binding instance at the responding SOAP node starts to receive an inbound request message, it (logically) instantiates a message exchange context. Table 5 describes the properties that the binding initializes as part of the context's instantiation.

Table 5: Instantiation of Message Exchange Context for an inbound request message
Property NameProperty Value
context:ExchangePatternName "http://www.w3.org/2001/12/soap/mep/request-response/" Initialized as early as possible during the life cycle of the message exchange.
context:FailureReason None
reqres:Role RespondingSOAPNode Initialized as early as possible during the life cycle the message exchange.
reqres:State Init

When the requesting and responding SOAP nodes transition between states, the local binding instance (logically) updates a number of properties. Table 6 and Table 7 describe these updates for the requesting and the responding SOAP nodes, respectively.

Table 6: Requesting SOAP Node State Transitions
CurrentStateTransition ConditionNextStateAction
InitUnconditionalRequestingInitiate transmission of request message abstracted in reqres:OutboundMessage .
RequestingMessage transmission failureFailSet context:FailureReason to "transmissionFailure"
Start receiving response messageSending+ReceivingSet reqres:ImmediateSender to denote the sender of the response message (may differ from the values in reqres:ImmediateDestination ). Start making an abstraction of the response message available in reqres:InboundMessgae .
Sending+ReceivingMessage exchange failureFailSet context:FailureReason to "exchangeFailure"
Completed sending request message. Completed receiving response message.Success

Table 7: Responding SOAP Node State Transitions
CurrentStateTransition ConditionNextStateAction
InitStart receiving request messageReceivingSet reqres:ImmediateSender to denote the sender of the request message (if determinable). Start making an abstraction of the request message available in reqres:InboundMessgae . Pass control of message exchange context to SOAP processor.
ReceivingMessage reception failureFailSet context:FailureReason to "receptionFailure".
Start of response message available in reqres:OutboundMessage Receiving+SendingInitiate transmission of response message abstracted in reqres:OutboundMessage .
Receiving+SendingMessage exchange failureFail Set context:FailureReason to "exchangeFailure".
Completed receiving request message. Completed sending response message.Success

Bindings that implement this MEP MAY provide for streaming of SOAP responses. That is, responding SOAP nodes MAY begin transmission of a SOAP response while a SOAP request is still being received and processed. When SOAP nodes implement bindings that support streaming, the following rules apply:

  • All the rules in [1]Binding Framework regarding streaming of individual SOAP messages MUST be obeyed for both request and response SOAP messages.

  • When using streaming SOAP bindings, requesting SOAP nodes MUST avoid deadlock by accepting and if necessary processing SOAP response information while the SOAP request is being transmitted.

    Note:

    Depending on the implementation used and the size of the messages involved, this rule MAY require that SOAP applications stream application-level response processing in parallel with request generation.

  • A requesting SOAP node MAY enter the Fail state, and thus abort transmission of the outbound SOAP request, based on information contained in an incoming streamed SOAP response.

6.2.4 Fault Handling

During the operation of the Request-Response MEP, the participating SOAP nodes may generate SOAP faults.

If a SOAP fault is generated by the responding SOAP node while it is in the Receiving state, the SOAP fault is made available in reqres:OutboundMessage and the state machine transitions to the Receiving+Sending state.

This MEP makes no claims about the disposition or handling of SOAP faults generated by the requesting SOAP node during any processing of the response message that follows the Success state in the requesting SOAP node's state transition table (see Table 6).

7. SOAP HTTP Binding

7.1 Introduction

The SOAP HTTP Binding provides a binding of SOAP to HTTP. The binding conforms to the SOAP Protocol Binding Framework (see [1]SOAP Protocol Binding Framework). It uses abstract binding properties as a descriptive tool for defining the functionality of certain features.

Certain optional features provided by this binding depend on capabilities provided by HTTP Version 1.1, for example content negotiation. Implementations SHOULD thus use HTTP 1.1 [2] (or later compatible versions that share the same major version number). Implementations MAY also be deployed using HTTP Version 1.0, although in this case certain optional binding features may not be provided.

Note:

SOAP HTTP Binding implementations need to account for the fact that HTTP 1.0 intermediaries may alter the representation of SOAP messages, even in situations where both the initial SOAP sender and ultimate SOAP receiver use HTTP 1.1.

The SOAP Protocol Binding Framework (see [1]SOAP Protocol Binding Framework), the Message Exchange Pattern Specifications (see [1]SOAP Message Exchange Patterns) and Feature Specifications (see 5. A Convention for Describing Features and Bindings) each describe the properties they expect to be present in a message exchange context when control of that context passes between a local SOAP node and a binding instance.

Properties are named with XML qualified names. Property values are determined by the Schema type of the property, as defined in the specification which introduces the property.

Conforming implementations of this binding:

  1. MUST be capable of sending and receiving messages serialized using media type "application/soap+xml" whose proper use and parameters are described in [12].

  2. MAY send requests and responses using other media types providing that such media types provide for at least the transfer of SOAP XML Infoset.

  3. MAY, when sending requests, provide an HTTP Accept header. This header:

    • SHOULD indicate an ability to accept at minimum "application/soap+xml".

    • MAY additionally indicate willingness to accept other media types that satisfy 2 above.

Note:

The SOAP HTTP Binding is optional and SOAP nodes are NOT required to implement it. The SOAP version 1.2 specification does not preclude specifications of other bindings to HTTP or bindings to other protocols. A SOAP node that correctly and completely implements the SOAP HTTP Binding may to be said to "conform to the SOAP 1.2 HTTP Binding."

7.2 Binding Name

The binding is identified with the URI:

  • "http://www.w3.org/2001/12/soap/bindings/HTTP/"

7.3 Supported Message Exchange Patterns

An implementation of the SOAP HTTP Binding MUST support the following message exchange pattern (MEP):

7.4 Request-Response MEP Operation

For binding instances conforming to this specification:

  • A SOAP node instantiated at an HTTP client may assume the role (i.e. the property reqres:Role ) of "RequestingSOAPNode".

  • A SOAP node instantiated at an HTTP server may assume the role (ie. the property reqres:Role ) of "RespondingSOAPNode".

The remainder of this section describes the MEP state machine and its relation to the HTTP protocol. In the state tables below, the states are defined as values of the property reqres:State (see 6.2 Request-Response Message Exchange Pattern), and are of type reqres:StateType (an enumeration over xs:string ).

Failure reasons that are specified in the tables represent values of the property context:FailureReason and their values are XML qualified names. If an implementation enters the "Fail" state, the context:FailureReason property will contain the value specified for the particular transition.

7.4.1 Behavior of Requesting SOAP Node

The overall flow of the behavior of a requesting SOAP node follows the state machine description contained in 6.2 Request-Response Message Exchange Pattern. This binding supports streaming and, as a result, requesting SOAP nodes MUST avoid deadlock by accepting and if necessary processing SOAP response information while the SOAP request is being transmitted (see 6.2.3 State Machine Description). The following subsections describe each state in detail.

7.4.1.1 Init

Table 8 and Table 9 describe the requesting SOAP node's Init state and the values of the HTTP request fields.

Table 8: State Description: Init
StatenameInit
DescriptionFormulate and start sending HTTP request (see next table)
PreconditionsSee 6.2.3 State Machine Description
PostconditionsNone
TransitionsEvent/ConditionNextStateFailure Reason
UnconditionalRequestingN/A

Table 9: HTTP Request Fields
FieldValue
HTTP MethodPOST (the use of other HTTP methods is undefined in this binding).
Request URIThe value of the URI carried in the reqres:ImmediateDestination property of the message exchange context.
Content-Type headerThe media type of the request body, see 7.1 Introduction for a description of permissible media types.
Accept header (optional)List of media types that are acceptable in response to the request message.
Additional HeadersGenerated in accordance with the rules for the binding specific expression of any optional features in use for this message exchange.
HTTP entity bodySOAP message serialized according to the rules for carrying SOAP messages in the media type given by the Content-Type header. Rules for carrying SOAP messages in media type "application/soap+xml" are given in [12].
7.4.1.2 Requesting

Table 10 describes the requesting SOAP node's Requesting state.

Table 10: State Description: Requesting
StatenameRequesting
DescriptionSending request message and waiting for start of response message.
PreconditionsNone
Postconditions
  • Property reqres:ImmediateSender instantiated with a URI value that denotes the sender of the HTTP response (if known)

  • HTTP headers significant to features expressed outside the SOAP envelope processed in accordance with the relevant feature specification.

TransitionsEvent/ConditionNextStateFailure Reason
HTTP Response Status Line and HTTP Headers received(see status code table below)(see status code table below)
Message exchange failureFail"fail:transmissionFailure"

Table 11 details the transitions that take place when a requesting SOAP node reveives an HTTP status line and response headers.

Table 11: HTTP status code dependent transitions
Status CodeReason phraseSignificance/ActionNextState
2xxSuccessful
200OK

The response message follows in HTTP response entity body. Start making an abstraction of the response message available in reqres:InboundMessage .

Sending+Receiving
202Accepted

The request message has been received and processed. The entity body of the HTTP response MAY contain a response message. Start making an abstraction of the response message available in reqres:InboundMessage

Sending+Receiving
204No Content

The request message has been received and processed. The HTTP response MUST NOT contain an entity body. The message exchange is regarded as having completed successfully.

Sending+Receiving
Instantiated PropertyValue
reqres:InboundMessage "Empty" SOAP Envelope.
3xxRedirection

The requested resource has moved and the HTTP request SHOULD be retried using the URI carried in the associated Location header as the new value for the reqres:ImmediateDestination property.

Init
4xxClient Error
400Bad Request

Indicates a problem with the received HTTP request message. The problem may bea malformed XML in the request message envelope. This operation SHOULD NOT be repeated with the same message content. The message exchange is regarded as having completed unsuccessfully.

Fail
Instantiated PropertyValue
context:FailureReason "fail:BadRequest"
401Unauthorized

Indicates that the HTTP request requires authorization.

Requesting
Instantiated PropertyValue
context:FailureReason "fail:AuthenticationFailure"
If the simple authentication feature is unavailable or the operation of simple authentication ultimately fails, then the message exchange is regarded as having completed unsuccessfully.

Fail

Instantiated PropertyValue
context:FailureReason "fail:AuthenticationFailure"
405Method not allowed

Indicates that the peer HTTP server does not support the requested HTTP method at the given request URI. The message exchange is regarded as having completed unsuccessfully.

Fail
Instantiated PropertyValue
context:FailureReason "fail:BindingMismatch"
415Unsupported Media Type

Indicates that the peer HTTP server does not support Content-type used to encode the request message. The message exchange is regarded as having completed unsuccessfully.

Fail
Instantiated PropertyValue
context:FailureReason "fail:BindingMismatch"
5xxServer Error
500Internal Server Error

Indicates that the response message contained in the following HTTP response entity body may contain an SOAP fault. Other internal server errors may be the cause of this status code. The local binding instance continues to receive the incoming message.

Sending+Receiving
Instantiated PropertyValue
context:FailureReason fail:ServerFault

Note:

There may be elements in the HTTP infrastructure configured to modify HTTP response entity bodies for 4xx and 5xx status code responses. For example, some HTTP origin servers have such a feature as a configuration option. This behavior may interfere with the use of 4xx and 5xx status code responses carrying SOAP fault messages in HTTP and it is recommended that such behavior is disabled for resources accepting SOAP/HTTP requests. If the rewriting behavior cannot be disabled, SOAP/HTTP cannot be used in such configurations.

7.4.1.3 Sending+Receiving

Table 12 describes the requesting SOAP node's Sending+Receiving state.

Table 12: State Description: Sending+Receiving
StatenameSending+Receiving
Description Completing the transmission of a request message and the reception of a response message. The response message is assumed to be a SOAP envelope serialized according the rules for carrying SOAP messages in the media type given in the Content-Type header.
PreconditionsNone
PostconditionsOn transitions to Success, the property reqres:InboundMessage is instantiated with the Infoset representation of the serialized envelope in the response body.
TransitionsEvent/ConditionNextStateFailure Reason
Request message transmission and response message reception completed and a well formed response message receivedSuccessN/A
Reception Failure (broken connections etc.) Fail"fail:ReceptionFailure"
Packaging Failure (including mismatched Content-Type) Fail"fail:PackagingFailure"
Malformed response message, e.g. malformed XML, message contains a DTD, invalid SOAP EnvelopeFail"fail:BadResponseMessage"
7.4.1.4 Success and Fail

Succes and Fail are the terminal states of a Request-Response MEP. Control over the message exchange context returns to the local SOAP node.

7.4.2 Behavior of Responding SOAP Node

The overall flow of the behavior of a requesting SOAP node follows the state machine description contained in 6.2 Request-Response Message Exchange Pattern. The following subsections describe each state in detail.

7.4.2.1 Init

Table 13 and Table 14 describe the responding SOAP node's Init state and the faults it generates respectively.

Table 13: State Description: Init
Statename Init
DescriptionWaiting for the start of an inbound request message
PreconditionsReception of an HTTP POST request at an HTTP endpoint bound to the local SOAP node, see 6.2.3 State Machine Description.
PostconditionsSee below
TransitionsEvent/ConditionNextStateAction
Receive the beginning of an HTTP POST request containing well formed request message.Receiving
  • Instantiate or replace the property reqres:ImmediateSender with a URI value that denotes the sender of the HTTP request (if known)

  • Start making an abstraction of the request message available in reqres:InboundMessage .

  • Any HTTP headers that are significant to features expressed outside the SOAP envelope are processed in accordance with the relevant feature specification.

This change of state represents a transfer of control of the inbound message exchange context to the local SOAP node.

Receive HTTP POST request containing malformed request message Fail

The message is considered to have been intended for the local SOAP node. It is considered to be malformed becuase it is not well formed XML, contains a serialized DTD, and/or contains an invalid SOAP envelope. The local SOAP node generates a SOAP fault message in accordance with the following table and sends it in the corresponding HTTP response message, accompanied by a status code value appropriate to the particular fault.

The message exchange context may be destroyed or considered not to have been created.

Table 14: Binding Generated Faults
Problem with MessageHTTP Status CodeHTTP Reason Phrase (informative)SOAP Fault
Malformed Request Message400Bad requestNone
Unsupported message encapsulation method415Unsupported MediaNone
7.4.2.2 Receiving

Table 15 describes the responding SOAP node's Receiving state.

Table 15: State Description: Receiving
StatenameReceiving
Description Continue receiving the request message and wait for the start of a response message to be available in the message exchange context.
PreconditionsNone
PostconditionsSee below
TransitionsEvent/ConditionNextStateAction or Failure Reason
The start of an abstraction of a response message becomes available in reqres:OutboundMessage indicating that the local SOAP processor has generating a response message.Receiving+SendingFormulate and start sending the response message, reqres:OutboundMessage may contain a SOAP fault.
Message reception failureFail"fail:receptionFailure"

Table 16 and Table 17 describe the HTTP response headers generated by the responding SOAP node.

Table 16: HTTP Response Headers
HeaderValue
Status lineSet according to the next table
Content-Type headerThe media type of the response body, see 7.1 Introduction for a description of permissible media types.
Additional HeadersGenerated in accordance with the rules for the binding specific expression of any optional features in use for this message exchange.
HTTP Entity BodySOAP message serialized according to the rules for carrying SOAP messages in the media type given by the Content-Type header. Rules for carrying SOAP messages in application/soap+xml are given in [12].

Table 17: SOAP Fault to HTTP Status Mapping
SOAP FaultHTTP Status CodeHTTP Reason Phrase (informative)
env:VersionMismatch500Internal server error
env:MustUnderstand500Internal server error
env:Sender400Bad request
env:Receiver500Internal server error
7.4.2.3 Receiving+Sending

Table 18 describes the responding SOAP node's Responding state.

Table 18: State Description: Receiving+Sending
Statename Receiving+Sending
DescriptionCompleting request message reception and response message transmission.
PreconditionsNone
PostconditionsSee below
TransitionsEvent/ConditionNextStateAction or Failure Reason
Response message reception and request message transmission complete.Success
Message exchange failureFail"fail:exchangeFailure".
7.4.2.4 Success and Fail

Success and Fail are the terminal states for a Request-Response MEP. From the point-of-view of the local node this message exchange has completed.

7.5 Security Considerations

The SOAP HTTP Binding (see 7. SOAP HTTP Binding) can be considered as an extension of the HTTP application protocol. As such, all of the security considerations identified and described in section 15 of the HTTP specification[2] apply to the SOAP HTTP Binding in addition to those described in [1] "Security Considerations". Implementors of the SOAP HTTP Binding should carefully review this material.

8. References

8.1 Normative References

[1]
W3C Working Draft "SOAP Version 1.2 Part 1: Messaging Framework", Martin Gudgin, Marc Hadley, Jean-Jacques Moreau, Henrik Frystyk Nielsen, @@@@2002 (See soap12-part1.html.)
[2]
IETF "RFC 2616: Hypertext Transfer Protocol -- HTTP/1.1", R. Fielding, J. Gettys, J. C. Mogul, H. Frystyk, T. Berners-Lee, January 1997. (See http://www.ietf.org/rfc/rfc2616.txt.)
[3]
IETF "RFC 2119: Key words for use in RFCs to Indicate Requirement Levels", S. Bradner, March 1997. (See http://www.ietf.org/rfc/rfc2119.txt.)
[4]
W3C Recommendation "XML Schema Part 1: Structures", Henry S. Thompson, David Beech, Murray Maloney, Noah Mendelsohn, 2 May 2001. (See http://www.w3.org/TR/2001/REC-xmlschema-1-20010502/.)
[5]
W3C Recommendation "XML Schema Part 2: Datatypes", Paul V. Biron, Ashok Malhotra, 2 May 2001. (See http://www.w3.org/TR/2001/REC-xmlschema-2-20010502/.)
[6]
IETF "RFC 2396: Uniform Resource Identifiers (URI): Generic Syntax", T. Berners-Lee, R. Fielding, L. Masinter, August 1998. (See http://www.ietf.org/rfc/rfc2396.txt.)
[7]
W3C Recommendation "Namespaces in XML", Tim Bray, Dave Hollander, Andrew Layman, 14 January 1999. (See http://www.w3.org/TR/1999/REC-xml-names-19990114/.)
[8]
W3C Recommendation "Extensible Markup Language (XML) 1.0 (Second Edition)", Tim Bray, Jean Paoli, C. M. Sperberg-McQueen, Eve Maler, 6 October 2000. (See http://www.w3.org/TR/2000/REC-xml-20001006.)
[9]
W3C Recommendation "XML Linking Language (XLink) Version 1.0", Steve DeRose, Eve Maler, David Orchard, 27 June 2001. (See http://www.w3.org/TR/2001/REC-xlink-20010627/.)
[10]
W3C Recommendation "XML Information Set", John Cowan, Richard Tobin, 24 October 2001. (See http://www.w3.org/TR/2001/REC-xml-infoset-20011024/.)
[11]
IETF "RFC 3023: XML Media Types", M. Murata, S. St. Laurent, D. Kohn, July 1998. (See http://www.ietf.org/rfc/rfc3023.txt.)
[12]
IETF "INTERNET DRAFT: The 'application/soap+xml' media type", M. Baker, M. Nottingham, January 14, 2002. (Work in progress). (See http://www.ietf.org/internet-drafts/draft-baker-soap-media-reg-00.txt.)

8.2 Informative References

[13]
W3C Working Draft "SOAP Version 1.2 Part 0: Primer", Nilo Mitra, @@@@2002 (See soap12-part0.html.)
[14]
XML Protocol Comments Archive (See http://lists.w3.org/Archives/Public/xmlp-comments/.)
[15]
XML Protocol Discussion Archive (See http://lists.w3.org/Archives/Public/xml-dist-app/.)
[16]
XML Protocol Charter (See http://www.w3.org/2000/09/XML-Protocol-Charter.)
[17]
IETF "RFC2045: Multipurpose Internet Mail Extensions (MIME) Part One: Format of Internet Message Bodies", N. Freed, N. Borenstein, November 1996. (See http://www.ietf.org/rfc/rfc2045.txt.)
[18]
IETF "RFC 2026: The Internet Standards Process -- Revision 3", section 4.2.3, S. Bradner, October 1996. (See http://www.ietf.org/rfc/rfc2026.txt.)

A. Mapping Application Defined Names to XML Names

Hex Digits
[4]hexDigit::=[0-9A-F]

A.1 Rules for mapping application defined names to XML Names

  1. XML Name has two parts: Prefix and LocalPart. Let Prefix be computed per the rules and constraints specified in Namespaces in XML [7].

  2. Let TAG be a name in an application. TAG is a sequence of characters of the application. Let N be the number of characters in TAG. Let T1, T2, ... , TN be the characters of TAG, in order from left to right.

  3. Let M be the implementation-defined mapping of the characters of the application to characters of Unicode.

  4. For each i between 1 (one) and N, let Mi be M(Ti).

  5. For each i between 1 (one) and N, let Xi be the Unicode character string defined by the following rules.

    Case:

    1. If Ti has no mapping to Unicode (i.e. M(Ti) is undefined), then Xi is implementation-defined

    2. If i<=N-1, Ti is "_" (underscore), and Ti+1 is "x" (lowercase letter x), then let Xi be "_x005F_".

    3. If i=1, N>=3, T1 is either "x" (lowercase letter x) or "X" (uppercase letter X), T2 is either "m" (lowercase letter m) or "M" (uppercase letter M), and T3 is either "l" (lowercase letter l) or "L" (uppercase letter L), then let Xi be "_xFFFF_"T1

    4. If Ti is not a valid XML NCName character or if i=1 (one) and T1 is not a valid first character of an XML NCName, then:

      Let U1, U2, ... , U8 be the eight hex digits [PROD: 4] such that Ti is "U+"U1U2 ... U8 in the UCS-4 encoding.

      Case:

      1. If U1=0, U2=0, U3=0, and U4=0, then let Xi="_x"U5U6U7U8"_".

        This case implies that Ti has a UCS-2 encoding, which is U+U5U6U7U8.

      2. Otherwise, let Xi be "_x"U1U2U3U4U5U6U7U8"_".

    5. Otherwise, let Xi be Mi. That is, any character in TAG that is a valid character in an XML NCName is simply copied.

  6. Let LocalPart be the character string concatenation of X1, X2, ... , XN in order from left to right.

  7. Let XML Name be the QName per Namespaces in XML [7]

A.2 Examples

Hello world -> Hello_x0020_world
Hello_xorld -> Hello_x005F_xorld
Helloworld_ -> Helloworld_

          x -> x
        xml -> _xFFFF_xml
       -xml -> _x002D_xml
       x-ml -> x-ml


B. Using W3C XML Schema with SOAP Encoding (Non-Normative)

As noted in 3.1.4 Computing the Type Name property SOAP graph nodes are labeled with type names, but validation of encoded SOAP messages MUST NOT be required by conforming processors. These sections describe techniques that can be used when validation with W3C XML schemas is desired for use by SOAP applications. Any errors or faults resulting from such validation are beyond those covered by the normative recommendation; from the perspective of SOAP, such faults are considered to be application-level failures.

B.1 Validating using the minimum schema

Although W3C XML schemas are conventionally exchanged in the form of schema documents (see [4]), the schema recommendation is build on an abstract definition of schemas, to which all processors need to conform. The schema recommendation provides that all such schemas include definitions for a core set of built in types, such as integers, dates, and so on (see [4], Built-in Simple Type Definition). Thus, it is possible to discuss validation of a SOAP message against such a minimal schema, which is the one that would result from providing no additional definitions or declarations (i.e. no schema document) to a schema processor.

The minimal schema provides that any well formed XML document will validate, except that where an xsi:type is provided, the type named must be built in, and the corresponding element must be valid per that type. Thus, validation of a SOAP 1.2 message using a minimal schema approximates the behavior of the built-in types of SOAP 1.1.

B.2 Validating using the SOAP Encoding schema

Validation against the minimal schema (see B.1 Validating using the minimum schema) will not succed where encoded graph nodes have multiple inbound edges. The SOAP Encoding of such graphs MAY be validated against the SOAP Encoding schema. In order for the encoding to validate, edge labels, and hence element namespace names and local names, need to match those defined in the SOAP Encoding schema. Validation of the encoded graph against the SOAP Encoding schema would result in the type name property of the nodes in the graph being assigned the relevant type name.

B.3 Validating using more specific schemas

It may be that schemas could be constructed to describe the encoding of certain graphs. Validation of the encoded graph against such a schema would result in the type name property of the graph nodes being assigned the relevant type name.

C. RPC and SOAP HTTP Binding Examples (Non-Normative)

C.1 Sample Encoding of Call Requests

Example 2: SOAP HTTP Request Using POST
POST /StockQuote HTTP/1.1
Content-Type: application/soap+xml; charset="utf-8"
Content-Length: nnnn

<?xml version="1.0" ?>
<env:Envelope xmlns:env="http://www.w3.org/2001/12/soap-envelope" >
 . . .
</env:Envelope>

Example 3: RPC Invocation in HTTP POST
POST /StockQuote HTTP/1.1
Host: www.example.org
Content-Type: application/soap+xml; charset="utf-8"
Content-Length: nnnn

<?xml version="1.0" ?>
<env:Envelope
     xmlns:env="http://www.w3.org/2001/12/soap-envelope" >
 <env:Body >
  <m:GetLastTradePrice
     env:encodingStyle="http://www.w3.org/2001/12/soap-encoding"
     xmlns:m="http://example.org/2001/06/quotes" >
   <m:symbol>DEF</m:symbol>
  </m:GetLastTradePrice>
 </env:Body>
</env:Envelope>

Example 4: RPC Invocation in HTTP POST with multiple request parameters
POST /StockQuote HTTP/1.1
Host: www.example.org
Content-Type: application/soap+xml; charset="utf-8"
Content-Length: nnnn

<?xml version="1.0" ?>
<env:Envelope xmlns:env="http://www.w3.org/2001/12/soap-envelope" >
 <env:Body>
  <m:GetLastTradePriceDetailed
     env:encodingStyle="http://www.w3.org/2001/12/soap-encoding"
     xmlns:m="http://example.org/2001/06/quotes" >
   <Symbol>DEF</Symbol>
   <Company>DEF Corp</Company>
   <Price>34.1</Price>
  </m:GetLastTradePriceDetailed>
 </env:Body>
</env:Envelope>

C.2 Sample Encoding of Response

Example 5: SOAP HTTP Response
HTTP/1.1 200 OK
Content-Type: application/soap+xml; charset="utf-8"
Content-Length: nnnn

<?xml version="1.0" ?>
<env:Envelope xmlns:env="http://www.w3.org/2001/12/soap-envelope" >
 . . .
</env:Envelope>

Example 6: RPC response in HTTP response
HTTP/1.1 200 OK
Content-Type: application/soap+xml; charset="utf-8"
Content-Length: nnnn

<?xml version="1.0" ?>
<env:Envelope xmlns:env="http://www.w3.org/2001/12/soap-envelope" >
 <env:Body>
  <m:GetLastTradePriceResponse
     env:encodingStyle="http://www.w3.org/2001/12/soap-encoding"
     xmlns:m="http://example.org/2001/06/quotes"
     xmlns:rpc="http://www.w3.org/2001/12/soap-rpc">
   <rpc:result>Price</rpc:result>
   <Price>34.5</Price>
  </m:GetLastTradePriceResponse>
 </env:Body>
</env:Envelope>

Example 7: Similar to previous example but including an additional out parameter
HTTP/1.1 200 OK
Content-Type: application/soap+xml; charset="utf-8"
Content-Length: nnnn

<?xml version="1.0" ?>
<env:Envelope xmlns:env="http://www.w3.org/2001/12/soap-envelope" >
 <env:Body>
  <m:GetLastTradePriceDetailedResponse
     env:encodingStyle="http://www.w3.org/2001/12/soap-encoding"
     xmlns:m="http://example.org/2001/06/quotes"
     xmlns:rpc="http://www.w3.org/2001/12/soap-rpc" >
   <rpc:result>Price</rpc:result>
   <Price>34.5</Price>
   <DayVolume>10000</DayVolume>
  </m:GetLastTradePriceDetailedResponse>
 </env:Body>
</env:Envelope>

Example 8: SOAP fault, resulting from failure to handle the SOAP body, in HTTP response
HTTP/1.1 500 Internal Server Error
Content-Type: application/soap+xml; charset="utf-8"
Content-Length: nnnn

<?xml version="1.0" ?>
<env:Envelope xmlns:env="http://www.w3.org/2001/12/soap-envelope" >
 <env:Body>
  <env:Fault xmlns:e="http://example.org/2001/06/faults" >
   <env:Code>
    <env:Value>env:Server</env:Value>
    <env:Subcode>
     <env:Value>e:OutOfMemory</env:Value>
    </env:Subcode>
   </env:Code>
   <env:Reason>Server Error</env:Reason>
   <env:Detail>
    <e:myfaultdetails>
     <message>My application didn't work</message>
    </e:myfaultdetails>
   </env:Detail>
  </env:Fault>
 </env:Body>
</env:Envelope>

D. Acknowledgements (Non-Normative)

This document is the work of the W3C XML Protocol Working Group.

Members of the Working Group are (at the time of writing, and by alphabetical order): Yasser al Safadi (Philips Research), Vidur Apparao (Netscape), Don Box (DevelopMentor), Charles Campbell (Informix Software), Michael Champion (Software AG), Dave Cleary (webMethods), Ugo Corda (Xerox), Paul Cotton (Microsoft Corporation), Ron Daniel (Interwoven), Glen Daniels (Allaire), Doug Davis (IBM), Ray Denenberg (Library of Congress), Paul Denning (MITRE Corporation), Frank DeRose (TIBCO Software, Inc.), Colleen Evans (Progress Software), James Falek (TIBCO Software, Inc.), David Fallside (IBM), Chris Ferris (Sun Microsystems), Daniela Florescu (Propel), Dietmar Gaertner (Software AG), Rich Greenfield (Library of Congress), Martin Gudgin (DevelopMentor), Hugo Haas (W3C), Marc Hadley (Sun Microsystems), Mark Hale (Interwoven), Randy Hall (Intel), Gerd Hoelzing (SAP AG), Oisin Hurley (IONA Technologies), Yin-Leng Husband (Compaq), John Ibbotson (IBM), Ryuji Inoue (Matsushita Electric Industrial Co., Ltd.), Scott Isaacson (Novell, Inc.), Kazunori Iwasa (Fujitsu Software Corporation), Murali Janakiraman (Rogue Wave), Mario Jeckle (Daimler-Chrysler Research and Technology), Eric Jenkins (Engenia Software), Mark Jones (AT&T), Anish Karmarkar (Oracle), Jeffrey Kay (Engenia Software), Richard Koo (Vitria Technology Inc.), Jacek Kopecky (IDOOX s.r.o.), Yves Lafon (W3C), Tony Lee (Vitria Technology Inc.), Michah Lerner (AT&T), Henry Lowe (OMG), Richard Martin (Active Data Exchange), Noah Mendelsohn (Lotus Development), Jeff Mischkinsky (Oracle), Nilo Mitra (Ericsson Research Canada), Jean-Jacques Moreau (Canon), Highland Mary Mountain (Intel), Masahiko Narita (Fujitsu Software Corporation), Mark Needleman (Data Research Associates), Eric Newcomer (IONA Technologies), Henrik Frystyk Nielsen (Microsoft Corporation), Mark Nottingham (Akamai Technologies), David Orchard (BEA Systems), Kevin Perkins (Compaq), Jags Ramnaryan (BEA Systems), Andreas Riegg (Daimler-Chrysler Research and Technology), Herve Ruellan (Canon), Marwan Sabbouh (MITRE Corporation), Shane Sesta (Active Data Exchange), Miroslav Simek (IDOOX s.r.o.), Simeon Simeonov (Allaire), Nick Smilonich (Unisys), Soumitro Tagore (Informix Software), Lynne Thompson (Unisys), Patrick Thompson (Rogue Wave), Asir Vedamuthu (webMethods) Ray Whitmer (Netscape), Volker Wiechers (SAP AG), Stuart Williams (Hewlett-Packard), Amr Yassin (Philips Research) and Jin Yu (Martsoft Corp.).

Previous members were: Eric Fedok (Active Data Exchange), Susan Yee (Active Data Exchange), Dan Frantz (BEA Systems), Alex Ceponkus (Bowstreet), James Tauber (Bowstreet), Rekha Nagarajan (Calico Commerce), Mary Holstege (Calico Commerce), Krishna Sankar (Cisco Systems), David Burdett (Commerce One), Murray Maloney (Commerce One), Jay Kasi (Commerce One), Yan Xu (DataChannel), Brian Eisenberg (DataChannel), Mike Dierken (DataChannel), Michael Freeman (Engenia Software), Bjoern Heckel (Epicentric), Dean Moses (Epicentric), Julian Kumar (Epicentric), Miles Chaston (Epicentric), Alan Kropp (Epicentric), Scott Golubock (Epicentric), Michael Freeman (Engenia Software), Jim Hughes (Fujitsu Limited), Dick Brooks (Group 8760), David Ezell (Hewlett Packard), Fransisco Cubera (IBM), David Orchard (Jamcracker), Alex Milowski (Lexica), Steve Hole (MessagingDirect Ltd.), John-Paul Sicotte (MessagingDirect Ltd.), Vilhelm Rosenqvist (NCR), Lew Shannon (NCR), Art Nevarez (Novell, Inc.), David Clay (Oracle), Jim Trezzo (Oracle), David Cleary (Progress Software), Andrew Eisenberg (Progress Software), Peter Lecuyer (Progress Software), Ed Mooney (Sun Microsystems), Mark Baker (Sun Microsystems), Anne Thomas Manes (Sun Microsystems), George Scott (Tradia Inc.), Erin Hoffmann (Tradia Inc.), Conleth O'Connell (Vignette), Waqar Sadiq (Vitria Technology Inc.), Randy Waldrop (WebMethods), Bill Anderson (Xerox), Tom Breuel (Xerox), Matthew MacKenzie (XMLGlobal Technologies), David Webber (XMLGlobal Technologies), John Evdemon (XMLSolutions) and Kevin Mitchell (XMLSolutions).

The people who have contributed to discussions on xml-dist-app@w3.org are also gratefully acknowledged.

E. Part 2 Change Log (Non-Normative)

E.1 SOAP Specification Changes

DateAuthorDescription
20020527MJHRemoved quotes around lexical value.
20020527MJHRemoved a couple of instances of lower case should and must.
20020527MJHAdded reference to SOAP part 0.
20020517JJMFixed some typos.
20020517JJMHTTP versioning wordsmithing.
20020516MJHWorked on examples to show rpc:result usage.
20020516MJHAdded issue 195 resolution.
20020516MJHAdded ProcedureNotPresent resolution.
20020516MJHAdded HTTP versioning resolution.
20020515MJHReadability update to description of data model.
20020509MJHAdded RPC root resolution.
20020509MJHAdded bib refs to spec cross refs. Fixed some xspecrefs that were empty and so didn't show up in the html. Removed pt1 section numbers from cross references since these are not autogenerated and would be a maintenance headache.
20020506JJMRemoved double-spaces.
20020506JJMDivided the long list in "SOAP RPC and Body" into two separate lists.
20020506JJMFixed a few typos.
20020503HFNChanged "faulthint" to "faultreason".
20020503HFNMade the order of properties listed in ReqRes MEP tables and removed "local abort" as per "http://lists.w3.org/Archives/Member/w3c-xml-protocol-wg/2002May/0005.html". Also fixed the prefix given that some properties have moved from context to reqres.
20020503HFNRemoved the sentence "This URI is often abbreviated to the term "request-response" throughout this specification." as we have already said that the MEP is called "Request-Response". Also, have casing consistent in using the name (was often "request-response").
20020503HFNRemoved the notion that MEP properties are relative URIs - they are just URIs.
20020503MJHAdded table cross-references.
20020503MJHAdded streaming edits to state tables in MEP and HTTP binding.
20020503JJMAdded a couple of missing "SOAP" to streaming stuff.
20020503JJMAdded back streaming stuff (with proper XML formatting), after CVS hick-up.
20020502JJMAdded missing <att>
20020502MJGClarified arraySize BNF
20020502MJHIncorporated readability changes into abstract.
20020502MJHIncorporated readability changes into section 7.
20020502MJHDecapitalised requesting, responding, request, response, message, node and path.
20020502MJHIncorporated readability changes into sections 5 and 6.
20020502MJHIncorporated readability changes into Section 1.
20020501HFNChange SOAP Node to SOAP node
20020501HFNIncorporated changes referring first ednote in mail thread in http://lists.w3.org/Archives/Member/w3c-xml-protocol-wg/2002May/0005.html
20020501HFNChanged "Message Exchange" and other permutations to "MEP"
20020501MJHFixed dangling xref.
20020430MJGIncorporated readability changes into Section 4.
20020430MJGIncorporated readability changes into Section 3.
20020430MJGIncorporated readability changes into Section 2.
20020426JJMUpdated member list.
20020426MJHRemoved SOAPAction section - moved to application/soap+xml ID.
20020425MJGRemoved notion of local/global scoping from SOAP Encoding per http://lists.w3.org/Archives/Public/xmlp-comments/2002Apr/0024.html
20020425MJGUpdated on Appendix B1
20020425MJGStarted on Appendices B2 and B3
20020425MJHCompleted HTTP status code mapping table (#196).
20020425MJHAdded resolution for issue #192.
20020425JJMStarted incorporating resolution for issue #196.
20020424MJHAdded issue 197 resolution.
20020411MJHFixed responding table in HTTP section.
20020411MJHRemoved pt1 TOC from intro and cleaned up abstract.
20020410MJGAdded an id to a div
20020410MJHIncorporated Noah's minor comments on intro.
20020410MJGIncorporated Noah's minor comments on Sections 2 and 3
20020410MJGAmended beginning of type name computation section 3.1.4
20020410MJGAmended prose at start of section 3
20020410MJGSwapped sections 3.1.4 and 3.1.5
20020410MJGAmended description of how to distinguish outbound edges in section 2.1.1
20020410MJGAdded prose to description of ref/id specifying that ref target must be encoded using soap encoding.
20020410MJGAmended description of "struct" in Section 2
20020410JJMAdded Noah's minor comments on section 4.
20020410JJMAdded Noah's moderate comments on section 4.
20020410JJMAdded Noah's most significant comments on section 4.
20020409MJGAmended description of "generic" in Section 2
20020409MJGAmended the abstract to mention data model, features, MEPs, HTTP binding
20020408MJGClarified that 'node' means 'graph node' in Sections 2 and 3
20020408MJGAdded bullet about Section 5 and 6 to intro
20020408MJGFixed typos in Section 3
20020404JJMMoved the beginning of section "6.0 MEPs" to part1 as "3.2 MEPs". The remaining text (table) from that section is now section "6.1 Property Conventions for MEPs", as suggested by Noah and Henrik.
20020403MJHremoved duplicate para in section 6.1.3.
20020403MJHUpdated HTTP binding in line with response to question from TBTF.
20020403JJMAmended ednote in 6.1.3, since Stuart has provided text, but not the TBTF.
20020403MJGChanged http://www.w3.org/2001/12/soap/bindings/defaultHTTP to http://www.w3.org/2001/12/soap/bindings/HTTP
20020403JJMIncorporated the resolution for issue 191, including Henrik's friendly amendments.
20020328MJHWorked through HTTP binding. Main changes around formatting of tables, table headings and improving consistency in language.
20020327JJMRemoved extra spaces around parenthesis, dot, semi-colon and comma.
20020327JJMFixed typo discovered by Herve.
20020322HFNChanged mU='1' with mu='true' in examples.
20020322MJHreplaced transport with context/underlying protocol.
20020322MJGMade consistent usage of section names; SOAP Data Model, SOAP Encoding, SOAP RPC Representation, SOAP HTTP Binding
20020322MJGAdded priority feedback request regarding 'generics' to section 2.3
20020322MJHchanged all namespace identifiers, URIs to names.
20020322MJHremoved links in NS URIs.
20020314MJGAdded appendix B (not yet complete)
20020314MJGRewrote Section 2
20020314MJGRewrote Section 3
20020314MJGAmended Section 4 to match new Section 2 and 3
20020321HFNAdded text to 7. SOAP HTTP Binding to clarify that HTTP binding is optional and one of many possible bindings
20020321HFNMade abstract and introduction consistent with Part 1
20020321MJHIssue 174 changes.
20020321MJHMade URI styling consistent throughout and consistent with part 1.
20020321MJHMade references to fault code values consistent throughout and consistent with part 1.
20020320JJMIncorporated resolution for issue #180.
20020320JJMUpdated cross-references from saying "bibref" "xspecref" to "bibref" section "xspecref". Otherwise the generated HTML looked funny (the links were back to back) [Ednote issue #33]
20020320JJMMore generally, made all "bibrefs" more uniform.
20020320JJMAdded resolution text for issue 184.
20020319JJMIncorporated Chris Ferris' proposed resolution to 6.1.4 Fault Handling in anticipation of its acceptance by the WG
20020318JJMIncorporated resolution to ednote part 2 sec 6.1.3
20020316HFNUpdated section 6.2 Request-Response Message Exchange Pattern
20020316HFNUpdated section 6.2.4 Fault Handling
20020316HFNDeleted section 6.1.5, 6.1.6, and 7.4.1.3
20020312MJHIncorporated issue 16 resolution.
20020312MJHIncorporated issue 113 resolution.
20020312MJHIncorporated issue 48 resolution.
20020312MJHFixed up content list of part 1 in introduction.
20020305MJGRemoved section 1.3 ( Terminology)
20020305MJGRemoved section 1.2 ( Examples)
20020304HFNUpdated rule 8 as per resolution to issue 177. Section on default values seemed already to have been removed.
20020304HFNRemoved last two paragraphs in section "RPC and SOAP Header" talking about non-normative example text
20020228HFNUpdated abstract slightly
20020228HFNAdd security considerations text.
20020228HFNAdded second part of resolution of issue 59: Say that we mandate support for UTF-8 and UTF-16
20020228HFNMove the HTTP specific examples in Appendix B1 to Appendix C.
20020227MJGChanged all refs to transport message exchange to message exchange
20020227MJGMoved ednote from 6.1.3 to be text in 6
20020225MJGRemoved reference to 'Simple Authentication Feature' in HTTP binding
20020225MJGadded id attrs to all div elements
20020225MJGRemoved section 7.5.2
20020225MJGRemoved redundant text from 3.1.2
20020221MJGEdited examples so that no line is longer than 66 characters
20020220MJGMoved SOAP HTTP Examples to an appendix marked as non-normative
20020220MJGAdded text stating the paragraph on transaction ids in Section 4.2 is non-normative
20020219MJGChanged BNF for arraySize to say non negative integer instead of positive integer
20020219MJGChanged arraySize to use nonNegativeInteger instead of positiveInteger
20020215MJGRemoved old array attributes from encoding schema
20020215MJGAdded new array attributes to encoding schema
20020215MJGRewrote Section 3 from XML Infoset perspective
20020214MJGRemoved NOTATION type and element decl from encoding schema
20020214MJGRolled back Infoset rewrite of RPC section
20020214MJGChanged relevant occurrences of Client and Server to Sender and Receiver for consistency with Part 1.
20020213MJHRemoved (possibly defaulted) from encoding rule 2.
20020213MJHChanged encoding examples to better show inline multirefs and removed corresponding ednote.
20020208MJGAdded examples to Appendix A
20020208MJGChanged Section 4.1 ednote
20020208MJGRewrote Section 4.1 from Infoset perspective
20020201MJHEditorial fix to encoding array example narrative.
20020131MJHAdded new "Decoding faults" subsection as resolution for issues 168 and 170.
20020129MJHPulled out the single/multi ref descriptions in Simple Types/Strings and Simple Types/Array of Bytes into a new separate subsection of the Simple Types section.
20020129MJHMisc editorial fixes.
20020129MJHFixed EBNF reference to use XML Recommendation notation.
20020129MJHFixed reference to SOAP media type draft, removed duplicated information, renumbered following references.
20020125HFNIn section on SOAP data model, changed "The SOAP data model represents information as a graph of typed objects" to "The SOAP data model represents information as a graph of typed nodes"
20020125HFNRemoved ednote in section 7.1 regarding SOAP media type and added reference to the soap media type internet draft for details about use of media type parameters. I have not changed the use of SOAPAction during this.
20020121MJHChanged encoding references from anyURI to IDREF (Issue 170).
20020118MJHChanged rpc error text to use new SOAP fault subcodes (Issue 173).
20020117MJHFixed indentation on more examples.
20020117MJHRemoved sparse and partially transmitted arrays. Modified encoding section to use arraySize and itemType attributes. Resolves issues 117, 144 and 161.
20020117JJMAdded text for resolution of issue 12.
20020114MJHFixed indentation in 3 of the examples in SOAP encoding section.
20020114MJHRemoved duplicate text for section 2 (SOAP Data Model) from section 3 (SOAP Encoding).
20020109JJMIncorporated comments from John Ibbotson.
20011220JJMAdded resolution for 171 in section 4.1 "Rules for Encoding Types in XML".
20011219JJMFixed abstract.
20011214JJMFixed incorrect reference to XML Protocol Charter.
20011214JJMFixed incorrect combination of olist, item and p in "A Mapping Application Defined Name to XML Name" section
20011214JJMFixed incorrect reference to XLink.
20011213JJMChanged the namespace to http://www.w3.org/2001/12/.
20011211JJMIn the new TBTF sections, use the passive voice instead of "we".
20011211JJMReplace application/soap+xml by application/soap in "HTTP Request Fields" table.
20011211JJMReplace text/xml by application/soap in "Responding State" table.
20011211JJMFixed typo in section 6 noticed by Mario.
20011210JJMIncorporated David's editorial changes to section 6.
20011206JJMFixes to occurrences of texting referring to blocks (instead of body elements).
20011206JJMConverted all the tables in sections 7 and 8 into proper XML.
20011206JJMMoved HTTP examples from old binding section to new binding section.
20011206JJMReplaced SOAPAction production rules in new binding section with that from old binding section (they were identical, but formatting was better).
20011206JJMRemoved old binding section.
20011206JJMUpdated references to XLink and XML Infoset (now recommendations).
20011206JJMMoved text about application/soap from old binding to new binding section.
20011206JJMTransformed references into proper hyperlinks.
20011206JJMChanged image format to GIF.
20011206JJMReduced image size.
20011205JJMIncorporated TBTF Part 2 (Features).
20011205JJMIncorporated TBTF Part 3 (MEPs).
20011205JJMIncorporated TBTF Part 4 (HTTP Binding). There are still some HTML-icisms. Hopefully, they will go away after today's conference call.
20011204MJHChanges to encoding section - issue 18.
20011204MJHUpdated DTD and appendix A to preserve subscripts in variable elements.
20011204MJHUpdated reference to RFC2376 to RFC3023.
20011204JJMUpdated the ednote for SOAPAction as an optional feature, now that this is defined in section 5..
20011204JJMAdded quotes around "Required-SOAPAction".
20011129MJGFixed ednote related to change from text/xml to application/soap
20011122MJHRemoved placeholder and ednote for HTTP extension framework. The actual text of the section was removed prior to the previous draft and replaced with an ednote requesting feedback on the removal. As none was received the subsection has now been completely removed along with the corresponding bibliography entry.
20011121MJHAdded appendix for mapping application names to XML element names. Added cross references to encoding and RPC sections to point readers to the new appendix. (Issue 1)
20011029MJHAdded text to state that SOAP is no longer an acronym (Issue 125)
20011029MJHAmended introductory text (Issue 148)
20011029MJHAmended introductory text (Issue 147)
20011029MJHAmended abstract (Issue 147)
20011026MJGAmended BNF for arrayTypeValue to use form from XML 1.0 Rec (Issue 162)
20011026MJGAmended prose related to DTDs and PIs (Issue 4)
20011026MJGUpdated schema change table to list change from ur-type to anyType
20011026MJGAdded xml declaration to all XML examples with a root of env:Envelope or xs:schema
20011024MJGChanged media type from text/xml to application/soap and added associated ednote
20010926MJGUpdated member list
20010926MJGUpdated ednote in section 6.4
20010926MJGChanged rpc namespace to http://www.w3.org/2001/09/soap-rpc
20010921MJGAdded rpc namespace to list in Section 2
20010921MJGAdded new schema for rpc result element as described in section 5.1
20010921MJGAmended section 5.1 to incorporate description of rpc result element
20010921MJGChanged targetNamespace attribute of encoding schema to http://www.w3.org/2001/09/soap-encoding
20010921JJMUsed text proposed by Noah for ednote on SOAPAction.
20010920JJMMake the wording clarification regarding issue 45 (decreasing order of precedence).
20010920JJMRemoved current security section; added new security subsection to HTTP binding section, with a temporary ednote until we get text from Henrik and Chris).
20010920JJMChange the namespace of the envelope to http://www.w3.org/2001/09/...
20010920JJMAdd an editorial note about why some sections are not written in terms of infoset.
20010920JJMAdd ednote from Jacek regarding SOAPAction.
20010918JJMAdded ednote to the "SOAPAction" section indicating that a HTTP status code needs to be obtained from IANA.
20010918JJMRemoved last electrocommerce.org URL from examples.
20010914JJMAdded text from Henrik to beef-up the "Data Model" section placeholder text.
20010914JJMBack to "Adjuncts" again.
20010914JJMFixed issues 124, 126, 127, 128 and 132.
20010914JJMFixed typos and indentation.
20010914JJMReference the XML InfoSet Proposed Recommendation instead of the Candidate Recommendation.
20010911JJMChanged XML Information Set into a normative reference. Changed XML Protocol Comments Archive, Discussion Archive and Charter into non-normative references. Added a reference to RFC2396 in section 4, 3rd paragraph.
20010905MJHWordsmithed abstract and introduction to better reflect split into parts 1 and 2. Rationalised list of references so only cited works appear. Removed envelope schema changes. Added bibref entries for cross references to Part 1, fixed links so they target the HTML instead of XML version of the doc.
20010831JJMAdded a close paragraph tag before starting a new olist or ulist.
20010831JJMProperly declared the language for the spec, so that we can generate valid HTML.
20010831JJMAdded text from Hugo to emphasize the fact that the SOAP root attribute is of type XML Schema boolean.
20010830MJGCopied "Relation to XML" section from part 1.
20010830MJGRemoved Design Goals section (design goals listed relevant to Part 1 not Part 2)
20010830JJMRemoved terminology not relevant to part2.
20010830JJMAdded SOAP examples from part 1, introductory sections.
20010830JJMAdded SOAP example appendix from part1.
20010830JJMAdded a paragraph to section 1 pointing to part2 for encoding, rpc and http binding.
20010830JJMAdded a paragraph at the beginning of section 3 to cover serializations containing references to data outside the serialization, as per 20010829 teleconference.
20010830JJMRemove 2nd sentence, bullet 5, RPC faults section, as per 20010829 teleconference.
20010830JJMRemove 2nd sentence, bullet 1, RPC faults section, as per 20010822 teleconference.
20010829JJMAdded a placeholder for the forthcoming Data Model section.
20010829JJMRemoved the Envelope Example section, already present in part1.
20010829JJMUpdated the specs title.
20010829JJMReplaced specref with xspecref for references to Part1 items.
20010829JJMAdded bibliography entry for SOAP 1.2 Part 1.
20010829JJMRemoved former sections 1, 2, 3 and 4, and the SOAP versioning appendix. Moved the RPC section before the HTTP binding section, as per the 20010815 teleconference call.
20010829JJMDid split the spec into two parts.
20010829JJMReferred to the proper DTD and stylesheet.
20010829JJMUpdated the list of WG members: one person per line in the XML file, for easier updating.
20010816MJHReplaced a mustUnderstand="1" with mustUnderstand="true". Slight rewording in mu description.
20010810MJHMerged in RPC fault rules text from Jacek. Added new DataEncodingUnknown fault code to SOAP Fault Codes section. Added editorial notes about introduction of new fault code namespace for RPC.
20010809MJHMerged in "mustHappen" descriptive text from Glen and Noah.
20010809MJHFixed language around "default" values of attributes.
20010809MJHRemoved HTTP extension framework, added editorial note to describe why.
20010808MJHAdded Infoset "specified" property text from Chris.
20010808MJHRemoved assumption 4 from version transition appendix.
20010808MJHAdded reference to SOAP 1.1 specification to references section, removed SOAP 1.1 author list from acknowledgments section.
20010807MJHConverted specification from HTML to XML conforming to W3C XMLSpec DTD. Numerous resulting formatting changes.
20010720MJGApplied Infoset terminology to sections 1, 2, 3 and 4.
20010629MJGAmended description of routing and intermediaries in Section 2.1
20010629JJMChanged "latest version" URI to end with soap12
20010629JJMRemove "previous version" URI
20010629JJMRemoved "Editor copy" in <title>
20010629JJMRemoved "Editor copy" in the title.
20010629JJMAdded "Previous version" to either point to SOAP/1.1, or explicitly mention there was no prior draft.
20010629JJMPre-filed publication URIs.
20010629JJMIncorporated Davids suggested changes for the examples in section 4.1.1 to 4.4.2
20010629JJMFixed some remaining typos.
20010629MJHFixed a couple of typos.
20010628MJGMade various formatting, spelling and grammatical fixes.
20010628MJGMoved soap:encodingStyle from soap:Envelope to children of soap:Header/soap:Body in examples 1, 2, 47, 48, 49 and 50
20010628MJGChanged text in Section 2.1 from "it is both a SOAP sender or a SOAP receiver" to "it is both a SOAP sender and a SOAP receiver"
20010628MJGFixed caption on Example 24
20010628MJHFixed a couple of capitalisation errors where the letter A appeared as a capital in the middle of a sentence.
20010628MJHUpdated figure 1, removed ednote to do so.
20010622HFNRemoved the introductory text in terminology section 1.4.3 as it talks about model stuff that is covered in section 2. It was left over from original glossary which also explained the SOAP model.
20010622HFNMoved the definition of block to encapsulation section in terminology
20010622HFNRemoved introductory section in 1.4.1 as this overlaps with the model description in section 2 and does not belong in a terminology section
20010622HFNRemoved reference to "Web Characterization Terminology & Definitions Sheet" in terminology section as this is not an active WD
20010622HFNAdded revised glossary
20010622HFNAdded example 0 to section 1.3 and slightly modified text for example 1 and 2 to make it clear that HTTP is used as a protocol binding
20010622MJGAdded http://example.com/... to list of application/context specific URIs in section 1.2
20010622MJGUpdated examples in section 4.1.1 to be encodingStyle attributes rather than just the values of attributes
20010622MJGAdded table.norm, td.normitem and td.normtext styles to stylesheet. Used said styles for table of fault code values in section 4.4.1
20010622MJGIn Appendix C, changed upgrade element to Upgrade and env to envelope. Made envelope unqualified. Updated schema document to match.
20010622MJGMoved MisunderstoodHeader from envelope schema into separate faults schema. Removed entry in envelope schema change table in Appendix D.2 that referred to addition of said element. Modified example in section 4.4.2 to match. Added reference to schema document to section 4.4.2
20010622MJHAdded binding as a component of SOAP in introduction. Fixed a couple of typos and updated a couple of example captions.
20010622MJGMade BNF in section 6.1.1 into a table.
20010622MJGMade BNFs in section 5.1 clause 8 into tables. Added associated 'bnf' style for table and td elements to stylesheet
20010622MJGAmended text regarding namespace prefix mappings in section 1.2
20010622MJGAdded link to schema for the http://www.w3.org/2001/06/soap-upgrade namespace to Appendix C. Updated associated ednote.
20010622MJGAdded reference numbers for XML Schema Recommendation to text prior to schema change tables in Appendix D.2 and linked said numbers to local references in this document
20010622MJGReordered entries in schema change classification table in Appendix D.2
20010622MJGChanged type of mustUnderstand and root attributes to standard boolean and updated schema change tables in Appendix D.2 accordingly
20010622JJMManually numbered all the examples (53 in total!)
20010622JJMAdded caption text to all the examples
20010622JJMReplaced remaining occurrences of SOAP/1.2 with SOAP Version 1.2 (including <title>)
20010621HFNAdded ednote to section 4.2.2 and 4.2.3 that we know they have to be incorporated with section 2
20010621HFNAdded version transition appendix C
20010621HFNApplied new styles to examples
20010621HFNChanged term "transport" to "underlying protocol"
20010621HFNChanged example URNs to URLs of the style http://example.org/...
20010621MJHUpdated the Acknowledgements section.
20010621JJMAdded new style sheet definitions (from XML Schema) for examples, and used them for example 1 and 2.
20010621JJMIncorporated David Fallsides comments on section Status and Intro sections.
20010620HFNChanged the status section
20010620HFNChanged title to SOAP Version 1.2 and used that first time in abstract and in body
20010620HFNRemoved question from section 2.4 as this is an issue and is to be listed in the issues list
20010620HFNMoved change log to appendix
20010615JJMRenamed default actor to anonymous actor for now (to be consistent)
20010615JJMFixed typos in section 2
20010614JJMUpdated section 2 to adopt the terminology used elsewhere in the spec.
20010613MJHUpdated mustUnderstand fault text with additions from Martin Gudgin.
20010613MJHAdded schema changes appendix from Martin Gudgin.
20010613MJHAdded mustUnderstand fault text from Glen Daniels.
20010612MJHFixed document <title>.
20010612MJHMoved terminology subsection from message exchange model section to introduction section.
20010612MJHFixed capitalisation errors by replacing "... A SOAP ..." with "... a SOAP ..." where appropriate.
20010612MJHRemoved trailing "/" from encoding namespace URI.
20010612MJHFixed links under namespace URIs to point to W3C space instead of schemas.xmlsoap.org.
20010612MJHRemoved some odd additional links with text of "/" pointing to the encoding schema following the text of the encoding namespace URI in several places.
20010611MJHIncorporated new text for section 2.
20010611JJMChanged remaining namespaces, in particular next.
20010609JJMChanged the spec name from XMLP/SOAP to SOAP.
20010609JJMChanged the version number from 1.1 to 1.2.
20010609JJMChanged the namespaces from http://schemas.xmlsoap.org/soap/ to http://www.w3.org/2001/06/soap-.
20010609JJMReplaced the remaining XS and XE prefixes to env and enc, respectively.
20010601MJHUpdated the examples in section 1, 6 and appendix A with text suggested by Martin Gudgin to comply with XML Schema Recommendation.
20010601JJMUpdated the examples in section 4 and 5 with text suggested by Martin Gudgin, to comply with XML Schema Recommendation.
20010531HFNRemoved appendices C and D and added links to live issues list and separate schema files.
20010531MJHAdded this change log and updated schemas in appendix C to comply with XML Schema Recommendation.

E.2 XML Schema Changes

The encoding schema has been updated to be compliant with the XML Schema Recomendation[4][5]. The table below shows the categories of change.

Table 20: Schema Change Categorisation
ClassMeaning
AdditionNew constructs have been added to the schema
ClarificationThe meaning of the schema has been changed to more accurately match the specification
ChangeThe schema has been changed due to a change in the specification
DeletionConstructs have been removed from the schema
NameThe schema has been changed due to a datatype name change in the XML Schema specification
NamespaceA namespace name has been changed
SemanticThe meaning of the schema has been changed
StyleStyle changes have been made to the schema
SyntaxThe syntax of the schema has been updated due to changes in the XML Schema specification

The table below lists the changes to the encoding schema.

Table 21: Changes to Encoding Schema
ClassDescription
NamespaceUpdated to use the http://www.w3.org/2001/XMLSchema namespace
NamespaceValue of targetNamespace attribute changed to http://www.w3.org/2001/06/soap-encoding
SemanticChanged type of the root attribute from restriction of boolean that only allowed 0 or 1 as lexical values to the standard boolean in the http://www.w3.org/2001/XMLSchema namespace. The lexical forms 0, 1, false, true are now allowed.
AdditionAdded processContents="lax" to all element and attribute wildcards
SyntaxChanged base64 simple type to be a vacuous restriction of the base64Binary type in the http://www.w3.org/2001/XMLSchema namespace
SyntaxUpdated all complex type definitions with simple base types to new syntax
SyntaxAdded <xs:sequence> to all complex type definitions derived implicitly from the ur-type
SyntaxAdded <xs:sequence> to all named model group definitions
DeletionRemoved the timeDuration datatype
AdditionAdded duration datatype derived by extension from the duration datatype in the http://www.w3.org/2001/XMLSchema namespace.
DeletionRemoved the timeInstant datatype
AdditionAdded dateTime datatype derived by extension from the dateTime datatype in the http://www.w3.org/2001/XMLSchema namespace.
AdditionAdded gYearMonth datatype derived by extension from the gYearMonth datatype in the http://www.w3.org/2001/XMLSchema namespace.
AdditionAdded gYear datatype derived by extension from the gYear datatype in the http://www.w3.org/2001/XMLSchema namespace.
AdditionAdded gMonthDay datatype derived by extension from the gMonthDay datatype in the http://www.w3.org/2001/XMLSchema namespace.
AdditionAdded gDay datatype derived by extension from the gDay datatype in the http://www.w3.org/2001/XMLSchema namespace.
AdditionAdded gDay datatype derived by extension from the gDay datatype in the http://www.w3.org/2001/XMLSchema namespace.
DeletionRemoved the binary datatype
AdditionAdded hexBinary datatype derived by extension from the hexBinary datatype in the http://www.w3.org/2001/XMLSchema namespace.
AdditionAdded base64Binary datatype derived by extension from the base64Binary datatype in the http://www.w3.org/2001/XMLSchema namespace.
DeletionRemoved the uriReference datatype
AdditionAdded anyURI datatype derived by extension from the anyURI datatype in the http://www.w3.org/2001/XMLSchema namespace.
AdditionAdded normalizedString datatype derived by extension from the normalizedString datatype in the http://www.w3.org/2001/XMLSchema namespace.
AdditionAdded token datatype derived by extension from the token datatype in the http://www.w3.org/2001/XMLSchema namespace.
ClarificationAdded explicit namespace="##any" to all element and attribute wildcards which did not previously have an explicit namespace attribute
StyleWhere possible comments have been changed into annotations
AdditionAdded element declaration for anyType
DeletionRemoved the ur-type element declaration and complexType definition
DeletionRemoved the NOTATION element declaration and complexType definition
DeletionRemoved global attribute declarations for attributes associated with sparse arrays.
AdditionAdded arraySize global attribute decl and associated type definitions
AdditionAdded itemType global attribute decl
ChangeAmended arrayAttribute attribute group removing sparse array attributes and adding arraySize and itemType attributes.
ChangeChanged arraySize type to allow nonNegativeIntegers instead of positiveIntegers
